Sayfa 3-41 - Isuzu EPC

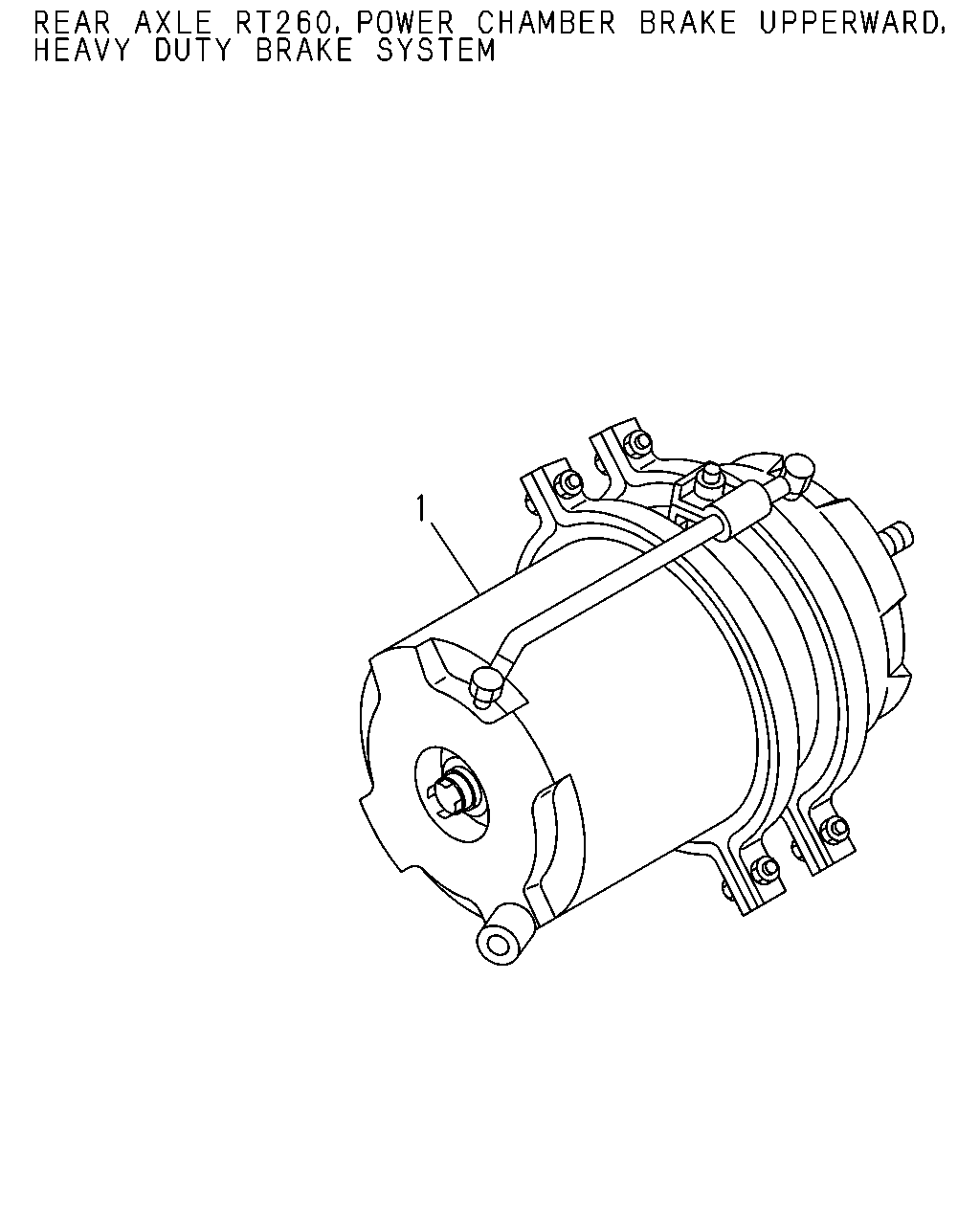

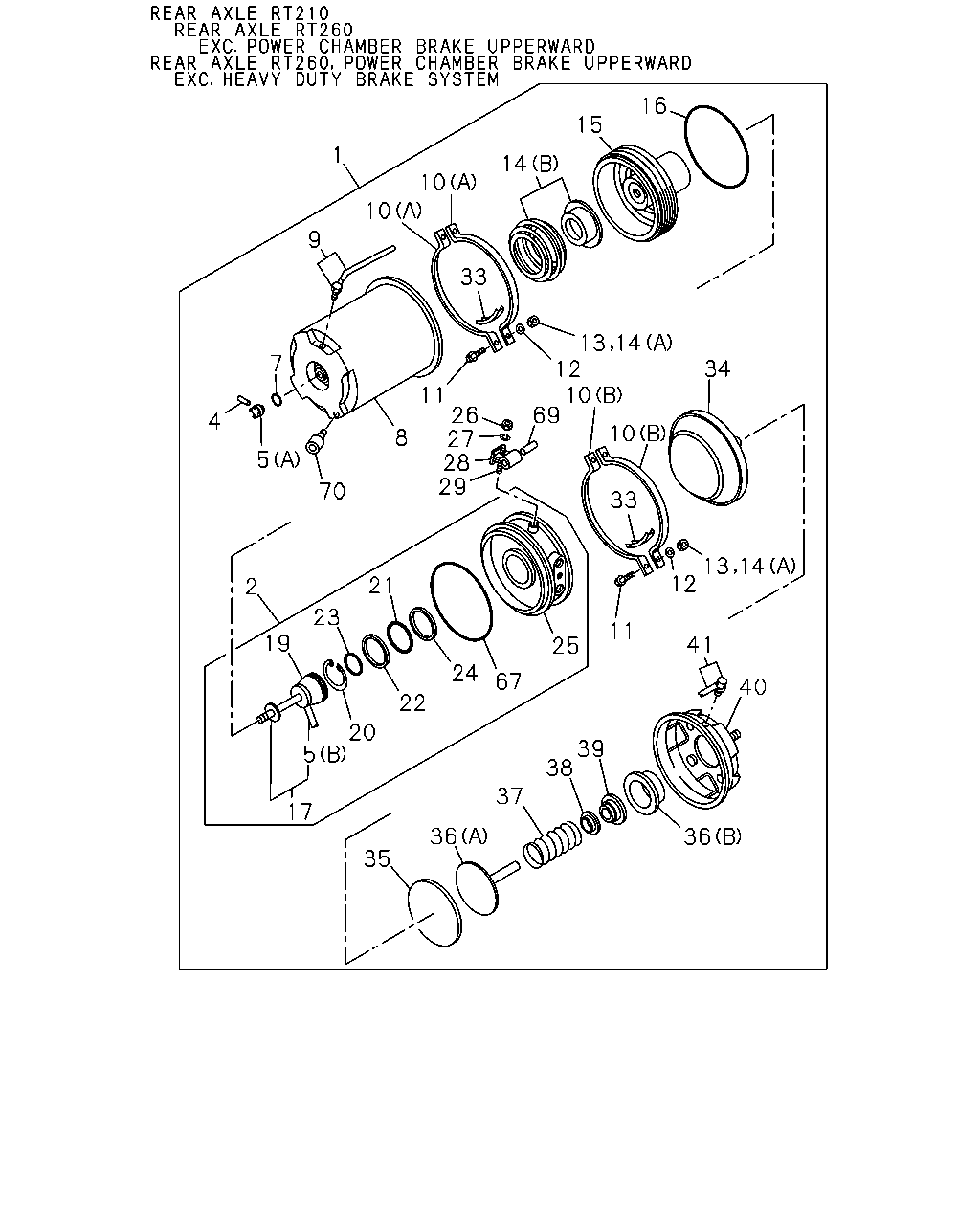

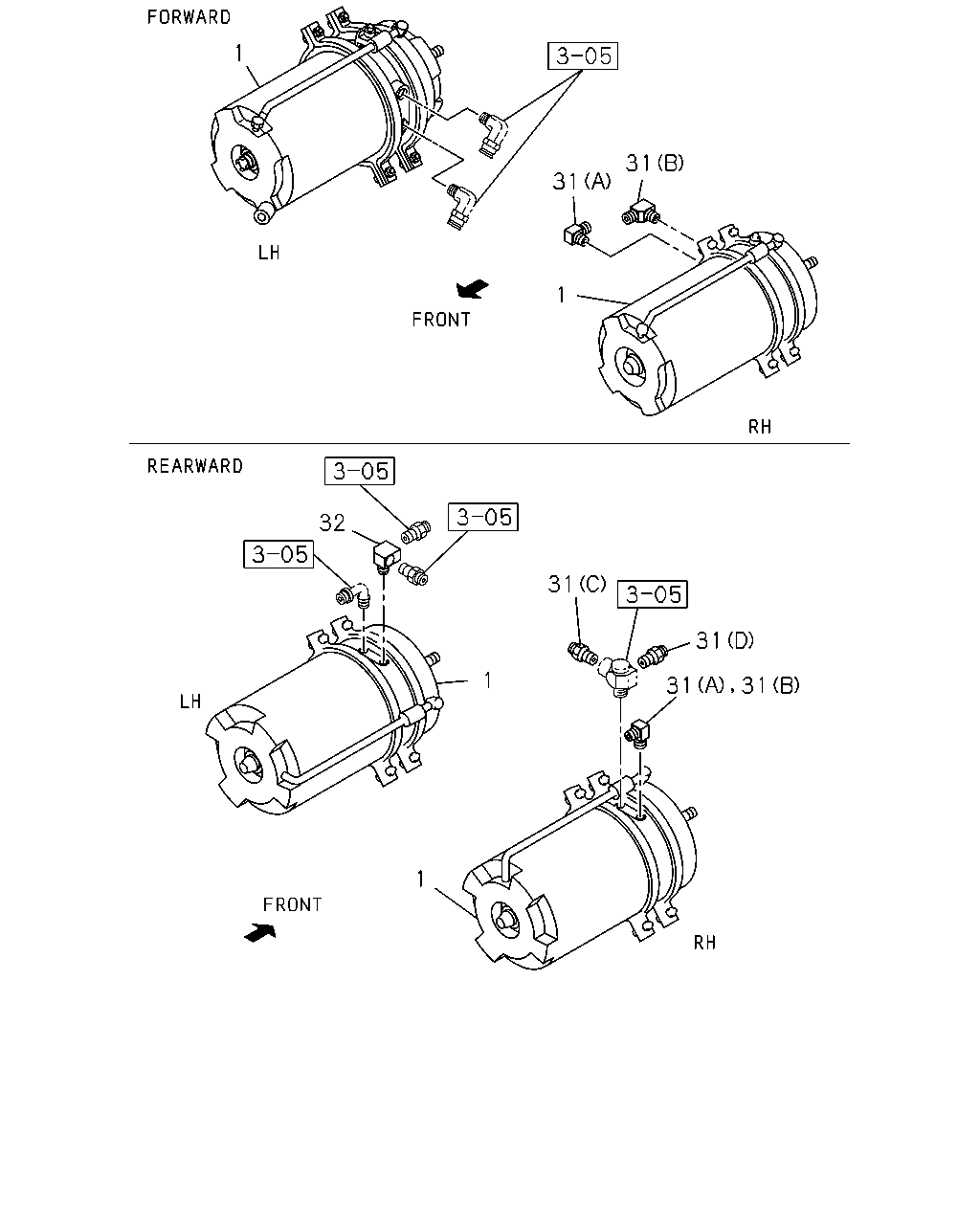

3-41 — REAR BRAKE POWER CHAMBER (#27728) — 451 parça

16 15 1 14 10 10 9 33 12 10 69 7 34 11 26 27 28 29 4 10 8 5 70 33 14 12 21 2 23 11 19 41 25 24 67 40 22 20 5 39 38 37 17 36 36 35 13 13 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING REAR AXLE RT210<C2A> REARWARD	1-48250-249-1	01	1	0105-0302
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-249-1	01	1	0105-0302
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48250-249-2	01	1	0303-
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-249-2	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT210<C2A> REARWARD	1-48250-248-1	01	1	0105-0302
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-248-1	01	1	0105-0302
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48250-248-2	01	1	0303-
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-248-2	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48250-177-2	01	1	0105-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-177-2	01	1	0105-
1	CHAMBER ASM; SPRING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48250-176-2	01	1	0105-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-176-2	01	1	0105-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-253-1	01	1	0105-0302
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-253-2	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-252-1	01	1	0105-0302
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-252-2	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-181-1	01	1	0105-0302
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-180-1	01	1	0105-0302
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-181-1	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-180-1	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48250-181-1	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48250-180-1	01	1	0303-
2	CHAMBER; EMERGENCY REAR AXLE RT210<C2A> REARWARD	1-48252-040-0	01	1	0105-0302
2	CHAMBER; EMERGENCY REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48252-040-0	01	1	0105-0302
2	CHAMBER; EMERGENCY POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48252-040-0	01	1	0303-0402
2	CHAMBER; EMERGENCY POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48252-040-0	01	1	0303-0402
2	CHAMBER; EMERGENCY REAR AXLE RT210<C2A> REARWARD	1-48252-039-0	01	1	0105-0302
2	CHAMBER; EMERGENCY REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48252-039-0	01	1	0105-0302
2	CHAMBER; EMERGENCY POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48252-039-0	01	1	0303-0402
2	CHAMBER; EMERGENCY POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48252-039-0	01	1	0303-0402
2	CHAMBER; EMERGENCY POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48252-033-0	01	1	0403-
2	CHAMBER; EMERGENCY POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48252-033-0	01	1	0403-
2	CHAMBER; EMERGENCY REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48252-021-0	01	1	0105-
2	CHAMBER; EMERGENCY REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48252-021-0	01	1	0105-
2	CHAMBER; EMERGENCY REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48252-020-0	01	1	0105-
2	CHAMBER; EMERGENCY REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48252-020-0	01	1	0105-
2	CHAMBER; EMERGENCY REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48252-019-0	01	1	0105-0302
2	CHAMBER; EMERGENCY REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48252-018-0	01	1	0105-0302
2	CHAMBER; EMERGENCY REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48252-019-0	01	1	0303-
2	CHAMBER; EMERGENCY REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48252-018-0	01	1	0303-
2	CHAMBER; EMERGENCY REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48252-019-0	01	1	0303-
2	CHAMBER; EMERGENCY REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48252-018-0	01	1	0303-
2	CHAMBER; EMERGENCY POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48252-031-0	01	1	0403-
2	CHAMBER; EMERGENCY POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48252-031-0	01	1	0403-
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	04	1	0105-0302
4	PIN; STRAIGHT,SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-056-0	04	1	0105-0302
4	PIN; STRAIGHT,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-056-0	04	1	0105-0302
4	PIN; STRAIGHT,SPR CHAMBER FORWARD	1-48259-056-0	04	1	0303-
4	PIN; STRAIGHT,SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48259-056-0	04	1	0303-
4	PIN; STRAIGHT,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-056-0	04	1	0303-
4	PIN; STRAIGHT,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-056-0	04	1	0303-
5	NUT; SHELL (A)	1-48259-054-0	02	1	0105-0302
5	NUT; SHELL REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-48259-054-0	02	1	0105-0302
5	NUT; SHELL REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-48259-054-0	02	1	0105-0302
5	NUT; SHELL (B)	1-48259-074-0	02	1	0105-0302
5	NUT; SHELL REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-48259-074-0	02	1	0105-0302
5	NUT; SHELL REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-48259-074-0	02	1	0105-0302
5	NUT; SHELL (A) FORWARD	1-48259-054-0	02	1	0303-
5	NUT; SHELL (B) FORWARD	1-48259-074-0	02	1	0303-
5	NUT; SHELL REAR AXLE RT210<C2A> (A) REARWARD	1-48259-054-0	02	1	0303-
5	NUT; SHELL REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-48259-054-0	02	1	0303-
5	NUT; SHELL REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A) REARWARD	1-48259-054-0	02	1	0303-
5	NUT; SHELL REAR AXLE RT210<C2A> (B) REARWARD	1-48259-074-0	02	1	0303-
5	NUT; SHELL REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD	1-48259-074-0	02	1	0303-
5	NUT; SHELL REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B) REARWARD	1-48259-074-0	02	1	0303-
7	GASKET POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-09623-095-0	01	1	0403-
7	GASKET POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-09623-095-0	01	1	0403-
7	GASKET POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48259-055-0	01	1	0403-
7	GASKET POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-055-0	01	1	0403-
7	GASKET	1-48259-055-0	02	1	0105-0302
7	GASKET REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-055-0	02	1	0105-0302
7	GASKET REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-055-0	02	1	0105-0302
7	GASKET INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD	1-48259-055-0	02	1	0403-
7	GASKET REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48259-055-0	02	1	0403-
7	GASKET REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-055-0	02	1	0403-
7	GASKET REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-055-0	02	1	0403-
7	GASKET FORWARD	1-48259-055-0	02	1	0303-0402
7	GASKET REAR AXLE RT210<C2A> REARWARD	1-48259-055-0	02	1	0303-0402
7	GASKET REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-055-0	02	1	0303-0402
7	GASKET REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-055-0	02	1	0303-0402
8	SHELL; CYL,SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48251-043-0	02	1	0105-0302
8	SHELL; CYL,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48251-043-0	02	1	0105-0302
8	SHELL; CYL,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48251-043-0	02	1	0303-
8	SHELL; CYL,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48251-043-0	02	1	0303-
8	SHELL; CYL,SPR CHAMBER REAR AXLE RT260<C2B> FORWARD	1-48259-070-0	01	1	0105-0302
8	SHELL; CYL,SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48259-070-0	01	1	0105-0302
8	SHELL; CYL,SPR CHAMBER REAR AXLE RT260<C2B> FORWARD	1-48259-069-0	01	1	0105-0302
8	SHELL; CYL,SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48259-069-0	01	1	0105-0302
8	SHELL; CYL,SPR CHAMBER REAR AXLE RT260<C2B> FORWARD	1-48259-070-0	01	1	0303-
8	SHELL; CYL,SPR CHAMBER REAR AXLE RT260<C2B> FORWARD	1-48259-069-0	01	1	0303-
8	SHELL; CYL,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-070-0	01	1	0303-
8	SHELL; CYL,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-069-0	01	1	0303-
9	PIPE ASM; SHELL	1-48259-076-0	02	1	0105-0302
9	PIPE ASM; SHELL REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-076-0	02	1	0105-0302
9	PIPE ASM; SHELL REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-076-0	02	1	0105-0302
9	PIPE ASM; SHELL FORWARD	1-48259-076-0	02	1	0303-
9	PIPE ASM; SHELL REAR AXLE RT210<C2A> REARWARD	1-48259-076-0	02	1	0303-
9	PIPE ASM; SHELL REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-076-0	02	1	0303-
9	PIPE ASM; SHELL REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-076-0	02	1	0303-
10	RING; CLAMP,SPR CHAMBER EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-48259-016-0	04	1	0105-0302
10	RING; CLAMP,SPR CHAMBER EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-48259-016-0	04	1	0105-0302
10	RING; CLAMP,SPR CHAMBER REAR AXLE RT210<C2A> (A)	1-48259-016-0	04	1	0303-
10	RING; CLAMP,SPR CHAMBER REAR AXLE RT210<C2A> (A)	1-48259-016-0	04	1	0303-
10	RING; CLAMP,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-48259-016-0	04	1	0303-
10	RING; CLAMP,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-48259-016-0	04	1	0303-
10	RING; CLAMP,SPR CHAMBER EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-48259-031-0	04	1	0105-0302
10	RING; CLAMP,SPR CHAMBER EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-48259-031-0	04	1	0105-0302
10	RING; CLAMP,SPR CHAMBER REAR AXLE RT210<C2A> (B)	1-48259-031-0	04	1	0303-
10	RING; CLAMP,SPR CHAMBER REAR AXLE RT210<C2A> (B)	1-48259-031-0	04	1	0303-
10	RING; CLAMP,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-48259-031-0	04	1	0303-
10	RING; CLAMP,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-48259-031-0	04	1	0303-
10	RING; CLAMP,SPR CHAMBER REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-48259-016-0	08	1	0105-0302
10	RING; CLAMP,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) (A) FORWARD	1-48259-016-0	08	1	0303-
10	RING; CLAMP,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-48259-016-0	08	1	0303-
11	BOLT; CLAMP RING	1-48259-035-0	08	1	0105-0302
11	BOLT; CLAMP RING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-035-0	08	1	0105-0302
11	BOLT; CLAMP RING REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-035-0	08	1	0105-0302
11	BOLT; CLAMP RING FORWARD	1-48259-035-0	08	1	0303-
11	BOLT; CLAMP RING REAR AXLE RT210<C2A> REARWARD	1-48259-035-0	08	1	0303-
11	BOLT; CLAMP RING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-035-0	08	1	0303-
11	BOLT; CLAMP RING REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-035-0	08	1	0303-
12	WASHER; LK,CLAMP RING REAR AXLE RT210<C2A> REARWARD ID=10.2	9-09150-510-0	08	1	0105-0302
12	WASHER; LK,CLAMP RING REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD ID=10.2	9-09150-510-0	08	1	0105-0302
12	WASHER; LK,CLAMP RING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD ID=10.2	9-09150-510-0	08	1	0303-
12	WASHER; LK,CLAMP RING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD ID=10.2	9-09150-510-0	08	1	0303-
12	WASHER; LK,CLAMP RING REAR AXLE RT260<C2B> FORWARD	1-48259-046-0	08	1	0105-0302
12	WASHER; LK,CLAMP RING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48259-046-0	08	1	0105-0302
12	WASHER; LK,CLAMP RING REAR AXLE RT260<C2B> FORWARD	1-48259-046-0	08	1	0303-
12	WASHER; LK,CLAMP RING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-046-0	08	1	0303-
13	NUT; CLAMP RING REAR AXLE RT210<C2A> REARWARD M10	9-09110-510-0	04	1	0105-0302
13	NUT; CLAMP RING REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD M10	9-09110-510-0	04	1	0105-0302
13	NUT; CLAMP RING REAR AXLE RT260<C2B> FORWARD M10	9-09110-510-0	08	1	0105-0302
13	NUT; CLAMP RING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD M10	9-09110-510-0	08	1	0105-0302
13	NUT; CLAMP RING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> FORWARD M10	9-09110-510-0	04	1	0303-0402
13	NUT; CLAMP RING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD M10	9-09110-510-0	04	1	0303-0402
13	NUT; CLAMP RING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> FORWARD M10	9-09110-510-0	04	1	0403-
13	NUT; CLAMP RING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD M10	9-09110-510-0	04	1	0403-
13	NUT; CLAMP RING REAR AXLE RT260<C2B> FORWARD M10	9-09110-510-0	08	1	0303-
13	NUT; CLAMP RING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M10	9-09110-510-0	08	1	0303-
14	SPRING & SEAT SET (B)	1-48259-037-0	02	1	0105-0302
14	SPRING & SEAT SET REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-48259-037-0	02	1	0105-0302
14	SPRING & SEAT SET REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-48259-037-0	02	1	0105-0302
14	SPRING & SEAT SET REAR AXLE RT210<C2A> (A) REARWARD LH	8-83315-080-0	04	1	0105-0302
14	SPRING & SEAT SET REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A) REARWARD LH	8-83315-080-0	04	1	0105-0302
14	SPRING & SEAT SET POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> (A) REARWARD LH	8-83315-080-0	04	1	0303-
14	SPRING & SEAT SET POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A) REARWARD LH	8-83315-080-0	04	1	0303-
14	SPRING & SEAT SET (B) FORWARD	1-48259-037-0	02	1	0303-
14	SPRING & SEAT SET REAR AXLE RT210<C2A> (B) REARWARD	1-48259-037-0	02	1	0303-
14	SPRING & SEAT SET REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD	1-48259-037-0	02	1	0303-
14	SPRING & SEAT SET REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B) REARWARD	1-48259-037-0	02	1	0303-
15	PISTON	1-48262-005-0	02	1	0105-0302
15	PISTON REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48262-005-0	02	1	0105-0302
15	PISTON REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48262-005-0	02	1	0105-0302
15	PISTON FORWARD	1-48262-005-0	02	1	0303-
15	PISTON REAR AXLE RT210<C2A> REARWARD	1-48262-005-0	02	1	0303-
15	PISTON REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48262-005-0	02	1	0303-
15	PISTON REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48262-005-0	02	1	0303-
16	GASKET	1-48259-048-0	02	1	0105-0302
16	GASKET REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-048-0	02	1	0105-0302
16	GASKET REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-048-0	02	1	0105-0302
16	GASKET FORWARD	1-48259-048-0	02	1	0303-
16	GASKET REAR AXLE RT210<C2A> REARWARD	1-48259-048-0	02	1	0303-
16	GASKET REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-048-0	02	1	0303-
16	GASKET REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-048-0	02	1	0303-
17	BOLT ASM; EMERGENCY	1-48259-073-0	02	1	0105-0302
17	BOLT ASM; EMERGENCY REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-073-0	02	1	0105-0302
17	BOLT ASM; EMERGENCY REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-073-0	02	1	0105-0302
17	BOLT ASM; EMERGENCY FORWARD	1-48259-073-0	02	1	0303-
17	BOLT ASM; EMERGENCY REAR AXLE RT210<C2A> REARWARD	1-48259-073-0	02	1	0303-
17	BOLT ASM; EMERGENCY REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-073-0	02	1	0303-
17	BOLT ASM; EMERGENCY REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-073-0	02	1	0303-
19	COVER; PISTON	1-48269-011-0	02	1	0105-0302
19	COVER; PISTON REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48269-011-0	02	1	0105-0302
19	COVER; PISTON REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48269-011-0	02	1	0105-0302
19	COVER; PISTON FORWARD	1-48269-011-0	02	1	0303-
19	COVER; PISTON REAR AXLE RT210<C2A> REARWARD	1-48269-011-0	02	1	0303-
19	COVER; PISTON REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48269-011-0	02	1	0303-
19	COVER; PISTON REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48269-011-0	02	1	0303-
20	RING; RET	1-48259-060-0	02	1	0105-0302
20	RING; RET REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-060-0	02	1	0105-0302
20	RING; RET REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-060-0	02	1	0105-0302
20	RING; RET FORWARD	1-48259-060-0	02	1	0303-
20	RING; RET REAR AXLE RT210<C2A> REARWARD	1-48259-060-0	02	1	0303-
20	RING; RET REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-060-0	02	1	0303-
20	RING; RET REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-060-0	02	1	0303-
21	GASKET; SPR CHAMBER	1-48259-049-0	02	1	0105-0302
21	GASKET; SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-049-0	02	1	0105-0302
21	GASKET; SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-049-0	02	1	0105-0302
21	GASKET; SPR CHAMBER FORWARD	1-48259-049-0	02	1	0303-
21	GASKET; SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48259-049-0	02	1	0303-
21	GASKET; SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-049-0	02	1	0303-
21	GASKET; SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-049-0	02	1	0303-
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	02	1	0105-0302
22	RING; BACKUP,SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-019-0	02	1	0105-0302
22	RING; BACKUP,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-019-0	02	1	0105-0302
22	RING; BACKUP,SPR CHAMBER FORWARD	1-48259-019-0	02	1	0303-
22	RING; BACKUP,SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48259-019-0	02	1	0303-
22	RING; BACKUP,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-019-0	02	1	0303-
22	RING; BACKUP,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-019-0	02	1	0303-
23	GASKET; SPR CHAMBER	1-48259-047-0	02	1	0105-0302
23	GASKET; SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-047-0	02	1	0105-0302
23	GASKET; SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-047-0	02	1	0105-0302
23	GASKET; SPR CHAMBER FORWARD	1-48259-047-0	02	1	0303-
23	GASKET; SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48259-047-0	02	1	0303-
23	GASKET; SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-047-0	02	1	0303-
23	GASKET; SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-047-0	02	1	0303-
24	BEARING; SPR CHAMBER	1-48259-020-0	02	1	0105-0302
24	BEARING; SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-020-0	02	1	0105-0302
24	BEARING; SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-020-0	02	1	0105-0302
24	BEARING; SPR CHAMBER FORWARD	1-48259-020-0	02	1	0303-
24	BEARING; SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48259-020-0	02	1	0303-
24	BEARING; SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-020-0	02	1	0303-
24	BEARING; SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-020-0	02	1	0303-
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48259-140-0	01	1	0105-0302
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-140-0	01	1	0105-0302
25	PLATE; PRESSURE,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48259-140-0	01	1	0303-0402
25	PLATE; PRESSURE,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-140-0	01	1	0303-0402
25	PLATE; PRESSURE,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48259-122-0	01	1	0403-
25	PLATE; PRESSURE,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-122-0	01	1	0403-
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48259-138-0	01	1	0105-0302
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-138-0	01	1	0105-0302
25	PLATE; PRESSURE,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48259-138-0	01	1	0303-0402
25	PLATE; PRESSURE,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-138-0	01	1	0303-0402
25	PLATE; PRESSURE,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48259-116-0	01	1	0403-
25	PLATE; PRESSURE,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-116-0	01	1	0403-
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48259-088-0	01	1	0105-
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-088-0	01	1	0105-
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48259-087-0	01	1	0105-
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-087-0	01	1	0105-
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-086-0	01	1	0105-0302
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-085-0	01	1	0105-0302
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-086-0	01	1	0303-
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-085-0	01	1	0303-
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-086-0	01	1	0303-
25	PLATE; PRESSURE,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-085-0	01	1	0303-
26	NUT; PRESSURE PLATE POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD M8	9-09111-508-0	04	1	0403-
26	NUT; PRESSURE PLATE POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD M8	9-09111-508-0	04	1	0403-
26	NUT; PRESSURE PLATE	1-48259-058-0	04	1	0105-0302
26	NUT; PRESSURE PLATE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-058-0	04	1	0105-0302
26	NUT; PRESSURE PLATE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-058-0	04	1	0105-0302
26	NUT; PRESSURE PLATE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48259-058-0	04	1	0403-
26	NUT; PRESSURE PLATE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-058-0	04	1	0403-
26	NUT; PRESSURE PLATE REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-058-0	04	1	0403-
26	NUT; PRESSURE PLATE REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-058-0	04	1	0403-
26	NUT; PRESSURE PLATE FORWARD	1-48259-058-0	04	1	0303-0402
26	NUT; PRESSURE PLATE REAR AXLE RT210<C2A> REARWARD	1-48259-058-0	04	1	0303-0402
26	NUT; PRESSURE PLATE REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-058-0	04	1	0303-0402
26	NUT; PRESSURE PLATE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-058-0	04	1	0303-0402
27	WASHER; PRESSURE PLATE REAR AXLE RT210<C2A> REARWARD ID=8.2	9-09150-508-0	02	1	0105-0302
27	WASHER; PRESSURE PLATE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD ID=8.2	9-09150-508-0	02	1	0105-0302
27	WASHER; PRESSURE PLATE POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD ID=8.2	9-09150-508-0	02	1	0303-
27	WASHER; PRESSURE PLATE POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD ID=8.2	9-09150-508-0	02	1	0303-
27	WASHER; PRESSURE PLATE REAR AXLE RT260<C2B> FORWARD	1-48259-057-0	02	1	0105-0302
27	WASHER; PRESSURE PLATE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48259-057-0	02	1	0105-0302
27	WASHER; PRESSURE PLATE REAR AXLE RT260<C2B> FORWARD	1-48259-057-0	02	1	0303-
27	WASHER; PRESSURE PLATE REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-057-0	02	1	0303-
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	02	1	0105-0302
28	BRACKET; PRESSURE PLATE,HOSE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-059-0	02	1	0105-0302
28	BRACKET; PRESSURE PLATE,HOSE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-059-0	02	1	0105-0302
28	BRACKET; PRESSURE PLATE,HOSE FORWARD	1-48259-059-0	02	1	0303-
28	BRACKET; PRESSURE PLATE,HOSE REAR AXLE RT210<C2A> REARWARD	1-48259-059-0	02	1	0303-
28	BRACKET; PRESSURE PLATE,HOSE REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-059-0	02	1	0303-
28	BRACKET; PRESSURE PLATE,HOSE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-059-0	02	1	0303-
29	STUD; PRESSURE PLATE	1-48259-050-0	02	1	0105-0302
29	STUD; PRESSURE PLATE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-050-0	02	1	0105-0302
29	STUD; PRESSURE PLATE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-050-0	02	1	0105-0302
29	STUD; PRESSURE PLATE FORWARD	1-48259-050-0	02	1	0303-
29	STUD; PRESSURE PLATE REAR AXLE RT210<C2A> REARWARD	1-48259-050-0	02	1	0303-
29	STUD; PRESSURE PLATE REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-050-0	02	1	0303-
29	STUD; PRESSURE PLATE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-050-0	02	1	0303-
33	RETAINER; DIAPH REAR AXLE RT210<C2A> REARWARD	1-48250-044-0	02	1	0105-0302
33	RETAINER; DIAPH REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-044-0	02	1	0105-0302
33	RETAINER; DIAPH POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48250-044-0	02	1	0303-
33	RETAINER; DIAPH POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-044-0	02	1	0303-
33	RETAINER; DIAPH REAR AXLE RT260<C2B> FORWARD	1-48259-044-0	04	1	0105-0302
33	RETAINER; DIAPH REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48259-044-0	04	1	0105-0302
33	RETAINER; DIAPH REAR AXLE RT260<C2B> FORWARD	1-48259-044-0	04	1	0303-
33	RETAINER; DIAPH REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-044-0	04	1	0303-
34	DIAPHRAGM REAR AXLE RT210<C2A> REARWARD	1-48258-011-0	02	1	0105-0302
34	DIAPHRAGM REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48258-011-0	02	1	0105-0302
34	DIAPHRAGM POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48258-011-0	02	1	0303-
34	DIAPHRAGM POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48258-011-0	02	1	0303-
34	DIAPHRAGM REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48252-011-0	02	1	0105-
34	DIAPHRAGM REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48252-011-0	02	1	0105-
34	DIAPHRAGM REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48252-010-0	02	1	0105-0302
34	DIAPHRAGM REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48252-010-0	02	1	0303-
34	DIAPHRAGM REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48252-010-0	02	1	0303-
35	PLATE; ROD END,SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48253-035-0	01	1	0105-0302
35	PLATE; ROD END,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48253-035-0	01	1	0105-0302
35	PLATE; ROD END,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48253-035-0	01	1	0303-0402
35	PLATE; ROD END,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48253-035-0	01	1	0303-0402
35	PLATE; ROD END,SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48253-029-0	01	1	0105-0302
35	PLATE; ROD END,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48253-029-0	01	1	0105-0302
35	PLATE; ROD END,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48253-029-0	01	1	0303-0402
35	PLATE; ROD END,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48253-029-0	01	1	0303-0402
35	PLATE; ROD END,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48253-029-0	02	1	0403-
35	PLATE; ROD END,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48253-029-0	02	1	0403-
35	PLATE; ROD END,SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48253-011-0	02	1	0105-
35	PLATE; ROD END,SPR CHAMBER REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48253-011-0	02	1	0105-
35	PLATE; ROD END,SPR CHAMBER REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48253-010-0	02	1	0105-0302
35	PLATE; ROD END,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48253-010-0	02	1	0303-
35	PLATE; ROD END,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48253-010-0	02	1	0303-
36	RETAINER; SPR CHAMBER (B)	1-48259-043-0	02	1	0105-0302
36	RETAINER; SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-48259-043-0	02	1	0105-0302
36	RETAINER; SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-48259-043-0	02	1	0105-0302
36	RETAINER; SPR CHAMBER EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-48259-033-0	02	1	0105-0302
36	RETAINER; SPR CHAMBER EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-48259-033-0	02	1	0105-0302
36	RETAINER; SPR CHAMBER REAR AXLE RT210<C2A> (A)	1-48259-033-0	02	1	0303-
36	RETAINER; SPR CHAMBER REAR AXLE RT210<C2A> (A)	1-48259-033-0	02	1	0303-
36	RETAINER; SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-48259-033-0	02	1	0303-
36	RETAINER; SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-48259-033-0	02	1	0303-
36	RETAINER; SPR CHAMBER (B) FORWARD	1-48259-043-0	02	1	0303-
36	RETAINER; SPR CHAMBER REAR AXLE RT210<C2A> (B) REARWARD	1-48259-043-0	02	1	0303-
36	RETAINER; SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD	1-48259-043-0	02	1	0303-
36	RETAINER; SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B) REARWARD	1-48259-043-0	02	1	0303-
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	02	1	0105-0302
37	SPRING; LWR,SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48255-003-0	02	1	0105-0302
37	SPRING; LWR,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48255-003-0	02	1	0105-0302
37	SPRING; LWR,SPR CHAMBER FORWARD	1-48255-003-0	02	1	0303-
37	SPRING; LWR,SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48255-003-0	02	1	0303-
37	SPRING; LWR,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48255-003-0	02	1	0303-
37	SPRING; LWR,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48255-003-0	02	1	0303-
38	COVER; ROD & PLATE	1-48259-066-0	02	1	0105-0302
38	COVER; ROD & PLATE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-066-0	02	1	0105-0302
38	COVER; ROD & PLATE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-066-0	02	1	0105-0302
38	COVER; ROD & PLATE FORWARD	1-48259-066-0	02	1	0303-
38	COVER; ROD & PLATE REAR AXLE RT210<C2A> REARWARD	1-48259-066-0	02	1	0303-
38	COVER; ROD & PLATE REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-066-0	02	1	0303-
38	COVER; ROD & PLATE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-066-0	02	1	0303-
39	COVER; ROD & PLATE	1-48259-065-0	02	1	0105-0302
39	COVER; ROD & PLATE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-065-0	02	1	0105-0302
39	COVER; ROD & PLATE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-065-0	02	1	0105-0302
39	COVER; ROD & PLATE FORWARD	1-48259-065-0	02	1	0303-
39	COVER; ROD & PLATE REAR AXLE RT210<C2A> REARWARD	1-48259-065-0	02	1	0303-
39	COVER; ROD & PLATE REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-065-0	02	1	0303-
39	COVER; ROD & PLATE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-065-0	02	1	0303-
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48259-139-0	01	1	0105-0302
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-139-0	01	1	0105-0302
40	COVER ASM; LWR,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48259-139-0	01	1	0303-0402
40	COVER ASM; LWR,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-139-0	01	1	0303-0402
40	COVER ASM; LWR,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48259-119-0	01	1	0403-
40	COVER ASM; LWR,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-119-0	01	1	0403-
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48259-137-0	01	1	0105-0302
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-137-0	01	1	0105-0302
40	COVER ASM; LWR,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48259-137-0	01	1	0303-0402
40	COVER ASM; LWR,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-137-0	01	1	0303-0402
40	COVER ASM; LWR,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48259-115-0	01	1	0403-
40	COVER ASM; LWR,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-115-0	01	1	0403-
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48259-082-1	01	1	0105-
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-082-1	01	1	0105-
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48259-081-1	01	1	0105-
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-081-1	01	1	0105-
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-068-1	01	1	0105-0302
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-067-1	01	1	0105-0302
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-068-1	01	1	0303-
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-067-1	01	1	0303-
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-068-1	01	1	0303-
40	COVER ASM; LWR,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-067-1	01	1	0303-
41	PIPE ASM; LWR COVER EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-080-0	02	1	0105-0302
41	PIPE ASM; LWR COVER EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-080-0	02	1	0105-0302
41	PIPE ASM; LWR COVER REAR AXLE RT210<C2A>	1-48259-080-0	02	1	0303-
41	PIPE ASM; LWR COVER REAR AXLE RT210<C2A>	1-48259-080-0	02	1	0303-
41	PIPE ASM; LWR COVER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-080-0	02	1	0303-
41	PIPE ASM; LWR COVER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-080-0	02	1	0303-
41	PIPE ASM; LWR COVER REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-075-0	02	1	0105-0302
41	PIPE ASM; LWR COVER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48259-075-0	02	1	0303-
41	PIPE ASM; LWR COVER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-075-0	02	1	0303-
67	GASKET; SPR CHAMBER	1-48259-053-0	02	1	0105-0302
67	GASKET; SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-053-0	02	1	0105-0302
67	GASKET; SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-053-0	02	1	0105-0302
67	GASKET; SPR CHAMBER FORWARD	1-48259-053-0	02	1	0303-
67	GASKET; SPR CHAMBER REAR AXLE RT210<C2A> REARWARD	1-48259-053-0	02	1	0303-
67	GASKET; SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-053-0	02	1	0303-
67	GASKET; SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-053-0	02	1	0303-
69	HOSE; PRESSURE PLATE	1-48259-051-0	02	1	0105-0302
69	HOSE; PRESSURE PLATE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-051-0	02	1	0105-0302
69	HOSE; PRESSURE PLATE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-051-0	02	1	0105-0302
69	HOSE; PRESSURE PLATE FORWARD	1-48259-051-0	02	1	0303-
69	HOSE; PRESSURE PLATE REAR AXLE RT210<C2A> REARWARD	1-48259-051-0	02	1	0303-
69	HOSE; PRESSURE PLATE REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-051-0	02	1	0303-
69	HOSE; PRESSURE PLATE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48259-051-0	02	1	0303-
70	COVER; EXH,SPR CHAMBER REAR AXLE RT210<C2A>	1-48259-052-0	01	1	0105-0302
70	COVER; EXH,SPR CHAMBER REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-052-0	01	1	0105-0302
70	COVER; EXH,SPR CHAMBER REAR AXLE RT260<C2B>	1-48259-052-0	02	1	0105-0302
70	COVER; EXH,SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48259-052-0	02	1	0105-0302
70	COVER; EXH,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A>	1-48259-052-0	01	1	0303-
70	COVER; EXH,SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-48259-052-0	01	1	0303-
70	COVER; EXH,SPR CHAMBER REAR AXLE RT260<C2B> FORWARD	1-48259-052-0	02	1	0303-
70	COVER; EXH,SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-052-0	02	1	0303-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING REAR AXLE RT210<C2A> REARWARD	1-48250-249-1	01	1	0105-0302
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-249-1	01	1	0105-0302
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48250-249-2	01	1	0303-
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-249-2	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT210<C2A> REARWARD	1-48250-248-1	01	1	0105-0302
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-248-1	01	1	0105-0302
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48250-248-2	01	1	0303-
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-248-2	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48250-177-2	01	1	0105-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-177-2	01	1	0105-
1	CHAMBER ASM; SPRING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48250-176-2	01	1	0105-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-176-2	01	1	0105-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-253-1	01	1	0105-0302
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-253-2	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-252-1	01	1	0105-0302
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-252-2	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-181-1	01	1	0105-0302
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-180-1	01	1	0105-0302
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-181-1	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-180-1	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48250-181-1	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48250-180-1	01	1	0303-

1 31 31 1 32 31 31 1 31 31 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING REAR AXLE RT210<C2A> REARWARD	1-48250-249-1	01	1	0105-0302
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-249-1	01	1	0105-0302
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48250-249-2	01	1	0303-
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-249-2	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT210<C2A> REARWARD	1-48250-248-1	01	1	0105-0302
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-248-1	01	1	0105-0302
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48250-248-2	01	1	0303-
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-248-2	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48250-177-2	01	1	0105-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-177-2	01	1	0105-
1	CHAMBER ASM; SPRING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48250-176-2	01	1	0105-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-176-2	01	1	0105-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-253-1	01	1	0105-0302
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-253-2	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-252-1	01	1	0105-0302
1	CHAMBER ASM; SPRING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48250-252-2	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-181-1	01	1	0105-0302
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-180-1	01	1	0105-0302
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-181-1	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-48250-180-1	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48250-181-1	01	1	0303-
1	CHAMBER ASM; SPRING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48250-180-1	01	1	0303-
31	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0105-0106
31	CONNECTOR REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0105-0106
31	CONNECTOR REAR AXLE RT260<C2B> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0105-0106
31	CONNECTOR REAR AXLE RT260<C2B> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0107-0302
31	CONNECTOR REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0107-0302
31	CONNECTOR (D) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	0105-0302
31	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> (D) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	0303-
31	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	0105-0106
31	CONNECTOR (C) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	0107-0302
31	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> (C) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	0303-
31	CONNECTOR REAR AXLE RT260<C2B> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0105-0302
31	CONNECTOR REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0105-0302
31	CONNECTOR REAR AXLE RT260<C2B> (B) FORWARD DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0303-
31	CONNECTOR REAR AXLE RT260<C2B> (C) FORWARD DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0303-
31	CONNECTOR REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0303-
31	CONNECTOR REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C) REARWARD DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0303-
32	CONNECTOR; SPR CHAMBER REARWARD	1-09660-697-1	01	1	0105-0302
32	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-09660-697-1	01	1	0303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
