3-26 — TRAILER CONTROL (#27725) — 82 parça

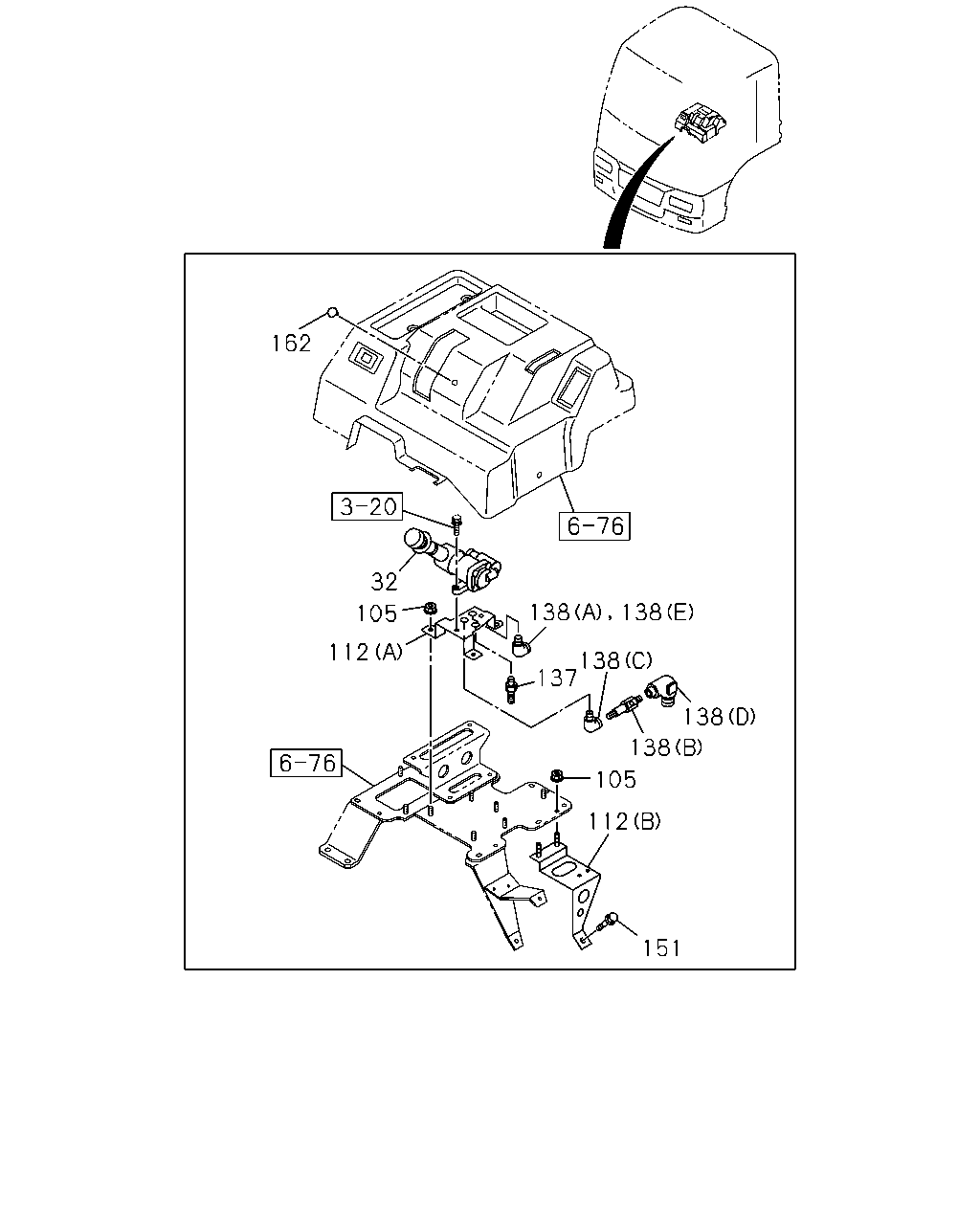

162 32 138 138 105 112 138 137 138 138 105 112 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT	1-48460-340-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	0106-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0105-
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	0105-
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79996-378-1	01	1	0105-
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0105-
138	CONNECTOR; DELIVERY (E)	1-09650-240-1	01	1	0112-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-09650-240-1	01	1	0105-0105
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	1-09656-391-2	01	1	0106-0205
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (D) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	0106-0111
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09660-880-0	01	1	0106-0111
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-0205
151	BOLT; VLV BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	0105-0211
151	BOLT; VLV BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0212-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0105-
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	0105-

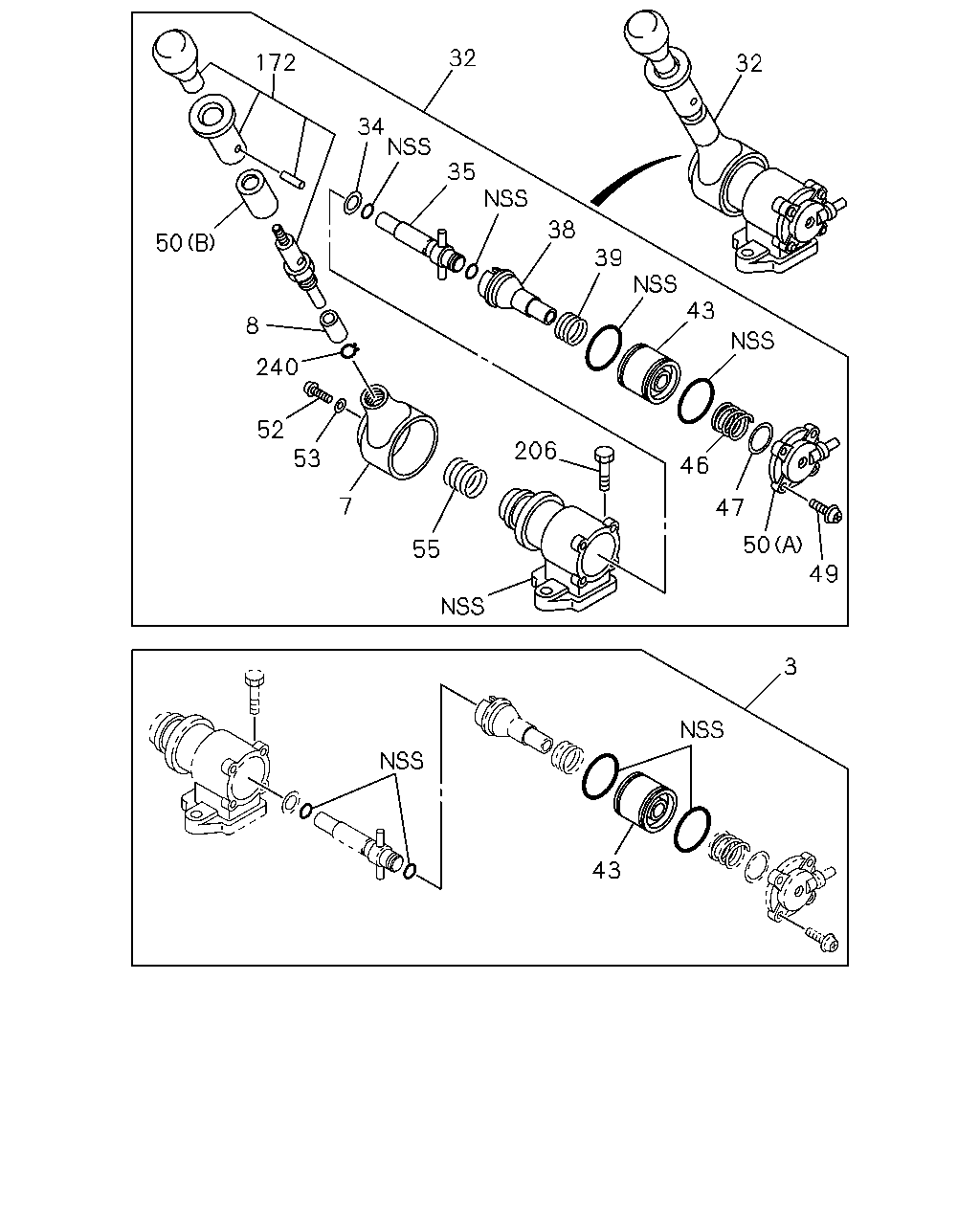

32 172 32 34 35 38 50 39 43 8 240 52 53 206 46 7 47 50 49 55 3 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV	1-85576-243-0	01	1	0105-0105
3	REPAIR KIT; HAND BRK VLV	1-48469-096-0	01	1	0106-
7	HEAD; BRK VLV	1-48469-195-0	01	1	0105-0105
8	STOPPER; BRK VLV	1-48469-194-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT	1-48460-340-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	0106-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0105-
35	HOLDER; CAM	1-48469-148-0	01	1	0105-0105
35	HOLDER; CAM	1-48469-054-0	01	1	0106-
38	SEAT; EXH VLV	1-48469-149-0	01	1	0105-0105
38	SEAT; EXH VLV	1-48469-057-0	01	1	0106-
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0105-0105
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0106-
43	PISTON; HAND BRK VLV	1-48469-151-0	01	1	0105-0105
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0106-
46	SPRING; MAIN,PISTON	1-48469-152-0	01	1	0105-0105
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	0106-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0105-
49	SCREW; COVER	1-48469-169-0	04	1	0105-0105
49	SCREW; COVER	1-48469-092-0	04	1	0106-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0105-0105
50	COVER; HAND BRK VLV (C)	1-48469-090-0	01	1	0106-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0105-0105
52	SCREW; HANDLE	1-48469-062-0	01	1	0105-
53	WASHER; HANDLE	1-48469-061-0	01	1	0105-
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0105-0105
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0106-
172	KNOB; VALVE	1-48469-204-0	01	1	0105-0105
206	BOLT; HAND BRK VALVE	1-48469-160-0	01	1	0105-0105
240	RING; STOPPER	1-48469-193-0	01	1	0105-0105

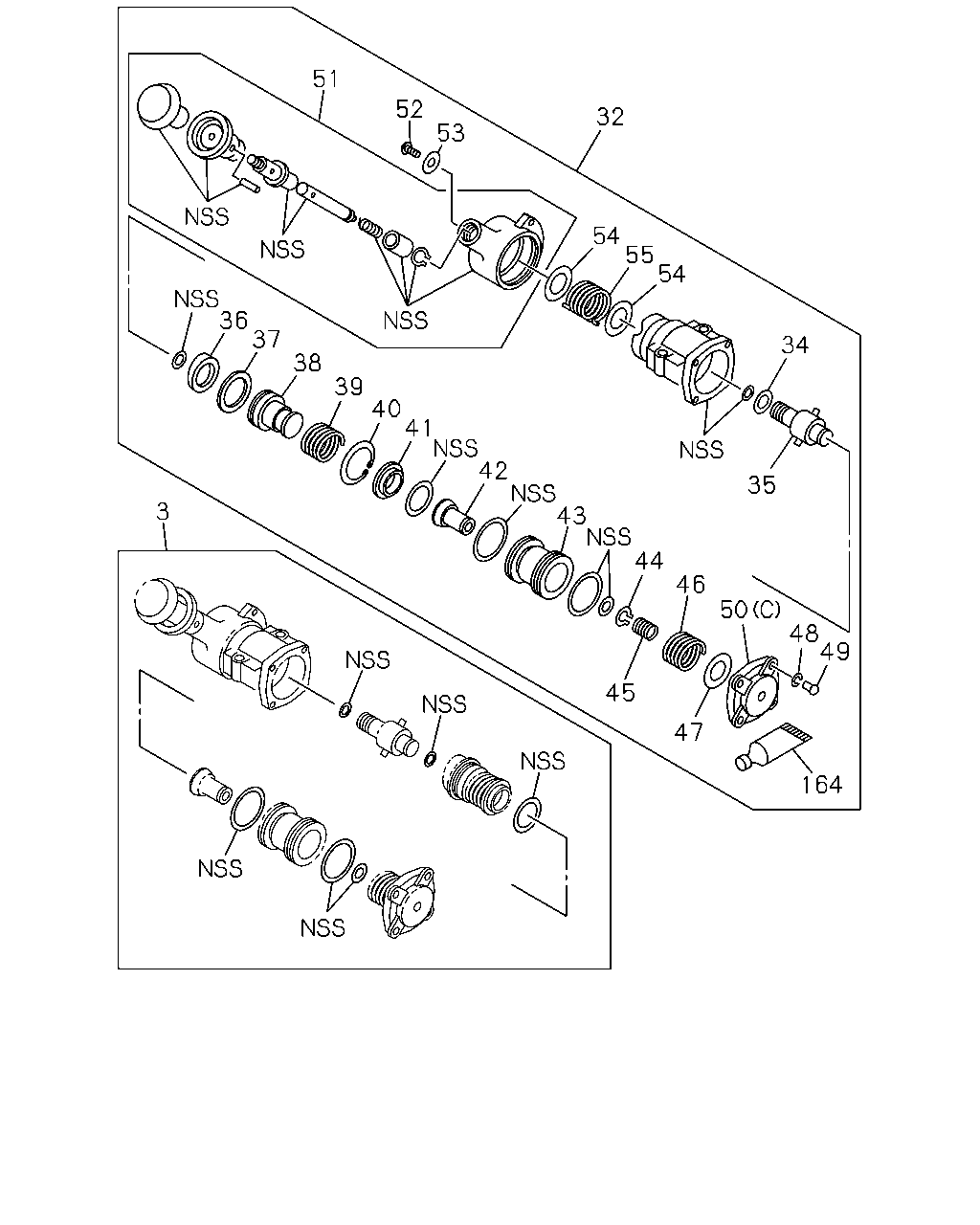

51 52 32 53 54 55 54 36 37 34 38 39 40 41 42 43 44 35 3 46 50 48 49 45 47 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV	1-85576-243-0	01	1	0105-0105
3	REPAIR KIT; HAND BRK VLV	1-48469-096-0	01	1	0106-
32	VALVE; BRK,HAND CONT	1-48460-340-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	0106-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0105-
35	HOLDER; CAM	1-48469-148-0	01	1	0105-0105
35	HOLDER; CAM	1-48469-054-0	01	1	0106-
36	RING; CAM	1-48469-056-0	01	1	0106-
37	GUIDE; CAM RING	1-48469-058-0	01	1	0106-
38	SEAT; EXH VLV	1-48469-149-0	01	1	0105-0105
38	SEAT; EXH VLV	1-48469-057-0	01	1	0106-
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0105-0105
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0106-
40	RING; SNAP	1-48469-067-0	01	1	0106-
41	SEAT; FEED VLV	1-48469-066-0	01	1	0106-
42	VALVE; FEED	1-48469-065-0	01	1	0106-
43	PISTON; HAND BRK VLV	1-48469-151-0	01	1	0105-0105
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0106-
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	0106-
45	SPRING; FEED VLV	1-48469-070-0	01	1	0106-
46	SPRING; MAIN,PISTON	1-48469-152-0	01	1	0105-0105
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	0106-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0105-
48	WASHER; COVER	1-48469-091-0	04	1	0106-
49	SCREW; COVER	1-48469-169-0	04	1	0105-0105
49	SCREW; COVER	1-48469-092-0	04	1	0106-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0105-0105
50	COVER; HAND BRK VLV (C)	1-48469-090-0	01	1	0106-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0105-0105
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	0106-
52	SCREW; HANDLE	1-48469-062-0	01	1	0105-
53	WASHER; HANDLE	1-48469-061-0	01	1	0105-
54	SEAT; SPRING	1-48469-082-0	02	1	0106-
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0105-0105
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0106-
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	0106-
