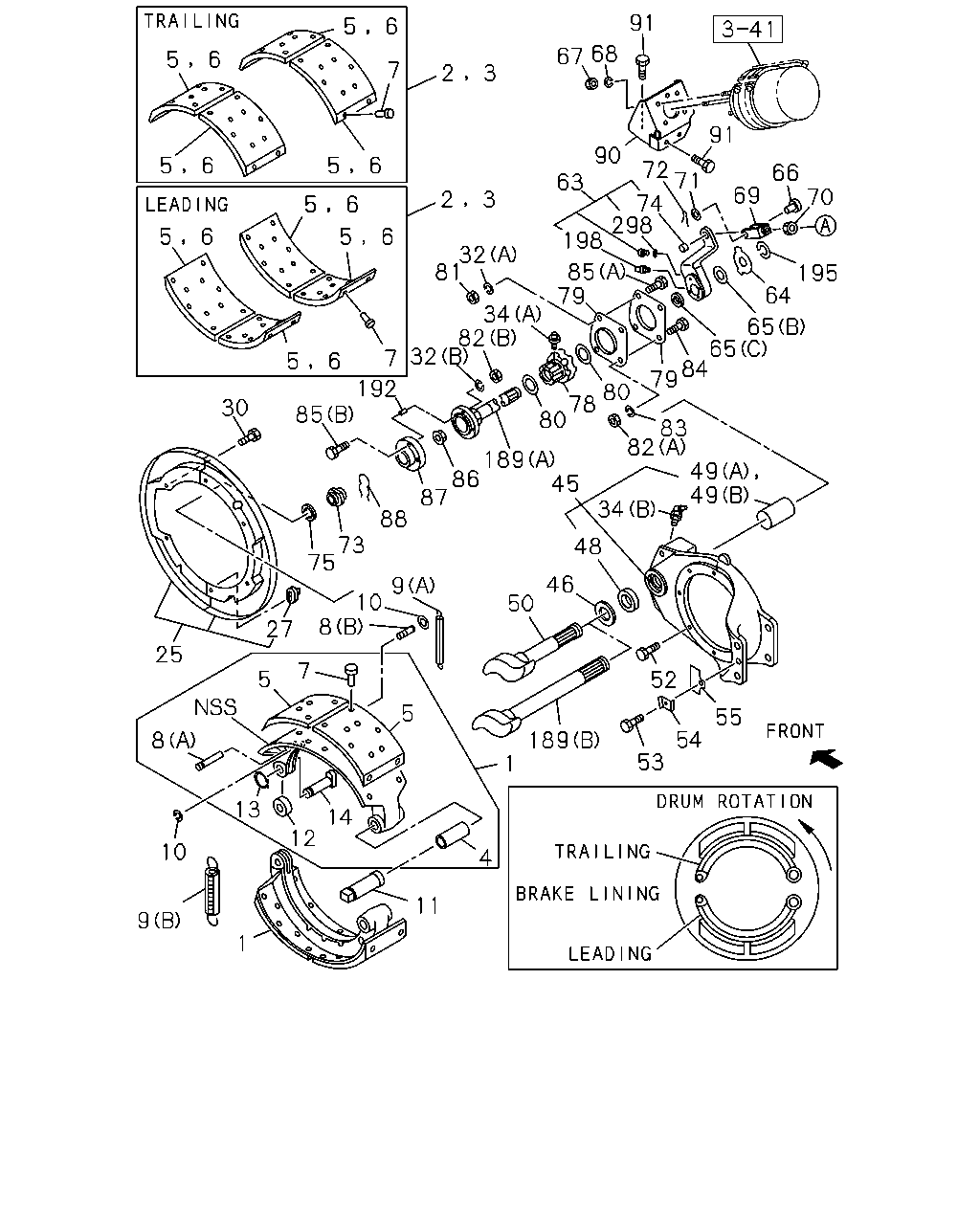

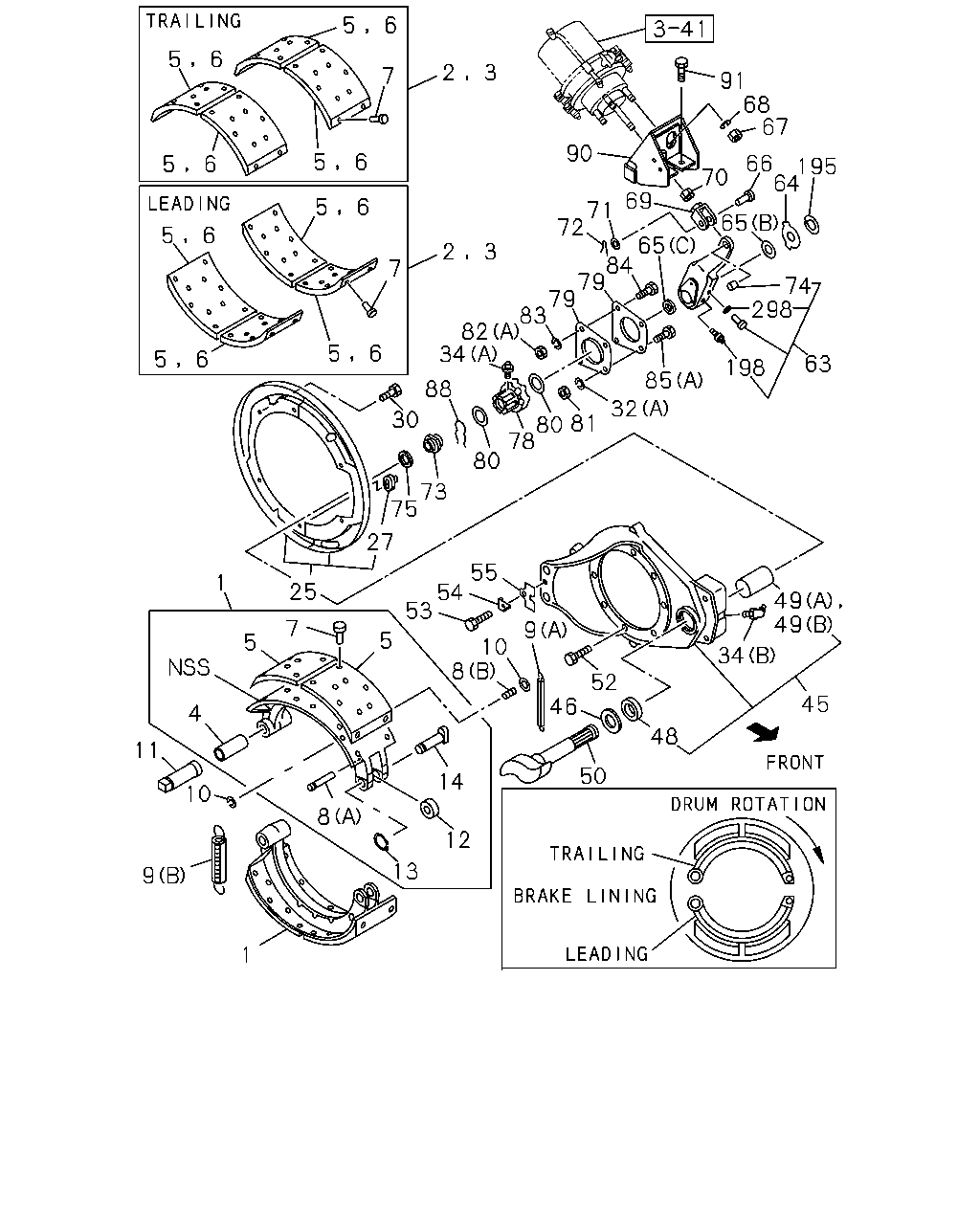

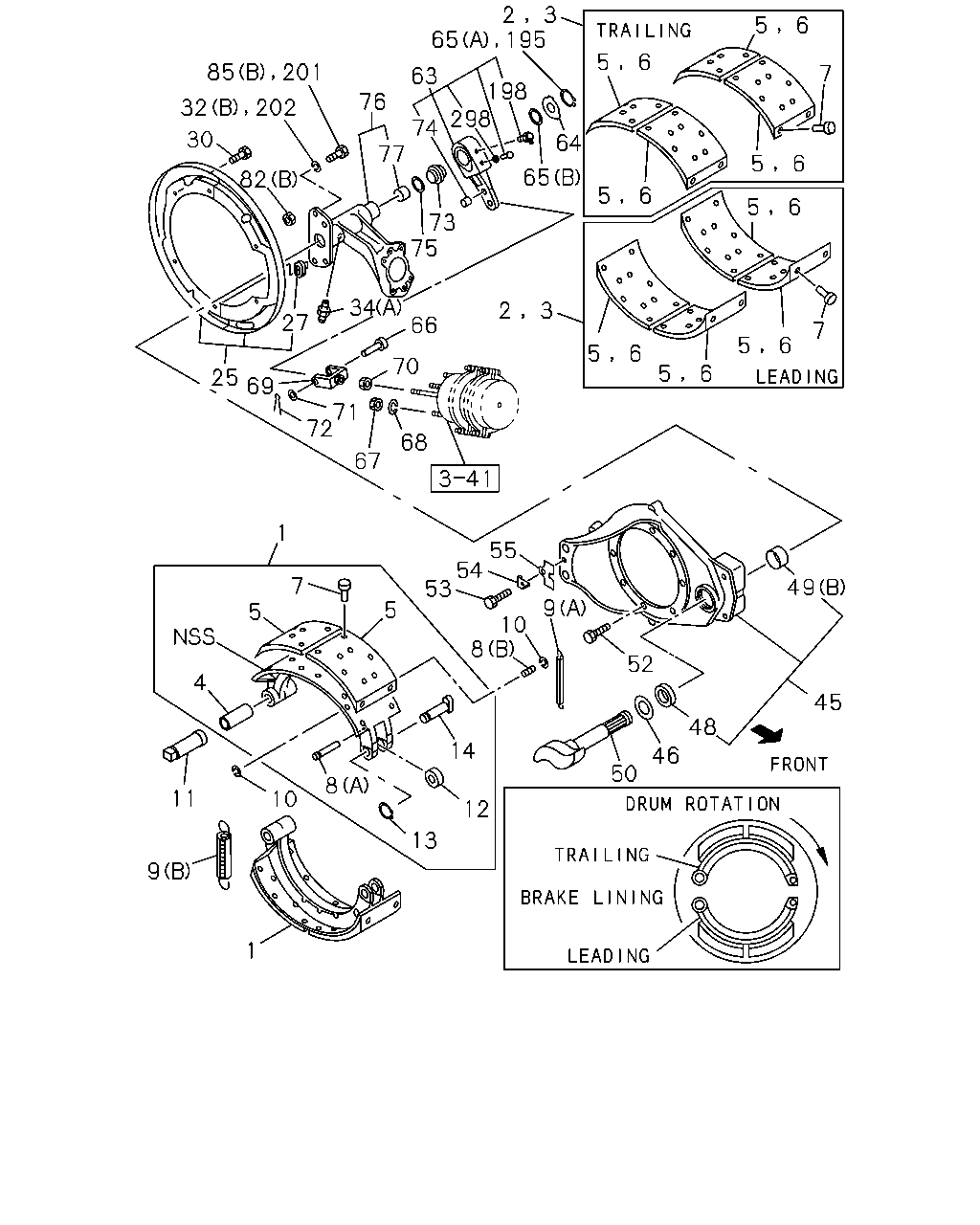

3-05 — REAR WHEEL BRAKE (#27719) — 1032 parça

195 5 6 65 5 6 7 63 198 298 76 74 77 30 64 5 6 65 82 5 6 5 6 73 75 34 66 2 3 27 7 5 6 5 6 70 5 6 25 69 71 72 68 67 1 55 54 53 7 49 9 5 5 10 8 52 4 45 48 14 46 50 8 11 10 12 13 9 1 85 201 32 202 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-715-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-715-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-716-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-716-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-713-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-713-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-714-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-714-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-773-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-773-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-067-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-067-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-771-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-771-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-066-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-066-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-521-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-521-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-523-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-523-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-577-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-577-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-898-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-898-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-522-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-522-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-524-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-524-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-578-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-578-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-899-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-899-0	01	1	0105-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0105-0302
4	BUSHING; BRK SHOE,RR WHEEL REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47112-012-0	04	1	0105-0302
4	BUSHING; BRK SHOE,RR WHEEL REAR AXLE RT260<C2B>	1-47112-012-0	04	1	0105-0302
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0303-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0303-
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-797-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-797-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-799-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-799-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING T=16	1-47125-907-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING T=16	1-47125-907-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-214-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-214-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-798-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-798-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-800-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-800-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING T=17	1-47125-908-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING T=17	1-47125-908-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-215-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-215-0	04	1	0105-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0105-0302
7	RIVET; LINING,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> L=18.5	1-09732-034-0	AR	1	0105-0302
7	RIVET; LINING,RR BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) L=18.5	1-09732-034-0	AR	1	0105-0302
7	RIVET; LINING,RR BRK REAR AXLE RT210<C2A> L=18.5	1-09732-034-0	AR	1	0303-
7	RIVET; LINING,RR BRK REAR AXLE RT210<C2A> L=18.5	1-09732-034-0	AR	1	0303-
7	RIVET; LINING,RR BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) L=18.5	1-09732-034-0	AR	1	0303-
7	RIVET; LINING,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> L=18.5	1-09732-034-0	AR	1	0303-
7	RIVET; LINING,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) L=19.5	1-09732-035-0	AR	1	0105-0302
7	RIVET; LINING,RR BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> L=19.5	1-09732-035-0	AR	1	0303-
7	RIVET; LINING,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) L=19.5	1-09732-035-0	AR	1	0303-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0105-0302
8	PIN; RETURN SPRING,RR BRK SHOE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47119-029-0	04	1	0105-0302
8	PIN; RETURN SPRING,RR BRK SHOE REAR AXLE RT260<C2B> (A)	1-47119-029-0	04	1	0105-0302
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0303-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0303-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-47119-021-0	04	1	0105-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-47119-021-0	04	1	0105-
8	PIN; RETURN SPRING,RR BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09744-074-0	04	1	0105-
8	PIN; RETURN SPRING,RR BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09744-074-0	04	1	0105-
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09583-175-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09583-175-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-09583-196-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-09583-196-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-09583-210-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-09583-210-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09583-277-2	02	1	0105-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09583-277-2	02	1	0105-
10	RING; SNAP,SPR PIN EXC. HEAVY DUTY BRAKE SYSTEM(WG3) ID=10	9-09185-410-0	08	1	0105-
10	RING; SNAP,SPR PIN EXC. HEAVY DUTY BRAKE SYSTEM(WG3) ID=10	9-09185-410-0	08	1	0105-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0105-0302
11	PIN; ANCHOR,RR WHEEL BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> L=121.5	1-47131-039-0	04	1	0105-0302
11	PIN; ANCHOR,RR WHEEL BRK REAR AXLE RT260<C2B> L=121.5	1-47131-039-0	04	1	0105-0302
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0303-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0303-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0105-0302
12	ROLLER; CAM,BRK SHOE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47113-005-0	04	1	0105-0302
12	ROLLER; CAM,BRK SHOE REAR AXLE RT260<C2B>	1-47113-005-0	04	1	0105-0302
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0303-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0303-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0105-0302
13	CLIP; ROLLER PIN,BRK SHOE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	9-47119-022-0	04	1	0105-0302
13	CLIP; ROLLER PIN,BRK SHOE REAR AXLE RT260<C2B>	9-47119-022-0	04	1	0105-0302
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0303-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0303-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0105-0302
14	PIN; CAM ROLLER,BRK SHOE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-061-0	04	1	0105-0302
14	PIN; CAM ROLLER,BRK SHOE REAR AXLE RT260<C2B>	1-09744-061-0	04	1	0105-0302
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0303-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0303-
25	COVER SET; RR BRK DRUM EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-47151-462-1	02	1	0105-
25	COVER SET; RR BRK DRUM EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-47151-462-1	02	1	0105-
25	COVER SET; RR BRK DRUM HEAVY DUTY BRAKE SYSTEM(WG3)	1-47151-487-1	02	1	0105-
25	COVER SET; RR BRK DRUM HEAVY DUTY BRAKE SYSTEM(WG3)	1-47151-487-1	02	1	0105-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0105-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0105-
30	BOLT; DRUM COVER POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M10X16 W/LK WASHER	0-50041-016-0	06	1	0304-
30	BOLT; DRUM COVER POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M10X12	1-47159-187-0	06	1	0304-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0105-0302
30	BOLT; DRUM COVER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M10X16 W/LK WASHER	0-50041-016-0	12	1	0105-0302
30	BOLT; DRUM COVER REAR AXLE RT260<C2B> M10X16 W/LK WASHER	0-50041-016-0	12	1	0105-0302
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0303-0303
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0303-0303
30	BOLT; DRUM COVER FORWARD M10X16 W/LK WASHER	0-50041-016-0	12	1	0304-
30	BOLT; DRUM COVER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M10X16 W/LK WASHER	0-50041-016-0	12	1	0304-
32	WASHER; LK (A) ID=10.2	9-09150-510-0	04	1	0105-0302
32	WASHER; LK POWER CHAMBER BRAKE UPPERWARD<C1T> (A) ID=10.2	9-09150-510-0	04	1	0303-
32	WASHER; LK (B) ID=12.2	9-09150-612-0	04	1	0105-0302
32	WASHER; LK POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=12.2	9-09150-612-0	04	1	0303-0304
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-0302
34	NIPPLE; GREASE,CHAMBER BRKT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-0302
34	NIPPLE; GREASE,CHAMBER BRKT REAR AXLE RT260<C2B> (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-0302
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0303-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0303-
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-0302
34	NIPPLE; GREASE,CHAMBER BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0303-
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47137-128-1	01	1	0305-
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	01	1	0105-0302
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47137-128-1	01	1	0303-0304
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-47137-128-1	02	1	0305-
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47137-128-1	02	1	0305-
45	BRACKET; ANCHOR PIN,W/BUSHING REAR AXLE RT260<C2B> FORWARD	1-47137-120-2	02	1	0105-0302
45	BRACKET; ANCHOR PIN,W/BUSHING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-47137-120-2	02	1	0105-0302
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	0303-
45	BRACKET; ANCHOR PIN,W/BUSHING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47137-120-2	02	1	0303-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0105-0302
46	RING; SPACER,CM/SHF,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47143-005-0	02	1	0105-0302
46	RING; SPACER,CM/SHF,RR BRK REAR AXLE RT260<C2B>	1-47143-005-0	02	1	0105-0302
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0303-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0303-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0105-0302
48	SEAL; OIL,CM/SHF,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09625-228-0	02	1	0105-0302
48	SEAL; OIL,CM/SHF,RR BRK REAR AXLE RT260<C2B>	1-09625-228-0	02	1	0105-0302
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0303-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0303-
49	BUSHING; CM/SHF,RR BRK (A)	1-47146-009-0	02	1	0105-0302
49	BUSHING; CM/SHF,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-47146-009-0	02	1	0303-
49	BUSHING; CM/SHF,RR BRK REAR AXLE RT260<C2B> (B)	1-47146-003-1	02	1	0105-0302
49	BUSHING; CM/SHF,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47146-003-1	02	1	0105-0302
49	BUSHING; CM/SHF,RR BRK (B) FORWARD	1-47146-003-1	02	1	0303-
49	BUSHING; CM/SHF,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD	1-47146-003-1	02	1	0303-
50	CAMSHAFT; BRK,RR BRK REARWARD	1-47141-066-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47141-066-0	01	1	0303-0303
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT210<C2A> REARWARD	1-47141-063-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47141-063-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-47141-063-0	01	1	0303-
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47141-063-0	01	1	0303-
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-47141-053-0	01	1	0105-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-053-0	01	1	0105-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-47141-054-0	01	1	0105-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-054-0	01	1	0105-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47141-135-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47141-135-0	01	1	0303-
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-094-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD	1-47141-094-0	01	1	0303-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-094-0	01	1	0303-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-095-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD	1-47141-095-0	01	1	0303-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-095-0	01	1	0303-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47141-053-0	01	1	0401-
50	CAMSHAFT; BRK,RR BRK FORWARD	1-47141-053-0	01	1	0401-
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47141-054-0	01	1	0401-
50	CAMSHAFT; BRK,RR BRK FORWARD	1-47141-054-0	01	1	0401-
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	0105-0302
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X43	1-09040-045-0	01	1	0303-0304
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD M14X43	1-09040-045-0	01	1	0305-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	0105-0302
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X50	1-09040-066-0	01	1	0303-0304
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD M14X50	1-09040-066-0	01	1	0305-
52	BOLT; ANCHOR BRKT REAR AXLE RT260<C2B> M14X50	1-09040-066-0	02	1	0105-0302
52	BOLT; ANCHOR BRKT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M14X50	1-09040-066-0	02	1	0105-0302
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0305-
52	BOLT; ANCHOR BRKT REAR AXLE RT210<C2A> M14X50	1-09040-066-0	02	1	0305-
52	BOLT; ANCHOR BRKT REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M14X50	1-09040-066-0	02	1	0305-
52	BOLT; ANCHOR BRKT REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) M14X50	1-09040-066-0	02	1	0305-
52	BOLT; ANCHOR BRKT FORWARD M14X50	1-09040-066-0	02	1	0303-
52	BOLT; ANCHOR BRKT REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M14X50	1-09040-066-0	02	1	0303-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0105-0302
53	BOLT; LOCK PLATE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M10X16	0-20801-016-0	02	1	0105-0302
53	BOLT; LOCK PLATE REAR AXLE RT260<C2B> M10X16	0-20801-016-0	02	1	0105-0302
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0303-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0303-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0105-0302
54	WASHER; LK,ANCHOR PIN,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47133-011-0	02	1	0105-0302
54	WASHER; LK,ANCHOR PIN,RR BRK REAR AXLE RT260<C2B>	1-47133-011-0	02	1	0105-0302
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0303-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0303-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0105-0302
55	PLATE; LK,RR WHEEL CYL REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47133-005-0	02	1	0105-0302
55	PLATE; LK,RR WHEEL CYL REAR AXLE RT260<C2B>	1-47133-005-0	02	1	0105-0302
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0303-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0303-
63	ADJUSTER ASM; SLACK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48270-051-0	01	1	0305-
63	ADJUSTER ASM; SLACK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48270-051-0	01	1	0305-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT260<C2B> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0303-0304
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0303-0304
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48270-050-1	01	1	0303-
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT260<C2B> FORWARD	1-48270-046-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48270-046-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	0303-
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48270-046-0	01	1	0303-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-045-0	01	1	0305-
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48270-045-0	01	1	0305-
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	0105-0302
64	PLATE; STOPPER,CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47149-040-0	02	1	0303-
64	PLATE; STOPPER,CM/SHF REAR AXLE RT260<C2B> FORWARD	1-47149-022-0	02	1	0105-0302
64	PLATE; STOPPER,CM/SHF REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-47149-022-0	02	1	0105-0302
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	0303-
64	PLATE; STOPPER,CM/SHF REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47149-022-0	02	1	0303-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0105-0302
65	SPACER; SLACK ADJ,BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47143-004-0	02	1	0105-0302
65	SPACER; SLACK ADJ,BRK REAR AXLE RT260<C2B> (B)	1-47143-004-0	02	1	0105-0302
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0303-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0303-
65	SPACER; SLACK ADJ,BRK (C)	1-47143-014-0	02	1	0105-0302
65	SPACER; SLACK ADJ,BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-47143-014-0	02	1	0303-
65	SPACER; SLACK ADJ,BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A)	9-09180-038-0	01	1	0105-
65	SPACER; SLACK ADJ,BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) (A)	9-09180-038-0	01	1	0105-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0105-0302
66	PIN; JAW JOINT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-088-0	02	1	0105-0302
66	PIN; JAW JOINT REAR AXLE RT260<C2B>	1-09744-088-0	02	1	0105-0302
66	PIN; JAW JOINT	1-09744-088-0	02	1	0303-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0303-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0105-0302
67	NUT; POWER CHAMBER FIX REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M16	9-99110-416-0	08	1	0105-0302
67	NUT; POWER CHAMBER FIX REAR AXLE RT260<C2B> M16	9-99110-416-0	08	1	0105-0302
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0303-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0303-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0105-0302
68	WASHER; LK,CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> ID=16.2	9-09150-516-0	08	1	0105-0302
68	WASHER; LK,CHAMBER REAR AXLE RT260<C2B> ID=16.2	9-09150-516-0	08	1	0105-0302
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0303-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0303-
69	JOINT; JAW	1-09768-060-1	02	1	0105-0302
69	JOINT; JAW REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09768-060-1	02	1	0105-0302
69	JOINT; JAW REAR AXLE RT260<C2B>	1-09768-060-1	02	1	0105-0302
69	JOINT; JAW	1-09768-060-1	02	1	0303-
69	JOINT; JAW	1-09768-060-1	02	1	0303-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0105-0302
70	NUT; LK,JAW JOINT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M16	9-99111-416-0	02	1	0105-0302
70	NUT; LK,JAW JOINT REAR AXLE RT260<C2B> M16	9-99111-416-0	02	1	0105-0302
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0303-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0303-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0105-0302
71	WASHER; PL,JAW JOINT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> ID=17 OD=32	9-09160-616-0	02	1	0105-0302
71	WASHER; PL,JAW JOINT REAR AXLE RT260<C2B> ID=17 OD=32	9-09160-616-0	02	1	0105-0302
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0303-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0303-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0105-0302
72	PIN; SPLIT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> OD=3.7 L=28	9-08114-028-0	02	1	0105-0302
72	PIN; SPLIT REAR AXLE RT260<C2B> OD=3.7 L=28	9-08114-028-0	02	1	0105-0302
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0303-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0303-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0105-0302
73	COLLAR; FELT RING,CM/SHF REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47143-016-0	02	1	0105-0302
73	COLLAR; FELT RING,CM/SHF REAR AXLE RT260<C2B>	1-47143-016-0	02	1	0105-0302
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0303-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0303-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0105-0302
74	BUSHING; SLACK ADJ REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09330-041-0	02	1	0105-0302
74	BUSHING; SLACK ADJ REAR AXLE RT260<C2B>	1-09330-041-0	02	1	0105-0302
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0303-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0303-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0105-0302
75	RING; FELT,CM/SHF REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09620-009-0	02	1	0105-0302
75	RING; FELT,CM/SHF REAR AXLE RT260<C2B>	1-09620-009-0	02	1	0105-0302
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0303-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0303-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48258-083-0	01	1	0105-0312
76	BRACKET; POWER CHAMBER,RR,W/BUSHING REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3)	1-48258-083-0	01	1	0105-0312
76	BRACKET; POWER CHAMBER,RR,W/BUSHING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48258-083-0	01	1	0401-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-083-0	01	1	0401-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-48258-084-0	01	1	0105-0312
76	BRACKET; POWER CHAMBER,RR,W/BUSHING REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3)	1-48258-084-0	01	1	0105-0312
76	BRACKET; POWER CHAMBER,RR,W/BUSHING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48258-084-0	01	1	0401-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-084-0	01	1	0401-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3)	1-48258-140-0	01	1	0105-0302
76	BRACKET; POWER CHAMBER,RR,W/BUSHING INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48258-140-0	01	1	0303-0312
76	BRACKET; POWER CHAMBER,RR,W/BUSHING REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3)	1-48258-140-0	01	1	0303-0312
76	BRACKET; POWER CHAMBER,RR,W/BUSHING REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3)	1-48258-141-0	01	1	0105-0302
76	BRACKET; POWER CHAMBER,RR,W/BUSHING INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48258-141-0	01	1	0303-0312
76	BRACKET; POWER CHAMBER,RR,W/BUSHING REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3)	1-48258-141-0	01	1	0303-0312
77	BUSHING REAR AXLE RT260<C2B>	1-47146-003-1	02	1	0105-0302
77	BUSHING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47146-003-1	02	1	0105-0302
77	BUSHING FORWARD	1-47146-003-1	02	1	0303-
77	BUSHING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47146-003-1	02	1	0303-
82	NUT (A) M12	9-99110-512-0	04	1	0105-0302
82	NUT POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M12	9-99110-512-0	04	1	0303-0304
82	NUT (B) M16	9-99110-516-0	04	1	0105-0302
82	NUT POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M16	9-99110-516-0	04	1	0303-
85	BOLT; CM/SHF BRKT (A) M10X20	0-20801-020-0	04	1	0105-0302
85	BOLT; CM/SHF BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10X20	0-20801-020-0	04	1	0303-
85	BOLT; CM/SHF BRKT (B) M12X50	5-09000-143-0	04	1	0105-0302
85	BOLT; CM/SHF BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M12X50	5-09000-143-0	04	1	0303-0304
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	02	1	0105-
195	RING; SNAP,CM/SHF REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	9-09180-038-0	02	1	0105-
195	RING; SNAP,CM/SHF REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	9-09180-038-0	01	1	0105-
195	RING; SNAP,CM/SHF REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	9-09180-038-0	01	1	0105-
198	NIPPLE; GREASE,SLACK ADJ POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-
198	NIPPLE; GREASE,SLACK ADJ POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-
198	NIPPLE; GREASE,SLACK ADJ POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	0305-
198	NIPPLE; GREASE,SLACK ADJ POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	0305-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-0302
198	NIPPLE; GREASE,SLACK ADJ REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-0302
198	NIPPLE; GREASE,SLACK ADJ REAR AXLE RT260<C2B> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-0302
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0303-0304
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0303-0304
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0305-
198	NIPPLE; GREASE,SLACK ADJ REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0305-
201	BOLT; BRKT,POWER CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M14X35	0-28081-435-0	08	1	0202-
201	BOLT; BRKT,POWER CHAMBER REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) M14X35	0-28081-435-0	08	1	0202-
201	BOLT; BRKT,POWER CHAMBER REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) M14X35	0-20801-435-0	08	1	0105-0302
201	BOLT; BRKT,POWER CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M14X35	0-20801-435-0	08	1	0303-
201	BOLT; BRKT,POWER CHAMBER REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) M14X35	0-20801-435-0	08	1	0303-
202	WASHER; LK,BRKT REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) ID=14.2	9-09150-514-0	08	1	0105-0201
202	WASHER; LK,BRKT REAR AXLE RT260<C2B> ID=14.2	9-09150-514-0	08	1	0202-0302
202	WASHER; LK,BRKT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> ID=14.2	9-09150-514-0	08	1	0202-0302
202	WASHER; LK,BRKT FORWARD ID=14.2	9-09150-514-0	08	1	0303-
202	WASHER; LK,BRKT REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD ID=14.2	9-09150-514-0	08	1	0303-
298	GASKET ID=23.3	9-09561-223-0	02	1	0105-0302
298	GASKET REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> ID=23.3	9-09561-223-0	02	1	0105-0302
298	GASKET REAR AXLE RT260<C2B> ID=23.3	9-09561-223-0	02	1	0105-0302
298	GASKET ID=23.3	9-09561-223-0	02	1	0303-
298	GASKET ID=23.3	9-09561-223-0	02	1	0303-

91 5 6 3 41 67 68 5 6 7 2 91 90 5 6 5 6 72 71 66 70 63 69 2 3 74 298 198 5 6 5 6 5 6 32 81 85 79 195 64 34 82 32 65 65 84 79 7 5 6 80 78 80 192 85 30 83 82 49 49 189 86 87 45 34 88 73 75 48 46 9 10 8 50 27 25 7 5 52 5 55 54 189 8 53 1 13 14 12 10 4 11 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-715-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-715-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-716-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-716-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-713-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-713-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-714-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-714-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-773-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-773-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-067-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-067-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-771-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-771-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-066-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-066-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-521-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-521-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-523-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-523-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-577-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-577-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-898-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-898-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-522-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-522-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-524-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-524-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-578-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-578-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-899-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-899-0	01	1	0105-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0105-0302
4	BUSHING; BRK SHOE,RR WHEEL REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47112-012-0	04	1	0105-0302
4	BUSHING; BRK SHOE,RR WHEEL REAR AXLE RT260<C2B>	1-47112-012-0	04	1	0105-0302
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0303-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0303-
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-797-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-797-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-799-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-799-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING T=16	1-47125-907-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING T=16	1-47125-907-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-214-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-214-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-798-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-798-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-800-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-800-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING T=17	1-47125-908-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING T=17	1-47125-908-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-215-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-215-0	04	1	0105-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0105-0302
7	RIVET; LINING,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> L=18.5	1-09732-034-0	AR	1	0105-0302
7	RIVET; LINING,RR BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) L=18.5	1-09732-034-0	AR	1	0105-0302
7	RIVET; LINING,RR BRK REAR AXLE RT210<C2A> L=18.5	1-09732-034-0	AR	1	0303-
7	RIVET; LINING,RR BRK REAR AXLE RT210<C2A> L=18.5	1-09732-034-0	AR	1	0303-
7	RIVET; LINING,RR BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) L=18.5	1-09732-034-0	AR	1	0303-
7	RIVET; LINING,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> L=18.5	1-09732-034-0	AR	1	0303-
7	RIVET; LINING,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) L=19.5	1-09732-035-0	AR	1	0105-0302
7	RIVET; LINING,RR BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> L=19.5	1-09732-035-0	AR	1	0303-
7	RIVET; LINING,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) L=19.5	1-09732-035-0	AR	1	0303-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0105-0302
8	PIN; RETURN SPRING,RR BRK SHOE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47119-029-0	04	1	0105-0302
8	PIN; RETURN SPRING,RR BRK SHOE REAR AXLE RT260<C2B> (A)	1-47119-029-0	04	1	0105-0302
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0303-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0303-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-47119-021-0	04	1	0105-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-47119-021-0	04	1	0105-
8	PIN; RETURN SPRING,RR BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09744-074-0	04	1	0105-
8	PIN; RETURN SPRING,RR BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09744-074-0	04	1	0105-
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09583-175-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09583-175-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-09583-196-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-09583-196-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-09583-210-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-09583-210-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09583-277-2	02	1	0105-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09583-277-2	02	1	0105-
10	RING; SNAP,SPR PIN EXC. HEAVY DUTY BRAKE SYSTEM(WG3) ID=10	9-09185-410-0	08	1	0105-
10	RING; SNAP,SPR PIN EXC. HEAVY DUTY BRAKE SYSTEM(WG3) ID=10	9-09185-410-0	08	1	0105-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0105-0302
11	PIN; ANCHOR,RR WHEEL BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> L=121.5	1-47131-039-0	04	1	0105-0302
11	PIN; ANCHOR,RR WHEEL BRK REAR AXLE RT260<C2B> L=121.5	1-47131-039-0	04	1	0105-0302
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0303-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0303-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0105-0302
12	ROLLER; CAM,BRK SHOE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47113-005-0	04	1	0105-0302
12	ROLLER; CAM,BRK SHOE REAR AXLE RT260<C2B>	1-47113-005-0	04	1	0105-0302
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0303-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0303-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0105-0302
13	CLIP; ROLLER PIN,BRK SHOE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	9-47119-022-0	04	1	0105-0302
13	CLIP; ROLLER PIN,BRK SHOE REAR AXLE RT260<C2B>	9-47119-022-0	04	1	0105-0302
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0303-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0303-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0105-0302
14	PIN; CAM ROLLER,BRK SHOE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-061-0	04	1	0105-0302
14	PIN; CAM ROLLER,BRK SHOE REAR AXLE RT260<C2B>	1-09744-061-0	04	1	0105-0302
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0303-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0303-
25	COVER SET; RR BRK DRUM EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-47151-462-1	02	1	0105-
25	COVER SET; RR BRK DRUM EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-47151-462-1	02	1	0105-
25	COVER SET; RR BRK DRUM HEAVY DUTY BRAKE SYSTEM(WG3)	1-47151-487-1	02	1	0105-
25	COVER SET; RR BRK DRUM HEAVY DUTY BRAKE SYSTEM(WG3)	1-47151-487-1	02	1	0105-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0105-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0105-
30	BOLT; DRUM COVER POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M10X16 W/LK WASHER	0-50041-016-0	06	1	0304-
30	BOLT; DRUM COVER POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M10X12	1-47159-187-0	06	1	0304-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0105-0302
30	BOLT; DRUM COVER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M10X16 W/LK WASHER	0-50041-016-0	12	1	0105-0302
30	BOLT; DRUM COVER REAR AXLE RT260<C2B> M10X16 W/LK WASHER	0-50041-016-0	12	1	0105-0302
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0303-0303
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0303-0303
30	BOLT; DRUM COVER FORWARD M10X16 W/LK WASHER	0-50041-016-0	12	1	0304-
30	BOLT; DRUM COVER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M10X16 W/LK WASHER	0-50041-016-0	12	1	0304-
32	WASHER; LK (A) ID=10.2	9-09150-510-0	04	1	0105-0302
32	WASHER; LK POWER CHAMBER BRAKE UPPERWARD<C1T> (A) ID=10.2	9-09150-510-0	04	1	0303-
32	WASHER; LK (B) ID=12.2	9-09150-612-0	04	1	0105-0302
32	WASHER; LK POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=12.2	9-09150-612-0	04	1	0303-0304
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-0302
34	NIPPLE; GREASE,CHAMBER BRKT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-0302
34	NIPPLE; GREASE,CHAMBER BRKT REAR AXLE RT260<C2B> (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-0302
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0303-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0303-
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-0302
34	NIPPLE; GREASE,CHAMBER BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0303-
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47137-128-1	01	1	0305-
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	01	1	0105-0302
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47137-128-1	01	1	0303-0304
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-47137-128-1	02	1	0305-
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47137-128-1	02	1	0305-
45	BRACKET; ANCHOR PIN,W/BUSHING REAR AXLE RT260<C2B> FORWARD	1-47137-120-2	02	1	0105-0302
45	BRACKET; ANCHOR PIN,W/BUSHING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-47137-120-2	02	1	0105-0302
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	0303-
45	BRACKET; ANCHOR PIN,W/BUSHING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47137-120-2	02	1	0303-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0105-0302
46	RING; SPACER,CM/SHF,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47143-005-0	02	1	0105-0302
46	RING; SPACER,CM/SHF,RR BRK REAR AXLE RT260<C2B>	1-47143-005-0	02	1	0105-0302
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0303-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0303-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0105-0302
48	SEAL; OIL,CM/SHF,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09625-228-0	02	1	0105-0302
48	SEAL; OIL,CM/SHF,RR BRK REAR AXLE RT260<C2B>	1-09625-228-0	02	1	0105-0302
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0303-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0303-
49	BUSHING; CM/SHF,RR BRK (A)	1-47146-009-0	02	1	0105-0302
49	BUSHING; CM/SHF,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-47146-009-0	02	1	0303-
49	BUSHING; CM/SHF,RR BRK REAR AXLE RT260<C2B> (B)	1-47146-003-1	02	1	0105-0302
49	BUSHING; CM/SHF,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47146-003-1	02	1	0105-0302
49	BUSHING; CM/SHF,RR BRK (B) FORWARD	1-47146-003-1	02	1	0303-
49	BUSHING; CM/SHF,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD	1-47146-003-1	02	1	0303-
50	CAMSHAFT; BRK,RR BRK REARWARD	1-47141-066-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47141-066-0	01	1	0303-0303
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT210<C2A> REARWARD	1-47141-063-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47141-063-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-47141-063-0	01	1	0303-
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47141-063-0	01	1	0303-
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-47141-053-0	01	1	0105-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-053-0	01	1	0105-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-47141-054-0	01	1	0105-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-054-0	01	1	0105-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47141-135-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47141-135-0	01	1	0303-
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-094-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD	1-47141-094-0	01	1	0303-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-094-0	01	1	0303-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-095-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD	1-47141-095-0	01	1	0303-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-095-0	01	1	0303-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47141-053-0	01	1	0401-
50	CAMSHAFT; BRK,RR BRK FORWARD	1-47141-053-0	01	1	0401-
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47141-054-0	01	1	0401-
50	CAMSHAFT; BRK,RR BRK FORWARD	1-47141-054-0	01	1	0401-
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	0105-0302
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X43	1-09040-045-0	01	1	0303-0304
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD M14X43	1-09040-045-0	01	1	0305-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	0105-0302
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X50	1-09040-066-0	01	1	0303-0304
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD M14X50	1-09040-066-0	01	1	0305-
52	BOLT; ANCHOR BRKT REAR AXLE RT260<C2B> M14X50	1-09040-066-0	02	1	0105-0302
52	BOLT; ANCHOR BRKT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M14X50	1-09040-066-0	02	1	0105-0302
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0305-
52	BOLT; ANCHOR BRKT REAR AXLE RT210<C2A> M14X50	1-09040-066-0	02	1	0305-
52	BOLT; ANCHOR BRKT REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M14X50	1-09040-066-0	02	1	0305-
52	BOLT; ANCHOR BRKT REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) M14X50	1-09040-066-0	02	1	0305-
52	BOLT; ANCHOR BRKT FORWARD M14X50	1-09040-066-0	02	1	0303-
52	BOLT; ANCHOR BRKT REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M14X50	1-09040-066-0	02	1	0303-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0105-0302
53	BOLT; LOCK PLATE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M10X16	0-20801-016-0	02	1	0105-0302
53	BOLT; LOCK PLATE REAR AXLE RT260<C2B> M10X16	0-20801-016-0	02	1	0105-0302
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0303-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0303-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0105-0302
54	WASHER; LK,ANCHOR PIN,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47133-011-0	02	1	0105-0302
54	WASHER; LK,ANCHOR PIN,RR BRK REAR AXLE RT260<C2B>	1-47133-011-0	02	1	0105-0302
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0303-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0303-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0105-0302
55	PLATE; LK,RR WHEEL CYL REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47133-005-0	02	1	0105-0302
55	PLATE; LK,RR WHEEL CYL REAR AXLE RT260<C2B>	1-47133-005-0	02	1	0105-0302
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0303-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0303-
63	ADJUSTER ASM; SLACK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48270-051-0	01	1	0305-
63	ADJUSTER ASM; SLACK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48270-051-0	01	1	0305-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT260<C2B> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0303-0304
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0303-0304
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48270-050-1	01	1	0303-
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT260<C2B> FORWARD	1-48270-046-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48270-046-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	0303-
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48270-046-0	01	1	0303-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-045-0	01	1	0305-
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48270-045-0	01	1	0305-
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	0105-0302
64	PLATE; STOPPER,CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47149-040-0	02	1	0303-
64	PLATE; STOPPER,CM/SHF REAR AXLE RT260<C2B> FORWARD	1-47149-022-0	02	1	0105-0302
64	PLATE; STOPPER,CM/SHF REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-47149-022-0	02	1	0105-0302
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	0303-
64	PLATE; STOPPER,CM/SHF REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47149-022-0	02	1	0303-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0105-0302
65	SPACER; SLACK ADJ,BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47143-004-0	02	1	0105-0302
65	SPACER; SLACK ADJ,BRK REAR AXLE RT260<C2B> (B)	1-47143-004-0	02	1	0105-0302
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0303-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0303-
65	SPACER; SLACK ADJ,BRK (C)	1-47143-014-0	02	1	0105-0302
65	SPACER; SLACK ADJ,BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-47143-014-0	02	1	0303-
65	SPACER; SLACK ADJ,BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A)	9-09180-038-0	01	1	0105-
65	SPACER; SLACK ADJ,BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) (A)	9-09180-038-0	01	1	0105-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0105-0302
66	PIN; JAW JOINT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-088-0	02	1	0105-0302
66	PIN; JAW JOINT REAR AXLE RT260<C2B>	1-09744-088-0	02	1	0105-0302
66	PIN; JAW JOINT	1-09744-088-0	02	1	0303-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0303-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0105-0302
67	NUT; POWER CHAMBER FIX REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M16	9-99110-416-0	08	1	0105-0302
67	NUT; POWER CHAMBER FIX REAR AXLE RT260<C2B> M16	9-99110-416-0	08	1	0105-0302
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0303-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0303-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0105-0302
68	WASHER; LK,CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> ID=16.2	9-09150-516-0	08	1	0105-0302
68	WASHER; LK,CHAMBER REAR AXLE RT260<C2B> ID=16.2	9-09150-516-0	08	1	0105-0302
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0303-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0303-
69	JOINT; JAW	1-09768-060-1	02	1	0105-0302
69	JOINT; JAW REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09768-060-1	02	1	0105-0302
69	JOINT; JAW REAR AXLE RT260<C2B>	1-09768-060-1	02	1	0105-0302
69	JOINT; JAW	1-09768-060-1	02	1	0303-
69	JOINT; JAW	1-09768-060-1	02	1	0303-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0105-0302
70	NUT; LK,JAW JOINT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M16	9-99111-416-0	02	1	0105-0302
70	NUT; LK,JAW JOINT REAR AXLE RT260<C2B> M16	9-99111-416-0	02	1	0105-0302
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0303-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0303-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0105-0302
71	WASHER; PL,JAW JOINT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> ID=17 OD=32	9-09160-616-0	02	1	0105-0302
71	WASHER; PL,JAW JOINT REAR AXLE RT260<C2B> ID=17 OD=32	9-09160-616-0	02	1	0105-0302
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0303-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0303-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0105-0302
72	PIN; SPLIT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> OD=3.7 L=28	9-08114-028-0	02	1	0105-0302
72	PIN; SPLIT REAR AXLE RT260<C2B> OD=3.7 L=28	9-08114-028-0	02	1	0105-0302
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0303-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0303-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0105-0302
73	COLLAR; FELT RING,CM/SHF REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47143-016-0	02	1	0105-0302
73	COLLAR; FELT RING,CM/SHF REAR AXLE RT260<C2B>	1-47143-016-0	02	1	0105-0302
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0303-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0303-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0105-0302
74	BUSHING; SLACK ADJ REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09330-041-0	02	1	0105-0302
74	BUSHING; SLACK ADJ REAR AXLE RT260<C2B>	1-09330-041-0	02	1	0105-0302
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0303-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0303-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0105-0302
75	RING; FELT,CM/SHF REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09620-009-0	02	1	0105-0302
75	RING; FELT,CM/SHF REAR AXLE RT260<C2B>	1-09620-009-0	02	1	0105-0302
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0303-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0303-
78	BUSHING; BRKT	1-47146-008-0	02	1	0105-0302
78	BUSHING; BRKT POWER CHAMBER BRAKE UPPERWARD<C1T>	1-47146-008-0	02	1	0303-
79	BRACKET; CM/SHF	9-47145-013-0	04	1	0105-0302
79	BRACKET; CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T>	9-47145-013-0	04	1	0303-
80	GASKET; BUSHING ID=39.7	9-09561-340-0	04	1	0105-0302
80	GASKET; BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> ID=39.7	9-09561-340-0	04	1	0303-
81	NUT M10	9-09110-410-0	04	1	0105-0302
81	NUT POWER CHAMBER BRAKE UPPERWARD<C1T> M10	9-09110-410-0	04	1	0303-
82	NUT (A) M12	9-99110-512-0	04	1	0105-0302
82	NUT POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M12	9-99110-512-0	04	1	0303-0304
82	NUT (B) M16	9-99110-516-0	04	1	0105-0302
82	NUT POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M16	9-99110-516-0	04	1	0303-
83	WASHER; PL ID=16.2	9-09851-672-2	08	1	0105-0302
83	WASHER; PL POWER CHAMBER BRAKE UPPERWARD<C1T> ID=16.2	9-09851-672-2	08	1	0303-
84	BOLT; BRKT TO CASE M16X40	9-92061-640-0	04	1	0105-0302
84	BOLT; BRKT TO CASE POWER CHAMBER BRAKE UPPERWARD<C1T> M16X40	9-92061-640-0	04	1	0303-
85	BOLT; CM/SHF BRKT (A) M10X20	0-20801-020-0	04	1	0105-0302
85	BOLT; CM/SHF BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10X20	0-20801-020-0	04	1	0303-
85	BOLT; CM/SHF BRKT (B) M12X50	5-09000-143-0	04	1	0105-0302
85	BOLT; CM/SHF BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M12X50	5-09000-143-0	04	1	0303-0304
86	NUT; FLANGE	1-09440-020-0	01	1	0105-0302
86	NUT; FLANGE POWER CHAMBER BRAKE UPPERWARD<C1T>	1-09440-020-0	01	1	0303-0304
87	FLANGE; SHAFT	1-47149-041-0	01	1	0105-0302
87	FLANGE; SHAFT POWER CHAMBER BRAKE UPPERWARD<C1T>	1-47149-041-0	01	1	0303-0304
88	CLIP; BRKT	1-09589-018-0	02	1	0105-0302
88	CLIP; BRKT POWER CHAMBER BRAKE UPPERWARD<C1T>	1-09589-018-0	02	1	0303-
90	BRACKET; CHAMBER	1-42129-240-0	01	1	0105-0302
90	BRACKET; CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T>	1-42129-240-0	01	1	0303-
90	BRACKET; CHAMBER	1-42129-241-0	01	1	0105-0302
90	BRACKET; CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T>	1-42129-241-0	01	1	0303-
91	BOLT; CHAMBER M16X30 FLANGE	0-28981-630-0	08	1	0105-0302
91	BOLT; CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> M16X30 FLANGE	0-28981-630-0	08	1	0303-
189	SHAFT; RR,BRK REAR AXLE RT210<C2A> (A)	1-47141-065-1	01	1	0105-0302
189	SHAFT; RR,BRK REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-47141-065-1	01	1	0105-0302
189	SHAFT; RR,BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> (A)	1-47141-065-1	01	1	0303-0303
189	SHAFT; RR,BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-47141-065-1	01	1	0303-0303
189	SHAFT; RR,BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> (B)	1-47141-137-0	01	1	0304-
189	SHAFT; RR,BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-47141-137-0	01	1	0304-
189	SHAFT; RR,BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-47141-136-0	01	1	0105-0302
189	SHAFT; RR,BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-47141-136-0	01	1	0303-0303
189	SHAFT; RR,BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-47141-138-0	01	1	0304-
192	PIN; KNOCK,FLANGE OD=12 L=20	9-08161-220-0	01	1	0105-0302
192	PIN; KNOCK,FLANGE POWER CHAMBER BRAKE UPPERWARD<C1T> OD=12 L=20	9-08161-220-0	01	1	0303-0304
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	02	1	0105-
195	RING; SNAP,CM/SHF REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	9-09180-038-0	02	1	0105-
195	RING; SNAP,CM/SHF REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	9-09180-038-0	01	1	0105-
195	RING; SNAP,CM/SHF REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	9-09180-038-0	01	1	0105-
198	NIPPLE; GREASE,SLACK ADJ POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-
198	NIPPLE; GREASE,SLACK ADJ POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-
198	NIPPLE; GREASE,SLACK ADJ POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	0305-
198	NIPPLE; GREASE,SLACK ADJ POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	0305-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-0302
198	NIPPLE; GREASE,SLACK ADJ REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-0302
198	NIPPLE; GREASE,SLACK ADJ REAR AXLE RT260<C2B> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-0302
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0303-0304
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0303-0304
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0305-
198	NIPPLE; GREASE,SLACK ADJ REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0305-
298	GASKET ID=23.3	9-09561-223-0	02	1	0105-0302
298	GASKET REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> ID=23.3	9-09561-223-0	02	1	0105-0302
298	GASKET REAR AXLE RT260<C2B> ID=23.3	9-09561-223-0	02	1	0105-0302
298	GASKET ID=23.3	9-09561-223-0	02	1	0303-
298	GASKET ID=23.3	9-09561-223-0	02	1	0303-

5 6 5 6 2 7 91 68 67 90 5 6 66 195 64 5 6 70 69 5 6 71 72 65 65 84 79 79 83 5 6 2 7 74 298 82 34 5 6 5 6 63 198 85 32 88 30 78 80 73 75 27 55 54 53 1 25 49 49 7 9 5 5 34 10 8 52 45 46 4 48 11 50 14 10 8 12 13 9 1 3 3 80 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-715-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-715-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-716-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-716-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-713-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-713-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-714-0	01	1	0105-
1	SHOE; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-714-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-773-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-773-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-067-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-067-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-771-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-771-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-066-0	01	1	0105-
1	SHOE; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-066-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-521-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-521-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-523-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-523-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-577-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-577-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-898-0	01	1	0105-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-898-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-522-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-522-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-524-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-524-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-578-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-578-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-899-0	01	1	0105-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-899-0	01	1	0105-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0105-0302
4	BUSHING; BRK SHOE,RR WHEEL REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47112-012-0	04	1	0105-0302
4	BUSHING; BRK SHOE,RR WHEEL REAR AXLE RT260<C2B>	1-47112-012-0	04	1	0105-0302
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0303-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0303-
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-797-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-797-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-799-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-799-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING T=16	1-47125-907-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING T=16	1-47125-907-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-214-0	04	1	0105-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-214-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-798-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-798-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-800-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-800-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING T=17	1-47125-908-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING T=17	1-47125-908-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-215-0	04	1	0105-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-215-0	04	1	0105-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0105-0302
7	RIVET; LINING,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> L=18.5	1-09732-034-0	AR	1	0105-0302
7	RIVET; LINING,RR BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) L=18.5	1-09732-034-0	AR	1	0105-0302
7	RIVET; LINING,RR BRK REAR AXLE RT210<C2A> L=18.5	1-09732-034-0	AR	1	0303-
7	RIVET; LINING,RR BRK REAR AXLE RT210<C2A> L=18.5	1-09732-034-0	AR	1	0303-
7	RIVET; LINING,RR BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) L=18.5	1-09732-034-0	AR	1	0303-
7	RIVET; LINING,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> L=18.5	1-09732-034-0	AR	1	0303-
7	RIVET; LINING,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) L=19.5	1-09732-035-0	AR	1	0105-0302
7	RIVET; LINING,RR BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> L=19.5	1-09732-035-0	AR	1	0303-
7	RIVET; LINING,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) L=19.5	1-09732-035-0	AR	1	0303-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0105-0302
8	PIN; RETURN SPRING,RR BRK SHOE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47119-029-0	04	1	0105-0302
8	PIN; RETURN SPRING,RR BRK SHOE REAR AXLE RT260<C2B> (A)	1-47119-029-0	04	1	0105-0302
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0303-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0303-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-47119-021-0	04	1	0105-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-47119-021-0	04	1	0105-
8	PIN; RETURN SPRING,RR BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09744-074-0	04	1	0105-
8	PIN; RETURN SPRING,RR BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09744-074-0	04	1	0105-
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09583-175-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09583-175-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-09583-196-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-09583-196-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-09583-210-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-09583-210-0	02	1	0105-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09583-277-2	02	1	0105-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-09583-277-2	02	1	0105-
10	RING; SNAP,SPR PIN EXC. HEAVY DUTY BRAKE SYSTEM(WG3) ID=10	9-09185-410-0	08	1	0105-
10	RING; SNAP,SPR PIN EXC. HEAVY DUTY BRAKE SYSTEM(WG3) ID=10	9-09185-410-0	08	1	0105-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0105-0302
11	PIN; ANCHOR,RR WHEEL BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> L=121.5	1-47131-039-0	04	1	0105-0302
11	PIN; ANCHOR,RR WHEEL BRK REAR AXLE RT260<C2B> L=121.5	1-47131-039-0	04	1	0105-0302
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0303-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0303-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0105-0302
12	ROLLER; CAM,BRK SHOE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47113-005-0	04	1	0105-0302
12	ROLLER; CAM,BRK SHOE REAR AXLE RT260<C2B>	1-47113-005-0	04	1	0105-0302
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0303-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0303-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0105-0302
13	CLIP; ROLLER PIN,BRK SHOE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	9-47119-022-0	04	1	0105-0302
13	CLIP; ROLLER PIN,BRK SHOE REAR AXLE RT260<C2B>	9-47119-022-0	04	1	0105-0302
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0303-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0303-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0105-0302
14	PIN; CAM ROLLER,BRK SHOE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-061-0	04	1	0105-0302
14	PIN; CAM ROLLER,BRK SHOE REAR AXLE RT260<C2B>	1-09744-061-0	04	1	0105-0302
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0303-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0303-
25	COVER SET; RR BRK DRUM EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-47151-462-1	02	1	0105-
25	COVER SET; RR BRK DRUM EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-47151-462-1	02	1	0105-
25	COVER SET; RR BRK DRUM HEAVY DUTY BRAKE SYSTEM(WG3)	1-47151-487-1	02	1	0105-
25	COVER SET; RR BRK DRUM HEAVY DUTY BRAKE SYSTEM(WG3)	1-47151-487-1	02	1	0105-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0105-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0105-
30	BOLT; DRUM COVER POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M10X16 W/LK WASHER	0-50041-016-0	06	1	0304-
30	BOLT; DRUM COVER POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M10X12	1-47159-187-0	06	1	0304-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0105-0302
30	BOLT; DRUM COVER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M10X16 W/LK WASHER	0-50041-016-0	12	1	0105-0302
30	BOLT; DRUM COVER REAR AXLE RT260<C2B> M10X16 W/LK WASHER	0-50041-016-0	12	1	0105-0302
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0303-0303
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0303-0303
30	BOLT; DRUM COVER FORWARD M10X16 W/LK WASHER	0-50041-016-0	12	1	0304-
30	BOLT; DRUM COVER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M10X16 W/LK WASHER	0-50041-016-0	12	1	0304-
32	WASHER; LK (A) ID=10.2	9-09150-510-0	04	1	0105-0302
32	WASHER; LK POWER CHAMBER BRAKE UPPERWARD<C1T> (A) ID=10.2	9-09150-510-0	04	1	0303-
32	WASHER; LK (B) ID=12.2	9-09150-612-0	04	1	0105-0302
32	WASHER; LK POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=12.2	9-09150-612-0	04	1	0303-0304
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-0302
34	NIPPLE; GREASE,CHAMBER BRKT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-0302
34	NIPPLE; GREASE,CHAMBER BRKT REAR AXLE RT260<C2B> (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-0302
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0303-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0303-
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-0302
34	NIPPLE; GREASE,CHAMBER BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0303-
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47137-128-1	01	1	0305-
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	01	1	0105-0302
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47137-128-1	01	1	0303-0304
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-47137-128-1	02	1	0305-
45	BRACKET; ANCHOR PIN,W/BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47137-128-1	02	1	0305-
45	BRACKET; ANCHOR PIN,W/BUSHING REAR AXLE RT260<C2B> FORWARD	1-47137-120-2	02	1	0105-0302
45	BRACKET; ANCHOR PIN,W/BUSHING REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-47137-120-2	02	1	0105-0302
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	0303-
45	BRACKET; ANCHOR PIN,W/BUSHING REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47137-120-2	02	1	0303-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0105-0302
46	RING; SPACER,CM/SHF,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47143-005-0	02	1	0105-0302
46	RING; SPACER,CM/SHF,RR BRK REAR AXLE RT260<C2B>	1-47143-005-0	02	1	0105-0302
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0303-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0303-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0105-0302
48	SEAL; OIL,CM/SHF,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09625-228-0	02	1	0105-0302
48	SEAL; OIL,CM/SHF,RR BRK REAR AXLE RT260<C2B>	1-09625-228-0	02	1	0105-0302
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0303-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0303-
49	BUSHING; CM/SHF,RR BRK (A)	1-47146-009-0	02	1	0105-0302
49	BUSHING; CM/SHF,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-47146-009-0	02	1	0303-
49	BUSHING; CM/SHF,RR BRK REAR AXLE RT260<C2B> (B)	1-47146-003-1	02	1	0105-0302
49	BUSHING; CM/SHF,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47146-003-1	02	1	0105-0302
49	BUSHING; CM/SHF,RR BRK (B) FORWARD	1-47146-003-1	02	1	0303-
49	BUSHING; CM/SHF,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD	1-47146-003-1	02	1	0303-
50	CAMSHAFT; BRK,RR BRK REARWARD	1-47141-066-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47141-066-0	01	1	0303-0303
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT210<C2A> REARWARD	1-47141-063-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47141-063-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-47141-063-0	01	1	0303-
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47141-063-0	01	1	0303-
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-47141-053-0	01	1	0105-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-053-0	01	1	0105-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-47141-054-0	01	1	0105-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-054-0	01	1	0105-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47141-135-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-47141-135-0	01	1	0303-
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-094-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD	1-47141-094-0	01	1	0303-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-094-0	01	1	0303-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-095-0	01	1	0105-0302
50	CAMSHAFT; BRK,RR BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD	1-47141-095-0	01	1	0303-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	1-47141-095-0	01	1	0303-0312
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47141-053-0	01	1	0401-
50	CAMSHAFT; BRK,RR BRK FORWARD	1-47141-053-0	01	1	0401-
50	CAMSHAFT; BRK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47141-054-0	01	1	0401-
50	CAMSHAFT; BRK,RR BRK FORWARD	1-47141-054-0	01	1	0401-
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	0105-0302
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X43	1-09040-045-0	01	1	0303-0304
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD M14X43	1-09040-045-0	01	1	0305-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	0105-0302
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> M14X50	1-09040-066-0	01	1	0303-0304
52	BOLT; ANCHOR BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD M14X50	1-09040-066-0	01	1	0305-
52	BOLT; ANCHOR BRKT REAR AXLE RT260<C2B> M14X50	1-09040-066-0	02	1	0105-0302
52	BOLT; ANCHOR BRKT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M14X50	1-09040-066-0	02	1	0105-0302
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0305-
52	BOLT; ANCHOR BRKT REAR AXLE RT210<C2A> M14X50	1-09040-066-0	02	1	0305-
52	BOLT; ANCHOR BRKT REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M14X50	1-09040-066-0	02	1	0305-
52	BOLT; ANCHOR BRKT REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) M14X50	1-09040-066-0	02	1	0305-
52	BOLT; ANCHOR BRKT FORWARD M14X50	1-09040-066-0	02	1	0303-
52	BOLT; ANCHOR BRKT REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M14X50	1-09040-066-0	02	1	0303-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0105-0302
53	BOLT; LOCK PLATE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M10X16	0-20801-016-0	02	1	0105-0302
53	BOLT; LOCK PLATE REAR AXLE RT260<C2B> M10X16	0-20801-016-0	02	1	0105-0302
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0303-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0303-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0105-0302
54	WASHER; LK,ANCHOR PIN,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47133-011-0	02	1	0105-0302
54	WASHER; LK,ANCHOR PIN,RR BRK REAR AXLE RT260<C2B>	1-47133-011-0	02	1	0105-0302
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0303-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0303-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0105-0302
55	PLATE; LK,RR WHEEL CYL REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47133-005-0	02	1	0105-0302
55	PLATE; LK,RR WHEEL CYL REAR AXLE RT260<C2B>	1-47133-005-0	02	1	0105-0302
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0303-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0303-
63	ADJUSTER ASM; SLACK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> REARWARD	1-48270-051-0	01	1	0305-
63	ADJUSTER ASM; SLACK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48270-051-0	01	1	0305-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT260<C2B> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0303-0304
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0303-0304
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48270-050-1	01	1	0303-
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT260<C2B> FORWARD	1-48270-046-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-48270-046-0	01	1	0105-0302
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	0303-
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48270-046-0	01	1	0303-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-045-0	01	1	0305-
63	ADJUSTER ASM; SLACK,RR BRK REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	1-48270-045-0	01	1	0305-
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	0105-0302
64	PLATE; STOPPER,CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47149-040-0	02	1	0303-
64	PLATE; STOPPER,CM/SHF REAR AXLE RT260<C2B> FORWARD	1-47149-022-0	02	1	0105-0302
64	PLATE; STOPPER,CM/SHF REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	1-47149-022-0	02	1	0105-0302
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	0303-
64	PLATE; STOPPER,CM/SHF REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-47149-022-0	02	1	0303-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0105-0302
65	SPACER; SLACK ADJ,BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47143-004-0	02	1	0105-0302
65	SPACER; SLACK ADJ,BRK REAR AXLE RT260<C2B> (B)	1-47143-004-0	02	1	0105-0302
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0303-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0303-
65	SPACER; SLACK ADJ,BRK (C)	1-47143-014-0	02	1	0105-0302
65	SPACER; SLACK ADJ,BRK POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-47143-014-0	02	1	0303-
65	SPACER; SLACK ADJ,BRK REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A)	9-09180-038-0	01	1	0105-
65	SPACER; SLACK ADJ,BRK REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) (A)	9-09180-038-0	01	1	0105-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0105-0302
66	PIN; JAW JOINT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-088-0	02	1	0105-0302
66	PIN; JAW JOINT REAR AXLE RT260<C2B>	1-09744-088-0	02	1	0105-0302
66	PIN; JAW JOINT	1-09744-088-0	02	1	0303-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0303-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0105-0302
67	NUT; POWER CHAMBER FIX REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M16	9-99110-416-0	08	1	0105-0302
67	NUT; POWER CHAMBER FIX REAR AXLE RT260<C2B> M16	9-99110-416-0	08	1	0105-0302
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0303-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0303-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0105-0302
68	WASHER; LK,CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> ID=16.2	9-09150-516-0	08	1	0105-0302
68	WASHER; LK,CHAMBER REAR AXLE RT260<C2B> ID=16.2	9-09150-516-0	08	1	0105-0302
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0303-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0303-
69	JOINT; JAW	1-09768-060-1	02	1	0105-0302
69	JOINT; JAW REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09768-060-1	02	1	0105-0302
69	JOINT; JAW REAR AXLE RT260<C2B>	1-09768-060-1	02	1	0105-0302
69	JOINT; JAW	1-09768-060-1	02	1	0303-
69	JOINT; JAW	1-09768-060-1	02	1	0303-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0105-0302
70	NUT; LK,JAW JOINT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M16	9-99111-416-0	02	1	0105-0302
70	NUT; LK,JAW JOINT REAR AXLE RT260<C2B> M16	9-99111-416-0	02	1	0105-0302
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0303-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0303-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0105-0302
71	WASHER; PL,JAW JOINT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> ID=17 OD=32	9-09160-616-0	02	1	0105-0302
71	WASHER; PL,JAW JOINT REAR AXLE RT260<C2B> ID=17 OD=32	9-09160-616-0	02	1	0105-0302
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0303-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0303-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0105-0302
72	PIN; SPLIT REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> OD=3.7 L=28	9-08114-028-0	02	1	0105-0302
72	PIN; SPLIT REAR AXLE RT260<C2B> OD=3.7 L=28	9-08114-028-0	02	1	0105-0302
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0303-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0303-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0105-0302
73	COLLAR; FELT RING,CM/SHF REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-47143-016-0	02	1	0105-0302
73	COLLAR; FELT RING,CM/SHF REAR AXLE RT260<C2B>	1-47143-016-0	02	1	0105-0302
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0303-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0303-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0105-0302
74	BUSHING; SLACK ADJ REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09330-041-0	02	1	0105-0302
74	BUSHING; SLACK ADJ REAR AXLE RT260<C2B>	1-09330-041-0	02	1	0105-0302
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0303-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0303-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0105-0302
75	RING; FELT,CM/SHF REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>	1-09620-009-0	02	1	0105-0302
75	RING; FELT,CM/SHF REAR AXLE RT260<C2B>	1-09620-009-0	02	1	0105-0302
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0303-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0303-
78	BUSHING; BRKT	1-47146-008-0	02	1	0105-0302
78	BUSHING; BRKT POWER CHAMBER BRAKE UPPERWARD<C1T>	1-47146-008-0	02	1	0303-
79	BRACKET; CM/SHF	9-47145-013-0	04	1	0105-0302
79	BRACKET; CM/SHF POWER CHAMBER BRAKE UPPERWARD<C1T>	9-47145-013-0	04	1	0303-
80	GASKET; BUSHING ID=39.7	9-09561-340-0	04	1	0105-0302
80	GASKET; BUSHING POWER CHAMBER BRAKE UPPERWARD<C1T> ID=39.7	9-09561-340-0	04	1	0303-
81	NUT M10	9-09110-410-0	04	1	0105-0302
81	NUT POWER CHAMBER BRAKE UPPERWARD<C1T> M10	9-09110-410-0	04	1	0303-
82	NUT (A) M12	9-99110-512-0	04	1	0105-0302
82	NUT POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M12	9-99110-512-0	04	1	0303-0304
82	NUT (B) M16	9-99110-516-0	04	1	0105-0302
82	NUT POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M16	9-99110-516-0	04	1	0303-
83	WASHER; PL ID=16.2	9-09851-672-2	08	1	0105-0302
83	WASHER; PL POWER CHAMBER BRAKE UPPERWARD<C1T> ID=16.2	9-09851-672-2	08	1	0303-
84	BOLT; BRKT TO CASE M16X40	9-92061-640-0	04	1	0105-0302
84	BOLT; BRKT TO CASE POWER CHAMBER BRAKE UPPERWARD<C1T> M16X40	9-92061-640-0	04	1	0303-
85	BOLT; CM/SHF BRKT (A) M10X20	0-20801-020-0	04	1	0105-0302
85	BOLT; CM/SHF BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10X20	0-20801-020-0	04	1	0303-
85	BOLT; CM/SHF BRKT (B) M12X50	5-09000-143-0	04	1	0105-0302
85	BOLT; CM/SHF BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M12X50	5-09000-143-0	04	1	0303-0304
88	CLIP; BRKT	1-09589-018-0	02	1	0105-0302
88	CLIP; BRKT POWER CHAMBER BRAKE UPPERWARD<C1T>	1-09589-018-0	02	1	0303-
90	BRACKET; CHAMBER	1-42129-240-0	01	1	0105-0302
90	BRACKET; CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T>	1-42129-240-0	01	1	0303-
90	BRACKET; CHAMBER	1-42129-241-0	01	1	0105-0302
90	BRACKET; CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T>	1-42129-241-0	01	1	0303-
91	BOLT; CHAMBER M16X30 FLANGE	0-28981-630-0	08	1	0105-0302
91	BOLT; CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> M16X30 FLANGE	0-28981-630-0	08	1	0303-
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	02	1	0105-
195	RING; SNAP,CM/SHF REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) REARWARD	9-09180-038-0	02	1	0105-
195	RING; SNAP,CM/SHF REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD	9-09180-038-0	01	1	0105-
195	RING; SNAP,CM/SHF REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) FORWARD	9-09180-038-0	01	1	0105-
198	NIPPLE; GREASE,SLACK ADJ POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-
198	NIPPLE; GREASE,SLACK ADJ POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-
198	NIPPLE; GREASE,SLACK ADJ POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	0305-
198	NIPPLE; GREASE,SLACK ADJ POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	0305-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-0302
198	NIPPLE; GREASE,SLACK ADJ REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-0302
198	NIPPLE; GREASE,SLACK ADJ REAR AXLE RT260<C2B> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-0302
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0303-0304
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0303-0304
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0305-
198	NIPPLE; GREASE,SLACK ADJ REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0305-
298	GASKET ID=23.3	9-09561-223-0	02	1	0105-0302
298	GASKET REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> ID=23.3	9-09561-223-0	02	1	0105-0302
298	GASKET REAR AXLE RT260<C2B> ID=23.3	9-09561-223-0	02	1	0105-0302
298	GASKET ID=23.3	9-09561-223-0	02	1	0303-
298	GASKET ID=23.3	9-09561-223-0	02	1	0303-

204 204 204 204 204 204 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
204	CONNECTOR; SPR CHAMBER (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0105-0302
204	CONNECTOR; SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0105-0302
204	CONNECTOR; SPR CHAMBER REAR AXLE RT260<C2B> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0105-0302
204	CONNECTOR; SPR CHAMBER (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0303-
204	CONNECTOR; SPR CHAMBER (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0303-
204	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	0105-0302
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	0303-
204	CONNECTOR; SPR CHAMBER (B)	1-09660-697-1	01	1	0105-0302
204	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-09660-697-1	01	1	0303-
204	CONNECTOR; SPR CHAMBER REAR AXLE RT260<C2B> (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0105-0302
204	CONNECTOR; SPR CHAMBER REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0105-0302
204	CONNECTOR; SPR CHAMBER REAR AXLE RT260<C2B> (D) FORWARD DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0303-
204	CONNECTOR; SPR CHAMBER REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (D) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
