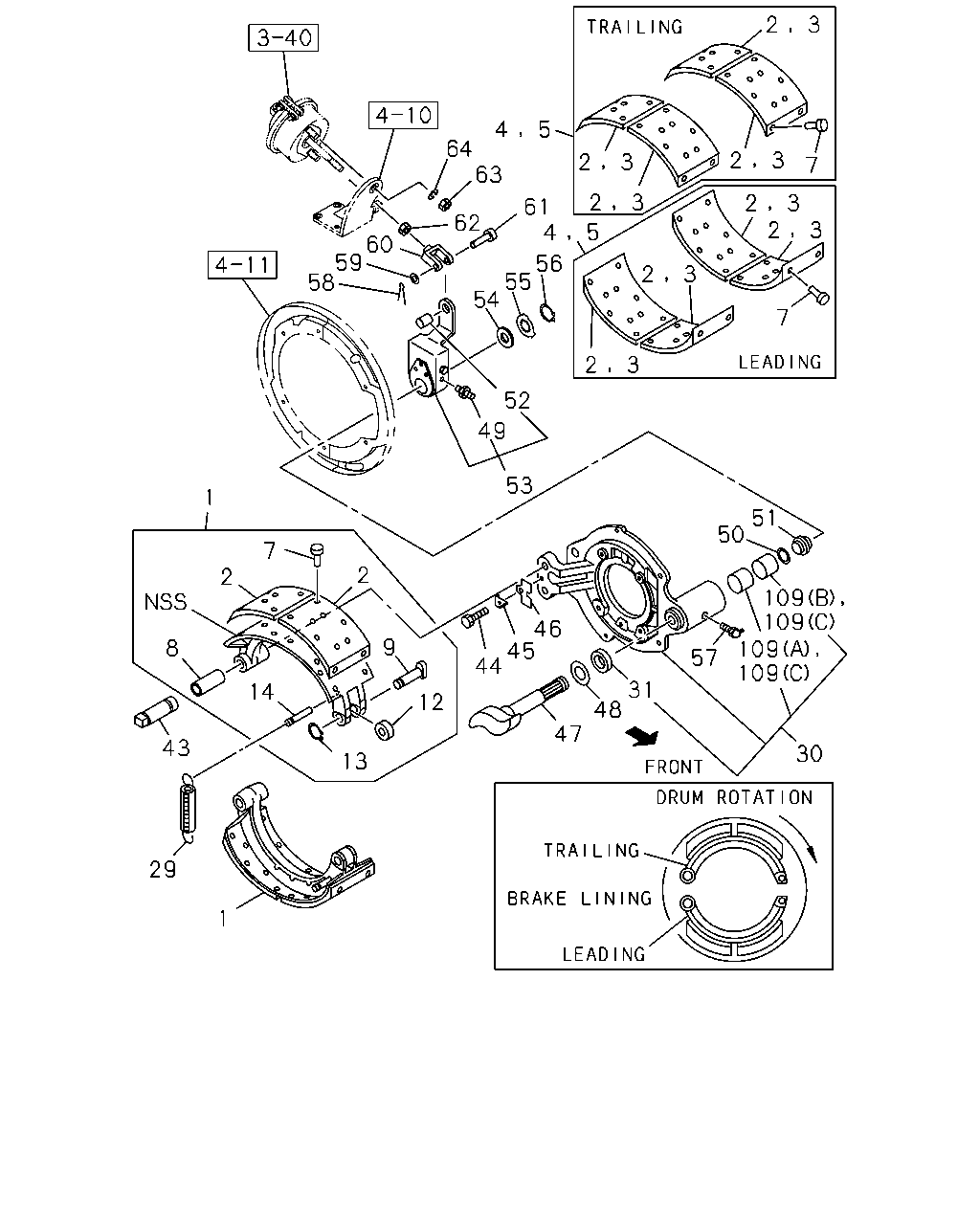

3-01 — FRONT WHEEL BRAKE (#27718) — 134 parça

2 3 5 4 64 63 2 3 2 3 7 60 59 58 2 3 2 3 2 61 4 62 3 5 56 55 54 2 3 7 2 3 52 49 53 1 51 50 7 2 2 109 109 109 109 46 45 44 9 8 57 31 48 14 12 47 43 30 13 29 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-292-0	01	1	0105-
1	SHOE; BRK,FRT HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-292-0	01	1	0105-
1	SHOE; BRK,FRT HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47170-294-0	01	1	0105-
1	SHOE; BRK,FRT HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47170-294-0	01	1	0105-
1	SHOE; BRK,FRT HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47170-293-0	01	1	0105-
1	SHOE; BRK,FRT HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47170-293-0	01	1	0105-
1	SHOE; BRK,FRT HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-295-0	01	1	0105-
1	SHOE; BRK,FRT HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47170-295-0	01	1	0105-
1	SHOE; BRK,FRT EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-711-0	01	1	0105-
1	SHOE; BRK,FRT EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-711-0	01	1	0105-
1	SHOE; BRK,FRT EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-712-0	01	1	0105-
1	SHOE; BRK,FRT EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-712-0	01	1	0105-
1	SHOE; BRK,FRT EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-709-0	01	1	0105-
1	SHOE; BRK,FRT EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47120-709-0	01	1	0105-
1	SHOE; BRK,FRT EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-710-0	01	1	0105-
1	SHOE; BRK,FRT EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47120-710-0	01	1	0105-
2	LINING; FRT BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-265-0	04	1	0105-
2	LINING; FRT BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-265-0	04	1	0105-
2	LINING; FRT BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47126-268-0	04	1	0105-
2	LINING; FRT BRK SHOE,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47126-268-0	04	1	0105-
2	LINING; FRT BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-793-0	04	1	0105-
2	LINING; FRT BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-793-0	04	1	0105-
2	LINING; FRT BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-795-0	04	1	0105-
2	LINING; FRT BRK SHOE,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-795-0	04	1	0105-
3	LINING; FRT BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-266-0	04	1	0105-
3	LINING; FRT BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47126-266-0	04	1	0105-
3	LINING; FRT BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47126-269-0	04	1	0105-
3	LINING; FRT BRK SHOE,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47126-269-0	04	1	0105-
3	LINING; FRT BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-794-0	04	1	0105-
3	LINING; FRT BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-47125-794-0	04	1	0105-
3	LINING; FRT BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-796-0	04	1	0105-
3	LINING; FRT BRK SHOE,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-47125-796-0	04	1	0105-
4	LINING SET; FRT BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88311-038-0	01	1	0105-
4	LINING SET; FRT BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88311-038-0	01	1	0105-
4	LINING SET; FRT BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88311-040-0	01	1	0105-
4	LINING SET; FRT BRK,STANDARD HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88311-040-0	01	1	0105-
4	LINING SET; FRT BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-497-0	01	1	0105-
4	LINING SET; FRT BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-497-0	01	1	0105-
4	LINING SET; FRT BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-499-0	01	1	0105-
4	LINING SET; FRT BRK,STANDARD EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-499-0	01	1	0105-
5	LINING SET; FRT BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88311-039-0	01	1	0105-
5	LINING SET; FRT BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88311-039-0	01	1	0105-
5	LINING SET; FRT BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88311-041-0	01	1	0105-
5	LINING SET; FRT BRK,OVER SIZE HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88311-041-0	01	1	0105-
5	LINING SET; FRT BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-498-0	01	1	0105-
5	LINING SET; FRT BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) LEADING	1-88310-498-0	01	1	0105-
5	LINING SET; FRT BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-500-0	01	1	0105-
5	LINING SET; FRT BRK,OVER SIZE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) TRAILING	1-88310-500-0	01	1	0105-
7	RIVET; LINING,FRT BRK HEAVY DUTY BRAKE SYSTEM(WG3) L=18.5	1-09732-034-0	AR	1	0105-0110
7	RIVET; LINING,FRT BRK HEAVY DUTY BRAKE SYSTEM(WG3) L=18.5	1-09732-034-0	AR	1	0105-0110
7	RIVET; LINING,FRT BRK EXC. HEAVY DUTY BRAKE SYSTEM(WG3) L=18.5	1-09732-034-0	80	1	0105-0110
7	RIVET; LINING,FRT BRK EXC. HEAVY DUTY BRAKE SYSTEM(WG3) L=18.5	1-09732-034-0	80	1	0105-0110
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	0105-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	0105-
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	0105-
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	0105-
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	0105-
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	0105-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0105-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0105-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	0105-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	0105-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	0105-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	0105-
30	BRACKET; ANCHOR,FRT HEAVY DUTY BRAKE SYSTEM(WG3)	1-47137-481-0	01	1	0105-
30	BRACKET; ANCHOR,FRT HEAVY DUTY BRAKE SYSTEM(WG3)	1-47137-481-0	01	1	0105-
30	BRACKET; ANCHOR,FRT HEAVY DUTY BRAKE SYSTEM(WG3)	1-47137-480-0	01	1	0105-
30	BRACKET; ANCHOR,FRT HEAVY DUTY BRAKE SYSTEM(WG3)	1-47137-480-0	01	1	0105-
30	BRACKET; ANCHOR,FRT EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-47137-119-3	01	1	0105-
30	BRACKET; ANCHOR,FRT EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-47137-119-3	01	1	0105-
30	BRACKET; ANCHOR,FRT EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-47137-118-3	01	1	0105-
30	BRACKET; ANCHOR,FRT EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-47137-118-3	01	1	0105-
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	0105-
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	0105-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	0105-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	0105-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	0105-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	0105-
45	WASHER; LK	1-47133-011-0	02	1	0105-
45	WASHER; LK	1-47133-011-0	02	1	0105-
46	PLATE; LOCK	1-47133-005-0	02	1	0105-
46	PLATE; LOCK	1-47133-005-0	02	1	0105-
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	0105-
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	0105-
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	0105-
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	0105-
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	0105-
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	0105-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0105-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0105-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	0105-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	0105-
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	0105-
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	0105-
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	0105-
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	0105-
52	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0105-
52	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0105-
53	ADJUSTER ASM; SLACK	1-48270-044-0	01	1	0105-
53	ADJUSTER ASM; SLACK	1-48270-044-0	01	1	0105-
53	ADJUSTER ASM; SLACK	1-48270-043-0	01	1	0105-
53	ADJUSTER ASM; SLACK	1-48270-043-0	01	1	0105-
54	SPACER; CM/SHF	1-47143-004-0	02	1	0105-
54	SPACER; CM/SHF	1-47143-004-0	02	1	0105-
55	PLATE; STOPPER,CM/SHF HEAVY DUTY BRAKE SYSTEM(WG3)	1-47149-086-0	02	1	0105-
55	PLATE; STOPPER,CM/SHF HEAVY DUTY BRAKE SYSTEM(WG3)	1-47149-086-0	02	1	0105-
55	PLATE; STOPPER,CM/SHF EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-47149-021-0	02	1	0105-
55	PLATE; STOPPER,CM/SHF EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-47149-021-0	02	1	0105-
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	0105-
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	0105-
57	NIPPLE; GREASE,ANCHOR BRKT HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-
57	NIPPLE; GREASE,ANCHOR BRKT HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-
57	NIPPLE; GREASE,ANCHOR BRKT EXC. HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-
57	NIPPLE; GREASE,ANCHOR BRKT EXC. HEAVY DUTY BRAKE SYSTEM(WG3) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	0105-
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	0105-
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0105-
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0105-
60	JOINT; JAW,POWER CHAMBER	1-09768-060-1	02	1	0105-
60	JOINT; JAW,POWER CHAMBER	1-09768-060-1	02	1	0105-
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	0105-
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	0105-
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0105-
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0105-
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	0105-
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	0105-
64	WASHER; LK,POWER CHAMBER ID=16.2	9-09150-516-0	04	1	0105-
64	WASHER; LK,POWER CHAMBER ID=16.2	9-09150-516-0	04	1	0105-
109	BUSHING; CM/SHF,FRT BRK HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-47146-003-1	02	1	0105-
109	BUSHING; CM/SHF,FRT BRK HEAVY DUTY BRAKE SYSTEM(WG3) (A)	1-47146-003-1	02	1	0105-
109	BUSHING; CM/SHF,FRT BRK HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-47146-019-0	02	1	0105-
109	BUSHING; CM/SHF,FRT BRK HEAVY DUTY BRAKE SYSTEM(WG3) (B)	1-47146-019-0	02	1	0105-
109	BUSHING; CM/SHF,FRT BRK EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (C)	1-47146-003-1	04	1	0105-
109	BUSHING; CM/SHF,FRT BRK EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (C)	1-47146-003-1	04	1	0105-
