2-85 — POWER TAKE OFF CONTROL (#27717) — 7 parça

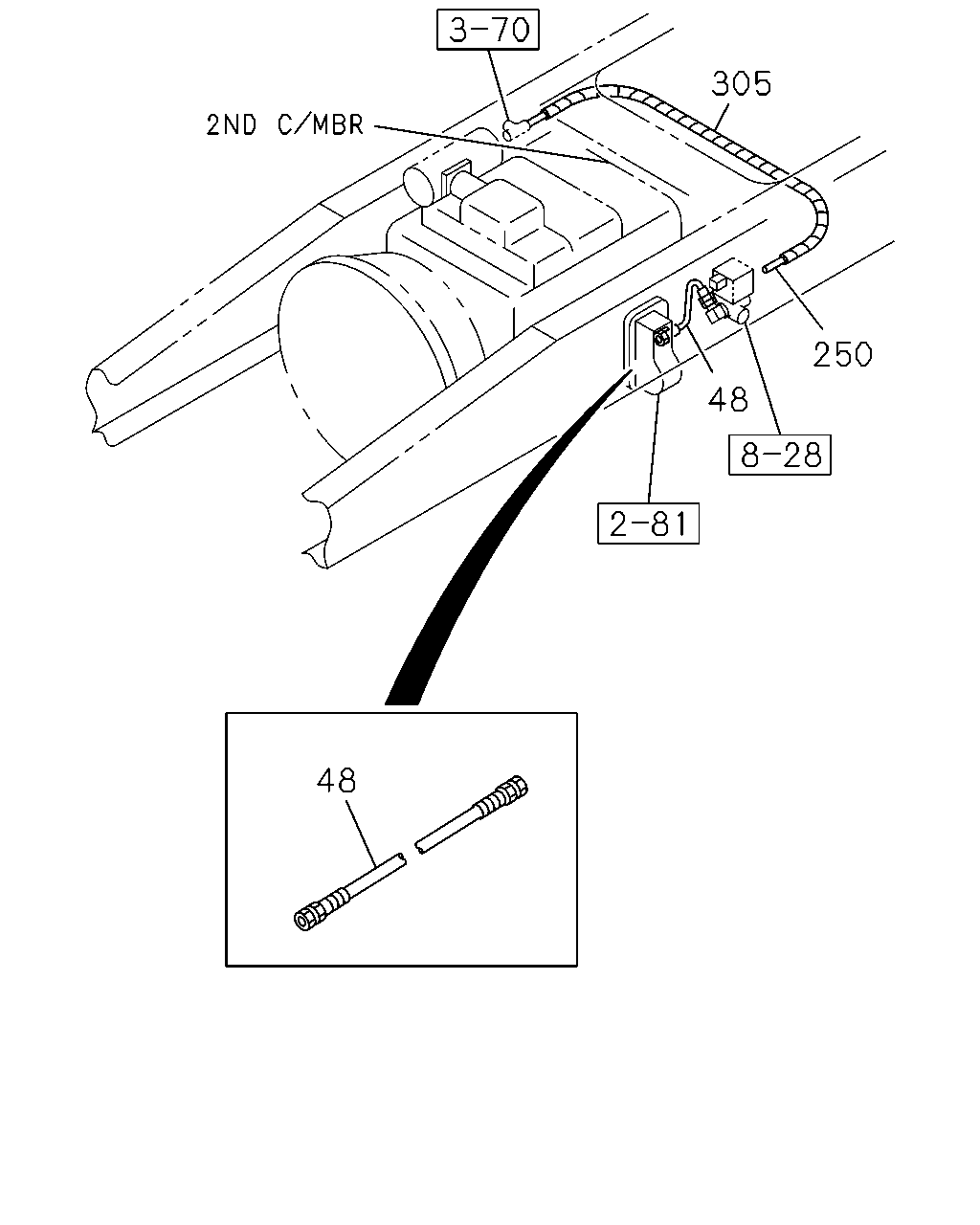

305 250 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=390	1-09363-616-0	01	1	0105-0106
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=340	1-09363-617-0	01	1	0107-
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0105-
305	TUBE; CORRUGATE TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0105-

3 3 1 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; PTO & DUMP CONT PTO CONTROL(SV6)	1-79907-045-1	01	1	0105-
3	BOLT; BRKT,DUMP CONT LEVER PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER	8-94279-207-0	06	1	0105-
55	GROMMET; CABLE EXC. PTO CONTROL(SV6)	1-09983-068-0	01	1	0105-
