2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#27713) — 41 parça

57 39 58 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0105-
57	NIPPLE; POWER ASSISTOR M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-
58	HOSE; FLEX,POWER ASSISTOR L=360	0-07150-360-0	01	1	0105-

22 25 24 112 25 22 25 15 15 22 28 25 24 28 36 30 44 35 5 6 35 32 38 30 38 36 32 44 45 49 8 47 47 49 45

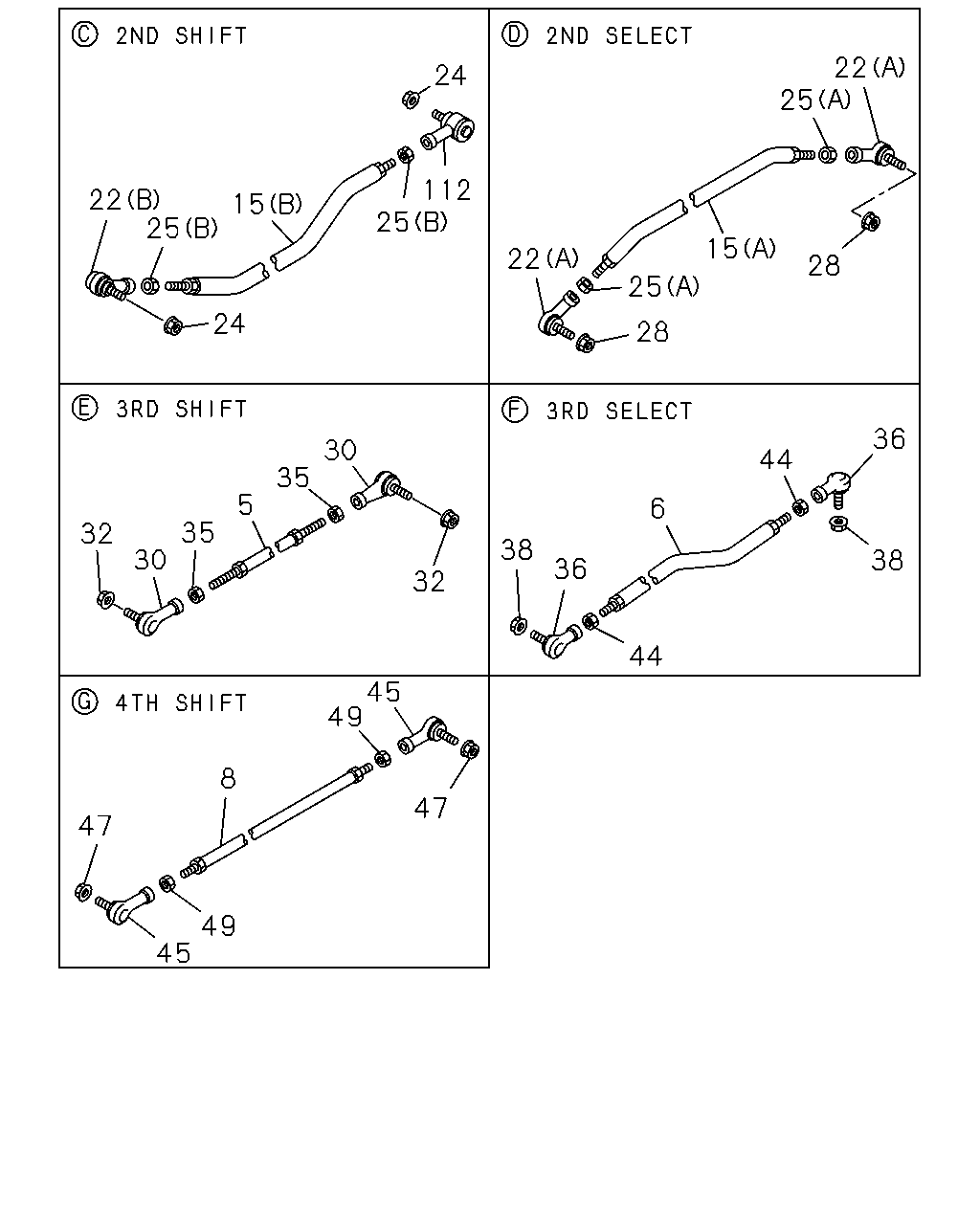

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> L=1170	1-33652-547-0	01	1	0105-
5	ROD; LINK,3RD SHIFT EXC. MIXER TRUCK<RA2> L=1110	1-33652-623-0	01	1	0105-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> L=1668	1-33652-983-1	01	1	0105-
6	ROD; LINK,3RD SELECT EXC. MIXER TRUCK<RA2> L=1599	1-33652-916-1	01	1	0105-
8	ROD; LINK,4TH SHIFT L=330	1-33652-653-1	01	1	0105-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (B) L=490	1-33652-780-1	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=428	1-33652-781-2	01	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (A) SELECT	1-09760-109-0	02	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (B) SHIFT	1-09760-125-0	01	1	0105-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M12	9-99111-412-0	02	1	0105-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

58 16 12 10 21 14 15 1 21 14 112 16 18 18 12

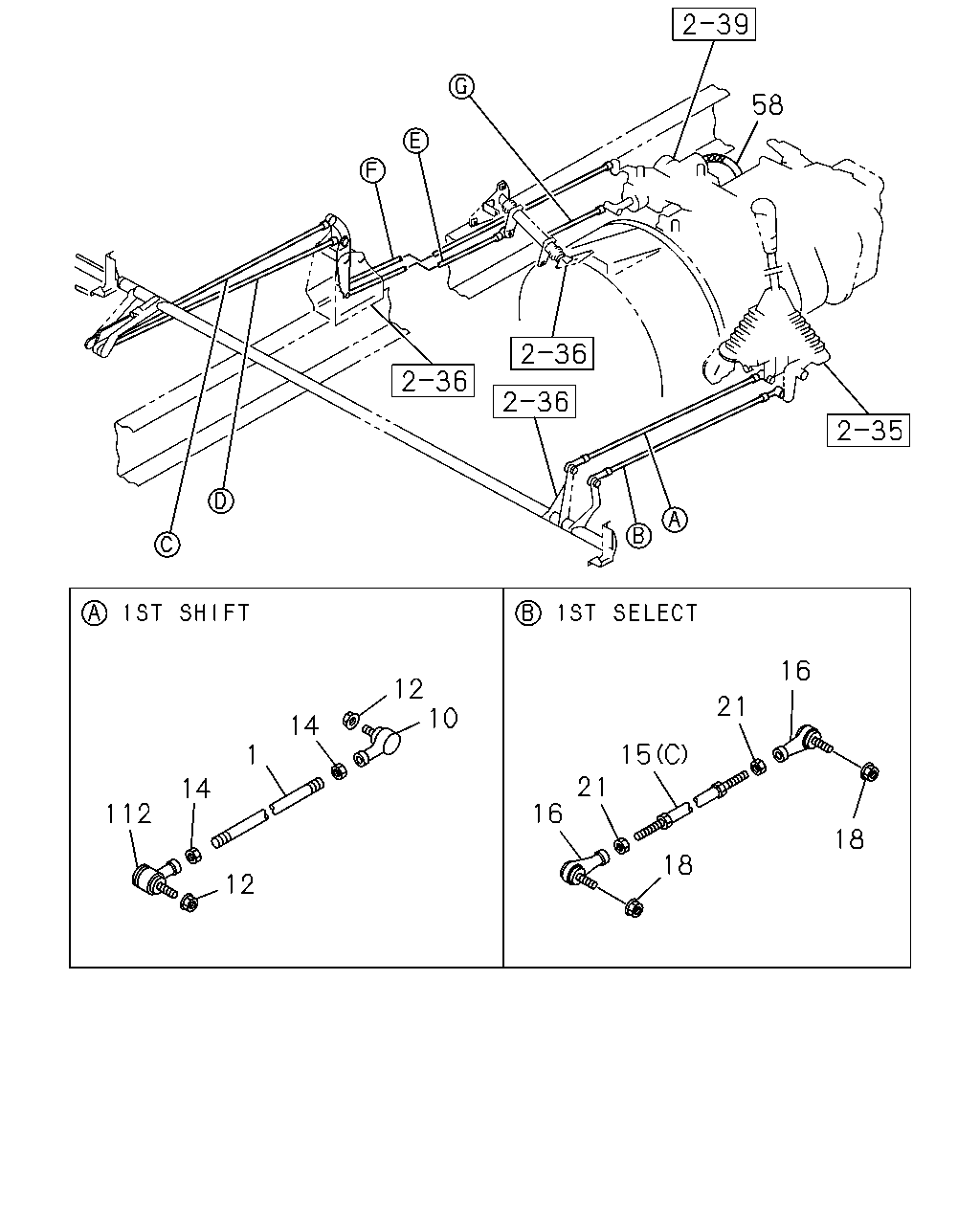

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0105-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (B) L=490	1-33652-780-1	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=428	1-33652-781-2	01	1	0105-
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0105-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0105-
58	HOSE; FLEX,POWER ASSISTOR L=360	0-07150-360-0	01	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
