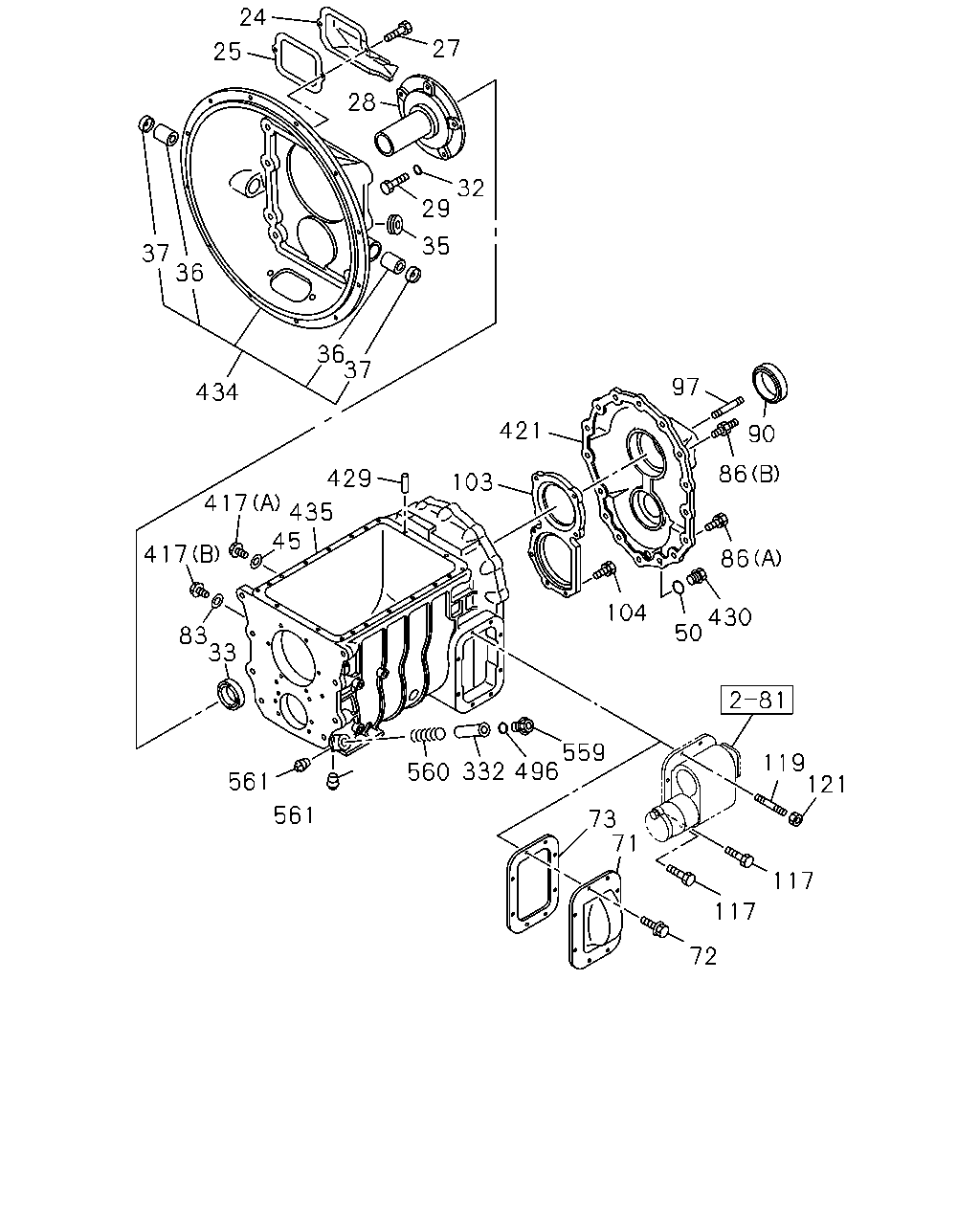

2-20 — MANUAL TRANSMISSION ASM AND CASE (#27707) — 71 parça

24 27 25 28 32 29 35 37 36 36 37 97 434 421 90 86 429 103 417 435 45 417 86 104 430 50 83 33 559 119 121 560 561 561 73 71 117 117 72 332 496

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0105-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0105-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0105-
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0105-
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0105-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0105-
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0105-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0105-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0105-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-044-1	01	1	0105-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28181-220-0	08	1	0105-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0105-
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=22.5	9-09571-422-0	01	1	0105-0106
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0105-
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0105-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0105-
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0105-
103	RETAINER; BRG	1-33151-059-0	01	1	0105-
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0105-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0105-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28181-225-0	02	1	0105-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28186-212-0	02	1	0105-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0105-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0105-
332	FILTER; OIL	1-41383-003-0	01	1	0105-
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0105-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0105-0201
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-
421	COVER; RR,TRANS	1-33131-201-1	01	1	0105-
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0105-
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0105-
434	HOUSING; CLU	1-31110-178-1	01	1	0105-
435	CASE; TRANS	1-33111-321-0	01	1	0105-
496	GASKET; OIL FILTER ID=26.8	1-09623-058-0	01	1	0105-
559	PLUG; OIL M24X17 FLANGE	1-09604-023-0	01	1	0105-
560	SPRING; OIL	1-09580-504-0	01	1	0105-
561	PLUG PT1/4	9-99204-513-0	02	1	0105-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

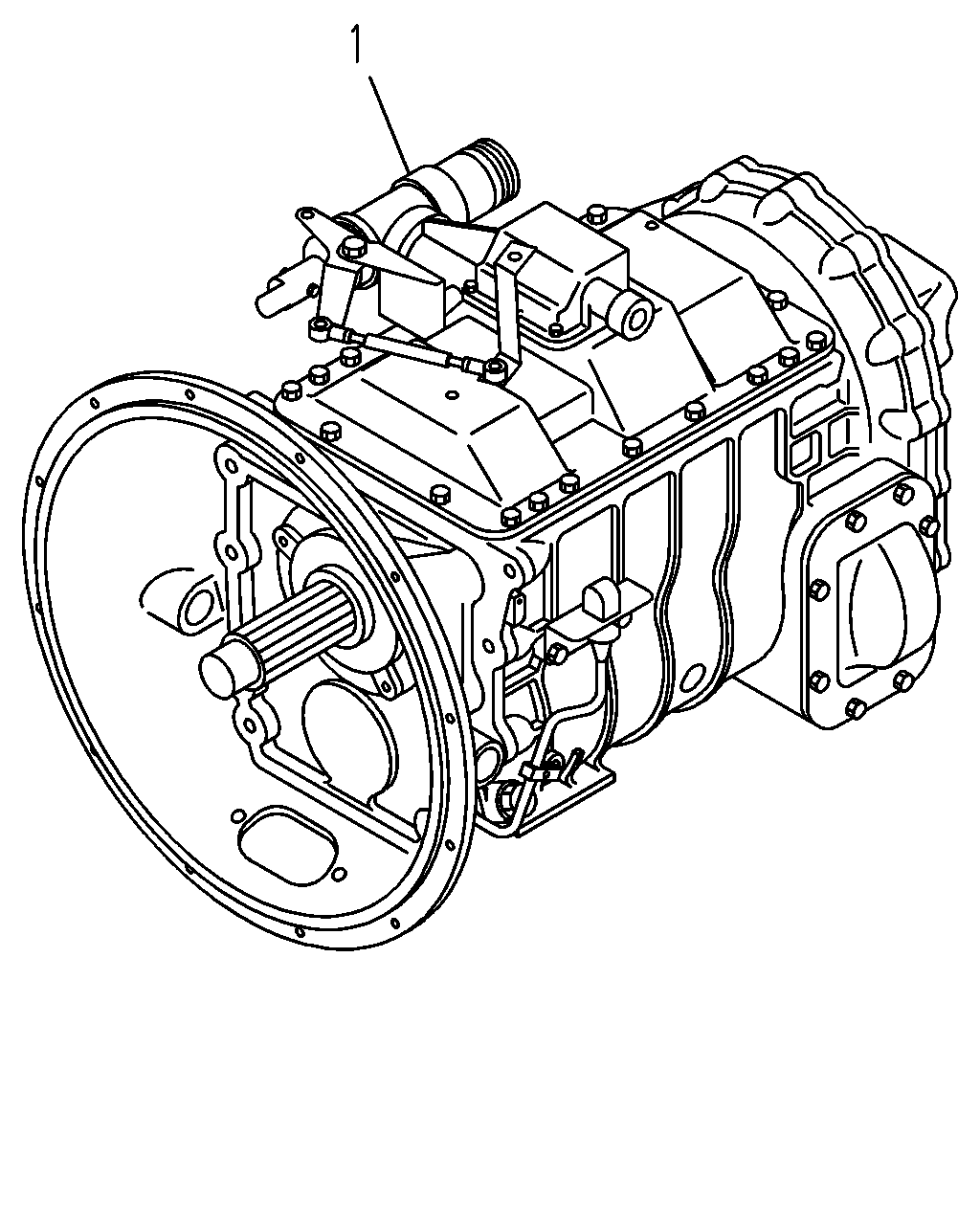

	1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-212-0	01	1	0105-
	1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-212-0	01	1	0105-

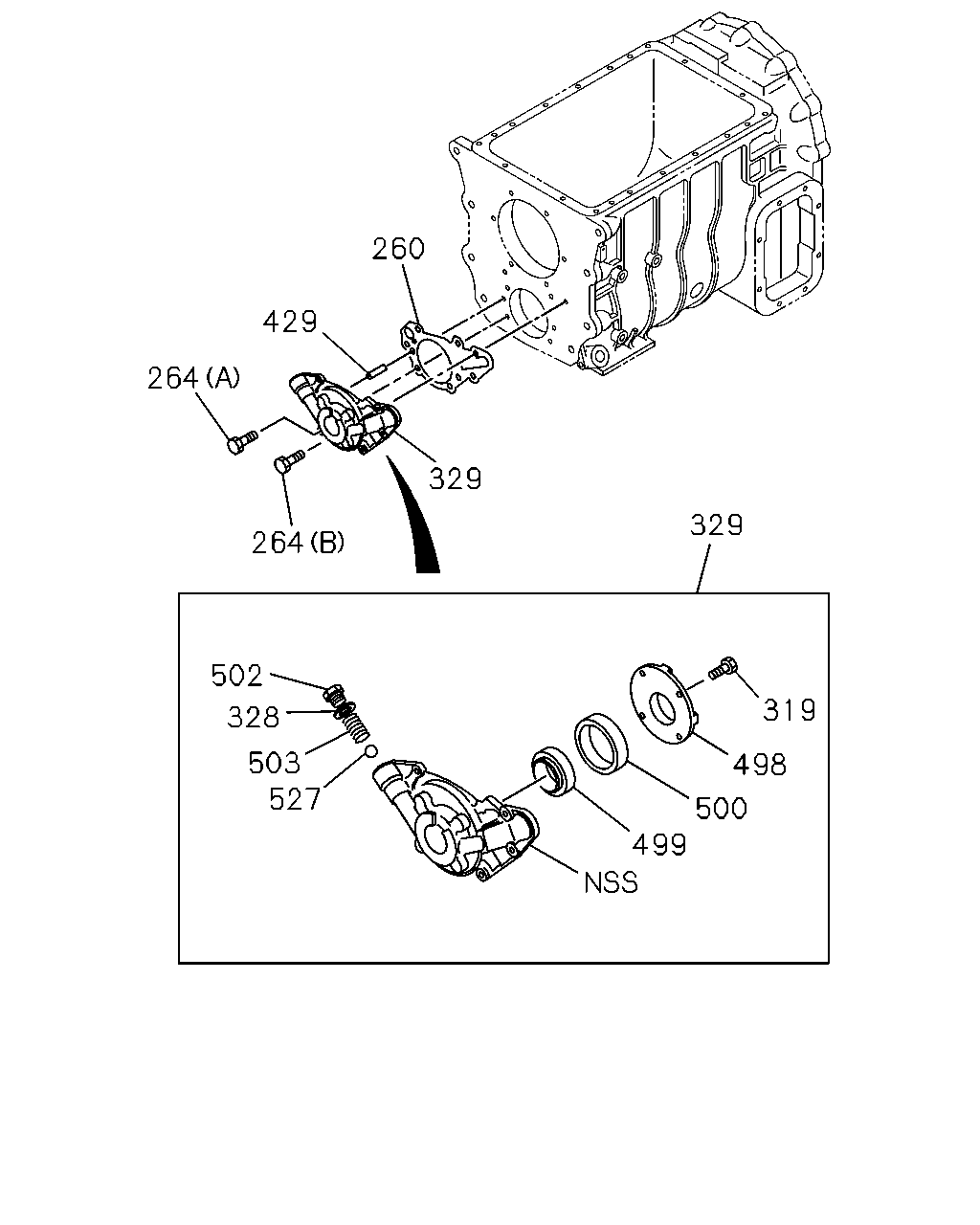

260 429 264 329 329 264 502 328 319 503 527 498 500 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
260	GASKET; OIL PUMP	1-34142-026-0	01	1	0105-
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	05	1	0105-
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	02	1	0105-
319	BOLT; COVER	1-34159-075-0	04	1	0105-
328	GASKET; PLUG	8-94244-656-0	01	1	0105-
329	PUMP ASM; OIL	1-34150-098-0	01	1	0105-
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0105-
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	0105-
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	0105-
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	0105-
502	PLUG; OIL PUMP	8-94244-655-0	01	1	0105-
503	SPRING; OIL PUMP	5-09580-098-0	01	1	0105-
527	BALL; OIL PUMP	9-00097-531-0	01	1	0105-

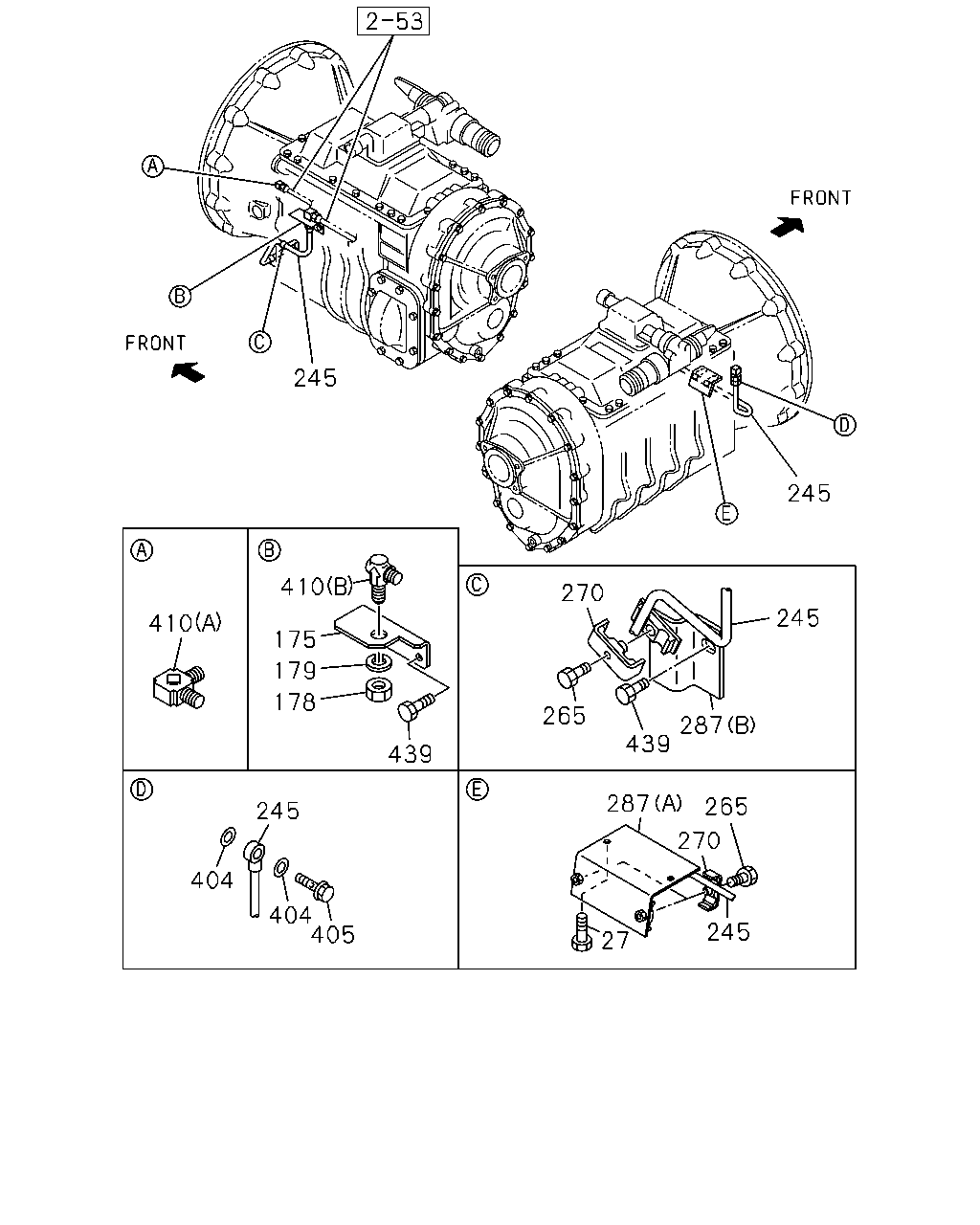

245 245 410 270 245 410 175 179 178 265 287 439 439 287 265 245 270 404 27 404 405 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-
175	BRACKET; UNION	1-46147-216-2	01	1	0105-
178	NUT; UNION M16	9-99111-516-0	01	1	0105-
179	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	0105-
245	PIPE; OIL	1-32571-161-0	01	1	0105-
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	0105-
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-2	03	1	0105-
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	0105-
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	0105-
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0105-
410	UNION; OIL PIPE (B)	1-09654-371-0	01	1	0105-
410	UNION; OIL PIPE (A)	1-09660-800-1	01	1	0105-
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	03	1	0105-
