2-05 — CLUTCH PIPING (#27703) — 102 parça

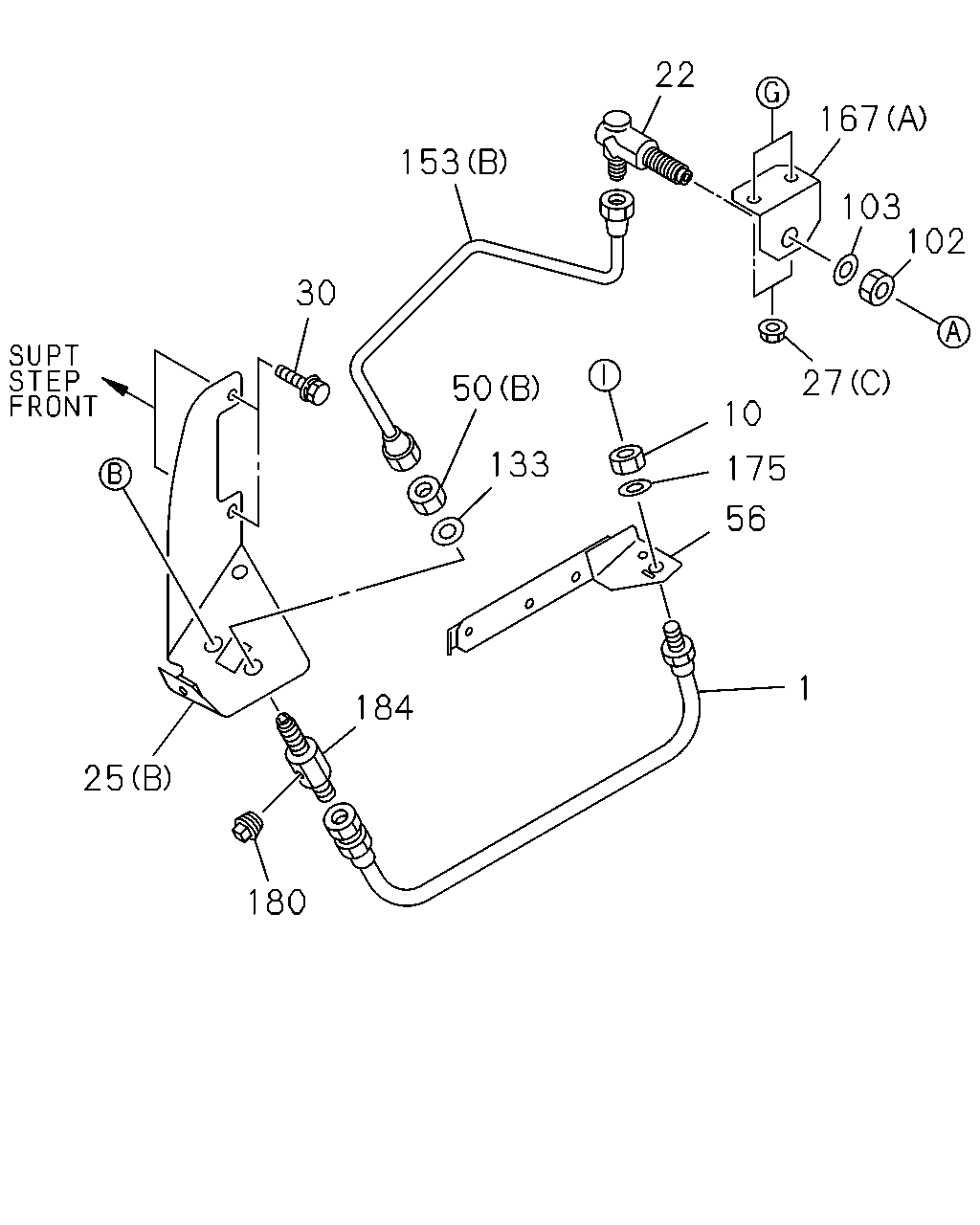

22 167 153 103 102 30 27 50 10 133 175 56 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0105-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0105-
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	0105-
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION (A) M20	9-99111-420-0	01	1	0106-
56	BRACKET; FLEX HOSE	1-47479-036-0	01	1	0105-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0108
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1966 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-0407
153	PIPE ASM; CLU,UNION TO FLEX (B) L=500 SERVICED BY L=500	1-47426-376-0	01	1	0408-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
180	PLUG; PIPE	9-09204-510-0	01	1	0105-
184	UNION; FLEX HOSE	1-09656-679-0	01	1	0105-

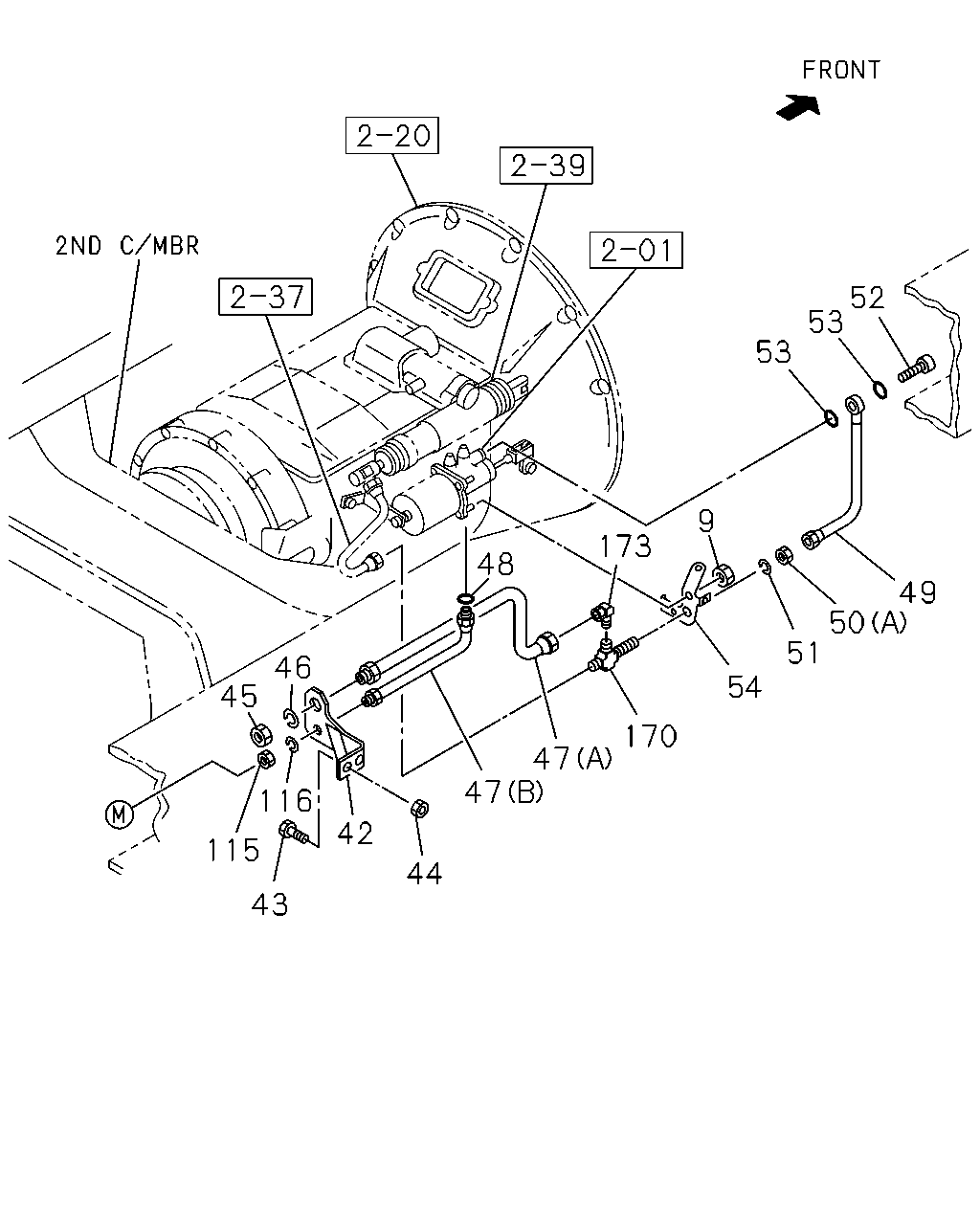

52 53 53 9 173 48 49 50 51 46 54 45 170 47 47 116 42 115 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0105-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0105-
45	NUT; FLEX HOSE,CLU CONT M20	9-99111-420-0	01	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=20.2	9-09150-520-0	01	1	0105-
47	HOSE; FLEX,CLU CONT (A) L=560	0-07806-560-1	01	1	0105-0108
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> (A) L=580	0-07806-580-1	01	1	0109-
47	HOSE; FLEX,CLU CONT (B) L=600	1-09364-705-0	01	1	0105-0108
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> (B) L=640	1-09365-155-0	01	1	0109-
47	HOSE; FLEX,CLU CONT EXC. MIXER TRUCK<RA2> (A) L=660	0-07806-660-1	01	1	0109-
47	HOSE; FLEX,CLU CONT EXC. MIXER TRUCK<RA2> (B) L=700	1-09364-456-0	01	1	0109-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	0106-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION (A) M20	9-99111-420-0	01	1	0106-
51	WASHER; LK ID=20.2	9-09150-520-0	01	1	0106-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0106-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
170	UNION; AIR PIPE	1-09656-640-0	01	1	0106-
173	CONNECTOR M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0106-

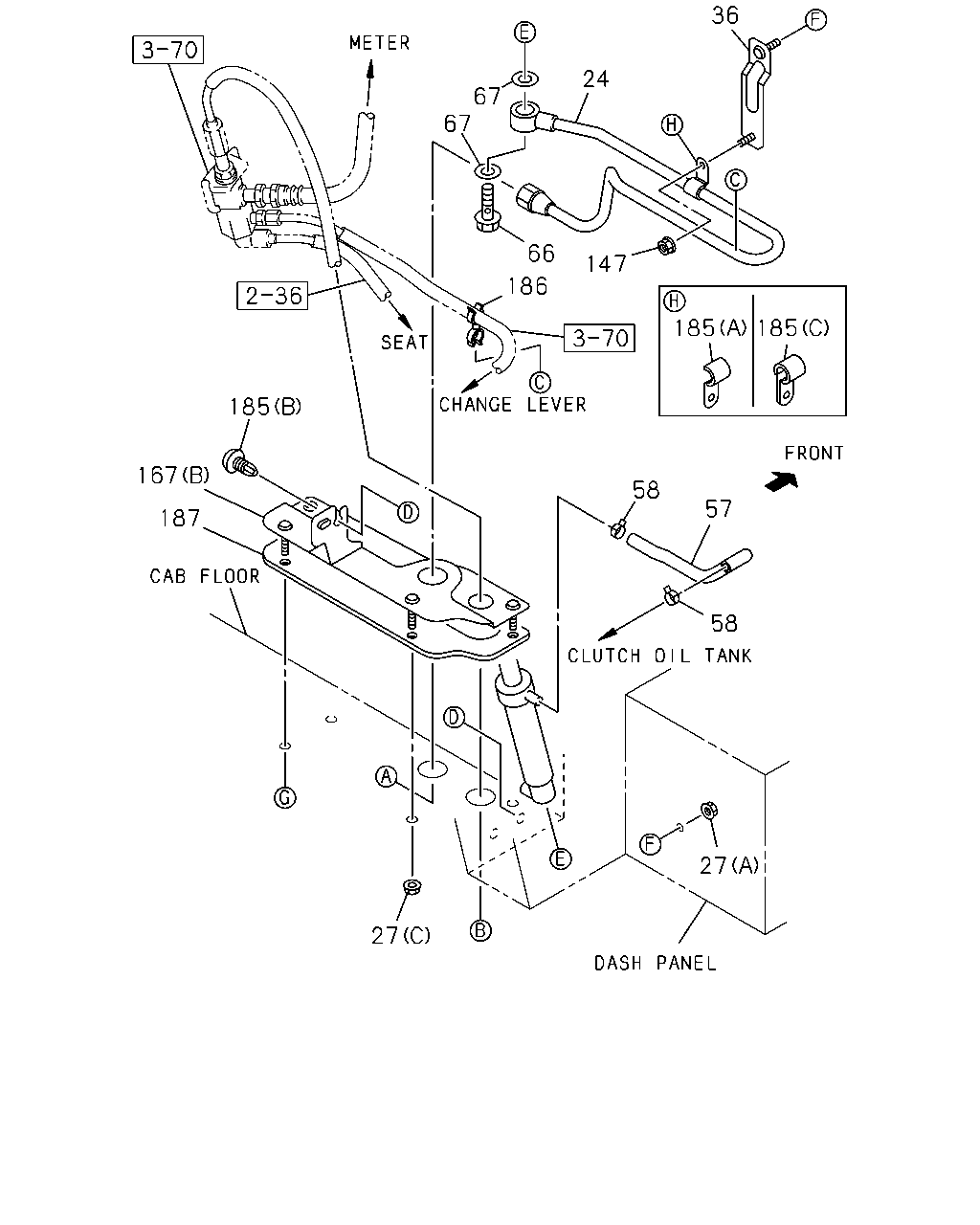

36 24 67 67 66 147 186 185 185 185 167 58 57 187 58 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	0105-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
36	BRACKET; CLIP	1-71117-191-1	01	1	0105-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0105-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0105-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 FLANGE	1-09675-146-0	01	1	0105-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0105-
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0105-0205
185	CLIP; BRKT (C) ID=11 L=16	9-09525-025-0	01	1	0206-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-
187	SEAL; BRKT	1-71117-209-2	01	1	0105-

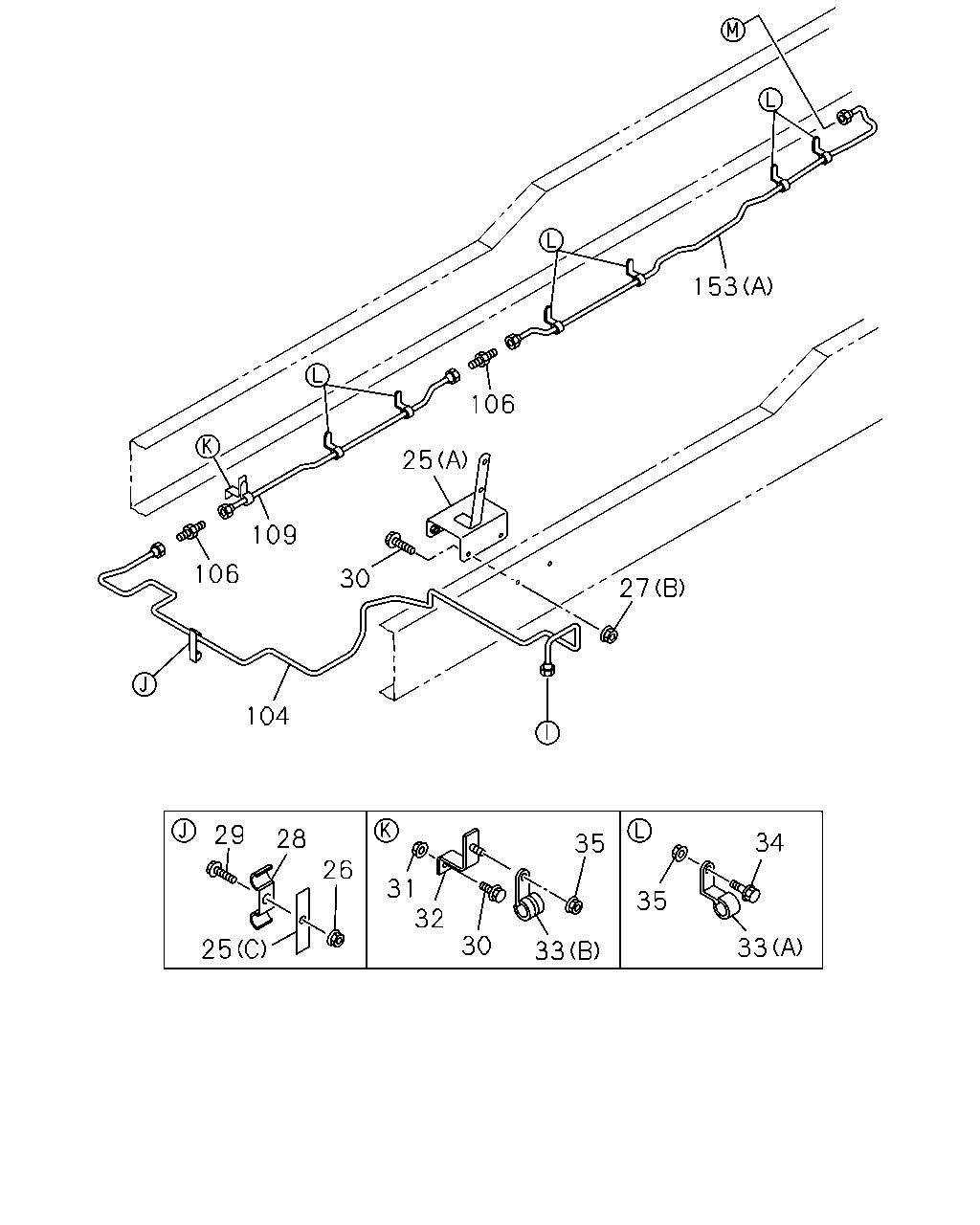

153 106 25 109 106 30 27 104 29 28 34 35 26 31 32 35 30 33 25 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	0105-
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
28	CLIP; OIL PIPE ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
32	BRACKET; CLIP OIL PIPE	1-47477-235-0	01	1	0105-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0105-
33	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0105-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	04	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2295	1-49165-702-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2298	1-49166-269-0	01	1	0107-0407
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2308 SERVICED BY L=2400	1-47426-395-0	01	1	0408-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0105-
109	PIPE; AIR,UNION TO UNION L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	0105-0205
109	PIPE; AIR,UNION TO UNION L=1015 SERVICED BY L=1100	1-47434-409-0	01	1	0206-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0108
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1966 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-0407
153	PIPE ASM; CLU,UNION TO FLEX (B) L=500 SERVICED BY L=500	1-47426-376-0	01	1	0408-
