0-50B — OIL COOLER AND OIL FILTER (#2770) — 82 parça

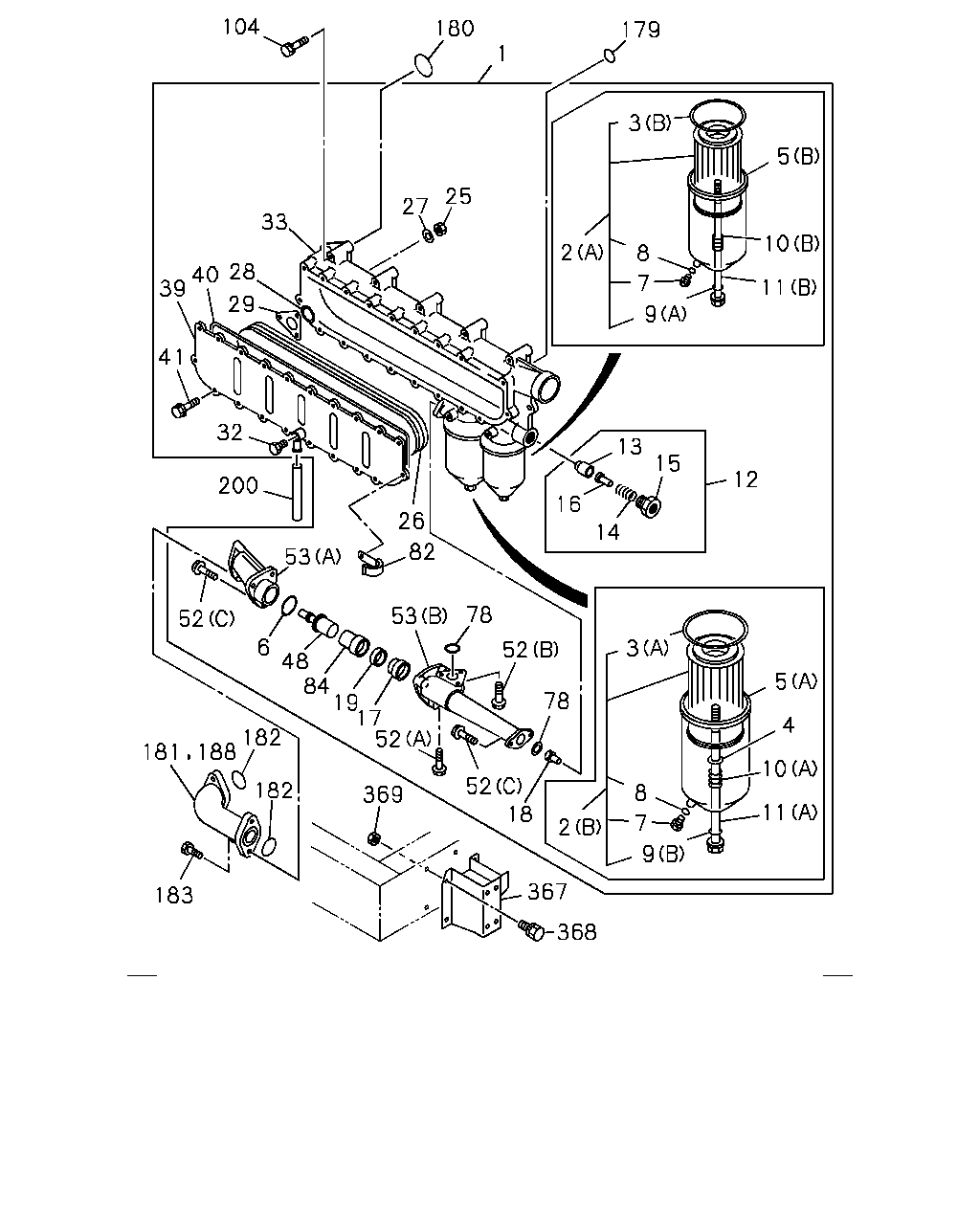

çizim 3965
104 180 179 3 5 10 11 8 7 2 9 25 27 33 39 40 28 29 41 32 200 26 53 52 53 82 6 48 84 19 17 52 78 52 78 18 2 367 368 369 182 188 181 182 183 9 7 8 11 10 4 5 3 14 16 13 15 12 1 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER & COOLER ASM; OIL 1-13200-772-7 01 1 9002-9306 ●
1 FILTER & COOLER ASM; OIL 1-13200-922-3 01 1 9307- ●
1 FILTER & COOLER ASM; OIL 1-13200-923-3 01 1 9307- ●
2 ELEMENT; OIL FILTER
(A) 		1-13240-117-1 01 1 9002-9108 ●
2 ELEMENT; OIL FILTER
(A) 		1-13240-173-0 01 1 9109-9202 ●
2 ELEMENT; OIL FILTER
(A) 		1-13240-179-0 01 1 9203-9310 ●
2 ELEMENT; OIL FILTER
(A) TSUCHIYA 		1-13240-202-0 01 1 9311- ●
2 ELEMENT; OIL FILTER
(A) TOKYO ROKI 		1-13240-187-0 01 1 9311- ●
2 ELEMENT; OIL FILTER
(A) TSUCHIYA 		1-13240-200-0 01 1 9501- ●
2 ELEMENT; OIL FILTER
(B) 		1-13240-116-0 01 1 9002- ● ●
2 ELEMENT; OIL FILTER
(A) 		1-13240-154-0 01 1 9307-9310 ●
2 ELEMENT; OIL FILTER
(A) TOKYO ROKI 		1-13240-189-0 01 1 9311- ●
3 GASKET
(B) 		1-13213-010-0 01 1 9002- ● ●
3 GASKET
(A) 		1-13213-011-2 01 1 9002- ● ●
4 WASHER; ELEMENT 1-13219-259-0 01 1 9002- ● ●
5 CASE; OIL FILTER
(B) 		1-13211-197-0 01 1 9002-9004 ●
5 CASE; OIL FILTER
(A) 		1-13211-199-0 01 1 9002-9004 ●
5 CASE; OIL FILTER
(A) 		1-13211-200-3 01 1 9005- ●
5 CASE; OIL FILTER
(B) 		1-13211-198-3 01 1 9005- ● ●
5 CASE; OIL FILTER
(A) 		1-13211-202-3 01 1 9307- ●
6 GASKET; VLV CASE 1-13219-258-0 01 1 9002- ● ●
7 PLUG; CENTER BOLT 1-09604-088-0 02 1 9002- ● ●
8 GASKET; PLUG
ID=11.8 		9-09923-579-0 02 1 9002- ● ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-09623-499-0 01 1 9002- ● ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		1-09623-500-0 01 1 9002- ● ●
10 SPRING; ELEMENT
(B) 		1-13219-263-0 01 1 9002- ● ●
10 SPRING; ELEMENT
(A) 		1-13219-264-0 01 1 9002- ● ●
11 BOLT; CENTER
(A) 		1-13231-072-0 01 1 9002- ●
11 BOLT; CENTER
(B) 		1-13231-071-0 01 1 9002- ● ●
11 BOLT; CENTER
(A) 		1-13231-073-0 01 1 9307- ●
12 VALVE ASM; BYPASS 1-13260-056-0 01 1 9002-9306 ●
12 VALVE ASM; BYPASS 1-13200-875-0 01 1 9307- ● ●
13 VALVE; RELIEF 9-13262-010-0 01 1 9002- ● ●
14 SPRING; RELIEF VLV 9-09940-985-0 01 1 9002- ● ●
15 PLUG; RELIEF VLV 1-13265-017-0 01 1 9002-9412 ●
15 PLUG; RELIEF VLV 1-13265-024-0 01 1 9307-9412 ●
15 PLUG; RELIEF VLV 1-13265-024-0 01 1 9501- ● ●
16 VALVE ASM; RELIEF 1-13269-005-0 01 1 9002- ● ●
17 STOPPER; VLV 1-21729-066-0 01 1 9307- ●
18 VALVE ASM; OIL COOLER 1-21740-002-0 01 1 9002- ●
19 SEAL ASM; VLV 1-13779-007-0 01 1 9307- ●
25 NUT; CORE TO BODY
M10 		9-09110-410-0 06 1 9002- ● ●
26 CORE ASM; OIL COOLER 1-21491-038-0 01 1 9002- ●
26 CORE ASM; OIL COOLER 1-21491-033-0 01 1 9307- ●
27 WASHER; PL,CORE TO BODY 9-09100-510-0 06 1 9002- ● ●
28 GASKET; CORE TO BODY 1-09623-560-0 02 1 9002- ● ●
29 GASKET; CORE TO BODY 1-13213-014-1 02 1 9002- ● ●
32 PLUG; DRAIN 1-13219-151-0 01 1 9002- ● ●
33 HOUSING ASM; COOLER 1-21721-069-4 01 1 9002- ●
33 HOUSING ASM; COOLER 1-13211-235-1 01 1 9307- ●
39 COVER; OIL COOLER 1-21722-029-0 01 1 9002-9306 ●
39 COVER; OIL COOLER 1-21722-027-0 01 1 9307- ● ●
40 GASKET; COVER TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13213-013-0 01 1 9002- ● ●
41 BOLT; COVER FIX 1-13219-260-0 20 1 9002-9306 ●
41 BOLT; COVER FIX 1-13219-163-1 20 1 9307- ● ●
48 VALVE; THERMO,OIL COOLER 1-13770-054-0 01 1 9307- ●
52 BOLT; OIL INL PIPE & VLV CASE
(A) 		1-13219-261-1 02 1 9002- ● ●
52 BOLT; OIL INL PIPE & VLV CASE
(B) 		1-13219-262-1 01 1 9002- ● ●
52 BOLT; OIL INL PIPE & VLV CASE
(C) 		9-02050-830-0 05 1 9002- ● ●
53 PIPE; OIL INL
(A) 		1-13219-273-0 01 1 9002-9306 ●
53 PIPE; OIL INL
(B) 		1-13219-274-1 01 1 9002-9306 ●
53 PIPE; OIL INL
(A) 		1-13219-255-0 01 1 9307- ● ●
53 PIPE; OIL INL
(B) 		1-13219-256-2 01 1 9307- ● ●
78 GASKET; PIPE 1-13219-257-0 02 1 9002- ● ●
82 HOLDER; OIL COOLER
ID=11 L=30 		1-09700-511-0 01 1 9307- ● ●
84 SUPPORT; VLV,OIL COOLER & FILTER 1-13219-265-0 01 1 9307- ●
104 BOLT; OIL COOLER
M10X60 FLANGE 		8-94399-708-1 07 1 9002-9105 ●
104 BOLT; OIL COOLER
M10X60 FLANGE 		0-28181-060-0 07 1 9106-9412 ● ●
104 BOLT; OIL COOLER
M10X60 FLANGE 		0-28181-060-0 02 1 9501- ● ●
104 BOLT; OIL COOLER
M10X90 FLANGE 		0-28181-090-0 05 1 9501- ● ●
179 GASKET; OIL OUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9002- ● ●
180 GASKET; WATER OUT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 01 1 9002- ● ●
181 CONNECTOR; HSG TO COOLER 1-13312-082-0 01 1 9307- ●
182 GASKET; CONNECTOR,HSG TO COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 02 1 9002- ● ●
183 BOLT; CONNECTOR,HSG TO COOLER
M8X22 FLANGE 		0-28020-822-0 04 1 9002-9005 ●
183 BOLT; CONNECTOR,HSG TO COOLER
M8X22 FLANGE 		0-28080-822-0 04 1 9006- ● ●
188 PIPE; BYPASS 1-13312-082-0 01 1 9002- ●
200 PIPE; VINYL,WATER DRAIN
L=510 SERVICED BY L=10000 		9-09914-701-0 01 1 9002- ● ●
367 BRACKET; PARTIAL FILTER 1-47475-615-2 01 1 9002-9306 ●
367 BRACKET; PARTIAL FILTER 1-47475-371-3 01 1 9307- ● ●
368 BOLT; BRKT TO FRAME
M10X35 W/LK WASHER 		0-50041-035-0 04 1 9002- ● ●
369 NUT; BRKT TO FRAME
M10 		9-09110-510-0 04 1 9002- ● ●
