◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10625 - FSR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#277) — 28 parça

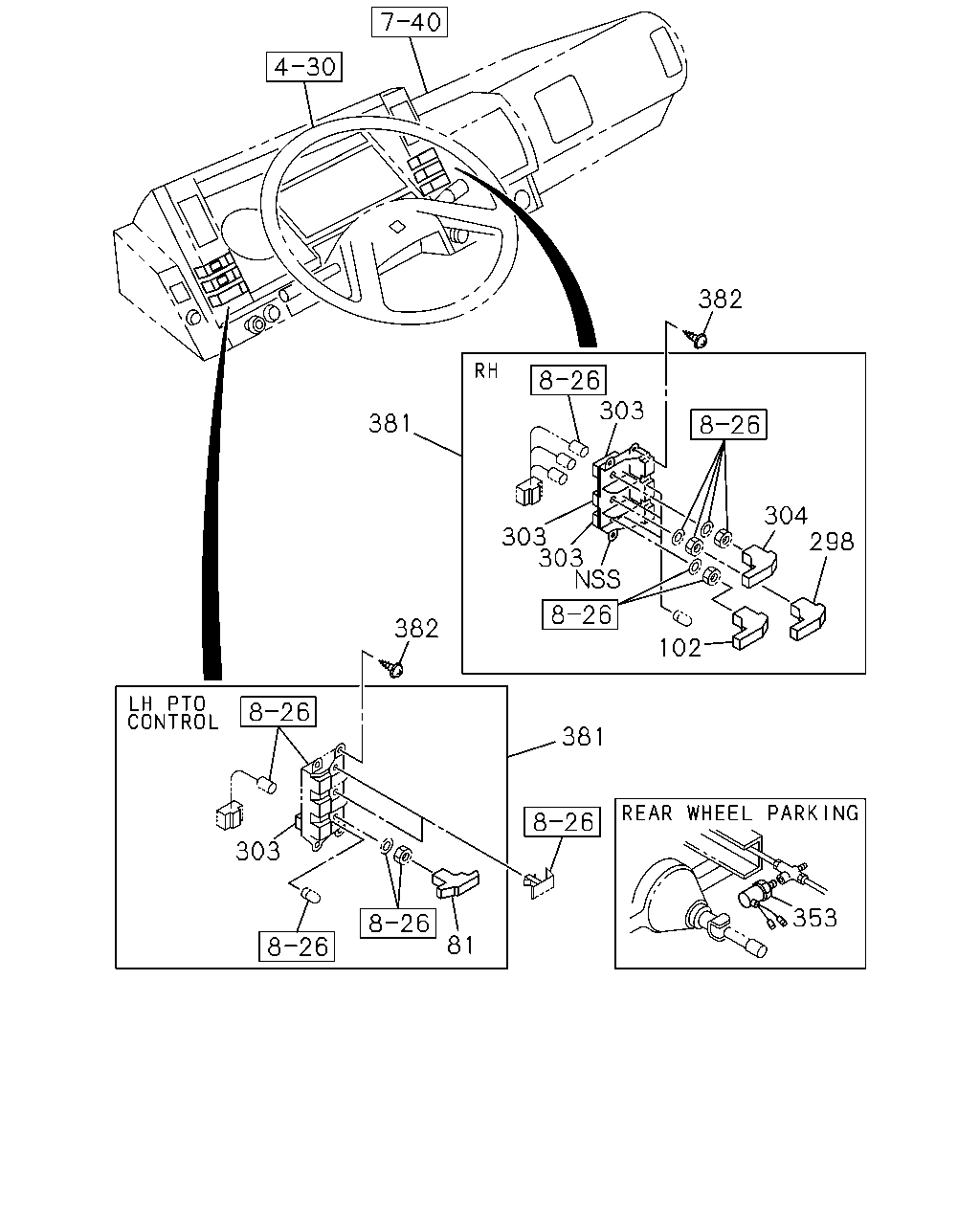

çizim 92796
382 303 381 304 298 303 303 382 102 381 303 353 81
BalonParca AdiParca NoAdetTipApplied Date
81 KNOB ASM; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82356-073-0 01 1 9212-
102 KNOB ASM; FOG LAMP 1-82356-031-0 01 1 9212-
298 KNOB ASM; PARKING LAMP 1-82356-028-0 01 1 9212-
303 SWITCH; MICRO
FOG 		1-82350-091-0 01 1 9212-
303 SWITCH; MICRO
PARKING 		1-82350-127-0 01 1 9212-
303 SWITCH; MICRO
HAZARD 		1-82350-181-0 01 1 9212-
303 SWITCH; MICRO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82350-128-0 01 1 9212-
304 KNOB ASM; HAZARD 1-82356-068-0 01 1 9212-
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-138-0 01 1 9212-9502
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-0 01 1 9503-
381 SWITCH ASM; METER CLUSTER SIDE 1-82350-171-0 01 1 9212-
381 SWITCH ASM; METER CLUSTER SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82350-138-0 01 1 9212-
382 SCREW; SW,METER CLUSTER SIDE
M5X14 W/PL WASHER 		5-09981-050-0 08 1 9212-

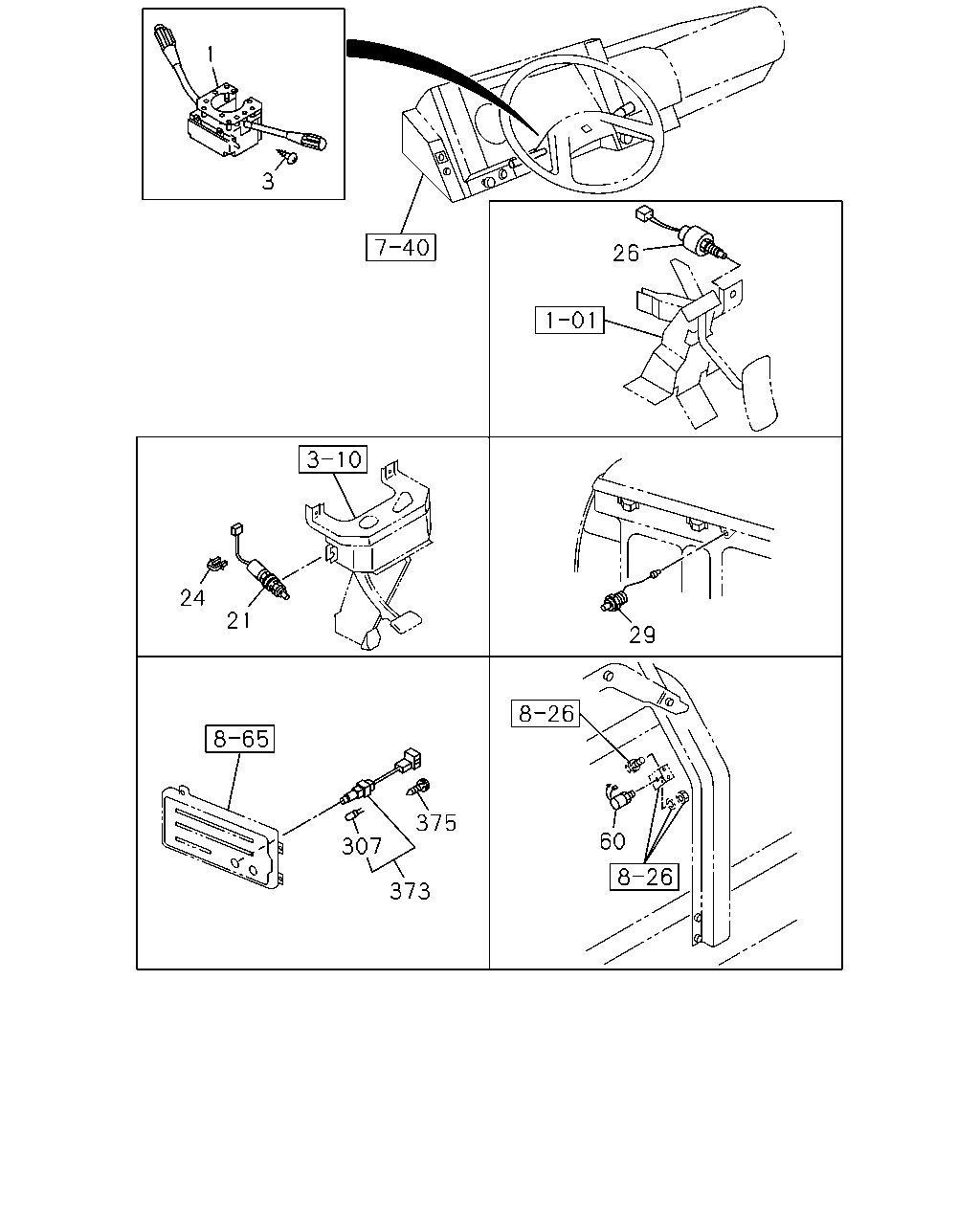

çizim 92798
1 3 26 24 21 29 375 60 307 373
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
EXHAUST BRAKE<NF8> 		1-82360-312-2 01 1 9212-9409
1 SWITCH; COMB
EXHAUST BRAKE<NF8> 		1-82360-394-0 01 1 9410-
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8> 		1-82360-326-1 01 1 9212-9409
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8> 		1-82360-398-0 01 1 9410-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 03 1 9212-9409
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9410-
21 SWITCH; CLU
EXHAUST BRAKE<NF8> 		1-82380-009-3 01 1 9212-
21 SWITCH; CLU
PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8> 		1-82380-009-3 01 1 9212-
24 CLIP; CLU SW,EXH BRK 1-09987-161-0 01 1 9212-
26 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 		1-82380-009-3 01 1 9212-
29 SWITCH; DOOR 1-82440-091-0 01 1 9212-
60 SWITCH; IGNITION SUB 1-82380-065-0 01 1 9212-
307 BULB ASM; SW
AIR CON MANUAL CONTROL(C60) 28V 1.4W 		1-82194-082-0 01 1 9212-
373 SWITCH; A/C
AIR CON MANUAL CONTROL(C60) 		1-82340-206-0 01 1 9212-
375 SCREW; A/C SW
AIR CON MANUAL CONTROL(C60) M5X14 W/PL WASHER 		5-09981-050-0 02 1 9212-
