Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#27696) — 44 parça

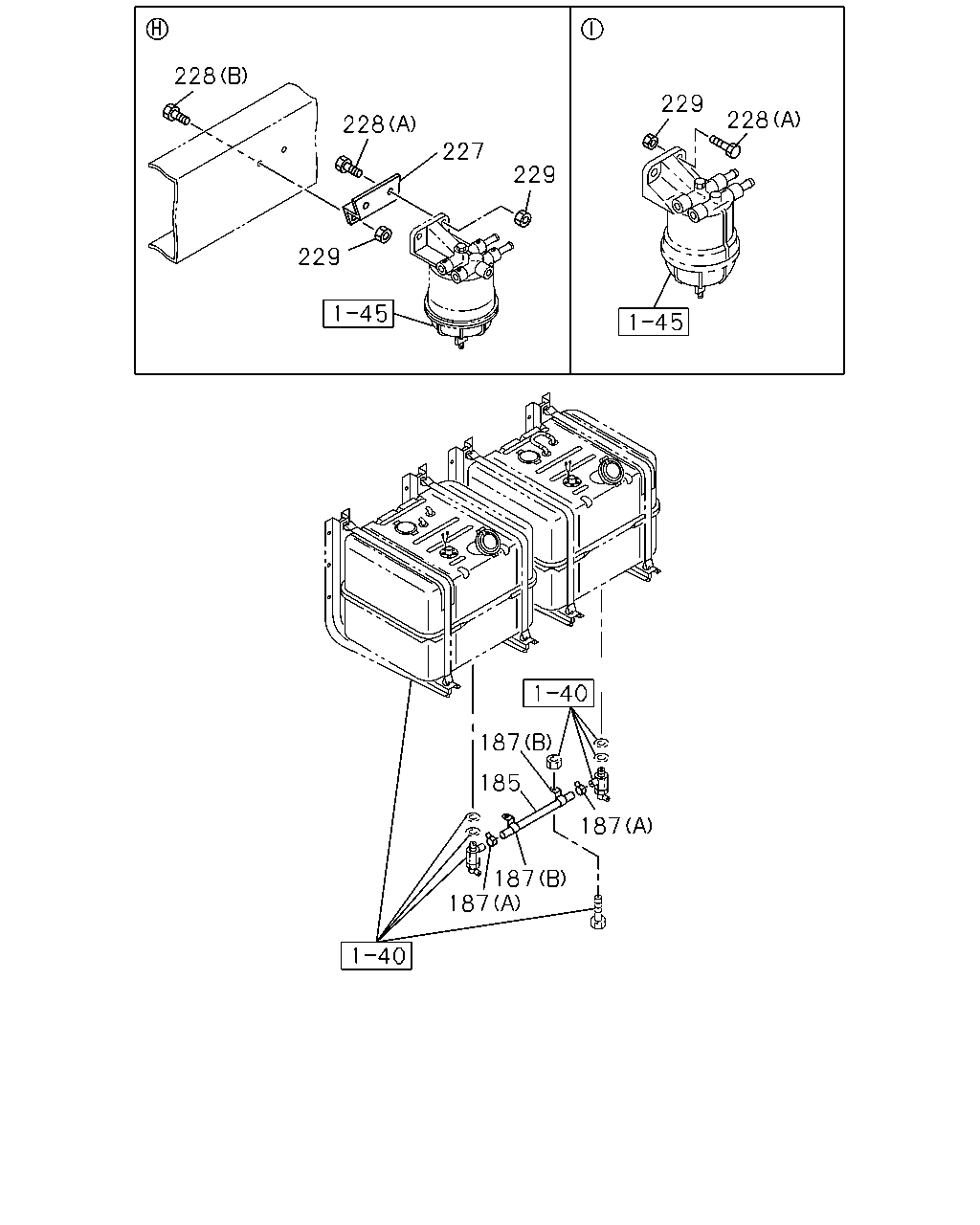

228 229 228 228 227 229 229 187 185 187 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
185	PIPE; FUEL TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01262-300-0	01	1	0105-
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (A) ID=17.1	8-94122-679-0	02	1	0105-
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	0105-
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W)	1-22518-156-0	01	1	0105-
228	BOLT; BRKT,SEDIMENTER (A) M10X40 FLANGE	0-28681-040-0	02	1	0105-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0105-
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6300MM(63W) M10 FLANGE	0-91150-210-0	02	1	0105-

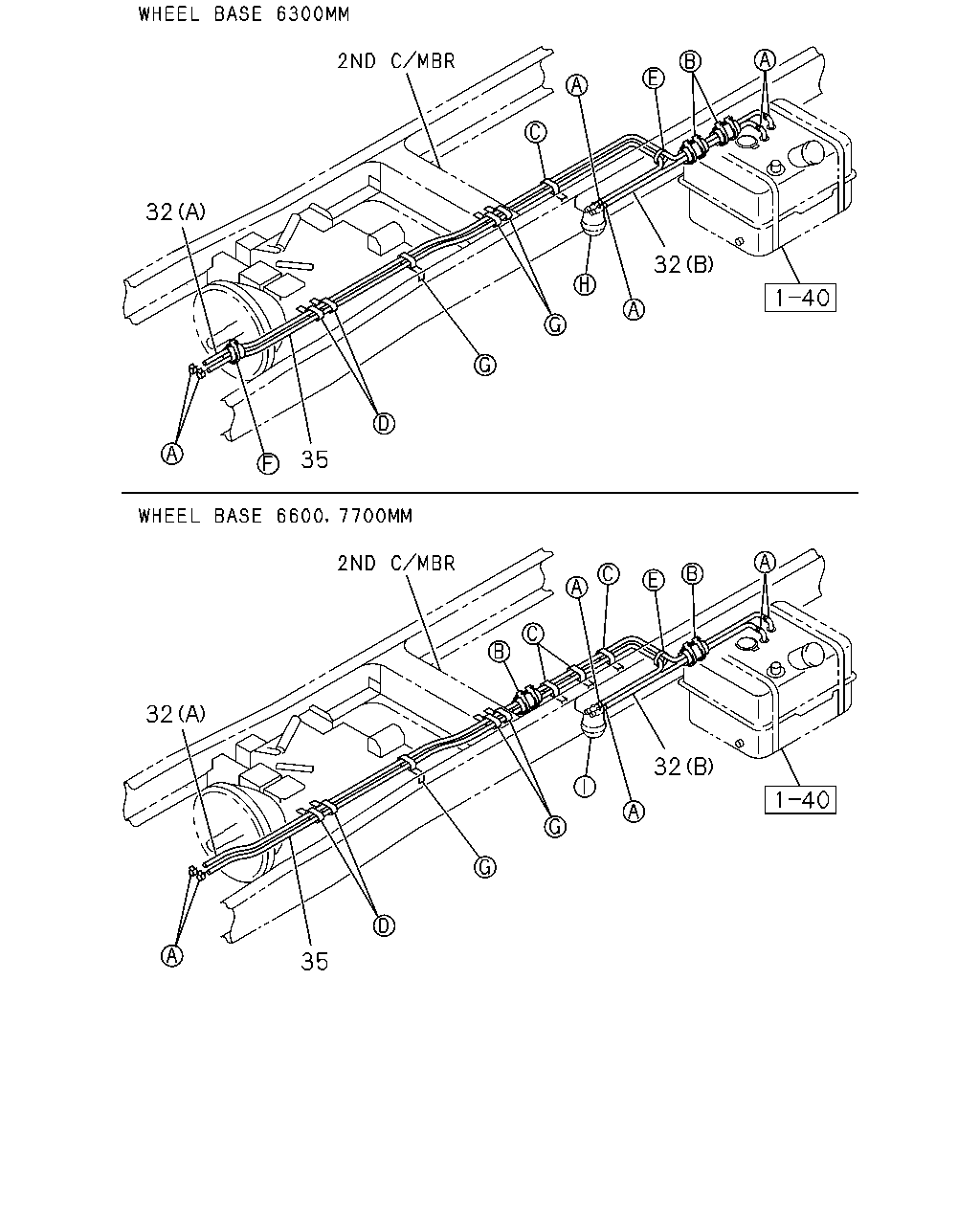

32 32 35 32 32 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	0105-
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (A) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0105-
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0302
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0303-
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0302
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0303-
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6300MM(63W) SERVICED BY L=3000	0-01260-300-0	01	1	0105-
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6600MM(66W) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	0105-0302
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	0303-

101 100 41 97 102 289 289 38 144 102 100 289 102 102 95 453 97 101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0105-0106
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0107-
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	0105-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0105-
97	BRACKET; CLIP (B)	1-47471-045-0	02	1	0409-
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) L=115	1-47475-305-0	01	1	0105-
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) L=115	1-47475-305-0	03	1	0105-0302
97	BRACKET; CLIP WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (A) L=115	1-47475-305-0	03	1	0303-
97	BRACKET; CLIP (B)	1-47479-247-0	02	1	0105-0408
100	CLIP; FUEL PIPE (A)	1-09701-299-0	02	1	0107-
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (B) H=15 ID=14	1-09700-744-0	06	1	0303-
100	CLIP; FUEL PIPE (A) ID=15	1-09700-845-1	02	1	0105-0106
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) (B) H=15 ID=14	1-09700-744-0	04	1	0105-
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) (B) H=15 ID=14	1-09700-744-0	06	1	0105-0302
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) M8X25 FLANGE	0-28680-825-0	06	1	0303-
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28680-825-0	04	1	0105-
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	06	1	0105-0302
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) M8 FLANGE	0-91150-108-0	13	1	0303-
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	09	1	0105-
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	13	1	0105-0302
144	BOLT; CLIP,FUEL PIPE,C/MBR WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) M8X35 FLANGE	0-28680-835-0	03	1	0303-
144	BOLT; CLIP,FUEL PIPE,C/MBR WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	01	1	0105-
144	BOLT; CLIP,FUEL PIPE,C/MBR WHEEL BASE 6600MM(66W) M8X35 FLANGE	0-28680-835-0	03	1	0105-0302
289	CLIP; BAND,HOSE MIXER TRUCK<RA2> (B) L=250	1-09707-126-0	01	1	0110-
289	CLIP; BAND,HOSE (A) L=250	5-09707-030-1	02	1	0105-0106
289	CLIP; BAND,HOSE (A) L=250	5-09707-030-1	04	1	0107-
453	BAND; FLEX HOSE MIXER TRUCK<RA2> L=175	1-09707-178-0	01	1	0110-
