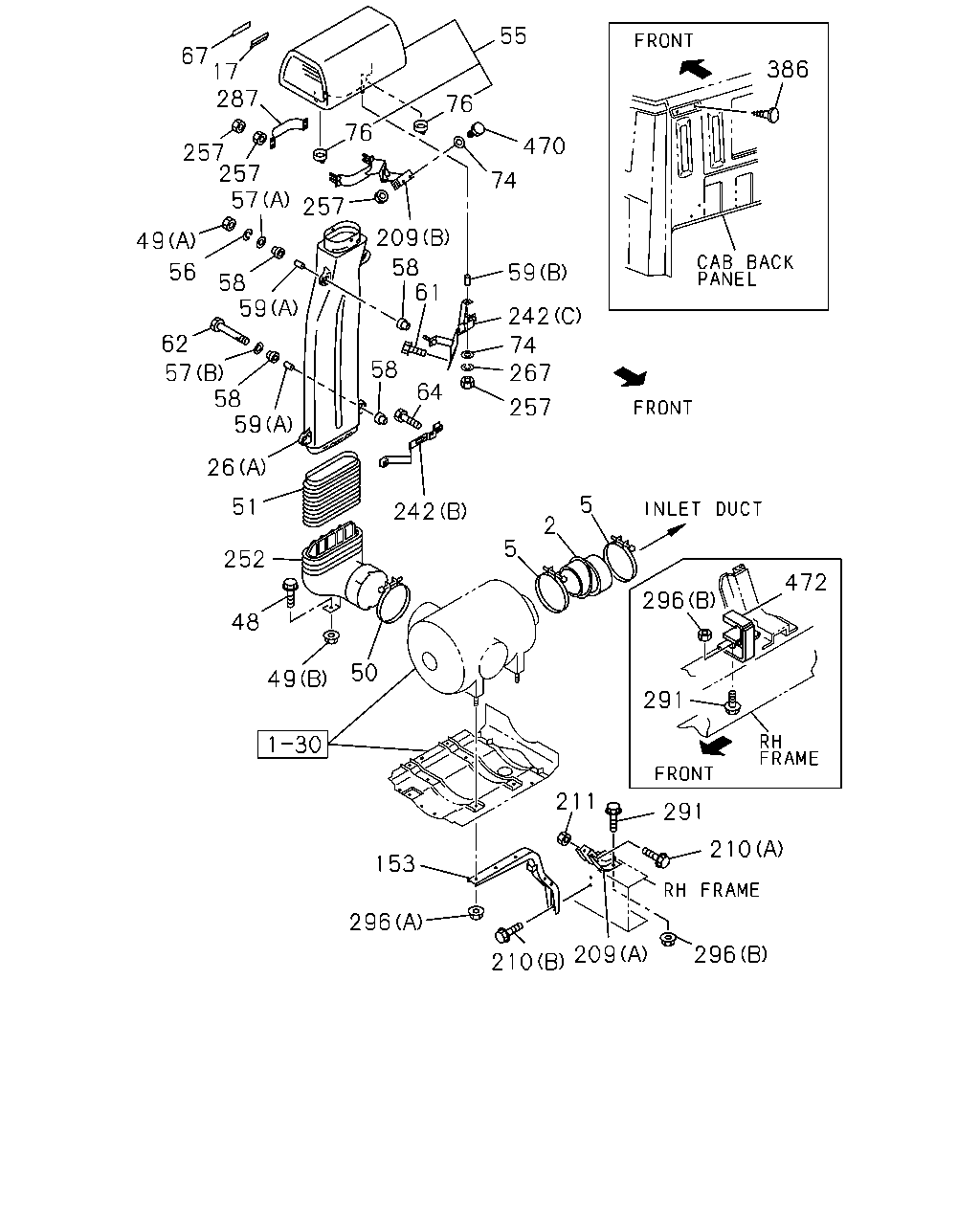

1-31 — AIR DUCT (#27693) — 102 parça

55 67 17 287 386 76 76 470 257 257 57 74 257 209 49 58 61 56 59 58 59 242 62 74 267 58 57 58 59 64 257 26 5 51 242 2 5 252 472 296 48 50 49 291 211 291 210 153 296 209 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-871-0	01	1	0105-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-
17	GASKET; AIR DUCT PRE CLEANER<W17>	1-14239-170-0	01	1	0105-
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (B)	1-14230-152-0	01	1	0105-
48	BOLT; AIR DUCT M10X25 FLANGE	0-28681-025-0	01	1	0105-
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-
51	GASKET ASM; RUBBER PRE CLEANER<W17>	1-14230-150-0	01	1	0105-
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-768-0	01	1	0105-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-185-0	02	1	0105-
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-185-0	01	1	0105-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	0105-
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	0105-
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X80 FLANGE	0-28081-080-0	01	1	0105-
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X26	1-09030-044-1	01	1	0105-
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X26	1-09030-044-1	02	1	0105-
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	0105-
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	03	1	0105-
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	0105-
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-
209	BRACKET; ACL PRE CLEANER<W17> (B)	1-14239-247-0	01	1	0105-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-191-0	01	1	0105-
257	NUT; BRKT PRE CLEANER<W17> M10	1-09400-053-0	11	1	0105-
267	WASHER; LK,ACL PRE CLEANER<W17> ID=10	1-09985-180-0	01	1	0105-
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-191-0	01	1	0105-
287	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	0105-
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-
470	BOLT; BRKT PRE CLEANER<W17>	1-09000-372-0	02	1	0105-
472	STOPPER; LINK ROD	1-33659-227-0	01	1	0105-

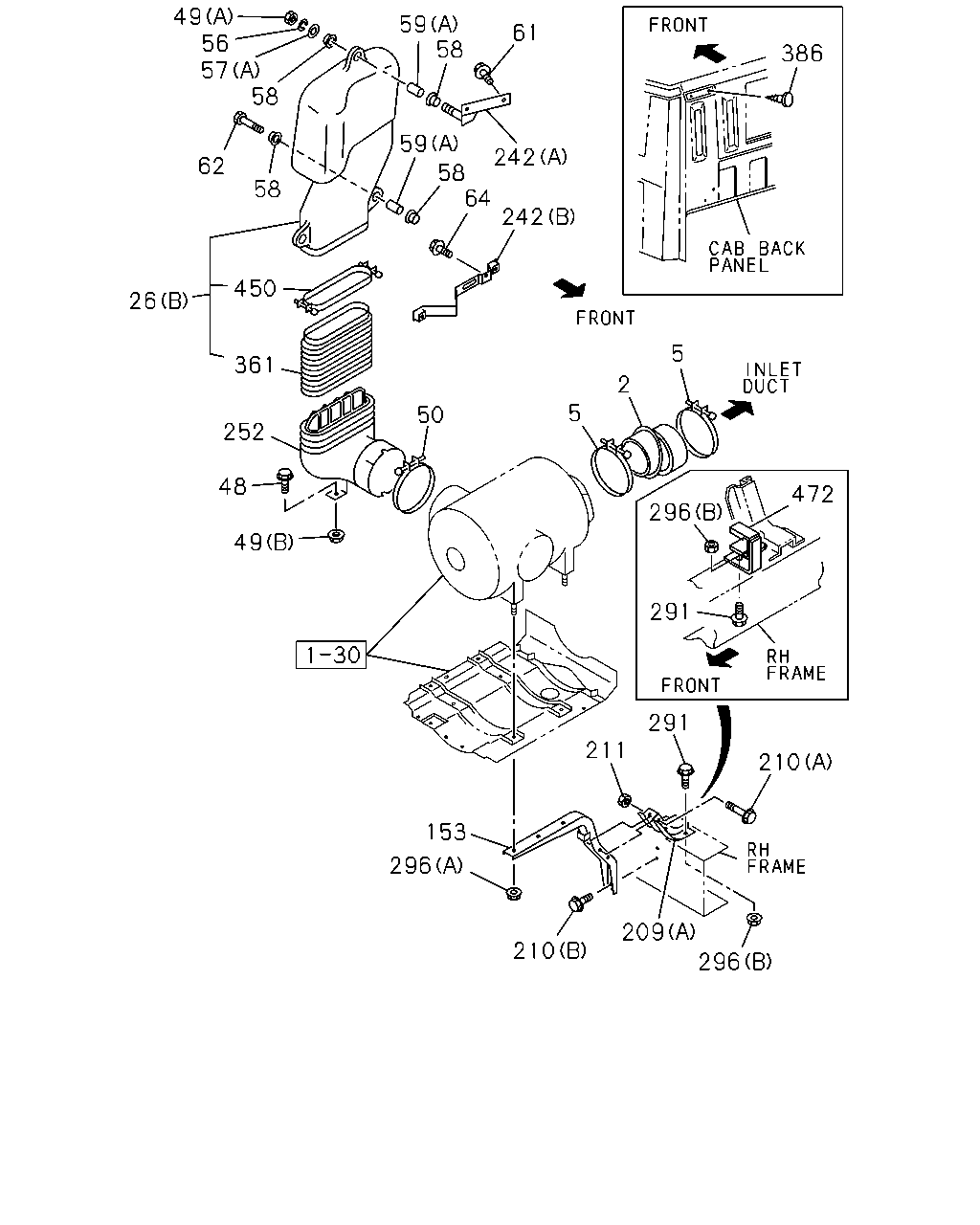

49 56 57 59 58 61 386 58 59 242 62 58 64 58 242 450 26 5 361 2 5 50 252 48 472 296 49 291 291 211 210 153 296 209 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-871-0	01	1	0105-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (B)	1-14230-152-0	01	1	0105-
48	BOLT; AIR DUCT M10X25 FLANGE	0-28681-025-0	01	1	0105-
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-185-0	02	1	0105-
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-185-0	01	1	0105-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	0105-
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	0105-
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X80 FLANGE	0-28081-080-0	01	1	0105-
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X26	1-09030-044-1	01	1	0105-
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X26	1-09030-044-1	02	1	0105-
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-
209	BRACKET; ACL PRE CLEANER<W17> (B)	1-14239-247-0	01	1	0105-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-191-0	01	1	0105-
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-191-0	01	1	0105-
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-
472	STOPPER; LINK ROD	1-33659-227-0	01	1	0105-

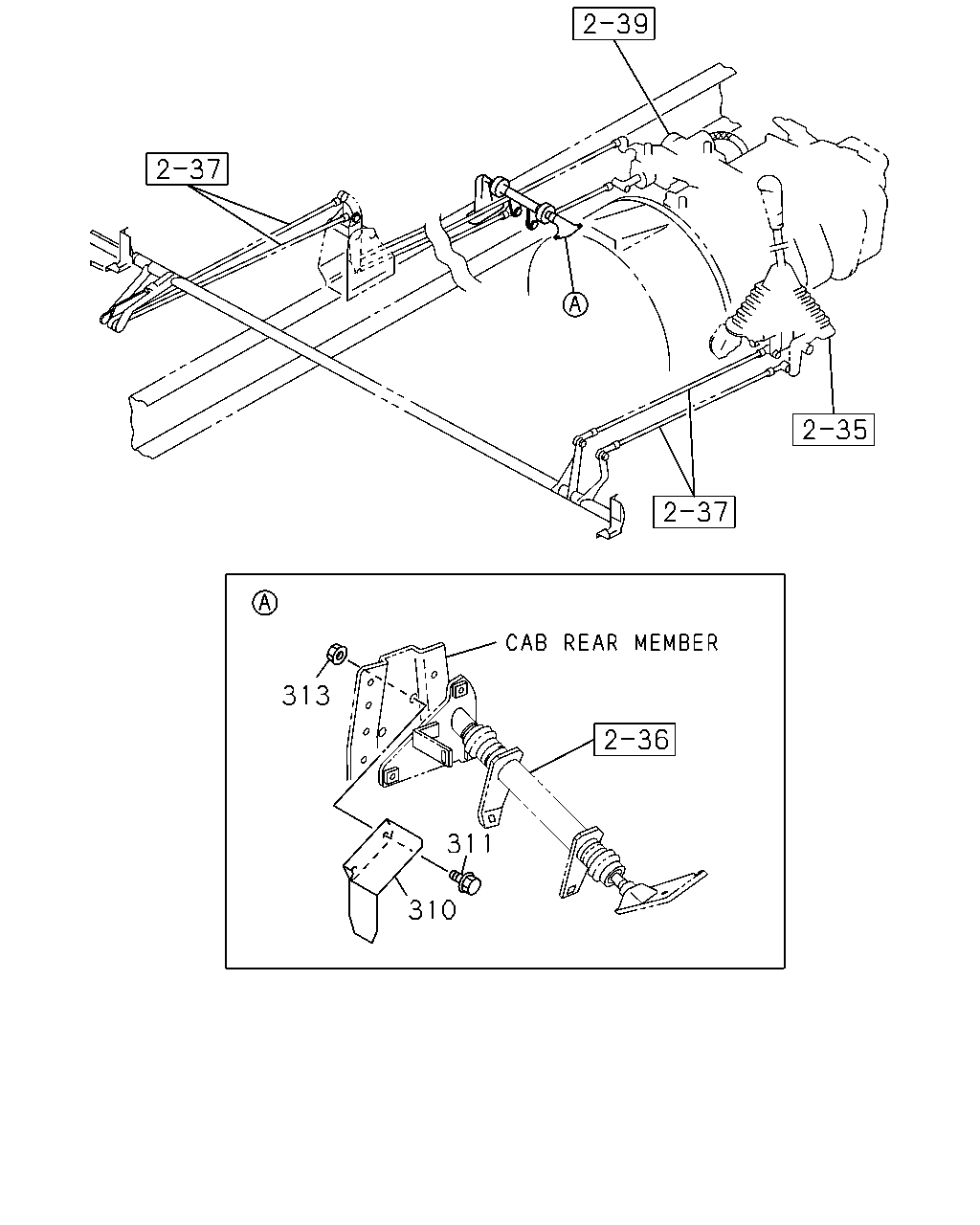

313 311 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-191-0	01	1	0105-
310	PROTECTOR; HEAT,ACL	1-14181-287-1	01	1	0105-
311	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	0105-
313	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	0105-
