Isuzu WW
▶
TRUCKS
▶
CXH
▶
10883 - CXH LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

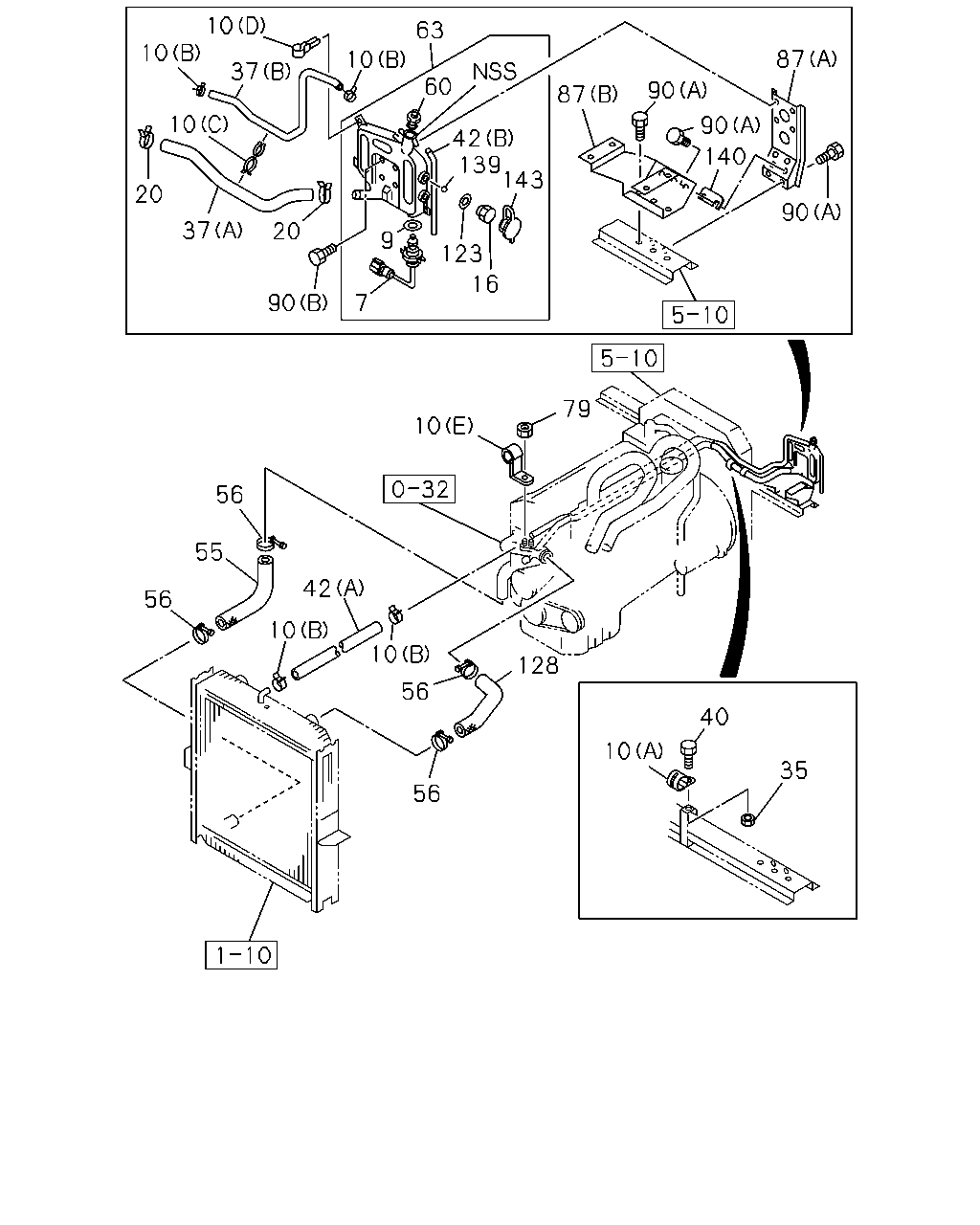

1-11 — RADIATOR HOSE AND SUB TANK
(#27691) — 30 parça
10
10
63
87
10
37
60
90
87
10
90
42
139
143
140
20
90
37
20
9
123
16
90
7
79
10
56
55
42
56
10
128
10
56
40
10
35
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
1-82480-093-1
01
1
0105-
9
GASKET; SWITCH
ID=28 T=2.5
1-09630-126-0
01
1
0105-
10
CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20
1-09700-606-0
01
1
0105-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
0105-
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
04
1
0105-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
04
1
0105-
10
CLIP; RUBBER HOSE
(D) ID=14 L=44
9-09917-427-0
02
1
0105-
16
PLUG; TANK
1-21464-514-0
02
1
0105-0205
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
0105-
35
NUT
M10 FLANGE
0-91150-210-0
01
1
0105-
37
HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000
0-03559-300-0
01
1
0105-
37
HOSE; RUBBER
(A)
1-21437-583-0
01
1
0105-
40
BOLT; CLIP
M10X25 FLANGE
0-28681-025-0
01
1
0105-
42
HOSE; RUBBER
(A) L=560 SERVICED BY L=3000
0-03559-300-0
01
1
0105-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
0105-
55
HOSE; WATER,RAD OUTLET
1-21437-448-2
01
1
0105-
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
0105-
60
CAP; SUB TANK
1-21450-137-0
01
1
0105-
63
TANK ASM; SUB
1-21481-144-0
01
1
0105-0205
63
TANK ASM; SUB
1-21481-146-0
01
1
0206-
79
NUT; CLIP,HOSE
M8 FLANGE
0-91150-108-0
01
1
0105-
87
BRACKET; SUB TANK
(B)
1-21489-155-0
01
1
0105-
87
BRACKET; SUB TANK
(A)
1-21489-156-0
01
1
0105-
90
BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE
0-28680-820-0
06
1
0105-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
0105-
123
GASKET
ID=26.2
8-94399-716-1
02
1
0105-0205
128
HOSE; WATER,RAD INL
1-21437-495-1
01
1
0105-
139
FLOAT
1-21489-161-0
02
1
0105-0205
140
SHIM
T=0.8
1-53458-716-0
AR
1
0105-
143
COVER; PLUG
1-82389-017-0
02
1
0105-0205
