0-50A — OIL COOLER AND OIL FILTER (#2769) — 130 parça

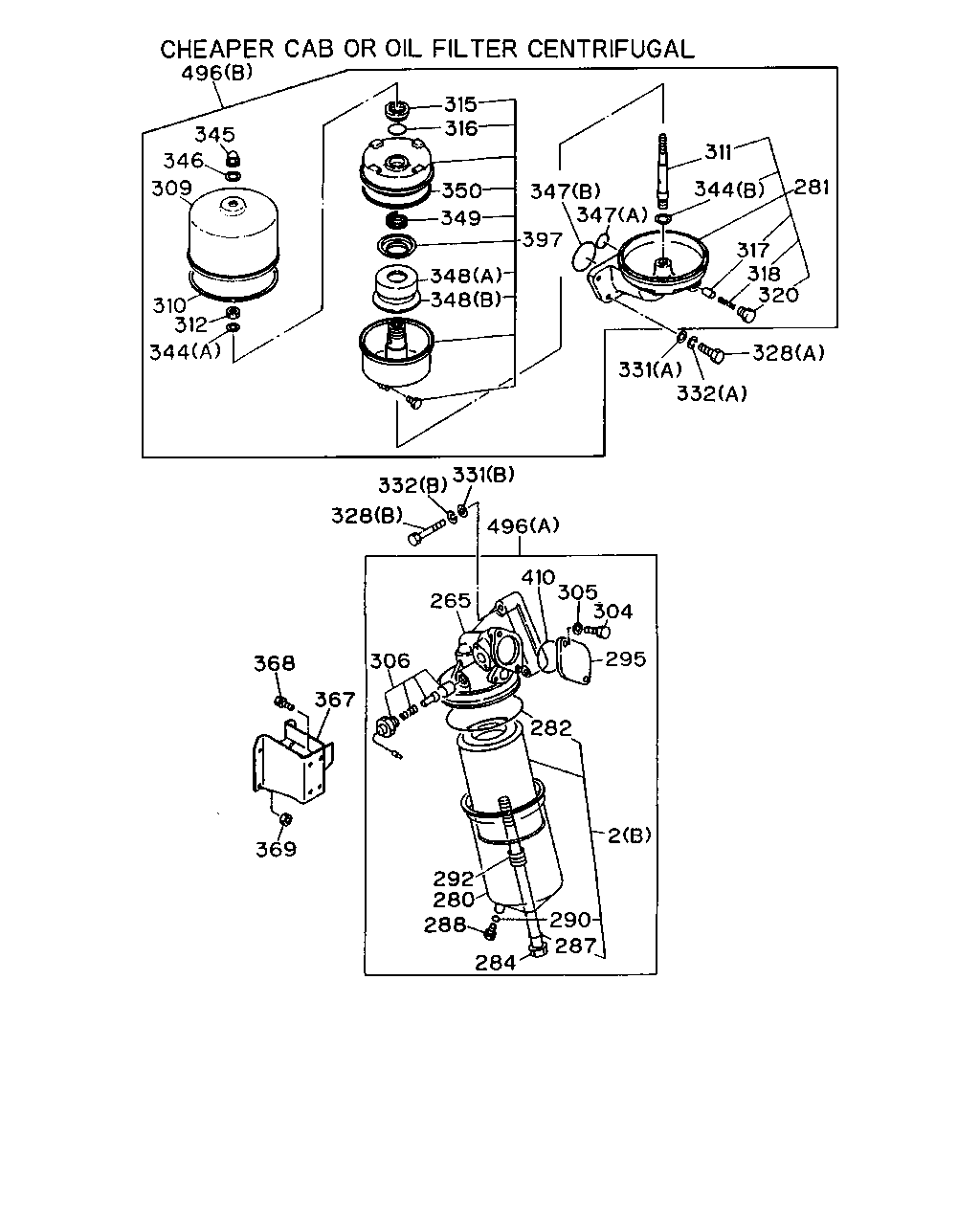

496 346 309 345 310 312 344 315 316 350 349 397 348 348 347 311 281 344 347 317 318 320 328 331 332 331 332 328 496 265 306 367 368 369 292 280 288 284 287 290 2 282 295 304 305 410

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (B)	1-87810-314-2	01	1	9002-
2	ELEMENT; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-13240-056-0	01	1	9002-
265	BODY; OIL FILTER	1-13212-082-1	01	1	9002-
280	CASE ASM; OIL FILTER CHEAPER CAB(SAX)	1-13211-117-0	01	1	9002-9507
280	CASE ASM; OIL FILTER EXC. CHEAPER CAB(SAX)	1-13211-105-1	01	1	9002-9507
280	CASE ASM; OIL FILTER	1-13211-105-2	01	1	9508-
281	COVER; OIL FILTER CHEAPER CAB(SAX)	1-13210-016-0	01	1	9002-
282	GASKET; BODY TO CASE	1-09623-357-0	01	1	9002-
284	BOLT; CENTER,OIL FILTER	1-13231-054-1	01	1	9002-
287	GASKET; CENTER BOLT ID=15.5	9-09920-694-0	01	1	9002-
288	PLUG; OIL DRAIN M10	1-09000-105-0	01	1	9002-
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9002-
292	SPRING; ELEMENT	1-13219-187-0	01	1	9002-
295	COVER; OIL FILTER	1-13219-122-0	01	1	9002-
304	BOLT; PIPE TO COVER M14X25	9-92351-425-0	02	1	9002-9005
304	BOLT; PIPE TO COVER M14X25	0-23801-425-0	02	1	9006-
305	WASHER; PL ID=10.5 OD=18	9-09160-510-0	02	1	9002-9306
305	WASHER; PL CHEAPER CAB(SAX) ID=10.5 OD=18	9-09160-510-0	02	1	9307-9507
306	VALVE; OIL FILTER	1-13260-056-0	01	1	9002-9306
306	VALVE; OIL FILTER CHEAPER CAB(SAX)	1-13260-056-0	01	1	9307-9507
306	VALVE; OIL FILTER EXC. CHEAPER CAB(SAX)	1-13200-875-0	01	1	9307-9507
306	VALVE; OIL FILTER	1-13200-875-0	01	1	9508-
309	BODY; OIL FILTER,CENTRIFUGAL CHEAPER CAB(SAX)	9-13212-151-1	01	1	9002-
310	GASKET; BODY TO COVER CHEAPER CAB(SAX)	1-13213-007-0	01	1	9002-
311	SPINDLE; ROTOR CHEAPER CAB(SAX)	9-13231-054-1	01	1	9002-
312	NUT; ROTOR BODY CHEAPER CAB(SAX)	9-09844-204-0	01	1	9002-
315	NUT; ROTOR LK CHEAPER CAB(SAX)	9-09844-221-0	01	1	9002-
316	GASKET; COVER TO BODY CHEAPER CAB(SAX)	9-09920-742-0	01	1	9002-
317	VALVE; CUT OFF CHEAPER CAB(SAX)	9-13262-012-0	01	1	9002-
318	SPRING; CUT OFF CHEAPER CAB(SAX)	9-09941-151-0	01	1	9002-
320	PLUG; CUT OFF CHEAPER CAB(SAX)	1-13265-013-0	01	1	9002-
328	BOLT; OIL FILTER (B) M10X60	9-01656-060-0	03	1	9002-9004
328	BOLT; OIL FILTER (B) M10X60	0-16806-060-0	03	1	9005-
328	BOLT; OIL FILTER CHEAPER CAB(SAX) (A) M10X30 W/LK&PL WASHER	0-50151-030-0	03	1	9002-
328	BOLT; OIL FILTER CHEAPER CAB(SAX) (A) M14X40	9-92351-440-0	01	1	9002-9005
328	BOLT; OIL FILTER CHEAPER CAB(SAX) (A) M14X40	0-23801-440-0	01	1	9006-
331	WASHER; PL,OIL FILTER (B) ID=10.5 OD=18	9-09160-510-0	03	1	9002-
331	WASHER; PL,OIL FILTER CHEAPER CAB(SAX) (A) ID=15	9-09160-514-0	01	1	9002-
332	WASHER; LK,OIL FILTER (B) ID=10.2	9-09150-510-0	03	1	9002-
332	WASHER; LK,OIL FILTER CHEAPER CAB(SAX) (A) ID=14.2	9-09150-514-0	01	1	9002-
344	WASHER; THRUST,OIL FILTER CHEAPER CAB(SAX) (A)	1-13239-034-0	01	1	9002-
344	WASHER; THRUST,OIL FILTER CHEAPER CAB(SAX) (B)	9-13239-035-0	01	1	9002-
345	NUT; CAP,COVER,OIL FILTER CHEAPER CAB(SAX)	9-09844-222-0	01	1	9002-
346	GASKET; CAP NUT CHEAPER CAB(SAX) ID=8.2 OD=13.2	1-09630-082-0	01	1	9002-
347	GASKET; COVER,OIL FILTER CHEAPER CAB(SAX) (A) ID=24.4	1-09623-183-0	01	1	9002-
347	GASKET; COVER,OIL FILTER CHEAPER CAB(SAX) (B)	1-09623-373-0	01	1	9002-
348	GUIDE; OIL,OIL FILTER CHEAPER CAB(SAX) (A)	9-13249-015-0	01	1	9002-
348	GUIDE; OIL,OIL FILTER CHEAPER CAB(SAX) (B)	9-13249-016-0	01	1	9002-
349	SPRING; OIL GUIDE CHEAPER CAB(SAX)	9-09941-140-0	01	1	9002-
350	GASKET; BODY TO COVER CHEAPER CAB(SAX)	9-09920-743-0	01	1	9002-
367	BRACKET; PARTIAL FILTER	1-47475-615-2	01	1	9002-9306
367	BRACKET; PARTIAL FILTER	1-47475-371-3	01	1	9307-
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	04	1	9002-
369	NUT; BRKT TO FRAME M10	9-09110-510-0	04	1	9002-
397	ROTOR; OIL FILTER CHEAPER CAB(SAX)	9-13240-101-0	01	1	9002-
410	GASKET ID=59.6	9-09565-360-0	01	1	9002-
496	FILTER ASM; OIL CHEAPER CAB(SAX) (B)	1-13200-619-1	01	1	9002-
496	FILTER ASM; OIL CHEAPER CAB(SAX) (A)	1-13200-620-2	01	1	9002-9507
496	FILTER ASM; OIL EXC. CHEAPER CAB(SAX) (A)	1-13200-509-4	01	1	9002-9306
496	FILTER ASM; OIL EXC. CHEAPER CAB(SAX) (A)	1-13200-921-0	01	1	9307-9507
496	FILTER ASM; OIL (A)	1-13200-921-1	01	1	9508-

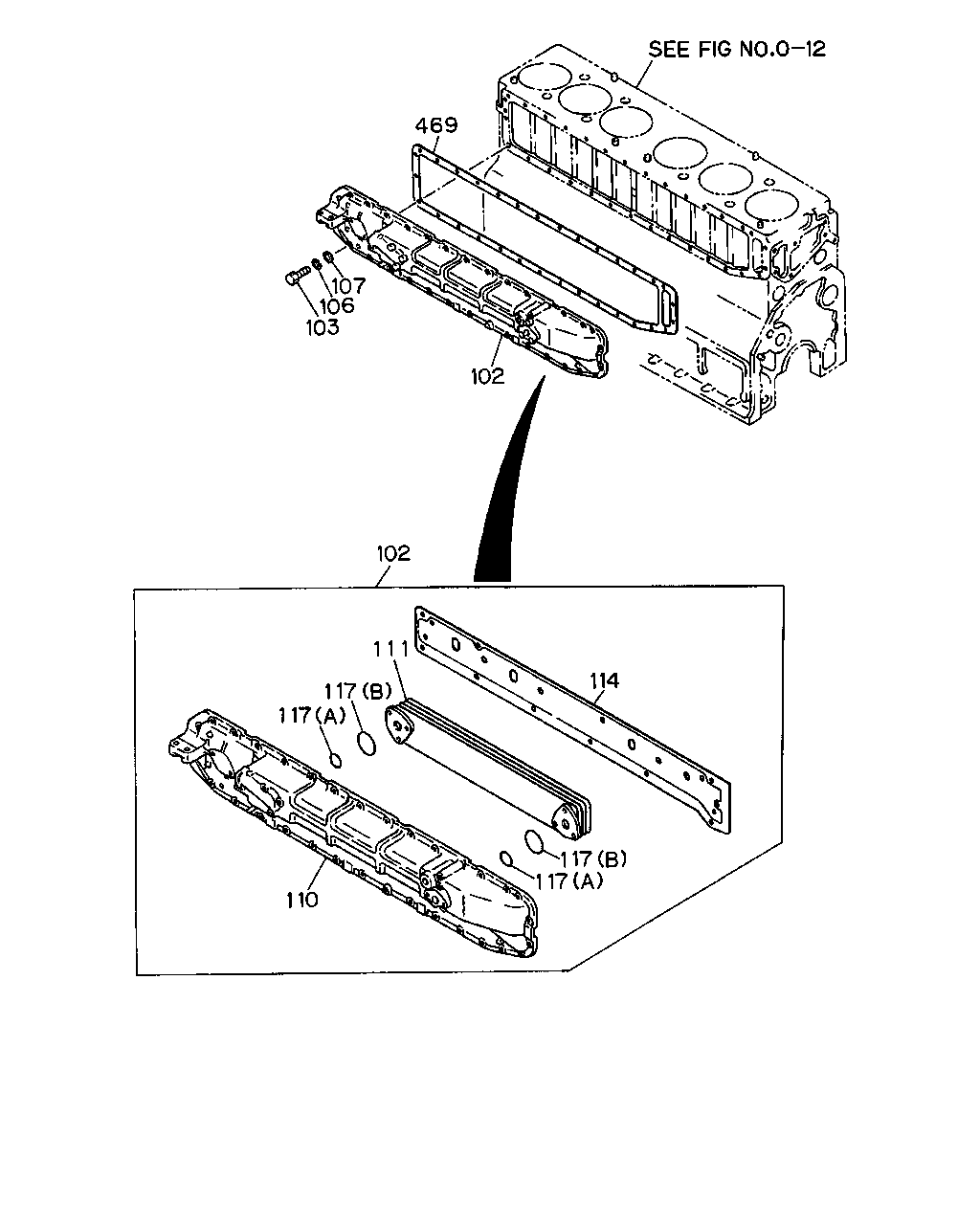

469 107 106 103 102 102 111 117 117 114 117 117 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
102	COOLER ASM; OIL	1-21700-156-3	01	1	9002-
103	BOLT; OIL COOLER M8X70	9-01055-870-0	01	1	9002-9005
103	BOLT; OIL COOLER M8X70	0-10805-870-0	01	1	9006-
103	BOLT; OIL COOLER M8X25 W/LK&PL WASHER	9-01970-825-0	32	1	9002-9005
103	BOLT; OIL COOLER M8X25 W/LK&PL WASHER	0-50140-825-0	32	1	9006-
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	01	1	9002-
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	01	1	9002-
110	BODY; CASE,OIL COOLER	1-21721-045-4	01	1	9002-
111	CORE; OIL COOLER	1-21723-035-0	01	1	9002-
114	PLATE; BAFFLE,OIL COOLER	1-21729-071-0	01	1	9002-
117	GASKET; OIL COOLER (A) D=27.7	1-09623-187-0	02	1	9002-
117	GASKET; OIL COOLER (B) D=39.7	1-09623-188-0	02	1	9002-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-148-0	01	1	9002-

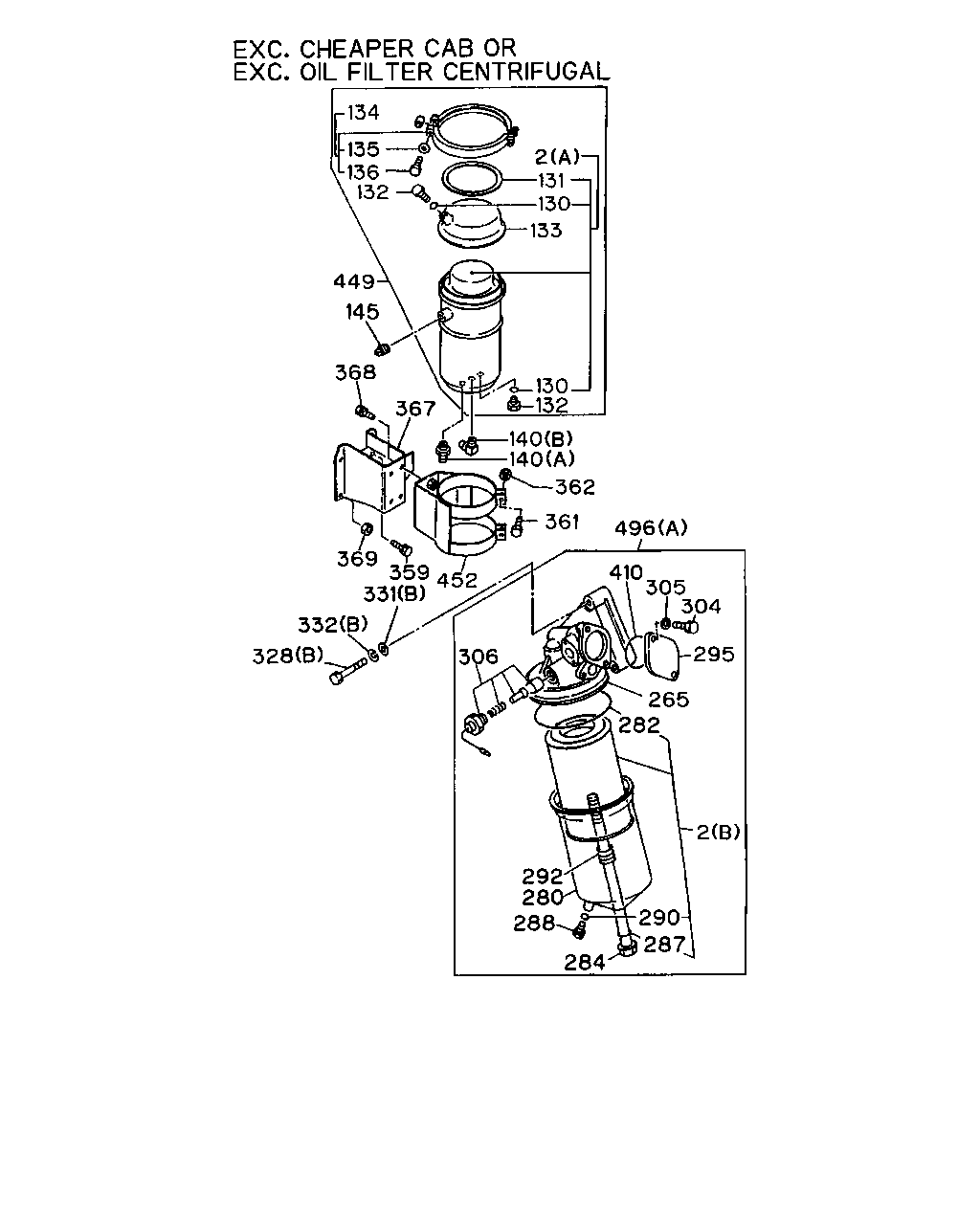

134 2 135 131 130 133 136 132 449 145 368 130 367 132 140 140 362 361 496 452 359 369 332 328 306 410 305 304 295 265 282 2 290 287 284 292 280 288 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (B)	1-87810-314-2	01	1	9002-
2	ELEMENT; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-13240-056-0	01	1	9002-
130	GASKET; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=9.8	1-09623-055-0	02	1	9002-
131	GASKET; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13213-006-0	01	1	9002-
132	PLUG; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M10	1-09000-105-0	02	1	9002-
133	COVER; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13212-034-0	01	1	9002-
134	CLAMP; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13219-009-0	01	1	9002-
135	WASHER; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=10.5	9-09164-510-0	01	1	9002-
136	BOLT; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-09029-021-0	01	1	9002-
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
145	PLUG; FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-09605-024-0	01	1	9307-
265	BODY; OIL FILTER	1-13212-082-1	01	1	9002-
280	CASE ASM; OIL FILTER CHEAPER CAB(SAX)	1-13211-117-0	01	1	9002-9507
280	CASE ASM; OIL FILTER EXC. CHEAPER CAB(SAX)	1-13211-105-1	01	1	9002-9507
280	CASE ASM; OIL FILTER	1-13211-105-2	01	1	9508-
282	GASKET; BODY TO CASE	1-09623-357-0	01	1	9002-
284	BOLT; CENTER,OIL FILTER	1-13231-054-1	01	1	9002-
287	GASKET; CENTER BOLT ID=15.5	9-09920-694-0	01	1	9002-
288	PLUG; OIL DRAIN M10	1-09000-105-0	01	1	9002-
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9002-
292	SPRING; ELEMENT	1-13219-187-0	01	1	9002-
295	COVER; OIL FILTER	1-13219-122-0	01	1	9002-
304	BOLT; PIPE TO COVER M14X25	9-92351-425-0	02	1	9002-9005
304	BOLT; PIPE TO COVER M14X25	0-23801-425-0	02	1	9006-
305	WASHER; PL ID=10.5 OD=18	9-09160-510-0	02	1	9002-9306
305	WASHER; PL CHEAPER CAB(SAX) ID=10.5 OD=18	9-09160-510-0	02	1	9307-9507
306	VALVE; OIL FILTER	1-13260-056-0	01	1	9002-9306
306	VALVE; OIL FILTER CHEAPER CAB(SAX)	1-13260-056-0	01	1	9307-9507
306	VALVE; OIL FILTER EXC. CHEAPER CAB(SAX)	1-13200-875-0	01	1	9307-9507
306	VALVE; OIL FILTER	1-13200-875-0	01	1	9508-
328	BOLT; OIL FILTER (B) M10X60	9-01656-060-0	03	1	9002-9004
328	BOLT; OIL FILTER (B) M10X60	0-16806-060-0	03	1	9005-
328	BOLT; OIL FILTER CHEAPER CAB(SAX) (A) M10X30 W/LK&PL WASHER	0-50151-030-0	03	1	9002-
328	BOLT; OIL FILTER CHEAPER CAB(SAX) (A) M14X40	9-92351-440-0	01	1	9002-9005
328	BOLT; OIL FILTER CHEAPER CAB(SAX) (A) M14X40	0-23801-440-0	01	1	9006-
331	WASHER; PL,OIL FILTER (B) ID=10.5 OD=18	9-09160-510-0	03	1	9002-
331	WASHER; PL,OIL FILTER CHEAPER CAB(SAX) (A) ID=15	9-09160-514-0	01	1	9002-
332	WASHER; LK,OIL FILTER (B) ID=10.2	9-09150-510-0	03	1	9002-
332	WASHER; LK,OIL FILTER CHEAPER CAB(SAX) (A) ID=14.2	9-09150-514-0	01	1	9002-
359	BOLT; BRKT TO FRAME EXC. OIL FILTER CENTRIFUGAL<E6S> M10X30 W/LK WASHER	0-50041-030-0	04	1	9002-
361	BOLT; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9002-
362	NUT; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M10	9-09110-510-0	02	1	9002-
367	BRACKET; PARTIAL FILTER	1-47475-615-2	01	1	9002-9306
367	BRACKET; PARTIAL FILTER	1-47475-371-3	01	1	9307-
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	04	1	9002-
369	NUT; BRKT TO FRAME M10	9-09110-510-0	04	1	9002-
410	GASKET ID=59.6	9-09565-360-0	01	1	9002-
449	FILTER ASM; OIL PARTIAL EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13200-534-3	01	1	9002-
452	BRACKET; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13219-131-5	01	1	9002-
496	FILTER ASM; OIL CHEAPER CAB(SAX) (B)	1-13200-619-1	01	1	9002-
496	FILTER ASM; OIL CHEAPER CAB(SAX) (A)	1-13200-620-2	01	1	9002-9507
496	FILTER ASM; OIL EXC. CHEAPER CAB(SAX) (A)	1-13200-509-4	01	1	9002-9306
496	FILTER ASM; OIL EXC. CHEAPER CAB(SAX) (A)	1-13200-921-0	01	1	9307-9507
496	FILTER ASM; OIL (A)	1-13200-921-1	01	1	9508-
