◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10883 - CXH LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-90 - POWER TAKE OFF; FLYWHEEL ▶
0-90 — POWER TAKE OFF; FLYWHEEL (#27688) — 51 parça

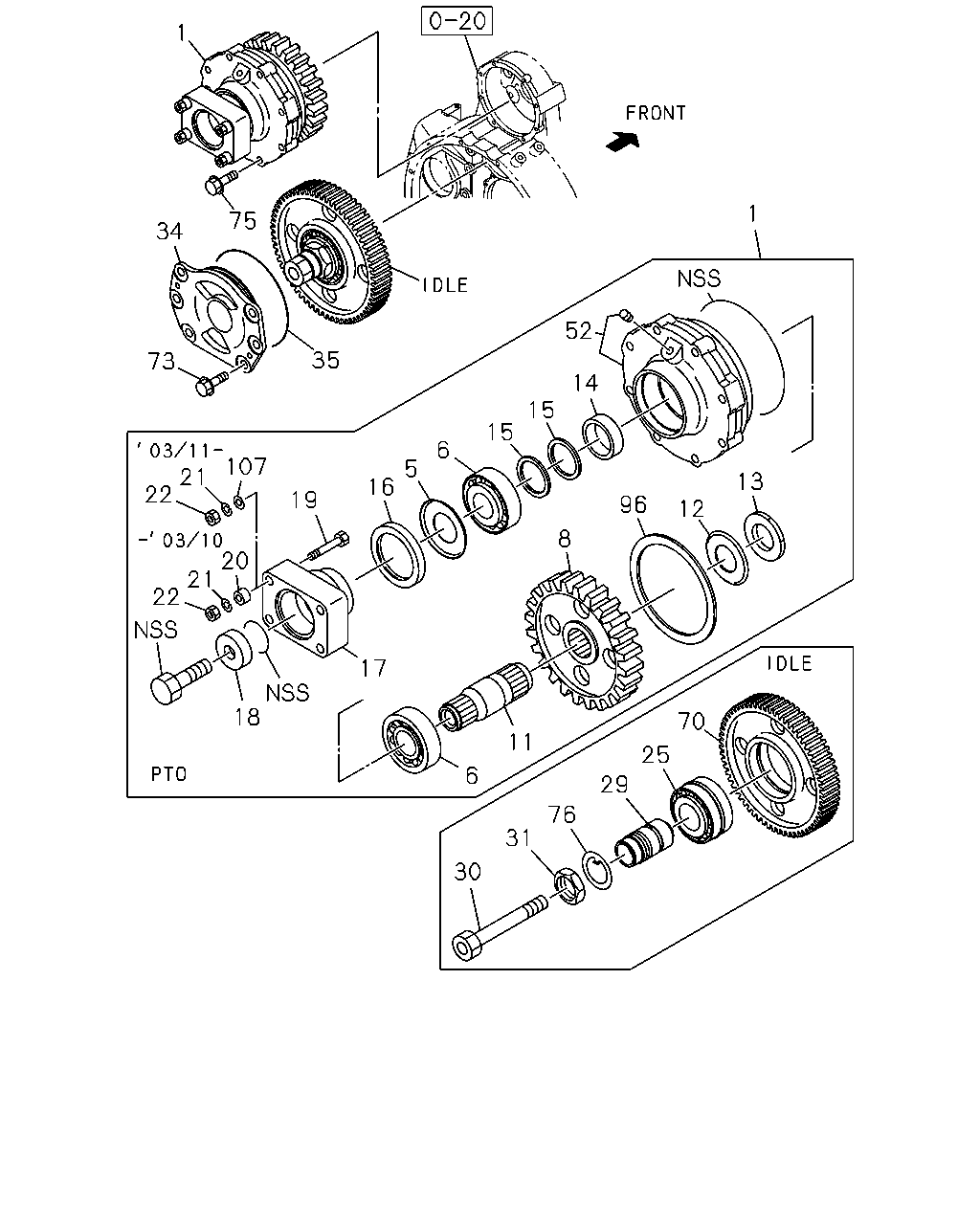

çizim 23066
1 1 75 34 52 35 73 14 15 15 6 107 21 22 5 13 16 19 96 12 20 8 21 22 17 18 70 11 25 6 29 76 31 30
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO HEAVY DUTY(NJU) 		1-38000-308-0 01 1 0105-0208
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO HEAVY DUTY(NJU) 		1-38000-387-0 01 1 0209-0303
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO HEAVY DUTY(NJU) 		1-38000-388-1 01 1 0304-
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO HEAVY DUTY(NJU) 		1-09625-128-0 01 1 0105-
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) NSK 		9-00093-149-0 02 1 0105-0310
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) NSK 		9-00093-149-0 04 1 0311-
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) Z=61 		1-38241-105-0 01 1 0105-0208
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) Z=61 		1-38241-135-1 01 1 0209-0303
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) Z=61 		1-38241-136-0 01 1 0304-
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO HEAVY DUTY(NJU) 		1-38221-031-1 01 1 0105-
12 WASHER; LK,SHAFT NUT,FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) 		9-09853-865-0 01 1 0105-
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) 		9-09843-720-1 01 1 0105-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=17.95 		9-38226-045-0 01 1 0105-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=18.20 		9-38226-046-0 01 1 0105-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=18.45 		9-38226-047-0 01 1 0105-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=18.70 		9-38226-048-0 01 1 0105-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=18.95 		9-38226-049-0 01 1 0105-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=19.20 		9-38226-050-0 01 1 0105-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=19.45 		9-38226-051-0 01 1 0105-
15 SHIM; PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=3.50 		9-41229-324-0 AR 1 0105-
15 SHIM; PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=3.51 		9-41229-325-0 AR 1 0105-
15 SHIM; PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=3.52 		9-41229-326-0 AR 1 0105-
15 SHIM; PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=3.53 		9-41229-327-0 AR 1 0105-
15 SHIM; PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=3.54 		9-41229-328-0 AR 1 0105-
15 SHIM; PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=3.55 		9-41229-329-0 AR 1 0105-
15 SHIM; PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=3.56 		9-41229-330-0 AR 1 0105-
15 SHIM; PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=3.57 		9-41229-331-0 AR 1 0105-
15 SHIM; PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=3.58 		9-41229-332-0 AR 1 0105-
15 SHIM; PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=3.59 		9-41229-333-0 AR 1 0105-
15 SHIM; PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=3.60 		9-41229-334-0 AR 1 0105-
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) 		9-38175-011-0 01 1 0105-
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO HEAVY DUTY(NJU) 		1-38189-010-2 01 1 0105-
18 WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) 		1-09509-014-1 01 1 0105-
19 BOLT; FLANGE
ENGINE REAR PTO HEAVY DUTY(NJU) M12X70 		9-92621-270-0 04 1 0105-
20 SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) T=13 ID=22.2 		9-38189-005-0 04 1 0105-0310
21 WASHER; LK,FLANGE
ENGINE REAR PTO HEAVY DUTY(NJU) ID=12.2 		9-09150-612-0 04 1 0105-
22 NUT; FLANGE
ENGINE REAR PTO HEAVY DUTY(NJU) M12 		9-99110-512-0 04 1 0105-
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
ENGINE REAR PTO HEAVY DUTY(NJU) 		1-09820-105-0 01 1 0105-
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO HEAVY DUTY(NJU) 		1-12531-108-0 01 1 0105-
30 BOLT; SPINDLE
ENGINE REAR PTO HEAVY DUTY(NJU) 		9-09805-081-1 01 1 0105-
31 NUT; IDLE GEAR
ENGINE REAR PTO HEAVY DUTY(NJU) 		9-09843-063-0 01 1 0105-
34 COVER; PTO,FLYWHEEL
ENGINE REAR PTO HEAVY DUTY(NJU) 		1-11343-012-1 01 1 0105-
35 GASKET; COVER
ENGINE REAR PTO HEAVY DUTY(NJU) 		1-09623-266-0 01 1 0105-
52 CASE; BRG,PTO
ENGINE REAR PTO HEAVY DUTY(NJU) 		9-38181-007-3 01 1 0105-
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO HEAVY DUTY(NJU) Z=63 		1-38261-030-1 01 1 0105-0208
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO HEAVY DUTY(NJU) Z=63 		1-38261-040-0 01 1 0209-
73 BOLT; COVER,PTO
ENGINE REAR PTO HEAVY DUTY(NJU) 		0-28191-220-0 06 1 0105-
75 BOLT; COVER
ENGINE REAR PTO HEAVY DUTY(NJU) M10X30 FLANGE 		0-28781-030-0 08 1 0105-
76 WASHER; LK,IDLE GEAR
ENGINE REAR PTO HEAVY DUTY(NJU) 		9-09854-034-0 01 1 0105-
96 RING; GEAR PTO
ENGINE REAR PTO HEAVY DUTY(NJU) 		1-38261-027-0 01 1 0105-0303
107 WASHER; PL,FLANGE
ENGINE REAR PTO HEAVY DUTY(NJU) ID=12.5 		9-09160-512-0 04 1 0311-
