◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10883 - CXH LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND BATTERY CABLE ▶
0-61 — BATTERY AND BATTERY CABLE (#27681) — 63 parça

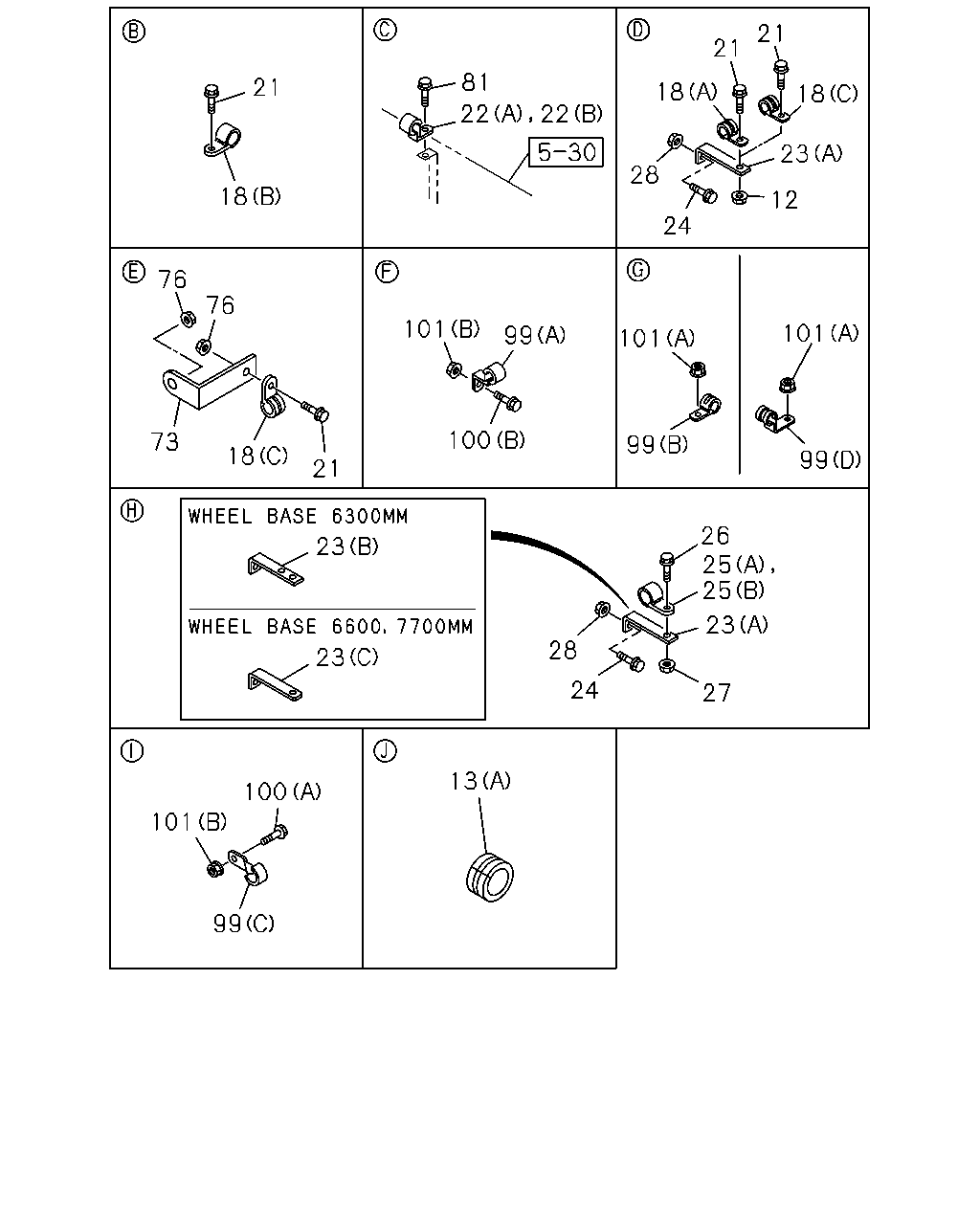

çizim 24300
21 21 81 21 18 18 22 22 23 28 18 12 24 76 76 101 101 99 101 100 73 99 18 99 21 26 25 25 23 23 28 23 24 27 13 100 101 99
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0105-
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0105-
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 0105-
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 02 1 0105-
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 0105-
18 CLIP; BATTERY CABLE
(C) ID=19 L=28 		9-09525-856-0 02 1 0105-
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 0105-
22 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-
22 CLIP; BATTERY CABLE
(B) ID=18 H=23 L=28 		1-09701-070-0 01 1 0105-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6600MM(66W) (C) L=112 		1-47475-694-1 01 1 0109-0302
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (C) L=112 		1-47475-694-1 01 1 0303-
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 07 1 0105-0108
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 03 1 0109-0302
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (A) L=95 		1-82699-085-0 03 1 0109-0302
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 03 1 0303-
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 03 1 0303-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6300MM(63W) (B) L=145 B=25 		1-47479-123-0 01 1 0109-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 07 1 0105-
25 CLIP; BATTERY CABLE TO BRKT
WHEEL BASE 6300MM(63W) (A) ID=18 L=28 		1-09701-067-0 04 1 0105-0112
25 CLIP; BATTERY CABLE TO BRKT
WHEEL BASE 6600MM(66W) (B) ID=18 L=50 		1-09701-072-0 04 1 0105-0112
25 CLIP; BATTERY CABLE TO BRKT
(B) ID=18 L=50 		1-09701-072-0 04 1 0201-
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0105-
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 07 1 0105-
73 BRACKET; BATTERY CABLE 1-82699-493-0 01 1 0105-
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91150-210-0 02 1 0105-
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 0105-
99 CLIP; BATTERY CABLE
(C) ID=18 L=54 		1-09701-068-0 01 1 0105-0206
99 CLIP; BATTERY CABLE
(C) ID=18 L=80 		1-09701-069-0 01 1 0207-
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 02 1 0105-
99 CLIP; BATTERY CABLE
WHEEL BASE 6600MM(66W) (B) ID=18 L=50 		1-09701-072-0 02 1 0105-0105
99 CLIP; BATTERY CABLE
WHEEL BASE 6600MM(66W) (D) ID=18 L=25 H=50 		1-09701-096-0 02 1 0106-0302
99 CLIP; BATTERY CABLE
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (D) ID=18 L=25 H=50 		1-09701-096-0 02 1 0303-
100 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-
100 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0105-
101 NUT; BATTERY CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 03 1 0105-
101 NUT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) (A) M8 FLANGE 		0-91150-108-0 02 1 0105-0302
101 NUT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (A) M8 FLANGE 		0-91150-108-0 02 1 0303-

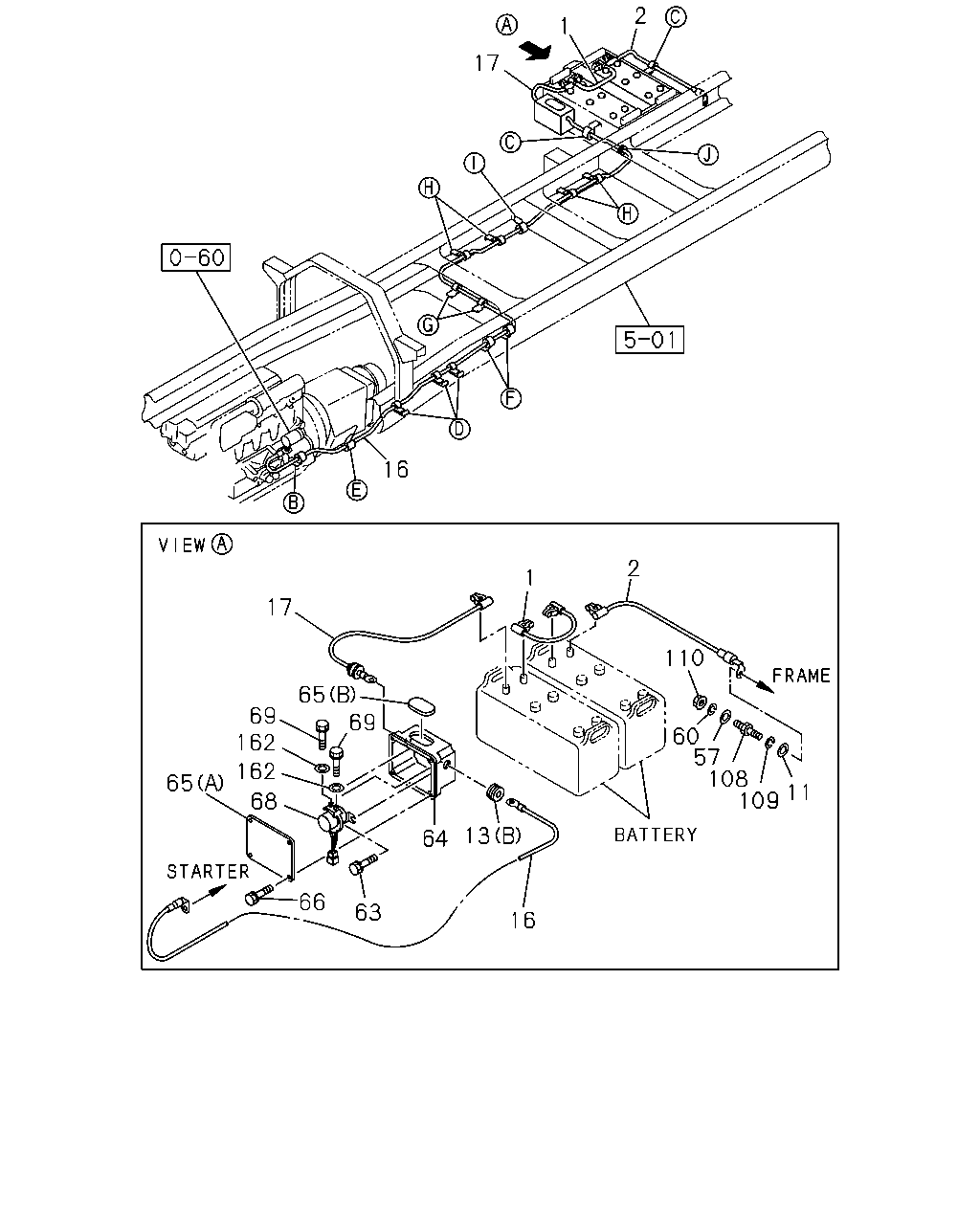

çizim 79429
2 1 17 16 2 1 17 110 65 69 69 162 60 57 108 109 162 65 11 68 13 64 66 63 16
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> <+> TO <-> L=450 		1-82650-281-2 01 1 0105-
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> <+> TO <-> L=180 		1-82650-280-2 01 1 0105-
2 CABLE; BATTERY
<-> TO FRAME L=690 		1-82650-147-0 01 1 0105-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 0105-
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0105-
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 0105-
16 CABLE; STARTER TO RELAY
WHEEL BASE 6300MM(63W) L=4900 		1-82652-744-1 01 1 0105-0111
16 CABLE; STARTER TO RELAY
WHEEL BASE 6300MM(63W) L=4940 		1-82652-782-0 01 1 0112-
16 CABLE; STARTER TO RELAY
WHEEL BASE 6600MM(66W) L=5400 		1-82652-745-1 01 1 0105-0111
16 CABLE; STARTER TO RELAY
WHEEL BASE 6600MM(66W) L=5440 		1-82652-780-0 01 1 0112-0302
16 CABLE; STARTER TO RELAY
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) L=5440 		1-82652-780-0 01 1 0303-
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 0105-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0105-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		9-09150-606-0 01 1 0105-
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 0105-
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 0105-
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 0105-
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 0105-
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 0105-
68 RELAY; BATTERY 1-82550-282-0 01 1 0105-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0105-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0105-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 0105-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0105-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 0105-
