0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#27680) — 63 parça
◀
[060A] MAG VALVE (4 parça)
[060A] RESISTOR,CONTROL UNIT AND RELAY (11 parça)
[060A] STARTER,GENERATOR AND SENSOR (14 parça)
[060A] FIXING CAB FRT AND FRAME (17 parça)
[060A] FIXING ENG HARNESS (17 parça)
▶
449
450
690
690
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
449
VALVE; MAG,VARIABLE SWIRL SYSTEM
1-82563-871-2
01
1
0105-
450
CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0105-
690
CONNECTOR
(A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0105-
690
CONNECTOR
(B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0105-

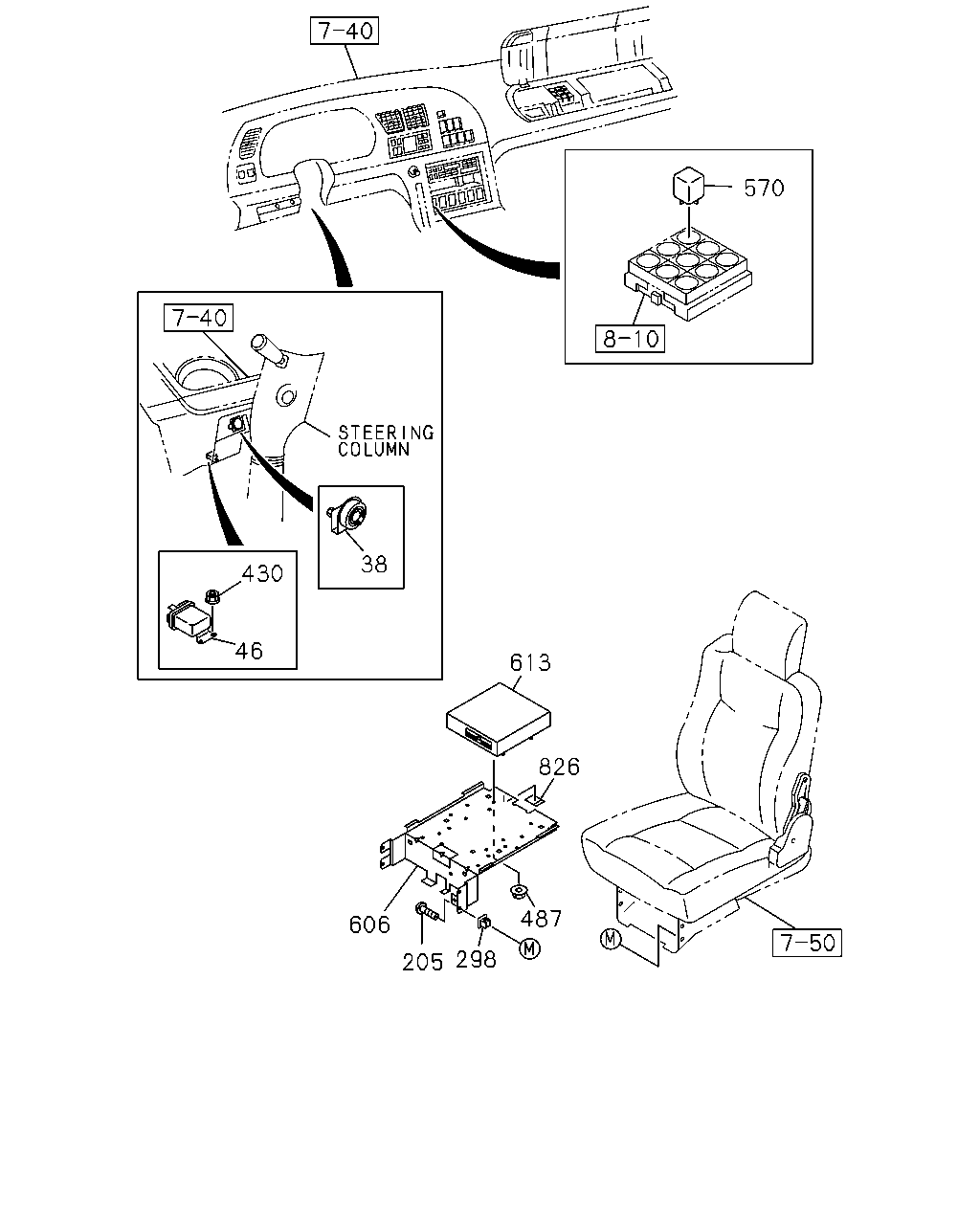

570
38
430
46
613
826
487
606
298
205
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
RESISTOR; CONT,GLOW PLUG
1-81402-008-0
01
1
0105-
46
RELAY; GLOW PLUG
8-94258-014-0
01
1
0105-
205
SCREW; BRKT
M6X12 TAPPING W/PL WASHER
0-74100-612-0
04
1
0105-
298
GROMMET; SCREW
D=9X9 L=8 M6
8-94222-314-0
04
1
0105-
430
NUT; RELAY FIX
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE
0-91150-106-0
01
1
0105-
487
NUT
M6 FLANGE
0-91150-106-0
04
1
0105-
570
RELAY; EXH SHUTTER
24V 10A MATSUSHITA
8-97173-035-1
01
1
0105-
606
BRACKET; CONT UNIT
1-75558-598-3
01
1
0105-
613
CONTROL UNIT; ENG
1-80110-666-0
01
1
0105-
826
SEAL; NOISE INSULATION
30X30
8-97866-626-0
03
1
0105-0309
826
SEAL; NOISE INSULATION
30X30
1-74998-128-0
03
1
0310-

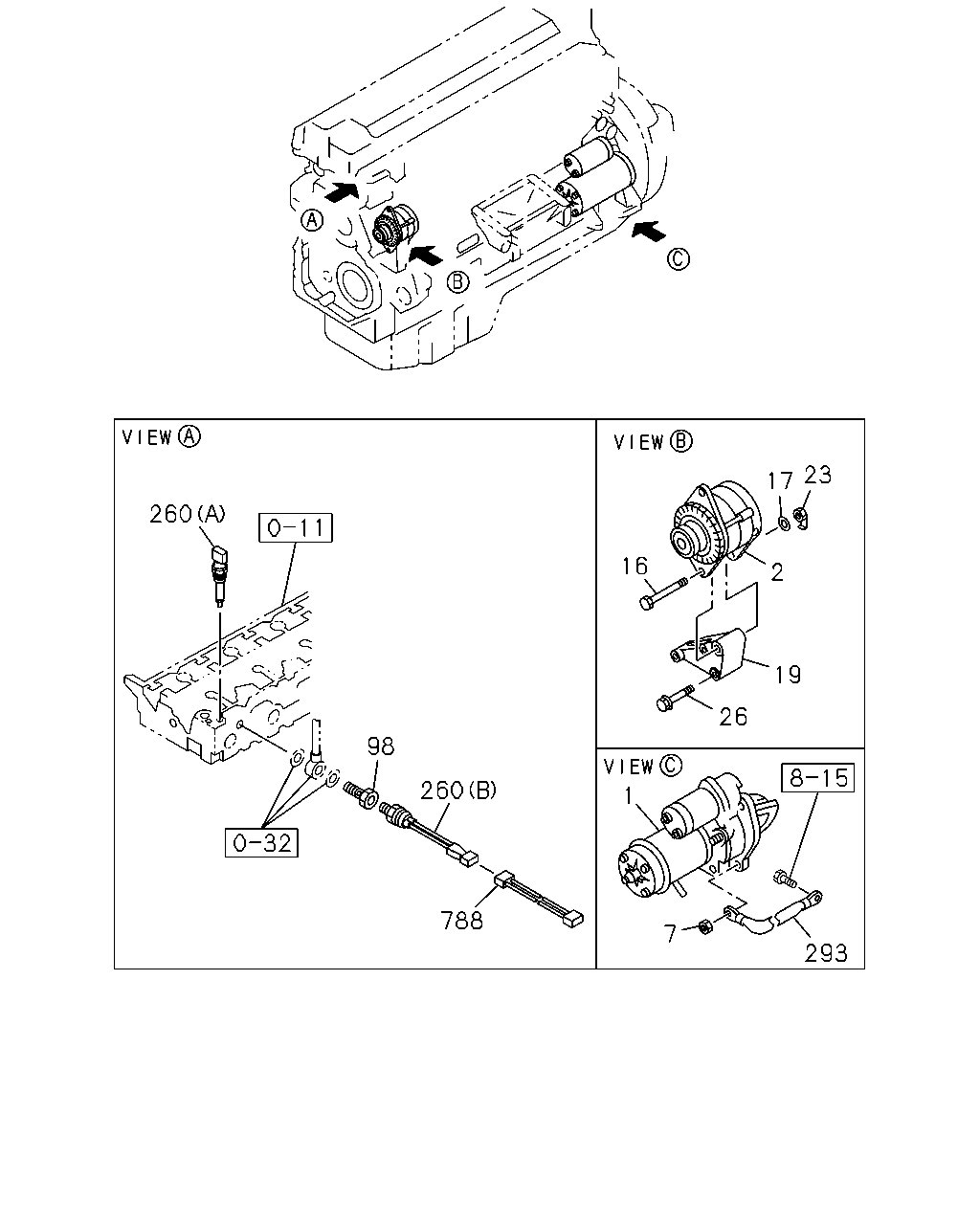

23
17
260
16
2
19
26
98
260
1
788
7
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENGINE REAR PTO HEAVY DUTY(NJU) 24V 7.0KW MITSUBISHI
1-81100-352-3
01
1
0105-
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO HEAVY DUTY(NJU) 24V 7.0KW MITSUBISHI
1-81100-341-3
01
1
0105-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI
1-81200-517-2
01
1
0105-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
03
1
0105-
16
BOLT; GEN
M14X123
1-09040-105-0
01
1
0105-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0105-
19
BRACKET; GEN
1-19711-144-0
01
1
0105-
23
NUT; GEN
M14 W/BRKT
1-19711-029-0
01
1
0105-
26
BOLT; GEN BRKT
M10X60 FLANGE
0-28181-060-0
02
1
0105-
98
ADAPTER; TEMP SENSOR
1-09675-236-0
01
1
0105-
260
SENSOR; WATER TEMP
(A)
1-80210-004-0
01
1
0105-
260
SENSOR; WATER TEMP
(B)
1-83161-038-0
01
1
0105-
293
CABLE; STARTER EARTH
L=350
1-82650-235-0
01
1
0105-
788
HARNESS; EXT,WATER TEMP SENSOR
1-82641-186-0
02
1
0105-

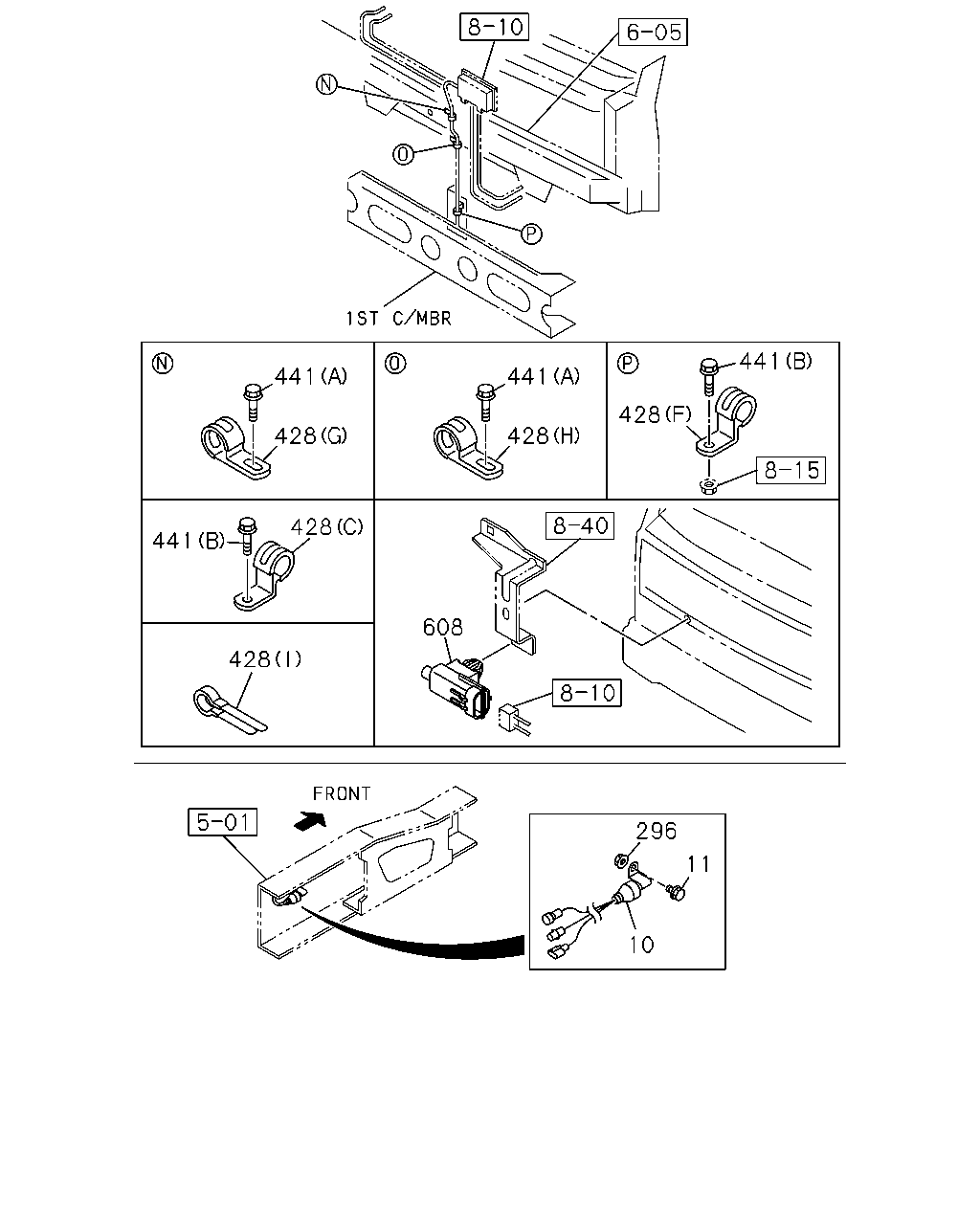

441
441
441
428
428
428
428
441
608
428
296
11
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
HITACHI
1-81171-087-0
01
1
0105-
11
BOLT; RELAY STARTER
M8X30 FLANGE
0-28680-830-0
02
1
0105-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0105-
428
CLIP; HARNESS
(C) ID=20 H=23 L=27
1-09700-861-0
01
1
0105-
428
CLIP; HARNESS
(F) ID=31.5 H=23 L=25
1-09701-017-0
01
1
0105-
428
CLIP; HARNESS
(G) ID=26 L=26
1-09701-236-0
01
1
0105-
428
CLIP; HARNESS
(H) ID=32 L=35
1-09701-244-0
01
1
0105-
428
CLIP; HARNESS
(A) L=250
5-09707-030-1
02
1
0105-
428
CLIP; HARNESS
(B) L=140
5-09707-031-1
05
1
0105-
428
CLIP; HARNESS
(D) L=36
8-94224-891-1
01
1
0105-
428
CLIP; HARNESS
(I) ID=20 L=50
9-09917-430-0
02
1
0105-
428
CLIP; HARNESS
(E) ID=11 L=28
9-09917-544-0
01
1
0105-
441
BOLT; HARNESS TO FRAME
(B) M8X20 FLANGE
0-28080-820-0
01
1
0105-0112
441
BOLT; HARNESS TO FRAME
(B) M8X25 FLANGE
0-28680-825-0
02
1
0201-
441
BOLT; HARNESS TO FRAME
(B) M8X20 FLANGE
0-28680-820-0
01
1
0105-0112
441
BOLT; HARNESS TO FRAME
(A) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0105-
608
SENSOR; TEMP
8-97177-549-0
01
1
0105-

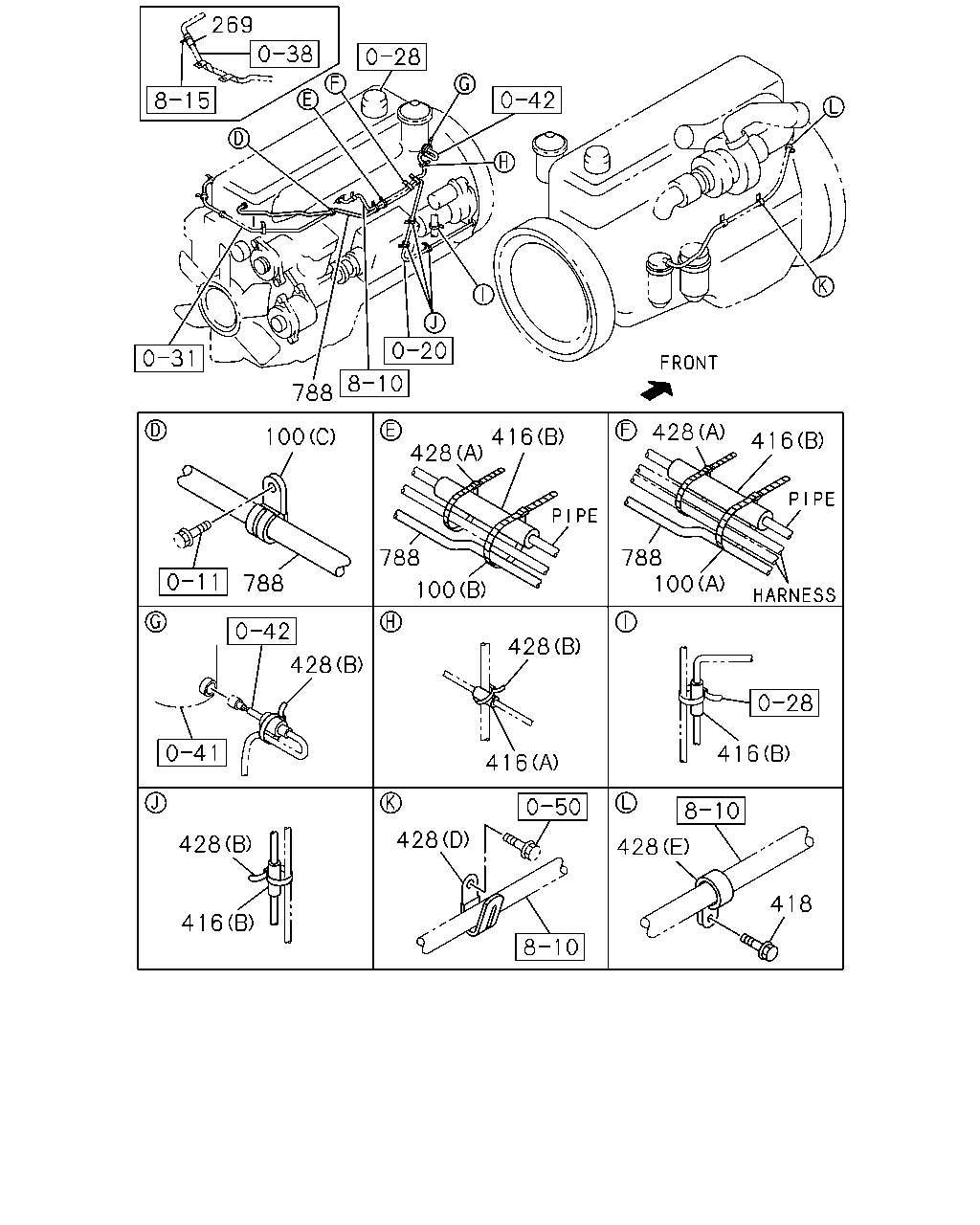

269
788
428
100
416
416
428
788
788
100
788
100
428
428
416
416
428
428
428
418
416
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
CLIP; HARNESS
(C) ID=11 L=30
1-09700-511-0
01
1
0105-
100
CLIP; HARNESS
(A) L=180
1-09707-162-1
01
1
0105-
100
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
0105-
269
SLEEVE; RUBBER,CABLE
ID=18 OD=22 L=25
8-94412-773-0
01
1
0111-
416
SLEEVE; RUBBER
(A) ID=17 OD=21 L=40
1-09337-012-0
01
1
0105-
416
SLEEVE; RUBBER
(B) ID=10 OD=14 L=30
9-09956-682-0
06
1
0105-
418
BOLT; CLIP
M10X16 FLANGE
0-28181-016-0
01
1
0105-
428
CLIP; HARNESS
(C) ID=20 H=23 L=27
1-09700-861-0
01
1
0105-
428
CLIP; HARNESS
(F) ID=31.5 H=23 L=25
1-09701-017-0
01
1
0105-
428
CLIP; HARNESS
(G) ID=26 L=26
1-09701-236-0
01
1
0105-
428
CLIP; HARNESS
(H) ID=32 L=35
1-09701-244-0
01
1
0105-
428
CLIP; HARNESS
(A) L=250
5-09707-030-1
02
1
0105-
428
CLIP; HARNESS
(B) L=140
5-09707-031-1
05
1
0105-
428
CLIP; HARNESS
(D) L=36
8-94224-891-1
01
1
0105-
428
CLIP; HARNESS
(I) ID=20 L=50
9-09917-430-0
02
1
0105-
428
CLIP; HARNESS
(E) ID=11 L=28
9-09917-544-0
01
1
0105-
788
HARNESS; EXT,WATER TEMP SENSOR
1-82641-186-0
02
1
0105-
