0-42B — FUEL PUMP AND PIPE (#2768) — 118 parça

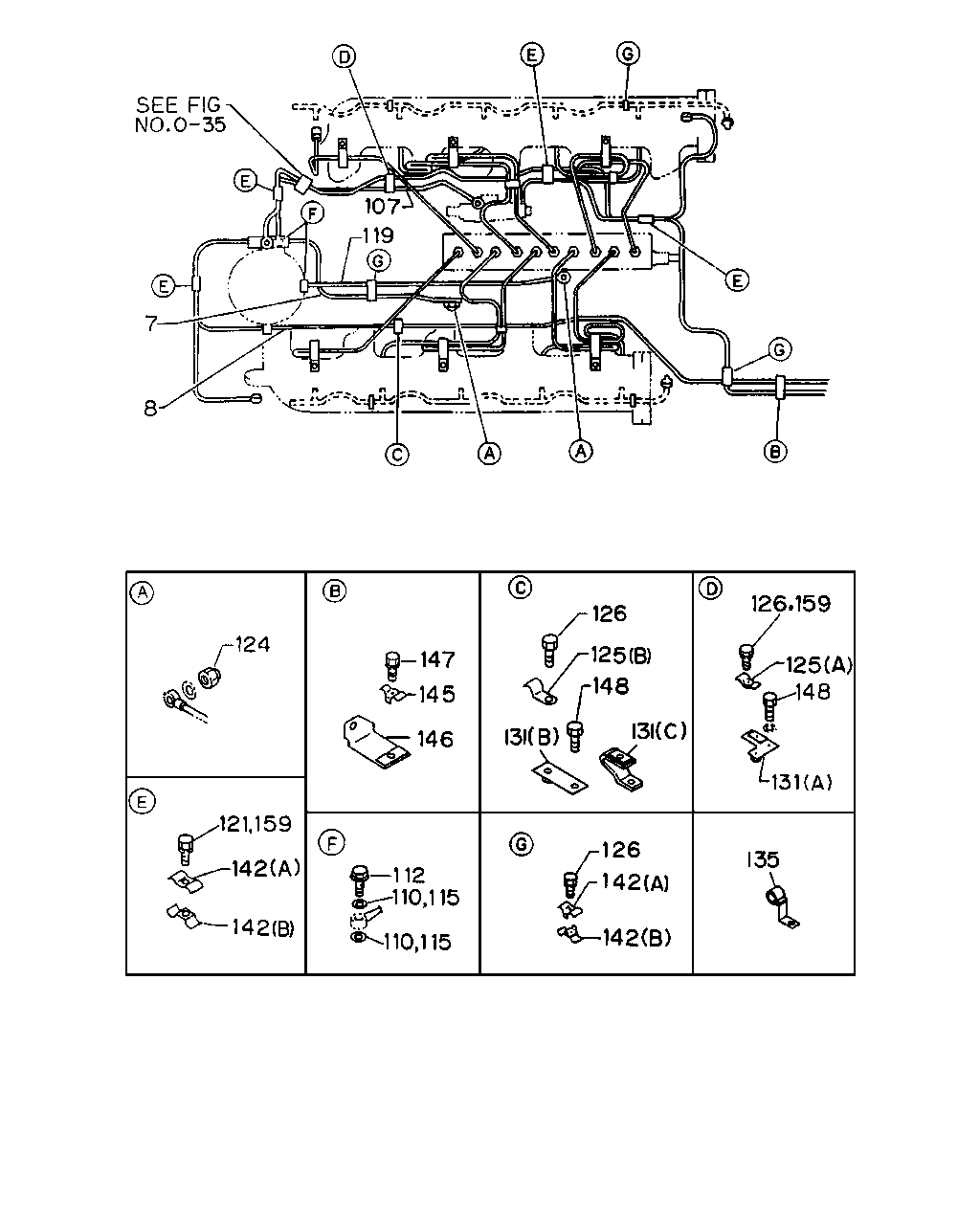

126 159 148 125 131 135 142 142 126 115 110 110 115 112 131 131 126 125 148 147 145 146 124 159 142 142 119 107 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER FIRE TRUCK<RA9>	1-15413-973-0	01	1	9002-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. FIRE TRUCK<RA9>	1-15413-612-0	01	1	9002-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-692-0	01	1	9307-		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9307-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9307-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9002-	●
112	BOLT; JOINT,FUEL FILTER M14X27 M10-HOLE ON HEAD	1-09675-087-0	02	1	9002-9306	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15414-117-0	01	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15413-613-0	01	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15414-116-1	01	1	9307-		●
121	BOLT; CLIP M6X22	0-28020-622-0	01	1	9002-9005	●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	01	1	9006-	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9002-	●
125	CLIP; FUEL PIPE (B) ID=9.7 L=20	1-09700-878-1	01	1	9002-	●
125	CLIP; FUEL PIPE FIRE TRUCK<RA9> (A) ID=10 & 6 L=20 W/NUT	1-09700-405-0	01	1	9002-	●
125	CLIP; FUEL PIPE (A) ID=10 & 6 L=20	1-09700-404-0	01	1	9002-	●	●
125	CLIP; FUEL PIPE FIRE TRUCK<RA9> (A) ID=10 & 6 L=20	1-09700-404-0	01	1	9002-	●
125	CLIP; FUEL PIPE (B) ID=9.7 L=20	1-09700-878-1	02	1	9307-		●
126	BOLT; CLIP,FUEL PIPE M6X22	0-28020-622-0	04	1	9002-9005	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	04	1	9006-9410	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	02	1	9411-	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9411-	●
126	BOLT; CLIP,FUEL PIPE FIRE TRUCK<RA9> M6X22	0-28020-622-0	01	1	9002-9005	●
126	BOLT; CLIP,FUEL PIPE FIRE TRUCK<RA9> M6X22 FLANGE	0-28080-622-0	01	1	9006-	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	06	1	9307-9410		●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	03	1	9411-		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	03	1	9411-		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	01	1	9002-	●
131	BRACKET; FUEL PIPE CLIP FIRE TRUCK<RA9> (C)	1-15419-150-1	01	1	9002-	●
131	BRACKET; FUEL PIPE CLIP EXC. FIRE TRUCK<RA9> (A)	1-15419-185-0	01	1	9002-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-185-0	01	1	9002-		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	02	1	9307-		●
135	CLIP; HARNESS FIRE TRUCK<RA9> ID=11	1-09700-474-0	01	1	9002-	●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	02	1	9002-9410	●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	8-94393-039-1	02	1	9411-	●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9002-9410	●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	02	1	9411-	●
142	CLIP; FUEL PIPE (A) ID=10 & 6 L=20	1-09700-404-0	05	1	9002-	●	●
142	CLIP; FUEL PIPE (B) ID=10 & 6 L=20 W/NUT	1-09700-405-0	05	1	9002-	●	●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	03	1	9307-9410		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	8-94393-039-1	03	1	9411-		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	03	1	9307-9410		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9411-		●
145	CLIP; FUEL PIPE ID=10 & 10 L=25	9-09716-114-0	01	1	9002-	●
146	BRACKET; FUEL END ENGINE REAR PTO(SV1)	1-22518-062-0	01	1	9002-	●
146	BRACKET; FUEL END EXC. ENGINE REAR PTO(SV1)	1-22518-037-3	01	1	9002-	●
147	BOLT; CLIP,FUEL PIPE M6X20	0-28020-620-0	01	1	9002-9005	●
147	BOLT; CLIP,FUEL PIPE M6X20 FLANGE	0-28080-620-0	01	1	9006-	●
148	BOLT; BRKT M10X16 W/LK WASHER	9-01931-016-0	02	1	9002-9004	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	02	1	9005-	●
148	BOLT; BRKT EXC. FIRE TRUCK<RA9> M10X16 W/LK WASHER	9-01931-016-0	01	1	9002-9004	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	03	1	9307-		●
148	BOLT; BRKT EXC. FIRE TRUCK<RA9> M10X16 W/LK WASHER	1-09033-012-0	01	1	9005-	●
159	BOLT; CLIP M6X22	0-28020-622-0	05	1	9002-9005	●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	05	1	9006-	●	●

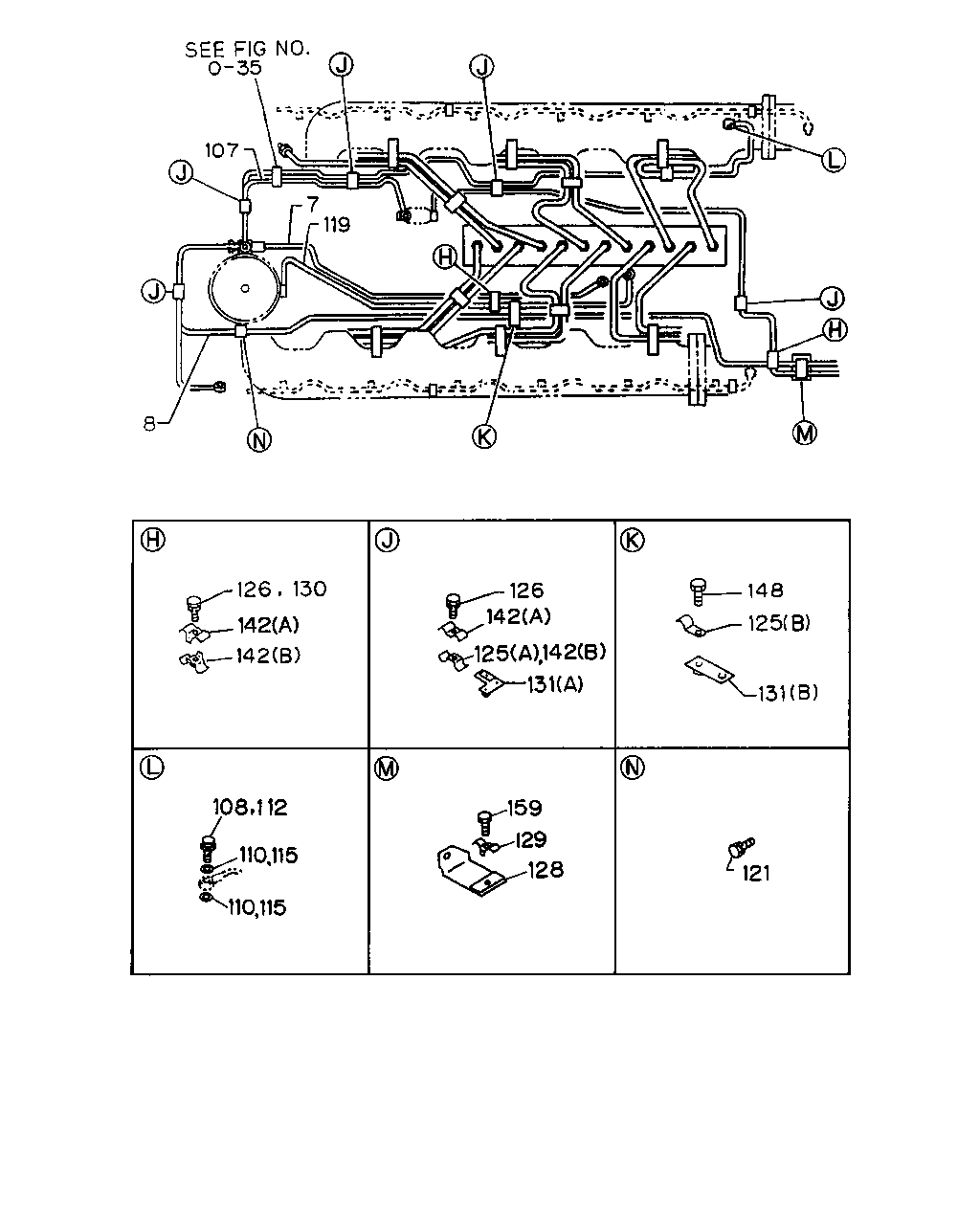

126 130 142 142 126 142 125 142 131 148 125 131 121 159 129 128 108 112 115 110 110 115 119 7 8 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	PIPE ASM; FUEL OVERFLOW	1-15413-614-0	01	1	9002-	●
7	PIPE ASM; FUEL OVERFLOW	1-15414-115-0	01	1	9307-		●
8	PIPE ASM; FUEL OVERFLOW ENGINE REAR PTO(SV1)	1-15414-702-2	01	1	9002-	●
8	PIPE ASM; FUEL OVERFLOW EXC. ENGINE REAR PTO(SV1)	1-15414-550-1	01	1	9002-	●
8	PIPE ASM; FUEL OVERFLOW	1-15414-552-1	01	1	9307-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER FIRE TRUCK<RA9>	1-15413-973-0	01	1	9002-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. FIRE TRUCK<RA9>	1-15413-612-0	01	1	9002-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-692-0	01	1	9307-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9307-		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9307-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9307-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9002-	●
112	BOLT; JOINT,FUEL FILTER M14X27 M10-HOLE ON HEAD	1-09675-087-0	02	1	9002-9306	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15414-117-0	01	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15413-613-0	01	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15414-116-1	01	1	9307-		●
121	BOLT; CLIP M6X22	0-28020-622-0	01	1	9002-9005	●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	01	1	9006-	●	●
125	CLIP; FUEL PIPE (B) ID=9.7 L=20	1-09700-878-1	01	1	9002-	●
125	CLIP; FUEL PIPE FIRE TRUCK<RA9> (A) ID=10 & 6 L=20 W/NUT	1-09700-405-0	01	1	9002-	●
125	CLIP; FUEL PIPE (A) ID=10 & 6 L=20	1-09700-404-0	01	1	9002-	●	●
125	CLIP; FUEL PIPE FIRE TRUCK<RA9> (A) ID=10 & 6 L=20	1-09700-404-0	01	1	9002-	●
125	CLIP; FUEL PIPE (B) ID=9.7 L=20	1-09700-878-1	02	1	9307-		●
126	BOLT; CLIP,FUEL PIPE M6X22	0-28020-622-0	04	1	9002-9005	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	04	1	9006-9410	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	02	1	9411-	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9411-	●
126	BOLT; CLIP,FUEL PIPE FIRE TRUCK<RA9> M6X22	0-28020-622-0	01	1	9002-9005	●
126	BOLT; CLIP,FUEL PIPE FIRE TRUCK<RA9> M6X22 FLANGE	0-28080-622-0	01	1	9006-	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	06	1	9307-9410		●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	03	1	9411-		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	03	1	9411-		●
128	BRACKET; FUEL RETURN CLIP	1-22518-037-3	01	1	9307-		●
129	CLIP; FUEL RETURN PIPE ID=10 & 10 L=25	9-09716-114-0	01	1	9307-		●
130	BOLT; CLIP RETURN PIPE M6X20 FLANGE	0-28080-620-0	01	1	9307-		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	01	1	9002-	●
131	BRACKET; FUEL PIPE CLIP FIRE TRUCK<RA9> (C)	1-15419-150-1	01	1	9002-	●
131	BRACKET; FUEL PIPE CLIP EXC. FIRE TRUCK<RA9> (A)	1-15419-185-0	01	1	9002-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-185-0	01	1	9002-		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	02	1	9307-		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	02	1	9002-9410	●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	8-94393-039-1	02	1	9411-	●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9002-9410	●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	02	1	9411-	●
142	CLIP; FUEL PIPE (A) ID=10 & 6 L=20	1-09700-404-0	05	1	9002-	●	●
142	CLIP; FUEL PIPE (B) ID=10 & 6 L=20 W/NUT	1-09700-405-0	05	1	9002-	●	●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	03	1	9307-9410		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	8-94393-039-1	03	1	9411-		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	03	1	9307-9410		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9411-		●
148	BOLT; BRKT M10X16 W/LK WASHER	9-01931-016-0	02	1	9002-9004	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	02	1	9005-	●
148	BOLT; BRKT EXC. FIRE TRUCK<RA9> M10X16 W/LK WASHER	9-01931-016-0	01	1	9002-9004	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	03	1	9307-		●
148	BOLT; BRKT EXC. FIRE TRUCK<RA9> M10X16 W/LK WASHER	1-09033-012-0	01	1	9005-	●
159	BOLT; CLIP M6X22	0-28020-622-0	05	1	9002-9005	●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	05	1	9006-	●	●
