0-32 — WATER PIPING; ENGINE (#27667) — 26 parça

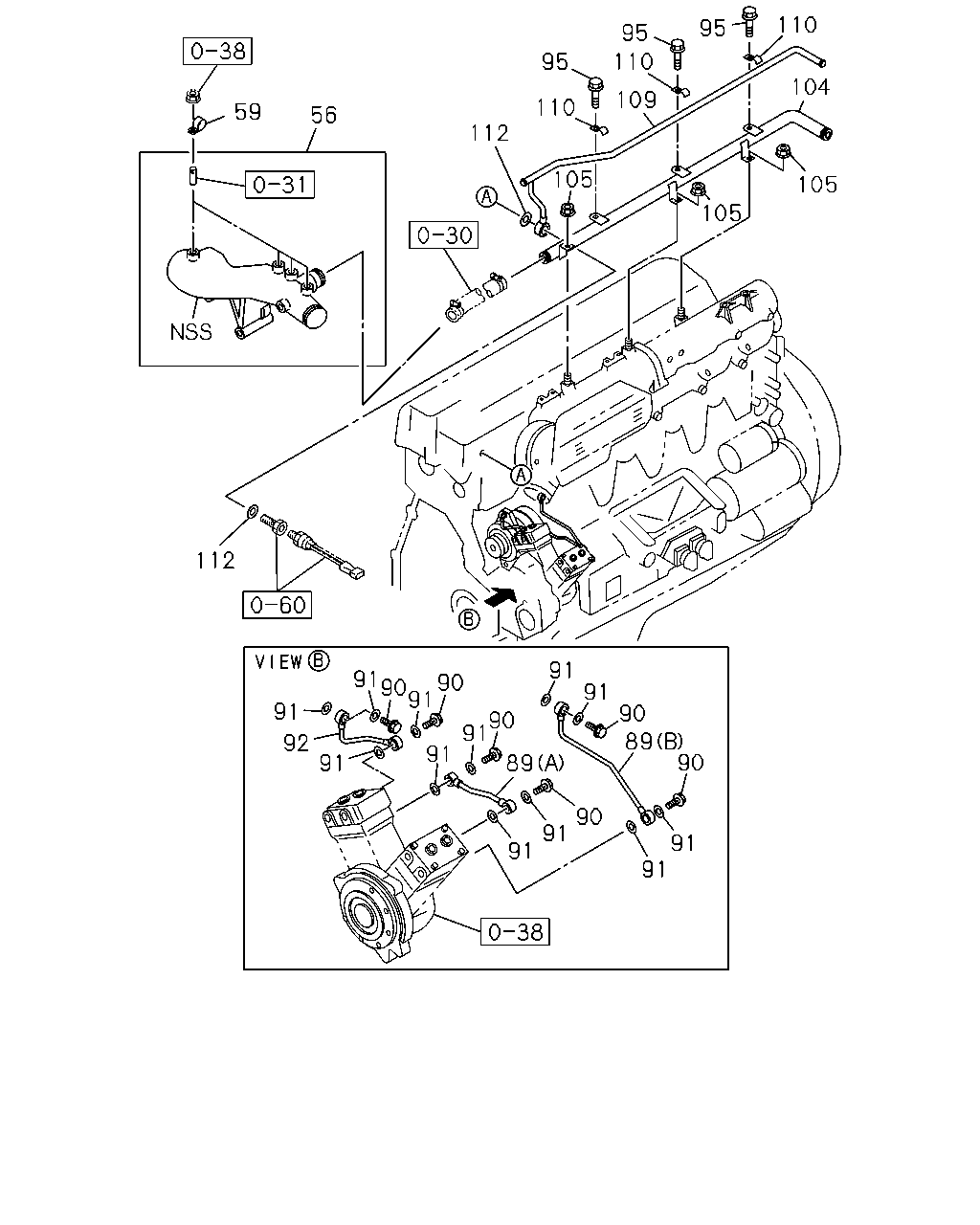

110 95 95 110 95 109 110 104 59 56 112 105 105 105 112 91 91 90 90 91 91 91 89 90 90 91 91 92 91 89 90 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
56	PIPE; WATER OUTLET	1-13721-650-0	01	1	0105-
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	0105-
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-687-0	01	1	0105-
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-689-0	01	1	0105-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0105-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0105-
92	PIPE; WATER,AIR CMPR,OUT	1-13711-691-0	01	1	0105-
95	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	03	1	0105-
104	PIPE; WATER CHARGE	1-13721-617-0	01	1	0105-
105	NUT; PIPE M10 FLANGE	0-91150-210-0	03	1	0105-
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-971-0	01	1	0105-
110	CLIP; AIR PIPE ID=9.7 L=20	1-09700-878-1	03	1	0105-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	02	1	0105-

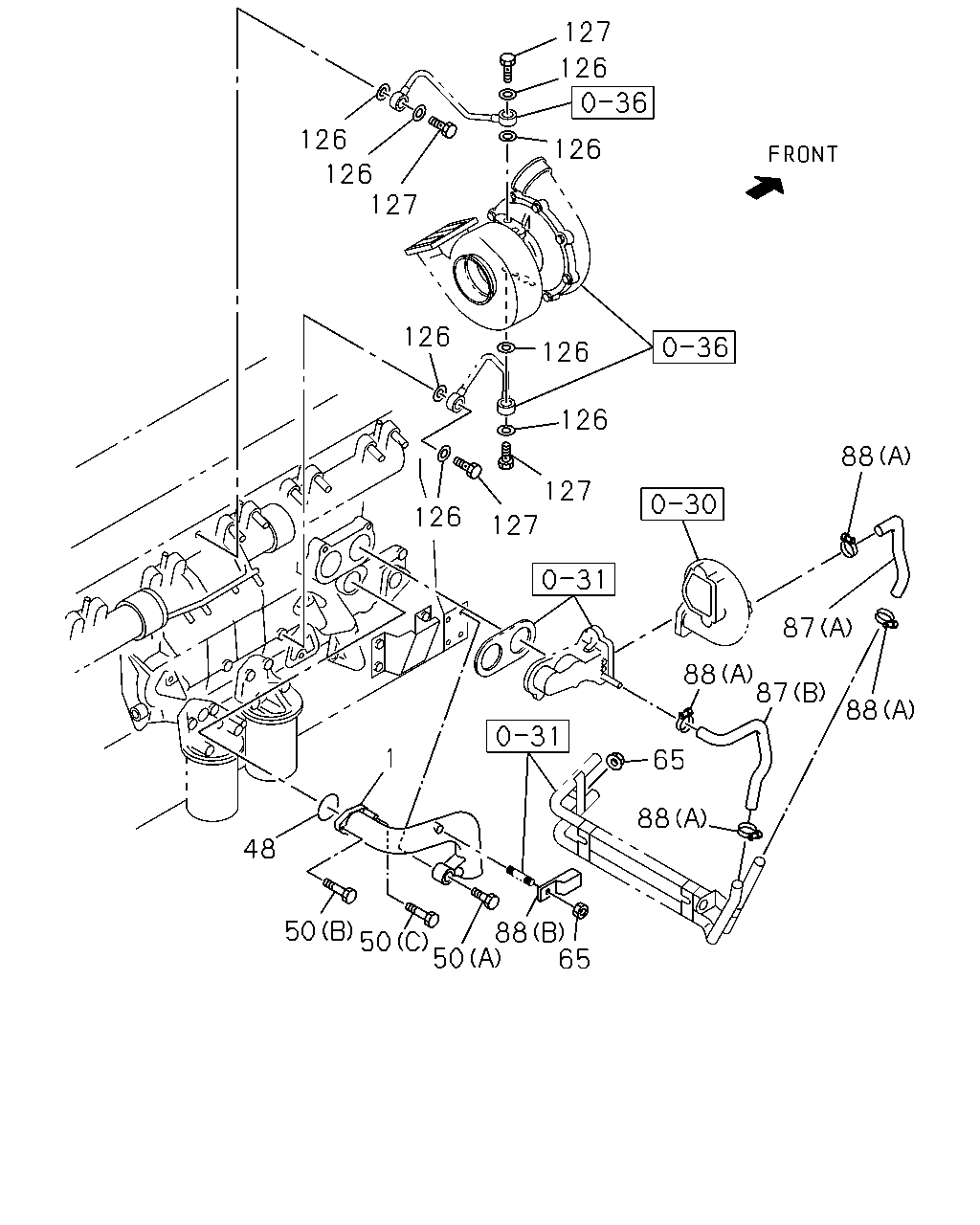

127 126 126 126 126 127 126 126 126 88 127 126 127 87 88 87 88 1 65 88 48 50 50 50 88 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; WATER PUMP,INL	1-13711-718-0	01	1	0105-0106
1	PIPE; WATER PUMP,INL	1-13711-611-2	01	1	0107-
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0105-
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0105-
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0105-
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	0105-
65	NUT M10 FLANGE	0-91150-110-0	02	1	0105-
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0105-
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0105-
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0105-
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0105-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	08	1	0105-
127	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-
