Isuzu WW
▶
TRUCKS
▶
CXH
▶
10883 - CXH LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

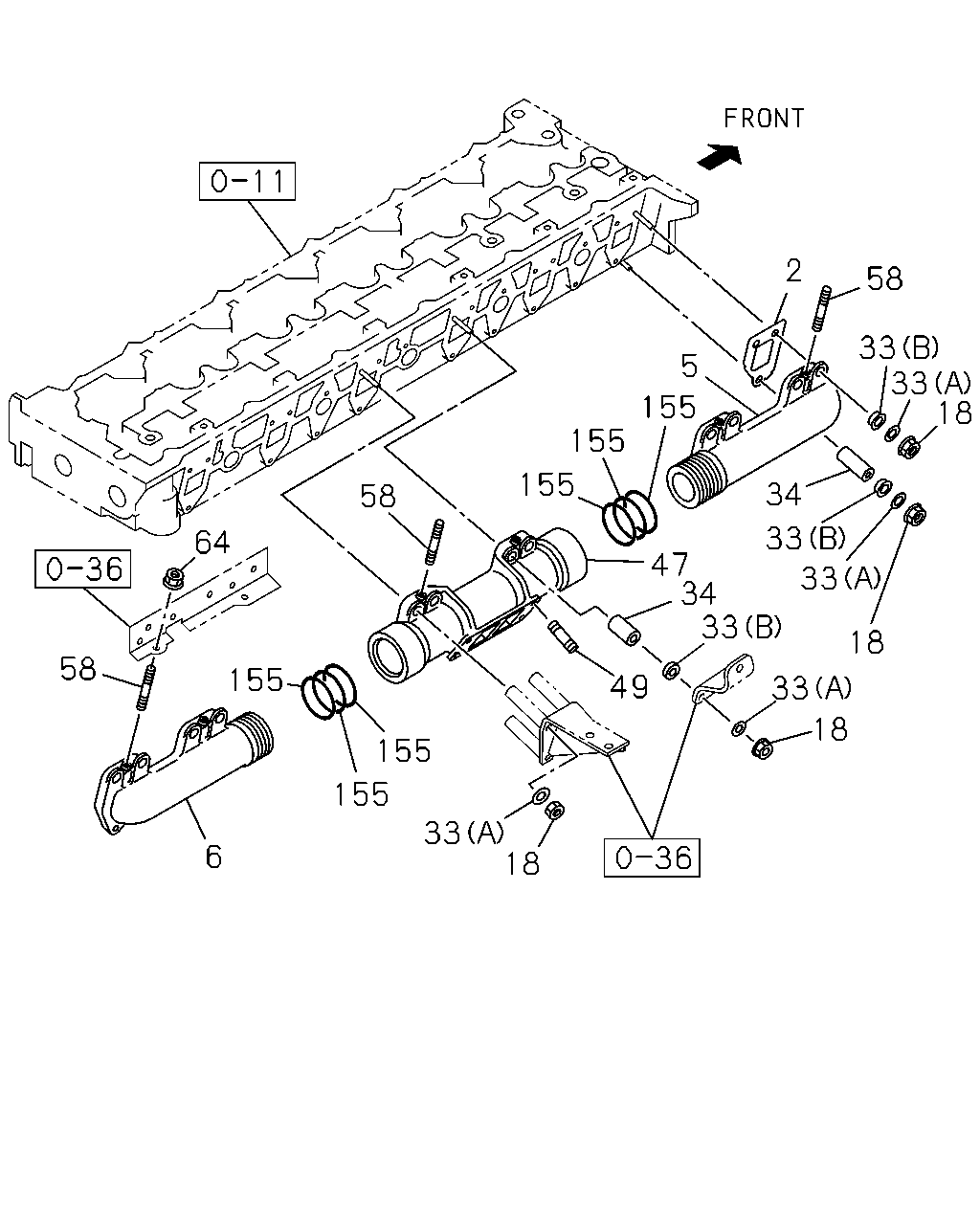

0-27 — EXHAUST MANIFOLD
(#27663) — 14 parça
2
58
33
33
18
5
155
155
155
34
58
33
64
47
34
33
33
18
58
155
49
33
18
155
155
33
18
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-182-1
06
1
0105-
5
MANIFOLD; EXH,FRT
1-14141-801-2
01
1
0105-
6
MANIFOLD; EXH,RR
1-14141-803-2
01
1
0105-
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
18
1
0105-
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
18
1
0105-
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
13
1
0105-0301
34
COLLAR; DIST,EXH MANIF
L=43
8-94396-406-0
13
1
0105-0301
34
COLLAR; DIST,EXH MANIF
L=47
1-14149-263-0
13
1
0302-
47
MANIFOLD; EXH,CENTER
1-14141-802-3
01
1
0105-
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X30,M10X22.5 L=45
9-04731-030-0
04
1
0105-
58
STUD; HEAT PROTECTOR
M8X20 L=32
9-04110-820-0
06
1
0105-
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91150-108-0
05
1
0105-0110
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91150-108-0
03
1
0111-
155
RING; SEAL,EXH MANIF
1-14149-151-0
06
1
0105-
