0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#27660) — 100 parça

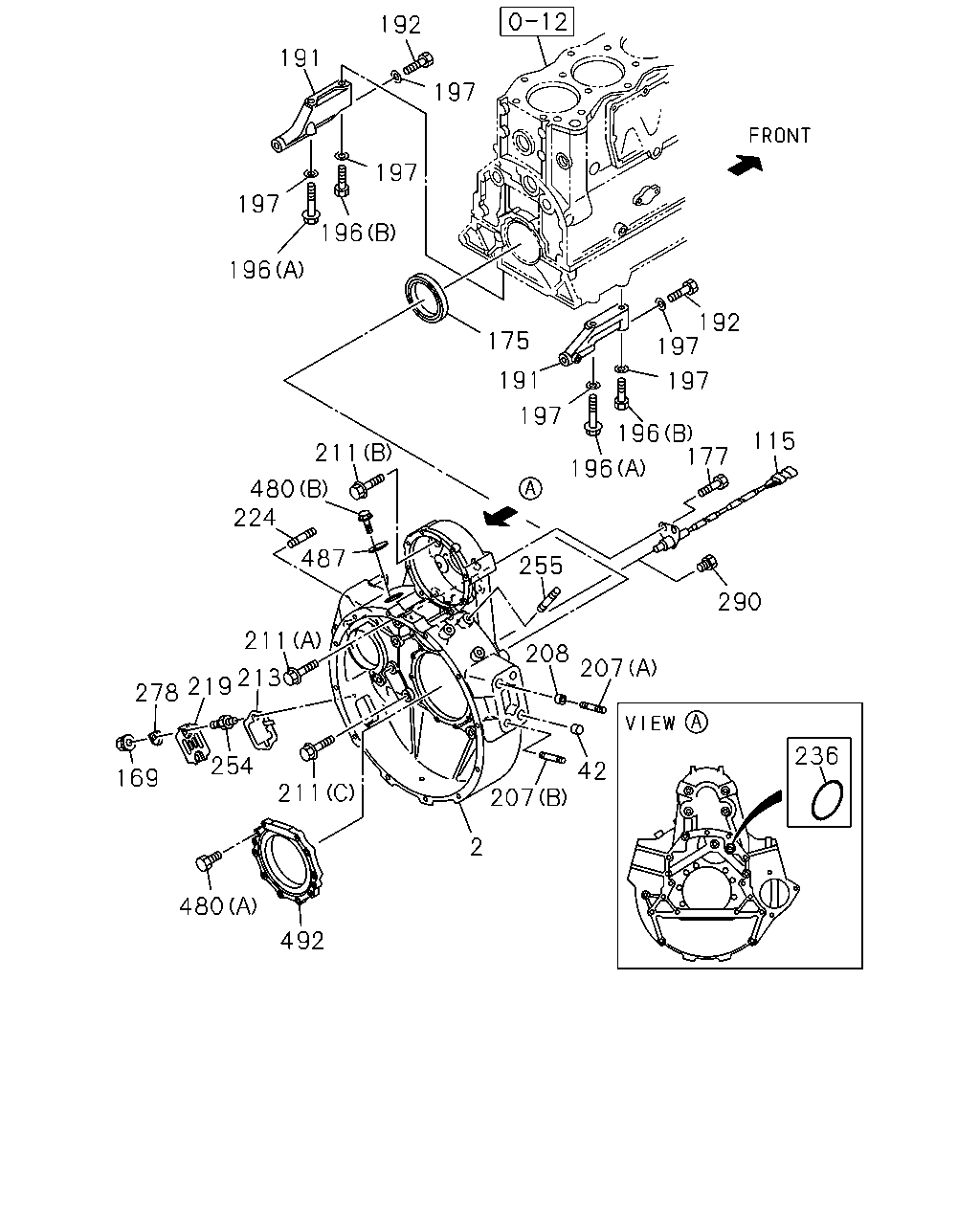

192 191 197 197 197 196 196 192 197 175 191 197 197 196 177 115 211 196 480 224 255 487 290 211 208 207 213 219 278 254 236 42 207 169 211 2 480 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL ENGINE REAR PTO HEAVY DUTY(NJU)	1-11341-622-5	01	1	0105-
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO HEAVY DUTY(NJU)	1-11340-271-8	01	1	0105-
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	0105-
115	SENSOR; REVOLUTION,ENG SPD	1-81510-426-6	01	1	0105-
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0105-
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	0105-
177	BOLT; SENSOR M8X16 FLANGE	0-28080-816-0	02	1	0105-
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	0105-
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	0105-
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	0105-
196	BOLT; STAY TO C/BL (A) M14X100	9-91666-400-0	02	1	0105-
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	0105-
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	0105-
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	0105-
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	0105-
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	0105-
211	BOLT; HSG ENGINE REAR PTO HEAVY DUTY(NJU) (A) M14X30 FLANGE	0-28791-430-0	01	1	0105-
211	BOLT; HSG ENGINE REAR PTO HEAVY DUTY(NJU) (B) M14X40 FLANGE	0-28791-440-0	05	1	0105-
211	BOLT; HSG ENGINE REAR PTO HEAVY DUTY(NJU) (C) M14X110 FLANGE	0-28996-411-0	11	1	0105-
211	BOLT; HSG EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (A) M8X35 FLANGE	0-28080-835-0	08	1	0105-
211	BOLT; HSG EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (B) M14X50	9-91666-450-0	02	1	0105-
211	BOLT; HSG EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (C) M14X70	9-91666-470-0	02	1	0105-
211	BOLT; HSG EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (D) M14X45	9-92361-445-0	10	1	0105-
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	0105-
219	COVER; POINTER	1-11349-131-0	01	1	0105-
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	0105-
236	GASKET; FLYWHEEL HSG ENGINE REAR PTO HEAVY DUTY(NJU) ID=29.7	1-09623-273-0	01	1	0105-
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	0105-
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	0105-
278	WASHER; COVER FIX	1-11349-127-0	01	1	0105-
290	PLUG; SENSOR HOLE EXC. ENGINE REAR PTO HEAVY DUTY(NJU) M20X10.5	9-09662-005-0	01	1	0105-
480	BOLT; COVER ENGINE REAR PTO HEAVY DUTY(NJU) (B) M6X12 FLANGE	0-28080-612-0	01	1	0403-
480	BOLT; COVER ENGINE REAR PTO HEAVY DUTY(NJU) (A) M8X30 FLANGE	0-28680-830-0	10	1	0105-
487	COVER; HOLE ENGINE REAR PTO HEAVY DUTY(NJU)	8-97600-831-0	01	1	0403-
492	COVER; OIL SEAL ENGINE REAR PTO HEAVY DUTY(NJU)	1-12363-042-0	01	1	0105-0308
492	COVER; OIL SEAL ENGINE REAR PTO HEAVY DUTY(NJU)	1-12363-043-0	01	1	0309-

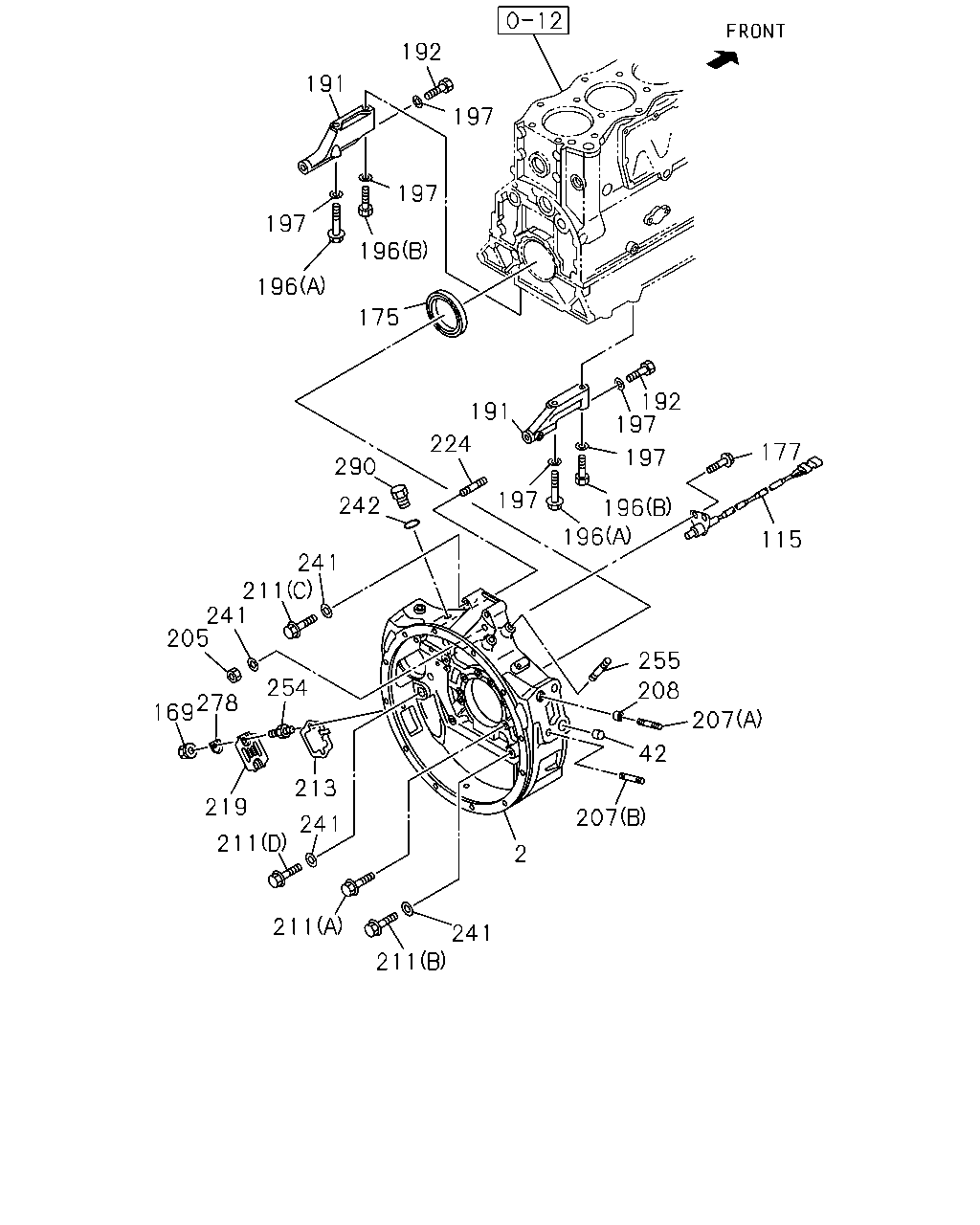

192 191 197 197 197 196 196 175 192 197 191 224 177 290 197 197 242 196 196 115 241 211 241 205 255 254 208 278 169 207 42 213 219 207 241 211 2 211 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL ENGINE REAR PTO HEAVY DUTY(NJU)	1-11341-622-5	01	1	0105-
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO HEAVY DUTY(NJU)	1-11340-271-8	01	1	0105-
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	0105-
115	SENSOR; REVOLUTION,ENG SPD	1-81510-426-6	01	1	0105-
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0105-
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	0105-
177	BOLT; SENSOR M8X16 FLANGE	0-28080-816-0	02	1	0105-
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	0105-
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	0105-
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	0105-
196	BOLT; STAY TO C/BL (A) M14X100	9-91666-400-0	02	1	0105-
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	0105-
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	0105-
205	NUT; HSG EXC. ENGINE REAR PTO HEAVY DUTY(NJU) M14	9-99110-514-0	01	1	0105-
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	0105-
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	0105-
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	0105-
211	BOLT; HSG ENGINE REAR PTO HEAVY DUTY(NJU) (A) M14X30 FLANGE	0-28791-430-0	01	1	0105-
211	BOLT; HSG ENGINE REAR PTO HEAVY DUTY(NJU) (B) M14X40 FLANGE	0-28791-440-0	05	1	0105-
211	BOLT; HSG ENGINE REAR PTO HEAVY DUTY(NJU) (C) M14X110 FLANGE	0-28996-411-0	11	1	0105-
211	BOLT; HSG EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (A) M8X35 FLANGE	0-28080-835-0	08	1	0105-
211	BOLT; HSG EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (B) M14X50	9-91666-450-0	02	1	0105-
211	BOLT; HSG EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (C) M14X70	9-91666-470-0	02	1	0105-
211	BOLT; HSG EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (D) M14X45	9-92361-445-0	10	1	0105-
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	0105-
219	COVER; POINTER	1-11349-131-0	01	1	0105-
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	0105-
241	WASHER; PL,HSG EXC. ENGINE REAR PTO HEAVY DUTY(NJU) ID=15 OD=26	9-09164-514-0	15	1	0105-
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO HEAVY DUTY(NJU) ID=20.5 OD=28.0	9-09571-420-0	01	1	0105-
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	0105-
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	0105-
278	WASHER; COVER FIX	1-11349-127-0	01	1	0105-
290	PLUG; SENSOR HOLE EXC. ENGINE REAR PTO HEAVY DUTY(NJU) M20X10.5	9-09662-005-0	01	1	0105-

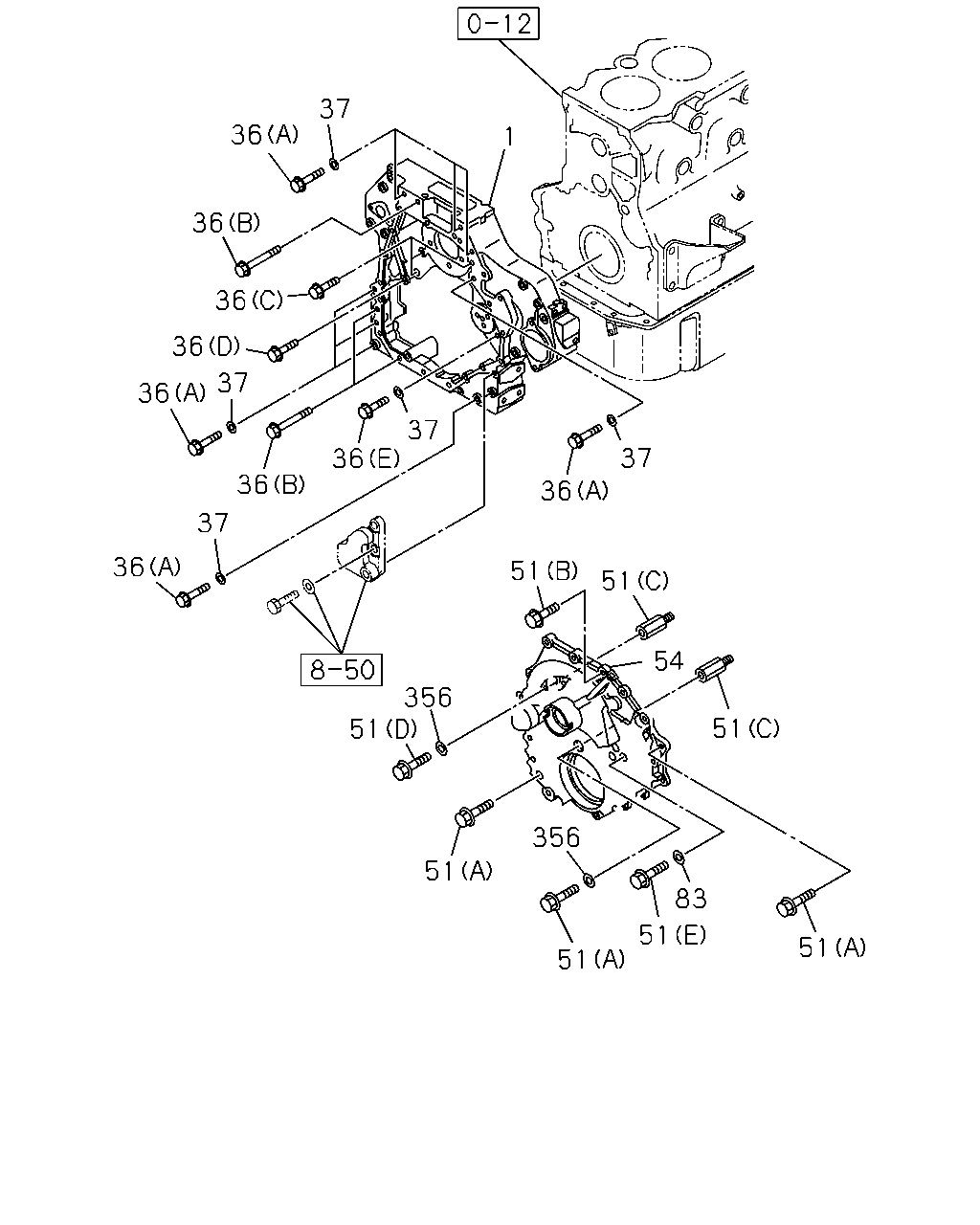

37 36 1 36 36 36 37 36 37 36 37 36 36 37 36 51 51 54 356 51 51 356 51 83 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CASE; TIMING GEAR	1-11310-053-5	01	1	0105-
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28181-000-0	03	1	0105-
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28181-025-0	04	1	0105-
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28181-035-0	01	1	0105-
36	BOLT; GEAR CASE (E) M14X60	1-09020-146-0	01	1	0105-
36	BOLT; GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) (A) M14X110	1-09020-007-0	08	1	0105-
36	BOLT; GEAR CASE HEATER & DEFROSTER(C41) (A) M14X110	1-09020-007-0	10	1	0105-
37	WASHER; PL,GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	09	1	0105-
37	WASHER; PL,GEAR CASE HEATER & DEFROSTER(C41) ID=15 OD=26	9-09164-514-0	11	1	0105-
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	17	1	0105-
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28181-040-0	01	1	0105-
51	BOLT; GEAR CASE COVER (C) M10X90	1-11329-024-1	03	1	0105-0312
51	BOLT; GEAR CASE COVER (C) M10X90	8-97603-482-0	02	1	0401-
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	02	1	0105-
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	0105-
54	COVER; GEAR CASE	1-11320-096-8	01	1	0105-
83	WASHER; PL,COVER ID=8.5 OD=20	5-09503-111-0	03	1	0105-
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	03	1	0105-

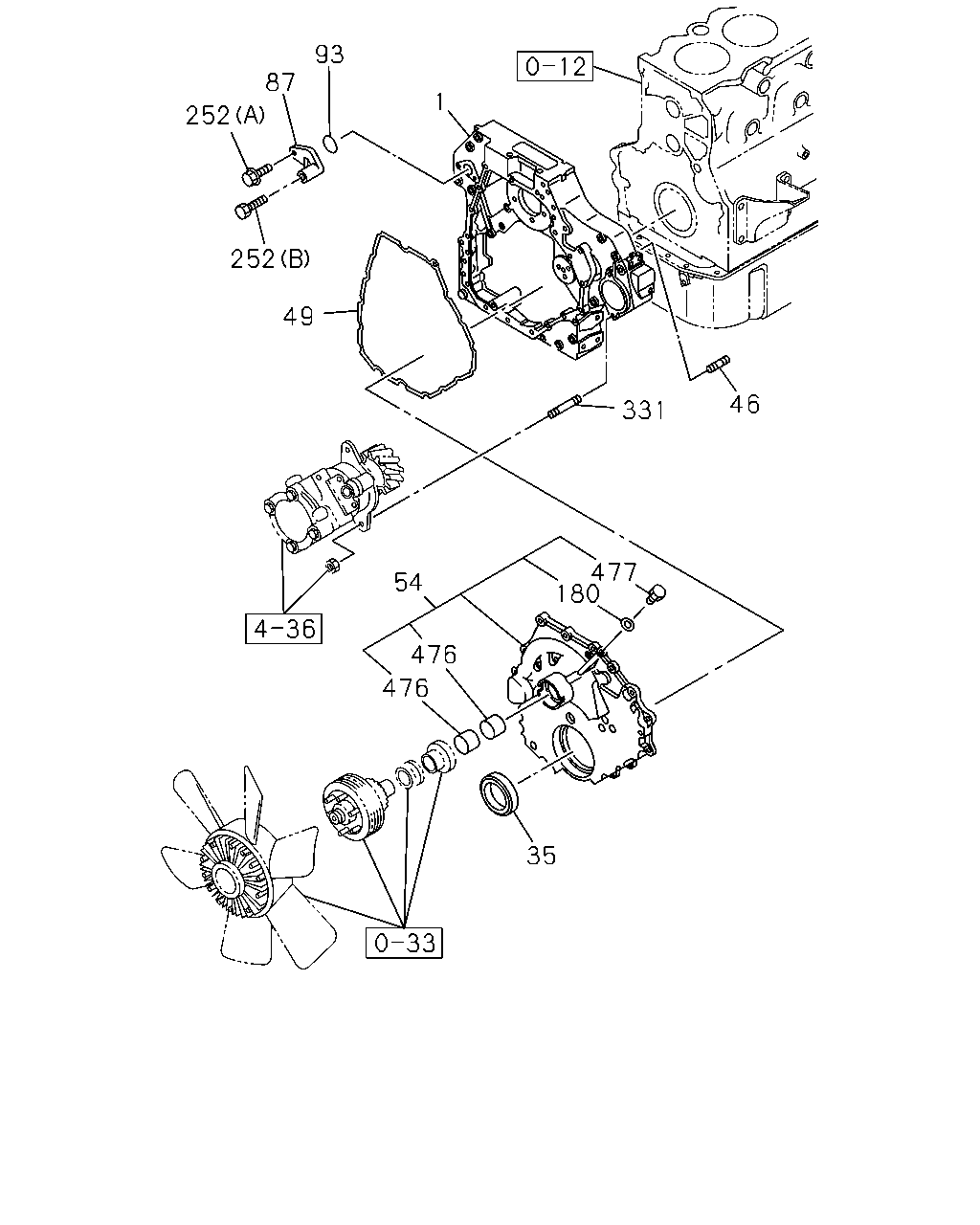

93 87 1 252 252 49 46 331 477 180 54 476 476 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CASE; TIMING GEAR	1-11310-053-5	01	1	0105-
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-2	01	1	0105-
46	STUD; BRG COVER,RR M14X45 L=66	9-04411-445-0	01	1	0105-
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-044-1	01	1	0105-
54	COVER; GEAR CASE	1-11320-096-8	01	1	0105-
87	COVER; TACHOMETER DRIVE	1-11349-151-2	01	1	0105-
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	0105-
180	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	1-09630-083-0	01	1	0105-
252	BOLT; GEAR BOX (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-
252	BOLT; GEAR BOX (B) M8X60 FLANGE	0-28080-860-0	01	1	0105-
331	STUD; P/S PUMP M10X25 L=40	9-04411-025-0	02	1	0105-
476	BUSHING; COVER	1-09330-096-0	02	1	0105-
477	PLUG; OIL HOLE M10X7	9-09202-310-0	01	1	0105-
