◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10883 - CXH LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#27658) — 51 parça

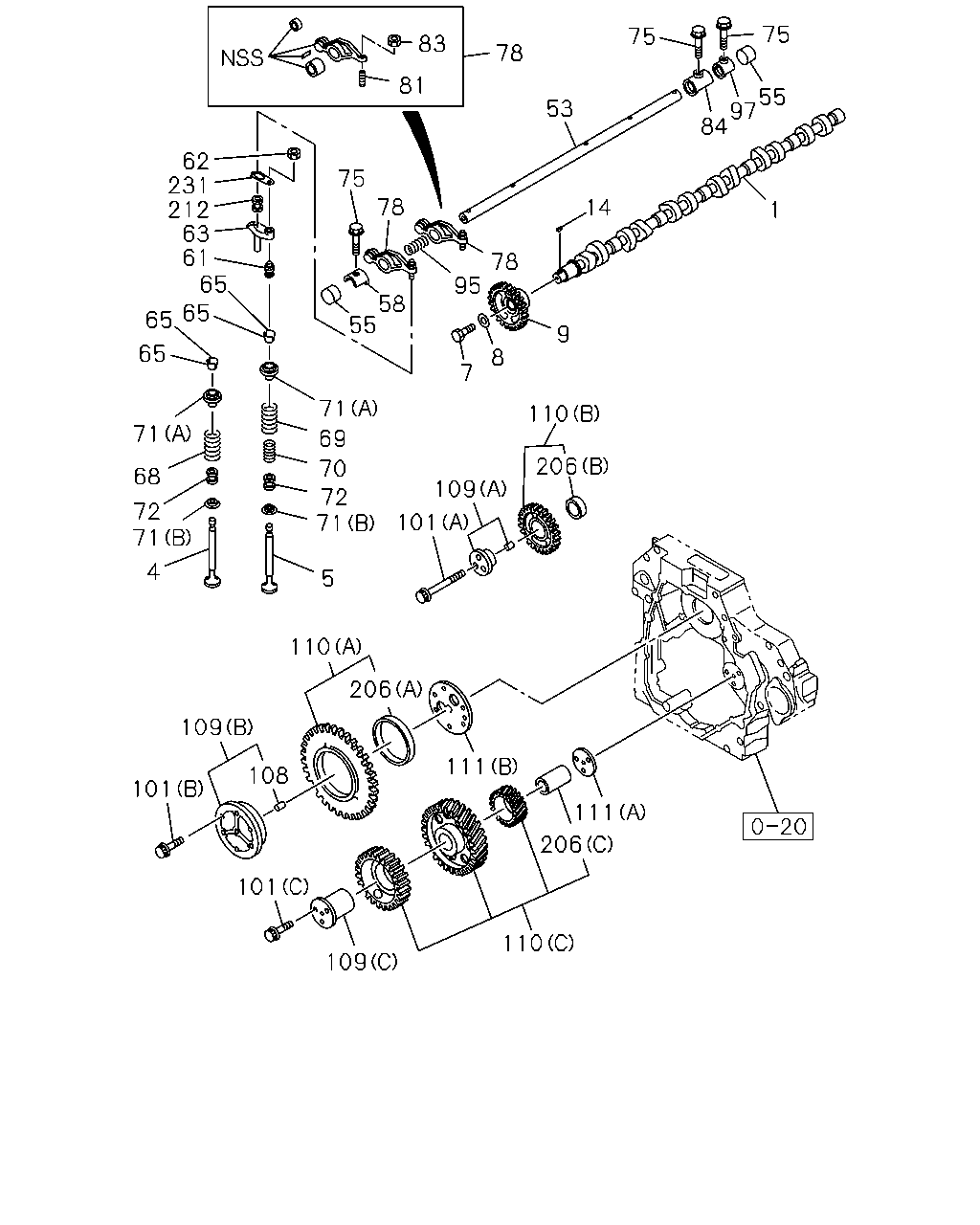

çizim 22254
75 75 83 78 81 55 97 84 53 62 231 212 63 61 65 75 78 14 1 78 95 58 55 65 65 9 65 8 7 71 110 71 69 206 70 72 71 68 109 72 71 101 4 5 110 206 109 111 108 101 111 206 101 110 109
BalonParca AdiParca NoAdetTipApplied Date
1 CAMSHAFT 1-12511-255-2 01 1 0105-
4 VALVE; INL 1-12551-145-5 12 1 0105-
5 VALVE; EXH 1-12552-102-1 12 1 0105-
7 BOLT; CM/SHF GEAR
M14X28 		9-92061-428-0 01 1 0105-
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0105-
9 GEAR; CM/SHF
Z=54 		1-12522-055-2 01 1 0105-0202
9 GEAR; CM/SHF
Z=54 		1-12522-060-0 01 1 0203-
14 KEY; CM/SHF 9-08055-516-0 01 1 0105-
53 SHAFT; ROCKER ARM 1-12621-090-0 01 1 0105-0202
53 SHAFT; ROCKER ARM 1-12621-098-0 01 1 0203-
55 PLUG; ROCKER SHAFT END 9-11129-082-0 02 1 0105-
58 BRACKET; ROCKER SHAFT,FRT 1-12628-071-0 01 1 0105-
61 SCREW; ADJ,BRIDGE 9-12616-053-0 12 1 0105-0106
61 SCREW; ADJ,BRIDGE 1-12616-042-0 12 1 0107-
62 NUT; ADJ SCREW LK BRIDGE
M10 		9-09840-310-0 12 1 0105-
63 BRIDGE 1-12611-281-0 12 1 0105-
65 COLLAR; SPLIT 1-12565-007-0 48 1 0105-
68 SPRING; VLV 1-12561-092-0 12 1 0105-
69 SPRING; VLV,OUTER 1-12561-093-0 12 1 0105-
70 SPRING; VLV,INNER 1-12562-060-0 12 1 0105-
71 SEAT; SPR
(A) UPPER 		1-12563-055-0 24 1 0105-0109
71 SEAT; SPR
(A) UPPER 		1-12563-060-0 24 1 0110-
71 SEAT; SPR
(B) LOWER 		1-12563-056-2 24 1 0105-
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-020-0 24 1 0105-
75 BOLT; BRKT
M12X97 FLANGE 		1-09044-087-1 07 1 0105-
78 ARM; ROCKER 1-12610-061-1 12 1 0105-0202
78 ARM; ROCKER 1-12610-080-0 12 1 0203-
81 SCREW; ADJ,ROCKER ARM 1-12616-034-1 12 1 0105-
83 NUT; ADJ SCREW,LK
M12 		9-99110-512-0 12 1 0105-
84 BRACKET; ROCKER SHAFT,INTER 1-12628-069-0 05 1 0105-
95 SPRING; ROCKER SHAFT 1-09580-472-1 06 1 0105-
97 BRACKET; ROCKER SHAFT,RR 1-12628-073-0 01 1 0105-
101 BOLT; THRUST COLLAR
(A) M10X40 FLANGE 		0-28181-040-0 03 1 0105-
101 BOLT; THRUST COLLAR
(B) M10X60 FLANGE 		0-28181-060-0 06 1 0105-
101 BOLT; THRUST COLLAR
(C) M12X114 		1-09070-087-2 03 1 0105-
108 DOWEL; SHAFT
OD=12 L=32 		9-08161-232-0 01 1 0105-
109 SHAFT; IDLE GEAR
(B) 		1-12531-076-2 01 1 0105-
109 SHAFT; IDLE GEAR
(C) 		1-12531-092-1 01 1 0105-
109 SHAFT; IDLE GEAR
(A) 		1-12531-093-1 01 1 0105-
110 GEAR ASM; IDLE
(B) 		1-12523-215-3 01 1 0105-0202
110 GEAR ASM; IDLE
(B) 		1-12523-371-1 01 1 0203-
110 GEAR ASM; IDLE
(C) 		1-12523-232-6 01 1 0105-
110 GEAR ASM; IDLE
(A) 		1-12523-313-0 01 1 0105-0202
110 GEAR ASM; IDLE
(A) 		1-12523-369-1 01 1 0203-
111 COLLAR; THRUST,IDLE GEAR
(A) 		1-12535-008-1 01 1 0105-
111 COLLAR; THRUST,IDLE GEAR
(B) 		1-12535-019-0 01 1 0105-
206 BUSHING; IDLE GEAR
(B) 		1-09330-108-0 01 1 0105-
206 BUSHING; IDLE GEAR
(C) 		1-09330-113-0 01 1 0105-
206 BUSHING; IDLE GEAR
(A) 		1-09330-124-1 01 1 0105-
212 CAP; ADJ SCREW 1-12616-037-0 12 1 0105-
231 PLATE; CAP 1-12619-004-0 12 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
