◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11040 - FRR(LHD) EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#27654) — 281 parça

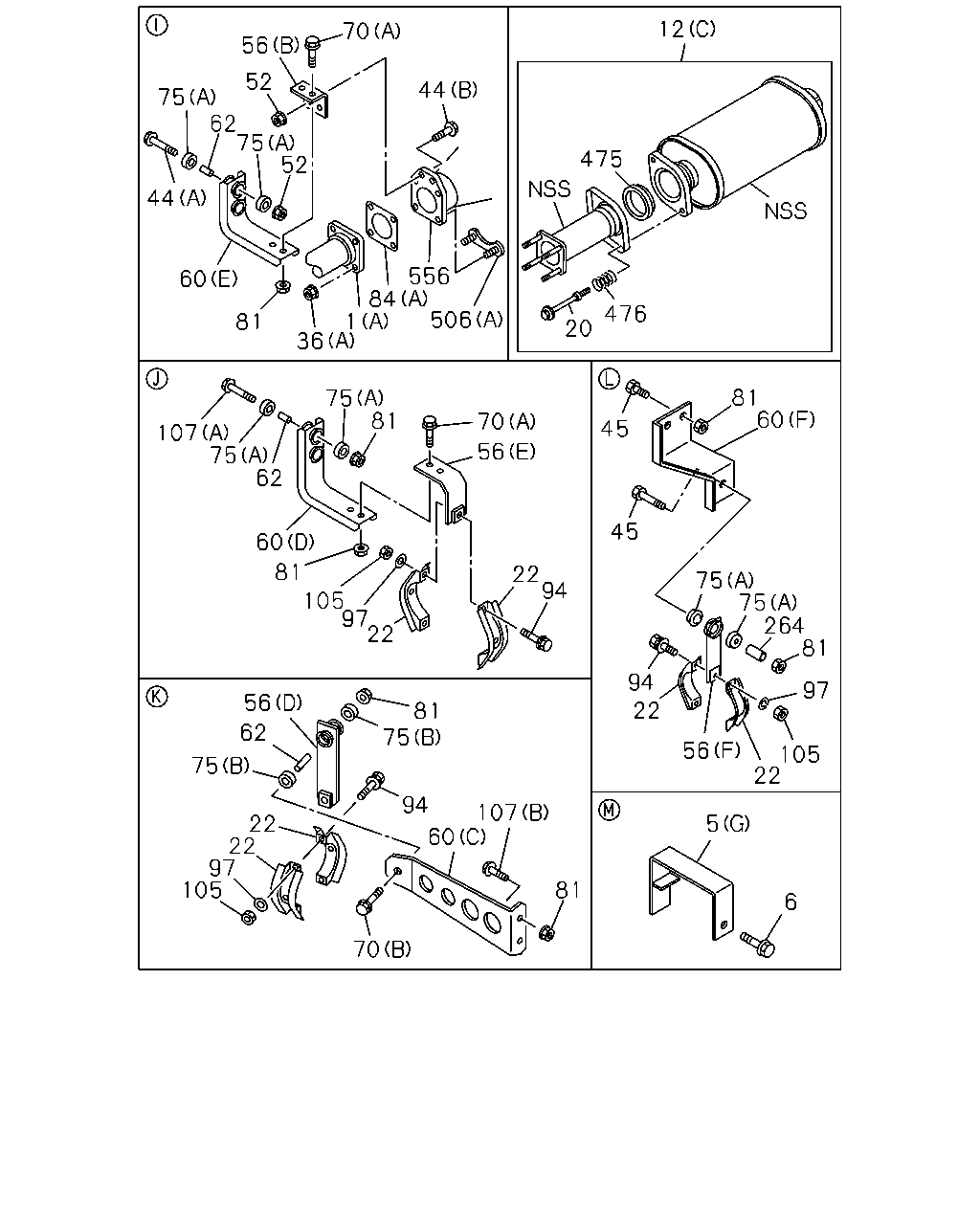

çizim 26764
6 5 22 75 75 264 81 97 22 56 94 105 45 81 45 60 12 475 476 20 70 22 94 22 97 105 81 62 75 75 56 107 81 60 56 62 81 75 107 94 75 22 22 97 105 70 60 81 56 75 556 44 70 52 52 84 36 506 1 60 44 75 62 81
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98063-856-0 01 1 0612-0712
1 PIPE; EXH
(D) 		8-98079-292-0 01 1 0801-1304
1 PIPE; EXH
(D) 		8-98234-512-0 01 1 1305-
1 PIPE; EXH
(A) 		8-98058-341-0 01 1 0612-
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0612-1304
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305-
5 PROTECTOR; HEAT
(G) 		1-33659-250-0 01 1 0612-
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0612-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0612-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0612-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0612-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0612-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0612-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 01 1 0612-
12 SILENCER ASM; EXH
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) 		8-98043-317-2 01 1 0612-
12 SILENCER ASM; EXH
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) 		8-98041-925-1 01 1 0612-1301
12 SILENCER ASM; EXH
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) 		8-98234-507-0 01 1 1302-
20 BOLT; FLANGE,EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) 		8-98233-481-0 02 1 1302-
22 CLAMP; EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) ID=80-84 		1-22133-233-0 02 1 0612-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0612-
22 CLAMP; EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) ID=80-84 		1-22133-233-0 02 1 0612-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 07 1 0612-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0612-
36 NUT; EXH PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) M12 FLANGE 		0-91180-212-0 04 1 0612-
44 BOLT; BRKT
(C) M10X30 FLANGE 		0-28051-030-0 02 1 1305-
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0612-
44 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 04 1 0612-
45 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0612-
45 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0612-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 11 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(F) L=94 		1-22131-575-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-278-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98039-772-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (C) 		1-22139-280-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (D) 		1-22131-528-1 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) 		1-22139-283-0 01 1 0612-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) 		8-98234-332-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(F) 		8-98059-536-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) 		1-22152-072-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (B) 		8-98043-449-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) 		1-22134-279-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (D) 		1-22152-053-0 01 1 0612-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (D) 		8-98234-331-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) 		1-22152-065-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(E) 		1-22152-065-0 01 1 0612-
62 TUBE; DIST,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=25 		1-14234-083-0 02 1 1302-
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) L=22 		9-22159-024-0 04 1 0612-
62 TUBE; DIST,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=22 		9-22159-024-0 03 1 0612-
62 TUBE; DIST,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=22 		9-22159-024-0 02 1 0612-1301
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0612-1301
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 1302-
70 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) M10X30 FLANGE 		0-28651-030-0 06 1 0612-
70 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) M10X50 		0-10856-050-0 01 1 0612-
70 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
70 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0612-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) OD=40 		1-22159-094-0 08 1 0612-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) OD=40 		1-22159-094-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) OD=40 		1-22159-094-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) OD=40 		1-22159-193-0 02 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
81 NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) M10 FLANGE 		0-91180-210-0 06 1 0612-
81 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 04 1 0612-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0612-
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 01 1 0612-
94 BOLT; CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10X40 FLANGE 		0-28651-040-0 02 1 1302-
94 BOLT; CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0612-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0612-0805
94 BOLT; CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0612-0805
94 BOLT; CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-1301
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-1301
94 BOLT; CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-1301
94 BOLT; CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 1302-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 1302-
97 WASHER; PL,CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) ID=10.5 		9-09164-510-0 02 1 0612-1301
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0612-1301
97 WASHER; PL,CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) ID=10.5 		9-09164-510-0 02 1 0612-1301
97 WASHER; PL,CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) ID=10.5 		9-09164-510-0 02 1 1302-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 1302-
105 NUT; CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1302-
105 NUT; CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10 		0-91110-510-0 02 1 0612-1301
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0612-1301
105 NUT; CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10 		0-91110-510-0 02 1 0612-1301
105 NUT; CLAMP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10 		0-91110-510-0 02 1 1302-
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 1302-
107 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) M10X60 FLANGE 		0-28051-060-0 02 1 0612-
107 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 02 1 0612-
107 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) M10X35 FLANGE 		0-28651-035-0 02 1 0612-
264 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 0612-
475 BEARING; SEAL,VIBNON,EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) 		8-98233-479-0 01 1 1302-
476 SPRING; VIBNON,EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) 		8-98233-482-0 02 1 1302-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0612-
506 BRACKET; STUD
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (B) 		1-22134-214-0 02 1 0612-
556 DPD ASM 8-97613-331-6 01 1 0612-1010
556 DPD ASM 8-97622-883-3 01 1 1011-

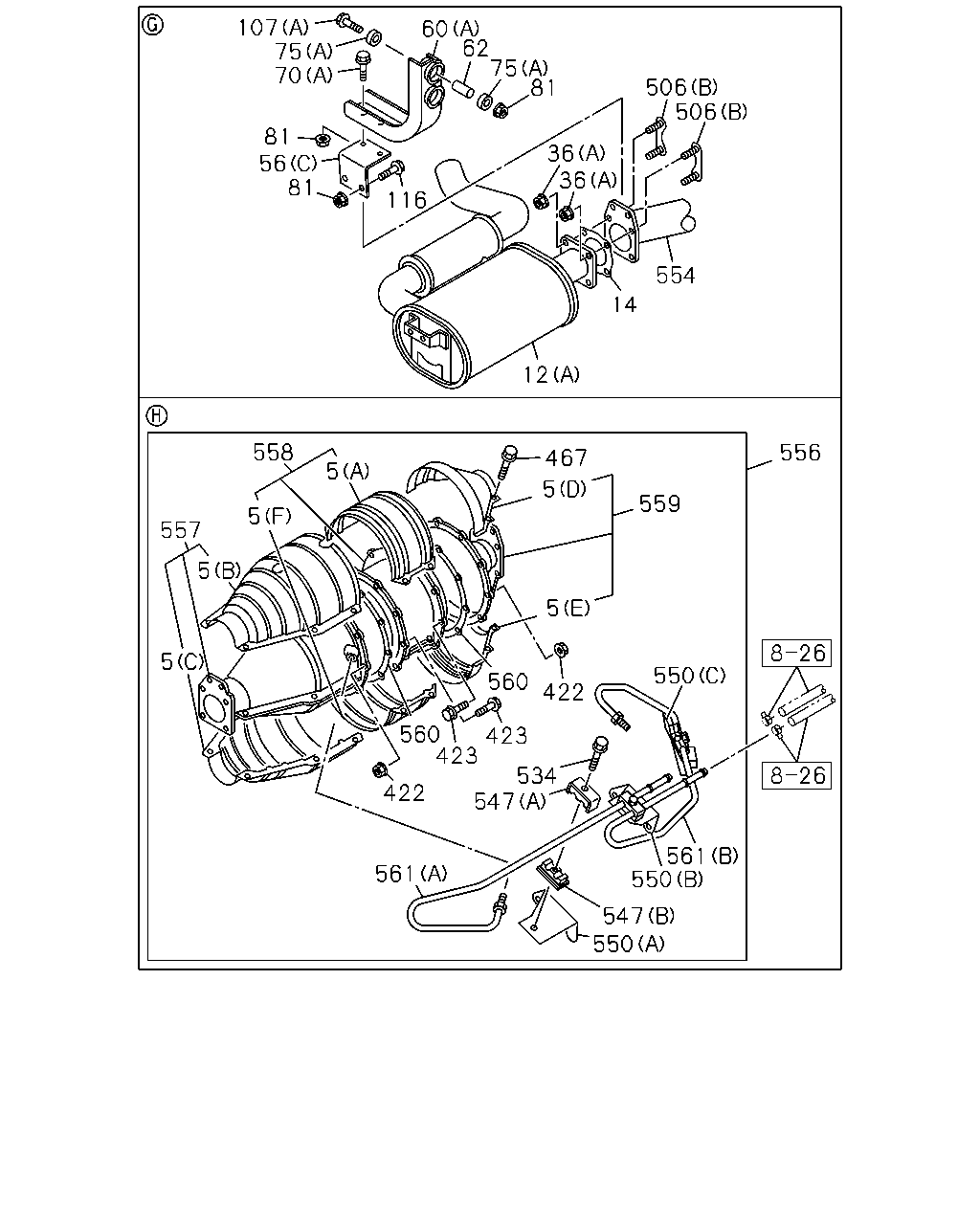

çizim 26882
107 75 70 60 62 75 81 506 506 81 56 81 36 36 116 554 14 12 558 556 467 5 5 559 5 557 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(G) 		1-33659-250-0 01 1 0612-
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0612-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0612-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0612-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0612-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0612-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0612-
12 SILENCER ASM; EXH
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) 		8-98043-317-2 01 1 0612-
12 SILENCER ASM; EXH
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) 		8-98041-925-1 01 1 0612-1301
12 SILENCER ASM; EXH
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) 		8-98234-507-0 01 1 1302-
14 GASKET; SILENCER TO EXH PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) 		1-22116-042-0 01 1 0612-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 07 1 0612-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0612-
36 NUT; EXH PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) M12 FLANGE 		0-91180-212-0 04 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(F) L=94 		1-22131-575-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-278-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98039-772-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (C) 		1-22139-280-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (D) 		1-22131-528-1 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) 		1-22139-283-0 01 1 0612-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) 		8-98234-332-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(F) 		8-98059-536-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) 		1-22152-072-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (B) 		8-98043-449-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) 		1-22134-279-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (D) 		1-22152-053-0 01 1 0612-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (D) 		8-98234-331-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) 		1-22152-065-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(E) 		1-22152-065-0 01 1 0612-
62 TUBE; DIST,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=25 		1-14234-083-0 02 1 1302-
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) L=22 		9-22159-024-0 04 1 0612-
62 TUBE; DIST,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=22 		9-22159-024-0 03 1 0612-
62 TUBE; DIST,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=22 		9-22159-024-0 02 1 0612-1301
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0612-1301
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 1302-
70 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) M10X30 FLANGE 		0-28651-030-0 06 1 0612-
70 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) M10X50 		0-10856-050-0 01 1 0612-
70 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
70 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0612-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) OD=40 		1-22159-094-0 08 1 0612-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) OD=40 		1-22159-094-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) OD=40 		1-22159-094-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) OD=40 		1-22159-193-0 02 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
81 NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) M10 FLANGE 		0-91180-210-0 06 1 0612-
81 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 04 1 0612-
107 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) M10X60 FLANGE 		0-28051-060-0 02 1 0612-
107 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 02 1 0612-
107 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) M10X35 FLANGE 		0-28651-035-0 02 1 0612-
116 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) M10X30 FLANGE 		0-28651-030-0 02 1 0612-0612
116 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) M10X35 FLANGE 		0-28651-035-0 02 1 0701-
422 NUT; PIPE
M8 FLANGE 		0-91180-208-0 20 1 0612-0702
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0703-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0612-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0612-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0612-
506 BRACKET; STUD
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (B) 		1-22134-214-0 02 1 0612-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0612-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0612-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0612-
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0612-
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0612-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0612-
554 PIPE; EXH,SILENCER
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) 		8-98043-308-0 01 1 0612-
556 DPD ASM 8-97613-331-6 01 1 0612-1010
556 DPD ASM 8-97622-883-3 01 1 1011-
557 CATALYST ASM 8-97608-055-7 01 1 0612-
558 FILTER ASM 8-97608-057-3 01 1 0612-
559 COVER; RR 8-97611-078-0 01 1 0612-1010
559 COVER; RR 8-97622-887-0 01 1 1011-
560 GASKET; DPD 8-97611-080-0 02 1 0612-
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0612-1010
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011-
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0612-1010
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011-

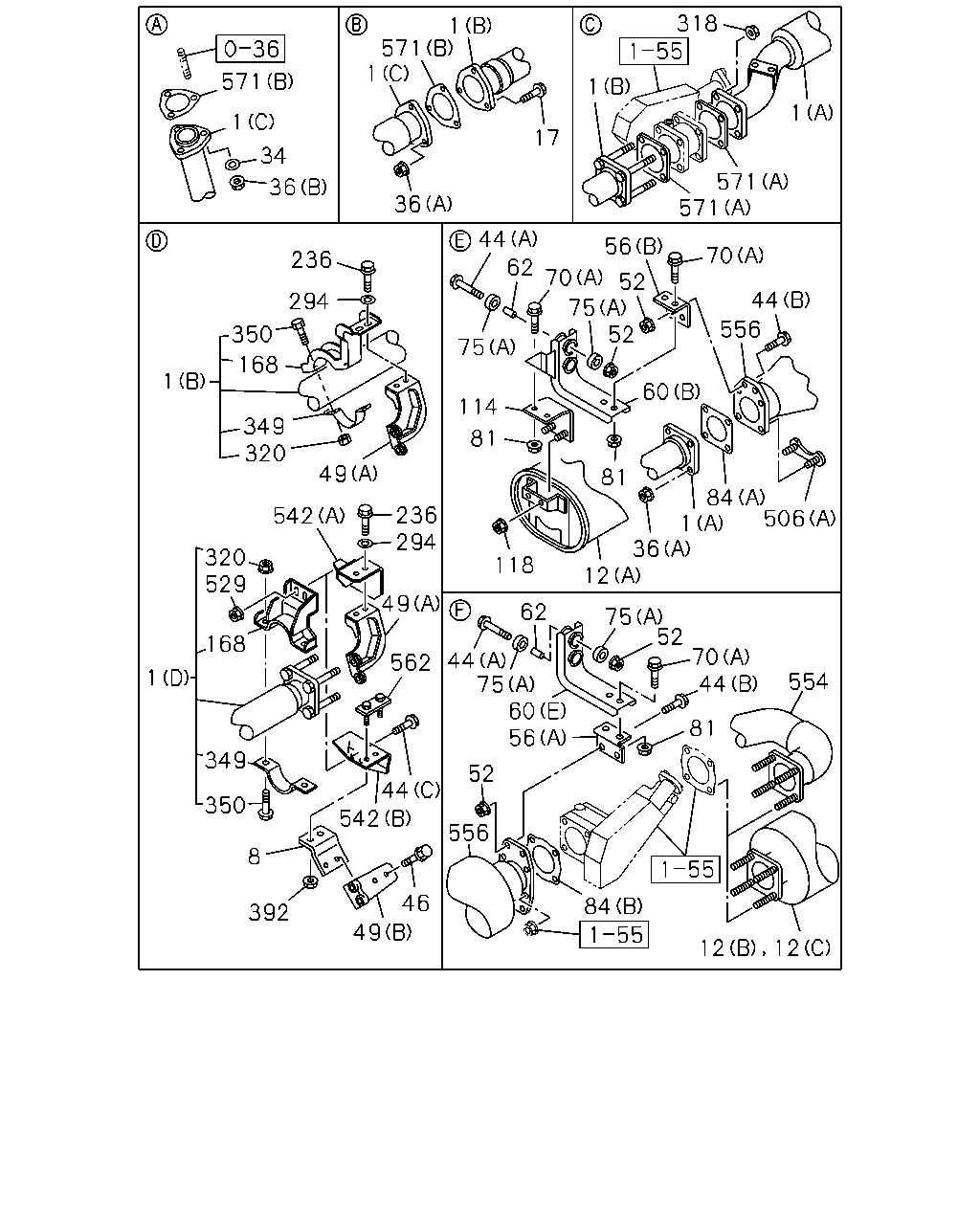

çizim 26883
1 571 1 17 36 36 34 1 571 318 1 571 571 1 70 56 44 62 70 52 44 556 75 52 75 114 81 60 81 84 506 1 236 294 350 168 349 320 1 49 542 236 36 12 118 294 320 529 168 562 49 44 75 60 56 52 556 542 44 349 350 8 392 1 49 46 84 12 12 81 554 44 70 52 75 62
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98063-856-0 01 1 0612-0712
1 PIPE; EXH
(D) 		8-98079-292-0 01 1 0801-1304
1 PIPE; EXH
(D) 		8-98234-512-0 01 1 1305-
1 PIPE; EXH
(A) 		8-98058-341-0 01 1 0612-
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0612-1304
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305-
8 BRACKET; EXH PIPE 8-98233-345-0 01 1 1305-1310
8 BRACKET; EXH PIPE 8-98259-873-0 01 1 1311-
12 SILENCER ASM; EXH
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) 		8-98043-317-2 01 1 0612-
12 SILENCER ASM; EXH
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) 		8-98041-925-1 01 1 0612-1301
12 SILENCER ASM; EXH
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) 		8-98234-507-0 01 1 1302-
17 BOLT; EXH PIPE
M12X40 FLANGE 		0-28051-240-0 03 1 0612-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0612-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 07 1 0612-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0612-
36 NUT; EXH PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) M12 FLANGE 		0-91180-212-0 04 1 0612-
44 BOLT; BRKT
(C) M10X30 FLANGE 		0-28051-030-0 02 1 1305-
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0612-
44 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 04 1 0612-
46 BOLT; BRKT,EXH PIPE
M10X25 FLANGE 		0-28051-025-0 02 1 1305-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98058-347-0 01 1 0612-0712
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98079-288-0 01 1 0801-1304
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-98113-008-0 01 1 1305-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 11 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(F) L=94 		1-22131-575-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-278-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98039-772-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (C) 		1-22139-280-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (D) 		1-22131-528-1 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) 		1-22139-283-0 01 1 0612-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) 		8-98234-332-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(F) 		8-98059-536-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) 		1-22152-072-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (B) 		8-98043-449-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) 		1-22134-279-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (D) 		1-22152-053-0 01 1 0612-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (D) 		8-98234-331-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) 		1-22152-065-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(E) 		1-22152-065-0 01 1 0612-
62 TUBE; DIST,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=25 		1-14234-083-0 02 1 1302-
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) L=22 		9-22159-024-0 04 1 0612-
62 TUBE; DIST,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=22 		9-22159-024-0 03 1 0612-
62 TUBE; DIST,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=22 		9-22159-024-0 02 1 0612-1301
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0612-1301
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 1302-
70 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) M10X30 FLANGE 		0-28651-030-0 06 1 0612-
70 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) M10X50 		0-10856-050-0 01 1 0612-
70 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
70 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0612-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) OD=40 		1-22159-094-0 08 1 0612-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) OD=40 		1-22159-094-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) OD=40 		1-22159-094-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) OD=40 		1-22159-193-0 02 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
81 NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) M10 FLANGE 		0-91180-210-0 06 1 0612-
81 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 04 1 0612-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0612-
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 01 1 0612-
114 BRACKET; EXH SILENCER
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) 		1-22139-328-0 01 1 0612-
118 NUT; SILENCER MTG BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) M10 FLANGE 		0-91180-210-0 02 1 0612-
168 BRACKET; EXH PIPE,FRT 8-98063-858-0 01 1 0612-0712
168 BRACKET; EXH PIPE,FRT 8-98079-294-0 01 1 0801-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0612-0712
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0801-1304
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 02 1 0612-0712
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0801-
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0612-0712
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801-
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0612-
349 CLAMP; EXH PIPE 8-98058-351-0 01 1 0612-1304
349 CLAMP; EXH PIPE 8-98115-162-0 01 1 1305-
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE 		0-28651-030-0 02 1 0612-
392 NUT; CLAMP BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0612-
506 BRACKET; STUD
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (B) 		1-22134-214-0 02 1 0612-
529 NUT; BRKT,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0801-
542 BRACKET
(A) 		8-98079-290-0 01 1 0801-1304
542 BRACKET
(B) 		8-98234-524-0 01 1 1305-
554 PIPE; EXH,SILENCER
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) 		8-98043-308-0 01 1 0612-
556 DPD ASM 8-97613-331-6 01 1 0612-1010
556 DPD ASM 8-97622-883-3 01 1 1011-
562 PLATE; STUD,BOLT 8-98233-625-0 01 1 1305-1311
562 PLATE; STUD,BOLT 8-98259-983-0 01 1 1312-
571 GASKET
(A) 		1-22116-043-0 02 1 0612-
571 GASKET
(B) 		8-98043-481-0 02 1 0612-

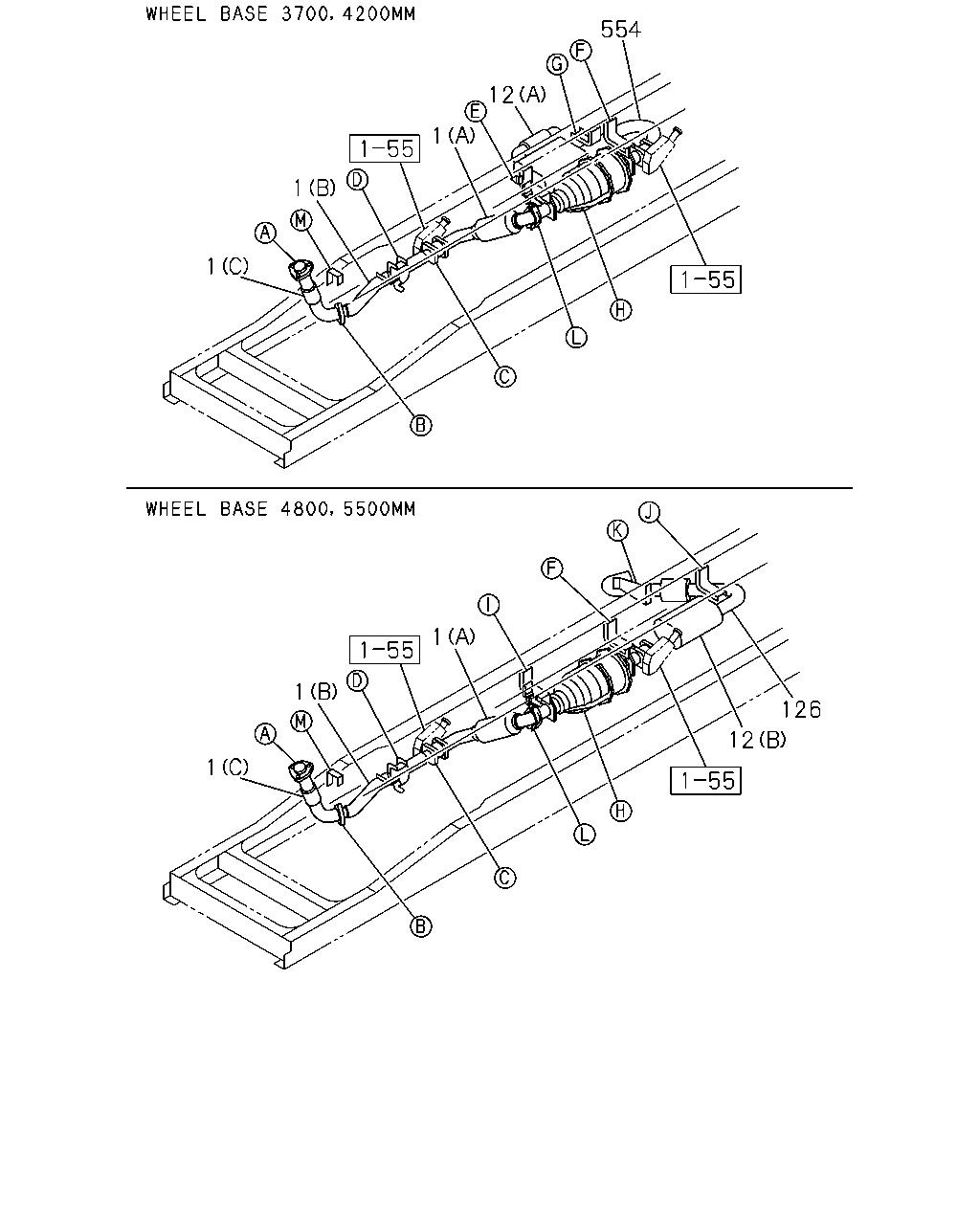

çizim 90347
554 12 1 1 1 1 1 126 12 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98063-856-0 01 1 0612-0712
1 PIPE; EXH
(D) 		8-98079-292-0 01 1 0801-1304
1 PIPE; EXH
(D) 		8-98234-512-0 01 1 1305-
1 PIPE; EXH
(A) 		8-98058-341-0 01 1 0612-
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0612-1304
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305-
12 SILENCER ASM; EXH
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) 		8-98043-317-2 01 1 0612-
12 SILENCER ASM; EXH
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) 		8-98041-925-1 01 1 0612-1301
12 SILENCER ASM; EXH
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) 		8-98234-507-0 01 1 1302-
126 PIPE; EXH,RR
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) 		8-98043-365-2 01 1 0612-1301
126 PIPE; EXH,RR
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) 		8-98233-516-0 01 1 1302-
554 PIPE; EXH,SILENCER
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) 		8-98043-308-0 01 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
