Isuzu WW
▶
TRUCKS
▶
CXM
▶
10669 - CXM/CXZ LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-41A - FUEL FILTER AND BRACKET
▶

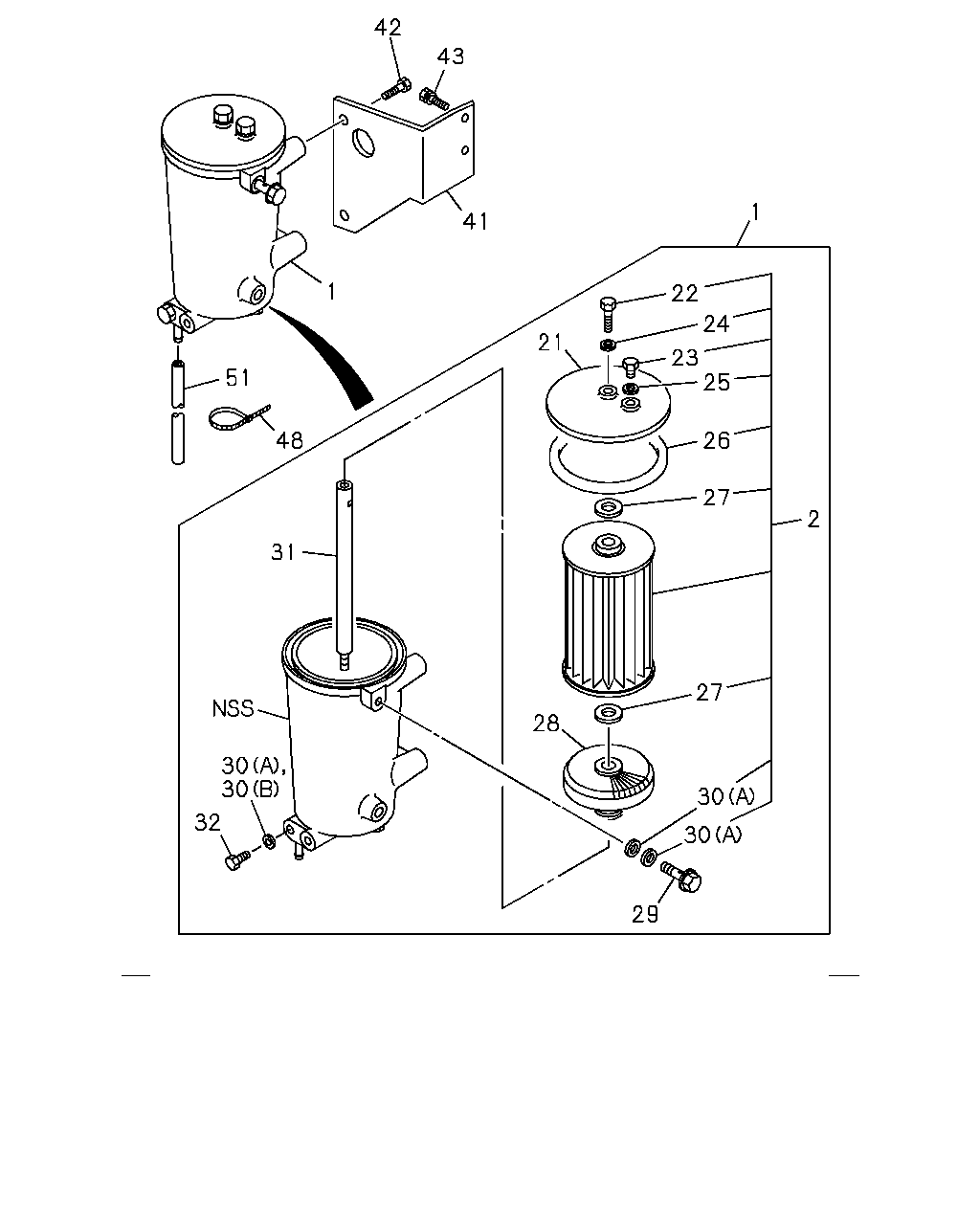

0-41A — FUEL FILTER AND BRACKET
(#2765) — 21 parça
42
43
41
1
51
48
31
30
30
32
29
30
30
28
27
2
27
26
25
23
24
22
21
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
1-13200-825-2
01
1
9002-
2
ELEMENT KIT; FUEL FILTER
1-87810-976-0
01
1
9307-
21
COVER; UPR,FUEL FILTER
1-13212-049-1
01
1
9002-
22
BOLT; CENTER TUBE,COVER
1-13219-045-0
01
1
9002-
23
PLUG; COVER
1-13219-074-0
01
1
9002-
24
GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2
1-09630-083-0
01
1
9002-
25
GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2
1-09630-083-0
01
1
9002-
26
GASKET; COVER TO BODY
9-09720-797-0
01
1
9002-
27
GASKET; ELEMENT
1-09630-007-0
02
1
9002-
28
STRAINER; WATER,FUEL FILTER
1-13251-001-0
01
1
9002-
29
VALVE; OVERFLOW
1-13260-085-0
01
1
9002-
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
02
1
9002-9409
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
1-09630-085-0
04
1
9410-
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
9002-9409
31
TUBE; CENTER BOLT
1-13231-026-0
01
1
9002-
32
BOLT; DRAIN,FUEL FILTER
1-13219-030-0
01
1
9002-
41
BRACKET; FUEL FILTER
1-13219-118-1
01
1
9002-
42
BOLT; FUEL FILTER
M10X20 W/LK WASHER
0-50041-020-0
04
1
9002-
43
BOLT; BRKT
M10X20 W/LK WASHER
0-50041-020-0
02
1
9002-
48
CLIP; VINYL PIPE
L=140
5-09707-031-0
02
1
9002-
51
PIPE; VINYL
EXC. TROPICAL ZONE KIT(WB6) L=750 SERVICED BY L=10000
9-09914-909-0
01
1
9002-
