Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#27641) — 235 parça

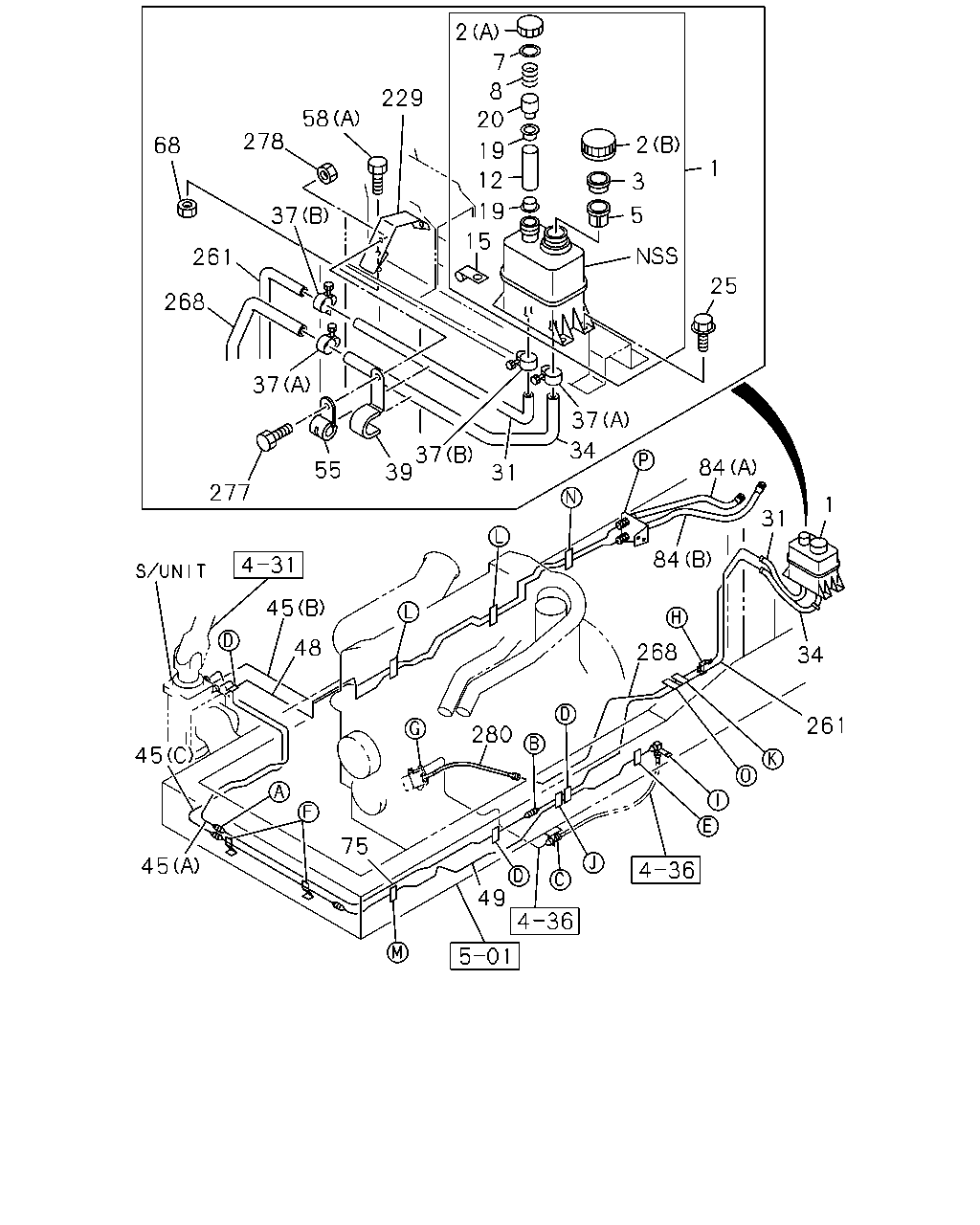

49 261 34 1 31 84 84 268 280 75 45 45 48 45 34 37 31 37 39 55 277 37 268 261 68 278 37 58 229 2 8 7 20 19 12 19 15 5 3 2 1 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0105-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0105-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0105-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0105-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1234	1-21116-238-0	01	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21116-551-0	01	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21116-849-0	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-553-0	01	1	0105-0401
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21117-480-0	01	1	0402-
49	PIPE; OIL,FLEX HOSE TO UNION CAB UP +110MM<TGG> L=1663	1-21116-235-0	01	1	0105-0108
49	PIPE; OIL,FLEX HOSE TO UNION CAB UP +110MM<TGG> L=1672	1-21117-137-0	01	1	0109-0211
49	PIPE; OIL,FLEX HOSE TO UNION CAB UP +110MM<TGG> L=1662	1-21117-337-0	01	1	0212-
49	PIPE; OIL,FLEX HOSE TO UNION EXC. CAB UP +110MM<TGG>	1-21116-457-0	01	1	0105-0108
49	PIPE; OIL,FLEX HOSE TO UNION EXC. CAB UP +110MM<TGG>	1-21117-133-0	01	1	0109-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
58	BOLT; CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	02	1	0105-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
75	PIPE; OIL,P/S,UNION TO UNION L=1807	1-21116-404-0	01	1	0105-0106
75	PIPE; OIL,P/S,UNION TO UNION L=1815	1-21117-076-0	01	1	0107-
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0105-0606
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	0607-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0105-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0105-
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> L=1315	1-21116-855-0	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. CAB UP +110MM<TGG>	1-21116-854-0	01	1	0105-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0105-0512
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28651-025-0	01	1	0601-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0105-0602
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	0603-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0105-

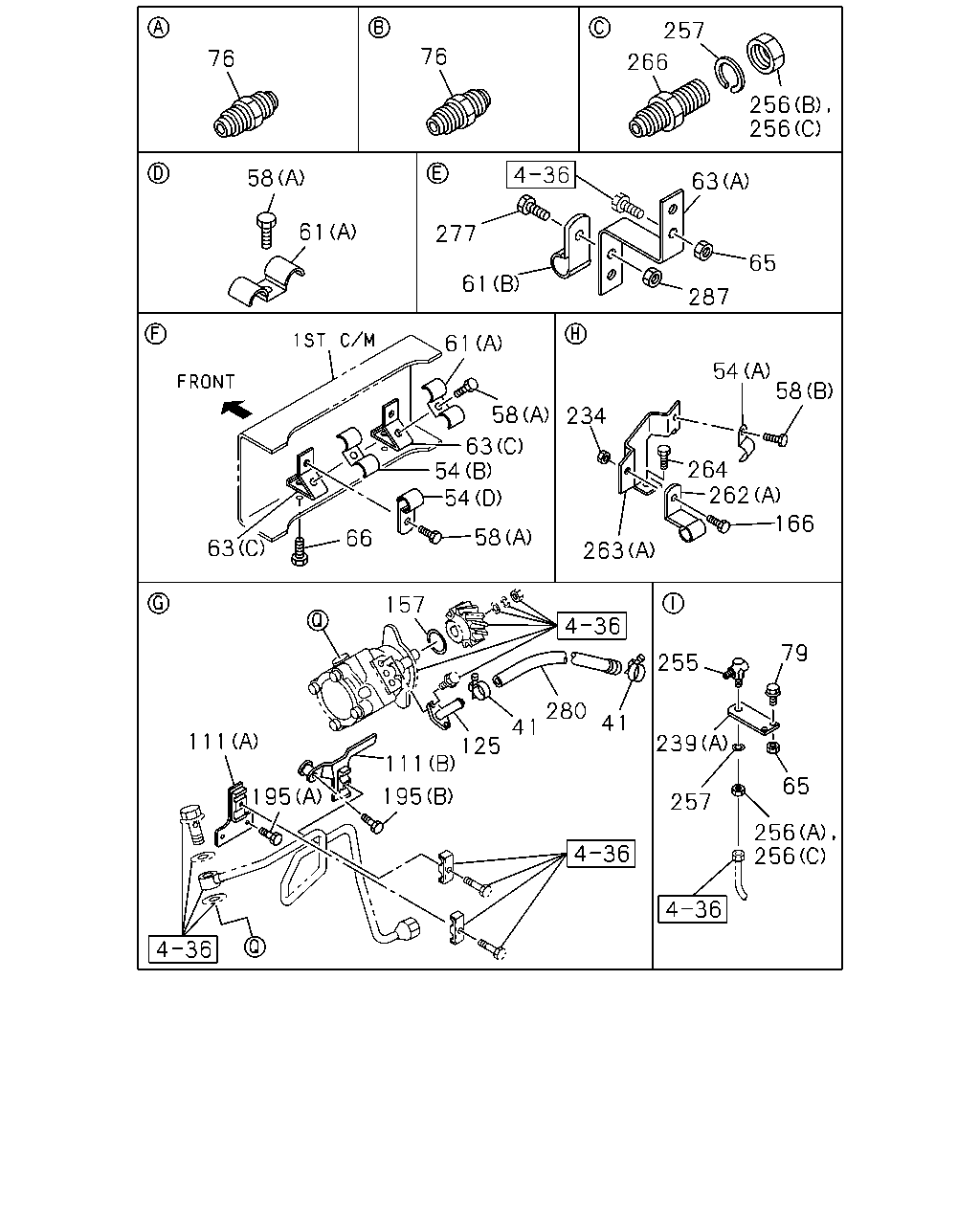

256 256 65 257 239 255 79 41 280 41 125 111 195 195 111 157 58 54 54 66 63 61 63 58 263 166 262 264 234 54 58 287 65 63 256 256 257 266 76 76 58 61 277 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0105-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	9-09535-236-0	03	1	0105-0606
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	03	1	0607-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
54	CLIP; OIL PIPE ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> (D) ID=16 L=20	9-09525-535-0	02	1	0105-0606
54	CLIP; OIL PIPE ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> (D) ID=16 L=20	0-95235-535-0	02	1	0607-
54	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A> (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-
54	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A>,FULLER M/T<X9B> (D) ID=16 L=20	9-09525-535-0	01	1	0105-0606
54	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A>,FULLER M/T<X9B> (D) ID=16 L=20	0-95235-535-0	01	1	0607-
54	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
58	BOLT; CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	02	1	0105-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0607-
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0607-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-
63	BRACKET; CLIP,P/S (A)	1-47475-963-1	01	1	0105-
63	BRACKET; CLIP,P/S (B)	1-47477-193-0	01	1	0105-
63	BRACKET; CLIP,P/S (C)	1-47477-621-1	02	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0105-0607
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0105-0607
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	0608-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0105-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0105-
125	CONNECTOR; P/S PUMP	1-13313-533-0	01	1	0105-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0105-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0105-0512
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0105-0512
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0105-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	0603-
239	BRACKET; FLEX HOSE (A)	1-47476-679-4	01	1	0105-
239	BRACKET; FLEX HOSE (B)	1-47477-652-0	01	1	0105-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0105-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0105-0512
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0105-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-0603
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-0603
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-0606
262	CLIP; P/S PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0105-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	0105-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0105-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0105-0512
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28651-025-0	01	1	0601-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0105-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-

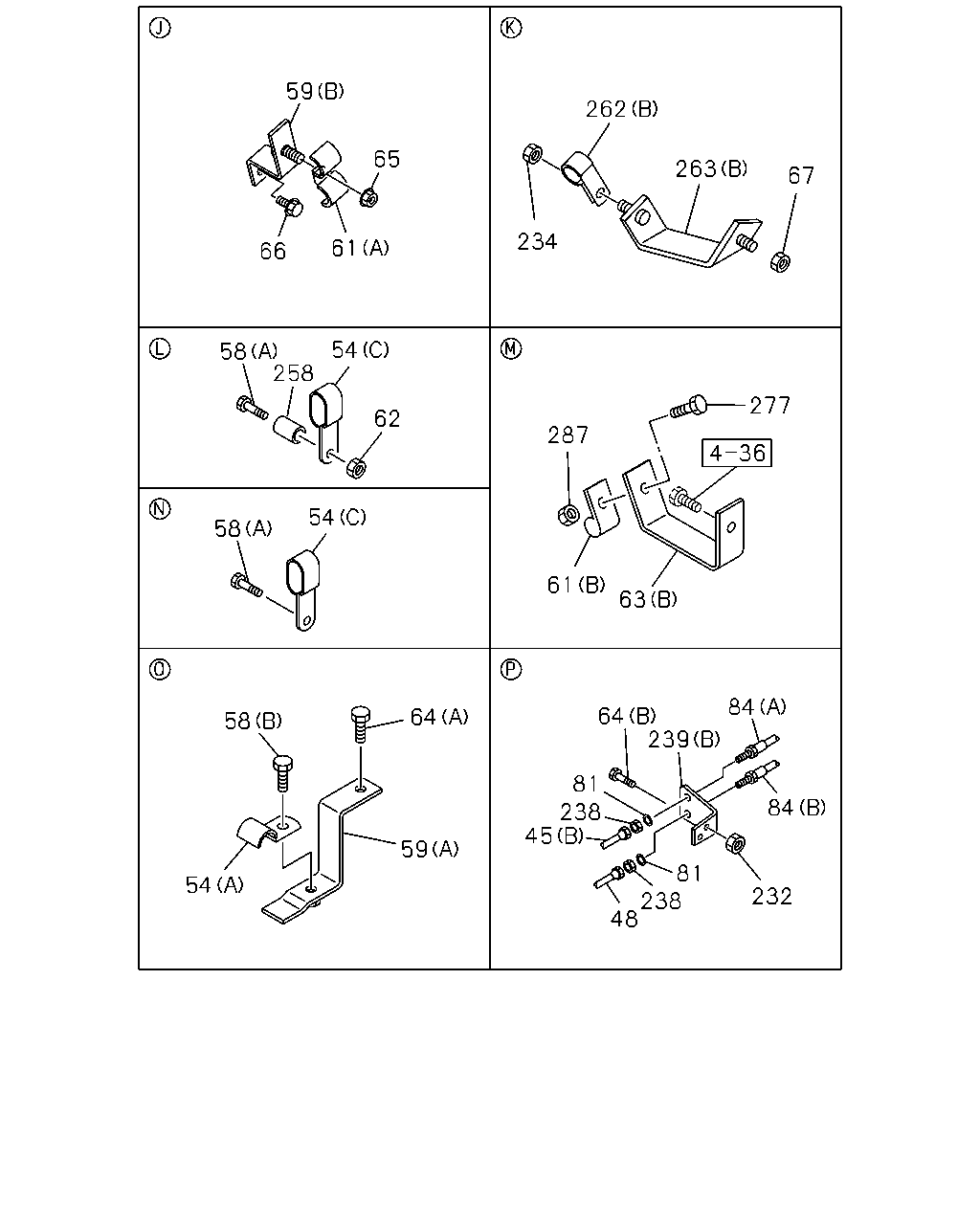

232 81 238 48 45 238 81 64 239 84 84 63 61 287 277 67 263 234 262 65 59 66 61 54 258 58 62 54 58 64 58 54 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1234	1-21116-238-0	01	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21116-551-0	01	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21116-849-0	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-553-0	01	1	0105-0401
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21117-480-0	01	1	0402-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	9-09535-236-0	03	1	0105-0606
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	03	1	0607-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
54	CLIP; OIL PIPE ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> (D) ID=16 L=20	9-09525-535-0	02	1	0105-0606
54	CLIP; OIL PIPE ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> (D) ID=16 L=20	0-95235-535-0	02	1	0607-
54	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A> (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-
54	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A>,FULLER M/T<X9B> (D) ID=16 L=20	9-09525-535-0	01	1	0105-0606
54	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A>,FULLER M/T<X9B> (D) ID=16 L=20	0-95235-535-0	01	1	0607-
54	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
58	BOLT; CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	02	1	0105-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-235-0	01	1	0105-0106
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-669-1	01	1	0107-
59	BRACKET; CLIP,OIL PIPE FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A)	1-47477-833-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A)	1-47477-145-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0607-
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0607-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0105-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-
63	BRACKET; CLIP,P/S (A)	1-47475-963-1	01	1	0105-
63	BRACKET; CLIP,P/S (B)	1-47477-193-0	01	1	0105-
63	BRACKET; CLIP,P/S (C)	1-47477-621-1	02	1	0105-
64	BOLT; CLIP BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
64	BOLT; CLIP BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X25 FLANGE	0-28080-825-0	01	1	0105-0512
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X25 FLANGE	0-28050-825-0	01	1	0601-
64	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
64	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	0105-0603
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	0604-
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0105-0606
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	0607-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0105-
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0105-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	0603-
238	NUT; FLEX HOSE M20	9-99111-420-0	02	1	0105-0512
238	NUT; FLEX HOSE M20	0-91111-520-0	02	1	0601-
239	BRACKET; FLEX HOSE (A)	1-47476-679-4	01	1	0105-
239	BRACKET; FLEX HOSE (B)	1-47477-652-0	01	1	0105-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	02	1	0105-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-0606
262	CLIP; P/S PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0105-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	0105-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0105-0512
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28651-025-0	01	1	0601-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
