Sayfa 0-40B - Isuzu EPC

0-40B — FUEL INJECTION SYSTEM (#2764) — 217 parça

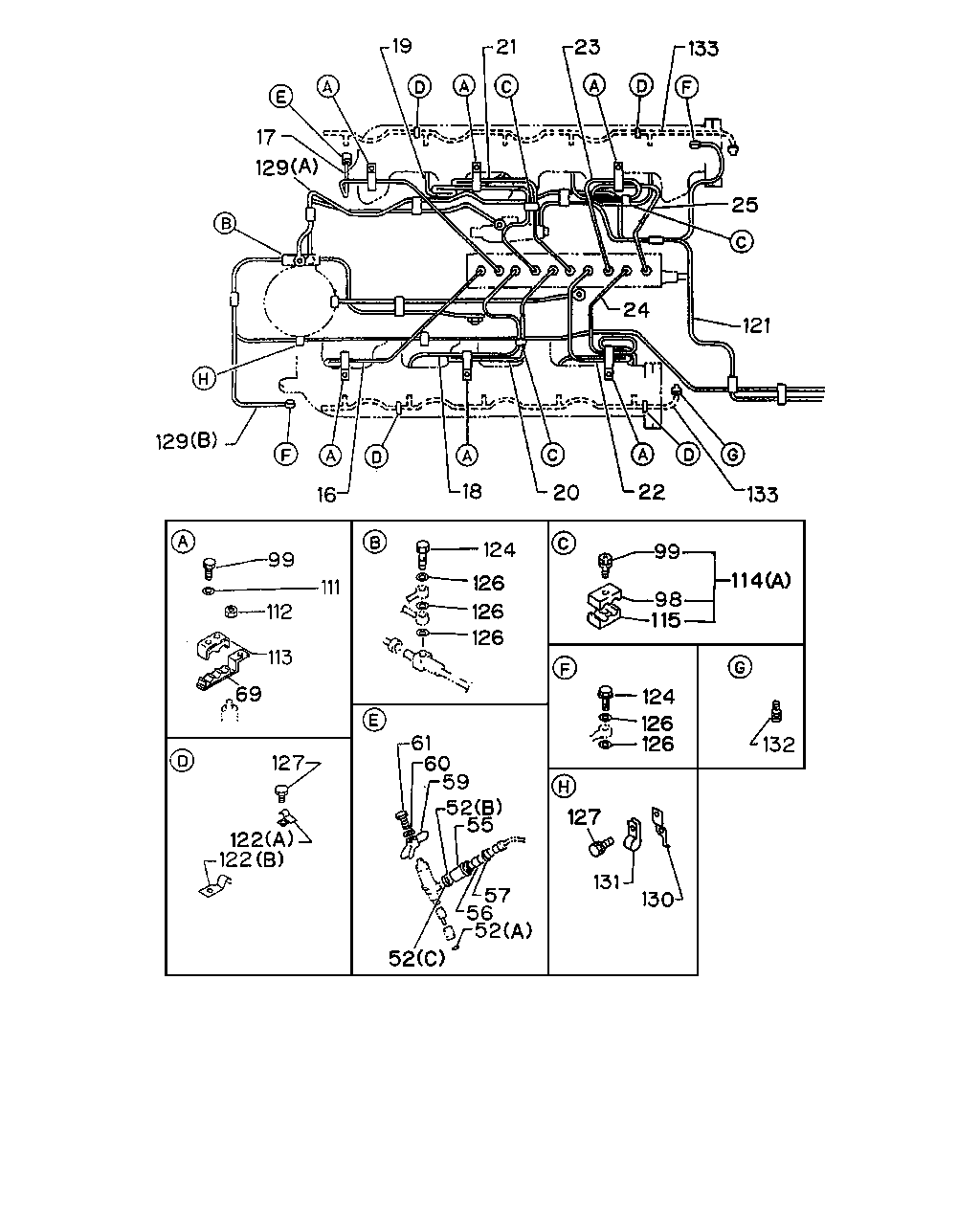

19 21 23 133 25 121 24 133 22 20 18 16 129 129 17 99 111 112 113 69 124 126 126 126 99 98 115 114 132 126 126 124 127 131 130 52 52 56 57 55 52 59 60 61 127 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1 TAIWAN EQUIPMENT(WW5)	1-15414-058-0	01	1	9002-	●
16	PIPE; INJ NO.1 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-631-0	01	1	9002-	●
16	PIPE; INJ NO.1	1-15414-254-0	01	1	9307-		●
17	PIPE; INJ NO.2 TAIWAN EQUIPMENT(WW5)	1-15414-059-0	01	1	9002-	●
17	PIPE; INJ NO.2 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-632-0	01	1	9002-	●
17	PIPE; INJ NO.2	1-15414-255-0	01	1	9307-		●
18	PIPE; INJ NO.3 TAIWAN EQUIPMENT(WW5)	1-15414-060-1	01	1	9002-	●
18	PIPE; INJ NO.3 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-633-0	01	1	9002-	●
18	PIPE; INJ NO.3	1-15414-058-0	01	1	9307-		●
19	PIPE; INJ NO.4 TAIWAN EQUIPMENT(WW5)	1-15414-061-1	01	1	9002-	●
19	PIPE; INJ NO.4 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-634-0	01	1	9002-	●
19	PIPE; INJ NO.4	1-15414-059-0	01	1	9307-		●
20	PIPE; INJ NO.5 TAIWAN EQUIPMENT(WW5)	1-15414-062-1	01	1	9002-	●
20	PIPE; INJ NO.5 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-635-0	01	1	9002-	●
20	PIPE; INJ NO.5	1-15414-060-1	01	1	9307-		●
21	PIPE; INJ NO.6 TAIWAN EQUIPMENT(WW5)	1-15414-063-1	01	1	9002-	●
21	PIPE; INJ NO.6 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-636-0	01	1	9002-	●
21	PIPE; INJ NO.6	1-15414-061-1	01	1	9307-		●
22	PIPE; INJ NO.7 TAIWAN EQUIPMENT(WW5)	1-15414-869-0	01	1	9002-	●
22	PIPE; INJ NO.7 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-637-0	01	1	9002-	●
22	PIPE; INJ NO.7	1-15414-062-1	01	1	9307-		●
23	PIPE; INJ NO.8 TAIWAN EQUIPMENT(WW5)	1-15414-065-1	01	1	9002-	●
23	PIPE; INJ NO.8 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-638-0	01	1	9002-	●
23	PIPE; INJ NO.8	1-15414-063-1	01	1	9307-		●
24	PIPE; INJ NO.9 TAIWAN EQUIPMENT(WW5)	1-15414-066-0	01	1	9002-	●
24	PIPE; INJ NO.9 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-639-0	01	1	9002-	●
24	PIPE; INJ NO.9	1-15414-869-0	01	1	9307-		●
25	PIPE; INJ NO.10 TAIWAN EQUIPMENT(WW5)	1-15414-067-1	01	1	9002-	●
25	PIPE; INJ NO.10 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-640-0	01	1	9002-	●
25	PIPE; INJ NO.10	1-15414-065-1	01	1	9307-		●
26	PIPE; INJ NO.11	1-15414-066-0	01	1	9307-		●
27	PIPE; INJ NO.12	1-15414-067-1	01	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) OD=28.5	1-09639-030-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=15	1-15315-011-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	12	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) OD=28.5	1-09639-030-0	12	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=15	1-15315-011-0	12	1	9307-		●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9002-	●
55	SLEEVE; INJ PUMP	1-15339-094-0	12	1	9307-		●
56	COVER	1-15419-028-0	10	1	9002-	●
56	COVER	1-15419-028-0	12	1	9307-		●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9002-	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	12	1	9307-		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9002-	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	12	1	9307-		●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9002-	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	12	1	9307-		●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9002-	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	12	1	9307-		●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	06	1	9002-	●	●
98	CLIP; "A",INJ PIPE	9-15419-613-0	05	1	9307-		●
98	CLIP; "A",INJ PIPE	9-15419-613-0	03	1	9002-	●
99	BOLT; CLIP,INJ,PIPE M5X20	9-09802-539-0	05	1	9307-		●
99	BOLT; CLIP,INJ,PIPE M5X20	9-92050-520-0	08	1	9002-9005	●
99	BOLT; CLIP,INJ,PIPE M5X20	0-20800-520-0	08	1	9006-9307	●	●
99	BOLT; CLIP,INJ,PIPE M5X20	0-20800-520-0	06	1	9308-	●	●
99	BOLT; CLIP,INJ,PIPE M5X20	9-09802-539-0	03	1	9009-	●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	08	1	9002-9307	●	●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9308-	●	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	06	1	9002-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	07	1	9307-		●
113	CLIP; INJ PIPE	1-15419-036-1	06	1	9002-	●	●
114	CLIP; INJ PIPE (A)	9-15419-612-0	05	1	9307-		●
114	CLIP; INJ PIPE (A)	9-15419-612-0	03	1	9307-	●
115	CLIP; "B",INJ PIPE	9-15419-614-0	05	1	9307-		●
115	CLIP; "B",INJ PIPE	9-15419-614-0	03	1	9002-	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO(SV1)	1-15414-905-0	01	1	9002-	●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. ENGINE REAR PTO(SV1)	1-15414-551-1	01	1	9002-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-553-1	01	1	9307-		●
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	04	1	9002-	●
122	CLIP; LEAK OFF PIPE (B) L=22	1-09709-156-0	02	1	9002-	●	●
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	06	1	9307-		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	02	1	9002-	●	●
124	BOLT; EYE LEAK OFF PIPE M8X30 FLANGE	1-09675-039-1	01	1	9002-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9002-	●	●
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	06	1	9002-9005	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9006-	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	08	1	9307-		●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-074-1	01	1	9002-	●
129	PIPE ASM; LEAK OFF OUTER FIRE TRUCK<RA9> (A)	1-15414-713-1	01	1	9002-	●
129	PIPE ASM; LEAK OFF OUTER EXC. FIRE TRUCK<RA9> (A)	1-15414-075-1	01	1	9002-	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-260-1	01	1	9307-		●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-698-0	01	1	9308-		●
130	BRACKET; OVERFLOW TO LEAK OFF	1-15419-189-0	01	1	9002-	●	●
131	CLIP; OVERFLOW LEAK OFF ID=10 & 6 L=20	1-09700-404-0	01	1	9002-	●	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9002-	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	14	1	9307-		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9002-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-535-0	02	1	9307-		●

31 32 37 38 39 40 143 44 141 140 47 46 33 35 45 138 140 32 31 37 38 39 44 45 46 35 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	PIPE; INJ NO.11	1-15414-066-0	01	1	9307-		●
27	PIPE; INJ NO.12	1-15414-067-1	01	1	9307-		●
31	NOZZLE ASM; INJ TAIWAN EQUIPMENT(WW5) (A)	1-15300-204-1	10	1	9002-	●
31	NOZZLE ASM; INJ EXC. TAIWAN EQUIPMENT(WW5) (B)	1-15300-231-1	10	1	9002-	●
31	NOZZLE ASM; INJ (A)	1-15300-204-1	12	1	9307-		●
32	HOLDER ASM; NOZZLE TAIWAN EQUIPMENT(WW5) (A)	1-15330-089-1	10	1	9002-	●
32	HOLDER ASM; NOZZLE EXC. TAIWAN EQUIPMENT(WW5) (B)	1-15330-048-1	10	1	9002-	●
32	HOLDER ASM; NOZZLE (A)	1-15330-089-1	12	1	9307-		●
33	NOZZLE; INJ TAIWAN EQUIPMENT(WW5) (A)	1-15311-180-0	10	1	9002-	●
33	NOZZLE; INJ EXC. TAIWAN EQUIPMENT(WW5) (B)	1-15311-159-1	10	1	9002-	●
33	NOZZLE; INJ (A)	1-15311-180-0	12	1	9307-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	9307-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	8-94171-195-0	10	1	9002-9306	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	5-15332-007-0	10	1	9002-9306	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	12	1	9307-		●
37	NUT; CAP,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15334-005-0	10	1	9002-9306	●
37	NUT; CAP,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15334-015-0	10	1	9307-	●
37	NUT; CAP,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	1-15332-012-0	10	1	9002-9306	●
37	NUT; CAP,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	1-15334-016-0	10	1	9307-	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-015-0	12	1	9307-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	12	1	9307-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(WW5)	9-15339-056-0	10	1	9307-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(WW5)	5-15339-060-0	10	1	9307-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15345-004-0	10	1	9002-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	1-15345-005-0	10	1	9002-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	12	1	9307-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15332-011-0	10	1	9002-	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	12	1	9307-		●
44	SPRING; NOZZLE,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	8-94246-531-0	10	1	9002-	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	5-15343-005-0	10	1	9002-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	12	1	9307-		●
45	ROD; PUSH,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15341-004-0	10	1	9002-	●
45	ROD; PUSH,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	8-94169-502-0	10	1	9002-	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	12	1	9307-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	9002-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	24	1	9307-		●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15339-015-0	10	1	9002-	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-015-0	12	1	9307-		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15343-001-0	10	1	9002-	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	12	1	9307-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.50	5-15339-007-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.60	5-15339-008-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.70	5-15339-009-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.800	5-15339-010-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	5-15339-010-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.90	5-15339-011-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=1.00	5-15339-012-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.52	5-15339-018-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.54	5-15339-019-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.56	5-15339-020-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.58	5-15339-021-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.10	8-94128-982-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.20	8-94128-983-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.30	8-94128-984-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	9002-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.40	8-94128-985-0	AR	1	9002-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	9002-		●
141	ROD; PUSH,UPR,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15341-005-0	10	1	9107-	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-005-0	12	1	9307-		●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15345-003-0	10	1	9107-	●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	12	1	9307-		●

31 37 38 40 38 39 139 44 45 32 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	PIPE; INJ NO.11	1-15414-066-0	01	1	9307-		●
27	PIPE; INJ NO.12	1-15414-067-1	01	1	9307-		●
31	NOZZLE ASM; INJ TAIWAN EQUIPMENT(WW5) (A)	1-15300-204-1	10	1	9002-	●
31	NOZZLE ASM; INJ EXC. TAIWAN EQUIPMENT(WW5) (B)	1-15300-231-1	10	1	9002-	●
31	NOZZLE ASM; INJ (A)	1-15300-204-1	12	1	9307-		●
32	HOLDER ASM; NOZZLE TAIWAN EQUIPMENT(WW5) (A)	1-15330-089-1	10	1	9002-	●
32	HOLDER ASM; NOZZLE EXC. TAIWAN EQUIPMENT(WW5) (B)	1-15330-048-1	10	1	9002-	●
32	HOLDER ASM; NOZZLE (A)	1-15330-089-1	12	1	9307-		●
33	NOZZLE; INJ TAIWAN EQUIPMENT(WW5) (A)	1-15311-180-0	10	1	9002-	●
33	NOZZLE; INJ EXC. TAIWAN EQUIPMENT(WW5) (B)	1-15311-159-1	10	1	9002-	●
33	NOZZLE; INJ (A)	1-15311-180-0	12	1	9307-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	9307-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	8-94171-195-0	10	1	9002-9306	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	5-15332-007-0	10	1	9002-9306	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	12	1	9307-		●
37	NUT; CAP,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15334-005-0	10	1	9002-9306	●
37	NUT; CAP,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15334-015-0	10	1	9307-	●
37	NUT; CAP,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	1-15332-012-0	10	1	9002-9306	●
37	NUT; CAP,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	1-15334-016-0	10	1	9307-	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-015-0	12	1	9307-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	12	1	9307-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(WW5)	9-15339-056-0	10	1	9307-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(WW5)	5-15339-060-0	10	1	9307-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15345-004-0	10	1	9002-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	1-15345-005-0	10	1	9002-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	12	1	9307-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15332-011-0	10	1	9002-	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	12	1	9307-		●
44	SPRING; NOZZLE,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	8-94246-531-0	10	1	9002-	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	5-15343-005-0	10	1	9002-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	12	1	9307-		●
45	ROD; PUSH,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15341-004-0	10	1	9002-	●
45	ROD; PUSH,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	8-94169-502-0	10	1	9002-	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	12	1	9307-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	9002-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	24	1	9307-		●

6 7 7 2 1 7 2

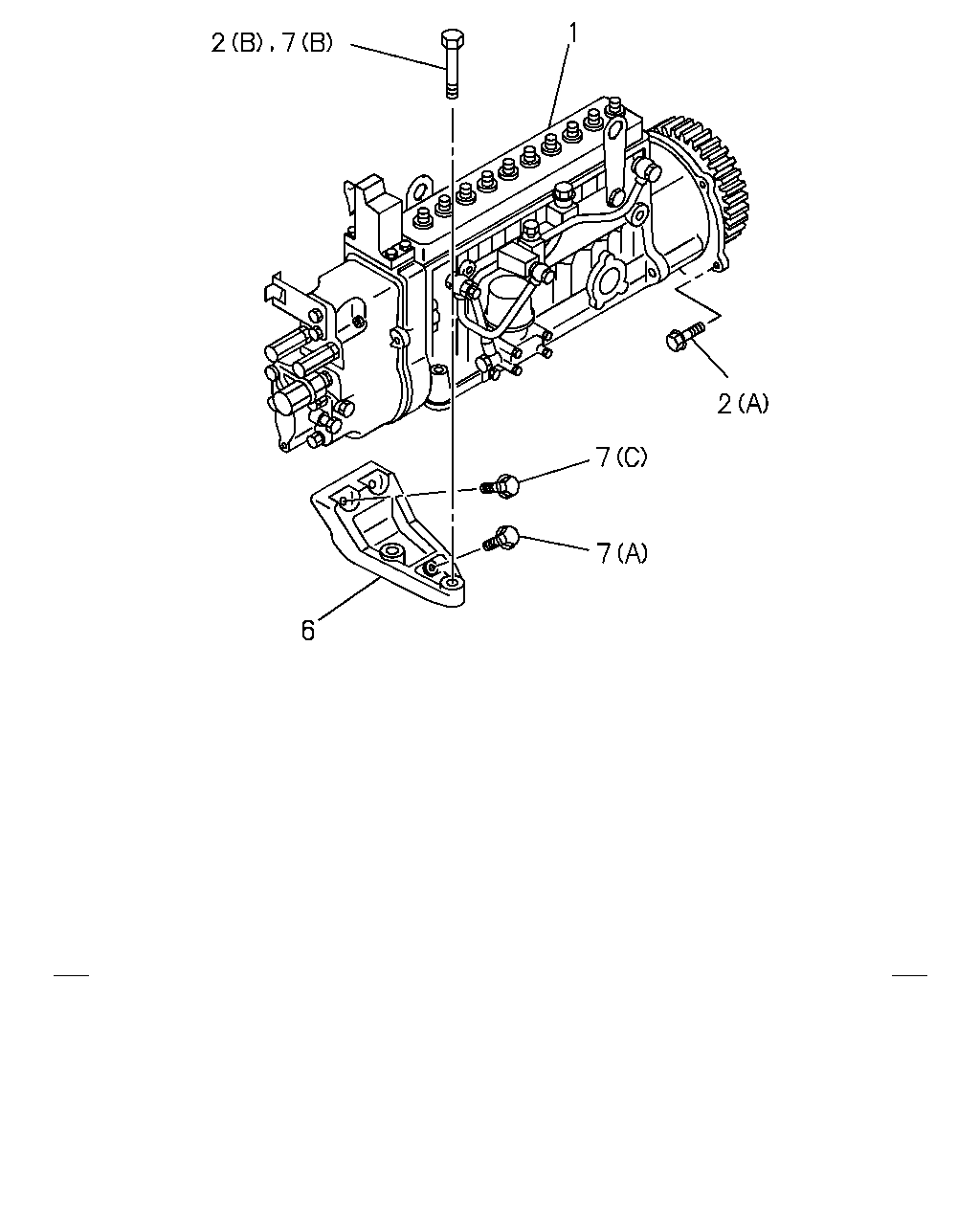

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FIRE TRUCK<RA9>	1-15602-600-0	01	1	9002-9205	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FIRE TRUCK<RA9> EXC. TAIWAN EQUIPMENT(WW5),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-600-1	01	1	9206-9306	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-913-0	01	1	9307-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-434-5	01	1	9002-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-599-1	01	1	9002-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-601-2	01	1	9002-9306	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-912-0	01	1	9307-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-914-0	01	1	9307-		●
2	BOLT; INJ PUMP (A) M10X80	8-94399-730-1	04	1	9002-9101	●
2	BOLT; INJ PUMP (A) M10X80 FLANGE	0-28181-080-0	04	1	9102-	●	●
2	BOLT; INJ PUMP (B) M10X95 FLANGE	8-94397-027-1	02	1	9307-		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-051-0	01	1	9002-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-052-0	01	1	9307-		●
7	BOLT; INJ PUMP BRKT (C) M10X40	0-28021-040-0	01	1	9002-9110	●
7	BOLT; INJ PUMP BRKT (B) M10X95 FLANGE	8-94397-027-1	02	1	9002-	●
7	BOLT; INJ PUMP BRKT (A) M10X22 FLANGE	0-28181-022-0	01	1	9002-	●	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28181-040-0	01	1	9111-	●	●
26	PIPE; INJ NO.11	1-15414-066-0	01	1	9307-		●
27	PIPE; INJ NO.12	1-15414-067-1	01	1	9307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
