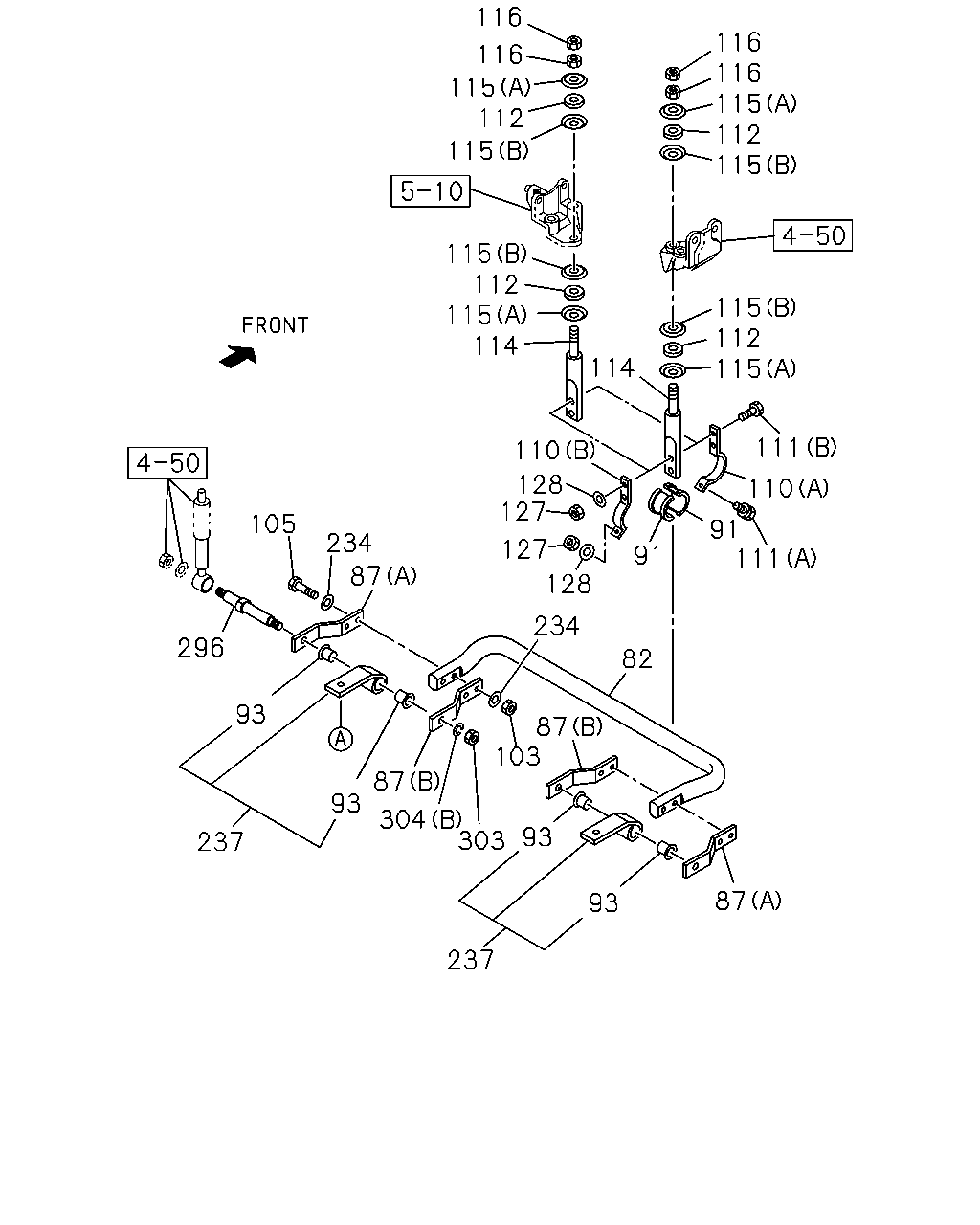

4-10 — FRONT AXLE (#27633) — 155 parça

87 93 93 303 237 304 87 93 237 93 296 87 234 105 103 87 82 234 128 127 127 128 110 91 111 91 110 111 115 112 115 114 114 115 112 115 115 112 115 116 116 115 112 115 116 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-136-0	01	1	0303-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	0303-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	0303-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	0303-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-1	04	1	0303-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	0303-0512
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0601-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0303-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0303-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0303-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0303-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0303-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	0303-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-083-2	02	1	0303-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	0303-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	0303-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	0303-0512
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0601-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	0303-0512
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0601-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	0303-0603
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-512-0	06	1	0604-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	0303-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-664-0	02	1	0303-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	0303-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	0303-0512
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0601-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0303-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0105-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0105-

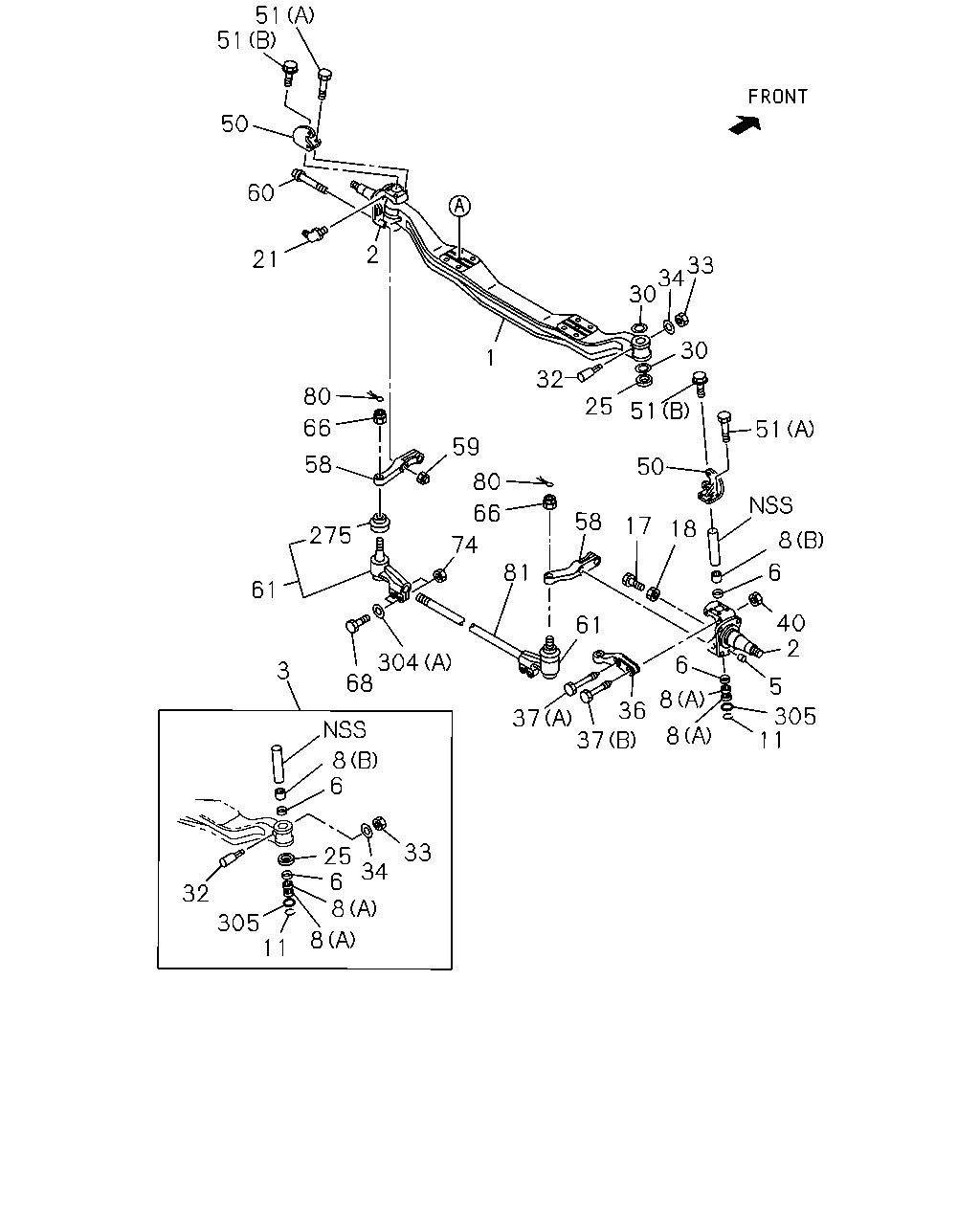

11 8 305 32 8 6 34 25 33 6 8 3 61 304 68 37 37 8 36 8 11 305 5 6 2 40 6 8 18 17 58 61 81 74 66 80 59 275 58 66 80 1 32 25 51 50 51 30 33 34 30 2 21 60 50 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-107-5	01	1	0105-
1	AXLE; FRT	1-43111-107-5	01	1	0105-
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	0105-
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	0105-
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	0105-
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	0105-
3	KING PIN SET	1-87830-738-4	02	1	0105-
3	KING PIN SET	1-87830-738-4	02	1	0105-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0105-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0105-
6	SEAL; KING PIN	9-09926-024-0	04	1	0105-
6	SEAL; KING PIN	9-09926-024-0	04	1	0105-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0105-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0105-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0105-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0105-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0105-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0105-
17	BOLT; STOPPER KNUCKLE REARWARD M18X53	1-09009-066-0	02	1	0207-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0105-0206
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0105-0206
17	BOLT; STOPPER KNUCKLE FORWARD M18X43	1-09009-065-0	02	1	0207-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0105-0512
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0105-0512
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0105-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0105-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0105-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0105-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0105-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0105-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0105-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0105-0512
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0105-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0105-0603
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0105-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	1-43133-063-3	01	1	0105-
36	ARM; KNUCKLE	1-43133-063-3	01	1	0105-
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0105-
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0105-
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0105-
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0105-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0105-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0105-
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0105-
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0105-
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0105-
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0105-
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0105-0512
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0105-0512
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28051-260-0	02	1	0601-
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28051-260-0	02	1	0601-
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28681-225-0	06	1	0105-0512
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28681-225-0	06	1	0105-0512
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28651-225-0	06	1	0601-
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28651-225-0	06	1	0601-
58	ARM; TIE ROD FORWARD	1-43135-042-3	01	1	0105-
58	ARM; TIE ROD REARWARD	1-43135-044-3	01	1	0105-
58	ARM; TIE ROD FORWARD	1-43134-042-3	01	1	0105-
58	ARM; TIE ROD REARWARD	1-43134-044-3	01	1	0105-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0105-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0105-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0105-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0105-
61	ROD END; TIE ROD	1-43150-802-0	01	1	0105-
61	ROD END; TIE ROD	1-43150-802-0	01	1	0105-
61	ROD END; TIE ROD	1-43150-801-0	01	1	0105-
61	ROD END; TIE ROD	1-43150-801-0	01	1	0105-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0105-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0105-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0105-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0105-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0105-0512
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0105-0512
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0105-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0105-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
81	ROD; TIE FORWARD	1-43151-118-0	01	1	0105-
81	ROD; TIE REARWARD	1-43151-124-0	01	1	0105-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0105-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0105-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0303-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0105-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0105-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0105-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0105-
