4-01 — PROPELLER SHAFT (#27632) — 135 parça

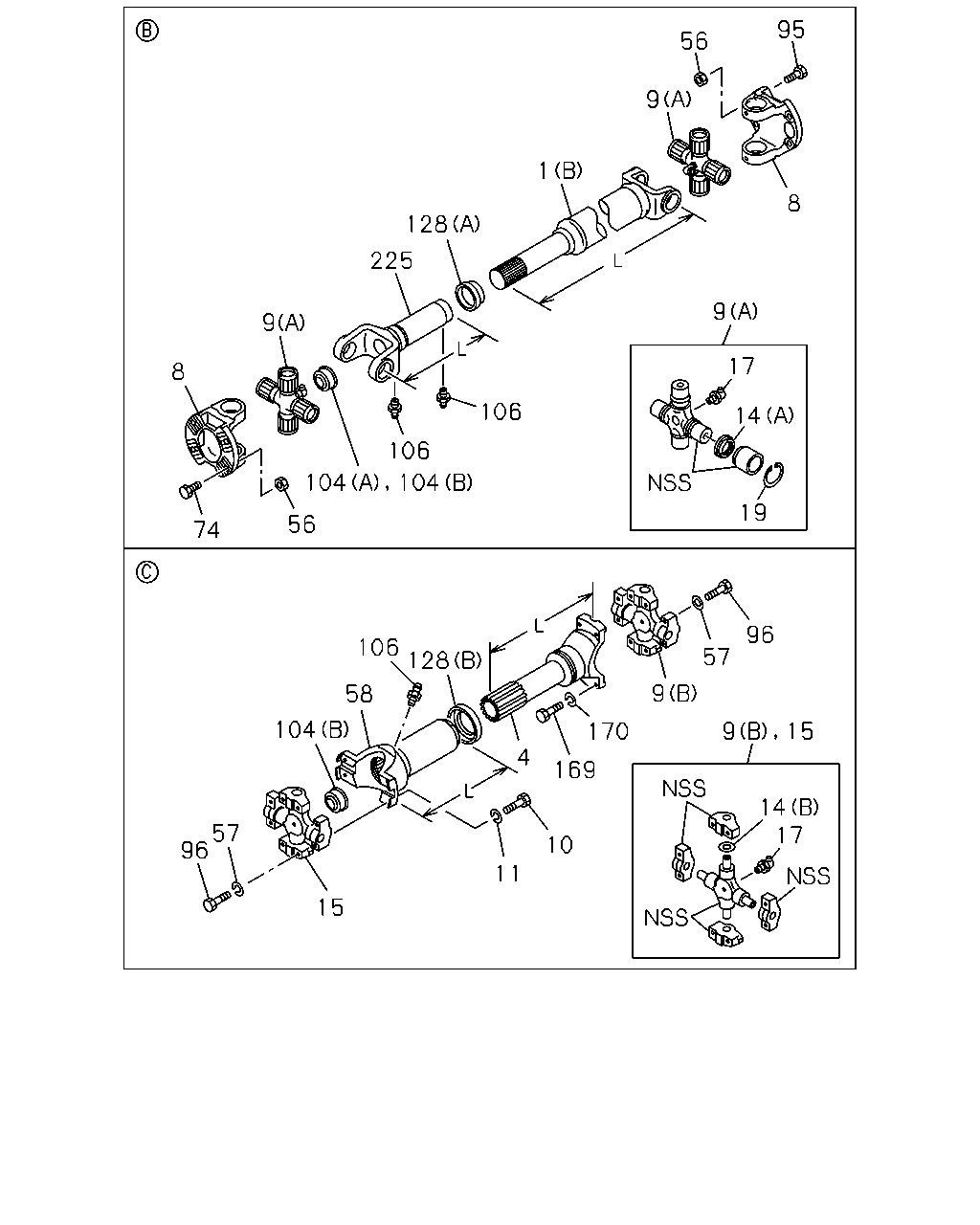

17 14 15 9 96 57 9 170 4 169 10 11 15 57 96 104 58 106 128 56 74 104 104 106 106 19 14 17 9 8 95 56 9 1 128 225 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP 6WF1 TC-C(1B8) P115 PROP SHAFT<C5X> MJD7 M/T<X9J> EXC. ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) (A) L=874	1-37152-921-0	01	1	0107-	●
1	SHAFT; PROP P115 PROP SHAFT<C5X> (B) L=1465	1-37124-634-1	01	1	0105-	●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (B) L=1494	1-37124-622-0	01	1	0105-	●
1	SHAFT; PROP P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) (A) L=843	1-37153-086-0	01	1	0105-0105	●
1	SHAFT; PROP 6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) MJA7 M/T<X9Q> (A) L=843	1-37153-086-0	01	1	0106-0106	●
1	SHAFT; PROP 6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) MJD7 M/T<X9J>,MJA7 M/T<X9Q> (A) L=843	1-37153-086-0	01	1	0107-	●
1	SHAFT; PROP P90 PROP SHAFT<C5T> EXC. ENGINE REAR PTO(SV1) (A) L=913	1-37153-085-0	01	1	0105-0105	●
1	SHAFT; PROP 6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) (A) L=913	1-37153-085-0	01	1	0106-0106	●
1	SHAFT; PROP 6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) (A) L=913	1-37153-085-0	01	1	0107-	●
1	SHAFT; PROP TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> ENGINE REAR PTO(SV1) (A) L=814	1-37153-089-0	01	1	0105-0105	●
1	SHAFT; PROP 6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) (A) L=814	1-37153-089-0	01	1	0106-	●
1	SHAFT; PROP TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. ENGINE REAR PTO(SV1) (A) L=884	1-37153-088-0	01	1	0105-0105	●
1	SHAFT; PROP 6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) (A) L=884	1-37153-088-0	01	1	0106-	●
1	SHAFT; PROP 6WF1 TC-C(1B8) TRANSMISSION-ZF 16S221 OD(Y1U) P115 PROP SHAFT<C5X> (A) L=799	1-37153-091-0	01	1	0107-	●
1	SHAFT; PROP 6WF1 TC-C(1B8) P115 PROP SHAFT<C5X> ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) MJD7 M/T<X9J> (A) L=799	1-37153-091-0	01	1	0107-	●
1	SHAFT; PROP MJD7 M/T<X9J> P115 PROP SHAFT<C5X> (A) L=1304	1-37153-092-0	01	1	0107-		●
1	SHAFT; PROP P115 PROP SHAFT<C5X> (B) L=1365	1-37124-631-1	01	1	0105-		●
1	SHAFT; PROP P115 PROP SHAFT<C5X> FULLER M/T<X9B> (A) L=1369	1-37153-094-0	01	1	0105-		●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (B) L=1394	1-37124-963-0	01	1	0105-		●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (A) L=1343	1-37153-087-0	01	1	0105-		●
1	SHAFT; PROP TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=1314	1-37153-090-0	01	1	0105-		●
1	SHAFT; PROP TRANSMISSION-ZF 16S221 OD(Y1U) P115 PROP SHAFT<C5X> (A) L=1224	1-37153-093-0	01	1	0107-		●
4	SHAFT; PROP L=348	1-37171-127-2	01	1	0105-	●	●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X>	1-37211-077-1	02	1	0105-	●	●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X>	1-37211-077-1	01	1	0105-	●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-079-1	02	1	0105-	●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-079-1	01	1	0105-	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (A) END SHAFT	1-37300-110-0	02	1	0105-	●	●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (A) END SHAFT	1-37300-112-0	02	1	0105-	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (A) 1ST SHAFT	1-37300-110-0	01	1	0105-0304	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (A) 1ST SHAFT	1-37300-111-0	01	1	0305-	●	●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (A) 1ST SHAFT	1-37300-112-0	01	1	0105-	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	0105-	●	●
10	BOLT; UJT M12X45	9-91066-245-0	04	1	0105-	●	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	0105-0603	●	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	0-91510-612-0	04	1	0604-	●	●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0105-	●	●
14	COVER; DUST,SPIDER P115 PROP SHAFT<C5X> (A)	1-37249-133-0	AR	1	0105-	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (A)	1-37249-131-0	AR	1	0105-	●	●
15	UNIVERSAL CENTER	1-37300-100-1	01	1	0105-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	0105-0512	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	AR	1	0601-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT<C5X> T=2.2	1-09587-103-1	AR	1	0105-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT<C5X> T=2.17	1-09587-107-0	AR	1	0105-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT<C5T> T=2.2	1-09587-102-1	AR	1	0105-	●	●
56	NUT; YOKE M14 FLANGE	1-09440-048-0	08	1	0105-	●	●
57	WASHER; LK,YOKE ID=12.2	9-09150-612-0	08	1	0105-0603	●	●
57	WASHER; LK,YOKE ID=12.2	0-91510-612-0	08	1	0604-	●	●
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	0105-	●	●
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	0105-	●	●
95	BOLT; YOKE,FINAL EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50	1-09000-645-0	04	1	0105-	●	●
96	BOLT; PROP SHAFT M12X45	9-91066-245-0	08	1	0105-	●	●
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	0105-	●	●
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X> (B)	1-09600-049-0	01	1	0105-	●	●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T> (A)	1-09600-067-0	01	1	0105-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0105-0512	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT<C5T> PT1/8 STRAIGHT	9-09031-010-0	01	1	0105-0512	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT<C5T> PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-0512	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	0105-0312	●	●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	0401-	●	●
128	SEAL; SLEEVE P115 PROP SHAFT<C5X> (A)	1-37247-020-0	01	1	0105-	●	●
128	SEAL; SLEEVE P90 PROP SHAFT<C5T> (A)	1-37247-019-0	01	1	0105-	●	●
169	BOLT; YOKE,SLEEVE M12X45	9-91066-245-0	04	1	0105-	●	●
170	WASHER; LK,YOKE,SLEEVE ID=12.2	9-09150-612-0	04	1	0105-0603	●	●
170	WASHER; LK,YOKE,SLEEVE ID=12.2	0-91510-612-0	04	1	0604-	●	●
225	YOKE; SLEEVE,PROP SHAFT P115 PROP SHAFT<C5X> L=339	1-37241-140-0	01	1	0105-	●	●
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT<C5T> L=330	1-37241-124-0	01	1	0105-	●	●

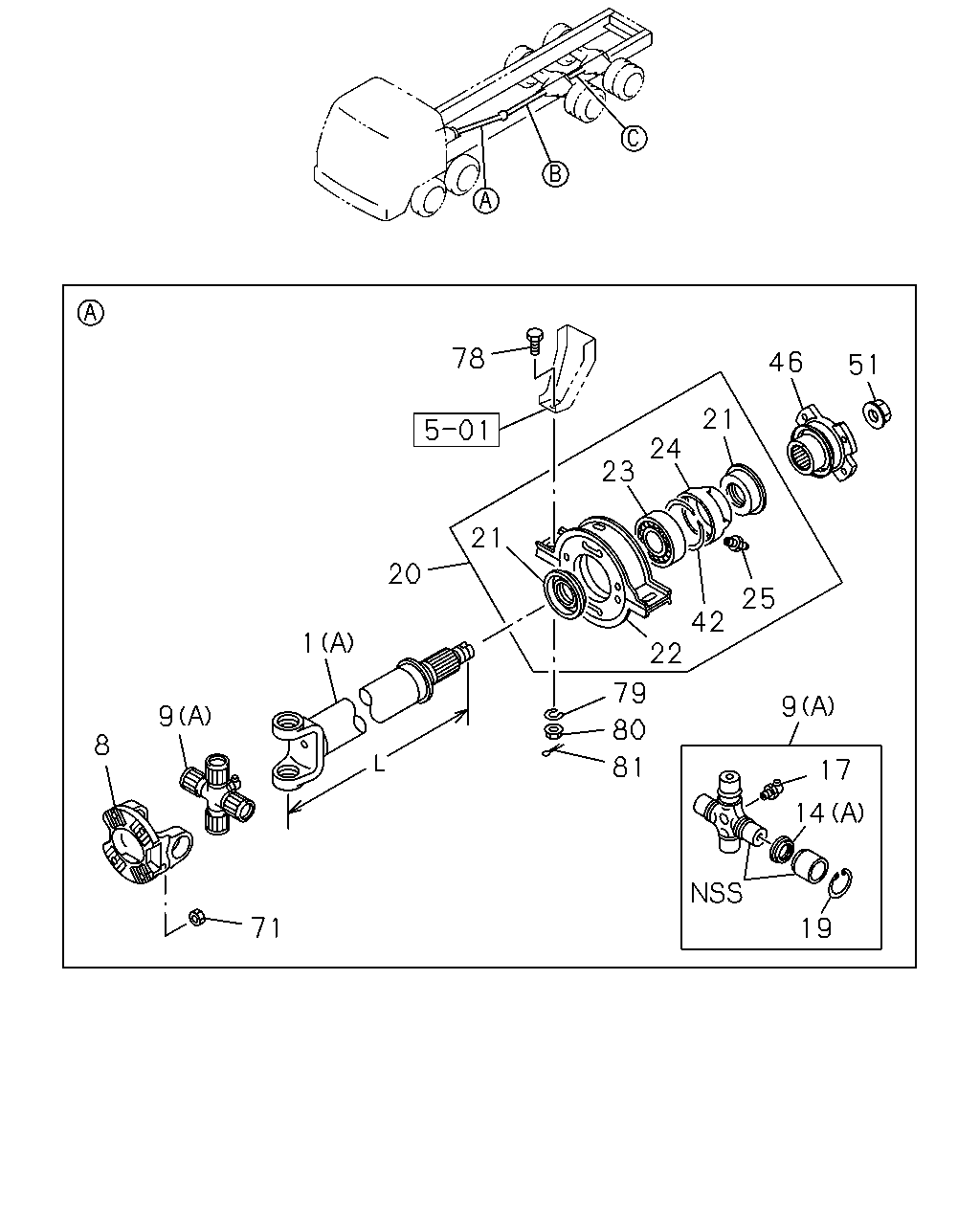

19 14 17 9 25 42 22 79 80 81 51 46 21 24 23 78 21 20 1 9 8 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP 6WF1 TC-C(1B8) P115 PROP SHAFT<C5X> MJD7 M/T<X9J> EXC. ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) (A) L=874	1-37152-921-0	01	1	0107-	●
1	SHAFT; PROP P115 PROP SHAFT<C5X> (B) L=1465	1-37124-634-1	01	1	0105-	●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (B) L=1494	1-37124-622-0	01	1	0105-	●
1	SHAFT; PROP P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) (A) L=843	1-37153-086-0	01	1	0105-0105	●
1	SHAFT; PROP 6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) MJA7 M/T<X9Q> (A) L=843	1-37153-086-0	01	1	0106-0106	●
1	SHAFT; PROP 6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) MJD7 M/T<X9J>,MJA7 M/T<X9Q> (A) L=843	1-37153-086-0	01	1	0107-	●
1	SHAFT; PROP P90 PROP SHAFT<C5T> EXC. ENGINE REAR PTO(SV1) (A) L=913	1-37153-085-0	01	1	0105-0105	●
1	SHAFT; PROP 6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) (A) L=913	1-37153-085-0	01	1	0106-0106	●
1	SHAFT; PROP 6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) (A) L=913	1-37153-085-0	01	1	0107-	●
1	SHAFT; PROP TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> ENGINE REAR PTO(SV1) (A) L=814	1-37153-089-0	01	1	0105-0105	●
1	SHAFT; PROP 6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) (A) L=814	1-37153-089-0	01	1	0106-	●
1	SHAFT; PROP TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. ENGINE REAR PTO(SV1) (A) L=884	1-37153-088-0	01	1	0105-0105	●
1	SHAFT; PROP 6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) (A) L=884	1-37153-088-0	01	1	0106-	●
1	SHAFT; PROP 6WF1 TC-C(1B8) TRANSMISSION-ZF 16S221 OD(Y1U) P115 PROP SHAFT<C5X> (A) L=799	1-37153-091-0	01	1	0107-	●
1	SHAFT; PROP 6WF1 TC-C(1B8) P115 PROP SHAFT<C5X> ENGINE REAR PTO HEAVY DUTY<NJU>,ENGINE REAR PTO(SV1) MJD7 M/T<X9J> (A) L=799	1-37153-091-0	01	1	0107-	●
1	SHAFT; PROP MJD7 M/T<X9J> P115 PROP SHAFT<C5X> (A) L=1304	1-37153-092-0	01	1	0107-		●
1	SHAFT; PROP P115 PROP SHAFT<C5X> (B) L=1365	1-37124-631-1	01	1	0105-		●
1	SHAFT; PROP P115 PROP SHAFT<C5X> FULLER M/T<X9B> (A) L=1369	1-37153-094-0	01	1	0105-		●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (B) L=1394	1-37124-963-0	01	1	0105-		●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (A) L=1343	1-37153-087-0	01	1	0105-		●
1	SHAFT; PROP TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=1314	1-37153-090-0	01	1	0105-		●
1	SHAFT; PROP TRANSMISSION-ZF 16S221 OD(Y1U) P115 PROP SHAFT<C5X> (A) L=1224	1-37153-093-0	01	1	0107-		●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X>	1-37211-077-1	02	1	0105-	●	●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X>	1-37211-077-1	01	1	0105-	●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-079-1	02	1	0105-	●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-079-1	01	1	0105-	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (A) END SHAFT	1-37300-110-0	02	1	0105-	●	●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (A) END SHAFT	1-37300-112-0	02	1	0105-	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (A) 1ST SHAFT	1-37300-110-0	01	1	0105-0304	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (A) 1ST SHAFT	1-37300-111-0	01	1	0305-	●	●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (A) 1ST SHAFT	1-37300-112-0	01	1	0105-	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	0105-	●	●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0105-	●	●
14	COVER; DUST,SPIDER P115 PROP SHAFT<C5X> (A)	1-37249-133-0	AR	1	0105-	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (A)	1-37249-131-0	AR	1	0105-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	0105-0512	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	AR	1	0601-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT<C5X> T=2.2	1-09587-103-1	AR	1	0105-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT<C5X> T=2.17	1-09587-107-0	AR	1	0105-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT<C5T> T=2.2	1-09587-102-1	AR	1	0105-	●	●
20	BEARING ASM; CTR,PROP SHAFT P115 PROP SHAFT<C5X> ID=65	1-37510-116-0	01	1	0105-	●	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT<C5T> ID=60	1-37510-115-0	01	1	0105-	●	●
21	SEAL; OIL,CENTER BRG P115 PROP SHAFT<C5X> FRONT OD=114	1-09625-222-1	01	1	0105-	●	●
21	SEAL; OIL,CENTER BRG P115 PROP SHAFT<C5X> REAR OD=106	1-09625-622-0	01	1	0105-	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT<C5T> FRONT D=120	1-09625-127-0	01	1	0105-	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT<C5T> REAR	1-09625-621-0	01	1	0105-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P115 PROP SHAFT<C5X>	1-37516-056-0	01	1	0105-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37516-048-2	01	1	0105-	●	●
23	BEARING; CENTER,PROP SHAFT P115 PROP SHAFT<C5X>	1-09800-210-0	01	1	0105-	●	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT<C5T>	9-00090-256-0	01	1	0105-	●	●
24	RETAINER; CENTER BRG,1ST P115 PROP SHAFT<C5X>	1-37529-110-0	01	1	0105-	●	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37529-109-0	01	1	0105-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0105-	●	●
42	RING; SNAP,CTR BRG P115 PROP SHAFT<C5X>	1-09587-085-0	01	1	0105-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P115 PROP SHAFT<C5X>	1-37245-349-0	01	1	0105-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T>	1-37245-348-0	01	1	0105-	●	●
51	NUT; FLANGE,SPLINED P115 PROP SHAFT<C5X> M45 FLAMGE	1-09449-040-0	01	1	0105-	●	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT<C5T> M39 FLANGE	1-09440-046-0	01	1	0105-	●	●
71	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0105-	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	0105-	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	0105-	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	9-99116-516-0	02	1	0105-0605	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	0606-	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	9-08114-025-0	02	1	0105-0606	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	0607-	●	●
