Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#27629) — 336 parça

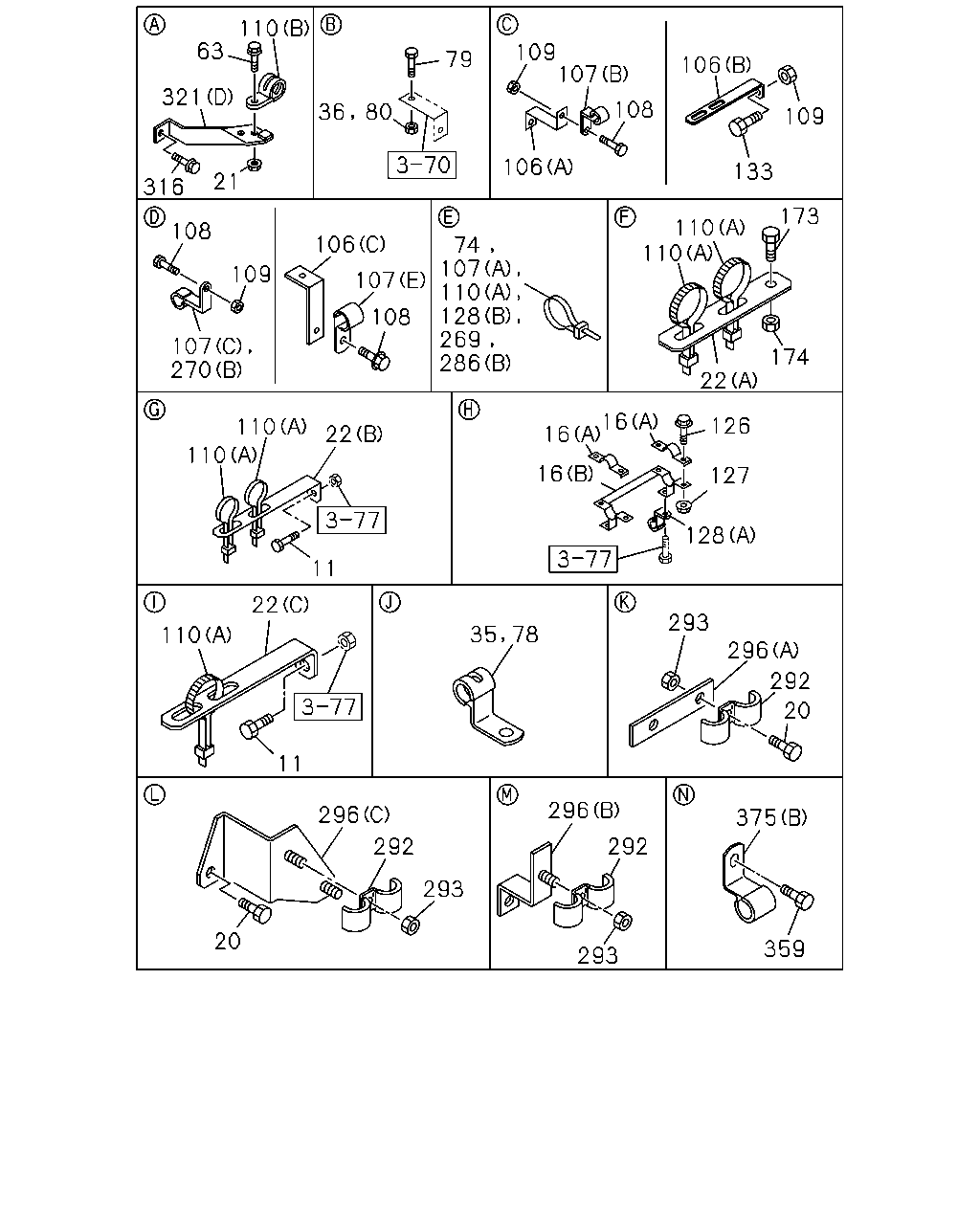

359 375 20 292 296 293 292 296 293 293 292 296 20 11 22 110 11 35 78 128 127 126 16 16 16 22 110 110 270 107 109 108 106 108 107 74 286 269 128 110 107 22 174 173 110 110 133 109 106 108 107 109 106 79 80 36 110 63 321 21 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT BRAKE REGULATION ECE<TDV> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
11	BOLT; CLIP BRKT BRAKE REGULATION ECE<TDV> M8X35 FLANGE	0-28650-835-0	02	1	0601-
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X35 FLANGE	0-28680-835-0	01	1	0105-0512
11	BOLT; CLIP BRKT EXC. BRAKE REGULATION ECE<TDV> M8X35 FLANGE	0-28680-835-0	01	1	0105-0512
11	BOLT; CLIP BRKT EXC. BRAKE REGULATION ECE<TDV> M8X35 FLANGE	0-28650-835-0	01	1	0601-
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X35 FLANGE	0-28650-835-0	01	1	0601-
16	BRACKET; PIPE CLIP (A)	1-47477-743-0	04	1	0105-
16	BRACKET; PIPE CLIP (B)	1-47477-744-0	02	1	0105-
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
20	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	03	1	0105-0512
20	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	03	1	0601-
20	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	01	1	0105-0106
20	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	02	1	0107-0512
20	BOLT; CLIP M8X35 FLANGE	0-28650-835-0	02	1	0601-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
22	BRACKET; CLIP (A) L=125	1-47477-975-1	02	1	0105-
22	BRACKET; CLIP BRAKE REGULATION ECE<TDV> (B) L=150 H=30	1-47477-629-2	02	1	0105-
22	BRACKET; CLIP EXC. BRAKE REGULATION ECE<TDV> (B) L=150 H=30	1-47477-629-2	01	1	0105-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (C) L=100 H=30	1-47477-645-2	01	1	0105-
35	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0105-0106
35	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0107-
36	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0106
36	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0107-0602
36	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
63	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
74	CLIP; NYLON TUBE L=250	1-09707-126-0	10	1	0105-
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28650-825-0	01	1	0601-
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-0602
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-
106	BRACKET; TUBE CLIP CAB UP +110MM<TGG> (C) L=75	1-47478-323-0	01	1	0108-
106	BRACKET; TUBE CLIP CAB UP +110MM<TGG> (A)	1-47477-694-0	01	1	0105-
106	BRACKET; TUBE CLIP EXC. CAB UP +110MM<TGG> (B) L=100 H=30	1-47477-645-2	01	1	0105-
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) CAB UP +110MM<TGG> (C) ID=26 L=26	1-09701-236-0	01	1	0107-
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) CAB UP +110MM<TGG> (E) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0107-0107
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) CAB UP +110MM<TGG> (E) ID=24 L=32	1-09700-766-1	01	1	0108-
107	CLIP; NYLON TUBE (D) ID=22 L=32	1-09700-126-1	01	1	0105-0105
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> (D) ID=22 L=32	1-09700-126-1	01	1	0105-0105
107	CLIP; NYLON TUBE (D) ID=22 L=32	1-09700-126-1	01	1	0105-0106
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=22 L=32	1-09700-126-1	01	1	0107-
107	CLIP; NYLON TUBE BUMPER W/HEADLAMPS<SLB> (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0105-0108
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0109-
107	CLIP; NYLON TUBE ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CAB UP +110MM<TGG> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0109-
107	CLIP; NYLON TUBE EXC. BUMPER W/HEADLAMPS<SLB> (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0105-0108
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CAB UP +110MM<TGG> (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0109-
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> EXC. CAB UP +110MM<TGG> (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0109-
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> (B) ID=20 H=23 L=27	1-09700-861-0	01	1	0105-0106
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=20 H=23 L=27	1-09700-861-0	01	1	0107-0107
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) ID=19 L=32	1-09701-235-0	01	1	0108-
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> (A) L=250	1-09707-126-0	01	1	0105-0109
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	01	1	0110-
107	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (C) ID=39 H=28 L=32	1-09701-263-0	02	1	0105-
107	CLIP; NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (C) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0105-
108	BOLT; TUBE CLIP CAB UP +110MM<TGG> M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
108	BOLT; TUBE CLIP CAB UP +110MM<TGG> M8X20 FLANGE	0-28050-820-0	01	1	0601-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	0105-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28050-825-0	02	1	0601-
108	BOLT; TUBE CLIP CAB UP +110MM<TGG> M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
108	BOLT; TUBE CLIP CAB UP +110MM<TGG> M8X30 FLANGE	0-28680-830-0	02	1	0107-0107
108	BOLT; TUBE CLIP CAB UP +110MM<TGG> M8X30 FLANGE	0-28680-830-0	01	1	0108-0512
108	BOLT; TUBE CLIP CAB UP +110MM<TGG> M8X30 FLANGE	0-28650-830-0	01	1	0601-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	0105-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
109	NUT; TUBE CLIP CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	0105-0105
109	NUT; TUBE CLIP CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	0106-0602
109	NUT; TUBE CLIP FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0602
109	NUT; TUBE CLIP CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	04	1	0105-0105
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	08	1	0106-
110	CLIP; BAND,NYLON TUBE BRAKE REGULATION ECE<TDV> (A) L=250	1-09707-126-0	31	1	0105-0109
110	CLIP; BAND,NYLON TUBE BRAKE REGULATION ECE<TDV> (A) L=250	1-09707-126-0	30	1	0110-
110	CLIP; BAND,NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (A) L=250	1-09707-126-0	29	1	0105-
110	CLIP; BAND,NYLON TUBE CAB UP +110MM<TGG> (A) L=250	1-09707-126-0	02	1	0105-0110
110	CLIP; BAND,NYLON TUBE CAB UP +110MM<TGG> (A) L=250	1-09707-126-0	01	1	0111-
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 L=33	1-09700-945-0	01	1	0105-
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140	5-09707-031-1	02	1	0105-0111
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> (A) L=140	5-09707-031-1	01	1	0112-
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) ID=25 L=40	1-09700-215-1	01	1	0105-0204
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) ID=28 L=40	1-09700-995-1	01	1	0205-
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A) L=140	5-09707-031-1	01	1	0105-0111
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	08	1	0105-0512
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	08	1	0601-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0602
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
128	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	04	1	0105-
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	08	1	0105-0109
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	09	1	0110-
133	BOLT; BRKT CAB UP +110MM<TGG> M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
133	BOLT; BRKT CAB UP +110MM<TGG> M8X20 FLANGE	0-28050-820-0	01	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
133	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	02	1	0105-0204
133	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M10X25 FLANGE	0-28681-025-0	02	1	0205-0512
133	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M10X25 FLANGE	0-28651-025-0	02	1	0601-
133	BOLT; BRKT 6WF1 TC-C(1B8) M6X10 FLANGE	0-28080-610-0	01	1	0105-0108
133	BOLT; BRKT 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28080-610-0	01	1	0109-0512
133	BOLT; BRKT 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0601-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> L=250	1-09707-126-0	01	1	0105-0105
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> L=250	1-09707-126-0	01	1	0106-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6300MM(63W) L=250	1-09707-126-0	14	1	0105-0106
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6300MM(63W) L=250	1-09707-126-0	15	1	0107-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) BRAKE REGULATION ECE<TDV> L=250	1-09707-126-0	17	1	0105-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) EXC. BRAKE REGULATION ECE<TDV> L=250	1-09707-126-0	15	1	0105-0106
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) EXC. BRAKE REGULATION ECE<TDV> L=250	1-09707-126-0	16	1	0107-
270	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 H=45 L=33	1-09701-047-0	01	1	0309-
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0309-
270	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	02	1	0105-0308
270	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	01	1	0309-
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (A) ID=28 L=32	1-09701-107-1	02	1	0105-0308
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (A) ID=28 L=32	1-09701-107-1	01	1	0309-
286	CLIP; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (C) ID=35 H=45 L=33	1-09700-947-0	01	1	0106-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (C) ID=18 L=28 H=30	1-09701-110-0	01	1	0106-
286	CLIP; NYLON TUBE BRAKE REGULATION ECE<TDV> FULLER M/T<X9B> (B) L=140	5-09707-031-1	01	1	0105-0105
286	CLIP; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	0106-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (B) L=250	1-09707-126-0	02	1	0105-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	0105-0109
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	1-09707-126-0	01	1	0110-
286	CLIP; NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	03	1	0105-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	04	1	0105-
293	NUT; CLIP M8 FLANGE	0-91150-108-0	08	1	0105-0602
293	NUT; CLIP M8 FLANGE	0-91180-108-0	08	1	0603-
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	0105-
296	BRACKET; CLIP (B)	1-47477-235-0	02	1	0105-
296	BRACKET; CLIP (C)	1-47477-678-0	01	1	0105-
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0105-0512
316	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-
316	BOLT; CLIP BRAKE REGULATION ECE<TDV> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
316	BOLT; CLIP BRAKE REGULATION ECE<TDV> M8X30 FLANGE	0-28650-830-0	01	1	0601-
321	BRACKET; CLIP FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D)	1-47479-316-0	01	1	0110-
321	BRACKET; CLIP (D)	1-47477-810-0	01	1	0105-0109
321	BRACKET; CLIP EXC. FULL TRACTOR TRUCK<RD6> (D)	1-47477-810-0	01	1	0110-
321	BRACKET; CLIP 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (C)	1-47477-386-2	01	1	0105-
321	BRACKET; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (C)	1-47477-472-1	01	1	0105-
321	BRACKET; CLIP 6WF1 TC-C(1B8) (A)	1-47477-337-1	01	1	0105-0108
321	BRACKET; CLIP 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> (A)	1-47477-337-1	01	1	0109-
321	BRACKET; CLIP 6WF1 TC-C(1B8) (B) L=75	1-47478-328-0	01	1	0105-0108
321	BRACKET; CLIP 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	0109-
359	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	01	1	0105-0512
359	BOLT; CLIP M8X35 FLANGE	0-28650-835-0	01	1	0601-
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> (C) ID=7 L=20	9-09524-635-0	02	1	0109-0606
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> (C) ID=7 L=20	0-95234-635-0	02	1	0607-
375	CLIP; AIR PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0108
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0109-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0109-

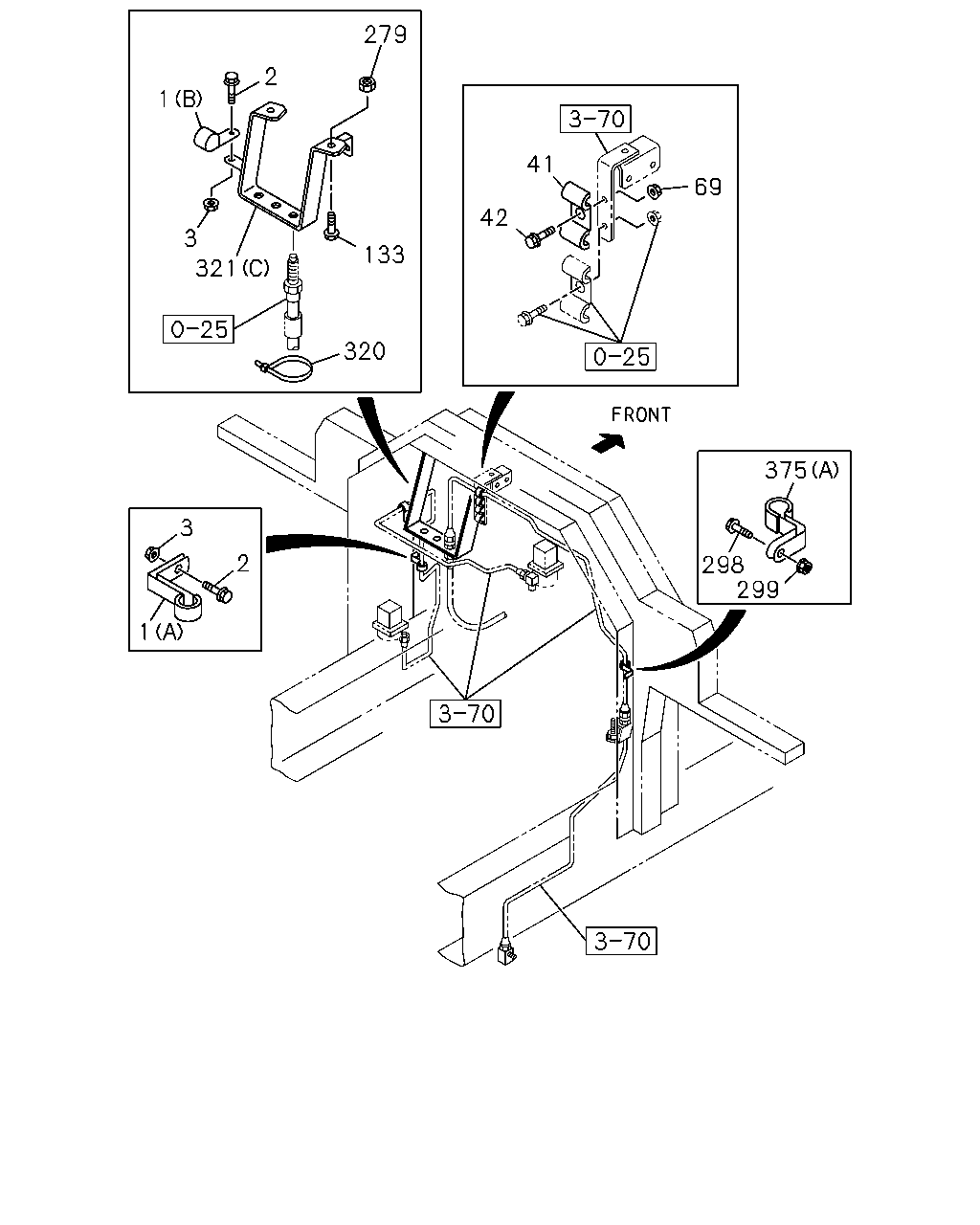

299 298 375 69 41 42 279 1 2 133 321 3 320 2 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) ID=7 L=20	9-09524-635-0	01	1	0105-0606
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) ID=7 L=20	0-95234-635-0	01	1	0607-
2	BOLT; CLIP FIX 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
2	BOLT; CLIP FIX 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	02	1	0601-
3	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	02	1	0105-0602
3	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	02	1	0603-
41	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-
42	BOLT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
42	BOLT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	01	1	0601-
69	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0105-0602
69	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-
133	BOLT; BRKT CAB UP +110MM<TGG> M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
133	BOLT; BRKT CAB UP +110MM<TGG> M8X20 FLANGE	0-28050-820-0	01	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
133	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	02	1	0105-0204
133	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M10X25 FLANGE	0-28681-025-0	02	1	0205-0512
133	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M10X25 FLANGE	0-28651-025-0	02	1	0601-
133	BOLT; BRKT 6WF1 TC-C(1B8) M6X10 FLANGE	0-28080-610-0	01	1	0105-0108
133	BOLT; BRKT 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28080-610-0	01	1	0109-0512
133	BOLT; BRKT 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0601-
279	NUT; BRKT EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	0105-0107
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0108-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
298	BOLT; CLIP 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28680-820-0	02	1	0109-0512
298	BOLT; CLIP 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	02	1	0601-
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0105-0108
298	BOLT; CLIP 6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8X20 FLANGE	0-28680-820-0	01	1	0109-0512
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0109-0512
298	BOLT; CLIP 6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0601-
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	01	1	0601-
299	NUT; CLIP 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	02	1	0109-0602
299	NUT; CLIP 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0603-
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0105-0108
299	NUT; CLIP 6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0109-0602
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0109-0602
299	NUT; CLIP 6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0603-
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-
320	CLIP; BAND,FLEX FIX 6WA1 TC-C(55L),6WG1 TC-C(72L) L=140	5-09707-031-1	01	1	0105-0105
321	BRACKET; CLIP FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D)	1-47479-316-0	01	1	0110-
321	BRACKET; CLIP (D)	1-47477-810-0	01	1	0105-0109
321	BRACKET; CLIP EXC. FULL TRACTOR TRUCK<RD6> (D)	1-47477-810-0	01	1	0110-
321	BRACKET; CLIP 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (C)	1-47477-386-2	01	1	0105-
321	BRACKET; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (C)	1-47477-472-1	01	1	0105-
321	BRACKET; CLIP 6WF1 TC-C(1B8) (A)	1-47477-337-1	01	1	0105-0108
321	BRACKET; CLIP 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> (A)	1-47477-337-1	01	1	0109-
321	BRACKET; CLIP 6WF1 TC-C(1B8) (B) L=75	1-47478-328-0	01	1	0105-0108
321	BRACKET; CLIP 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	0109-
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> (C) ID=7 L=20	9-09524-635-0	02	1	0109-0606
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> (C) ID=7 L=20	0-95234-635-0	02	1	0607-
375	CLIP; AIR PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0108
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0109-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0109-

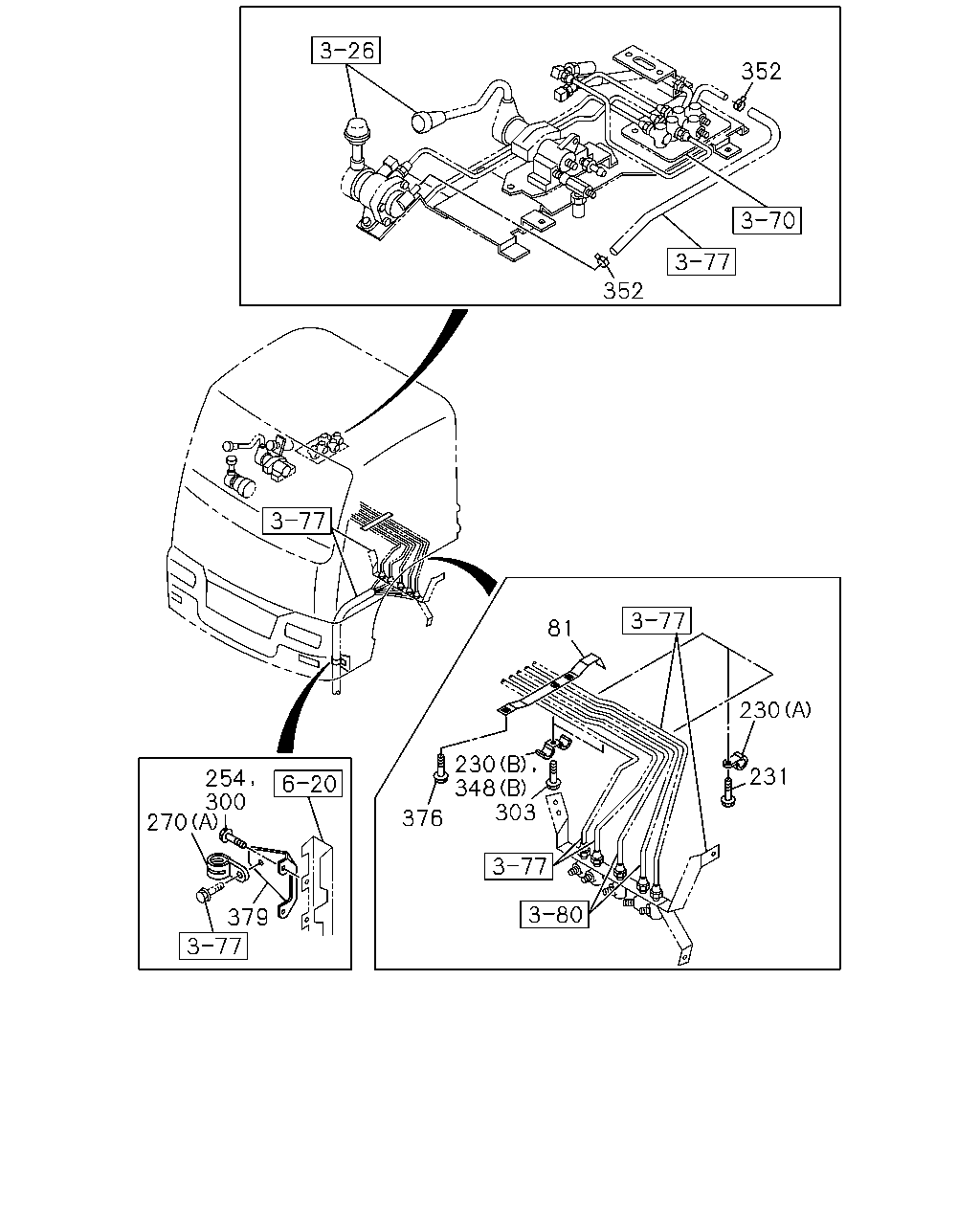

231 230 81 230 348 303 376 254 300 270 379 352 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BRACKET; CLIP	1-47477-483-0	01	1	0105-
230	CLIP; PIPE,AIR (B) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0105-
230	CLIP; PIPE,AIR FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=9 L=16	9-09524-822-0	02	1	0105-0606
230	CLIP; PIPE,AIR FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=9 L=16	0-95234-822-0	02	1	0607-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	07	1	0105-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	07	1	0205-0205
270	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 H=45 L=33	1-09701-047-0	01	1	0309-
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0309-
270	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	02	1	0105-0308
270	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	01	1	0309-
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (A) ID=28 L=32	1-09701-107-1	02	1	0105-0308
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (A) ID=28 L=32	1-09701-107-1	01	1	0309-
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0206-
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0206-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
348	CLIP; AIR PIPE (B) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0105-
348	CLIP; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	9-09535-225-0	02	1	0105-0606
348	CLIP; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	0-95325-225-0	02	1	0607-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0105-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0105-

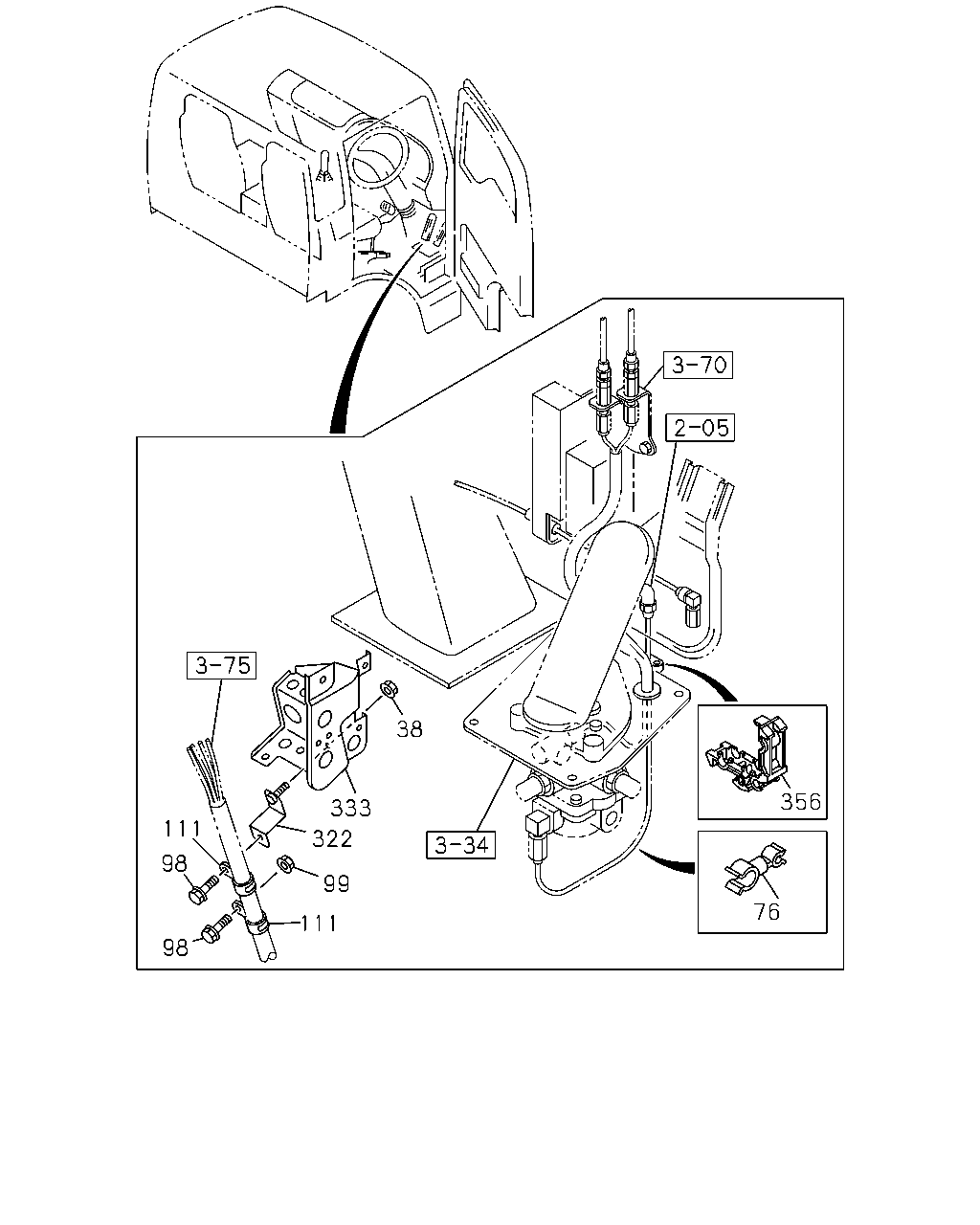

76 356 38 333 322 99 111 98 98 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	02	1	0105-
98	BOLT; PIPE CLIP EXC. CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	01	1	0111-0512
98	BOLT; PIPE CLIP EXC. CAB UP +110MM<TGG> M8X20 FLANGE	0-28650-820-0	01	1	0601-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0110
98	BOLT; PIPE CLIP CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	0111-0512
98	BOLT; PIPE CLIP CAB UP +110MM<TGG> M8X20 FLANGE	0-28650-820-0	02	1	0601-
99	NUT; PIPE CLIP CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	0111-0602
99	NUT; PIPE CLIP CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	01	1	0603-
111	CLIP; AIR PIPE BUMPER W/HEADLAMPS<SLB> ID=23 & 29	8-94160-682-2	01	1	0105-0105
111	CLIP; AIR PIPE CAB UP +110MM<TGG> ID=23 & 29	8-94160-682-2	01	1	0105-0110
111	CLIP; AIR PIPE CAB UP +110MM<TGG> ID=23 & 29	8-94160-682-2	02	1	0111-
111	CLIP; AIR PIPE EXC. BUMPER W/HEADLAMPS<SLB> ID=35 L=33	1-09700-945-0	01	1	0105-0105
111	CLIP; AIR PIPE EXC. CAB UP +110MM<TGG> ID=35 L=33	1-09700-945-0	01	1	0105-
322	BRACKET; CLIP	1-79996-360-0	01	1	0105-0601
322	BRACKET; CLIP	1-79996-659-1	01	1	0602-
333	BRACKET; BRK AIR PIPE CAB UP +110MM<TGG>	1-79907-113-0	01	1	0111-
333	BRACKET; BRK AIR PIPE	1-79997-360-6	01	1	0105-0110
333	BRACKET; BRK AIR PIPE EXC. CAB UP +110MM<TGG>	1-79997-360-6	01	1	0111-
356	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0105-0106
356	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0105-0106
356	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0107-
356	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0107-

375 306 286 286 107 348

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) CAB UP +110MM<TGG> (C) ID=26 L=26	1-09701-236-0	01	1	0107-
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) CAB UP +110MM<TGG> (E) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0107-0107
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) CAB UP +110MM<TGG> (E) ID=24 L=32	1-09700-766-1	01	1	0108-
107	CLIP; NYLON TUBE (D) ID=22 L=32	1-09700-126-1	01	1	0105-0105
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> (D) ID=22 L=32	1-09700-126-1	01	1	0105-0105
107	CLIP; NYLON TUBE (D) ID=22 L=32	1-09700-126-1	01	1	0105-0106
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=22 L=32	1-09700-126-1	01	1	0107-
107	CLIP; NYLON TUBE BUMPER W/HEADLAMPS<SLB> (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0105-0108
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0109-
107	CLIP; NYLON TUBE ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CAB UP +110MM<TGG> (D) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0109-
107	CLIP; NYLON TUBE EXC. BUMPER W/HEADLAMPS<SLB> (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0105-0108
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CAB UP +110MM<TGG> (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0109-
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> EXC. CAB UP +110MM<TGG> (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0109-
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> (B) ID=20 H=23 L=27	1-09700-861-0	01	1	0105-0106
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=20 H=23 L=27	1-09700-861-0	01	1	0107-0107
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) ID=19 L=32	1-09701-235-0	01	1	0108-
107	CLIP; NYLON TUBE CAB UP +110MM<TGG> (A) L=250	1-09707-126-0	01	1	0105-0109
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	01	1	0110-
107	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (C) ID=39 H=28 L=32	1-09701-263-0	02	1	0105-
107	CLIP; NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (C) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0105-
286	CLIP; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (C) ID=35 H=45 L=33	1-09700-947-0	01	1	0106-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (C) ID=18 L=28 H=30	1-09701-110-0	01	1	0106-
286	CLIP; NYLON TUBE BRAKE REGULATION ECE<TDV> FULLER M/T<X9B> (B) L=140	5-09707-031-1	01	1	0105-0105
286	CLIP; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	0106-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (B) L=250	1-09707-126-0	02	1	0105-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	0105-0109
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	1-09707-126-0	01	1	0110-
286	CLIP; NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	03	1	0105-
306	CLIP; NYLON TUBE BRAKE REGULATION ECE<TDV> ID=24 L=32	1-09700-766-1	01	1	0105-
348	CLIP; AIR PIPE (B) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0105-
348	CLIP; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	9-09535-225-0	02	1	0105-0606
348	CLIP; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	0-95325-225-0	02	1	0607-
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> (C) ID=7 L=20	9-09524-635-0	02	1	0109-0606
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> (C) ID=7 L=20	0-95234-635-0	02	1	0607-
375	CLIP; AIR PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0108
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0109-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0109-

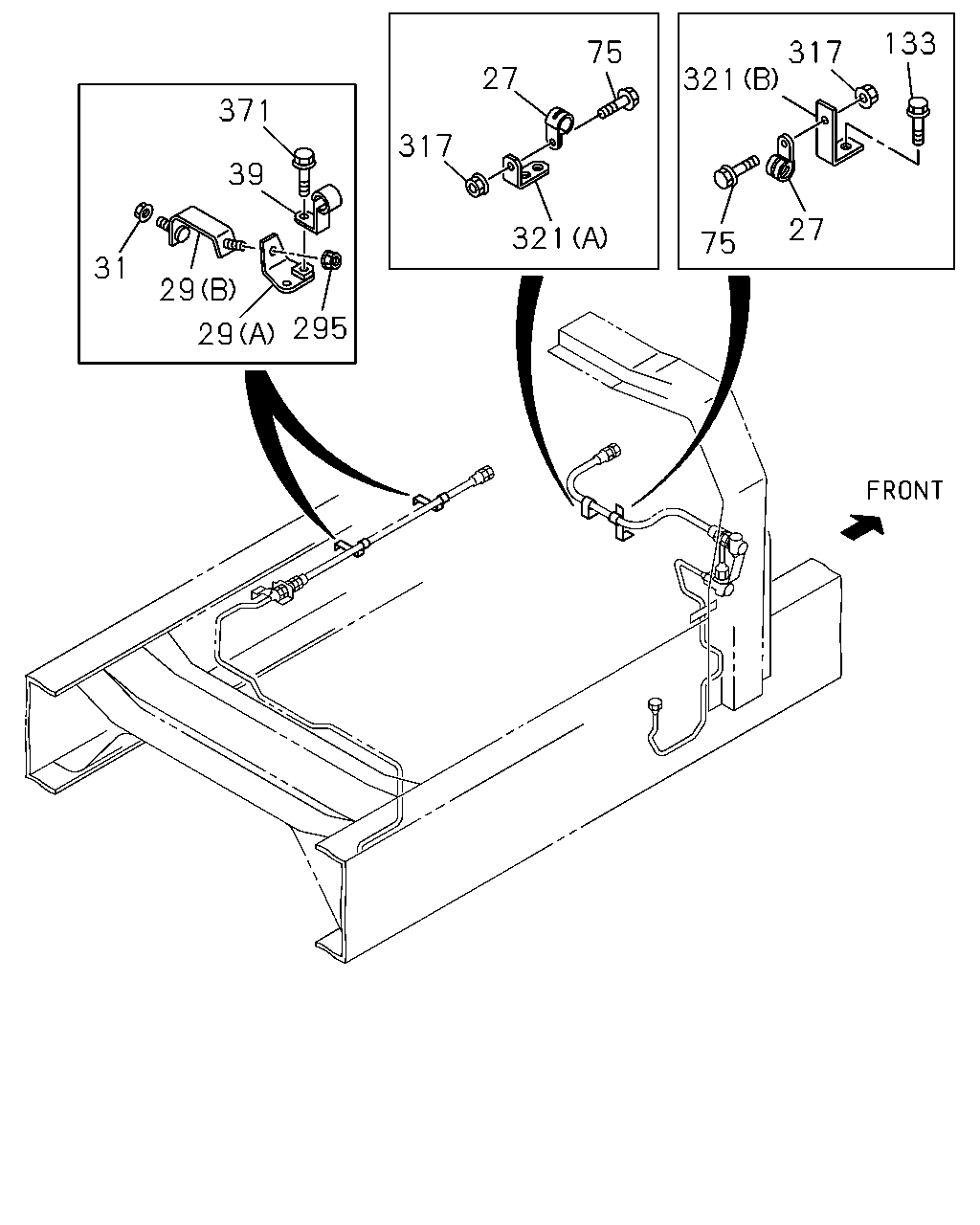

75 27 133 317 321 75 27 317 321 371 39 295 29 29 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	CLIP; FLEX HOSE 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=10 & 10	1-09709-277-1	01	1	0105-
27	CLIP; FLEX HOSE 6WF1 TC-C(1B8) ID=15 L=28	1-09701-216-0	02	1	0105-0108
27	CLIP; FLEX HOSE 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> ID=15 L=28	1-09701-216-0	02	1	0109-
29	BRACKET; CLIP,AIR PIPE (A)	1-47478-743-0	01	1	0105-0105
29	BRACKET; CLIP,AIR PIPE (B)	1-47478-812-0	01	1	0105-0105
29	BRACKET; CLIP,AIR PIPE 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> (A)	1-47478-743-0	02	1	0105-0105
29	BRACKET; CLIP,AIR PIPE 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> (B)	1-47478-812-0	02	1	0105-0105
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0105
31	NUT; CLIP BRKT 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	04	1	0105-0105
39	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
75	BOLT; CLIP 6WF1 TC-C(1B8) M8X16 FLANGE	0-28080-816-0	02	1	0105-0108
75	BOLT; CLIP 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> M8X16 FLANGE	0-28080-816-0	02	1	0109-0512
75	BOLT; CLIP 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> M8X16 FLANGE	0-28050-816-0	02	1	0601-
133	BOLT; BRKT CAB UP +110MM<TGG> M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
133	BOLT; BRKT CAB UP +110MM<TGG> M8X20 FLANGE	0-28050-820-0	01	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
133	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	02	1	0105-0204
133	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M10X25 FLANGE	0-28681-025-0	02	1	0205-0512
133	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M10X25 FLANGE	0-28651-025-0	02	1	0601-
133	BOLT; BRKT 6WF1 TC-C(1B8) M6X10 FLANGE	0-28080-610-0	01	1	0105-0108
133	BOLT; BRKT 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28080-610-0	01	1	0109-0512
133	BOLT; BRKT 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0601-
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
317	NUT; CLIP BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	01	1	0105-0602
317	NUT; CLIP BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91180-108-0	01	1	0603-
317	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0105-0108
317	NUT; CLIP 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	02	1	0109-0602
317	NUT; CLIP 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0603-
321	BRACKET; CLIP FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D)	1-47479-316-0	01	1	0110-
321	BRACKET; CLIP (D)	1-47477-810-0	01	1	0105-0109
321	BRACKET; CLIP EXC. FULL TRACTOR TRUCK<RD6> (D)	1-47477-810-0	01	1	0110-
321	BRACKET; CLIP 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (C)	1-47477-386-2	01	1	0105-
321	BRACKET; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (C)	1-47477-472-1	01	1	0105-
321	BRACKET; CLIP 6WF1 TC-C(1B8) (A)	1-47477-337-1	01	1	0105-0108
321	BRACKET; CLIP 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> (A)	1-47477-337-1	01	1	0109-
321	BRACKET; CLIP 6WF1 TC-C(1B8) (B) L=75	1-47478-328-0	01	1	0105-0108
321	BRACKET; CLIP 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	0109-
371	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
371	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
