◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10882 - CXH RHD ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#27628) — 87 parça

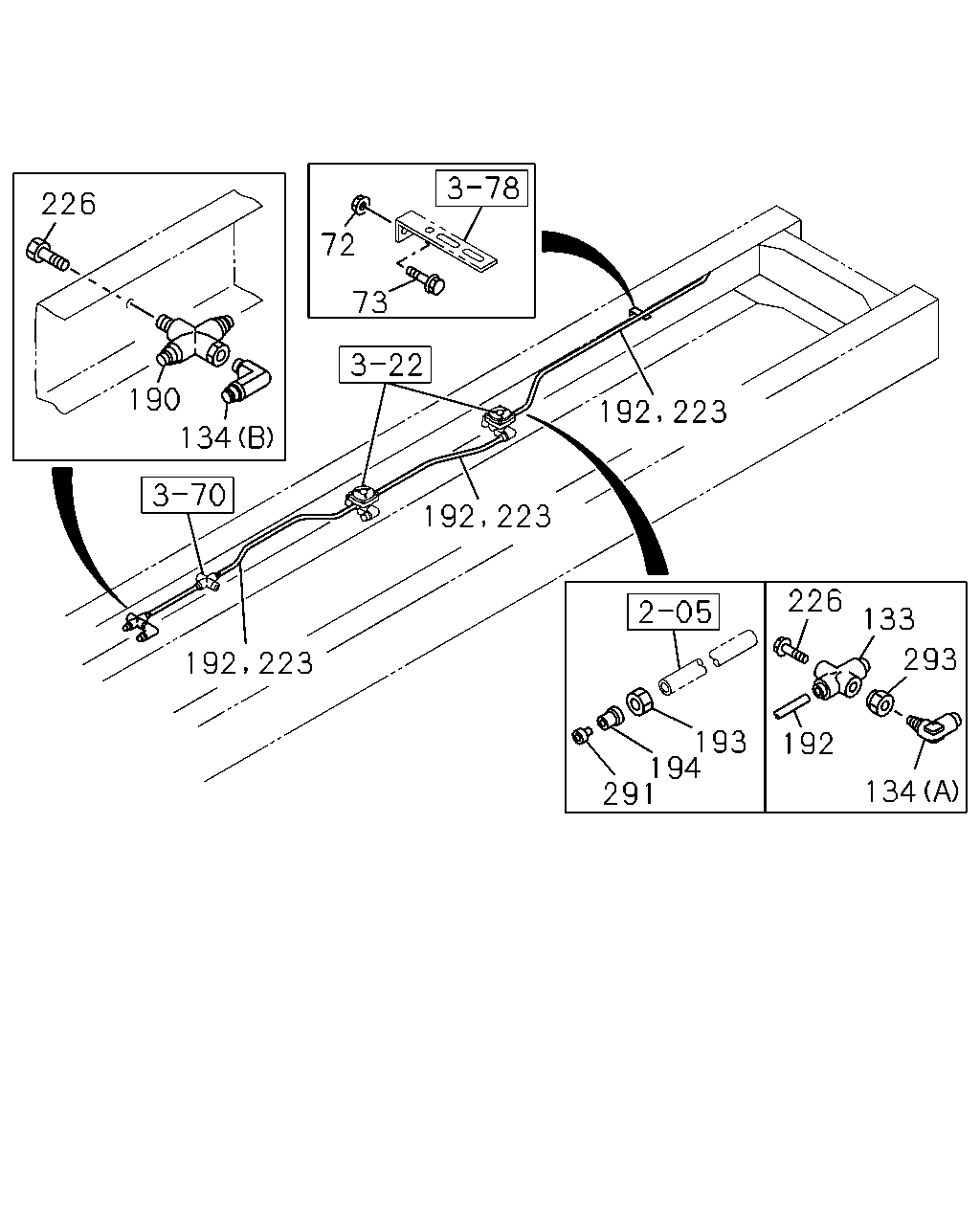

çizim 24384
134 192 293 133 226 193 194 291 223 192 192 223 192 223 73 72 134 190 226
BalonParca AdiParca NoAdetTipApplied Date
72 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 01 1 0105-0602
72 NUT; BRKT
BRAKE REGULATION ECE<TDV> M8 FLANGE 		0-91150-108-0 01 1 0105-0602
72 NUT; BRKT
BRAKE REGULATION ECE<TDV> M8 FLANGE 		0-91180-108-0 01 1 0603-
72 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 0603-
73 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 04 1 0105-0512
73 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
133 UNION; NIPPLE
BRAKE REGULATION ECE<TDV> DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0105-
134 CONNECTOR
BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
134 CONNECTOR
BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
190 UNION; 3 WAY
BRAKE REGULATION ECE<TDV> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0312
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0312
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0401-
193 NUT; SLEEVE
ZF M/T<X9E> M18 		1-09660-213-0 01 1 0105-0105
194 SLEEVE; TUBE
ZF M/T<X9E> ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0105-0105
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0105-
226 BOLT; UNION
BRAKE REGULATION ECE<TDV> M8X20 FLANGE 		0-28080-820-0 01 1 0105-0512
226 BOLT; UNION
BRAKE REGULATION ECE<TDV> M8X20 FLANGE 		0-28050-820-0 01 1 0601-
226 BOLT; UNION
BRAKE REGULATION ECE<TDV> M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
226 BOLT; UNION
BRAKE REGULATION ECE<TDV> M8X20 FLANGE 		0-28650-820-0 01 1 0601-
291 INSERT
ZF M/T<X9E> ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0105-0105
293 VALVE; CHECK
BRAKE REGULATION ECE<TDV> 		1-48320-013-2 01 1 0105-
çizim 79764
81
BalonParca AdiParca NoAdetTipApplied Date
81 CONNECTOR; NYLON TUBE,FRAME
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-

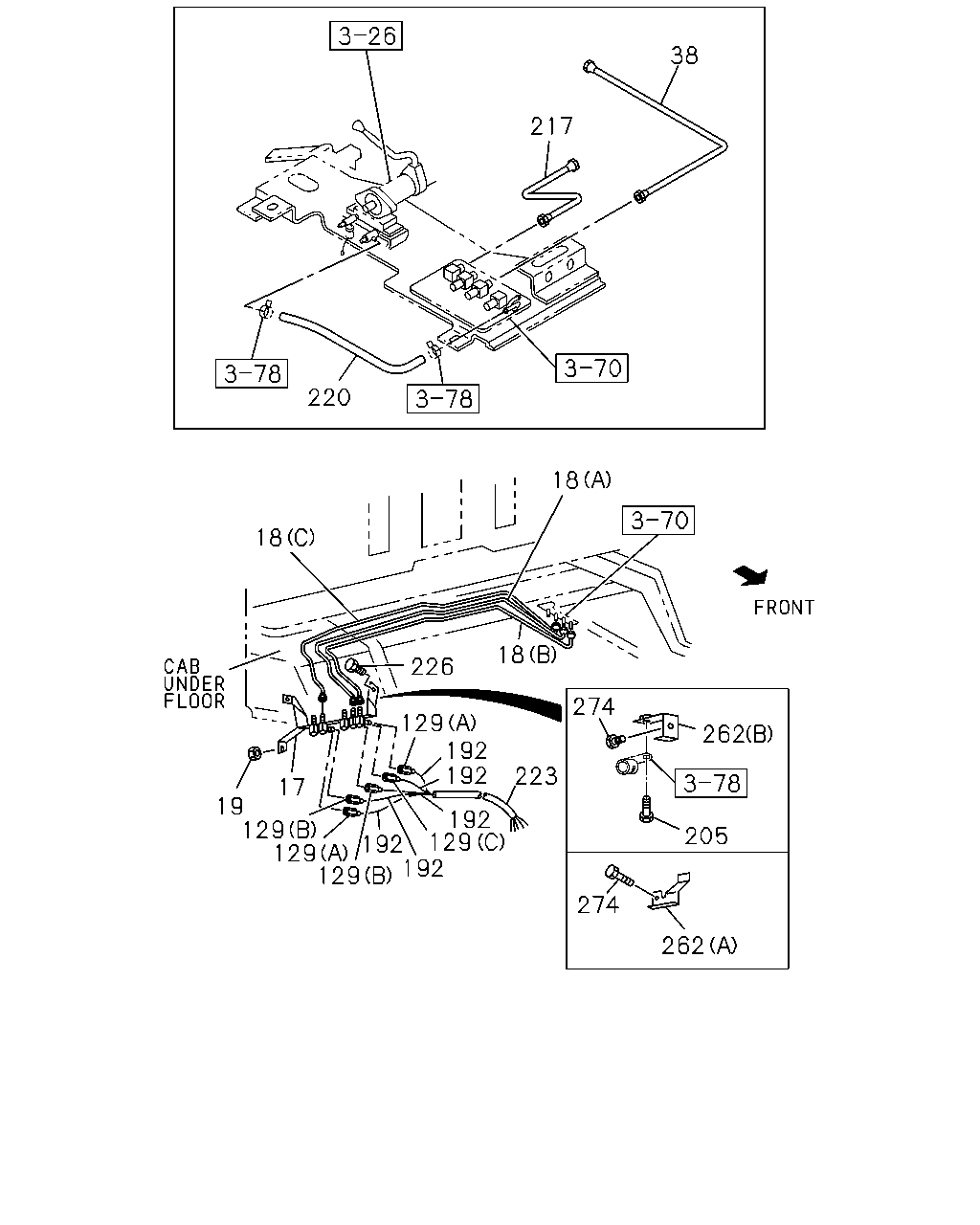

çizim 79838
262 274 205 262 274 18 223 192 192 129 226 192 129 192 192 129 129 129 19 17 18 18 220 217 38
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47470-453-2 01 1 0105-
17 UNION; AIR PIPE
EXC. FULL TRACTOR TRUCK<RD6> 		1-47470-456-2 01 1 0105-
18 PIPE; AIR,UNION TO UNION
(A) L=1800 		1-49121-052-0 01 1 0105-
18 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1854 		1-49121-053-0 01 1 0105-
18 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1982 		1-49121-055-1 01 1 0105-
18 PIPE; AIR,UNION TO UNION
EXC. FULL TRACTOR TRUCK<RD6> (C) L=1942 		1-49121-057-0 01 1 0105-
19 NUT; PIPE UNION
M8 		9-09110-408-0 01 1 0105-0512
19 NUT; PIPE UNION
M8 		0-91110-508-0 01 1 0601-
38 PIPE; AIR,UNION TO MAG VLV
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6> 		1-49116-870-0 01 1 0105-0106
38 PIPE; AIR,UNION TO MAG VLV
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL TRACTOR TRUCK<RD6> 		1-49116-870-0 01 1 0107-
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0105-
129 CONNECTOR; NYLON TUBE
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0105-
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0107-
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> (B) 		1-09661-083-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> (B) 		1-09661-083-0 01 1 0107-
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0107-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0312
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0312
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0401-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0105-0512
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
217 PIPE; AIR,PARKING BRK VLV TO UNION
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6> 		1-49116-871-0 01 1 0105-0106
217 PIPE; AIR,PARKING BRK VLV TO UNION
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL TRACTOR TRUCK<RD6> 		1-49116-871-0 01 1 0107-
220 HOSE; VINYL,EXH,PARKING BRK VLV
FULL TRACTOR TRUCK<RD6> FULLER M/T<X9B>,ZF M/T<X9E> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0106-0106
220 HOSE; VINYL,EXH,PARKING BRK VLV
ZF M/T<X9E> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-0105
220 HOSE; VINYL,EXH,PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0106-0106
220 HOSE; VINYL,EXH,PARKING BRK VLV
ISUZU M/T<X9A>,FULLER M/T<X9B> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0105-
226 BOLT; UNION
BRAKE REGULATION ECE<TDV> M8X20 FLANGE 		0-28080-820-0 01 1 0105-0512
226 BOLT; UNION
BRAKE REGULATION ECE<TDV> M8X20 FLANGE 		0-28050-820-0 01 1 0601-
226 BOLT; UNION
BRAKE REGULATION ECE<TDV> M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
226 BOLT; UNION
BRAKE REGULATION ECE<TDV> M8X20 FLANGE 		0-28650-820-0 01 1 0601-
262 BRACKET
(B) 		1-79996-143-0 01 1 0105-
262 BRACKET
(A) 		1-79996-144-0 01 1 0105-
274 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
274 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
274 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0105-
