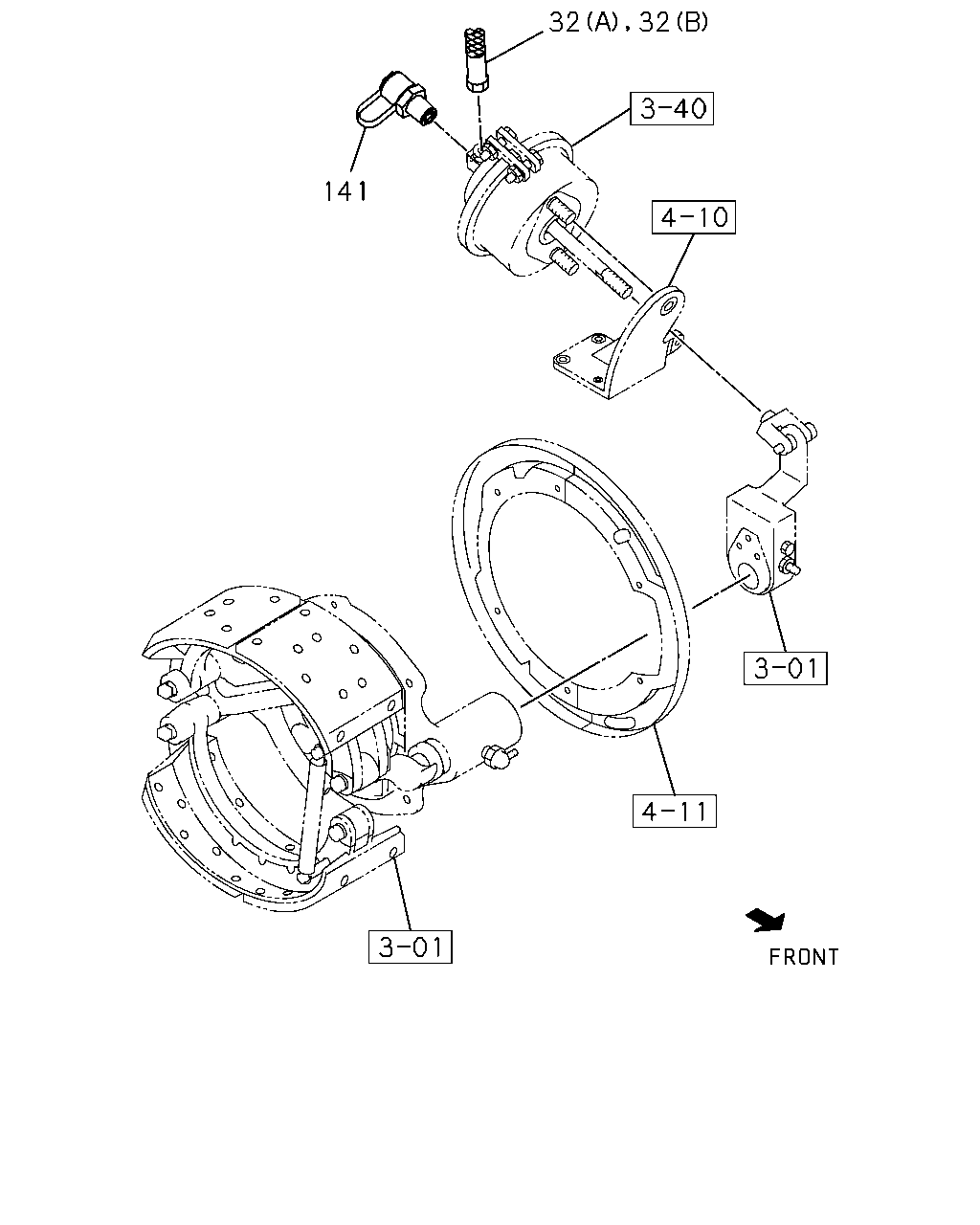

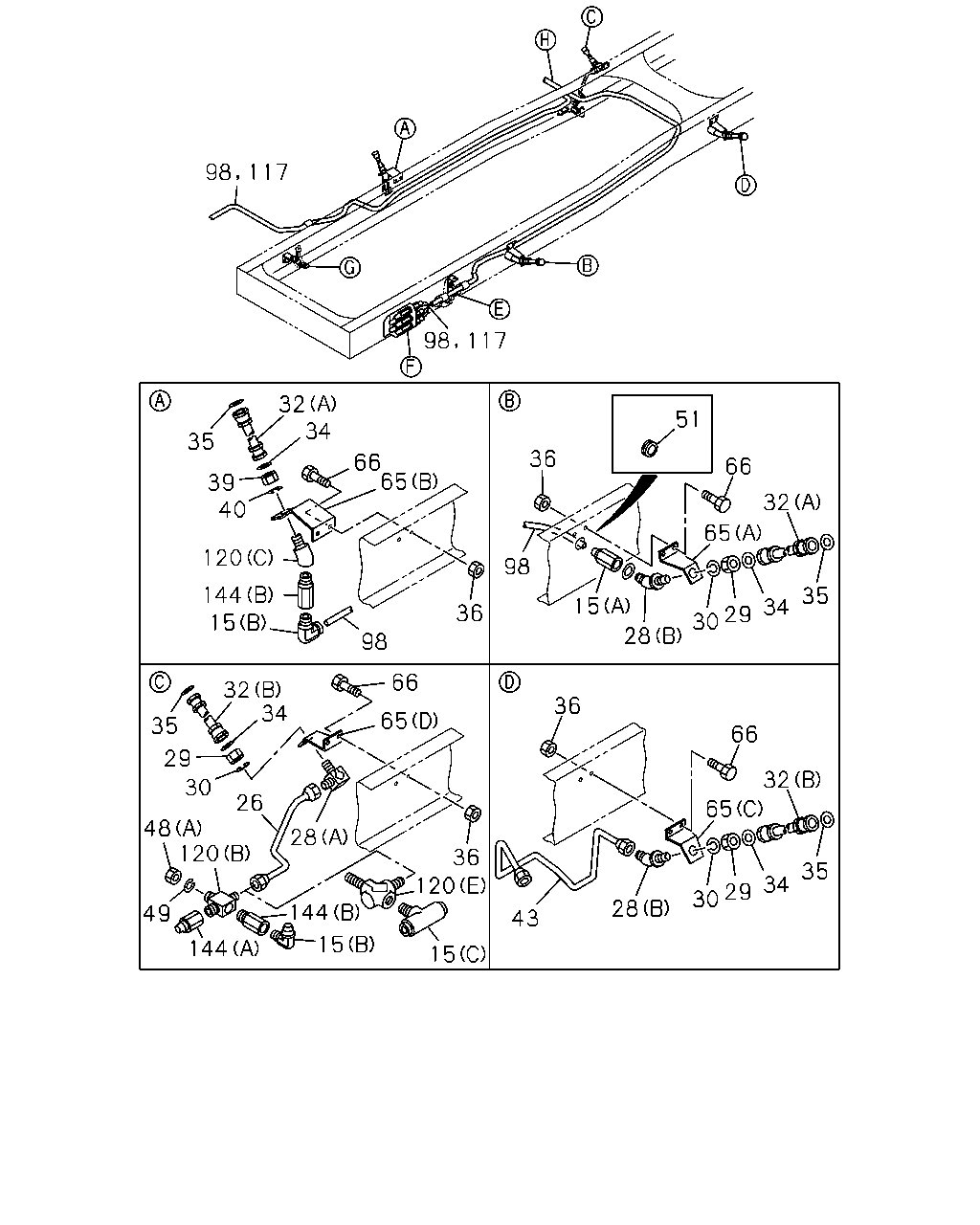

3-75 — BRAKE PIPING; AIR,FRONT (#27627) — 150 parça

141 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	HOSE; FLEX,FRT (A) L=500	0-07847-500-1	02	1	0105-0605
32	HOSE; FLEX,FRT (A) L=500	0-57847-500-1	02	1	0606-
32	HOSE; FLEX,FRT (B) L=630	0-07847-630-1	02	1	0105-0605
32	HOSE; FLEX,FRT (B) L=630	0-57847-630-1	02	1	0606-
141	CONNECTOR; TEST BRAKE REGULATION ECE<TDV> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-

35 34 29 30 28 43 65 32 66 36 36 120 15 15 144 144 49 120 48 28 26 30 29 35 34 32 65 66 98 36 98 36 15 28 30 29 34 35 32 66 65 51 15 120 144 40 39 35 66 65 34 32 98 117 117 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CONNECTOR; AIR PIPE (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0109-
15	CONNECTOR; AIR PIPE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
15	CONNECTOR; AIR PIPE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-0108
15	CONNECTOR; AIR PIPE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-0108
15	CONNECTOR; AIR PIPE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0109-
26	PIPE; AIR,UNION TO FLEX HOSE	1-49117-318-0	01	1	0105-
28	NIPPLE; AIR PIPE (A)	1-09654-119-1	01	1	0105-
28	NIPPLE; AIR PIPE (B) M16	1-09654-174-1	02	1	0105-
29	NUT; NIPPLE M20	9-99111-420-0	03	1	0105-0512
29	NUT; NIPPLE M20	0-91111-520-0	03	1	0601-
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	03	1	0105-0603
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	03	1	0604-
32	HOSE; FLEX,FRT (A) L=500	0-07847-500-1	02	1	0105-0605
32	HOSE; FLEX,FRT (A) L=500	0-57847-500-1	02	1	0606-
32	HOSE; FLEX,FRT (B) L=630	0-07847-630-1	02	1	0105-0605
32	HOSE; FLEX,FRT (B) L=630	0-57847-630-1	02	1	0606-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0105-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0105-
36	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	08	1	0105-0602
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	08	1	0603-
39	NUT; PIPE UNION M20	9-99111-420-0	01	1	0105-0512
39	NUT; PIPE UNION M20	0-91111-520-0	01	1	0601-
40	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	0105-0603
40	WASHER; LK,PIPE UNION ID=20.2	0-91510-520-0	01	1	0604-
43	PIPE; AIR,RELAY VLV TO FLEX HOSE	1-49122-468-0	01	1	0105-0109
43	PIPE; AIR,RELAY VLV TO FLEX HOSE	1-49123-334-0	01	1	0110-
48	NUT; UNION BRKT (C) M8 FLANGE	0-91150-108-0	01	1	0105-0602
48	NUT; UNION BRKT (C) M8 FLANGE	0-91180-108-0	01	1	0603-
48	NUT; UNION BRKT (B) M12 FLANGE	0-91150-212-0	01	1	0105-0602
48	NUT; UNION BRKT (B) M12 FLANGE	0-91180-212-0	01	1	0603-
48	NUT; UNION BRKT (A) M12	9-99111-412-0	01	1	0105-0108
48	NUT; UNION BRKT (A) M16	9-99110-516-0	01	1	0109-0512
48	NUT; UNION BRKT (A) M16	0-91110-516-0	01	1	0601-
49	WASHER; LK,UNION BRKT ID=12.2	9-09150-512-0	01	1	0105-0108
49	WASHER; LK,UNION BRKT ID=16.2	9-09150-516-0	01	1	0109-0603
49	WASHER; LK,UNION BRKT ID=16.2	0-91510-516-0	01	1	0604-
51	GROMMET; NYLON TUBE ID=28 OD=35 T=25	1-09332-011-1	01	1	0105-
51	GROMMET; NYLON TUBE ID=24 OD=30 T=22	1-09332-104-0	01	1	0105-
65	BRACKET; FLEX HOSE (C)	1-47465-377-0	01	1	0105-
65	BRACKET; FLEX HOSE (A)	1-47477-770-0	01	1	0105-
65	BRACKET; FLEX HOSE (D)	1-47477-365-0	01	1	0105-
65	BRACKET; FLEX HOSE (B)	1-47477-524-0	01	1	0105-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28680-830-0	06	1	0105-0512
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	06	1	0601-
66	BOLT; HOSE BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
66	BOLT; HOSE BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0105-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0105-
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0105-
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0107-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87410-101-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-
120	UNION; AIR PIPE (C) M16	1-09654-174-1	01	1	0105-
120	UNION; AIR PIPE (B) M16	9-09238-310-1	01	1	0105-0108
120	UNION; AIR PIPE (E) M16 & PT3/8 2WAY	1-09654-239-1	01	1	0109-
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-09223-308-1	03	1	0105-0607
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	0-92113-308-0	03	1	0608-
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D) M16 L=74	9-09233-310-1	02	1	0105-0607
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D) M16 L=74	0-92123-310-0	02	1	0608-
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (A) M14	9-09223-308-1	01	1	0105-0607
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (A) M14	0-92113-308-0	01	1	0608-
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (D) M16 L=74	9-09233-310-1	01	1	0105-0607
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (D) M16 L=74	0-92123-310-0	01	1	0608-
144	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-0108
144	ADAPTER (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0109-
144	ADAPTER (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0105-0108
144	ADAPTER (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0105-0108

98 117 50 48 55 56 48 55 95 120 47 56 95 120 78 83 95 105 95 83 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	BRACKET; PIPE UNION EXC. FULL TRACTOR TRUCK<RD6>	1-47477-601-2	01	1	0105-
47	BRACKET; PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-47477-601-2	01	1	0105-
48	NUT; UNION BRKT (C) M8 FLANGE	0-91150-108-0	01	1	0105-0602
48	NUT; UNION BRKT (C) M8 FLANGE	0-91180-108-0	01	1	0603-
48	NUT; UNION BRKT (B) M12 FLANGE	0-91150-212-0	01	1	0105-0602
48	NUT; UNION BRKT (B) M12 FLANGE	0-91180-212-0	01	1	0603-
48	NUT; UNION BRKT (A) M12	9-99111-412-0	01	1	0105-0108
48	NUT; UNION BRKT (A) M16	9-99110-516-0	01	1	0109-0512
48	NUT; UNION BRKT (A) M16	0-91110-516-0	01	1	0601-
50	SLEEVE; RUBBER,NYLON TUBE ID=32 OD=36 L=50	1-09337-023-0	01	1	0105-
55	BRACKET; TUBE UNION (B) L=60 H=30	1-47477-716-1	01	1	0105-0112
55	BRACKET; TUBE UNION (A)	1-47477-895-1	01	1	0105-
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
56	BOLT; UNION BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
56	BOLT; UNION BRKT (A) M10X40 FLANGE	0-28651-040-0	02	1	0601-
78	WASHER; LK,PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ID=14.2	9-09150-514-0	03	1	0105-0603
78	WASHER; LK,PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ID=14.2	0-91510-514-0	03	1	0604-
78	WASHER; LK,PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ID=16.2	9-09150-516-0	02	1	0105-0603
78	WASHER; LK,PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ID=16.2	0-91510-516-0	02	1	0604-
78	WASHER; LK,PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> ID=14.2	9-09150-514-0	01	1	0105-0603
78	WASHER; LK,PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> ID=14.2	0-91510-514-0	01	1	0604-
78	WASHER; LK,PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> ID=16.2	9-09150-516-0	01	1	0105-0603
78	WASHER; LK,PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> ID=16.2	0-91510-516-0	01	1	0604-
83	NUT; PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M14	9-99111-414-0	03	1	0105-0512
83	NUT; PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M14	0-91111-514-0	03	1	0601-
83	NUT; PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M16	9-99111-416-0	02	1	0105-0512
83	NUT; PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M16	0-91111-516-0	02	1	0601-
83	NUT; PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> M14	9-99111-414-0	01	1	0105-0512
83	NUT; PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> M14	0-91111-514-0	01	1	0601-
83	NUT; PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> M16	9-99111-416-0	01	1	0105-0512
83	NUT; PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> M16	0-91111-516-0	01	1	0601-
95	ADAPTER; BRKT FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	06	1	0105-
95	ADAPTER; BRKT FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	0105-
95	ADAPTER; BRKT EXC. FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0105-
95	ADAPTER; BRKT EXC. FULL TRACTOR TRUCK<RD6> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0105-
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0105-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0105-
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0105-
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0107-
105	CONNECTOR; AIR PIPE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87410-101-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0105-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-
120	UNION; AIR PIPE (C) M16	1-09654-174-1	01	1	0105-
120	UNION; AIR PIPE (B) M16	9-09238-310-1	01	1	0105-0108
120	UNION; AIR PIPE (E) M16 & PT3/8 2WAY	1-09654-239-1	01	1	0109-
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-09223-308-1	03	1	0105-0607
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	0-92113-308-0	03	1	0608-
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D) M16 L=74	9-09233-310-1	02	1	0105-0607
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D) M16 L=74	0-92123-310-0	02	1	0608-
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (A) M14	9-09223-308-1	01	1	0105-0607
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (A) M14	0-92113-308-0	01	1	0608-
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (D) M16 L=74	9-09233-310-1	01	1	0105-0607
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (D) M16 L=74	0-92123-310-0	01	1	0608-
