Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#27626) — 406 parça

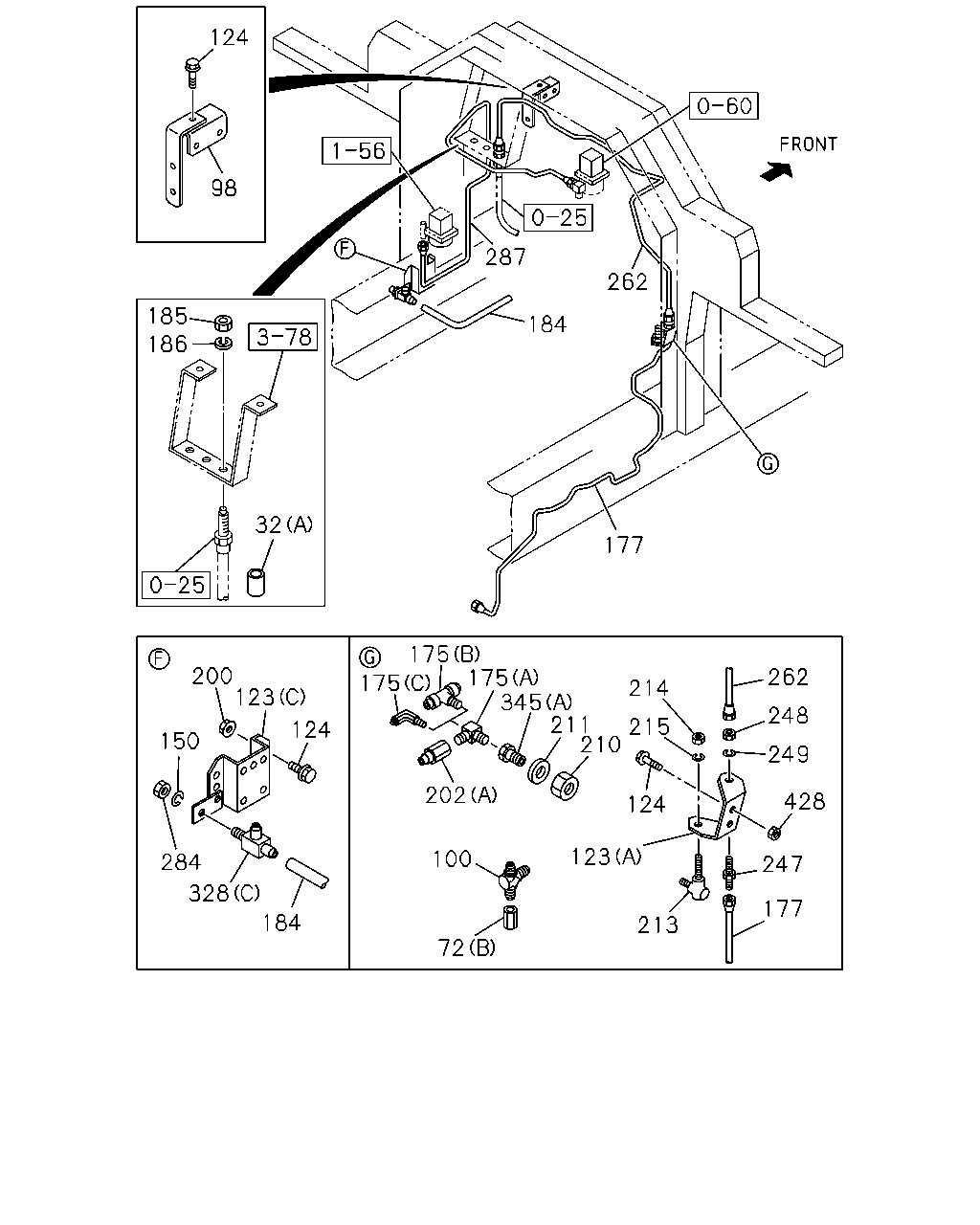

177 247 428 249 248 262 214 215 124 123 213 100 72 202 210 211 345 175 175 175 124 184 328 284 150 123 200 32 177 184 262 287 98 124 185 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	SLEEVE; RUBBER,AIR PIPE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=6 L=30	5-09360-352-0	01	1	0105-
32	SLEEVE; RUBBER,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=12.5 OD=15.5 L=30	9-09714-002-0	02	1	0105-0105

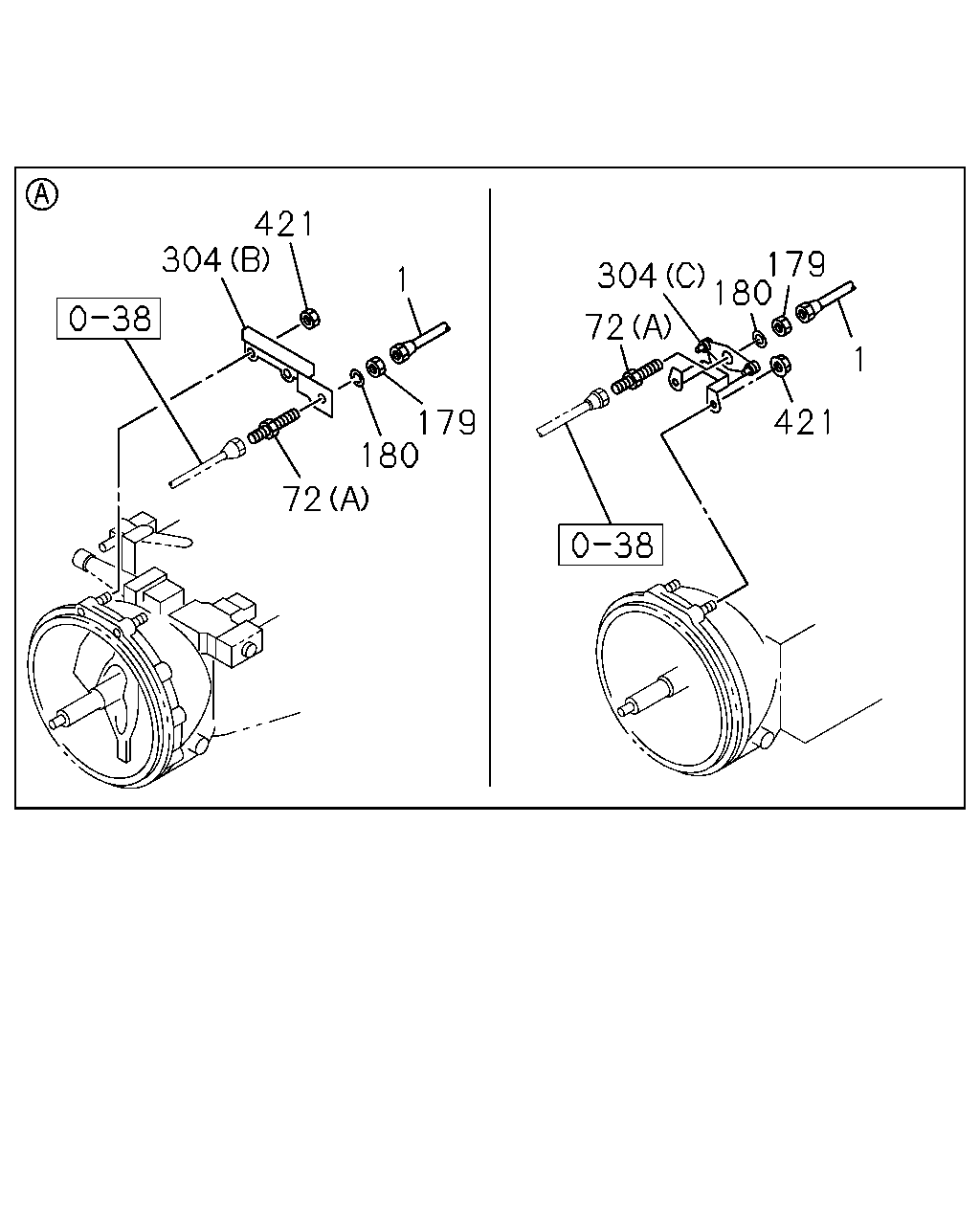

72	UNION; AIR PIPE MIXER TRUCK<RA2> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-
72	UNION; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. FULLER M/T<X9B> (A) M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0105-
72	UNION; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FULLER M/T<X9B> (A) M20 & M22 STRAIGHT	1-09654-097-1	01	1	0105-
98	BRACKET; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L)	1-47477-471-0	01	1	0105-
100	CONNECTOR; AIR PIPE MIXER TRUCK<RA2> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0105-
123	BRACKET; UNION 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> (C)	1-82569-345-0	01	1	0109-
123	BRACKET; UNION EXC. FULL FLOATING CAB(W16) (B)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION (A)	1-47477-045-0	01	1	0105-
124	BOLT; BRKT 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28680-820-0	01	1	0109-0512
124	BOLT; BRKT 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	01	1	0601-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
124	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
124	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	01	1	0105-0108
124	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	01	1	0109-0512
124	BOLT; BRKT 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X25 FLANGE	0-28680-825-0	01	1	0109-0512
124	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X25 FLANGE	0-28650-825-0	01	1	0601-
124	BOLT; BRKT 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X25 FLANGE	0-28650-825-0	01	1	0601-
150	WASHER; LK,UNION 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> ID=12.2	9-09150-512-0	01	1	0109-0603
150	WASHER; LK,UNION 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> ID=12.2	0-91510-512-0	01	1	0604-
175	CONNECTOR; AIR PIPE (A) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0105-
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A>,ZF M/T<X9E> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0105
175	CONNECTOR; AIR PIPE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0105
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A>,ZF M/T<X9E> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
175	CONNECTOR; AIR PIPE FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
175	CONNECTOR; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-0105
175	CONNECTOR; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0106-
177	PIPE; AIR,UNION TO UNION MIXER TRUCK<RA2> CAB UP +110MM<TGG>	1-49122-932-0	01	1	0105-
177	PIPE; AIR,UNION TO UNION MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> L=1444 SERVICED BY L=1500	1-47428-819-0	01	1	0105-
177	PIPE; AIR,UNION TO UNION EXC. MIXER TRUCK<RA2>	1-49122-248-0	01	1	0105-
184	HOSE; FLEX,AIR GOV 6WF1 TC-C(1B8) MIXER TRUCK<RA2> L=350	1-09363-877-0	01	1	0109-
184	HOSE; FLEX,AIR GOV 6WF1 TC-C(1B8) L=780	1-09363-620-0	01	1	0105-0108
184	HOSE; FLEX,AIR GOV 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> L=780	1-09363-620-0	01	1	0109-
185	NUT; FLEX HOSE,AIR GOV 6WA1 TC-C(55L),6WG1 TC-C(72L) M12	9-09840-280-0	01	1	0105-
186	WASHER; LK,FLEX HOSE,AIR GOV 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=12.2	9-09150-512-0	01	1	0105-0603
186	WASHER; LK,FLEX HOSE,AIR GOV 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=12.2	0-91510-512-0	01	1	0604-
200	NUT; BRKT 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	02	1	0109-0602
200	NUT; BRKT 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0603-
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
202	ADAPTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-0105
202	ADAPTER DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-
210	NUT; UNION M12	9-09840-280-0	01	1	0105-
211	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603
211	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
213	UNION; AIR PIPE CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> M12 3WAY	9-09228-906-1	01	1	0105-0607
213	UNION; AIR PIPE FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> M12 3WAY	9-09228-906-1	01	1	0105-0607
213	UNION; AIR PIPE CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> M12 3WAY	0-92138-906-0	01	1	0608-
213	UNION; AIR PIPE FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> M12 3WAY	0-92138-906-0	01	1	0608-
213	UNION; AIR PIPE MIXER TRUCK<RA2> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) M12 ELBOW	9-09225-206-1	01	1	0105-0607
213	UNION; AIR PIPE EXC. FULL FLOATING CAB(W16) M12 ELBOW	9-09225-206-1	01	1	0105-0607
213	UNION; AIR PIPE MIXER TRUCK<RA2> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) M12 ELBOW	0-92125-206-0	01	1	0608-
213	UNION; AIR PIPE EXC. FULL FLOATING CAB(W16) M12 ELBOW	0-92125-206-0	01	1	0608-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0105-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	0105-0603
215	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-512-0	01	1	0604-
247	UNION; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M12 L=66.5	9-09223-306-1	01	1	0105-0108
247	UNION; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> M12 L=66.5	9-09223-306-1	01	1	0109-0607
247	UNION; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M12 L=66.5	9-09223-306-1	01	1	0109-0607
247	UNION; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> M12 L=66.5	0-92113-306-0	01	1	0608-
247	UNION; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M12 L=66.5	0-92113-306-0	01	1	0608-
247	UNION; AIR PIPE 6WF1 TC-C(1B8) M12 ELBOW	9-09225-206-1	01	1	0105-0108
247	UNION; AIR PIPE 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> M12 ELBOW	9-09225-206-1	01	1	0109-0607
247	UNION; AIR PIPE 6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> M12 ELBOW	0-92125-206-0	01	1	0608-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	0105-
249	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	0105-0603
249	WASHER; LK,PIPE UNION ID=12.2	0-91510-512-0	01	1	0604-
262	PIPE; AIR,UNION TO FLEX 6WF1 TC-C(1B8) MIXER TRUCK<RA2>	1-49123-307-0	01	1	0109-0110
262	PIPE; AIR,UNION TO FLEX 6WF1 TC-C(1B8) MIXER TRUCK<RA2>	1-49123-376-0	01	1	0111-
262	PIPE; AIR,UNION TO FLEX 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> L=896	1-49121-787-0	01	1	0105-
262	PIPE; AIR,UNION TO FLEX 6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG>	1-49121-783-0	01	1	0105-
284	NUT; UNION 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M12	9-09840-280-0	01	1	0109-
287	PIPE; AIR,MAG VLV 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> L=1220	1-49121-788-0	01	1	0105-
287	PIPE; AIR,MAG VLV 6WG1 TC-C(72L) CAB UP +110MM<TGG>	1-49122-365-0	01	1	0105-0202
287	PIPE; AIR,MAG VLV 6WG1 TC-C(72L) CAB UP +110MM<TGG> L=1269 SERVICED BY L=1370	1-47428-818-0	01	1	0203-
328	UNION; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> (C) M12 2WAY	1-09654-059-2	01	1	0109-
328	UNION; AIR PIPE (A)	1-09654-280-1	01	1	0105-
328	UNION; AIR PIPE (B)	1-47470-442-0	01	1	0105-
345	UNION; AIR PIPE (A)	1-09654-280-1	01	1	0105-
345	UNION; AIR PIPE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0105-
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
428	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-

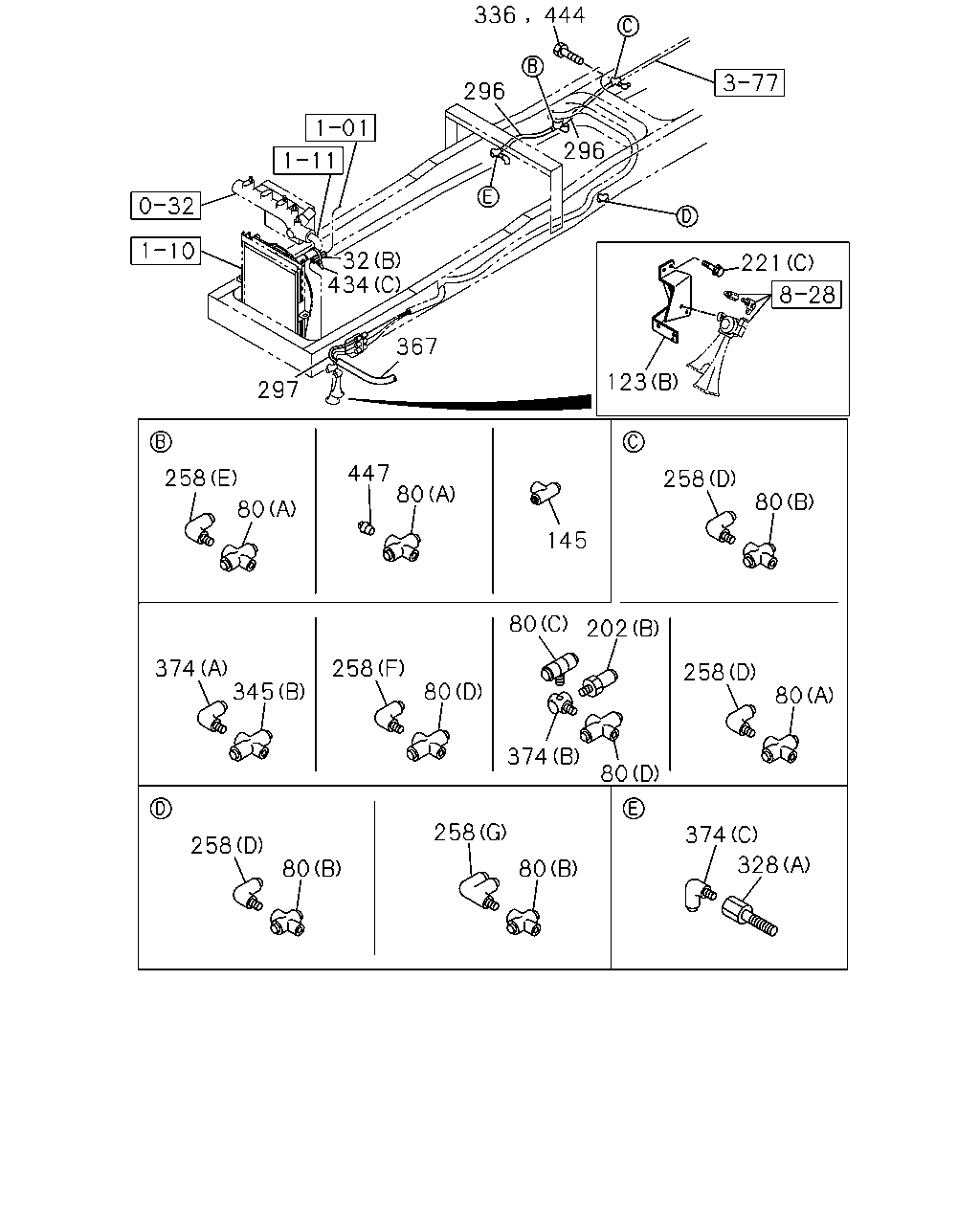

328 374 80 258 202 80 374 80 80 258 80 258 80 258 345 374 80 258 447 80 145 258 80 123 221 444 336 296 296 32 434 367 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	SLEEVE; RUBBER,AIR PIPE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=6 L=30	5-09360-352-0	01	1	0105-
32	SLEEVE; RUBBER,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=12.5 OD=15.5 L=30	9-09714-002-0	02	1	0105-0105
80	UNION; 3 WAY PTO ZF TRANS RR(BDM) ZF M/T<X9E> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0105-0105
80	UNION; 3 WAY FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0105-0105
80	UNION; 3 WAY PTO ZF TRANS RR(BDM) ZF M/T<X9E> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0106-
80	UNION; 3 WAY BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0106-
80	UNION; 3 WAY SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (C) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-0105
80	UNION; 3 WAY DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (C) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-
80	UNION; 3 WAY SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0105-0105
80	UNION; 3 WAY FULLER M/T<X9B>,ZF M/T<X9E> (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0105-0105
80	UNION; 3 WAY DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0106-
80	UNION; 3 WAY FULLER M/T<X9B>,ZF M/T<X9E> (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0106-
80	UNION; 3 WAY ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0105-
80	UNION; 3 WAY ISUZU M/T<X9A> (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0105-
123	BRACKET; UNION 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> (C)	1-82569-345-0	01	1	0109-
123	BRACKET; UNION EXC. FULL FLOATING CAB(W16) (B)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION (A)	1-47477-045-0	01	1	0105-
145	UNION; NYLON TUBE FULLER M/T<X9B> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0106-
145	UNION; NYLON TUBE ZF M/T<X9E> DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0106-
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
202	ADAPTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-0105
202	ADAPTER DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-0512
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-0302
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-0106
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-0106
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-0106
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-0106
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-0106
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0107-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0107-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-

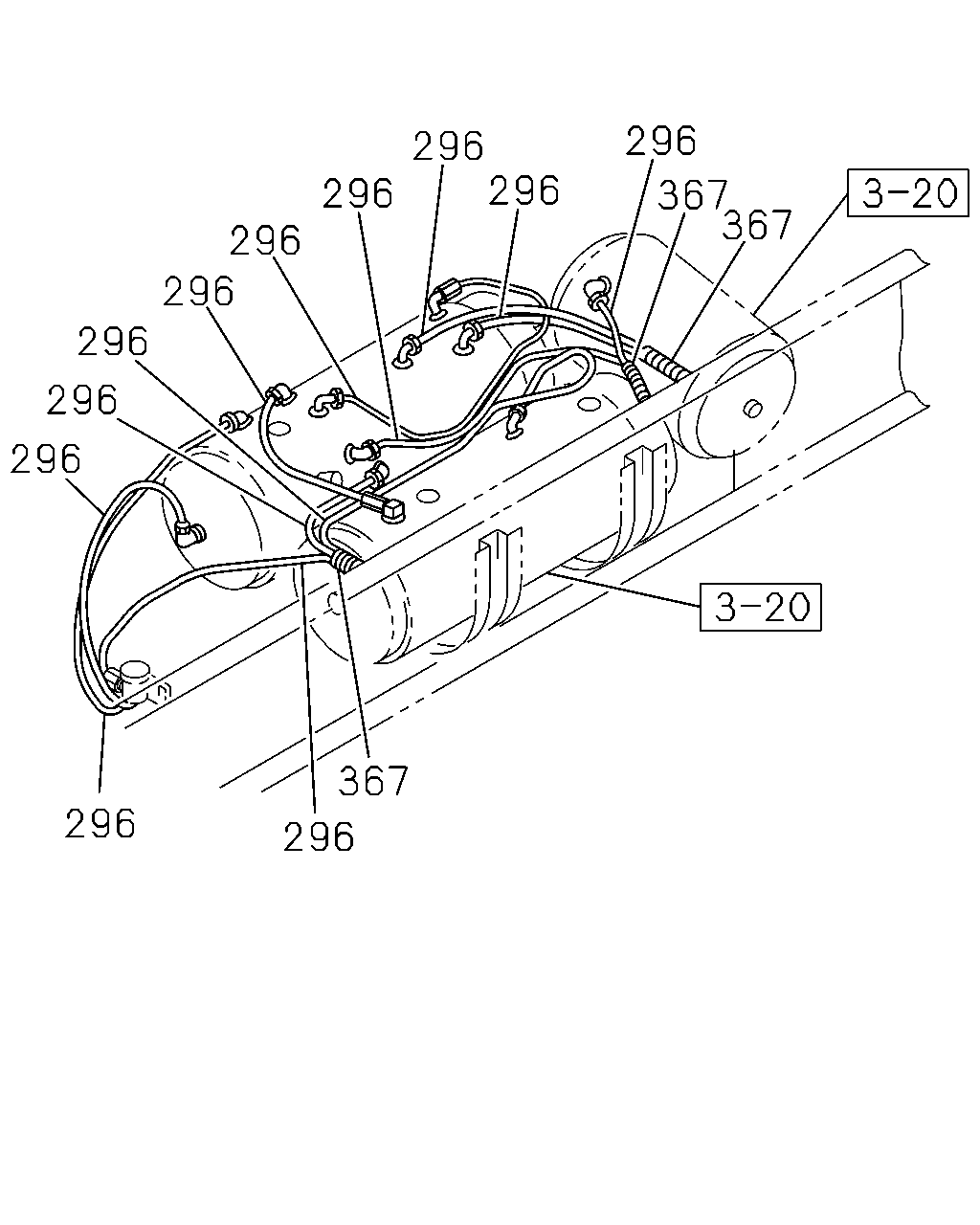

296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0212
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0202
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0301-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0203-

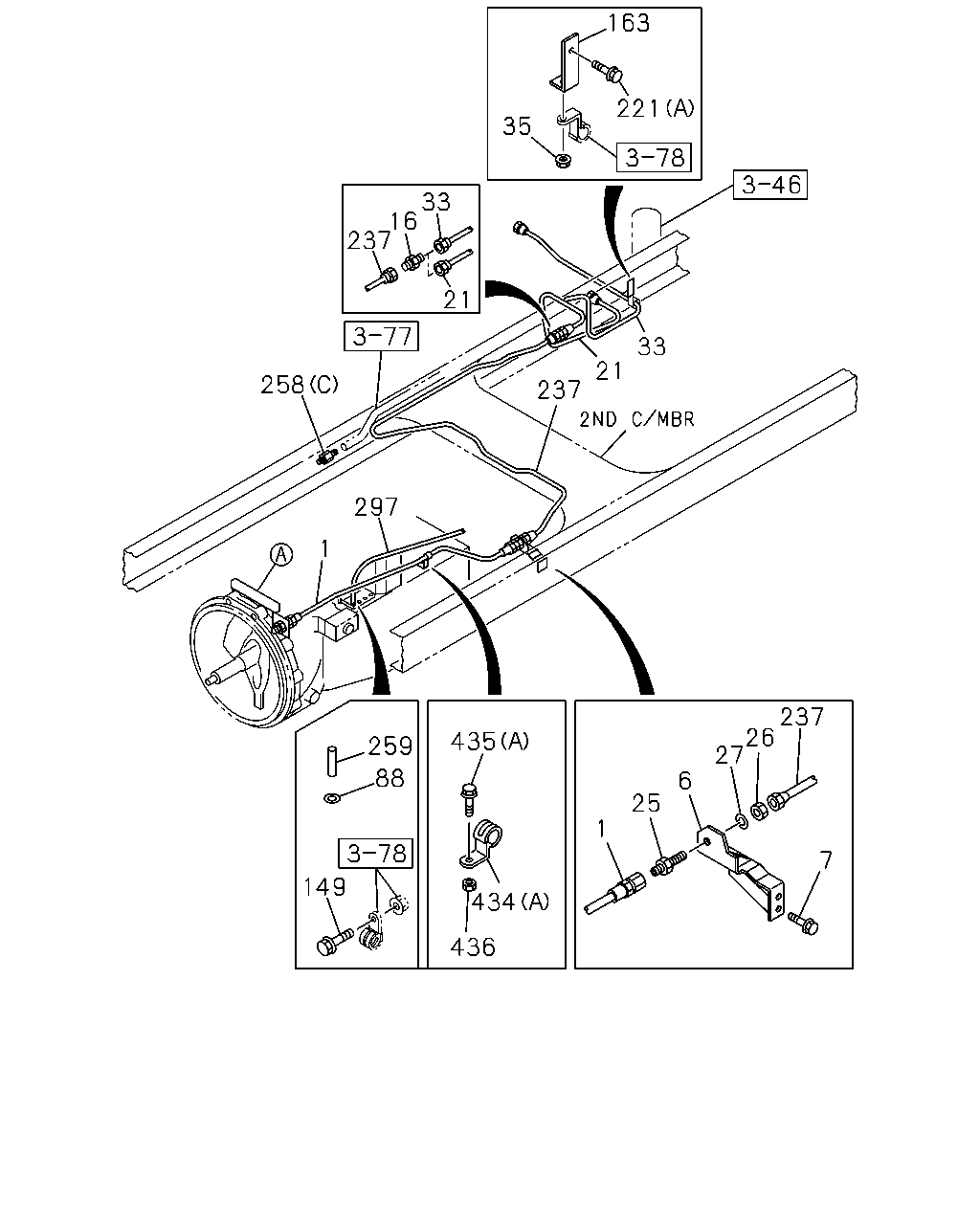

297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0105-
328	UNION; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> (C) M12 2WAY	1-09654-059-2	01	1	0109-
328	UNION; AIR PIPE (A)	1-09654-280-1	01	1	0105-
328	UNION; AIR PIPE (B)	1-47470-442-0	01	1	0105-
336	BOLT; PIPE UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> M8X20 FLANGE	0-28680-820-0	01	1	0105-0105
336	BOLT; PIPE UNION DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
336	BOLT; PIPE UNION ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
336	BOLT; PIPE UNION DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> M8X20 FLANGE	0-28650-820-0	01	1	0601-
336	BOLT; PIPE UNION ZF M/T<X9E> M8X20 FLANGE	0-28650-820-0	01	1	0601-
345	UNION; AIR PIPE (A)	1-09654-280-1	01	1	0105-
345	UNION; AIR PIPE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0107-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0105-
374	CONNECTOR (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
374	CONNECTOR PTO ZF TRANS RR(BDM) ZF M/T<X9E> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
374	CONNECTOR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0105-0105
374	CONNECTOR DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0106-
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0108-
434	CLIP (B) ID=17	8-94449-734-1	01	1	0105-
434	CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=140	5-09707-031-1	01	1	0105-
434	CLIP FULLER M/T<X9B> (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0105-
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0105-0105
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> (A) D=24 L=21	1-09700-380-0	01	1	0106-
434	CLIP 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> (A) ID=25 H=30 L=35	1-09700-875-0	02	1	0105-0105
434	CLIP 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> (A) D=24 L=21	1-09700-380-0	02	1	0106-
444	BOLT; UNION M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
444	BOLT; UNION PTO ZF TRANS RR(BDM) ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
444	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0601-
444	BOLT; UNION PTO ZF TRANS RR(BDM) ZF M/T<X9E> M8X20 FLANGE	0-28650-820-0	01	1	0601-
444	BOLT; UNION FULLER M/T<X9B>,ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
444	BOLT; UNION FULLER M/T<X9B>,ZF M/T<X9E> M8X25 FLANGE	0-28650-825-0	01	1	0601-
447	PLUG; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> PT3/8	9-09204-517-0	01	1	0105-0105
447	PLUG; UNION DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> PT3/8	9-09204-517-0	01	1	0106-

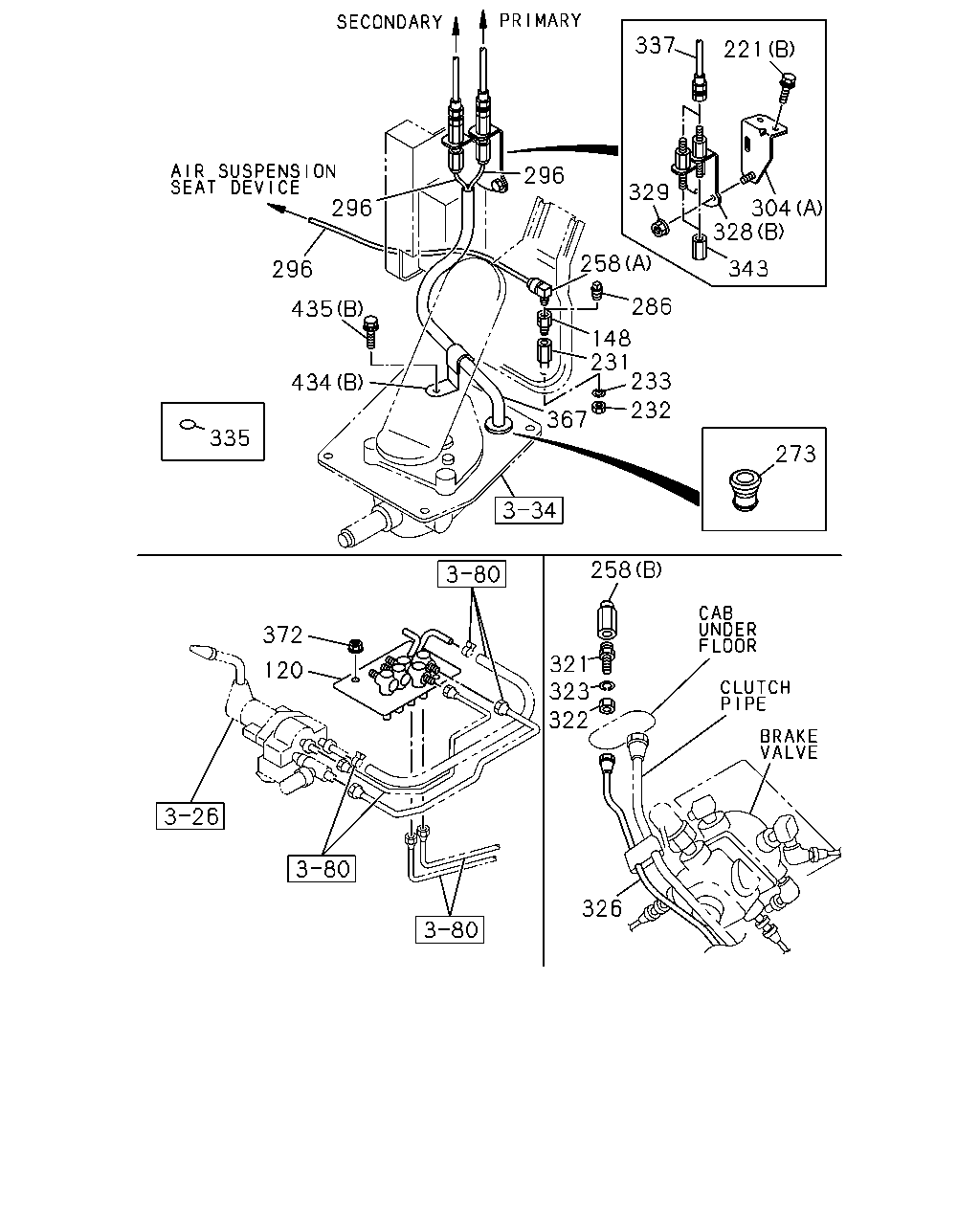

337 221 329 343 328 304 273 232 233 231 148 286 258 296 296 296 435 434 335 258 321 323 322 120 372 326 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	CONNECTOR; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-47470-402-3	01	1	0105-
120	CONNECTOR; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6>	1-47470-492-1	01	1	0105-
148	CONNECTOR; UNION TRANSMISSION-ZF 16S151 OD(Y2N)	8-94338-417-0	01	1	0105-0106
148	CONNECTOR; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	8-94338-417-0	01	1	0107-
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-0512
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-713-2	01	1	0105-0106
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL)	1-09656-713-2	01	1	0105-0106
231	UNION; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-713-2	01	1	0107-
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL)	1-09656-713-2	01	1	0107-
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0105-0106
232	NUT; UNION,AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0105-0106
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0107-
232	NUT; UNION,AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0107-
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-0106
233	WASHER; LK,UNION,AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-0106
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0107-0603
233	WASHER; LK,UNION,AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0107-0603
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	0-91510-510-0	01	1	0604-
233	WASHER; LK,UNION,AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=10.2	0-91510-510-0	01	1	0604-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-0302
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-0106
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-0106
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-0106
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-0106
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-0106
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0107-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0107-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
273	GROMMET	1-09332-135-0	01	1	0105-
286	PLUG; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	0105-0106
286	PLUG; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	0107-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0212
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0202
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0301-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0203-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0105-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (C)	1-47477-183-1	01	1	0105-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> (B)	1-47477-757-1	01	1	0105-
321	JOINT; FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	0105-0106
321	JOINT; FLEX HOSE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	0105-0106
321	JOINT; FLEX HOSE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	0107-
321	JOINT; FLEX HOSE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	0107-
322	NUT; JOINT,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0105-0106
322	NUT; JOINT,FLEX HOSE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0105-0106
322	NUT; JOINT,FLEX HOSE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0107-
322	NUT; JOINT,FLEX HOSE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0107-
323	WASHER; LK,JOINT TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-0106
323	WASHER; LK,JOINT DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-0106
323	WASHER; LK,JOINT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0107-0603
323	WASHER; LK,JOINT DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0107-0603
323	WASHER; LK,JOINT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	0-91510-510-0	01	1	0604-
323	WASHER; LK,JOINT DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=10.2	0-91510-510-0	01	1	0604-
326	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	0105-0106
326	PIPE; AIR,FLEX HOSE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	0105-0106
326	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	0107-
326	PIPE; AIR,FLEX HOSE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	0107-
328	UNION; AIR PIPE 6WF1 TC-C(1B8) MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> (C) M12 2WAY	1-09654-059-2	01	1	0109-
328	UNION; AIR PIPE (A)	1-09654-280-1	01	1	0105-
328	UNION; AIR PIPE (B)	1-47470-442-0	01	1	0105-
329	NUT; UNION,AIR PIPE M6 FLANGE	0-91150-106-0	01	1	0105-0602
329	NUT; UNION,AIR PIPE M6 FLANGE	0-91180-106-0	01	1	0603-
335	SEAL; UNION ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0105-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=520	0-07210-520-0	02	1	0105-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=520	0-57210-520-0	02	1	0606-
343	UNION; NYLON TUBE	1-09660-796-1	02	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0107-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0105-
372	NUT M8 FLANGE	0-91150-108-0	02	1	0105-0602
372	NUT M8 FLANGE	0-91180-108-0	02	1	0603-
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0108-
434	CLIP (B) ID=17	8-94449-734-1	01	1	0105-
434	CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=140	5-09707-031-1	01	1	0105-
434	CLIP FULLER M/T<X9B> (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0105-
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0105-0105
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> (A) D=24 L=21	1-09700-380-0	01	1	0106-
434	CLIP 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> (A) ID=25 H=30 L=35	1-09700-875-0	02	1	0105-0105
434	CLIP 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> (A) D=24 L=21	1-09700-380-0	02	1	0106-
435	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0105
435	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
435	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
435	BOLT; CLIP (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-

421 1 179 180 304 72 1 179 180 72 421 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6WA1 TC-C(55L),6WG1 TC-C(72L) MIXER TRUCK<RA2> EXC. FULLER M/T<X9B> L=680	1-09363-897-0	01	1	0201-
1	HOSE; FLEX,AIR TANK 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> L=1000	1-09363-794-0	01	1	0108-
1	HOSE; FLEX,AIR TANK FULLER M/T<X9B> L=1050	1-09363-789-0	01	1	0105-0105
1	HOSE; FLEX,AIR TANK 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> L=1050	1-09363-789-0	01	1	0106-0107
1	HOSE; FLEX,AIR TANK FULLER M/T<X9B> L=1050	1-09363-789-0	01	1	0106-0107
1	HOSE; FLEX,AIR TANK FULLER M/T<X9B> L=1050	1-09363-789-0	01	1	0108-
1	HOSE; FLEX,AIR TANK 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> L=660	1-09363-766-0	01	1	0105-0105
1	HOSE; FLEX,AIR TANK 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B>	1-09363-856-0	01	1	0106-0109
1	HOSE; FLEX,AIR TANK 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> L=720	1-09363-894-0	01	1	0110-0112
1	HOSE; FLEX,AIR TANK 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. MIXER TRUCK<RA2>,FULLER M/T<X9B> L=720	1-09363-894-0	01	1	0201-
1	HOSE; FLEX,AIR TANK 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> L=1000	1-09363-794-0	01	1	0105-0105
72	UNION; AIR PIPE MIXER TRUCK<RA2> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-
72	UNION; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. FULLER M/T<X9B> (A) M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0105-
72	UNION; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FULLER M/T<X9B> (A) M20 & M22 STRAIGHT	1-09654-097-1	01	1	0105-
179	NUT; UNION M12	9-09840-280-0	01	1	0105-
179	NUT; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> M22	9-09111-422-0	01	1	0105-0512
179	NUT; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> M22	0-91111-522-0	01	1	0601-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603
180	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
180	WASHER; LK,UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> ID=22.5	9-09150-522-0	01	1	0105-0603
180	WASHER; LK,UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> ID=22.5	0-91510-522-0	01	1	0604-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0105-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (C)	1-47477-183-1	01	1	0105-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> (B)	1-47477-757-1	01	1	0105-
421	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> M10 FLANGE	0-91150-210-0	02	1	0105-0602
421	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> M10 FLANGE	0-91180-210-0	02	1	0603-

296 367 296 296 296 296 296 296 296 296 296 296 367 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0212
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0202
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0301-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0203-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0107-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0105-

7 237 26 27 6 25 1 435 434 436 149 88 259 297 1 258 237 21 33 21 33 16 237 35 221 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6WA1 TC-C(55L),6WG1 TC-C(72L) MIXER TRUCK<RA2> EXC. FULLER M/T<X9B> L=680	1-09363-897-0	01	1	0201-
1	HOSE; FLEX,AIR TANK 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> L=1000	1-09363-794-0	01	1	0108-
1	HOSE; FLEX,AIR TANK FULLER M/T<X9B> L=1050	1-09363-789-0	01	1	0105-0105
1	HOSE; FLEX,AIR TANK 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> L=1050	1-09363-789-0	01	1	0106-0107
1	HOSE; FLEX,AIR TANK FULLER M/T<X9B> L=1050	1-09363-789-0	01	1	0106-0107
1	HOSE; FLEX,AIR TANK FULLER M/T<X9B> L=1050	1-09363-789-0	01	1	0108-
1	HOSE; FLEX,AIR TANK 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> L=660	1-09363-766-0	01	1	0105-0105
1	HOSE; FLEX,AIR TANK 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B>	1-09363-856-0	01	1	0106-0109
1	HOSE; FLEX,AIR TANK 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> L=720	1-09363-894-0	01	1	0110-0112
1	HOSE; FLEX,AIR TANK 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. MIXER TRUCK<RA2>,FULLER M/T<X9B> L=720	1-09363-894-0	01	1	0201-
1	HOSE; FLEX,AIR TANK 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> L=1000	1-09363-794-0	01	1	0105-0105
6	BRACKET; FLEX HOSE,AIR TANK FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-47478-720-0	01	1	0105-0105
6	BRACKET; FLEX HOSE,AIR TANK EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-47478-719-1	01	1	0105-0105
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-719-1	01	1	0106-
7	BOLT; BRKT,FLEX HOSE,AIR TANK FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE	0-28650-835-0	02	1	0601-
7	BOLT; BRKT,FLEX HOSE,AIR TANK EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-
16	UNION; AIR PIPE M22	9-09233-015-1	01	1	0105-0607
16	UNION; AIR PIPE M22 L=51	0-92123-015-0	01	1	0608-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49116-586-0	01	1	0105-0110
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49123-341-0	01	1	0111-
25	VALVE; CHECK AIR DRYER<PS7>	1-48320-042-1	01	1	0105-0410
25	VALVE; CHECK AIR DRYER<PS7>	1-48320-057-0	01	1	0411-
26	NUT; CHECK VLV AIR DRYER<PS7> M22	9-09111-422-0	01	1	0105-0512
26	NUT; CHECK VLV AIR DRYER<PS7> M22	0-91111-522-0	01	1	0601-
27	WASHER; LK,CHECK VLV AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	0105-0603
27	WASHER; LK,CHECK VLV AIR DRYER<PS7> ID=22.5	0-91510-522-0	01	1	0604-
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7>	1-49117-315-0	01	1	0105-
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 6600MM(66W) EXC. AIR DRYER<PS7>	1-49117-314-0	01	1	0105-
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-0602
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-
88	GASKET; NYLON TUBE ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	01	1	0105-
149	BOLT; TUBE CLIP FULLER M/T<X9B>,ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
149	BOLT; TUBE CLIP FULLER M/T<X9B>,ZF M/T<X9E> M8X25 FLANGE	0-28650-825-0	01	1	0601-
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> 25X37	1-34656-004-0	01	1	0105-
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-0512
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
237	PIPE; AIR,FLEX HOSE TO UNION FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-49122-934-0	01	1	0105-0105
237	PIPE; AIR,FLEX HOSE TO UNION FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-49123-145-0	01	1	0105-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-49122-937-0	01	1	0105-0105
237	PIPE; AIR,FLEX HOSE TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-49123-146-0	01	1	0105-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-0302
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-0106
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-0106
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-0106
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0106-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-0106
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-0106
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0107-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0107-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
259	SLEEVE; RUBBER,NYLON TUBE BRAKE REGULATION ECE<TDV> FULLER M/T<X9B> ID=23 OD=27 L=40	1-09337-015-0	01	1	0105-0105
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> ID=23 OD=27 L=40	1-09337-015-0	02	1	0105-0108
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> L=175	1-09707-178-0	01	1	0109-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0105-
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0108-
434	CLIP (B) ID=17	8-94449-734-1	01	1	0105-
434	CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=140	5-09707-031-1	01	1	0105-
434	CLIP FULLER M/T<X9B> (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0105-
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0105-0105
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> (A) D=24 L=21	1-09700-380-0	01	1	0106-
434	CLIP 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> (A) ID=25 H=30 L=35	1-09700-875-0	02	1	0105-0105
434	CLIP 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> (A) D=24 L=21	1-09700-380-0	02	1	0106-
435	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0105
435	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
435	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
435	BOLT; CLIP (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-
436	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	0106-0107
436	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0108-0602
436	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	01	1	0603-
436	NUT; CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	0105-0105
436	NUT; CLIP 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	0106-0107
436	NUT; CLIP 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	0108-0602
436	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0108-0602
436	NUT; CLIP 6WF1 TC-C(1B8) EXC. FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	02	1	0603-
436	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> M8 FLANGE	0-91180-108-0	02	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
