◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10882 - CXH RHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#27624) — 10 parça
çizim 23993
106 106 100
BalonParca AdiParca NoAdetTipApplied Date
100 TUBE ASM; NYLON,RWD AXLE
L=580 SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
106 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
106 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-

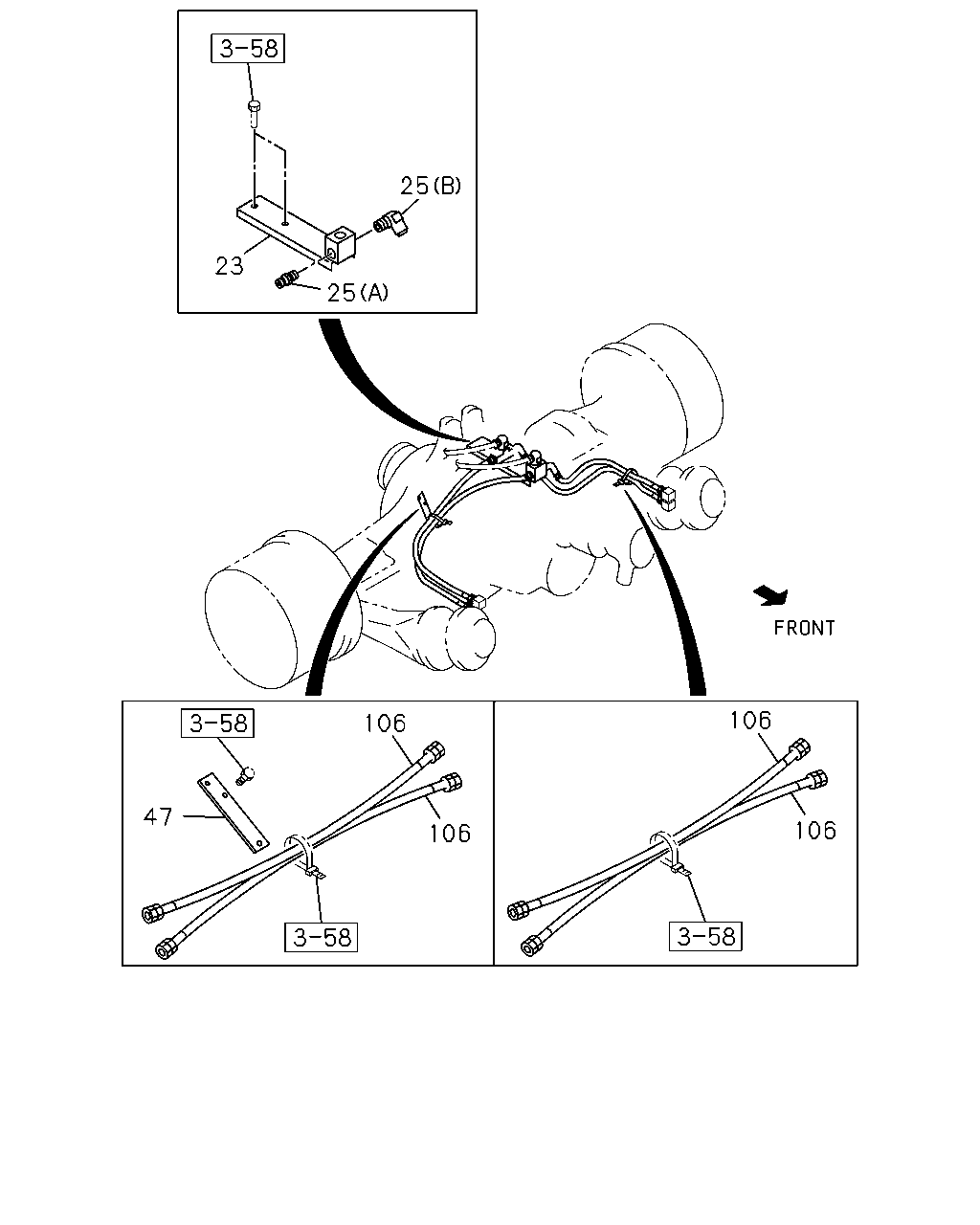

çizim 24534
25 23 25 106 106 106 106 47
BalonParca AdiParca NoAdetTipApplied Date
23 NIPPLE; W/BRKT 1-47470-373-1 01 1 0105-
25 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
25 CONNECTOR
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0105-
47 BRACKET
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-42119-123-0 01 1 0105-
47 BRACKET
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-42119-065-0 01 1 0105-
106 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
106 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
