3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#27623) — 44 parça
◀

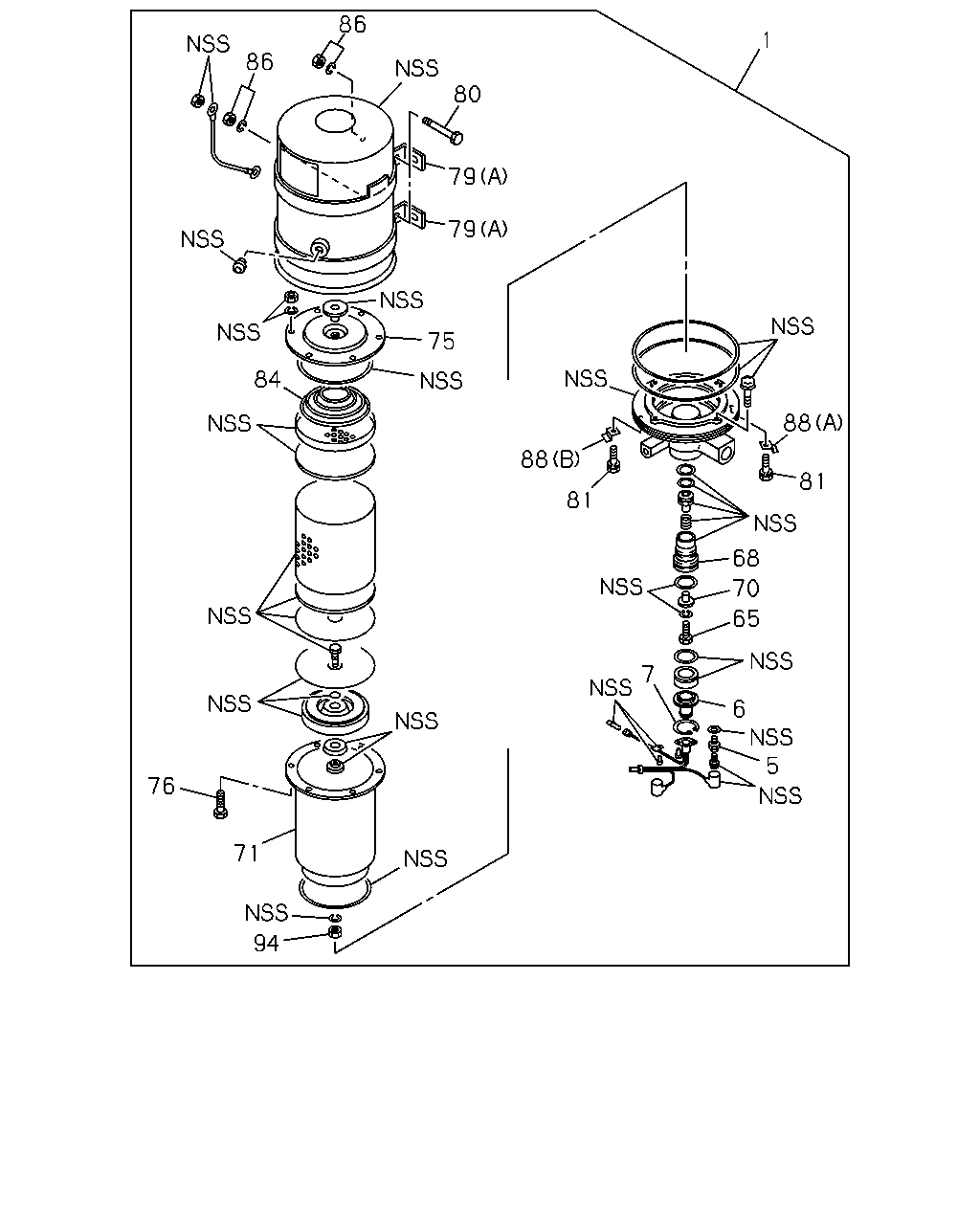

[346A] COMPONENT (19 parça)
[346A] FIXING (19 parça)

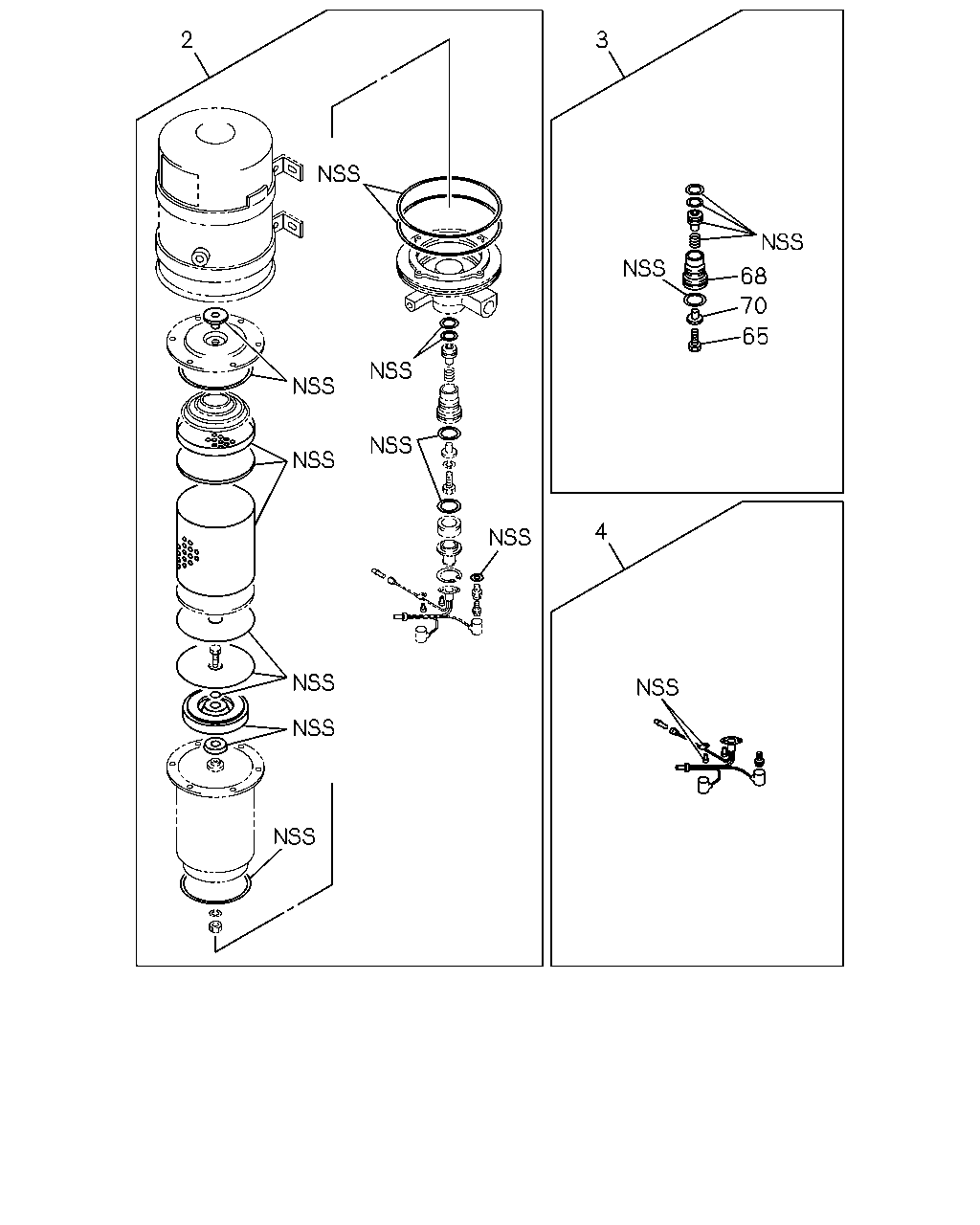

[346A] THERMOSTAT,PISTON AND REPAIR KIT (6 parça)
▶
1
88
88
81
81
68
70
65
6
7
5
94
71
76
75
84
86
86
80
79
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-105-3
01
1
0105-
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
1-48199-085-0
02
1
0105-
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-101-0
01
1
0105-
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-154-0
01
1
0105-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-413-0
01
1
0105-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-216-0
01
1
0105-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0105-
71
CASE; INNER,AIR DRYER
AIR DRYER<PS7>
1-48199-156-1
01
1
0105-
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-167-0
01
1
0105-
76
BOLT; COVER,AIR DRYER
AIR DRYER<PS7>
1-48199-478-0
06
1
0105-
79
BRACKET; AIR DRYER
AIR DRYER<PS7> (A)
1-48199-189-0
02
1
0105-
79
BRACKET; AIR DRYER
AIR DRYER<PS7> (B)
1-53497-540-1
01
1
0105-
80
BOLT; BRKT
AIR DRYER<PS7>
1-48199-190-0
02
1
0105-
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-177-0
02
1
0105-
84
SPRING; AIR DRYER
AIR DRYER<PS7>
1-48199-166-0
01
1
0105-
86
NUT; BRKT
AIR DRYER<PS7>
1-48199-320-0
02
1
0105-
88
PLATE; STOPPER
AIR DRYER<PS7> (A)
1-48199-178-0
01
1
0105-
88
PLATE; STOPPER
AIR DRYER<PS7> (B)
1-48199-179-0
01
1
0105-
94
NUT; COVER,AIR DRYER
AIR DRYER<PS7>
1-48199-479-0
07
1
0105-
1
12
16
8
1
13
79
89
89
29
9
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-105-3
01
1
0105-
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
0105-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW
1-09650-444-0
01
1
0105-0607
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW
0-92134-315-0
01
1
0608-
10
BOLT; AIR DRYER
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> M10X25 FLANGE
0-28681-025-0
04
1
0105-0512
10
BOLT; AIR DRYER
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> M10X25 FLANGE
0-28651-025-0
04
1
0601-
10
BOLT; AIR DRYER
WHEEL BASE 6600MM(66W) AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE
0-28681-030-0
04
1
0105-0512
10
BOLT; AIR DRYER
WHEEL BASE 6600MM(66W) AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE
0-28651-030-0
04
1
0601-
12
BOLT; BRKT
AIR DRYER<PS7> M10X35 FLANGE
0-28681-035-0
04
1
0105-0512
12
BOLT; BRKT
AIR DRYER<PS7> M10X35 FLANGE
0-28651-035-0
04
1
0601-
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
04
1
0105-0602
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
04
1
0603-
16
NUT; BRKT
AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
04
1
0105-0602
16
NUT; BRKT
AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
04
1
0603-
29
UNION; 3 WAY,PURGE TANK
AIR DRYER<PS7> M12 & PT1/4 3WAY
1-09656-586-1
01
1
0105-
79
BRACKET; AIR DRYER
AIR DRYER<PS7> (A)
1-48199-189-0
02
1
0105-
79
BRACKET; AIR DRYER
AIR DRYER<PS7> (B)
1-53497-540-1
01
1
0105-
89
ADAPTER
AIR DRYER<PS7> (A) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
0105-
89
ADAPTER
AIR DRYER<PS7> (B) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0105-
3
4
2
65
70
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-055-1
01
1
0105-
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-057-1
01
1
0105-
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-129-0
01
1
0105-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-413-0
01
1
0105-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-216-0
01
1
0105-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0105-
