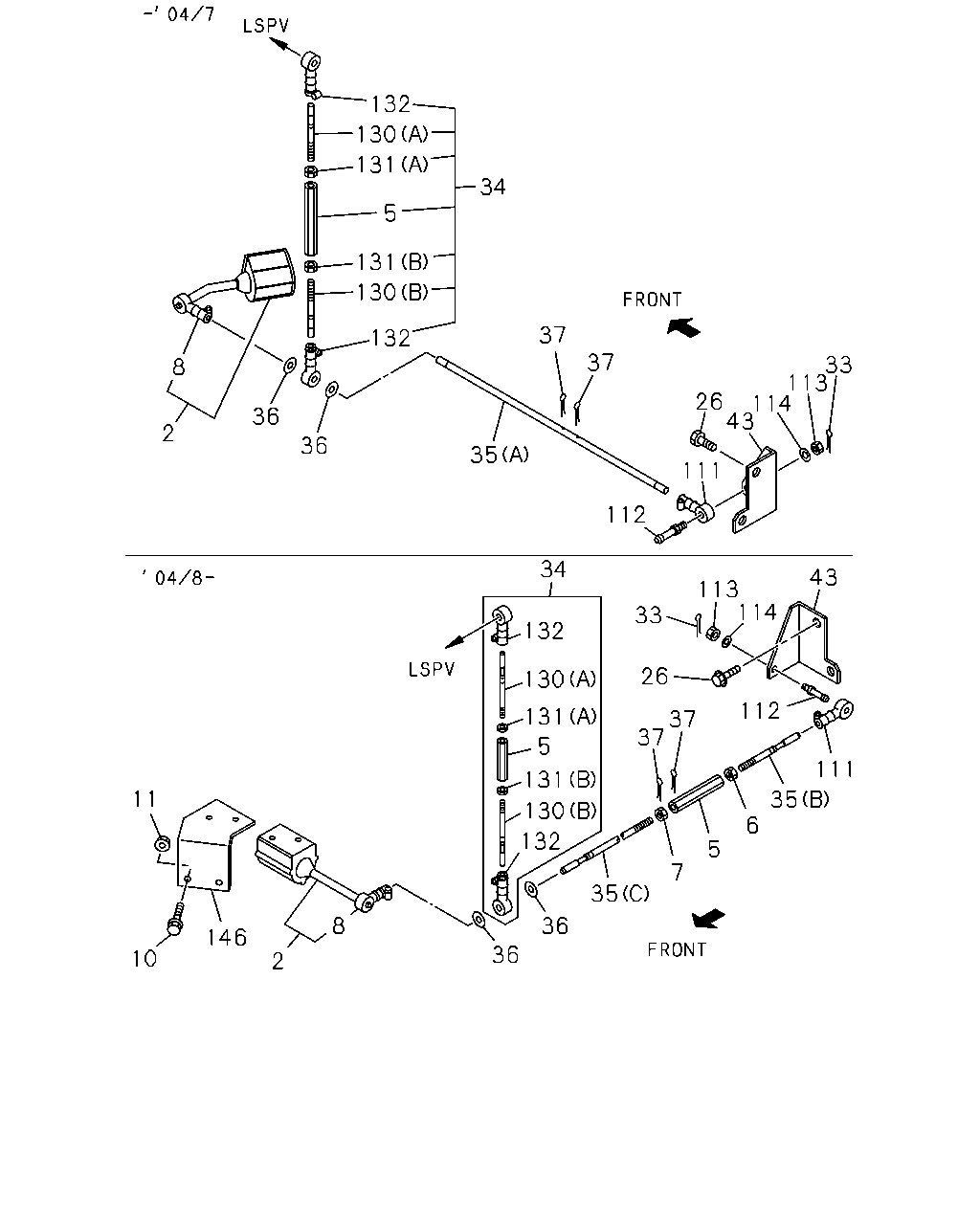

3-45 — LOAD SENSING PROPORTIONING VALVE (#27622) — 74 parça

33 113 114 43 26 111 112 43 113 33 34 114 112 111 35 6 5 7 35 36 36 8 2 146 10 11 132 130 131 5 131 130 132 37 37 26 37 37 34 5 131 130 132 36 36 2 8 132 130 131 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47725-016-0	01	1	0105-0407
2	DAMPER NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-47725-016-0	01	1	0105-0407
2	DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47725-047-0	01	1	0408-
2	DAMPER NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-47725-047-0	01	1	0408-
5	JOINT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	01	1	0105-0407
5	JOINT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-09768-091-0	01	1	0105-0407
5	JOINT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	02	1	0408-
5	JOINT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-09768-091-0	02	1	0408-
6	NUT; LK,UPR LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8	9-09111-408-0	01	1	0408-0512
6	NUT; LK,UPR NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> M8	9-09111-408-0	01	1	0408-0512
6	NUT; LK,UPR LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8	0-91111-508-0	01	1	0601-
6	NUT; LK,UPR NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> M8	0-91111-508-0	01	1	0601-
7	NUT; LK,LWR LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) LH THREAD	1-09409-002-0	01	1	0408-
7	NUT; LK,LWR NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> LH THREAD	1-09409-002-0	01	1	0408-
8	ROD END LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	01	1	0105-
8	ROD END NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	0105-
10	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	01	1	0408-0512
10	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28650-825-0	01	1	0601-
10	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0408-0512
10	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28650-825-0	02	1	0601-
11	NUT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	02	1	0408-0602
11	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	0408-0602
11	NUT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	02	1	0603-
11	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91180-108-0	02	1	0603-
26	BOLT; DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE	0-28080-812-0	02	1	0105-0512
26	BOLT; DAMPER NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> M8X12 FLANGE	0-28080-812-0	02	1	0105-0512
26	BOLT; DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE	0-28050-812-0	02	1	0601-
26	BOLT; DAMPER NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> M8X12 FLANGE	0-28050-812-0	02	1	0601-
33	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=25	9-08112-025-0	01	1	0105-0606
33	PIN; SPLIT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	01	1	0105-0606
33	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=25	0-81122-025-0	01	1	0607-
33	PIN; SPLIT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> OD=1.8 L=25	0-81122-025-0	01	1	0607-
34	ROD; LEVER TO ROD,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47725-025-0	01	1	0105-
34	ROD; LEVER TO ROD,LSPV NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-47725-025-0	01	1	0105-
35	ROD; LINK,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-09765-318-0	01	1	0408-
35	ROD; LINK,LSPV NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (C)	1-09765-318-0	01	1	0408-
35	ROD; LINK,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-09740-086-0	01	1	0105-0407
35	ROD; LINK,LSPV NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (A)	1-09740-086-0	01	1	0105-0407
35	ROD; LINK,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-09765-282-0	01	1	0408-
35	ROD; LINK,LSPV NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (B)	1-09765-282-0	01	1	0408-
36	WASHER; PL,ROD LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) ID=8.4	9-09160-508-0	02	1	0105-0605
36	WASHER; PL,ROD NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	0105-0605
36	WASHER; PL,ROD LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) ID=8.4 OD=16	0-91610-508-0	02	1	0606-
36	WASHER; PL,ROD NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> ID=8.4 OD=16	0-91610-508-0	02	1	0606-
37	PIN; SPLIT,ROD LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=25	9-08112-025-0	02	1	0105-0606
37	PIN; SPLIT,ROD NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	02	1	0105-0606
37	PIN; SPLIT,ROD LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=25	0-81122-025-0	02	1	0607-
37	PIN; SPLIT,ROD NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> OD=1.8 L=25	0-81122-025-0	02	1	0607-
43	BRACKET; DAMPER TO AXLE LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-42129-185-0	01	1	0105-
43	BRACKET; DAMPER TO AXLE NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-42129-185-0	01	1	0105-
111	RUBBER; JOINT,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	01	1	0105-
111	RUBBER; JOINT,LSPV NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	0105-
112	PIN; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09744-123-0	01	1	0105-
112	PIN; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-09744-123-0	01	1	0105-
113	NUT; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	0105-0602
113	NUT; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	01	1	0105-0602
113	NUT; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	0603-
113	NUT; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91180-108-0	01	1	0603-
114	WASHER; PL,JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) ID=8.4	9-09160-508-0	02	1	0105-0605
114	WASHER; PL,JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	0105-0605
114	WASHER; PL,JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) ID=8.4 OD=16	0-91610-508-0	02	1	0606-
114	WASHER; PL,JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> ID=8.4 OD=16	0-91610-508-0	02	1	0606-
130	ROD; JOINT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-09765-282-0	01	1	0105-
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (A)	1-09765-282-0	01	1	0105-
130	ROD; JOINT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-09765-283-0	01	1	0105-
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (B)	1-09765-283-0	01	1	0105-
131	NUT; JOINT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) LH THREAD	1-09409-002-0	01	1	0105-
131	NUT; JOINT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (A) LH THREAD	1-09409-002-0	01	1	0105-
131	NUT; JOINT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-48119-089-0	01	1	0105-
131	NUT; JOINT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (B)	1-48119-089-0	01	1	0105-
132	RUBBER ASM; CONN LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	02	1	0105-
132	RUBBER ASM; CONN NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-47723-001-0	02	1	0105-
146	BRACKET; DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-42129-510-0	01	1	0408-
146	BRACKET; DAMPER NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-42129-510-0	01	1	0408-
