◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10882 - CXH RHD ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶

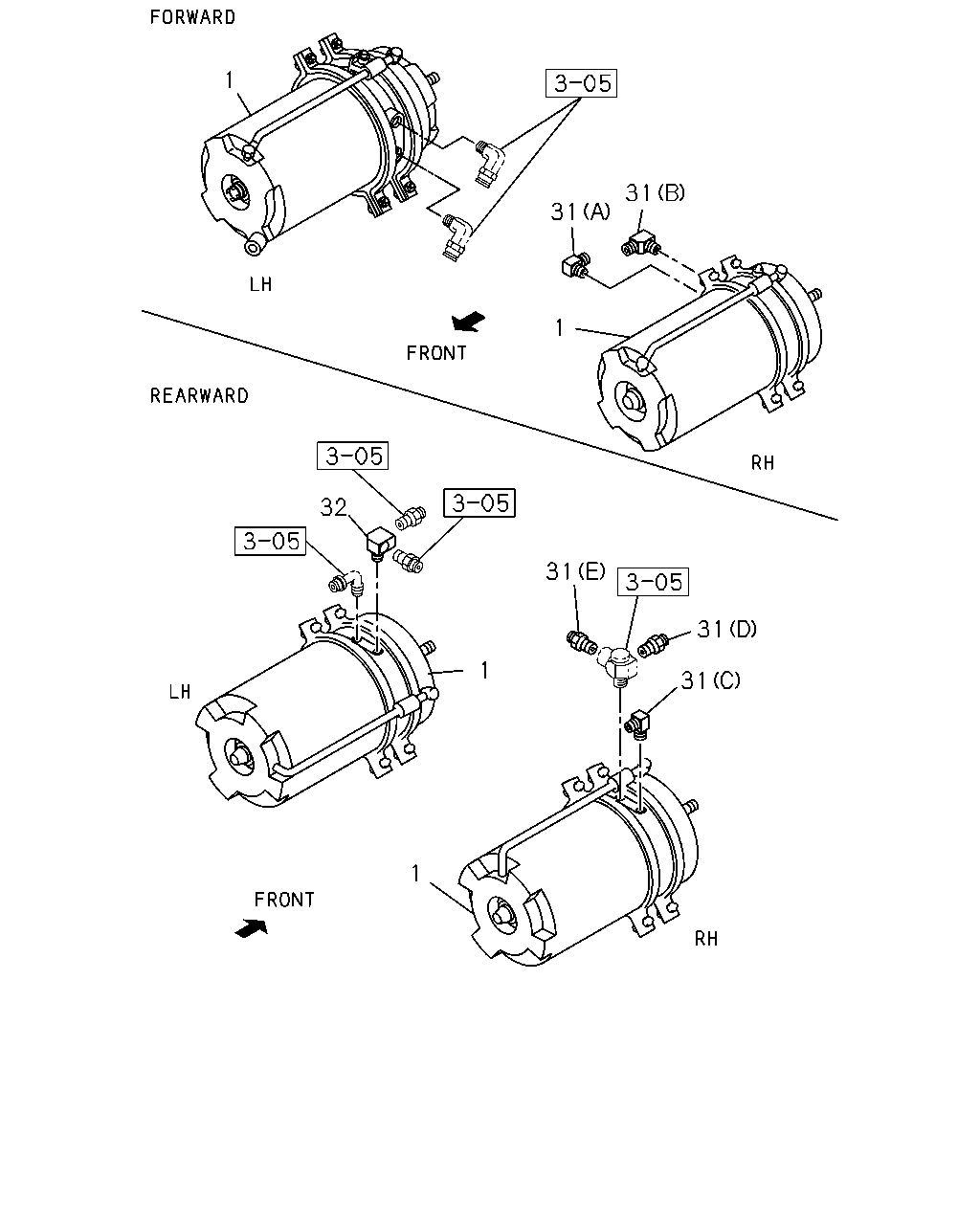

3-41 — REAR BRAKE POWER CHAMBER (#27621) — 121 parça
çizim 21092
31 31 1 1 31 1 1 32 31 31
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-177-2 01 1 0105-
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-249-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-176-2 01 1 0105-
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-248-2 01 1 0105-
31 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0105-
31 CONNECTOR
BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0105-
31 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0105-0106
31 CONNECTOR
EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0105-0106
31 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0107-
31 CONNECTOR
EXC. BRAKE REGULATION ECE<TDV> (D) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 0105-
31 CONNECTOR
EXC. BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 0105-0106
31 CONNECTOR
EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 02 1 0107-
31 CONNECTOR
INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0105-
32 CONNECTOR; SPR CHAMBER
EXC. BRAKE REGULATION ECE<TDV> REARWARD 		1-09660-697-1 01 1 0105-
32 CONNECTOR; SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE REGULATION ECE<TDV> REARWARD DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 0105-

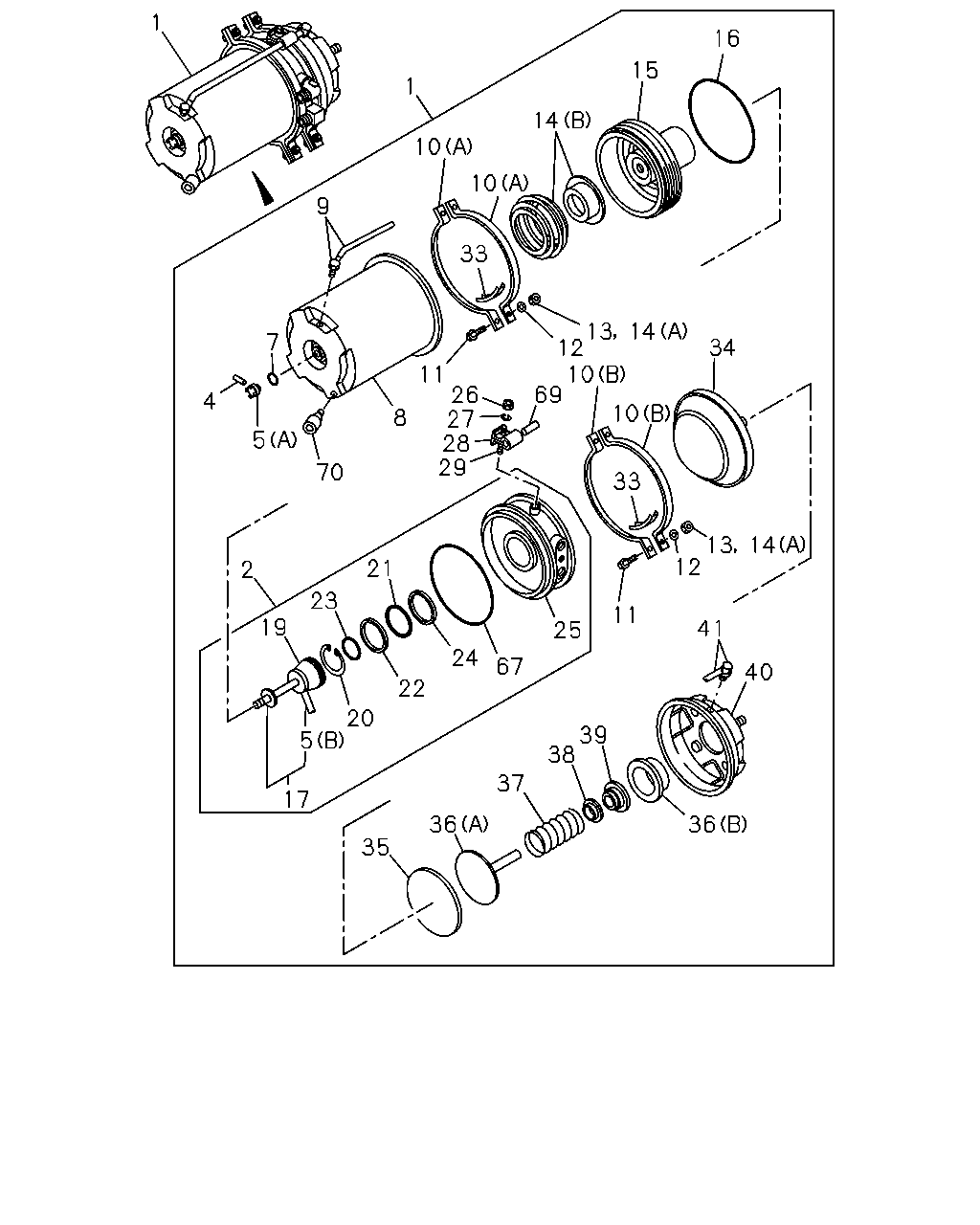

çizim 24428
16 15 14 1 10 9 1 34 14 13 12 11 8 70 5 4 7 10 69 26 29 28 27 10 33 21 23 19 2 14 13 12 11 25 67 24 22 20 5 41 40 36 39 38 37 36 35 17 33 10
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-177-2 01 1 0105-
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-249-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-176-2 01 1 0105-
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-248-2 01 1 0105-
2 CHAMBER; EMERGENCY
FORWARD 		1-48252-021-0 01 1 0105-
2 CHAMBER; EMERGENCY
REARWARD 		1-48252-040-0 01 1 0105-0402
2 CHAMBER; EMERGENCY
FORWARD 		1-48252-020-0 01 1 0105-
2 CHAMBER; EMERGENCY
REARWARD 		1-48252-039-0 01 1 0105-0402
2 CHAMBER; EMERGENCY
REARWARD 		1-48252-033-0 01 1 0403-
2 CHAMBER; EMERGENCY
REARWARD 		1-48252-031-0 01 1 0403-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0105-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0105-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0105-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0105-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 0105-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 0105-
7 GASKET
REARWARD 		1-09623-095-0 01 1 0403-
7 GASKET
REARWARD 		1-48259-055-0 01 1 0403-
7 GASKET 1-48259-055-0 02 1 0105-0402
7 GASKET 1-48259-055-0 02 1 0105-0402
7 GASKET
FORWARD 		1-48259-055-0 02 1 0403-
8 SHELL; CYL,SPR CHAMBER
REARWARD 		1-48251-043-0 02 1 0105-
8 SHELL; CYL,SPR CHAMBER
FORWARD 		1-48259-070-0 01 1 0105-
8 SHELL; CYL,SPR CHAMBER
FORWARD 		1-48259-069-0 01 1 0105-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0105-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0105-
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 04 1 0105-
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 04 1 0105-
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 04 1 0105-
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 04 1 0105-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 0105-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 0105-
12 WASHER; LK,CLAMP RING
FORWARD 		1-48259-046-0 08 1 0105-
12 WASHER; LK,CLAMP RING
REARWARD ID=10.2 		9-09150-510-0 08 1 0105-
13 NUT; CLAMP RING
FORWARD M10 		9-09110-510-0 08 1 0105-
13 NUT; CLAMP RING
REARWARD RH M10 		9-09110-510-0 04 1 0105-0402
13 NUT; CLAMP RING
REARWARD RH M10 		9-09110-510-0 04 1 0403-
14 SPRING & SEAT SET
(B) 		1-48259-037-1 02 1 0105-
14 SPRING & SEAT SET
(B) 		1-48259-037-1 02 1 0105-
14 SPRING & SEAT SET
(A) REARWARD LH 		8-83315-080-0 04 1 0105-
15 PISTON 1-48262-005-0 02 1 0105-
15 PISTON 1-48262-005-0 02 1 0105-
16 GASKET 1-48259-048-0 02 1 0105-
16 GASKET 1-48259-048-0 02 1 0105-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0105-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0105-
19 COVER; PISTON 1-48269-011-0 02 1 0105-
19 COVER; PISTON 1-48269-011-0 02 1 0105-
20 RING; RET 1-48259-060-0 02 1 0105-
20 RING; RET 1-48259-060-0 02 1 0105-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 0105-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 0105-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0105-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0105-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 0105-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 0105-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0105-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD 		1-48259-088-0 01 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
REARWARD 		1-48259-140-0 01 1 0105-0402
25 PLATE; PRESSURE,SPR CHAMBER
REARWARD 		1-48259-122-0 01 1 0403-
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD 		1-48259-087-0 01 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
REARWARD 		1-48259-138-0 01 1 0105-0402
25 PLATE; PRESSURE,SPR CHAMBER
REARWARD 		1-48259-116-0 01 1 0403-
26 NUT; PRESSURE PLATE
REARWARD M8 		9-09111-508-0 04 1 0403-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0105-0402
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0105-0402
26 NUT; PRESSURE PLATE
FORWARD 		1-48259-058-0 04 1 0403-
27 WASHER; PRESSURE PLATE
FORWARD 		1-48259-057-0 02 1 0105-
27 WASHER; PRESSURE PLATE
REARWARD ID=8.2 		9-09150-508-0 02 1 0105-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0105-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0105-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0105-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0105-
33 RETAINER; DIAPH
REARWARD 		1-48250-044-0 02 1 0105-
33 RETAINER; DIAPH
FORWARD 		1-48259-044-0 04 1 0105-
34 DIAPHRAGM
FORWARD 		1-48252-011-0 02 1 0105-
34 DIAPHRAGM
REARWARD 		1-48258-011-0 02 1 0105-
35 PLATE; ROD END,SPR CHAMBER
FORWARD 		1-48253-011-0 02 1 0105-
35 PLATE; ROD END,SPR CHAMBER
REARWARD 		1-48253-035-0 01 1 0105-0402
35 PLATE; ROD END,SPR CHAMBER
REARWARD 		1-48253-029-0 01 1 0105-0402
35 PLATE; ROD END,SPR CHAMBER
REARWARD 		1-48253-029-0 02 1 0403-
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 02 1 0105-
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 02 1 0105-
36 RETAINER; SPR CHAMBER
(B) 		1-48259-043-0 02 1 0105-
36 RETAINER; SPR CHAMBER
(B) 		1-48259-043-0 02 1 0105-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 0105-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 0105-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0105-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0105-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0105-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD 		1-48259-082-1 01 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
REARWARD 		1-48259-139-0 01 1 0105-0402
40 COVER ASM; LWR,SPR CHAMBER
REARWARD 		1-48259-119-0 01 1 0403-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD 		1-48259-081-1 01 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
REARWARD 		1-48259-137-0 01 1 0105-0402
40 COVER ASM; LWR,SPR CHAMBER
REARWARD 		1-48259-115-0 01 1 0403-
41 PIPE ASM; LWR COVER 1-48259-080-0 02 1 0105-
41 PIPE ASM; LWR COVER 1-48259-080-0 02 1 0105-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0105-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0105-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0105-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0105-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 0105-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 01 1 0105-
