Isuzu WW
▶
TRUCKS
▶
CXH
▶
10882 - CXH RHD
▶
3 - Brakes, Brake System
▶
3-40 - FRONT BRAKE POWER CHAMBER
▶

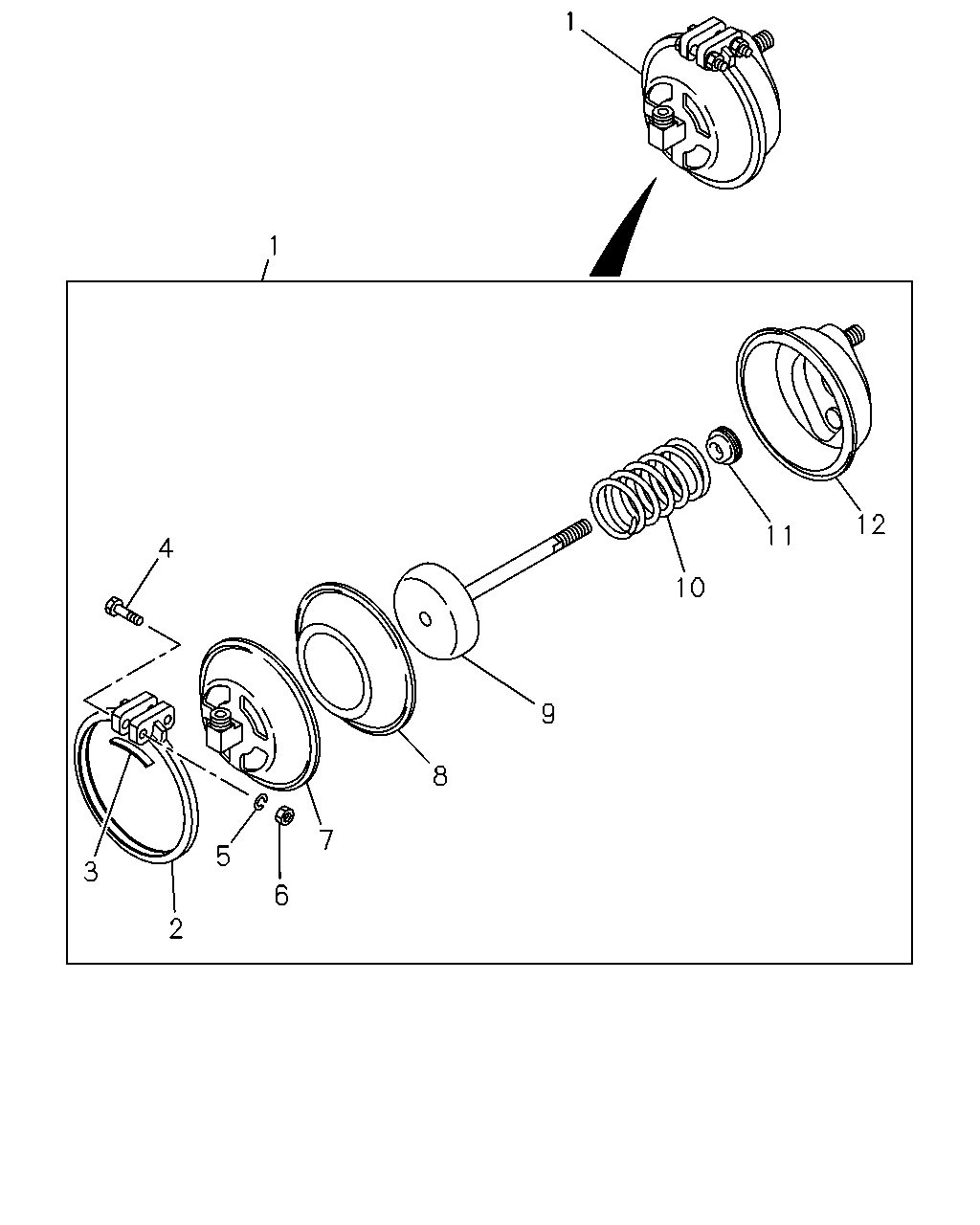

3-40 — FRONT BRAKE POWER CHAMBER
(#27620) — 30 parça
1
1
4
12
11
10
9
8
7
6
5
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; POWER,FRT BRK
REARWARD
1-48250-425-0
02
1
0105-
1
CHAMBER ASM; POWER,FRT BRK
BRAKE REGULATION ECE<TDV> FORWARD
1-48250-425-0
01
1
0105-
1
CHAMBER ASM; POWER,FRT BRK
BRAKE REGULATION ECE<TDV> FORWARD
1-48250-518-0
01
1
0105-
1
CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE REGULATION ECE<TDV> FORWARD
1-48250-425-0
02
1
0105-
2
RING; CLAMP,SPR CHAMBER
9-48259-049-0
02
1
0105-
2
RING; CLAMP,SPR CHAMBER
9-48259-049-0
02
1
0105-
3
RETAINER; DIAPH
REARWARD
9-48259-016-0
02
1
0105-
3
RETAINER; DIAPH
BRAKE REGULATION ECE<TDV> FORWARD
9-48259-016-0
01
1
0105-
3
RETAINER; DIAPH
BRAKE REGULATION ECE<TDV> FORWARD
1-48250-044-0
01
1
0105-
3
RETAINER; DIAPH
EXC. BRAKE REGULATION ECE<TDV> FORWARD
9-48259-016-0
02
1
0105-
4
BOLT; CLAMP RING
1-48259-002-0
04
1
0105-
4
BOLT; CLAMP RING
1-48259-002-0
04
1
0105-
5
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
04
1
0105-
5
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
04
1
0105-
6
NUT; CLAMP RING
M10
9-09110-010-0
04
1
0105-
6
NUT; CLAMP RING
M10
9-09110-010-0
04
1
0105-
7
COVER ASM; UPR,SPR CHAMBER
REARWARD
1-48251-050-0
02
1
0105-
7
COVER ASM; UPR,SPR CHAMBER
BRAKE REGULATION ECE<TDV> FORWARD
1-48251-050-0
01
1
0105-
7
COVER ASM; UPR,SPR CHAMBER
BRAKE REGULATION ECE<TDV> FORWARD
1-48251-051-0
01
1
0105-
7
COVER ASM; UPR,SPR CHAMBER
EXC. BRAKE REGULATION ECE<TDV> FORWARD
1-48251-050-0
02
1
0105-
8
DIAPHRAGM; SPR CHAMBER
1-48252-009-0
02
1
0105-
8
DIAPHRAGM; SPR CHAMBER
1-48252-009-0
02
1
0105-
9
PISTON; SPR CHAMBER
1-48253-003-0
02
1
0105-
9
PISTON; SPR CHAMBER
1-48253-003-0
02
1
0105-
10
SPRING; PISTON,SPR CHAMBER
9-48255-012-0
02
1
0105-
10
SPRING; PISTON,SPR CHAMBER
9-48255-012-0
02
1
0105-
11
SEAL; PISTON,SPR CHAMBER
1-48252-025-0
02
1
0105-
11
SEAL; PISTON,SPR CHAMBER
1-48252-025-0
02
1
0105-
12
COVER ASM; LWR,SPR CHAMBER
1-48251-023-0
02
1
0105-
12
COVER ASM; LWR,SPR CHAMBER
1-48251-023-0
02
1
0105-
