0-39B — AIR COMPRESSOR; BRAKE (#2762) — 174 parça

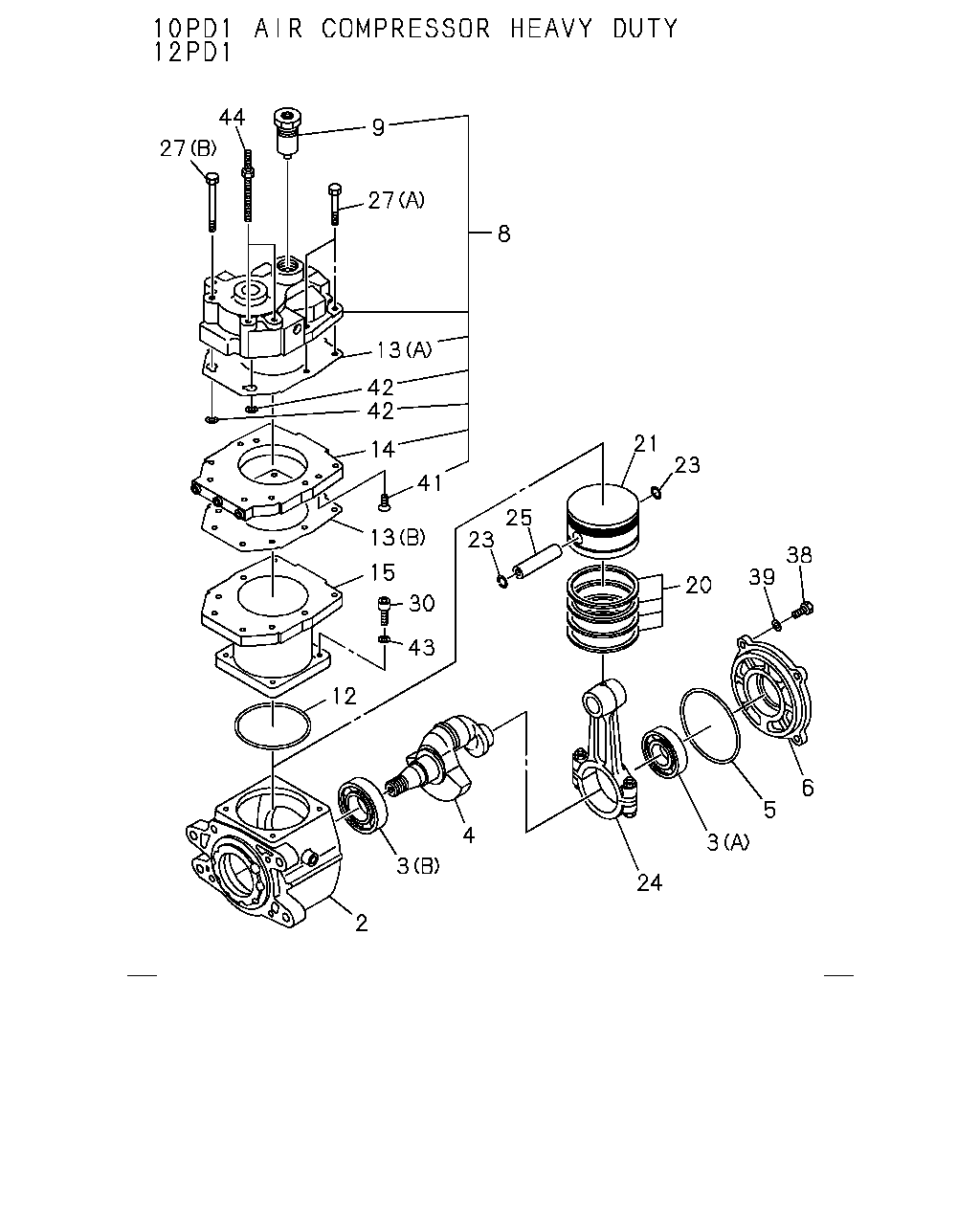

44 27 9 8 27 13 42 42 14 41 13 15 30 43 12 2 4 3 24 3 5 6 38 39 20 23 21 25 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-238-0	01	1	9002-	●
2	CRANKCASE; AIR CMPR	1-19151-238-0	01	1	9002-		●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-220-0	01	1	9002-	●
3	BEARING; AIR CMPR (A)	9-00006-206-0	01	1	9002-	●	●
3	BEARING; AIR CMPR (B)	9-00090-152-0	01	1	9002-	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-028-0	01	1	9002-9111	●
4	CRANKSHAFT; AIR CMPR	1-19171-031-0	01	1	9112-	●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-031-0	01	1	9002-9111	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9002-	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9002-	●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-031-1	01	1	9002-9111	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-049-3	01	1	9112-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-049-3	01	1	9112-		●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-048-1	01	1	9002-	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-009-0	01	1	9002-9111	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-018-1	01	1	9112-	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-018-1	01	1	9112-		●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-005-0	01	1	9002-9111	●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9112-	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9002-	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9002-	●
13	GASKET; AIR CMPR (A)	1-19139-007-0	01	1	9002-		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9002-	●
13	GASKET; AIR CMPR (B)	1-19139-009-0	01	1	9002-		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9002-	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9002-	●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19111-017-3	01	1	9002-	●
14	PLATE; AIR CMPR	1-19111-017-3	01	1	9002-		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9002-	●
15	CYLINDER; AIR CMPR	1-19151-236-0	01	1	9002-		●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9002-	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-029-0	01	1	9002-9405	●
20	RING KIT; PISTON,AIR CMPR	1-19163-029-0	01	1	9002-9405		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9406-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-055-1	01	1	9406-		●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9002-	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9002-	●
21	PISTON; AIR CMPR	1-19161-014-0	01	1	9002-		●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9002-	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-005-0	02	1	9002-	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-005-0	02	1	9002-		●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-008-0	02	1	9002-	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-012-0	01	1	9002-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-012-0	01	1	9002-		●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9002-	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-007-0	01	1	9002-	●
25	PIN; PISTON,AIR CMPR	9-19167-007-0	01	1	9002-		●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9002-	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19119-013-0	04	1	9002-	●
27	BOLT; HD (A)	1-19119-013-0	04	1	9002-		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19119-014-0	02	1	9002-9309	●
27	BOLT; HD (B)	1-19119-014-0	02	1	9002-9309		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19119-014-0	02	1	9310-	●
27	BOLT; HD (B)	1-19119-014-0	02	1	9310-		●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	9002-	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	9002-	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19159-007-0	04	1	9002-	●
30	BOLT; CYL TO CRANKCASE	1-19159-007-0	04	1	9002-		●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9002-	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9002-	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9002-	●	●
41	SCREW; PLATE TO HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09100-018-0	02	1	9002-	●
41	SCREW; PLATE TO HD,AIR CMPR	1-09100-018-0	02	1	9002-		●
42	GASKET; PLATE TO HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-402-0	02	1	9002-	●
42	GASKET; PLATE TO HD,AIR CMPR	1-09623-402-0	02	1	9002-		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9002-	●	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-002-0	02	1	9002-	●
44	STUD; CYL HD,AIR CMPR	1-19119-002-0	02	1	9002-		●

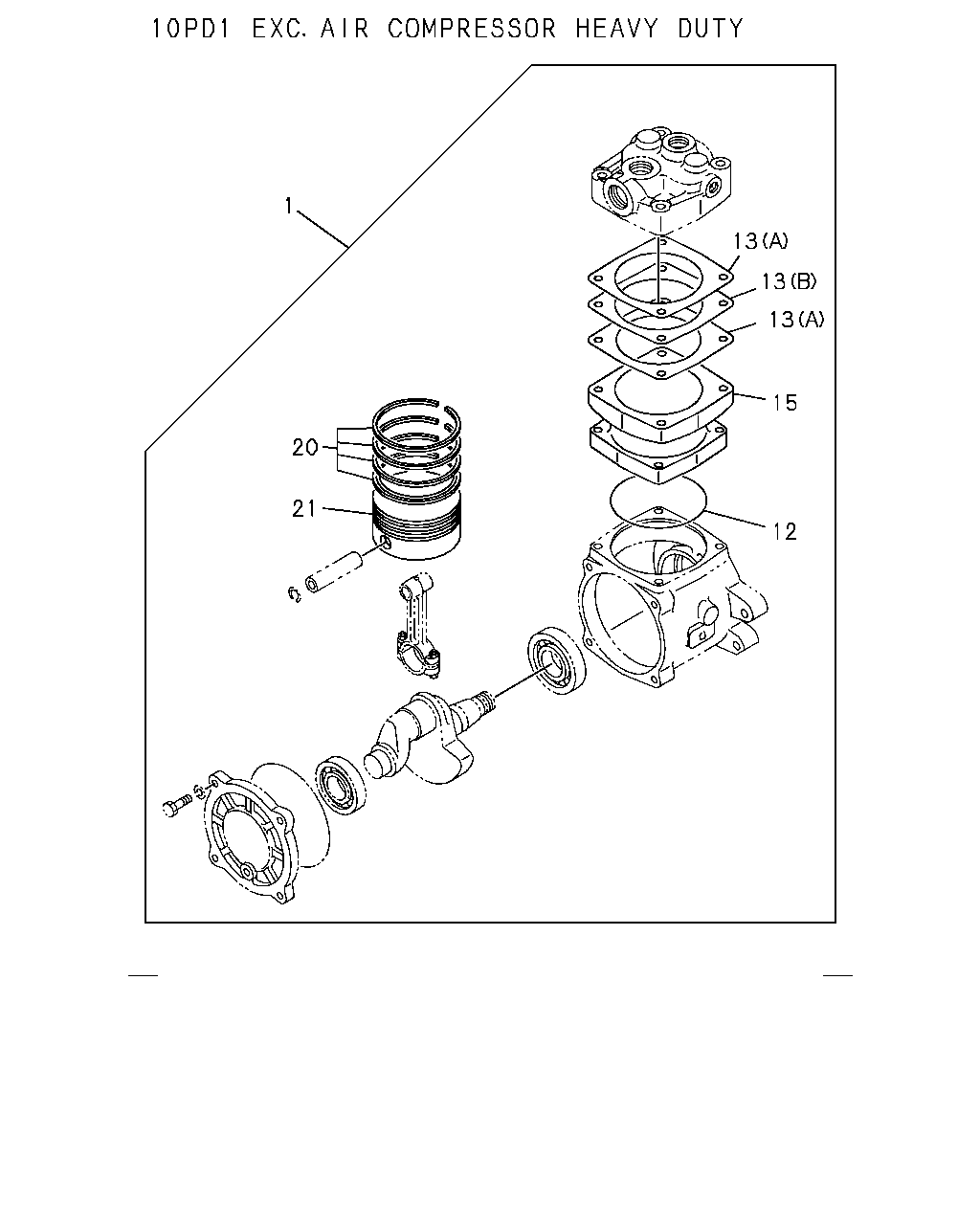

1 20 21 12 15 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-032-0	01	1	9002-9405	●
1	LINER KIT; CYL,AIR CMPR	1-19163-032-0	01	1	9002-9405		●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-056-1	01	1	9406-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-056-1	01	1	9406-		●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-019-0	01	1	9002-	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9002-	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9002-	●
13	GASKET; AIR CMPR (A)	1-19139-007-0	01	1	9002-		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9002-	●
13	GASKET; AIR CMPR (B)	1-19139-009-0	01	1	9002-		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9002-	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9002-	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9002-	●
15	CYLINDER; AIR CMPR	1-19151-236-0	01	1	9002-		●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9002-	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-029-0	01	1	9002-9405	●
20	RING KIT; PISTON,AIR CMPR	1-19163-029-0	01	1	9002-9405		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9406-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-055-1	01	1	9406-		●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9002-	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9002-	●
21	PISTON; AIR CMPR	1-19161-014-0	01	1	9002-		●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9002-	●

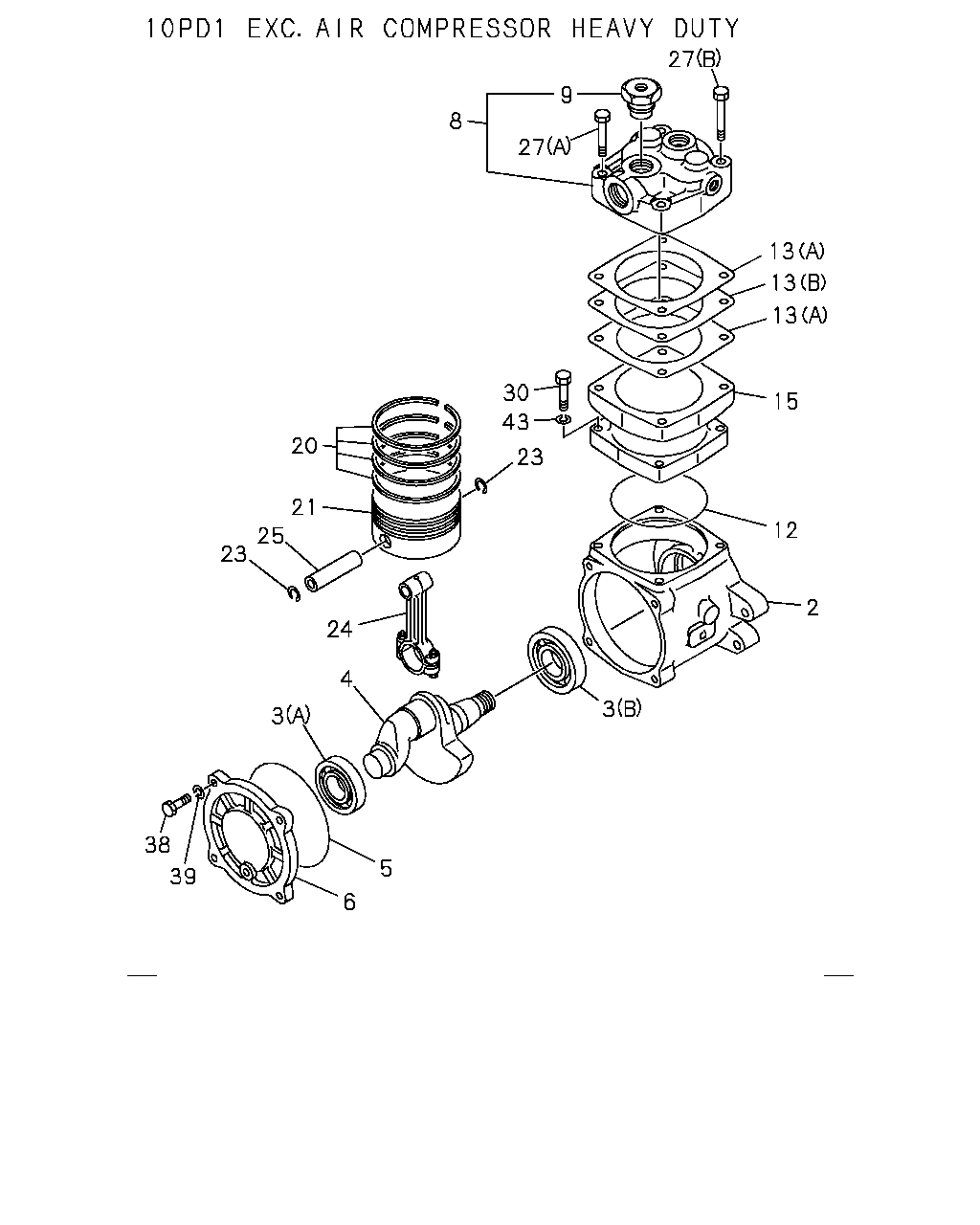

27 8 9 27 13 13 13 15 30 20 43 23 12 2 3 24 23 25 21 4 3 38 39 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-238-0	01	1	9002-	●
2	CRANKCASE; AIR CMPR	1-19151-238-0	01	1	9002-		●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-220-0	01	1	9002-	●
3	BEARING; AIR CMPR (A)	9-00006-206-0	01	1	9002-	●	●
3	BEARING; AIR CMPR (B)	9-00090-152-0	01	1	9002-	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-028-0	01	1	9002-9111	●
4	CRANKSHAFT; AIR CMPR	1-19171-031-0	01	1	9112-	●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-031-0	01	1	9002-9111	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9002-	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9002-	●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-031-1	01	1	9002-9111	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-049-3	01	1	9112-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-049-3	01	1	9112-		●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-048-1	01	1	9002-	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-009-0	01	1	9002-9111	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-018-1	01	1	9112-	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-018-1	01	1	9112-		●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-005-0	01	1	9002-9111	●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9112-	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9002-	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9002-	●
13	GASKET; AIR CMPR (A)	1-19139-007-0	01	1	9002-		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9002-	●
13	GASKET; AIR CMPR (B)	1-19139-009-0	01	1	9002-		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9002-	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9002-	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9002-	●
15	CYLINDER; AIR CMPR	1-19151-236-0	01	1	9002-		●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9002-	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-029-0	01	1	9002-9405	●
20	RING KIT; PISTON,AIR CMPR	1-19163-029-0	01	1	9002-9405		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9406-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-055-1	01	1	9406-		●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9002-	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9002-	●
21	PISTON; AIR CMPR	1-19161-014-0	01	1	9002-		●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9002-	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-005-0	02	1	9002-	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-005-0	02	1	9002-		●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-008-0	02	1	9002-	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-012-0	01	1	9002-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-012-0	01	1	9002-		●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9002-	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-007-0	01	1	9002-	●
25	PIN; PISTON,AIR CMPR	9-19167-007-0	01	1	9002-		●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9002-	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19119-013-0	04	1	9002-	●
27	BOLT; HD (A)	1-19119-013-0	04	1	9002-		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19119-014-0	02	1	9002-9309	●
27	BOLT; HD (B)	1-19119-014-0	02	1	9002-9309		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19119-014-0	02	1	9310-	●
27	BOLT; HD (B)	1-19119-014-0	02	1	9310-		●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	9002-	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	9002-	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19159-007-0	04	1	9002-	●
30	BOLT; CYL TO CRANKCASE	1-19159-007-0	04	1	9002-		●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9002-	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9002-	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9002-	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9002-	●	●

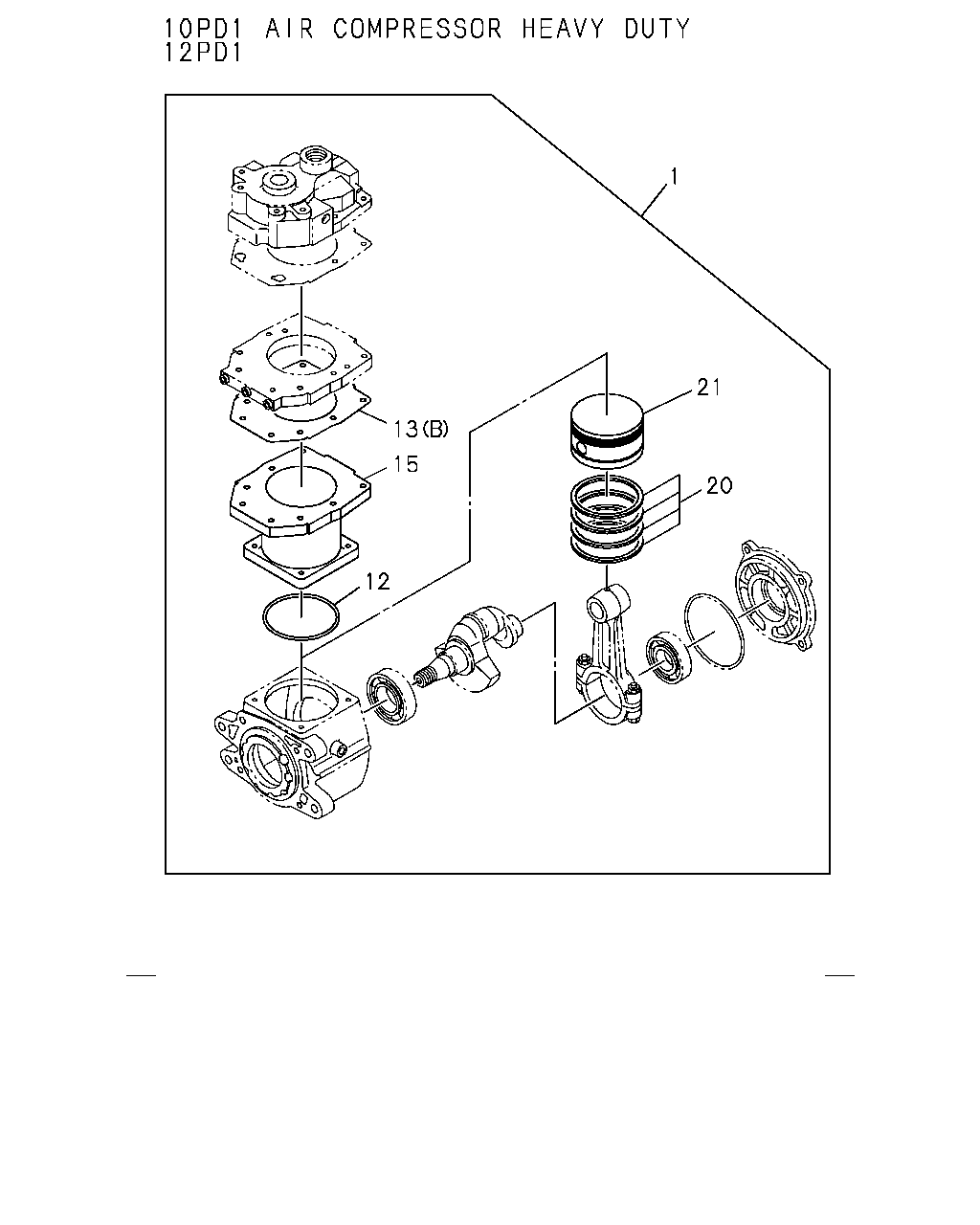

1 13 15 12 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-032-0	01	1	9002-9405	●
1	LINER KIT; CYL,AIR CMPR	1-19163-032-0	01	1	9002-9405		●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-056-1	01	1	9406-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-056-1	01	1	9406-		●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-019-0	01	1	9002-	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9002-	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9002-	●
13	GASKET; AIR CMPR (A)	1-19139-007-0	01	1	9002-		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9002-	●
13	GASKET; AIR CMPR (B)	1-19139-009-0	01	1	9002-		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9002-	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9002-	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9002-	●
15	CYLINDER; AIR CMPR	1-19151-236-0	01	1	9002-		●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9002-	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-029-0	01	1	9002-9405	●
20	RING KIT; PISTON,AIR CMPR	1-19163-029-0	01	1	9002-9405		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9406-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-055-1	01	1	9406-		●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9002-	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9002-	●
21	PISTON; AIR CMPR	1-19161-014-0	01	1	9002-		●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9002-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
