Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#27616) — 236 parça

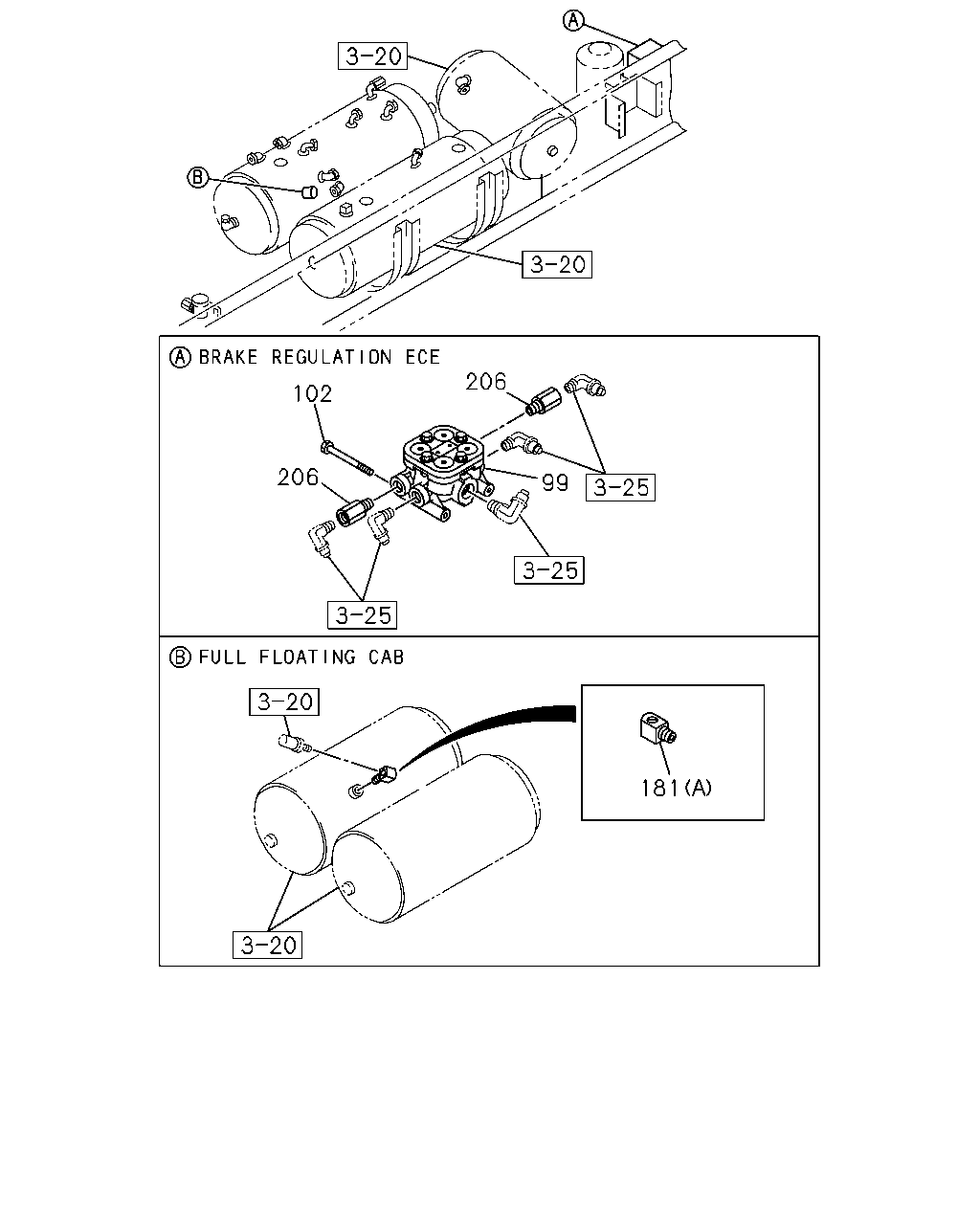

181 99 206 102 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
99	VALVE; PROTECTION BRAKE REGULATION ECE<TDV>	1-48110-079-0	01	1	0105-
102	BOLT; PROTECTION VALVE BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
102	BOLT; PROTECTION VALVE BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28650-825-0	02	1	0601-
181	ADAPTER; PRESSURE SW BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0105-
181	ADAPTER; PRESSURE SW FULL FLOATING CAB(W16) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-
206	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> PT3/8	1-48319-058-0	02	1	0105-

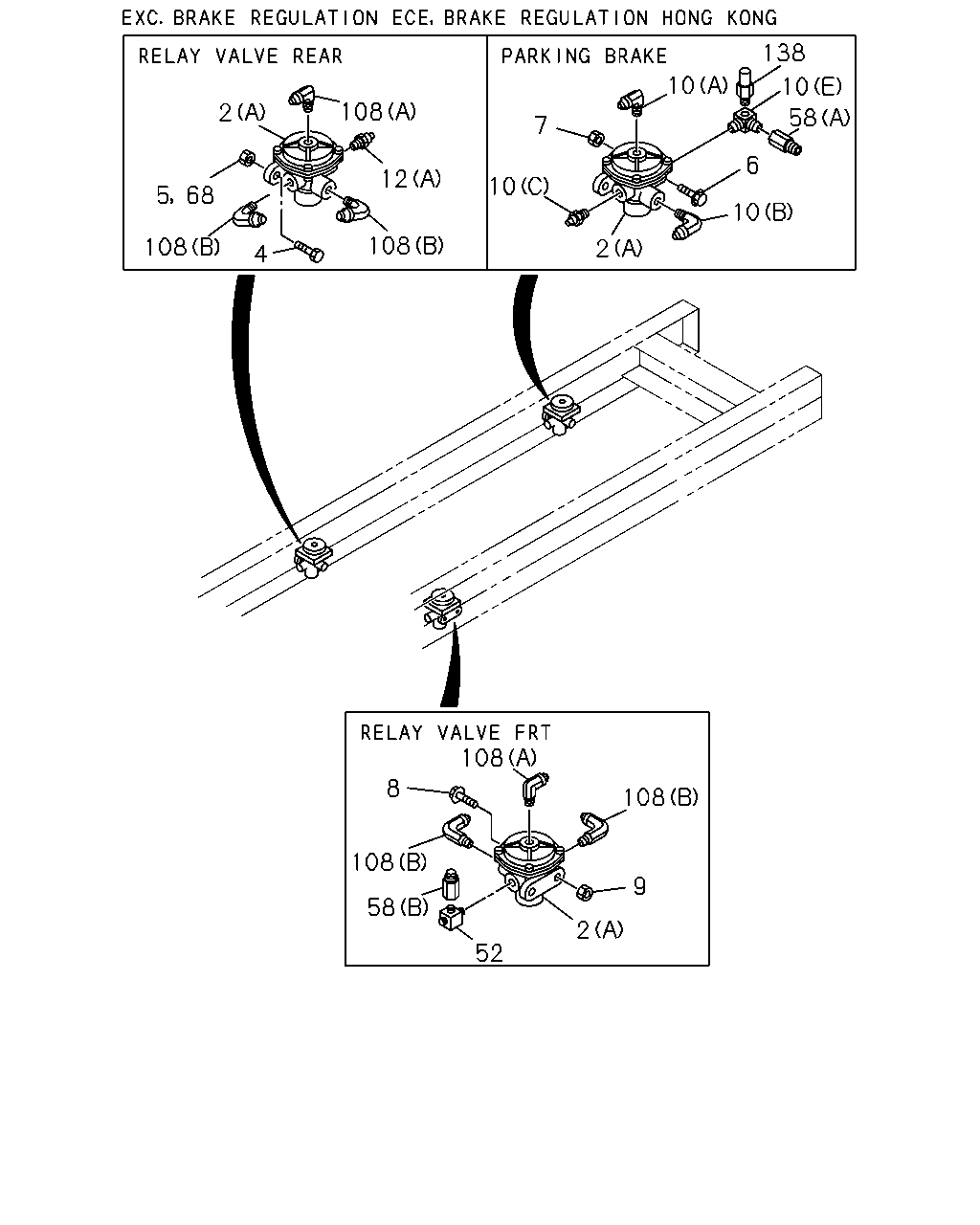

10 6 58 10 138 10 7 10 2 12 4 55 5 68 2 12 12 58 12 12 7 2 55 108 6 211 108 9 2 52 58 8 108 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (B)	1-48210-500-0	03	1	0105-
2	VALVE; RELAY EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
4	BOLT; RELAY VLV TO BRKT BRAKE REGULATION ECE<TDV> M10X40 FLANGE	0-28681-040-0	04	1	0105-0512
4	BOLT; RELAY VLV TO BRKT BRAKE REGULATION ECE<TDV> M10X40 FLANGE	0-28651-040-0	04	1	0601-
5	NUT BRAKE REGULATION ECE<TDV> M10 FLANGE	0-91150-210-0	04	1	0105-0602
5	NUT BRAKE REGULATION ECE<TDV> M10 FLANGE	0-91180-210-0	04	1	0603-
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
6	BOLT; VLV M10X40 FLANGE	0-28651-040-0	02	1	0601-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0105-0602
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
8	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
9	NUT M10 FLANGE	0-91150-210-0	02	1	0105-0602
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0105-
10	CONNECTOR (C)	1-09661-126-0	01	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (D)	1-09661-125-0	01	1	0105-
10	CONNECTOR EXC. BRAKE REGULATION HONG KONG<TCZ> (E)	1-09656-673-0	01	1	0105-
10	CONNECTOR EXC. BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
52	CONNECTOR; RELAY VLV	1-09656-247-1	01	1	0105-
55	PLUG; SUPPLY BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	02	1	0105-
58	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
58	ADAPTER EXC. BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	0105-0602
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
108	CONNECTOR; ELBOW (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
108	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
138	SWITCH; RELAY VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48340-057-1	01	1	0105-0312
138	SWITCH; RELAY VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48340-068-0	01	1	0401-
211	CONNECTOR; TEST BRAKE REGULATION ECE<TDV> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-

38 34 33 31 93 35 30 93 108 108 93 93 33 35 31 34 30 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT	1-48350-063-0	01	1	0105-
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0601-
33	BRACKET; GOV,AIR CONT AIR DRYER<PS7> (A)	1-48359-086-0	01	1	0105-
33	BRACKET; GOV,AIR CONT EXC. AIR DRYER<PS7> (B)	1-48359-085-0	01	1	0105-
34	BOLT; BRKT,GOV AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
34	BOLT; BRKT,GOV AIR DRYER<PS7> M8X25 FLANGE	0-28650-825-0	02	1	0601-
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M10X40 FLANGE	0-28651-040-0	02	1	0601-
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0105-0602
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
38	NUT; BRKT,GOV AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	02	1	0105-0602
38	NUT; BRKT,GOV AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	02	1	0603-
93	CONNECTOR; GOV DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0105-0106
93	CONNECTOR; GOV DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
108	CONNECTOR; ELBOW (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
108	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	0105-

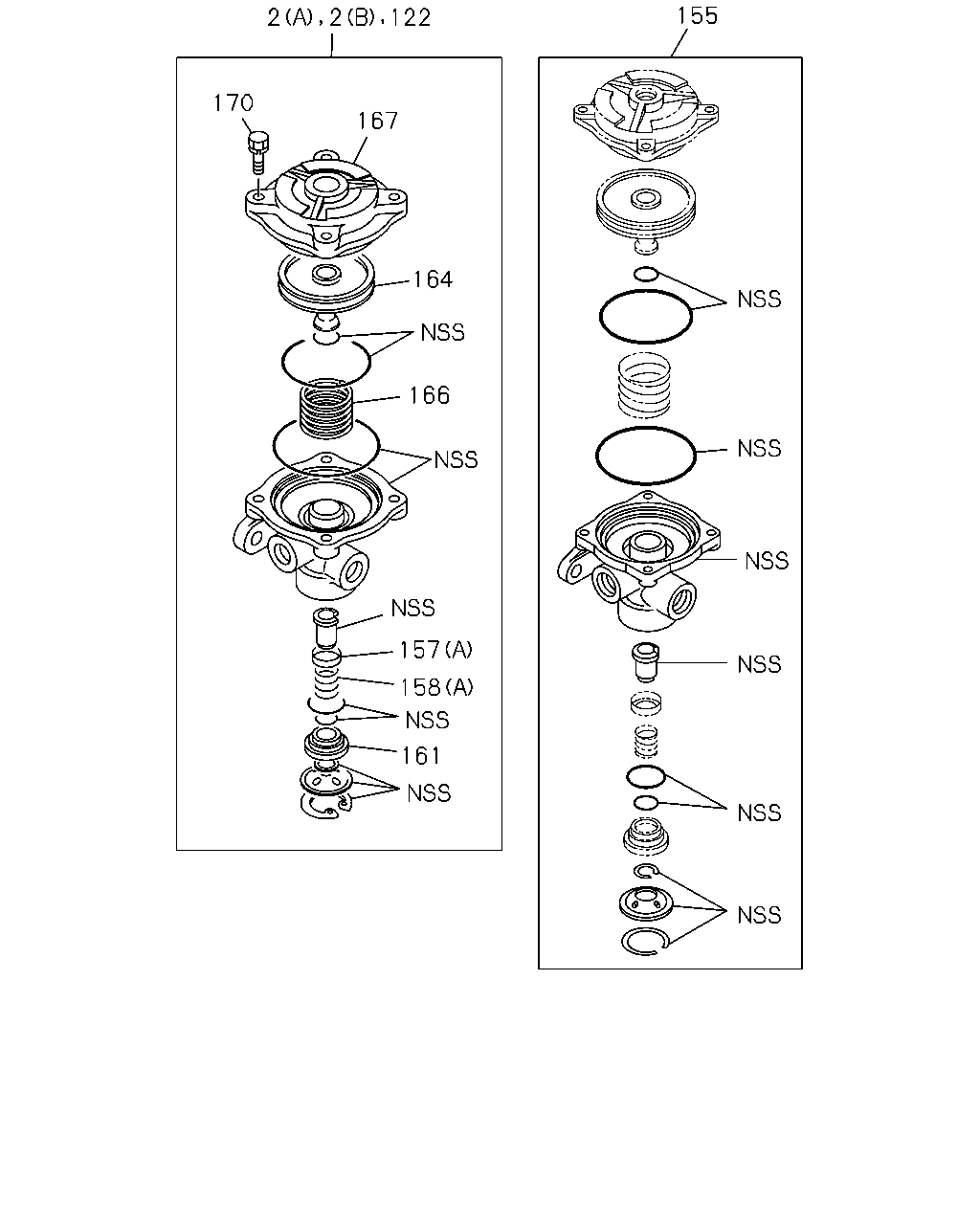

155 122 2 2 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (B)	1-48210-500-0	03	1	0105-
2	VALVE; RELAY EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
122	VALVE ASM; CONT,WHEEL PARKING BRAKE REGULATION HONG KONG<TCZ>	1-48210-278-0	01	1	0105-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ECE<TDV>	1-85576-033-0	03	1	0105-
155	REPAIR KIT; RELAY VALVE EXC. BRAKE REGULATION ECE<TDV>	1-85576-033-0	01	1	0105-
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0105-
155	REPAIR KIT; RELAY VALVE EXC. BRAKE REGULATION ECE<TDV>	1-85576-033-0	01	1	0105-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0105-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0105-
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV> (A)	1-48213-002-0	03	1	0105-
157	RETAINER; VALVE EXC. BRAKE REGULATION ECE<TDV> (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE EXC. BRAKE REGULATION ECE<TDV> (A)	1-48213-002-0	01	1	0105-
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0105-
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0105-
158	SPRING; VALVE BRAKE REGULATION ECE<TDV> (A)	1-47819-089-0	03	1	0105-
158	SPRING; VALVE EXC. BRAKE REGULATION ECE<TDV> (A)	1-47819-089-0	01	1	0105-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0105-
158	SPRING; VALVE EXC. BRAKE REGULATION ECE<TDV> (A)	1-47819-089-0	01	1	0105-
161	GUIDE; VALVE BRAKE REGULATION ECE<TDV>	1-48129-014-0	03	1	0105-
161	GUIDE; VALVE EXC. BRAKE REGULATION ECE<TDV>	1-48129-014-0	01	1	0105-
161	GUIDE; VALVE	1-48129-014-0	01	1	0105-
161	GUIDE; VALVE EXC. BRAKE REGULATION ECE<TDV>	1-48129-014-0	01	1	0105-
164	PISTON; RELAY VALVE BRAKE REGULATION ECE<TDV>	1-48219-071-0	03	1	0105-
164	PISTON; RELAY VALVE EXC. BRAKE REGULATION ECE<TDV>	1-48219-071-0	01	1	0105-
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0105-
164	PISTON; RELAY VALVE EXC. BRAKE REGULATION ECE<TDV>	1-48219-071-0	01	1	0105-
166	SPRING; PISTON BRAKE REGULATION ECE<TDV>	1-47819-165-0	03	1	0105-
166	SPRING; PISTON EXC. BRAKE REGULATION ECE<TDV>	1-47819-090-0	01	1	0105-
166	SPRING; PISTON	1-47819-090-0	01	1	0105-
166	SPRING; PISTON EXC. BRAKE REGULATION ECE<TDV>	1-47819-090-0	01	1	0105-
167	COVER; VALVE BRAKE REGULATION ECE<TDV>	1-48219-070-0	03	1	0105-
167	COVER; VALVE EXC. BRAKE REGULATION ECE<TDV>	1-48219-070-0	01	1	0105-
167	COVER; VALVE	1-48219-070-0	01	1	0105-
167	COVER; VALVE EXC. BRAKE REGULATION ECE<TDV>	1-48219-070-0	01	1	0105-
170	SCREW; COVER TO BODY BRAKE REGULATION ECE<TDV>	1-48219-039-0	12	1	0105-
170	SCREW; COVER TO BODY EXC. BRAKE REGULATION ECE<TDV>	1-48219-039-0	04	1	0105-
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0105-
170	SCREW; COVER TO BODY EXC. BRAKE REGULATION ECE<TDV>	1-48219-039-0	04	1	0105-

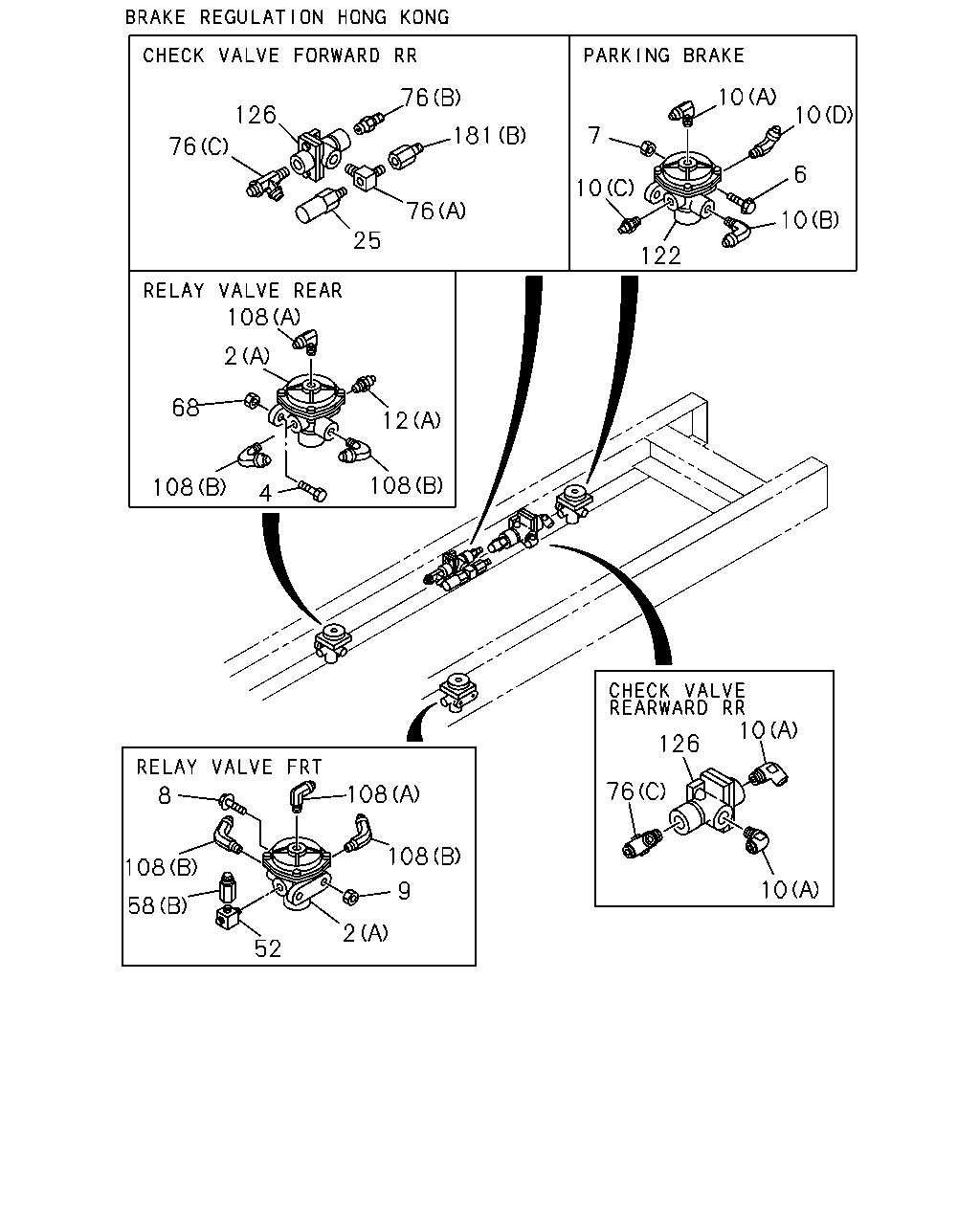

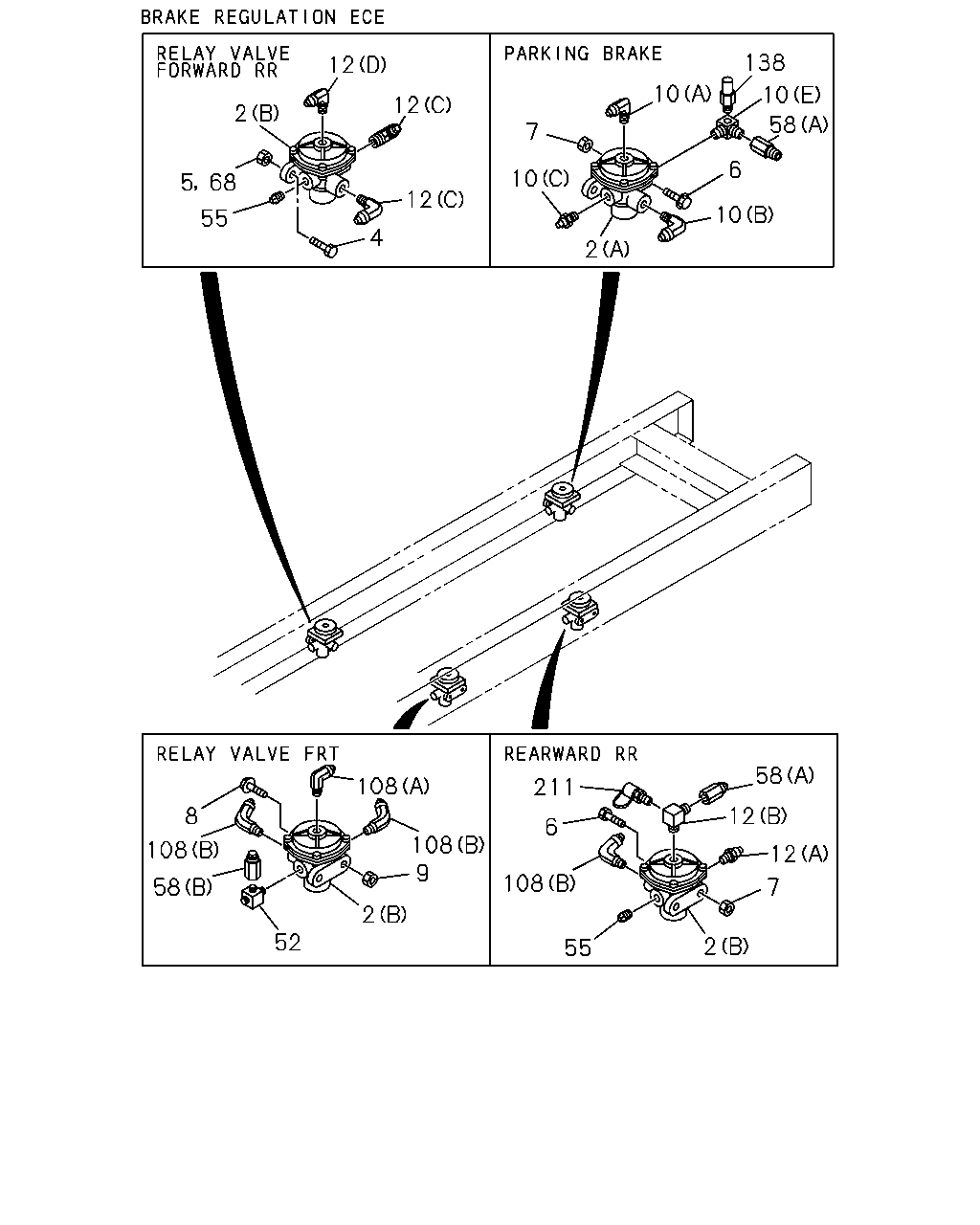

138 10 7 10 2 10 6 58 10 108 12 108 2 5 68 108 4 108 9 2 52 58 8 108 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (B)	1-48210-500-0	03	1	0105-
2	VALVE; RELAY EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
4	BOLT; RELAY VLV TO BRKT BRAKE REGULATION ECE<TDV> M10X40 FLANGE	0-28681-040-0	04	1	0105-0512
4	BOLT; RELAY VLV TO BRKT BRAKE REGULATION ECE<TDV> M10X40 FLANGE	0-28651-040-0	04	1	0601-
5	NUT BRAKE REGULATION ECE<TDV> M10 FLANGE	0-91150-210-0	04	1	0105-0602
5	NUT BRAKE REGULATION ECE<TDV> M10 FLANGE	0-91180-210-0	04	1	0603-
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
6	BOLT; VLV M10X40 FLANGE	0-28651-040-0	02	1	0601-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0105-0602
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
8	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
9	NUT M10 FLANGE	0-91150-210-0	02	1	0105-0602
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0105-
10	CONNECTOR (C)	1-09661-126-0	01	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (D)	1-09661-125-0	01	1	0105-
10	CONNECTOR EXC. BRAKE REGULATION HONG KONG<TCZ> (E)	1-09656-673-0	01	1	0105-
10	CONNECTOR EXC. BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
52	CONNECTOR; RELAY VLV	1-09656-247-1	01	1	0105-
58	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
58	ADAPTER EXC. BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	0105-0602
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
108	CONNECTOR; ELBOW (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
108	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
138	SWITCH; RELAY VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48340-057-1	01	1	0105-0312
138	SWITCH; RELAY VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48340-068-0	01	1	0401-

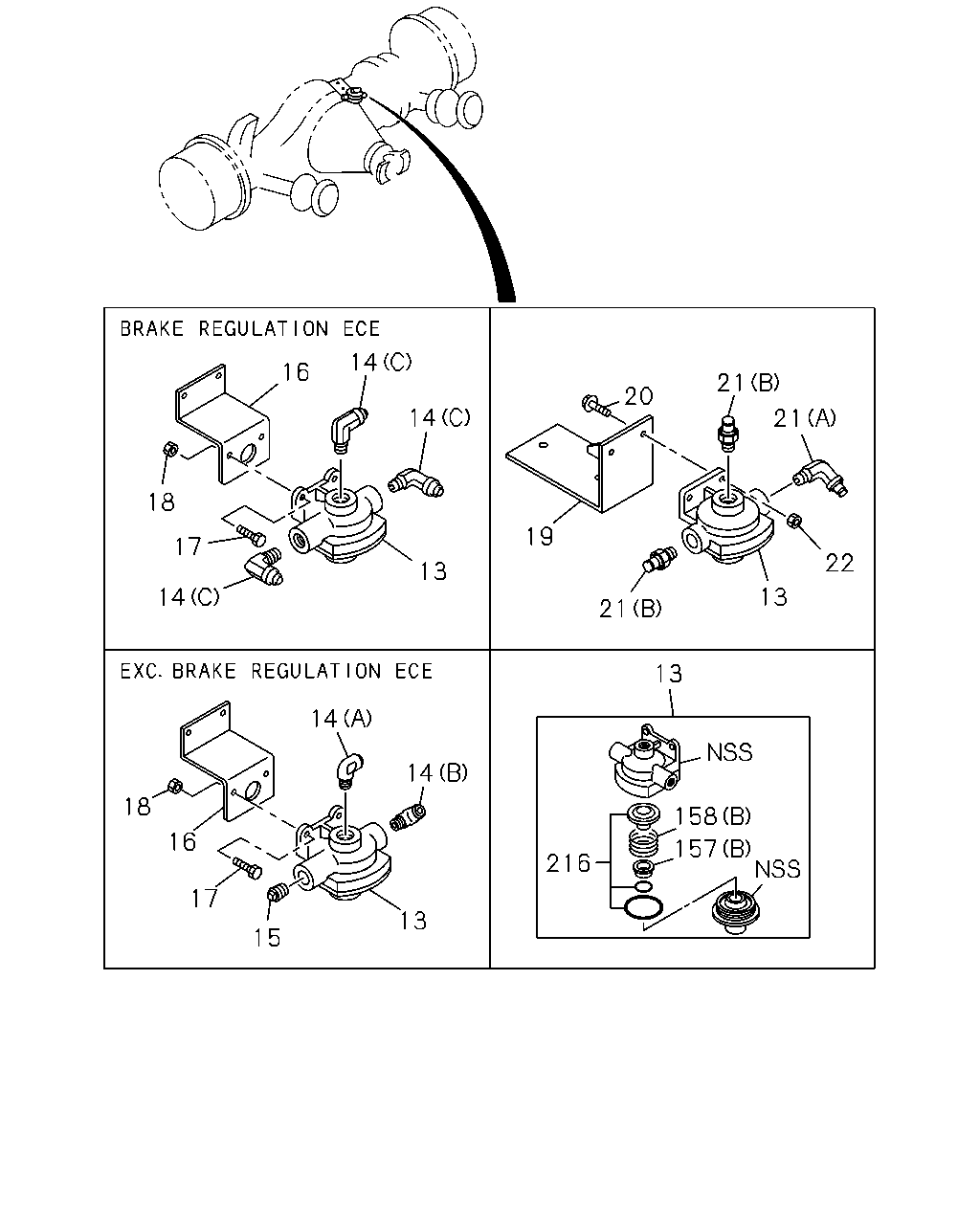

21 21 20 19 21 13 22 13 216 157 158 13 14 14 15 17 16 18 13 14 14 16 18 14 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE	1-48410-320-0	01	1	0105-0109
13	VALVE ASM; QUICK RELEASE	1-48410-320-0	01	1	0105-0109
13	VALVE ASM; QUICK RELEASE	1-48410-659-0	01	1	0110-
13	VALVE ASM; QUICK RELEASE	1-48410-659-0	01	1	0110-
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0105-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
15	PLUG; VALVE EXC. BRAKE REGULATION ECE<TDV> PT3/8	9-09204-517-0	01	1	0105-
16	BRACKET; VLV,PARKING BRK	1-47475-540-1	01	1	0105-
17	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
17	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
17	BOLT; BRKT M8X40 FLANGE	0-28680-840-0	02	1	0105-0512
17	BOLT; BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-
18	NUT; BRKT M8	9-09110-408-0	02	1	0105-0109
18	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0110-0602
18	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
19	BRACKET; QUICK RELEASE VLV	1-47475-199-1	01	1	0105-
20	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
20	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
21	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
21	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0105-
22	NUT; BRKT M8	9-09110-408-0	02	1	0105-0109
22	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0110-0602
22	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0105-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0105-
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV> (A)	1-48213-002-0	03	1	0105-
157	RETAINER; VALVE EXC. BRAKE REGULATION ECE<TDV> (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE EXC. BRAKE REGULATION ECE<TDV> (A)	1-48213-002-0	01	1	0105-
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0105-
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0105-
158	SPRING; VALVE BRAKE REGULATION ECE<TDV> (A)	1-47819-089-0	03	1	0105-
158	SPRING; VALVE EXC. BRAKE REGULATION ECE<TDV> (A)	1-47819-089-0	01	1	0105-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0105-
158	SPRING; VALVE EXC. BRAKE REGULATION ECE<TDV> (A)	1-47819-089-0	01	1	0105-
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0105-
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0105-

10 122 10 7 10 10 6 76 25 181 76 126 76 108 2 12 108 108 4 68 126 76 10 10 2 52 58 9 108 108 8 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (B)	1-48210-500-0	03	1	0105-
2	VALVE; RELAY EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
4	BOLT; RELAY VLV TO BRKT BRAKE REGULATION ECE<TDV> M10X40 FLANGE	0-28681-040-0	04	1	0105-0512
4	BOLT; RELAY VLV TO BRKT BRAKE REGULATION ECE<TDV> M10X40 FLANGE	0-28651-040-0	04	1	0601-
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
6	BOLT; VLV M10X40 FLANGE	0-28651-040-0	02	1	0601-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0105-0602
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
8	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
9	NUT M10 FLANGE	0-91150-210-0	02	1	0105-0602
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0105-
10	CONNECTOR (C)	1-09661-126-0	01	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (D)	1-09661-125-0	01	1	0105-
10	CONNECTOR EXC. BRAKE REGULATION HONG KONG<TCZ> (E)	1-09656-673-0	01	1	0105-
10	CONNECTOR EXC. BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
25	SWITCH; PRESSURE BRAKE REGULATION HONG KONG<TCZ>	1-48340-057-1	01	1	0105-0312
25	SWITCH; PRESSURE BRAKE REGULATION HONG KONG<TCZ>	1-48340-068-0	01	1	0401-
52	CONNECTOR; RELAY VLV	1-09656-247-1	01	1	0105-
58	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
58	ADAPTER EXC. BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	0105-0602
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
76	CONNECTOR; CONT VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-09656-242-2	01	1	0105-
76	CONNECTOR; CONT VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
76	CONNECTOR; CONT VLV BRAKE REGULATION HONG KONG<TCZ> (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	02	1	0105-
108	CONNECTOR; ELBOW (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
108	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
122	VALVE ASM; CONT,WHEEL PARKING BRAKE REGULATION HONG KONG<TCZ>	1-48210-278-0	01	1	0105-
126	VALVE; CONT BRAKE REGULATION HONG KONG<TCZ>	1-48410-531-0	02	1	0105-
181	ADAPTER; PRESSURE SW BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0105-
181	ADAPTER; PRESSURE SW FULL FLOATING CAB(W16) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
