Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#27615) — 200 parça

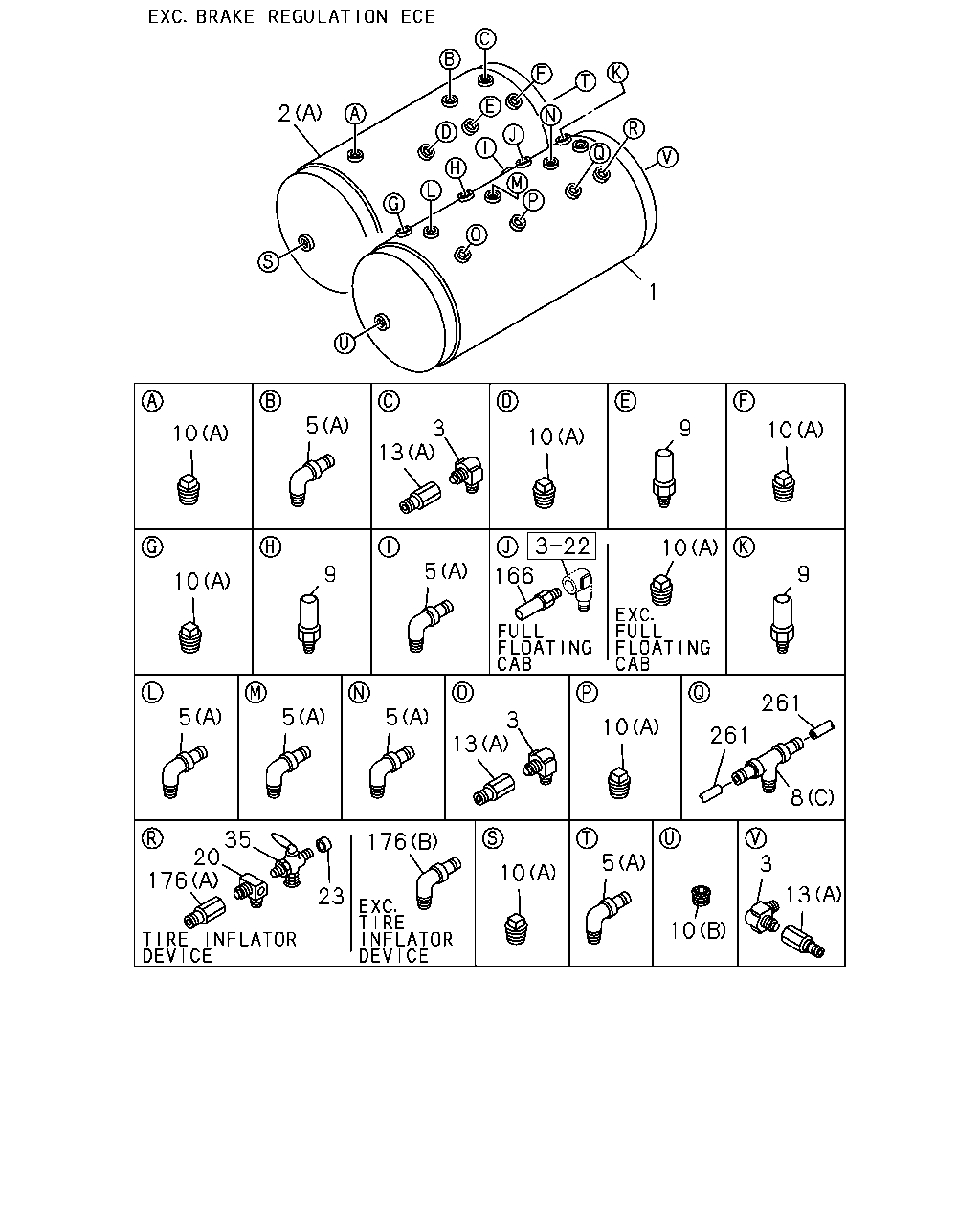

2 1 10 9 10 3 13 5 5 8 8 5 9 166 10 5 9 10 5 8 3 13 8 5 5 20 176 23 35 176 10 5 10 13 3 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR AIR DRYER<PS7>	1-48371-334-0	01	1	0312-
1	TANK ASM; AIR	1-48370-221-0	01	1	0105-0311
1	TANK ASM; AIR EXC. AIR DRYER<PS7>	1-48370-221-0	01	1	0312-
2	TANK; AIR (A)	1-48370-222-1	01	1	0105-
2	TANK; AIR (B)	1-48370-223-1	01	1	0105-
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0105-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0105-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0105-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0105-
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0105-
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0105-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C)	1-09661-080-1	01	1	0105-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	03	1	0105-
10	PLUG; AIR TANK (B) PT3/4	1-09605-025-0	01	1	0105-
10	PLUG; AIR TANK AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	05	1	0105-
10	PLUG; AIR TANK EXC. AIR DRYER<PS7> (A) PT3/8	9-09204-517-0	05	1	0105-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	06	1	0105-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (A) PT3/8	9-09204-517-0	01	1	0105-
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0105-
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0105-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47>	1-09656-242-2	01	1	0105-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0105-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) 650KPA	1-48340-059-1	01	1	0105-
176	ADAPTER TIRE INFLATOR DEVICE<W47> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0105-
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-

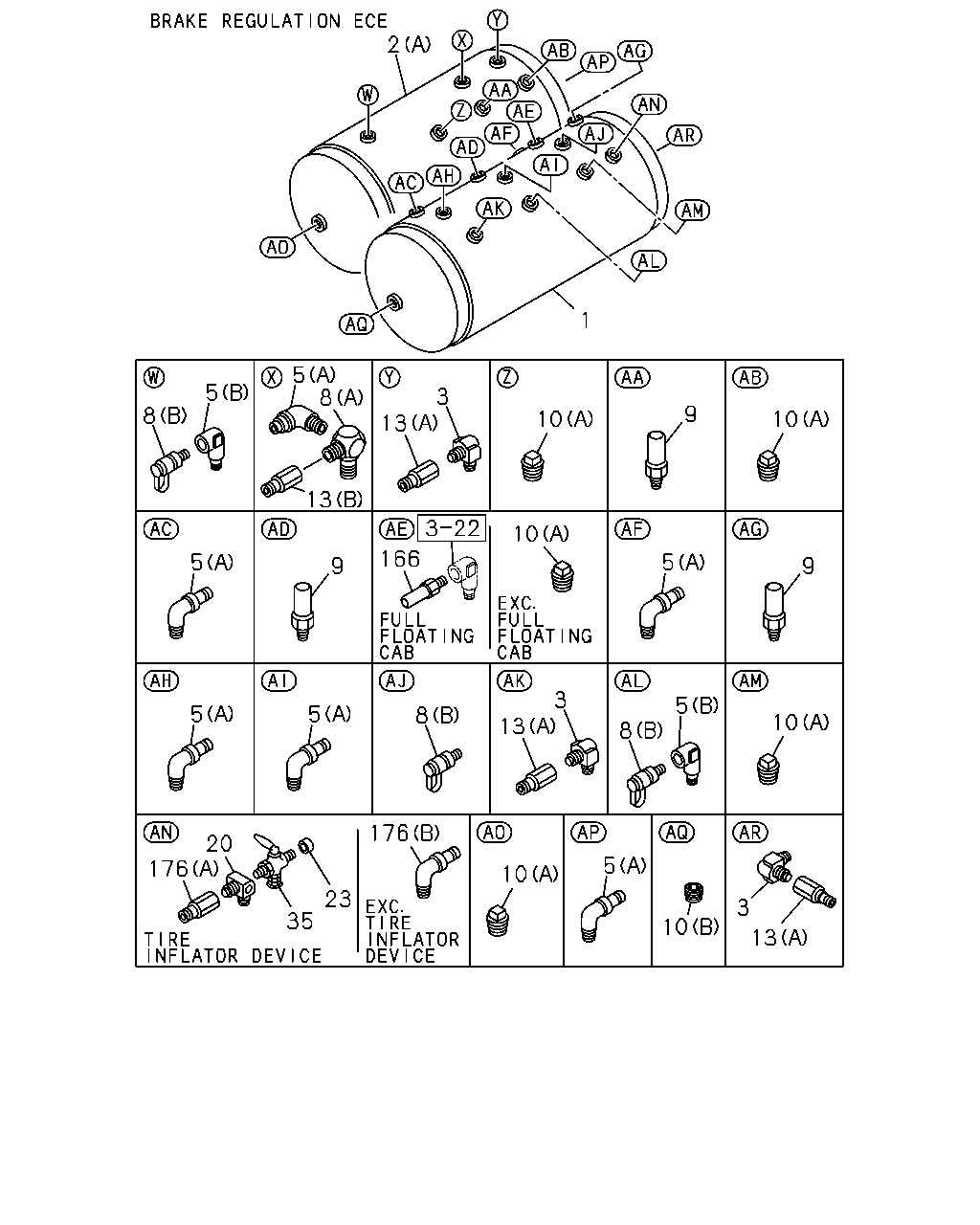

2 1 10 9 10 13 5 10 10 9 5 166 10 9 261 261 10 3 13 5 5 176 20 35 23 10 176 5 10 3 13 3 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR AIR DRYER<PS7>	1-48371-334-0	01	1	0312-
1	TANK ASM; AIR	1-48370-221-0	01	1	0105-0311
1	TANK ASM; AIR EXC. AIR DRYER<PS7>	1-48370-221-0	01	1	0312-
2	TANK; AIR (A)	1-48370-222-1	01	1	0105-
2	TANK; AIR (B)	1-48370-223-1	01	1	0105-
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0105-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0105-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0105-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0105-
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0105-
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0105-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C)	1-09661-080-1	01	1	0105-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	03	1	0105-
10	PLUG; AIR TANK (B) PT3/4	1-09605-025-0	01	1	0105-
10	PLUG; AIR TANK AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	05	1	0105-
10	PLUG; AIR TANK EXC. AIR DRYER<PS7> (A) PT3/8	9-09204-517-0	05	1	0105-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	06	1	0105-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (A) PT3/8	9-09204-517-0	01	1	0105-
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0105-
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0105-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47>	1-09656-242-2	01	1	0105-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0105-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) 650KPA	1-48340-059-1	01	1	0105-
176	ADAPTER TIRE INFLATOR DEVICE<W47> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0105-
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
261	TUBE; NYLON EXC. BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0105-0212
261	TUBE; NYLON EXC. BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-

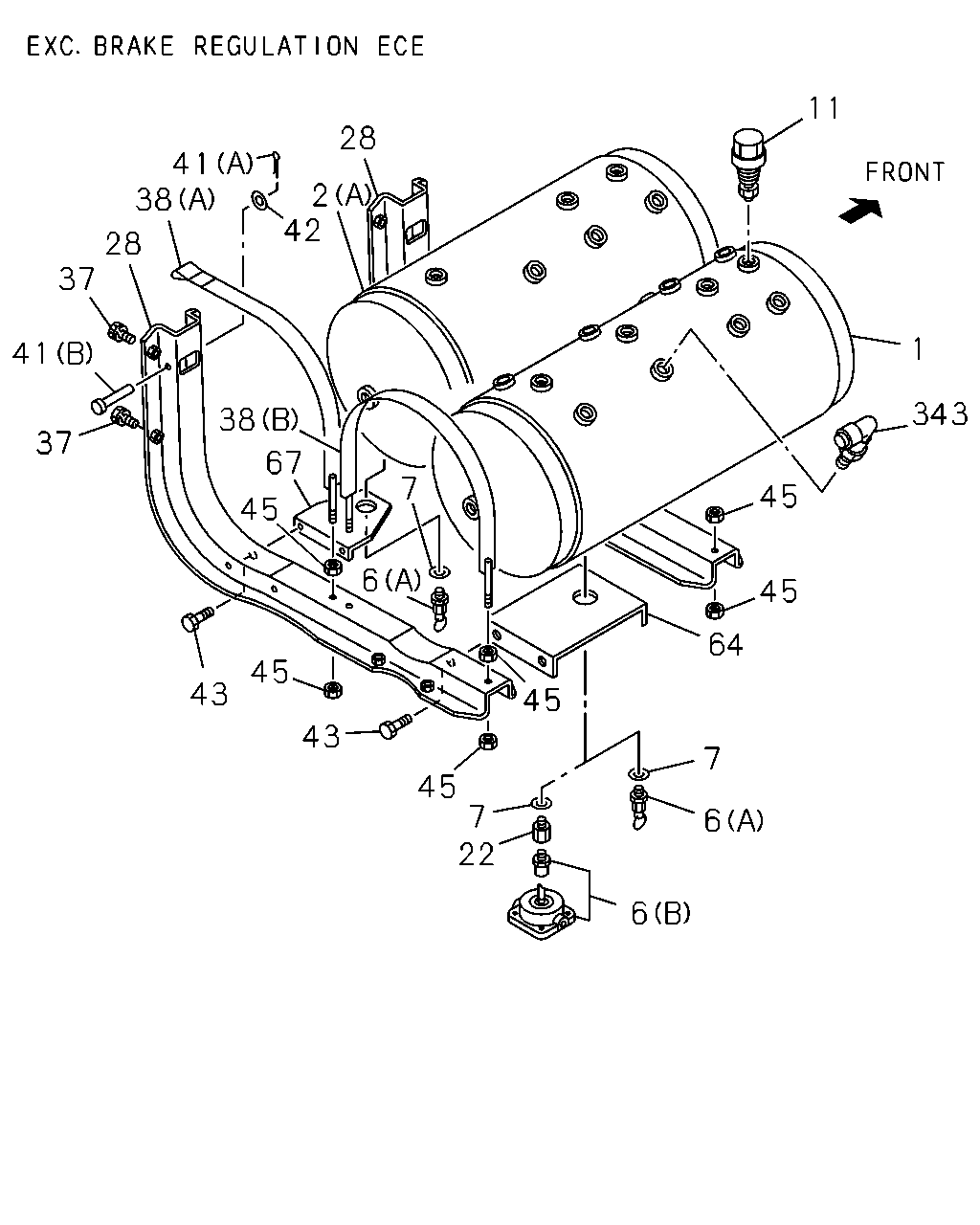

1 11 2 28 41 28 37 41 37 45 67 38 38 42 45 45 64 7 6 6 22 45 7 45 43 45 43 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR AIR DRYER<PS7>	1-48371-334-0	01	1	0312-
1	TANK ASM; AIR	1-48370-221-0	01	1	0105-0311
1	TANK ASM; AIR EXC. AIR DRYER<PS7>	1-48370-221-0	01	1	0312-
2	TANK; AIR (A)	1-48370-222-1	01	1	0105-
2	TANK; AIR (B)	1-48370-223-1	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	03	1	0312-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	03	1	0105-0311
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	02	1	0312-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	03	1	0312-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0105-0311
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	02	1	0312-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0105-
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	0105-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	0105-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	0105-0512
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	08	1	0601-
38	BAND; AIR TANK (B)	1-48317-108-2	02	1	0105-
38	BAND; AIR TANK (A)	1-48317-109-2	02	1	0105-
41	PIN; BAND FIX (A) L=32.6	1-09987-142-0	02	1	0105-
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	0105-0606
41	PIN; BAND FIX (B) OD=10 L=60	0-82254-060-0	02	1	0607-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0105-
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	01	1	0601-
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	0105-0512
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	0601-
45	NUT; AIR TANK,MAIN M8	9-09110-508-0	12	1	0105-0512
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	12	1	0601-
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	0105-
67	STAY; SUB TANK	1-48317-711-0	01	1	0105-

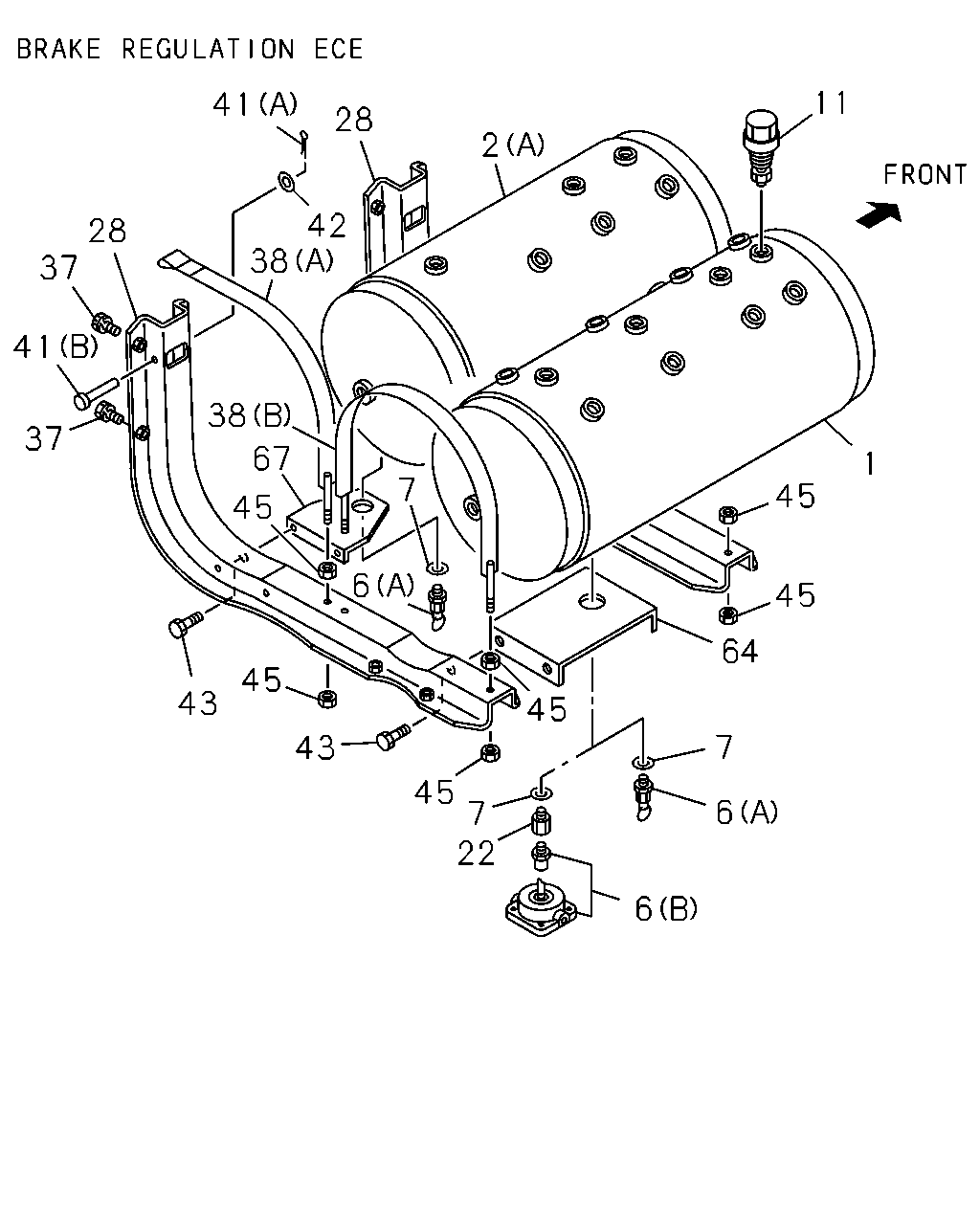

11 1 343 45 45 64 7 6 6 22 45 45 7 43 45 43 45 67 6 7 38 37 41 37 28 38 41 42 2 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR AIR DRYER<PS7>	1-48371-334-0	01	1	0312-
1	TANK ASM; AIR	1-48370-221-0	01	1	0105-0311
1	TANK ASM; AIR EXC. AIR DRYER<PS7>	1-48370-221-0	01	1	0312-
2	TANK; AIR (A)	1-48370-222-1	01	1	0105-
2	TANK; AIR (B)	1-48370-223-1	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	03	1	0312-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	03	1	0105-0311
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	02	1	0312-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	03	1	0312-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0105-0311
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	02	1	0312-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0105-
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	0105-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	0105-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	0105-0512
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	08	1	0601-
38	BAND; AIR TANK (B)	1-48317-108-2	02	1	0105-
38	BAND; AIR TANK (A)	1-48317-109-2	02	1	0105-
41	PIN; BAND FIX (A) L=32.6	1-09987-142-0	02	1	0105-
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	0105-0606
41	PIN; BAND FIX (B) OD=10 L=60	0-82254-060-0	02	1	0607-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0105-
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	01	1	0601-
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	0105-0512
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	0601-
45	NUT; AIR TANK,MAIN M8	9-09110-508-0	12	1	0105-0512
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	12	1	0601-
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	0105-
67	STAY; SUB TANK	1-48317-711-0	01	1	0105-
343	CONNECTOR; SWIVEL EXC. BRAKE REGULATION ECE<TDV> R3/8 OD=15.9	1-09661-082-0	01	1	0105-

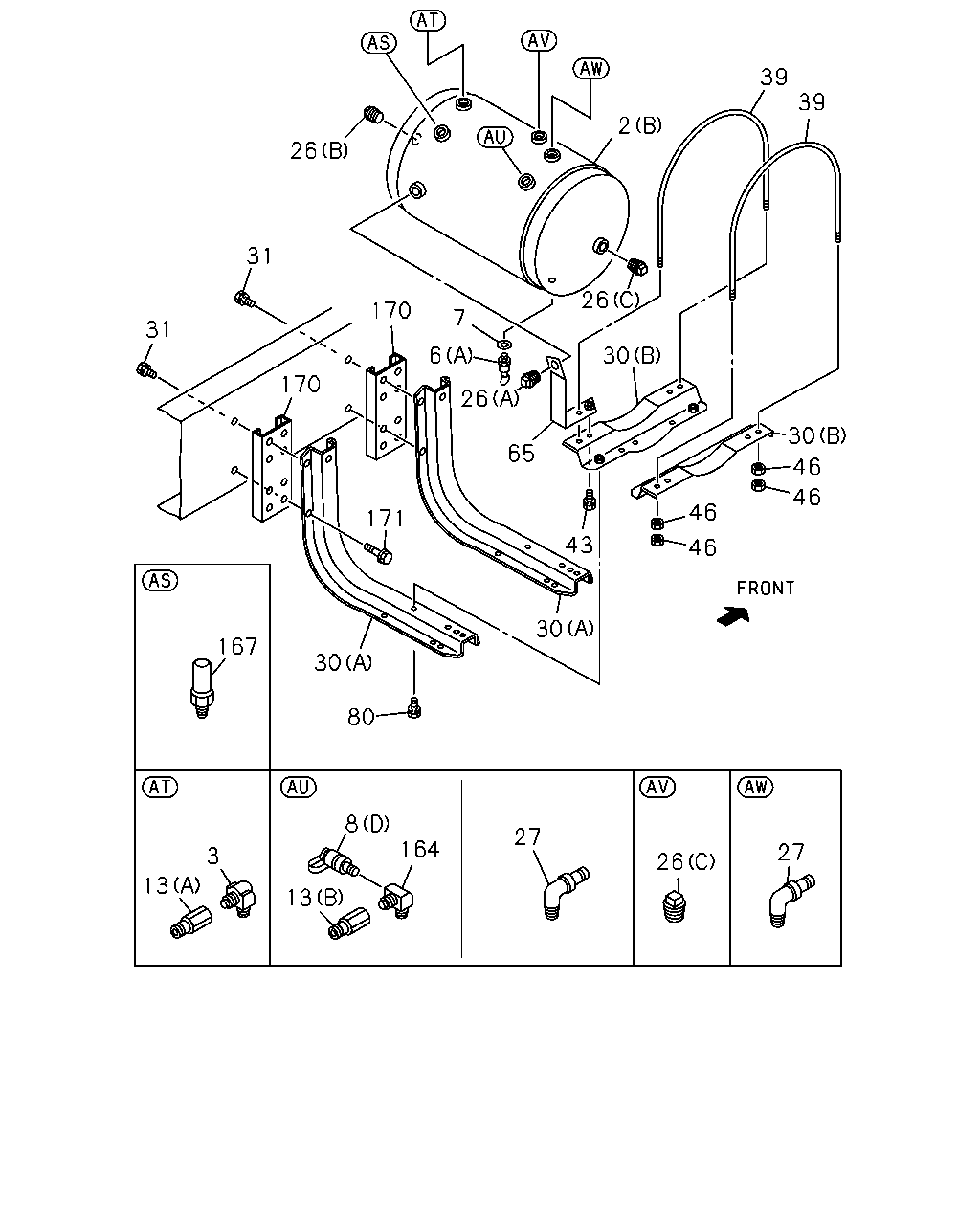

39 39 2 26 31 31 170 170 7 26 6 26 65 171 167 30 80 30 43 46 46 46 46 30 30 27 26 27 164 8 13 13 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A)	1-48370-222-1	01	1	0105-
2	TANK; AIR (B)	1-48370-223-1	01	1	0105-
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0105-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0105-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	03	1	0312-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	03	1	0105-0311
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	02	1	0312-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	03	1	0312-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0105-0311
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	02	1	0312-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0105-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C)	1-09661-080-1	01	1	0105-
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0105-
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0105-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
26	PLUG; SUB AIR TANK (C) PT3/8	9-09204-517-0	02	1	0105-
26	PLUG; SUB AIR TANK (A) PT3/4	9-09204-526-0	01	1	0105-
26	PLUG; SUB AIR TANK (B) PT1/4	9-99204-513-0	01	1	0105-
27	UNION; ELBOW,AIR TANK BRAKE REGULATION ECE<TDV> DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
27	UNION; ELBOW,AIR TANK EXC. BRAKE REGULATION ECE<TDV> DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
30	BRACKET; AIR TANK,SUB (B) L=360	1-48317-106-3	02	1	0105-
30	BRACKET; AIR TANK,SUB (A)	1-48317-716-0	02	1	0105-
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	08	1	0105-0512
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	08	1	0601-
39	U-BOLT; AIR TANK L=303	1-48317-087-2	02	1	0105-
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	01	1	0601-
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	0105-0512
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	0601-
46	NUT; U-BOLT M8	9-09110-508-0	08	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-
65	STAY; AIR TANK,SUB	1-48317-678-0	01	1	0105-
80	BOLT; BRKT M12X30 FLANGE	0-28681-230-0	04	1	0105-0512
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	0601-
164	CONNECTOR; SUB AIR TANK BRAKE REGULATION ECE<TDV> M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0105-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB 530KPA	1-48340-054-1	01	1	0105-
170	DISTANCE; AIR TANK,SUB	1-48319-113-0	02	1	0105-
171	BOLT; BRKT TO DIST M12X30 FLANGE	0-28681-230-0	08	1	0105-0512
171	BOLT; BRKT TO DIST M12X30 FLANGE	0-28651-230-0	08	1	0601-

216 215 241 122 97 123 97 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (B) M8X12 FLANGE	0-28080-812-0	02	1	0105-0512
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (B) M8X12 FLANGE	0-28050-812-0	02	1	0601-
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (A) M8X16 FLANGE	0-28080-816-0	02	1	0105-0109
97	BOLT; BRKT,DBL CHECK VLV FRAME EQUIPMENT HEAVY DUTY VAR2<F01> BRAKE REGULATION HONG KONG<TCZ> (A) M8X20 FLANGE	0-28080-820-0	02	1	0110-0512
97	BOLT; BRKT,DBL CHECK VLV FRAME EQUIPMENT HEAVY DUTY VAR2<F01> BRAKE REGULATION HONG KONG<TCZ> (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (C) M8X35 FLANGE	0-28680-835-0	02	1	0105-0109
97	BOLT; BRKT,DBL CHECK VLV FRAME EQUIPMENT HEAVY DUTY VAR1<F03> BRAKE REGULATION HONG KONG<TCZ> (C) M8X25 FLANGE	0-28080-825-0	02	1	0110-0512
97	BOLT; BRKT,DBL CHECK VLV FRAME EQUIPMENT HEAVY DUTY VAR1<F03> BRAKE REGULATION HONG KONG<TCZ> (C) M8X25 FLANGE	0-28050-825-0	02	1	0601-
122	BRACKET; DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48495-030-1	01	1	0105-0109
123	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	02	1	0105-0109
215	PIPE; VINYL AIR DRYER<PS7> L=220 SERVICED BY L=3000	0-03566-300-0	01	1	0105-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	0105-
241	BOLT; SET,CONT VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	0105-0512
241	BOLT; SET,CONT VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	0601-
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> M8X70 FLANGE	0-28080-870-0	02	1	0105-0512
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> M8X70 FLANGE	0-28050-870-0	02	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
