3-08C — PARKING BRAKE (#27612) — 110 parça

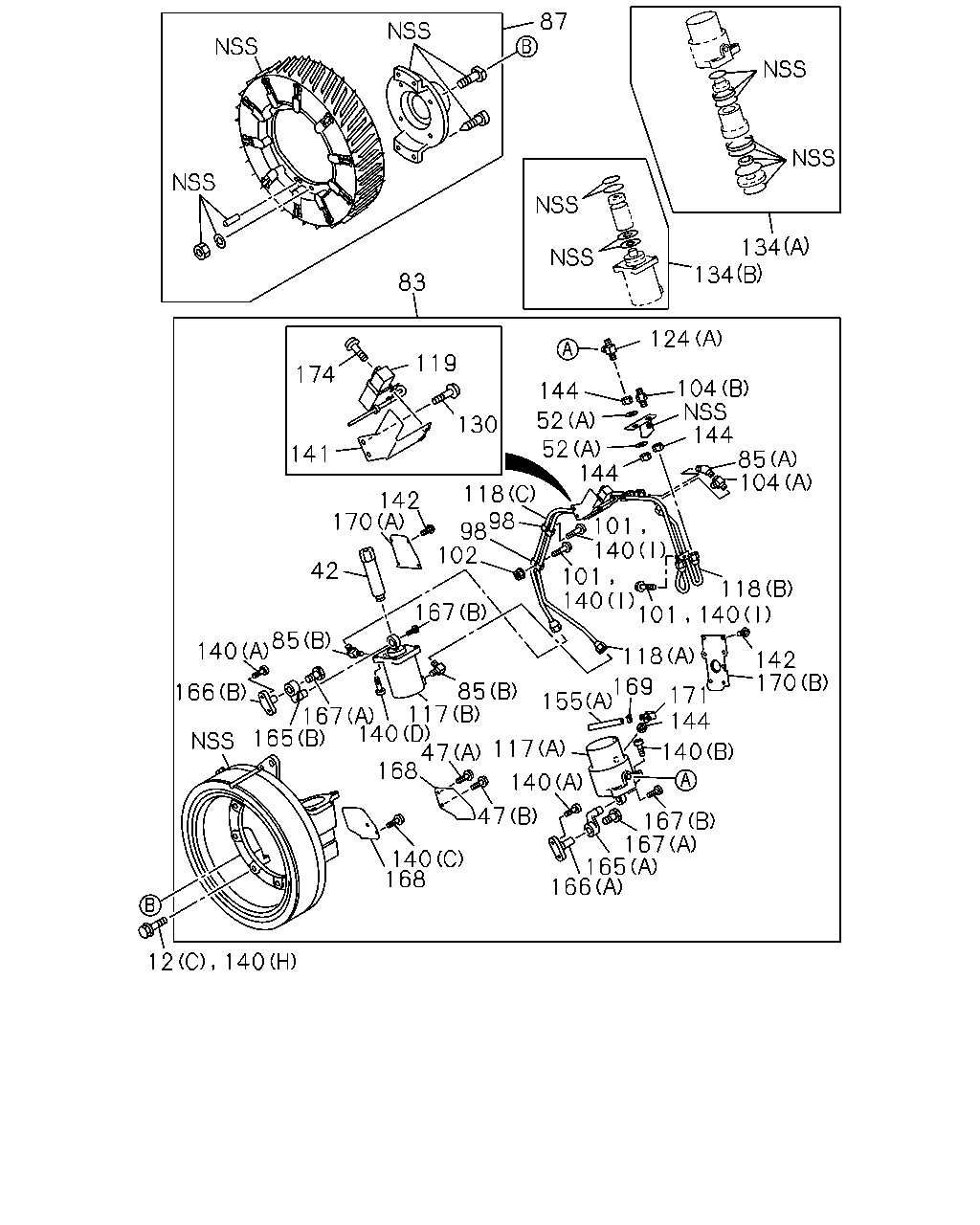

çizim 24500
87 83 174 141 142 170 42 140 170 142 118 101 140 101 140 101 118 98 98 102 167 171 144 140 167 167 165 166 168 140 47 140 117 47 168 165 166 167 140 85 169 155 85 117 140 104 85 144 104 124 144 130 119 52 52 134 134 144 118 12 140
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 BOLT; FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12X35 FLANGE 		0-28791-235-0 08 1 0105-0105 ● ● ● ●
12 BOLT; FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12X35 FLANGE 		0-28791-235-0 08 1 0106-0312 ● ● ● ●
42 SPRING; RETURN,LEVER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-071-1 01 1 0105-0105 ● ● ● ●
42 SPRING; RETURN,LEVER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-071-1 01 1 0106- ● ● ● ●
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X10 HEX SOCKET 		1-48629-133-0 01 1 0105-0105 ● ● ● ●
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X10 HEX SOCKET 		1-48629-133-0 01 1 0106- ● ● ● ●
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET 		1-48629-145-0 01 1 0105-0105 ● ● ● ●
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET 		1-48629-145-0 01 1 0106- ● ● ● ●
52 WASHER; PL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26 		9-09160-612-0 02 1 0105-0105 ● ● ● ●
52 WASHER; PL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26 		9-09160-612-0 02 1 0106-0106 ● ● ● ●
52 WASHER; PL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26 		9-09160-612-0 02 1 0107-0605 ● ● ● ●
52 WASHER; PL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26 		0-91610-612-0 02 1 0606- ● ● ● ●
83 RETARDER ASM; PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-46200-245-2 01 1 0105-0105 ● ● ● ●
83 RETARDER ASM; PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-46200-245-5 01 1 0106- ● ● ● ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-150-0 01 1 0105-0105 ● ● ● ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-150-0 01 1 0106- ● ● ● ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8 		9-09224-306-2 02 1 0105-0105 ● ● ● ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8 		9-09224-306-2 02 1 0106-0607 ● ● ● ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8 		0-92124-306-0 02 1 0608- ● ● ● ●
87 DRUM; RETARDER,PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48610-460-1 01 1 0105-0105 ● ● ● ●
87 DRUM; RETARDER,PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48610-460-2 01 1 0106- ● ● ● ●
98 CLIP; AIR PIPE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-131-0 06 1 0105-0105 ● ● ● ●
98 CLIP; AIR PIPE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-131-0 06 1 0106- ● ● ● ●
101 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X18 		1-48629-134-0 03 1 0105-0105 ● ● ● ●
101 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X18 		1-48629-134-0 03 1 0106-0312 ● ● ● ●
102 NUT; CLIP,AIR PIPE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		5-09440-004-0 01 1 0105-0105 ● ● ● ●
102 NUT; CLIP,AIR PIPE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		5-09440-004-0 01 1 0106- ● ● ● ●
104 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-149-0 01 1 0105-0105 ● ● ● ●
104 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-149-0 01 1 0106- ● ● ● ●
104 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-187-0 01 1 0105-0105 ● ● ● ●
104 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-187-0 01 1 0106- ● ● ● ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-142-0 01 1 0105-0105 ● ● ● ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-142-0 01 1 0106- ● ● ● ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-146-0 01 1 0105-0105 ● ● ● ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-146-0 01 1 0106- ● ● ● ●
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-49115-875-0 01 1 0105-0105 ● ● ● ●
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-49115-875-0 01 1 0106- ● ● ● ●
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) 		1-49115-877-0 01 1 0105-0105 ● ● ● ●
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) 		1-49115-877-0 01 1 0106- ● ● ● ●
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-49118-551-0 01 1 0105-0105 ● ● ● ●
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-49118-551-0 01 1 0106- ● ● ● ●
119 SWITCH; THERMO
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82450-054-0 01 1 0105-0105 ● ● ● ●
119 SWITCH; THERMO
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82450-054-0 01 1 0106-0106 ● ● ● ●
119 SWITCH; THERMO
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82450-054-0 01 1 0107- ● ● ● ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-188-0 01 1 0105-0105 ● ● ● ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-188-0 01 1 0106- ● ● ● ●
130 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET 		1-48629-145-0 01 1 0105-0105 ● ● ● ●
130 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET 		1-48629-145-0 01 1 0106- ● ● ● ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-137-0 01 1 0105-0105 ● ● ● ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-137-0 01 1 0106- ● ● ● ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-138-0 01 1 0105-0105 ● ● ● ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-138-0 01 1 0106- ● ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M12X35 FLANGE 		0-28791-235-0 08 1 0401-0512 ● ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M12X35 FLANGE 		0-28761-235-0 08 1 0601- ● ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) M8X18 		1-48629-134-0 03 1 0401- ● ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20 		1-48629-070-0 04 1 0105-0105 ● ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20 		1-48629-070-0 04 1 0106- ● ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-104-0 03 1 0105-0105 ● ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-104-0 03 1 0106- ● ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 0105-0105 ● ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 0106- ● ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) 		1-48629-148-0 04 1 0105-0105 ● ● ● ●
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) 		1-48629-148-0 04 1 0106- ● ● ● ●
141 BRACKET
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-111-2 01 1 0105-0105 ● ● ● ●
141 BRACKET
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-111-2 01 1 0106- ● ● ● ●
142 SCREW
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD 		9-93490-510-0 11 1 0105-0105 ● ● ● ●
142 SCREW
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD 		9-93490-510-0 11 1 0106- ● ● ● ●
144 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12 		9-09840-280-0 04 1 0105-0105 ● ● ● ●
144 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12 		9-09840-280-0 04 1 0106-0106 ● ● ● ●
144 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12 		9-09840-280-0 04 1 0107- ● ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-092-0 01 1 0105-0105 ● ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-092-0 01 1 0106-0106 ● ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-092-0 01 1 0107- ● ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0105-0212 ● ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0301- ● ● ● ●
165 LINK; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-140-0 01 1 0105-0105 ● ● ● ●
165 LINK; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-140-0 01 1 0106- ● ● ● ●
165 LINK; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-141-0 01 1 0105-0105 ● ● ● ●
165 LINK; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-141-0 01 1 0106- ● ● ● ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-066-0 01 1 0105-0105 ● ● ● ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-066-0 01 1 0106- ● ● ● ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-067-0 01 1 0105-0105 ● ● ● ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-067-0 01 1 0106- ● ● ● ●
167 STOPPER; LINKAGE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-069-0 02 1 0105-0105 ● ● ● ●
167 STOPPER; LINKAGE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-069-0 02 1 0106- ● ● ● ●
167 STOPPER; LINKAGE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-127-0 02 1 0105-0105 ● ● ● ●
167 STOPPER; LINKAGE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-127-0 02 1 0106- ● ● ● ●
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-190-0 02 1 0105-0105 ● ● ● ●
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-190-0 02 1 0106- ● ● ● ●
169 CLAMP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-126-0 01 1 0105-0105 ● ● ● ●
169 CLAMP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-126-0 01 1 0106-0312 ● ● ● ●
170 COVER; CASE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-063-0 01 1 0105-0105 ● ● ● ●
170 COVER; CASE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-063-0 01 1 0106- ● ● ● ●
170 COVER; CASE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-240-0 01 1 0105-0105 ● ● ● ●
170 COVER; CASE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-240-0 01 1 0106- ● ● ● ●
171 BREATHER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-144-0 01 1 0105-0105 ● ● ● ●
171 BREATHER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-144-0 01 1 0106-0106 ● ● ● ●
171 BREATHER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-144-0 01 1 0107- ● ● ● ●
174 BOLT; SWITCH
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET 		1-48629-133-0 02 1 0105-0105 ● ● ● ●
174 BOLT; SWITCH
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET 		1-48629-133-0 02 1 0106- ● ● ● ●

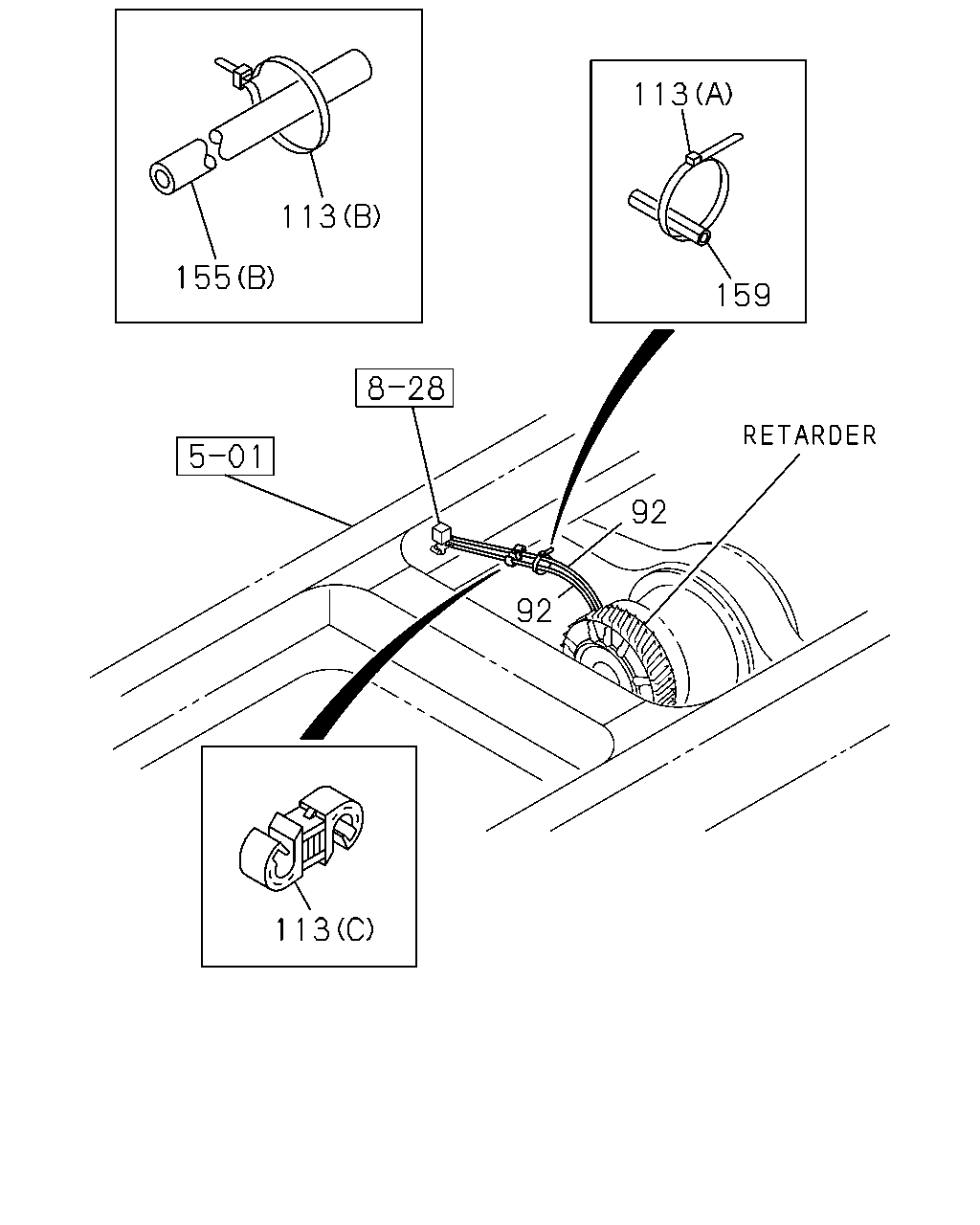

çizim 78170
113 155 113 92 92 159 113
BalonParca AdiParca NoAdetTipApplied Date A B C D
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=390 		1-09363-616-0 02 1 0105- ● ● ● ●
113 CLIP; HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		1-09707-126-0 10 1 0105- ● ● ● ●
113 CLIP; HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 0105-0106 ● ● ● ●
113 CLIP; HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=10 & 10 		1-09709-277-1 01 1 0107- ● ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-092-0 01 1 0105-0105 ● ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-092-0 01 1 0106-0106 ● ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-092-0 01 1 0107- ● ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0105-0212 ● ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0301- ● ● ● ●
159 SLEEVE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0105-0106 ● ● ● ●
