Sayfa 3-08A - Isuzu EPC

3-08A — PARKING BRAKE (#27610) — 251 parça

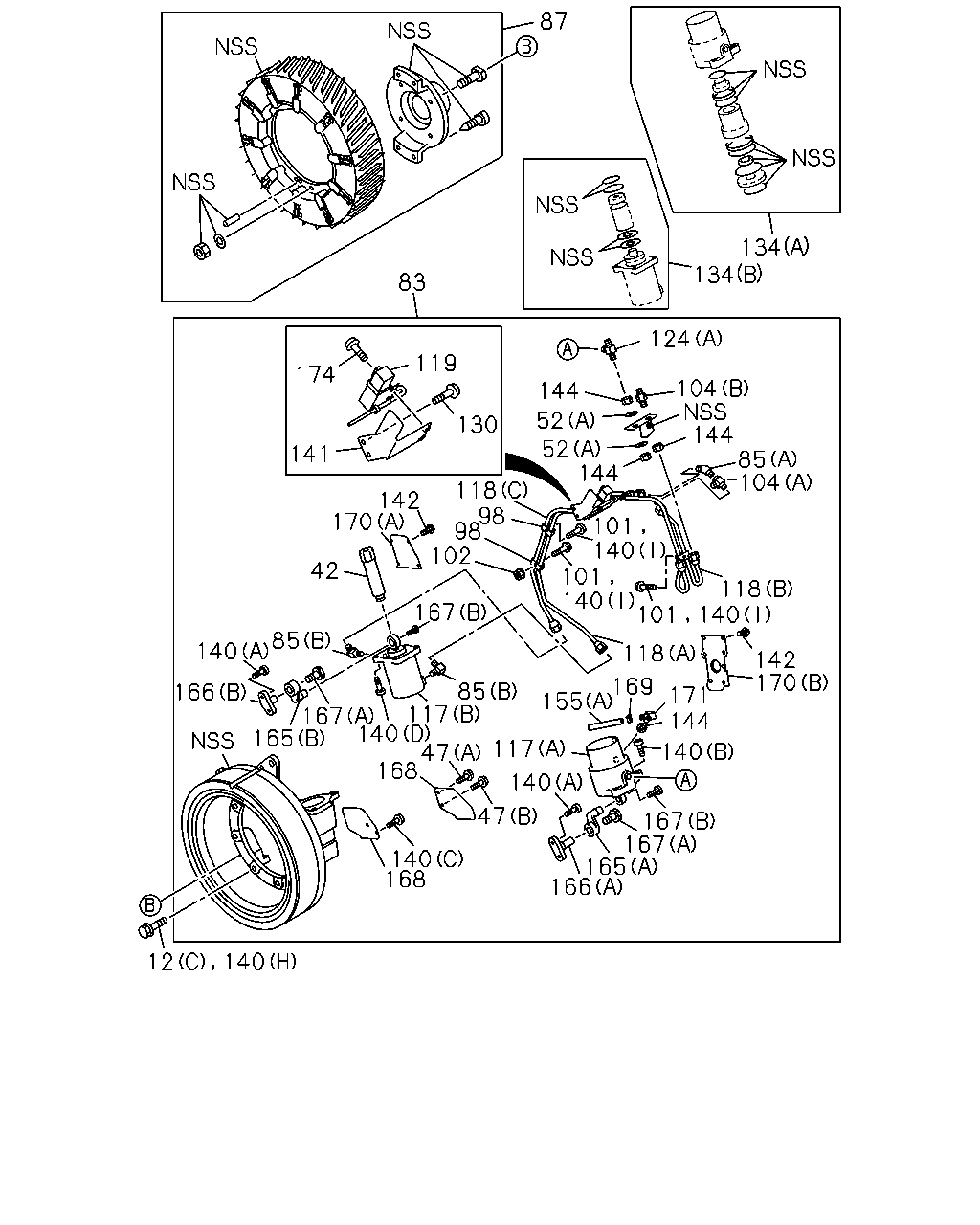

134 134 87 83 174 141 119 130 144 124 144 104 52 52 85 104 118 170 142 140 171 118 101 140 101 140 101 118 142 170 42 102 98 98 167 85 117 140 167 165 166 140 85 155 117 47 168 47 140 140 168 166 165 167 167 140 144 12 140 169 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12X35 FLANGE	0-28791-235-0	08	1	0105-0105	●
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12X35 FLANGE	0-28791-235-0	08	1	0106-0312	●	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> (A) M6X14 HEX SOCKET	1-48629-145-0	20	1	0107-		●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-170-0	04	1	0107-		●
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	0105-0105	●
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	0106-	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	0105-0105	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	0106-	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET	1-48629-145-0	01	1	0105-0105	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET	1-48629-145-0	01	1	0106-	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0105-0105	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0106-0106	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0107-0605	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0107-0605		●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	0-91610-612-0	02	1	0606-	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	0-91610-612-0	02	1	0606-		●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2	1-09503-223-0	04	1	0107-		●
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46200-245-2	01	1	0105-0105	●
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46200-245-5	01	1	0106-	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	0105-0105	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	0106-	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	0105-0105	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	0106-0607	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	0-92124-306-0	02	1	0608-	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-211-0	01	1	0107-		●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (D) M12 & PT1/8	9-09224-306-2	01	1	0107-0607		●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (D) M12 & PT1/8	0-92124-306-0	01	1	0608-		●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-460-1	01	1	0105-0105	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-460-2	01	1	0106-	●	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48610-392-2	01	1	0107-		●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	0105-0105	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	0106-	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X18	1-48629-134-0	03	1	0105-0105	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X18	1-48629-134-0	03	1	0106-0312	●	●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	0105-0105	●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	0106-	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0105-0105	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0106-	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	0105-0105	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	0106-	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-202-0	01	1	0107-		●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0105-0105	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0106-	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0105-0105	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0106-	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-192-0	01	1	0107-		●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-193-0	01	1	0107-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0105-0105	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0106-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	0105-0105	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	0106-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	0105-0105	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	0106-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-201-0	01	1	0107-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-210-0	01	1	0107-		●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0105-0105	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0106-0106	●	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0107-	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0107-		●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-188-0	01	1	0105-0105	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-188-0	01	1	0106-	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-203-0	01	1	0107-		●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-204-0	01	1	0107-		●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	0105-0105	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	0106-	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28080-830-0	02	1	0107-0512		●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28050-830-0	02	1	0601-		●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0105-0105	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0106-	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0105-0105	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0106-	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-217-0	01	1	0107-		●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-218-0	01	1	0107-		●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M12X35 FLANGE	0-28791-235-0	08	1	0401-0512	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M12X35 FLANGE	0-28761-235-0	08	1	0601-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) M8X18	1-48629-134-0	03	1	0401-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	0105-0105	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	0106-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	0105-0105	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	0106-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0105-0105	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0106-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	0105-0105	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	0106-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E) M10X20	1-48629-070-0	08	1	0107-		●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (F) M8X18	1-48629-134-0	02	1	0107-		●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (G) M8X12	1-48629-205-0	02	1	0107-		●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	0105-0105	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	0106-	●	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-172-0	01	1	0107-		●
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	0105-0105	●
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	0106-	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0105-0105	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0106-0106	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0107-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0107-		●
144	NUT BRAKE SYSTEM RETARDER<RE2> M16	9-99110-516-0	04	1	0107-0512		●
144	NUT BRAKE SYSTEM RETARDER<RE2> M16	0-91110-516-0	04	1	0601-		●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0105-0105	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0106-0106	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0107-	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0107-		●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0105-0212	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0301-	●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	0105-0105	●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	0106-	●	●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	0105-0105	●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	0106-	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0105-0105	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0106-	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0105-0105	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0106-	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-191-0	02	1	0107-		●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	0105-0105	●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	0106-	●	●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-127-0	02	1	0105-0105	●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-127-0	02	1	0106-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-190-0	02	1	0105-0105	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-190-0	02	1	0106-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	0107-		●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	0105-0105	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	0106-0312	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2>	1-48629-209-0	04	1	0107-		●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0105-0105	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0106-	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	0105-0105	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	0106-	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-195-0	01	1	0107-		●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-196-0	01	1	0107-		●
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0105-0105	●
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0106-0106	●	●
171	BREATHER BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0107-	●
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0107-		●
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	0105-0105	●
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	0106-	●	●

50 137 130 50 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	ADAPTER; PARK BRK BRAKE SYSTEM RETARDER<RE2> DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0107-		●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	0105-0105	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	0106-	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28080-830-0	02	1	0107-0512		●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28050-830-0	02	1	0601-		●
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	0107-0602		●
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	0603-		●
137	BRACKET; AIR PIPE BRAKE SYSTEM RETARDER<RE2>	1-47477-635-0	01	1	0107-		●

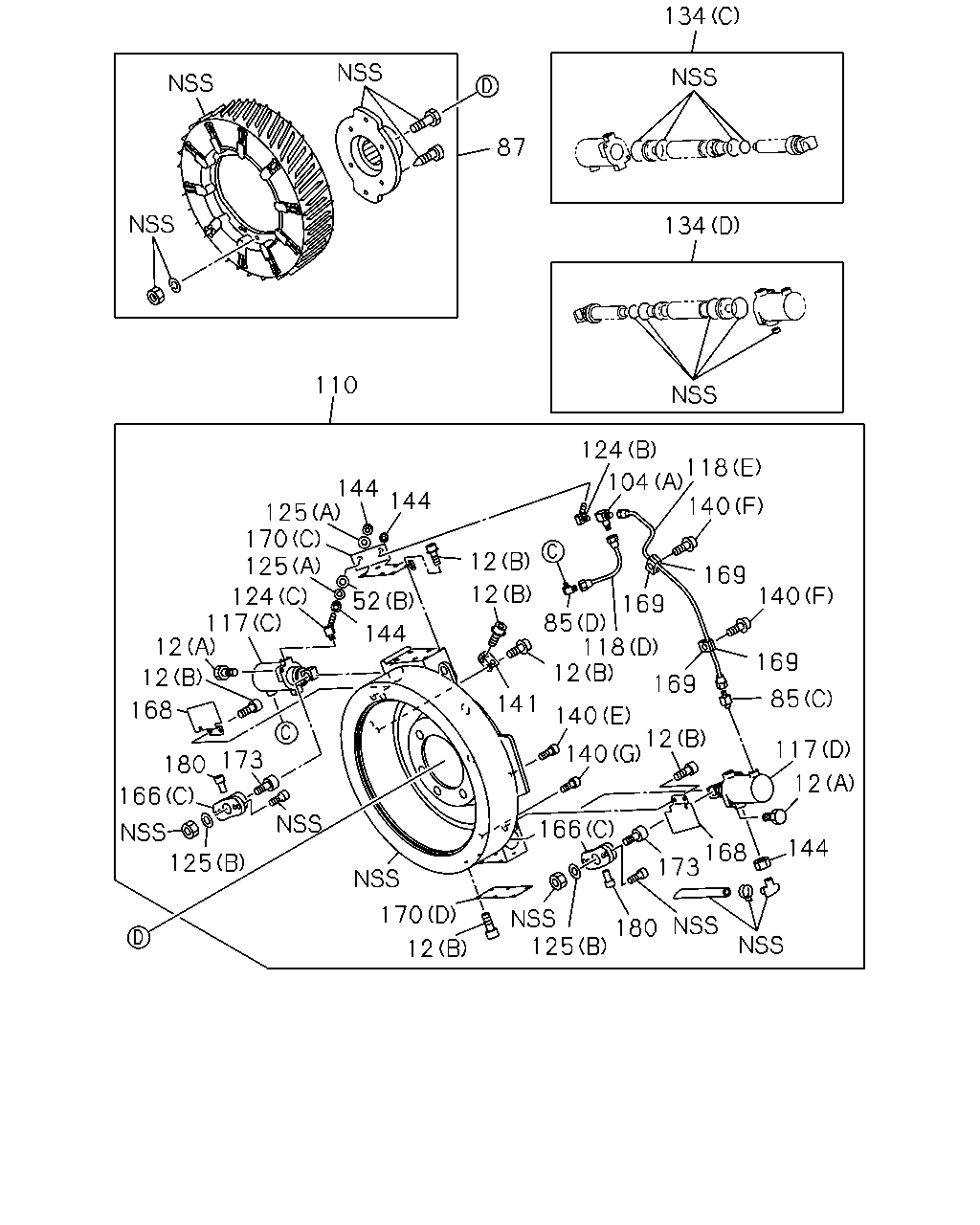

134 87 110 134 118 104 124 144 144 125 144 168 173 166 180 12 170 140 140 141 169 85 169 169 140 117 12 12 12 12 12 144 118 169 85 52 170 125 124 117 12 12 168 180 173 166 125 125 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12X35 FLANGE	0-28791-235-0	08	1	0105-0105	●
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12X35 FLANGE	0-28791-235-0	08	1	0106-0312	●	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> (A) M6X14 HEX SOCKET	1-48629-145-0	20	1	0107-		●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-170-0	04	1	0107-		●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0105-0105	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0106-0106	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0107-0605	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0107-0605		●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	0-91610-612-0	02	1	0606-	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	0-91610-612-0	02	1	0606-		●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2	1-09503-223-0	04	1	0107-		●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	0105-0105	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	0106-	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	0105-0105	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	0106-0607	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	0-92124-306-0	02	1	0608-	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-211-0	01	1	0107-		●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (D) M12 & PT1/8	9-09224-306-2	01	1	0107-0607		●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (D) M12 & PT1/8	0-92124-306-0	01	1	0608-		●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-460-1	01	1	0105-0105	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-460-2	01	1	0106-	●	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48610-392-2	01	1	0107-		●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0105-0105	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0106-	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	0105-0105	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	0106-	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-202-0	01	1	0107-		●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-381-2	01	1	0107-		●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0105-0105	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0106-	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0105-0105	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0106-	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-192-0	01	1	0107-		●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-193-0	01	1	0107-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0105-0105	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0106-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	0105-0105	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	0106-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	0105-0105	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	0106-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-201-0	01	1	0107-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-210-0	01	1	0107-		●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-188-0	01	1	0105-0105	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-188-0	01	1	0106-	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-203-0	01	1	0107-		●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-204-0	01	1	0107-		●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-206-0	02	1	0107-		●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	9-09150-516-0	04	1	0107-0603		●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	0604-		●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0105-0105	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0106-	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0105-0105	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0106-	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-217-0	01	1	0107-		●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-218-0	01	1	0107-		●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M12X35 FLANGE	0-28791-235-0	08	1	0401-0512	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M12X35 FLANGE	0-28761-235-0	08	1	0601-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) M8X18	1-48629-134-0	03	1	0401-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	0105-0105	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	0106-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	0105-0105	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	0106-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0105-0105	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0106-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	0105-0105	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	0106-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E) M10X20	1-48629-070-0	08	1	0107-		●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (F) M8X18	1-48629-134-0	02	1	0107-		●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (G) M8X12	1-48629-205-0	02	1	0107-		●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	0105-0105	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	0106-	●	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-172-0	01	1	0107-		●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0105-0105	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0106-0106	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0107-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0107-		●
144	NUT BRAKE SYSTEM RETARDER<RE2> M16	9-99110-516-0	04	1	0107-0512		●
144	NUT BRAKE SYSTEM RETARDER<RE2> M16	0-91110-516-0	04	1	0601-		●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0105-0105	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0106-	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0105-0105	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0106-	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-191-0	02	1	0107-		●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-190-0	02	1	0105-0105	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-190-0	02	1	0106-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	0107-		●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	0105-0105	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	0106-0312	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2>	1-48629-209-0	04	1	0107-		●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0105-0105	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0106-	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	0105-0105	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	0106-	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-195-0	01	1	0107-		●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-196-0	01	1	0107-		●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-159-0	02	1	0107-		●
180	PIN; RETAINING BRAKE SYSTEM RETARDER<RE2>	1-48629-198-0	02	1	0107-		●

113 92 92 113 159 155 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=390	1-09363-616-0	02	1	0105-	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250	1-09707-126-0	10	1	0105-	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140	5-09707-031-1	01	1	0105-0106	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=10 & 10	1-09709-277-1	01	1	0107-	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0105-0105	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0106-0106	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0107-	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0107-		●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0105-0212	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0301-	●
159	SLEEVE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50	1-09337-023-0	01	1	0105-0106	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
