2-85 — POWER TAKE OFF CONTROL (#27607) — 44 parça
çizim 23010
55
BalonParca AdiParca NoAdetTipApplied Date
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 0105-

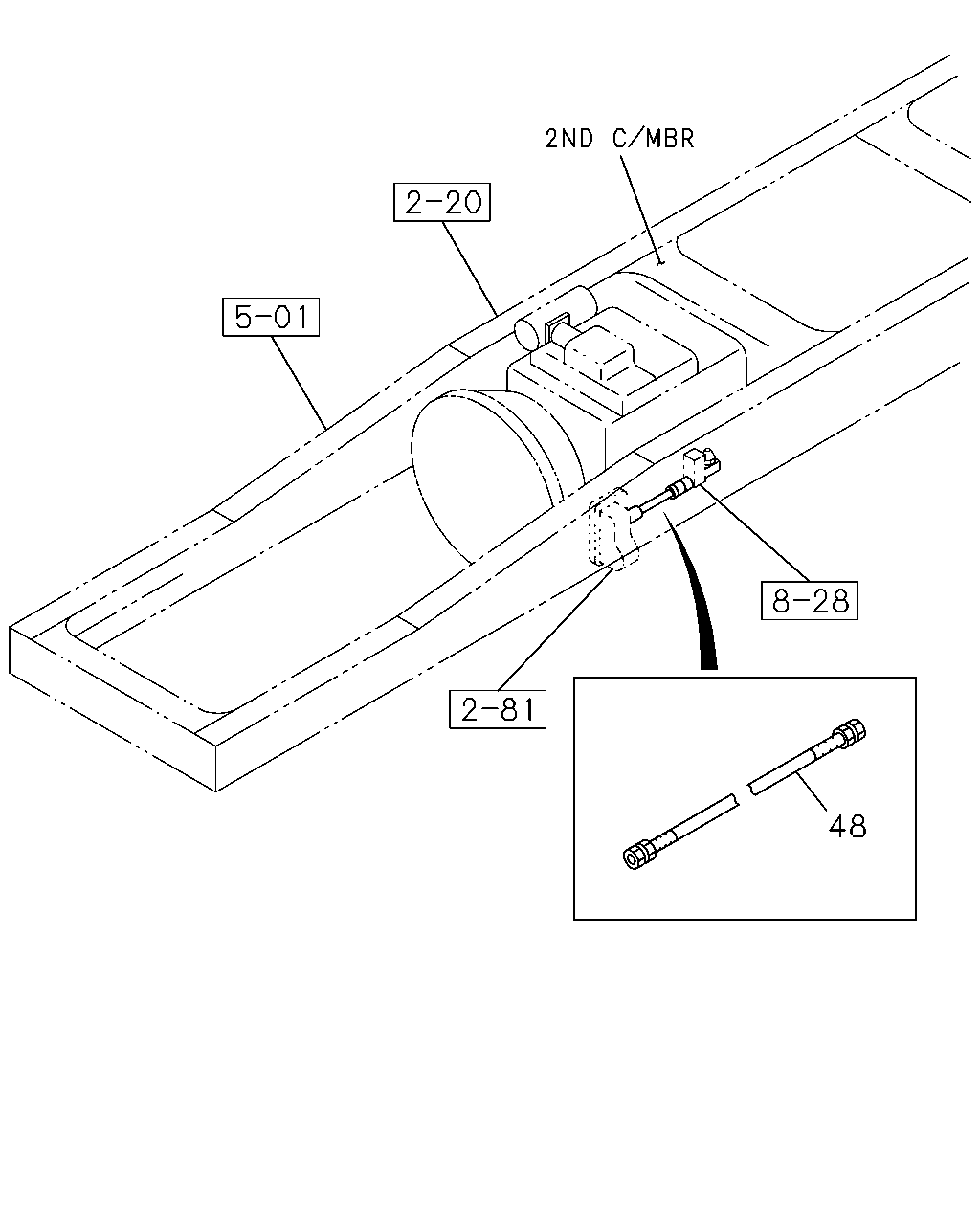

çizim 23527
48
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> L=390 		1-09363-616-0 01 1 0105-0106
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> L=340 		1-09363-617-0 01 1 0107-

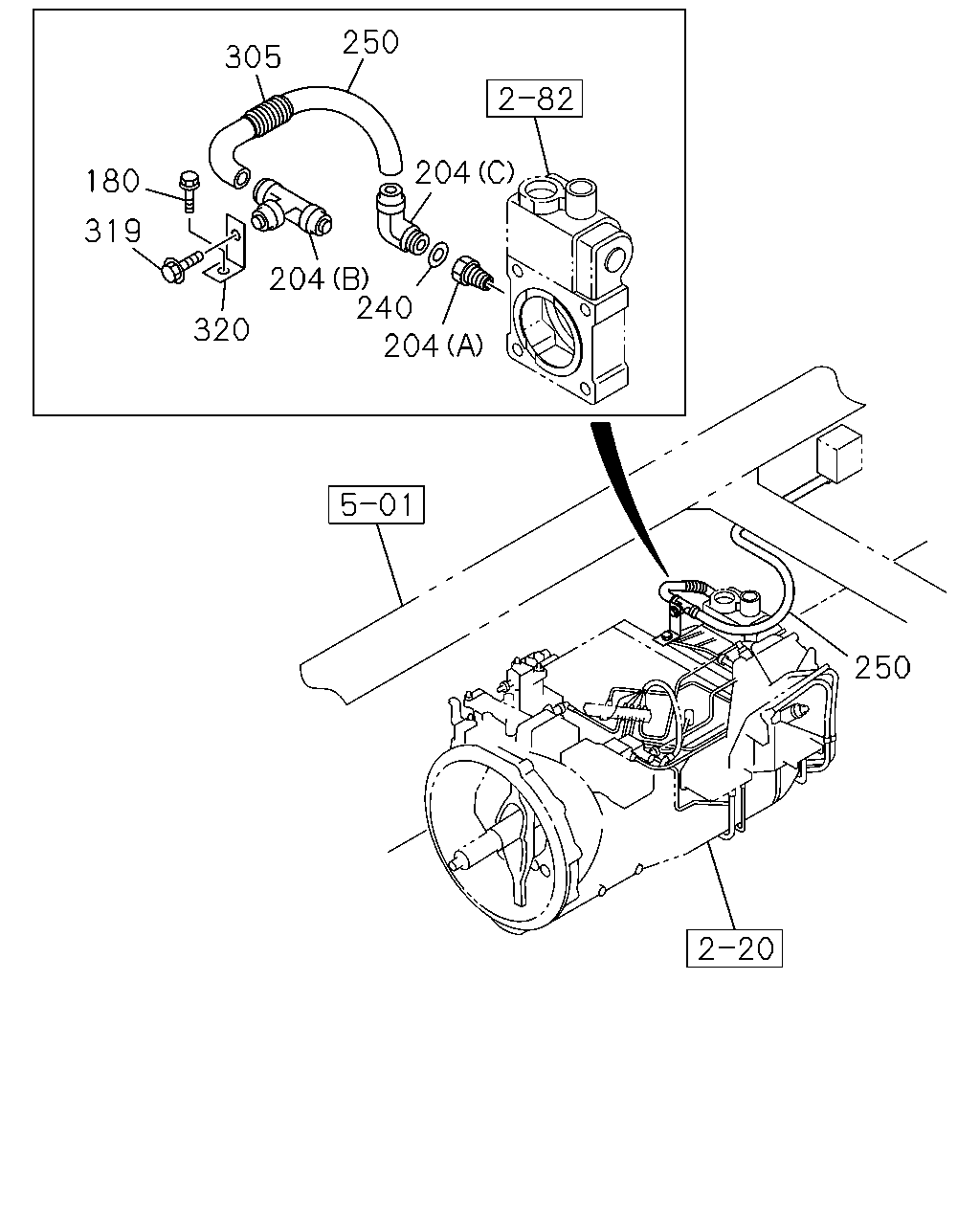

çizim 77893
305 250 204 204 240 204 320 319 180 250
BalonParca AdiParca NoAdetTipApplied Date
180 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M16X25 FLANGE 		0-28881-625-0 01 1 0105-0106
180 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M16X25 FLANGE 		0-28881-625-0 01 1 0107-0512
180 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M16X25 FLANGE 		0-28851-625-0 01 1 0601-
204 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (A) PT1/4 		1-09654-396-0 01 1 0105-0106
204 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (A) PT1/4 		1-09654-396-0 01 1 0107-
204 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) 		1-09660-788-0 01 1 0105-0106
204 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) 		1-09660-788-0 01 1 0107-
204 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0106
204 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0107-
240 GASKET; CONNECTOR,PTO
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 0105-0106
240 GASKET; CONNECTOR,PTO
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 0107-
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0207-
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0107-0204
250 TUBE; NYLON
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0105
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0106
250 TUBE; NYLON
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0106
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0207-
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0107-0204
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0105-0108
305 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0109-
305 TUBE; CORRUGATE
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) L=800 		1-83129-031-1 01 1 0105-0106
305 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) L=800 		1-83129-031-1 01 1 0107-
319 BOLT; CONNECTOR
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0106
319 BOLT; CONNECTOR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512
319 BOLT; CONNECTOR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
320 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) 		1-47478-250-0 01 1 0105-0106
320 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) 		1-47478-250-0 01 1 0107-
çizim 82797
217 246 132 3 3 1 3 139 1 3 3 55
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (B) 		1-79996-244-0 01 1 0105-
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) (A) 		1-79907-048-1 01 1 0105-
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0105-
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0105-
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 0105-
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 0105-
139 BRACKET; CONT BOX
PTO CONTROL(SV6) 		1-79907-044-0 01 1 0105-
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 0105-
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 0105-0603
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71240-408-0 02 1 0604-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
