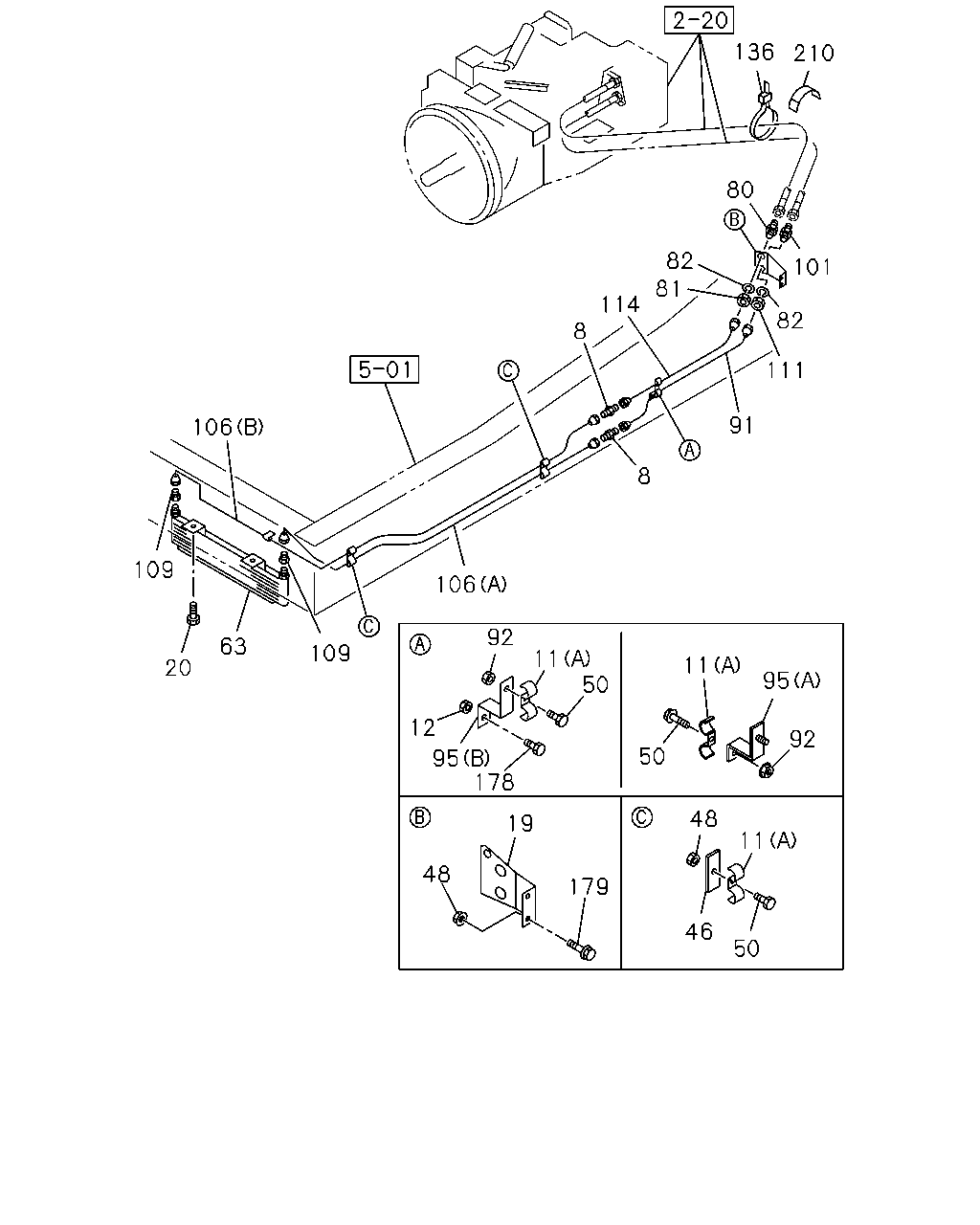

2-53B — TRANSMISSION OIL COOLER SYSTEM
(#27603) — 55 parça
Tümü
A - TRANSMISSION-ZF 16S221 OD
B - TRANSMISSION-ZF 16S151 OD
111
91
8
8
114
81
82
80
101
210
136
95
11
92
50
48
11
50
46
179
19
48
95
12
92
11
50
178
106
109
63
20
109
106
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
UNION
M22
9-09233-015-1
01
1
0105-0607
●
●
8
UNION
M22
9-09233-015-1
01
1
0105-0607
●
●
8
UNION
M22 L=51
0-92123-015-0
01
1
0608-
●
●
8
UNION
M22 L=51
0-92123-015-0
01
1
0608-
●
●
11
CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
0105-
●
●
11
CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
02
1
0105-
●
●
12
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0105-0602
●
●
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
19
BRACKET; FLEX HOSE
1-47478-566-0
01
1
0105-
●
●
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28081-020-0
02
1
0105-0512
●
●
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
0601-
●
●
46
BRACKET; OIL PIPE
L=50
1-47475-299-2
02
1
0105-
●
●
48
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0105-0602
●
●
48
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0105-0602
●
●
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
50
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0105-0106
●
●
50
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
02
1
0105-0512
●
●
50
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
63
COOLER; OIL
1-21700-290-0
01
1
0105-0609
●
●
63
COOLER; OIL
1-21700-394-0
01
1
0610-
●
●
80
UNION; FLEX HOSE
M22 & M30 STRAIGHT
1-09664-237-0
01
1
0105-
●
●
81
NUT; UNION
M22
9-09111-422-0
01
1
0105-0512
●
●
81
NUT; UNION
M22
0-91111-522-0
01
1
0601-
●
●
82
WASHER; LK,UNION
ID=22.5
9-09150-522-0
02
1
0105-0603
●
●
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
02
1
0604-
●
●
91
PIPE; OIL,FLEX HOSE TO UNION
MIXER TRUCK<RA2>
1-49165-242-0
01
1
0105-0106
●
●
91
PIPE; OIL,FLEX HOSE TO UNION
MIXER TRUCK<RA2>
1-49166-219-0
01
1
0107-
●
●
91
PIPE; OIL,FLEX HOSE TO UNION
EXC. MIXER TRUCK<RA2> L=911
1-49163-072-0
01
1
0105-0106
●
●
91
PIPE; OIL,FLEX HOSE TO UNION
EXC. MIXER TRUCK<RA2>
1-49166-215-0
01
1
0107-
●
●
92
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
0105-0106
●
●
92
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0107-0602
●
●
92
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
95
BRACKET; CLIP
(B)
1-47475-881-0
01
1
0105-0106
●
●
95
BRACKET; CLIP
(A)
1-47477-669-1
01
1
0107-
●
●
101
UNION; FLEX HOSE
M22 & M30 STRAIGHT
1-09664-237-0
01
1
0105-
●
●
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=2317
1-49164-311-0
01
1
0105-0106
●
●
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=2324
1-49166-216-0
01
1
0107-0206
●
●
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=2305
1-49166-669-0
01
1
0207-
●
●
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=1703
1-49164-312-0
01
1
0105-0106
●
●
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=1695
1-49166-217-0
01
1
0107-
●
●
109
UNION
1-09654-398-0
02
1
0105-
●
●
111
NUT; UNION
M22
9-09111-422-0
01
1
0105-0512
●
●
111
NUT; UNION
M22
0-91111-522-0
01
1
0601-
●
●
114
PIPE; OIL,UNION TO FLEX HOSE
MIXER TRUCK<RA2>
1-49165-243-0
01
1
0105-0106
●
●
114
PIPE; OIL,UNION TO FLEX HOSE
MIXER TRUCK<RA2>
1-49166-220-0
01
1
0107-
●
●
114
PIPE; OIL,UNION TO FLEX HOSE
EXC. MIXER TRUCK<RA2> L=1071
1-49163-073-0
01
1
0105-0106
●
●
114
PIPE; OIL,UNION TO FLEX HOSE
EXC. MIXER TRUCK<RA2> L=1073
1-49166-218-0
01
1
0107-
●
●
136
CLIP; FLEX HOSE
L=250
1-09707-126-0
01
1
0105-
●
●
178
BOLT; BRKT,CLIP
M8X25 FLANGE
0-28680-825-0
01
1
0105-0106
●
●
178
BOLT; BRKT,CLIP
M8X25 FLANGE
0-28680-825-0
01
1
0107-0512
●
●
178
BOLT; BRKT,CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0601-
●
●
179
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
0105-0512
●
●
179
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0601-
●
●
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
0105-
●
●
