2-53A — TRANSMISSION OIL COOLER SYSTEM (#27602) — 103 parça
çizim 78136
11 92 50 50 11 92 1 73 75 19 179 77 76 91 114 116 117 48 75 95 95 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
L=450 		1-09364-625-0 01 1 0107- ●
11 CLIP; PIPE
(C) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0107-0107 ●
11 CLIP; PIPE
(C) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 04 1 0107- ●
11 CLIP; PIPE
(C) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 03 1 0107-0107 ●
11 CLIP; PIPE
(D) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 0107- ●
11 CLIP; PIPE
(D) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 0107- ●
11 CLIP; PIPE
(A) ID=11 H=20 L=20 		5-09700-351-0 01 1 0107- ●
11 CLIP; PIPE
(B) ID=11 L=20 		9-09525-035-0 01 1 0107-0107 ●
11 CLIP; PIPE
(B) ID=11 L=20 		9-09525-035-0 02 1 0107-0606 ●
11 CLIP; PIPE
(B) ID=11 L=20 		0-95235-035-0 02 1 0607- ●
19 BRACKET; FLEX HOSE
MIXER TRUCK<RA2> 		1-47477-168-1 01 1 0107- ●
19 BRACKET; FLEX HOSE
EXC. MIXER TRUCK<RA2> 		1-47478-344-0 01 1 0107- ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
50 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 04 1 0107-0512 ●
50 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
73 HOSE; FLEX,TRANS
L=450 		1-09364-625-0 01 1 0107- ●
75 GASKET; FLEX HOSE,TRANS
ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0107-0108 ●
76 NUT; FLEX HOSE
M16 		9-99111-416-0 01 1 0107-0512 ●
76 NUT; FLEX HOSE
M16 		0-91111-516-0 01 1 0601- ●
77 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0107-0603 ●
77 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 0604- ●
91 PIPE; OIL,FLEX HOSE TO UNION
MIXER TRUCK<RA2> L=1895 SERVICED BY L=1900 		1-47428-881-0 01 1 0107-0107 ●
91 PIPE; OIL,FLEX HOSE TO UNION
MIXER TRUCK<RA2> L=1901 SERVICED BY L=1900 		1-47428-881-0 01 1 0107- ●
91 PIPE; OIL,FLEX HOSE TO UNION
EXC. MIXER TRUCK<RA2> L=1789 SERVICED BY L=1900 		1-47428-881-0 01 1 0107-0107 ●
91 PIPE; OIL,FLEX HOSE TO UNION
EXC. MIXER TRUCK<RA2> L=1790 SERVICED BY L=1900 		1-47428-881-0 01 1 0107- ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-0106 ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0107-0602 ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
95 BRACKET; CLIP
(B) L=50 		1-47475-299-2 02 1 0107- ●
95 BRACKET; CLIP
(A) 		1-47477-235-0 01 1 0107-0107 ●
95 BRACKET; CLIP
(A) 		1-47479-172-0 01 1 0107-0402 ●
95 BRACKET; CLIP
(A) 		1-47479-994-0 01 1 0403- ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0107- ● ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0107- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
MIXER TRUCK<RA2> L=855 		1-49164-823-0 01 1 0107-0107 ●
114 PIPE; OIL,UNION TO FLEX HOSE
MIXER TRUCK<RA2> L=853 SERVICED BY L=900 		1-47428-873-0 01 1 0107- ●
114 PIPE; OIL,UNION TO FLEX HOSE
EXC. MIXER TRUCK<RA2> L=739 SERVICED BY L=800 		1-47428-872-0 01 1 0107-0107 ●
114 PIPE; OIL,UNION TO FLEX HOSE
EXC. MIXER TRUCK<RA2> L=733 SERVICED BY L=800 		1-47428-872-0 01 1 0107- ●
116 NUT; BRKT,FLEX HOSE
M16 		9-99111-416-0 01 1 0107-0512 ●
116 NUT; BRKT,FLEX HOSE
M16 		0-91111-516-0 01 1 0601- ●
117 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 01 1 0107-0603 ●
117 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 01 1 0604- ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●

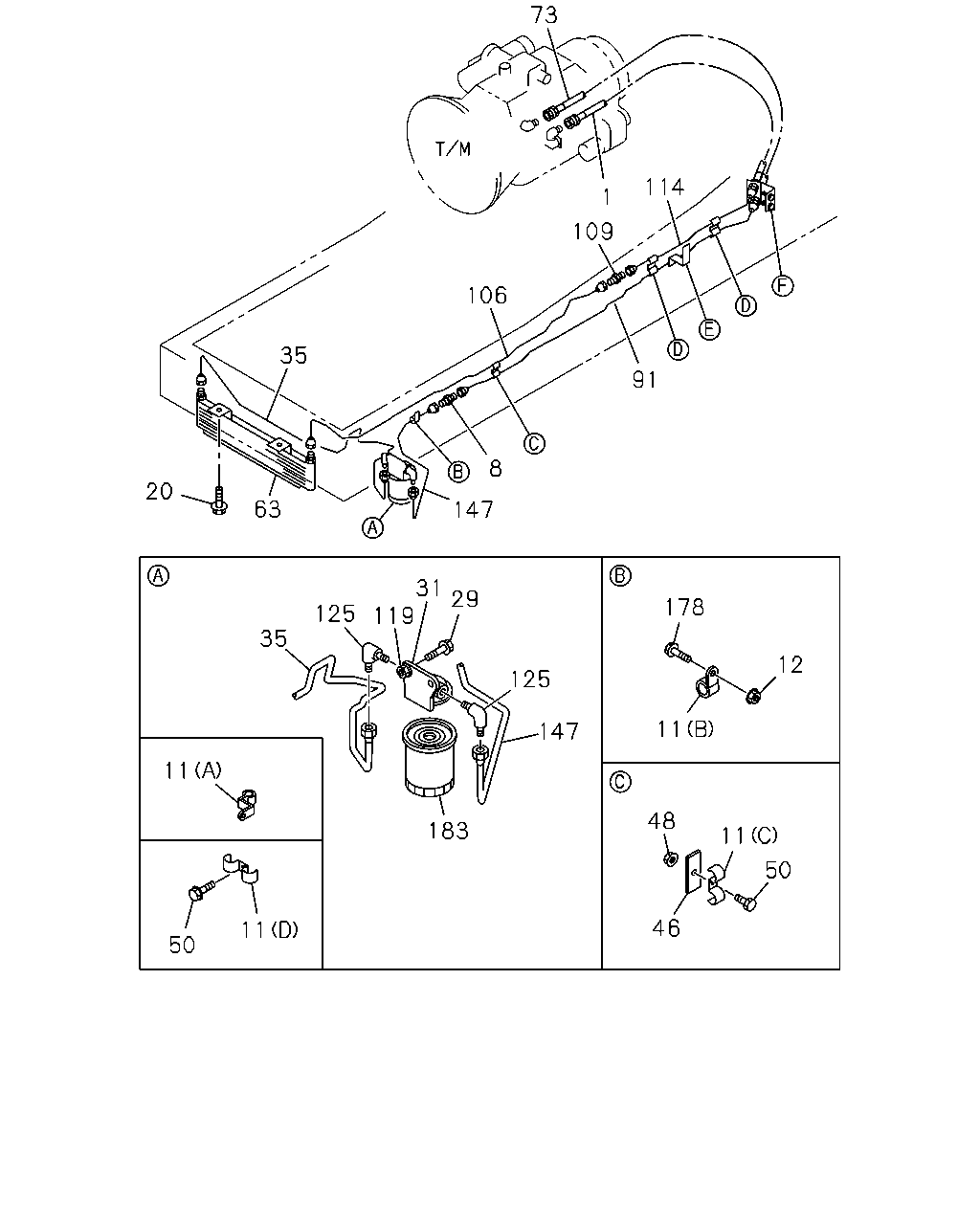

çizim 79870
178 12 11 11 48 50 46 11 50 11 35 183 147 125 29 31 119 125 63 20 35 147 8 91 109 1 114 106 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
L=450 		1-09364-625-0 01 1 0107- ●
8 UNION
M16 L=42 		9-09233-010-1 01 1 0107-0607 ●
8 UNION
M16 L=42 		0-92123-010-0 01 1 0608- ●
11 CLIP; PIPE
(C) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0107-0107 ●
11 CLIP; PIPE
(C) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 04 1 0107- ●
11 CLIP; PIPE
(C) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 03 1 0107-0107 ●
11 CLIP; PIPE
(D) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 0107- ●
11 CLIP; PIPE
(D) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 0107- ●
11 CLIP; PIPE
(A) ID=11 H=20 L=20 		5-09700-351-0 01 1 0107- ●
11 CLIP; PIPE
(B) ID=11 L=20 		9-09525-035-0 01 1 0107-0107 ●
11 CLIP; PIPE
(B) ID=11 L=20 		9-09525-035-0 02 1 0107-0606 ●
11 CLIP; PIPE
(B) ID=11 L=20 		0-95235-035-0 02 1 0607- ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0105-0512 ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0601- ●
29 BOLT; FILTER TO BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0107-0512 ●
29 BOLT; FILTER TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
31 BRACKET; OIL FILTER 1-33119-222-0 01 1 0107- ●
35 PIPE; OIL,OIL COOLER TO FILTER 1-49166-081-0 01 1 0107-0107 ●
35 PIPE; OIL,OIL COOLER TO FILTER 1-49166-239-0 01 1 0107- ●
46 BRACKET; OIL PIPE
L=50 		1-47475-299-2 02 1 0105- ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
50 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 04 1 0107-0512 ●
50 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
63 COOLER; OIL 1-21700-290-0 01 1 0105-0609 ●
63 COOLER; OIL 1-21700-394-0 01 1 0610- ●
73 HOSE; FLEX,TRANS
L=450 		1-09364-625-0 01 1 0107- ●
91 PIPE; OIL,FLEX HOSE TO UNION
MIXER TRUCK<RA2> L=1895 SERVICED BY L=1900 		1-47428-881-0 01 1 0107-0107 ●
91 PIPE; OIL,FLEX HOSE TO UNION
MIXER TRUCK<RA2> L=1901 SERVICED BY L=1900 		1-47428-881-0 01 1 0107- ●
91 PIPE; OIL,FLEX HOSE TO UNION
EXC. MIXER TRUCK<RA2> L=1789 SERVICED BY L=1900 		1-47428-881-0 01 1 0107-0107 ●
91 PIPE; OIL,FLEX HOSE TO UNION
EXC. MIXER TRUCK<RA2> L=1790 SERVICED BY L=1900 		1-47428-881-0 01 1 0107- ●
106 PIPE ASM; OIL,COOLER TO UNION 1-49164-314-0 01 1 0107-0107 ●
106 PIPE ASM; OIL,COOLER TO UNION 1-49166-240-0 01 1 0107- ●
109 UNION
M16 L=42 		9-09233-010-1 01 1 0107-0607 ●
109 UNION
M16 L=42 		0-92123-010-0 01 1 0608- ●
114 PIPE; OIL,UNION TO FLEX HOSE
MIXER TRUCK<RA2> L=855 		1-49164-823-0 01 1 0107-0107 ●
114 PIPE; OIL,UNION TO FLEX HOSE
MIXER TRUCK<RA2> L=853 SERVICED BY L=900 		1-47428-873-0 01 1 0107- ●
114 PIPE; OIL,UNION TO FLEX HOSE
EXC. MIXER TRUCK<RA2> L=739 SERVICED BY L=800 		1-47428-872-0 01 1 0107-0107 ●
114 PIPE; OIL,UNION TO FLEX HOSE
EXC. MIXER TRUCK<RA2> L=733 SERVICED BY L=800 		1-47428-872-0 01 1 0107- ●
119 NUT; FILTER TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0107-0602 ●
119 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 0107-0607 ●
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0608- ●
147 PIPE; OIL,UNION TO FILTER 1-49166-080-0 01 1 0107-0107 ●
147 PIPE; OIL,UNION TO FILTER 1-49166-238-0 01 1 0107- ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512 ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0106 ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0106 ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512 ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
183 CARTRIDGE; OIL FILTER 8-94459-700-1 01 1 0107- ●
