Sayfa 2-37 - Isuzu EPC

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#27600) — 298 parça

47 49 45 8 47 49 45 38 36 44 6 36 38 44 22 25 15 25 22 28 25 112 15 24 25 22 24 32 30 35 5 35 30 32 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> L=1120	1-33652-603-0	01	1	0105-
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> CAB UP +110MM<TGG> L=1190	1-33652-922-0	01	1	0105-
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> L=1170	1-33652-547-0	01	1	0105-
5	ROD; LINK,3RD SHIFT EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	0105-
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> FULLER M/T<X9B> (E) L=1637	1-33652-980-1	01	1	0105-
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> ZF M/T<X9E> EXC. MIXER TRUCK<RA2> (A) L=1454	1-33671-700-1	01	1	0105-
6	ROD; LINK,3RD SELECT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJA7 M/T<X9Q> (D) L=1649	1-33652-925-0	01	1	0105-0106
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU), CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q> (D) L=1649	1-33652-925-0	01	1	0107-0109
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU), CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. MIXER TRUCK<RA2> (D) L=1649	1-33652-925-1	01	1	0110-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJA7 M/T<X9Q> (D) L=1721	1-33652-984-1	01	1	0105-0106
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU), CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q> (D) L=1721	1-33652-984-1	01	1	0107-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJA7 M/T<X9Q> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (D) L=1668	1-33652-983-1	01	1	0105-0106
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTC H 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (D) L=1668	1-33652-983-1	01	1	0107-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> ZF M/T<X9E> EXC. CAB UP +110MM<TGG> (C)	1-33652-990-0	01	1	0105-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> ZF M/T<X9E> EXC. CAB UP +110MM<TGG> (A)	1-33671-803-0	01	1	0105-
6	ROD; LINK,3RD SELECT MJA7 M/T<X9Q> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (D) L=1599	1-33652-916-1	01	1	0105-0106
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAPDRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (D) L=1599	1-33652-916-1	01	1	0107-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0105-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (C) L=1419	1-33652-981-0	01	1	0105-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (A) L=1443	1-33671-789-0	01	1	0105-
8	ROD; LINK,4TH SHIFT FULLER M/T<X9B> L=480	1-33652-730-0	01	1	0105-
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J> L=370	1-33652-654-1	01	1	0107-
8	ROD; LINK,4TH SHIFT MJA7 M/T<X9Q> L=330	1-33652-653-1	01	1	0105-
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> L=485	1-33652-859-1	01	1	0105-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-1	01	1	0105-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (C) L=423	1-33652-804-2	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-1	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-2	01	1	0105-
15	ROD; LINK 1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. MJA7 M/T<X9Q> (D) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (E) L=345	1-33652-736-0	01	1	0105-
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) L=88	1-33652-740-0	01	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (B) SELECT	1-09760-109-0	02	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	0105-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	9-09111-410-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	0-91111-510-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (C) M10 LH THREAD	9-09840-167-0	02	1	0105-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-0512
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ISUZU M/T<X9A>,FULLER M/T<X9B>	1-09760-124-0	02	1	0105-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0105-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0105-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD ISUZU M/T<X9A>,FULLER M/T<X9B> M10	9-09111-410-0	02	1	0105-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ISUZU M/T<X9A>,FULLER M/T<X9B> M10	0-91111-510-0	02	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0105-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0105-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

47 49 45 8 49 45 47 38 36 44 6 44 36 38 32 30 35 5 35 30 32 24 22 15 24 25 112 25 28 22 25 28 15 25 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> L=1120	1-33652-603-0	01	1	0105-
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> CAB UP +110MM<TGG> L=1190	1-33652-922-0	01	1	0105-
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> L=1170	1-33652-547-0	01	1	0105-
5	ROD; LINK,3RD SHIFT EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	0105-
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> FULLER M/T<X9B> (E) L=1637	1-33652-980-1	01	1	0105-
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> ZF M/T<X9E> EXC. MIXER TRUCK<RA2> (A) L=1454	1-33671-700-1	01	1	0105-
6	ROD; LINK,3RD SELECT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJA7 M/T<X9Q> (D) L=1649	1-33652-925-0	01	1	0105-0106
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU), CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q> (D) L=1649	1-33652-925-0	01	1	0107-0109
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU), CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. MIXER TRUCK<RA2> (D) L=1649	1-33652-925-1	01	1	0110-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJA7 M/T<X9Q> (D) L=1721	1-33652-984-1	01	1	0105-0106
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU), CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q> (D) L=1721	1-33652-984-1	01	1	0107-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJA7 M/T<X9Q> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (D) L=1668	1-33652-983-1	01	1	0105-0106
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTC H 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (D) L=1668	1-33652-983-1	01	1	0107-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> ZF M/T<X9E> EXC. CAB UP +110MM<TGG> (C)	1-33652-990-0	01	1	0105-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> ZF M/T<X9E> EXC. CAB UP +110MM<TGG> (A)	1-33671-803-0	01	1	0105-
6	ROD; LINK,3RD SELECT MJA7 M/T<X9Q> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (D) L=1599	1-33652-916-1	01	1	0105-0106
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAPDRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (D) L=1599	1-33652-916-1	01	1	0107-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0105-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (C) L=1419	1-33652-981-0	01	1	0105-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (A) L=1443	1-33671-789-0	01	1	0105-
8	ROD; LINK,4TH SHIFT FULLER M/T<X9B> L=480	1-33652-730-0	01	1	0105-
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J> L=370	1-33652-654-1	01	1	0107-
8	ROD; LINK,4TH SHIFT MJA7 M/T<X9Q> L=330	1-33652-653-1	01	1	0105-
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> L=485	1-33652-859-1	01	1	0105-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-1	01	1	0105-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (C) L=423	1-33652-804-2	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-1	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-2	01	1	0105-
15	ROD; LINK 1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. MJA7 M/T<X9Q> (D) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (E) L=345	1-33652-736-0	01	1	0105-
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) L=88	1-33652-740-0	01	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (B) SELECT	1-09760-109-0	02	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	0105-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	9-09111-410-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	0-91111-510-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (C) M10 LH THREAD	9-09840-167-0	02	1	0105-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-0512
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ISUZU M/T<X9A>,FULLER M/T<X9B>	1-09760-124-0	02	1	0105-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0105-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0105-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD ISUZU M/T<X9A>,FULLER M/T<X9B> M10	9-09111-410-0	02	1	0105-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ISUZU M/T<X9A>,FULLER M/T<X9B> M10	0-91111-510-0	02	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0105-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0105-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

121 38 36 44 6 38 36 44 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> FULLER M/T<X9B> (E) L=1637	1-33652-980-1	01	1	0105-
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> ZF M/T<X9E> EXC. MIXER TRUCK<RA2> (A) L=1454	1-33671-700-1	01	1	0105-
6	ROD; LINK,3RD SELECT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJA7 M/T<X9Q> (D) L=1649	1-33652-925-0	01	1	0105-0106
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU), CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q> (D) L=1649	1-33652-925-0	01	1	0107-0109
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU), CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. MIXER TRUCK<RA2> (D) L=1649	1-33652-925-1	01	1	0110-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJA7 M/T<X9Q> (D) L=1721	1-33652-984-1	01	1	0105-0106
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU), CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q> (D) L=1721	1-33652-984-1	01	1	0107-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJA7 M/T<X9Q> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (D) L=1668	1-33652-983-1	01	1	0105-0106
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTC H 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (D) L=1668	1-33652-983-1	01	1	0107-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> ZF M/T<X9E> EXC. CAB UP +110MM<TGG> (C)	1-33652-990-0	01	1	0105-
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> ZF M/T<X9E> EXC. CAB UP +110MM<TGG> (A)	1-33671-803-0	01	1	0105-
6	ROD; LINK,3RD SELECT MJA7 M/T<X9Q> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (D) L=1599	1-33652-916-1	01	1	0105-0106
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAPDRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (D) L=1599	1-33652-916-1	01	1	0107-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0105-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (C) L=1419	1-33652-981-0	01	1	0105-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (A) L=1443	1-33671-789-0	01	1	0105-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ISUZU M/T<X9A>,FULLER M/T<X9B>	1-09760-124-0	02	1	0105-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0105-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0105-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD ISUZU M/T<X9A>,FULLER M/T<X9B> M10	9-09111-410-0	02	1	0105-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ISUZU M/T<X9A>,FULLER M/T<X9B> M10	0-91111-510-0	02	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0105-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0105-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
121	BOLT; LINK ROD ZF M/T<X9E>	1-09044-103-0	02	1	0105-

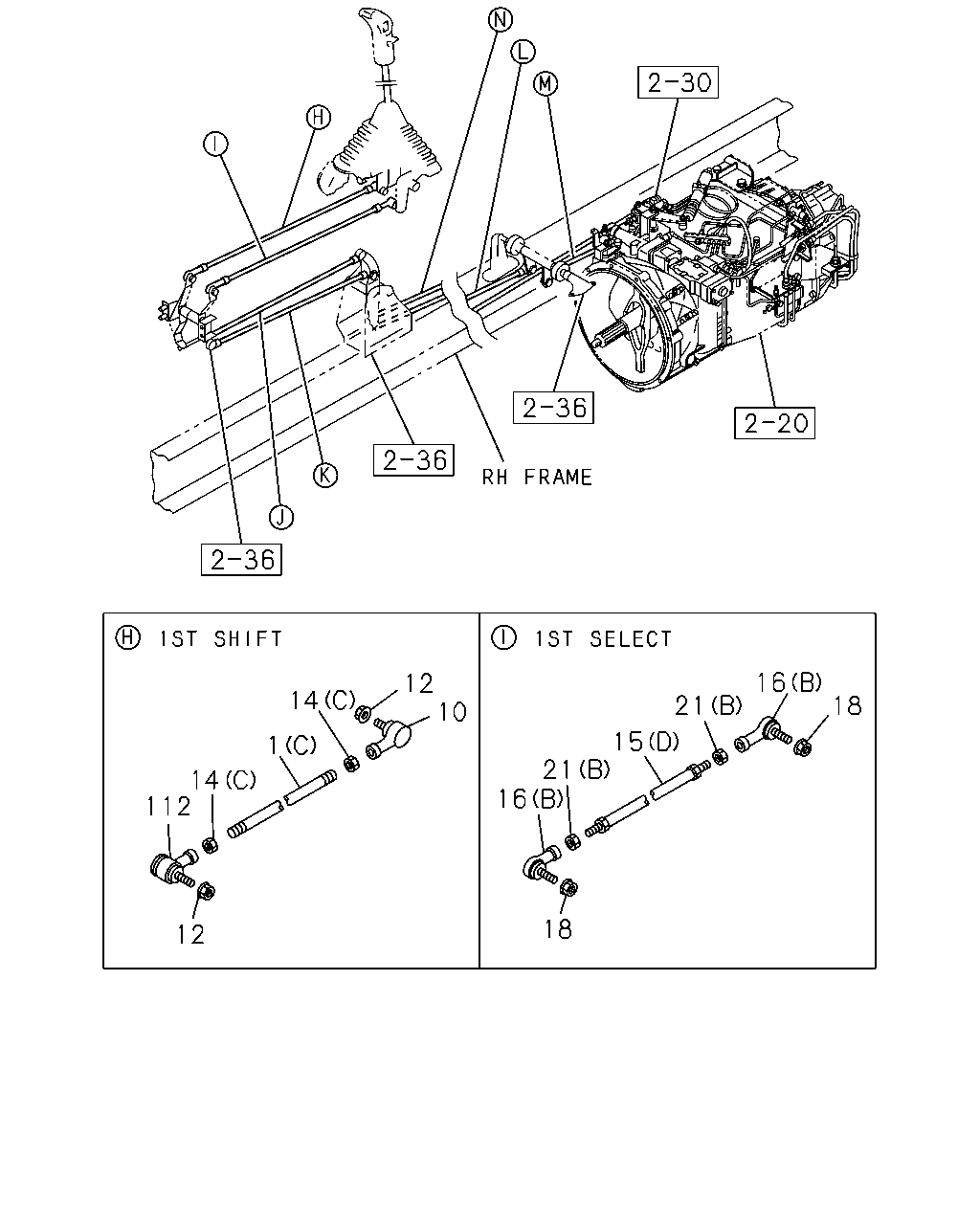

18 21 21 18 16 12 14 25 1 14 12 112 12 18 16 15 18 16 21 15 21 16 10 12 14 1 10 1 112 14 15 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=480	9-08401-248-0	01	1	0105-
1	ROD; LINK,1ST SHIFT EXC. MJA7 M/T<X9Q> (C) L=480	9-08401-248-0	01	1	0105-
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) L=421	1-33652-738-0	01	1	0105-
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) L=88	1-33652-740-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-09760-125-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD EXC. MJA7 M/T<X9Q>	1-09760-125-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q>	1-09760-124-0	01	1	0105-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	9-99111-412-0	02	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (C) M12	9-99111-412-0	02	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	0-91111-512-0	02	1	0601-
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (C) M12	0-91111-512-0	02	1	0601-
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	9-09111-410-0	01	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	0-91111-510-0	01	1	0601-
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) M12	9-99111-412-0	01	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) M12	0-91111-512-0	01	1	0601-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-1	01	1	0105-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (C) L=423	1-33652-804-2	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-1	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-2	01	1	0105-
15	ROD; LINK 1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. MJA7 M/T<X9Q> (D) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (E) L=345	1-33652-736-0	01	1	0105-
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) L=88	1-33652-740-0	01	1	0105-
16	JOINT ASM; BALL,CONT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09760-108-0	02	1	0105-
16	JOINT ASM; BALL,CONT ROD EXC. MJA7 M/T<X9Q> (B)	1-09760-108-0	02	1	0105-
16	JOINT ASM; BALL,CONT ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A)	1-09760-109-0	02	1	0105-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
21	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	9-09111-408-0	02	1	0105-0512
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (B) M8	9-09111-408-0	02	1	0105-0512
21	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	0-91111-508-0	02	1	0601-
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (B) M8	0-91111-508-0	02	1	0601-
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	9-09111-410-0	02	1	0105-0512
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	0-91111-510-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	9-09111-410-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	0-91111-510-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (C) M10 LH THREAD	9-09840-167-0	02	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

18 16 21 15 21 16 18 12 112 14 10 12 14 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=480	9-08401-248-0	01	1	0105-
1	ROD; LINK,1ST SHIFT EXC. MJA7 M/T<X9Q> (C) L=480	9-08401-248-0	01	1	0105-
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) L=421	1-33652-738-0	01	1	0105-
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) L=88	1-33652-740-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-09760-125-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD EXC. MJA7 M/T<X9Q>	1-09760-125-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q>	1-09760-124-0	01	1	0105-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	9-99111-412-0	02	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (C) M12	9-99111-412-0	02	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	0-91111-512-0	02	1	0601-
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (C) M12	0-91111-512-0	02	1	0601-
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	9-09111-410-0	01	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	0-91111-510-0	01	1	0601-
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) M12	9-99111-412-0	01	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) M12	0-91111-512-0	01	1	0601-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-1	01	1	0105-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (C) L=423	1-33652-804-2	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-1	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-2	01	1	0105-
15	ROD; LINK 1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. MJA7 M/T<X9Q> (D) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (E) L=345	1-33652-736-0	01	1	0105-
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) L=88	1-33652-740-0	01	1	0105-
16	JOINT ASM; BALL,CONT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09760-108-0	02	1	0105-
16	JOINT ASM; BALL,CONT ROD EXC. MJA7 M/T<X9Q> (B)	1-09760-108-0	02	1	0105-
16	JOINT ASM; BALL,CONT ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A)	1-09760-109-0	02	1	0105-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
21	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	9-09111-408-0	02	1	0105-0512
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (B) M8	9-09111-408-0	02	1	0105-0512
21	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	0-91111-508-0	02	1	0601-
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (B) M8	0-91111-508-0	02	1	0601-
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	9-09111-410-0	02	1	0105-0512
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	0-91111-510-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

18 16 21 15 21 16 18 12 112 14 12 10 14 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=480	9-08401-248-0	01	1	0105-
1	ROD; LINK,1ST SHIFT EXC. MJA7 M/T<X9Q> (C) L=480	9-08401-248-0	01	1	0105-
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) L=421	1-33652-738-0	01	1	0105-
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) L=88	1-33652-740-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-09760-125-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD EXC. MJA7 M/T<X9Q>	1-09760-125-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q>	1-09760-124-0	01	1	0105-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	9-99111-412-0	02	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (C) M12	9-99111-412-0	02	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	0-91111-512-0	02	1	0601-
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (C) M12	0-91111-512-0	02	1	0601-
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	9-09111-410-0	01	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	0-91111-510-0	01	1	0601-
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) M12	9-99111-412-0	01	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) M12	0-91111-512-0	01	1	0601-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-1	01	1	0105-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (C) L=423	1-33652-804-2	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-1	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-2	01	1	0105-
15	ROD; LINK 1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. MJA7 M/T<X9Q> (D) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (E) L=345	1-33652-736-0	01	1	0105-
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) L=88	1-33652-740-0	01	1	0105-
16	JOINT ASM; BALL,CONT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09760-108-0	02	1	0105-
16	JOINT ASM; BALL,CONT ROD EXC. MJA7 M/T<X9Q> (B)	1-09760-108-0	02	1	0105-
16	JOINT ASM; BALL,CONT ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A)	1-09760-109-0	02	1	0105-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
21	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	9-09111-408-0	02	1	0105-0512
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (B) M8	9-09111-408-0	02	1	0105-0512
21	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	0-91111-508-0	02	1	0601-
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (B) M8	0-91111-508-0	02	1	0601-
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	9-09111-410-0	02	1	0105-0512
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	0-91111-510-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

22 25 28 15 25 22 28 25 112 24 15 25 22 32 30 35 5 35 30 32 45 49 47 8 49 45 47 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> L=1120	1-33652-603-0	01	1	0105-
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> CAB UP +110MM<TGG> L=1190	1-33652-922-0	01	1	0105-
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> L=1170	1-33652-547-0	01	1	0105-
5	ROD; LINK,3RD SHIFT EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	0105-
8	ROD; LINK,4TH SHIFT FULLER M/T<X9B> L=480	1-33652-730-0	01	1	0105-
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J> L=370	1-33652-654-1	01	1	0107-
8	ROD; LINK,4TH SHIFT MJA7 M/T<X9Q> L=330	1-33652-653-1	01	1	0105-
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> L=485	1-33652-859-1	01	1	0105-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-1	01	1	0105-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (C) L=423	1-33652-804-2	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-1	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-2	01	1	0105-
15	ROD; LINK 1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT EXC. MJA7 M/T<X9Q> (D) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (E) L=345	1-33652-736-0	01	1	0105-
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) L=88	1-33652-740-0	01	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (B) SELECT	1-09760-109-0	02	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	0105-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	9-09111-410-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	0-91111-510-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (C) M10 LH THREAD	9-09840-167-0	02	1	0105-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-0512
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

39 58 39 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	GASKET; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	02	1	0105-
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-
58	HOSE; FLEX,POWER ASSISTOR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J> L=300	0-07150-300-0	01	1	0109-
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q> L=360	0-07150-360-0	01	1	0105-0106
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q> L=360	0-07150-360-0	01	1	0107-0108
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) L=360	0-07150-360-0	01	1	0109-0605
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) L=360	0-57150-360-0	01	1	0606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
