0-38B — AIR COMPRESSOR PIPING; ENGINE SIDE (#2760) — 90 parça

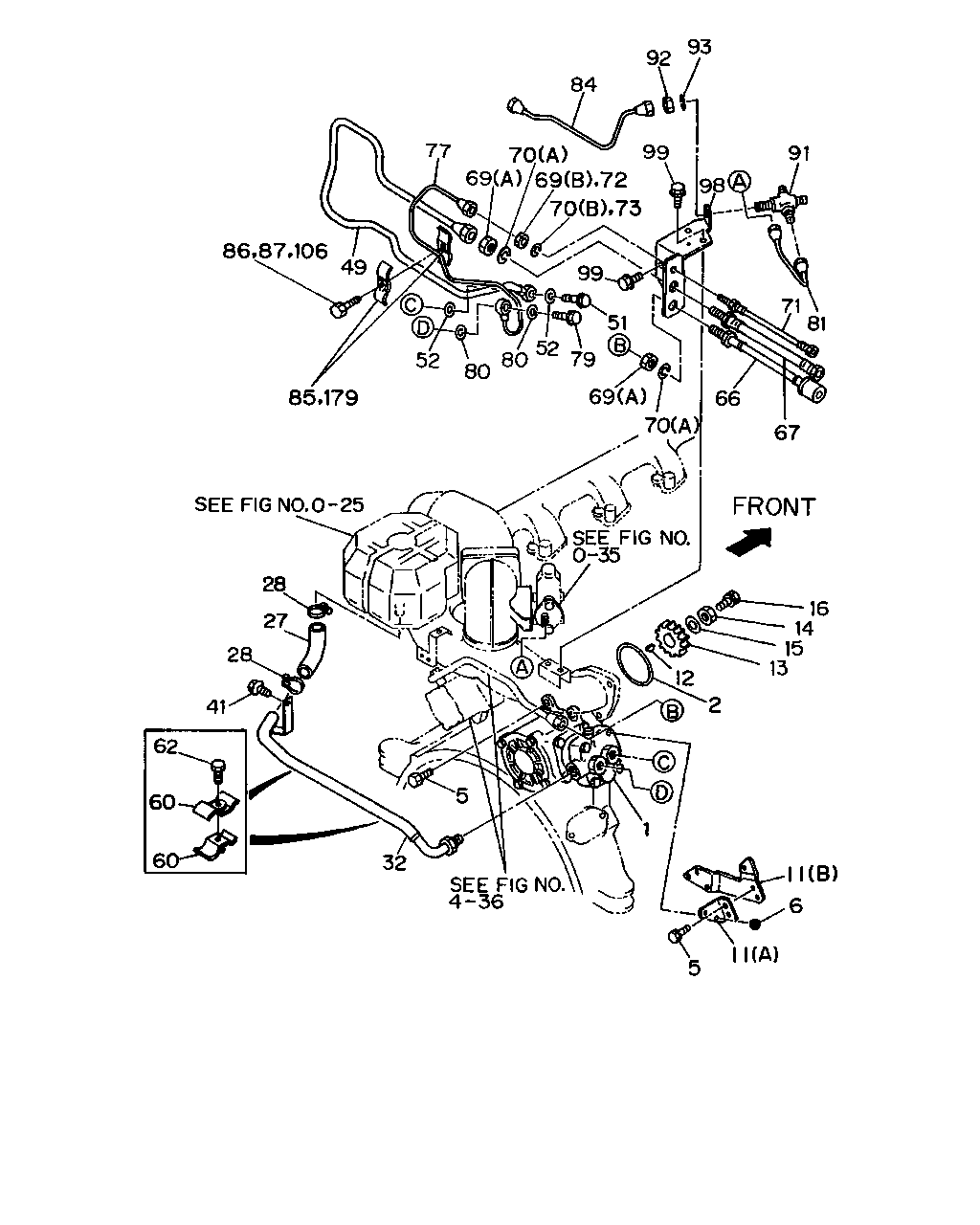

çizim 6825
93 91 92 99 84 98 70 69 77 72 73 51 99 70 71 81 79 52 80 80 52 49 106 87 86 85 179 69 70 66 67 16 14 15 13 12 2 11 6 11 5 32 60 62 60 41 28 28 27 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-212-6 01 1 9002- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-212-6 01 1 9002- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-177-5 01 1 9002- ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		1-09623-423-0 01 1 9002- ● ●
5 BOLT; AIR CMPR FIX
M12X40 		9-01991-240-0 04 1 9002-9005 ●
5 BOLT; AIR CMPR FIX
M12X40 W/LK&PL WASHER 		0-50151-240-0 04 1 9006- ● ●
5 BOLT; AIR CMPR FIX
AIR COMPRESSOR HEAVY DUTY(E1Q) M10X20 FLANGE 		0-28081-020-0 02 1 9002-9306 ●
5 BOLT; AIR CMPR FIX
AIR COMPRESSOR HEAVY DUTY(E1Q) M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9307- ●
5 BOLT; AIR CMPR FIX
AIR COMPRESSOR HEAVY DUTY(E1Q) M10X18 		8-94399-729-1 03 1 9002-9104 ●
5 BOLT; AIR CMPR FIX
AIR COMPRESSOR HEAVY DUTY(E1Q) M10X18 FLANGE 		0-28181-018-0 03 1 9105- ●
5 BOLT; AIR CMPR FIX
M10X18 FLANGE 		0-28181-018-0 03 1 9105- ●
5 BOLT; AIR CMPR FIX
M10X20 W/LK&PL WASHER 		0-50141-020-0 03 1 9307- ●
6 NUT; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M10 FLANGE 		0-91150-210-0 02 1 9002- ●
6 NUT; AIR CMPR
M10 FLANGE 		0-91150-210-0 02 1 9002- ●
11 BRACKET; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-19187-018-0 01 1 9002- ●
11 BRACKET; AIR CMPR
(A) 		1-19187-018-0 01 1 9002- ●
11 BRACKET; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19187-023-1 01 1 9002- ●
11 BRACKET; AIR CMPR
(B) 		1-19187-023-1 01 1 9002- ●
12 KEY; AIR CMPR GEAR 9-08055-516-0 01 1 9002- ● ●
13 GEAR; AIR CMPR DRIVE
Z=26 		1-12524-044-0 01 1 9002- ●
13 GEAR; AIR CMPR DRIVE
Z=26 		1-12524-045-0 01 1 9307- ●
14 NUT; GEAR
M20 		9-99111-520-0 01 1 9002- ● ●
15 WASHER; GEAR
ID=21 		9-09164-520-0 01 1 9002- ● ●
16 ADAPTER 1-12539-010-0 01 1 9002- ● ●
27 HOSE; AIR CMPR,SUCTION 1-09360-858-0 01 1 9002-9011 ●
27 HOSE; AIR CMPR,SUCTION 1-09360-896-0 01 1 9012- ●
27 HOSE; AIR CMPR,SUCTION 1-09360-867-0 01 1 9307- ●
28 CLIP; HOSE,AIR CMPR
ID=28.5 		1-09707-150-0 02 1 9002- ● ●
32 PIPE; AIR,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19192-461-0 01 1 9002-9011 ●
32 PIPE; AIR,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19192-551-1 01 1 9012- ●
32 PIPE; AIR,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19192-450-0 01 1 9002-9011 ●
32 PIPE; AIR,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19192-548-1 01 1 9012- ●
32 PIPE; AIR,AIR CMPR 1-19192-550-0 01 1 9307- ●
41 BOLT; CLIP
M6X12 		0-28020-612-0 01 1 9002-9005 ●
41 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 01 1 9006- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19192-284-1 01 1 9002-9212 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19192-759-0 01 1 9301- ●
49 PIPE; AIR,CHARGE 1-19192-759-0 01 1 9301- ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19191-802-1 01 1 9002-9212 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19192-760-0 01 1 9301- ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-1 01 1 9002- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 9002-9306 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 9307- ● ●
60 CLIP; AIR PIPE
WO/NUT 		1-09700-985-0 02 1 9002- ●
60 CLIP; AIR PIPE
ID=12 & 21 L=30 W/NUT 		1-09700-986-0 02 1 9002- ●
62 BOLT; CLIP
M6X30 		0-28020-630-0 02 1 9002-9005 ●
62 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 02 1 9006- ● ●
66 HOSE; FLEX,POWER STRG
L=360 		0-09538-360-0 01 1 9002- ●
66 HOSE; FLEX,POWER STRG
L=385 		0-09538-385-0 01 1 9307- ●
67 HOSE; FLEX,AIR CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) L=480 		0-07806-480-1 01 1 9002- ●
67 HOSE; FLEX,AIR CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) L=420 		0-07806-420-1 01 1 9002- ●
67 HOSE; FLEX,AIR CHARGE
L=450 		0-07806-450-1 01 1 9307- ●
69 NUT; FLEX HOSE
(A) M20 		9-99111-420-0 02 1 9002- ● ●
69 NUT; FLEX HOSE
(B) M12 		9-09840-280-0 01 1 9307- ●
70 WASHER; LK
(A) ID=20.2 		9-09150-520-0 02 1 9002- ● ●
70 WASHER; LK
(B) ID=12.2 		9-09150-512-0 01 1 9307- ●
71 HOSE; FLEX,AIR GOV
L=320 		0-07120-320-0 01 1 9002- ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9002- ●
73 WASHER; LK,GOV HOSE
ID=12.2 		9-09150-512-0 01 1 9002- ●
77 PIPE; AIR,GOV
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19192-285-0 01 1 9002- ●
77 PIPE; AIR,GOV 1-19192-285-0 01 1 9002- ●
77 PIPE; AIR,GOV
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19191-806-0 01 1 9002- ●
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 01 1 9002- ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9002- ● ●
81 PIPE; AIR,INT SHUTTER 1-19192-059-0 01 1 9002- ● ●
84 PIPE; AIR 1-19192-442-0 01 1 9002- ● ●
85 CLIP; PIPE
ID=8 & 12 		9-09917-471-0 01 1 9002-9401 ● ●
85 CLIP; PIPE
WO/NUT 		1-09700-547-0 01 1 9402- ● ●
85 CLIP; PIPE
W/NUT 		9-09917-472-0 01 1 9002-9401 ● ●
85 CLIP; PIPE
W/NUT 		1-09700-550-0 01 1 9402- ● ●
86 BOLT; CLIP
M6X25 		0-28020-625-0 01 1 9002-9005 ●
86 BOLT; CLIP
M6X25 FLANGE 		0-28080-625-0 01 1 9006- ● ●
87 BOLT; BRKT FIX
M8X14 		0-28020-814-0 02 1 9002-9005 ●
87 BOLT; BRKT FIX
M8X14 FLANGE 		0-28080-814-0 02 1 9006-9411 ● ●
87 BOLT; BRKT FIX
M8X16 FLANGE 		0-28080-816-0 02 1 9412- ● ●
91 UNION; 4 WAY 9-09229-106-1 01 1 9002- ● ●
92 NUT; UNION
M12 		9-09840-280-0 01 1 9002- ● ●
93 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9002- ● ●
98 BRACKET; AIR & OIL PIPE
FIRE TRUCK<RA9> 		1-22518-132-0 01 1 9002- ●
98 BRACKET; AIR & OIL PIPE
EXC. FIRE TRUCK<RA9> 		1-22518-121-0 01 1 9002- ●
98 BRACKET; AIR & OIL PIPE 1-22518-121-0 01 1 9002- ●
99 BOLT; BRKT AIR PIPE
M8X14 		0-28020-814-0 04 1 9002-9005 ●
99 BOLT; BRKT AIR PIPE
M8X14 FLANGE 		0-28080-814-0 04 1 9006-9411 ● ●
99 BOLT; BRKT AIR PIPE
M8X16 FLANGE 		0-28080-816-0 04 1 9412- ● ●
106 BOLT; CLIP
M6X25 		0-28020-625-0 01 1 9002-9005 ●
106 BOLT; CLIP
M6X25 FLANGE 		0-28080-625-0 01 1 9006- ● ●
179 CLIP; PIPE
ID=8 & 12 		9-09917-471-0 01 1 9002-9401 ● ●
179 CLIP; PIPE
WO/NUT 		1-09700-547-0 01 1 9402- ● ●
179 CLIP; PIPE
W/NUT 		9-09917-472-0 01 1 9002-9401 ● ●
179 CLIP; PIPE
W/NUT 		1-09700-550-0 01 1 9402- ● ●
