2-30B — GEAR SHIFTER AND QUADRANT BOX (#27596) — 407 parça

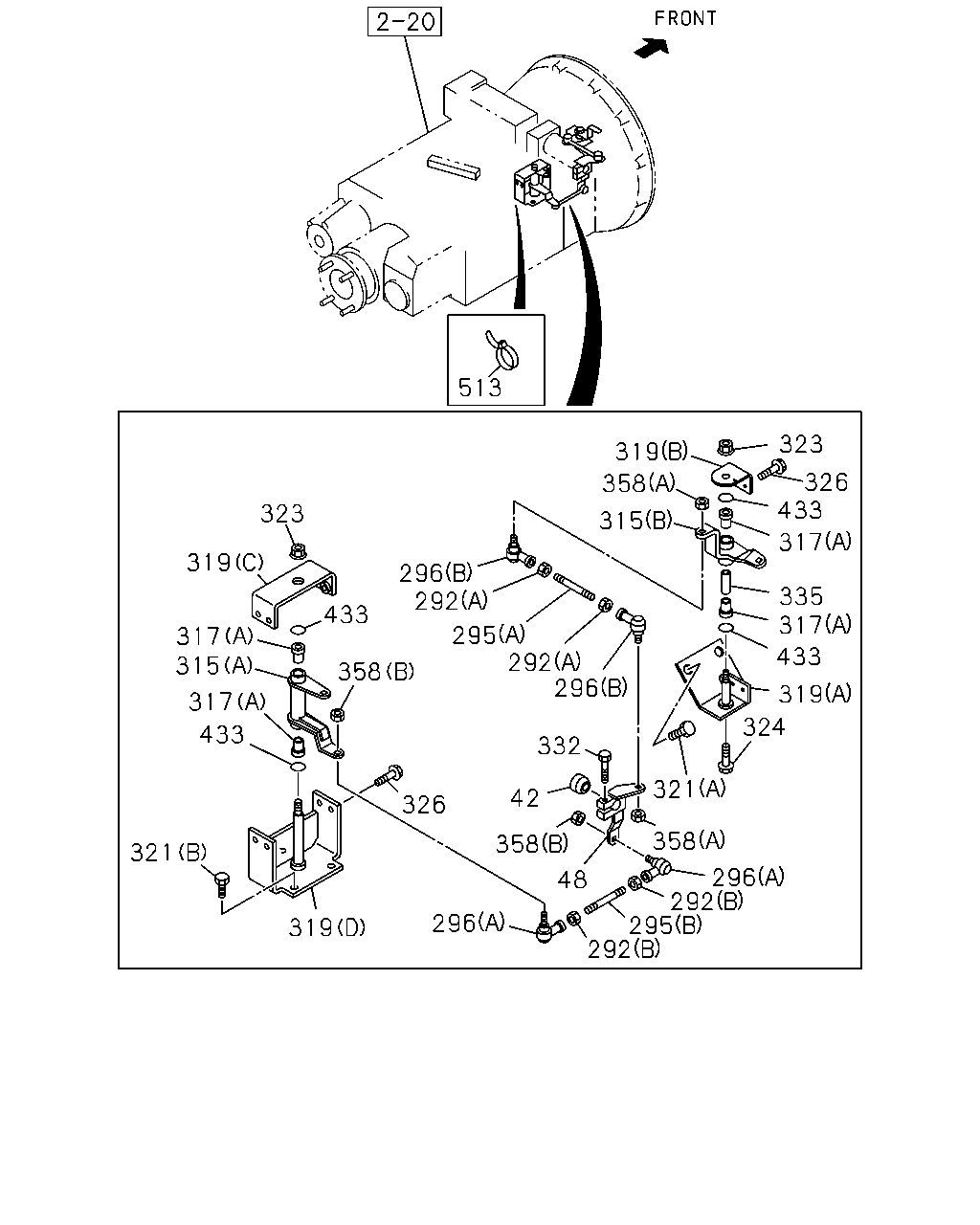

513 323 319 317 315 317 433 321 319 296 292 295 292 296 358 48 358 42 326 332 321 324 319 433 317 335 296 292 295 292 296 317 433 326 323 319 358 315 433 358

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	CAP; QUAD BOX	1-33549-111-0	01	1	0105-0106	●
42	CAP; QUAD BOX	1-33549-111-0	01	1	0107-	●	●
48	LEVER; 4TH,SHIFT	1-33651-639-0	01	1	0105-0106	●
48	LEVER; 4TH,SHIFT	1-33651-639-0	01	1	0107-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0105-0106	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0107-0512	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0601-	●	●
292	NUT; LINK ROD (B) M10	9-09111-410-0	02	1	0105-0106	●
292	NUT; LINK ROD (B) M10	9-09111-410-0	02	1	0107-0512	●	●
292	NUT; LINK ROD (B) M10	0-91111-510-0	02	1	0601-	●	●
295	ROD; LINK,RELAY LEVER (A) M8 L=50	9-08400-805-0	01	1	0105-0106	●
295	ROD; LINK,RELAY LEVER (A) M8 L=50	9-08400-805-0	01	1	0107-	●	●
295	ROD; LINK,RELAY LEVER (B) M8 L=90	9-08401-009-0	01	1	0105-0106	●
295	ROD; LINK,RELAY LEVER (B) M8 L=90	9-08401-009-0	01	1	0107-	●	●
296	ROD END (A)	1-09760-108-0	02	1	0105-0106	●
296	ROD END (A)	1-09760-108-0	02	1	0107-	●	●
296	ROD END (B)	1-09760-124-0	02	1	0105-0106	●
296	ROD END (B)	1-09760-124-0	02	1	0107-	●	●
315	LEVER; SELECT (A)	1-33651-743-0	01	1	0105-0106	●
315	LEVER; SELECT (A)	1-33651-743-0	01	1	0107-	●	●
315	LEVER; SELECT (B)	1-33651-775-0	01	1	0105-0106	●
315	LEVER; SELECT (B)	1-33651-775-0	01	1	0107-	●	●
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	0105-0106	●
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	0107-	●	●
317	BUSHING; LEVER (B)	1-33549-322-0	02	1	0105-0106	●
317	BUSHING; LEVER (B)	1-33549-322-0	02	1	0107-	●	●
319	BRACKET; SELECT LEVER (A)	1-33657-717-0	01	1	0105-0106	●
319	BRACKET; SELECT LEVER (A)	1-33657-717-0	01	1	0107-	●	●
319	BRACKET; SELECT LEVER (B)	1-33657-718-0	01	1	0105-0106	●
319	BRACKET; SELECT LEVER (B)	1-33657-718-0	01	1	0107-	●	●
319	BRACKET; SELECT LEVER (C)	1-33657-741-0	01	1	0105-0106	●
319	BRACKET; SELECT LEVER (C)	1-33657-741-0	01	1	0107-	●	●
319	BRACKET; SELECT LEVER (D)	1-33657-742-0	01	1	0105-0106	●
319	BRACKET; SELECT LEVER (D)	1-33657-742-0	01	1	0107-	●	●
321	BOLT; BRKT,RELAY LEVER (B) M12X30	0-28781-230-0	03	1	0105-0106	●
321	BOLT; BRKT,RELAY LEVER (B) M12X30	0-28781-230-0	03	1	0107-0512	●	●
321	BOLT; BRKT,RELAY LEVER (B) M12X30 FLANGE	0-28751-230-0	03	1	0601-	●	●
321	BOLT; BRKT,RELAY LEVER (A) M16X30 FLANGE	0-28881-630-0	02	1	0105-0106	●
321	BOLT; BRKT,RELAY LEVER (A) M16X30 FLANGE	0-28881-630-0	02	1	0107-0512	●	●
321	BOLT; BRKT,RELAY LEVER (A) M16X30 FLANGE	0-28851-630-0	02	1	0601-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	02	1	0105-0106	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	02	1	0107-	●	●
324	BOLT; SHAFT M10X80 FLANGE	0-28081-080-0	01	1	0105-0106	●
324	BOLT; SHAFT M10X80 FLANGE	0-28081-080-0	01	1	0107-	●	●
326	BOLT; RELAY LEVER ASM M8X20 FLANGE	0-28680-820-0	06	1	0105-0106	●
326	BOLT; RELAY LEVER ASM M8X20 FLANGE	0-28680-820-0	06	1	0107-	●	●
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28680-840-0	01	1	0105-0106	●
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28680-840-0	01	1	0107-0512	●	●
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28650-840-0	01	1	0601-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-221-0	01	1	0105-0106	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-221-0	01	1	0107-	●	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	0105-0106	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	0107-	●	●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	0105-0106	●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	0107-	●	●
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	0105-0106	●
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	0107-	●	●
433	GASKET; BUSHING	1-09623-636-0	04	1	0105-0106	●
433	GASKET; BUSHING	1-09623-636-0	04	1	0107-	●	●
513	CLIP; BAND L=140	5-09707-031-1	01	1	0105-0106	●
513	CLIP; BAND L=140	5-09707-031-1	01	1	0107-	●	●

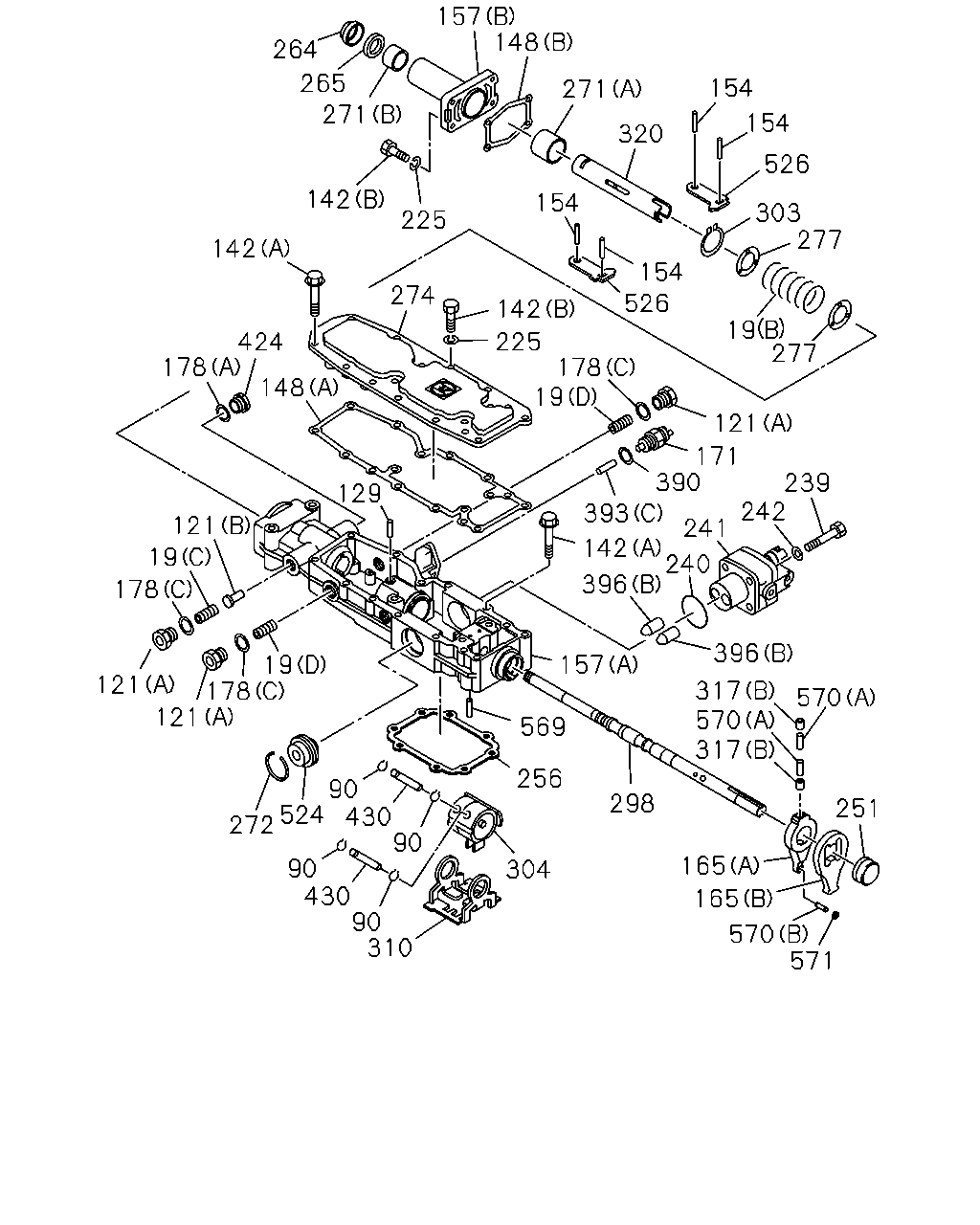

251 165 165 570 571 298 304 310 90 430 90 272 524 90 430 256 569 317 570 317 570 396 157 121 121 178 19 178 19 121 129 396 240 241 242 239 393 390 171 121 277 19 19 178 225 142 274 424 178 142 142 225 154 154 526 277 303 526 154 154 320 271 148 157 271 265 264 142 90 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP (A)	1-33519-014-0	01	1	0105-0106	●
19	SPRING; COIL COMP (A)	1-33519-014-0	01	1	0107-	●	●
19	SPRING; COIL COMP (B)	1-33539-028-0	01	1	0105-0106	●
19	SPRING; COIL COMP (B)	1-33539-028-0	01	1	0107-	●	●
19	SPRING; COIL COMP (C)	1-33539-030-0	01	1	0105-0106	●
19	SPRING; COIL COMP (C)	1-33539-030-0	01	1	0107-	●	●
19	SPRING; COIL COMP (D)	1-33549-189-0	02	1	0105-0106	●
19	SPRING; COIL COMP (D)	1-33549-189-0	02	1	0107-	●	●
90	RING; SNAP,SHIFT ROD	1-33529-109-0	04	1	0105-0106	●
90	RING; SNAP,SHIFT ROD	1-33529-109-0	04	1	0107-	●	●
121	PLUG; DETENT SPR (A)	1-33549-194-0	03	1	0105-0106	●
121	PLUG; DETENT SPR (A)	1-33549-194-0	03	1	0107-	●	●
121	PLUG; DETENT SPR (B)	1-33549-305-0	01	1	0105-0106	●
121	PLUG; DETENT SPR (B)	1-33549-305-0	01	1	0107-	●	●
129	PIN; SPR,SHIFT	1-33529-107-0	01	1	0105-0106	●
129	PIN; SPR,SHIFT	1-33529-107-0	01	1	0107-	●	●
142	BOLT; QUAD BOX (B) M8X30	1-33549-172-0	09	1	0105-0106	●
142	BOLT; QUAD BOX (B) M8X30	1-33549-172-0	09	1	0107-	●	●
142	BOLT; QUAD BOX (A) M8X80	1-33549-256-0	14	1	0105-0106	●
142	BOLT; QUAD BOX (A) M8X80	1-33549-256-0	14	1	0107-	●	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33544-044-0	01	1	0105-0106	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33544-044-0	01	1	0107-	●	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33549-319-0	01	1	0105-0106	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33549-319-0	01	1	0107-	●	●
154	PIN; SELECT LEVER	1-33529-040-0	04	1	0105-0106	●
154	PIN; SELECT LEVER	1-33529-040-0	04	1	0107-	●	●
157	BOX; QUAD,TRANS (A)	1-33549-313-0	01	1	0105-0106	●
157	BOX; QUAD,TRANS (A)	1-33549-313-0	01	1	0107-	●	●
157	BOX; QUAD,TRANS (B)	1-33549-326-0	01	1	0105-0106	●
157	BOX; QUAD,TRANS (B)	1-33549-326-0	01	1	0107-	●	●
165	LEVER; SHIFT (A)	1-33549-321-0	01	1	0105-0106	●
165	LEVER; SHIFT (A)	1-33549-321-0	01	1	0107-	●	●
165	LEVER; SHIFT (B)	1-33549-325-0	01	1	0105-0106	●
165	LEVER; SHIFT (B)	1-33549-325-0	01	1	0107-	●	●
171	SWITCH; NEUTRAL	1-82440-095-0	01	1	0105-0106	●
171	SWITCH; NEUTRAL	1-82440-095-0	01	1	0107-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	01	1	0105-0106	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	01	1	0107-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-057-0	01	1	0105-0106	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-057-0	01	1	0107-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	0105-0106	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	0107-	●	●
225	WASHER; LK,QUAD BOX	1-33549-159-0	09	1	0105-0106	●
225	WASHER; LK,QUAD BOX	1-33549-159-0	09	1	0107-	●	●
239	BOLT; CUT OFF VALVE	1-33549-302-0	04	1	0105-0106	●
239	BOLT; CUT OFF VALVE	1-33549-302-0	04	1	0107-	●	●
240	GASKET; CUT OFF VALVE	1-33549-198-0	01	1	0105-0106	●
240	GASKET; CUT OFF VALVE	1-33549-198-0	01	1	0107-	●	●
241	VALVE; CUT OFF	1-33549-334-0	01	1	0105-0106	●
241	VALVE; CUT OFF	1-33549-334-0	01	1	0107-	●	●
242	WASHER; CUT OFF VALVE	1-33549-159-0	04	1	0105-0106	●
242	WASHER; CUT OFF VALVE	1-33549-159-0	04	1	0107-	●	●
251	COVER; SIDE	1-33549-330-0	01	1	0105-0106	●
251	COVER; SIDE	1-33549-330-0	01	1	0107-	●	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-057-0	01	1	0105-0106	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-057-0	01	1	0107-	●	●
264	SEAL; DUST,SHAFT	1-33549-327-0	01	1	0105-0106	●
264	SEAL; DUST,SHAFT	1-33549-327-0	01	1	0107-	●	●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-33549-328-0	01	1	0105-0106	●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-33549-328-0	01	1	0107-	●	●
271	BUSHING; QUAD BOX (A)	1-33549-318-0	01	1	0105-0106	●
271	BUSHING; QUAD BOX (A)	1-33549-318-0	01	1	0107-	●	●
271	BUSHING; QUAD BOX (B)	1-33549-329-0	01	1	0105-0106	●
271	BUSHING; QUAD BOX (B)	1-33549-329-0	01	1	0107-	●	●
272	RING; SNAP,QUAD BOX	1-44519-217-0	01	1	0105-0106	●
272	RING; SNAP,QUAD BOX	1-44519-217-0	01	1	0107-	●	●
274	COVER; SHAFT,QUAD BOX	1-33549-320-0	01	1	0105-0106	●
274	COVER; SHAFT,QUAD BOX	1-33549-320-0	01	1	0107-	●	●
277	PLATE; SPRING SEAT	1-33539-039-0	02	1	0105-0106	●
277	PLATE; SPRING SEAT	1-33539-039-0	02	1	0107-	●	●
298	SHAFT; SHIFT LEVER	1-33549-314-0	01	1	0105-0106	●
298	SHAFT; SHIFT LEVER	1-33549-314-0	01	1	0107-	●	●
303	RING; SNAP,SHAFT	1-33539-040-0	01	1	0105-0106	●
303	RING; SNAP,SHAFT	1-33539-040-0	01	1	0107-	●	●
304	BLOCK; SHIFT SHAFT	1-33549-315-0	01	1	0105-0106	●
304	BLOCK; SHIFT SHAFT	1-33549-315-0	01	1	0107-	●	●
310	PLATE; LOCK,SHIFT LEVER	1-33549-316-0	01	1	0105-0106	●
310	PLATE; LOCK,SHIFT LEVER	1-33549-316-0	01	1	0107-	●	●
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	0105-0106	●
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	0107-	●	●
317	BUSHING; LEVER (B)	1-33549-322-0	02	1	0105-0106	●
317	BUSHING; LEVER (B)	1-33549-322-0	02	1	0107-	●	●
320	SHAFT; LEVER	1-33549-317-0	01	1	0105-0106	●
320	SHAFT; LEVER	1-33549-317-0	01	1	0107-	●	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	0105-0106	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	0107-	●	●
393	PIN; SW (A)	1-33519-029-0	02	1	0105-0106	●
393	PIN; SW (A)	1-33519-029-0	02	1	0107-	●	●
393	PIN; SW (B)	1-33519-077-0	01	1	0105-0106	●
393	PIN; SW (B)	1-33519-077-0	01	1	0107-	●	●
393	PIN; SW (C)	1-33549-335-0	01	1	0105-0106	●
393	PIN; SW (C)	1-33549-335-0	01	1	0107-	●	●
393	PIN; SW (D)	1-33519-098-0	01	1	0107-		●
396	PLUNGER; SHIFT ROD (C)	1-33519-073-0	01	1	0105-	●
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	0105-0106	●
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	0107-	●	●
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	0105-0106	●
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	0107-	●	●
424	PLUG; NEUTRAL SW HOLE	1-33119-171-0	01	1	0105-0106	●
424	PLUG; NEUTRAL SW HOLE	1-33119-171-0	01	1	0107-	●	●
430	PIN; SPR,SHIFT ROD	1-33529-108-0	02	1	0105-0106	●
430	PIN; SPR,SHIFT ROD	1-33529-108-0	02	1	0107-	●	●
524	DETENT; QUAD BOX	1-33549-197-0	01	1	0105-0106	●
524	DETENT; QUAD BOX	1-33549-197-0	01	1	0107-	●	●
526	LEVER; DETENT	1-33549-298-0	02	1	0105-0106	●
526	LEVER; DETENT	1-33549-298-0	02	1	0107-	●	●
569	PIN; QUADRANT BOX	1-33529-106-0	01	1	0105-0106	●
569	PIN; QUADRANT BOX	1-33529-106-0	01	1	0107-	●	●
570	PIN; SHIFT LEVER (A)	1-33529-110-0	02	1	0105-0106	●
570	PIN; SHIFT LEVER (A)	1-33529-110-0	02	1	0107-	●	●
570	PIN; SHIFT LEVER (B)	1-33529-111-0	01	1	0105-0106	●
570	PIN; SHIFT LEVER (B)	1-33529-111-0	01	1	0107-	●	●
571	ROLLER; LEVER	1-33549-324-0	01	1	0105-0106	●
571	ROLLER; LEVER	1-33549-324-0	01	1	0107-	●	●

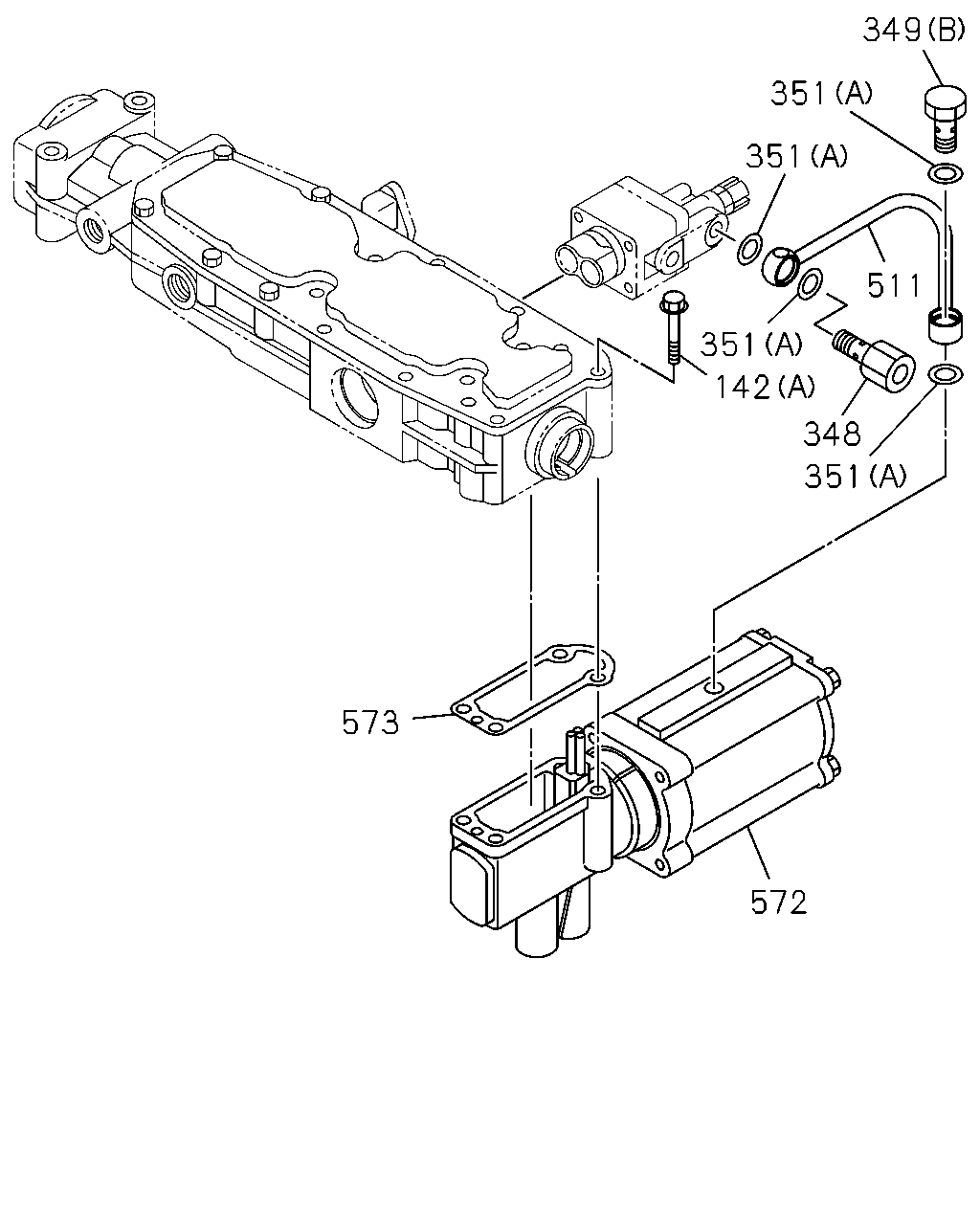

572 573 351 348 142 351 511 351 351 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
142	BOLT; QUAD BOX (B) M8X30	1-33549-172-0	09	1	0105-0106	●
142	BOLT; QUAD BOX (B) M8X30	1-33549-172-0	09	1	0107-	●	●
142	BOLT; QUAD BOX (A) M8X80	1-33549-256-0	14	1	0105-0106	●
142	BOLT; QUAD BOX (A) M8X80	1-33549-256-0	14	1	0107-	●	●
348	CONNECTOR; AIR HOSE	1-33549-333-0	01	1	0105-0106	●
348	CONNECTOR; AIR HOSE	1-33549-333-0	01	1	0107-	●	●
349	BOLT; EYE,AIR HOSE (B)	1-33549-144-0	01	1	0105-0106	●
349	BOLT; EYE,AIR HOSE (B)	1-33549-144-0	01	1	0107-	●	●
349	BOLT; EYE,AIR HOSE (A)	1-33549-155-0	04	1	0105-0106	●
349	BOLT; EYE,AIR HOSE (A)	1-33549-155-0	04	1	0107-	●	●
351	GASKET; CONNECTOR (B)	1-33549-184-0	08	1	0105-0106	●
351	GASKET; CONNECTOR (B)	1-33549-184-0	08	1	0107-	●	●
351	GASKET; CONNECTOR (A)	1-33549-307-0	04	1	0105-0106	●
351	GASKET; CONNECTOR (A)	1-33549-307-0	04	1	0107-	●	●
511	PIPE; AIR	1-33529-112-0	01	1	0105-0106	●
511	PIPE; AIR	1-33529-112-0	01	1	0107-	●	●
572	SERVO UNIT; GEAR SHIFT	1-33549-331-0	01	1	0105-0106	●
572	SERVO UNIT; GEAR SHIFT	1-33549-331-0	01	1	0107-	●	●
573	GASKET; SERVO UNIT	1-33549-332-0	01	1	0105-0106	●
573	GASKET; SERVO UNIT	1-33549-332-0	01	1	0107-	●	●

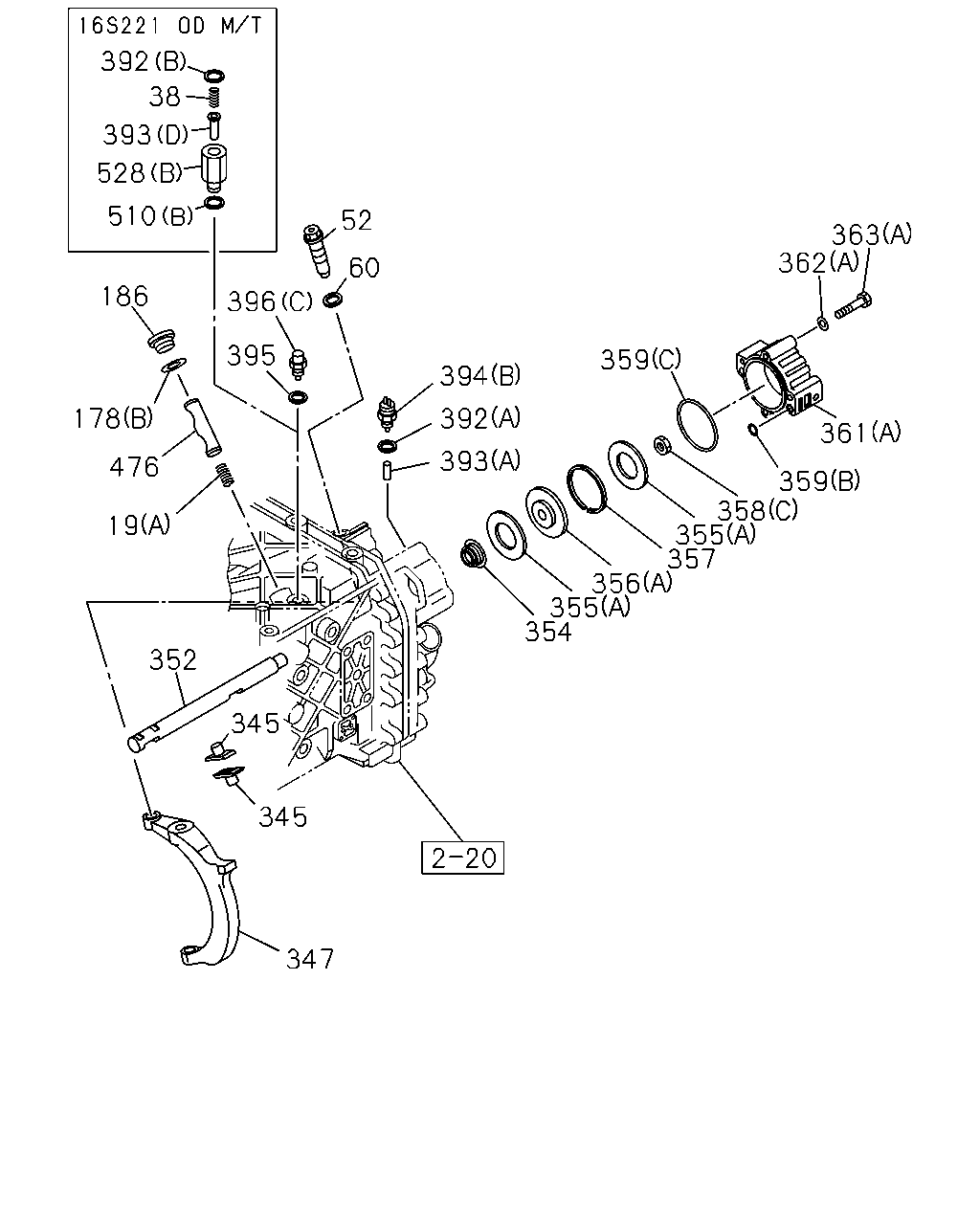

363 362 359 393 392 394 19 476 178 186 396 395 60 52 510 528 393 38 392 352 345 345 347 361 359 358 355 357 356 355 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP (A)	1-33519-014-0	01	1	0105-0106	●
19	SPRING; COIL COMP (A)	1-33519-014-0	01	1	0107-	●	●
19	SPRING; COIL COMP (B)	1-33539-028-0	01	1	0105-0106	●
19	SPRING; COIL COMP (B)	1-33539-028-0	01	1	0107-	●	●
19	SPRING; COIL COMP (C)	1-33539-030-0	01	1	0105-0106	●
19	SPRING; COIL COMP (C)	1-33539-030-0	01	1	0107-	●	●
19	SPRING; COIL COMP (D)	1-33549-189-0	02	1	0105-0106	●
19	SPRING; COIL COMP (D)	1-33549-189-0	02	1	0107-	●	●
38	SPRING; DETENT	1-33519-096-0	01	1	0107-		●
52	BOLT; SHIFT ARM	1-33519-058-0	02	1	0105-	●
52	BOLT; SHIFT ARM	1-33519-058-0	01	1	0107-		●
60	WASHER; LK	1-33519-059-0	02	1	0105-0106	●
60	WASHER; LK	1-33519-059-0	02	1	0107-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	01	1	0105-0106	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	01	1	0107-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-057-0	01	1	0105-0106	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-057-0	01	1	0107-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	0105-0106	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	0107-	●	●
186	PLUG; SHIFTER ROD	1-33519-056-0	01	1	0105-0106	●
186	PLUG; SHIFTER ROD	1-33519-056-0	01	1	0107-	●	●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-037-0	02	1	0105-0106	●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-037-0	02	1	0107-	●	●
347	ARM; SHIFT,RANGE CHANGE	1-33511-566-0	01	1	0105-0106	●
347	ARM; SHIFT,RANGE CHANGE	1-33511-566-0	01	1	0107-	●	●
352	ROD; SHIFT,RANGE CHANGE	1-33511-524-0	01	1	0105-	●
352	ROD; SHIFT,RANGE CHANGE	1-33511-507-0	01	1	0107-		●
354	SEAL; AIR CYL	1-33519-068-0	02	1	0105-0106	●
354	SEAL; AIR CYL	1-33519-068-0	02	1	0107-	●	●
355	CUP; PISTON,AIR CYL (B)	1-33519-070-0	01	1	0105-0106	●
355	CUP; PISTON,AIR CYL (B)	1-33519-070-0	01	1	0107-	●	●
355	CUP; PISTON,AIR CYL (A)	1-33519-119-0	02	1	0105-0106	●
355	CUP; PISTON,AIR CYL (A)	1-33519-119-0	02	1	0107-	●	●
356	PISTON; AIR CYL (A)	1-33519-060-0	01	1	0105-0106	●
356	PISTON; AIR CYL (A)	1-33519-060-0	01	1	0107-	●	●
356	PISTON; AIR CYL (B)	1-33519-069-0	01	1	0105-0106	●
356	PISTON; AIR CYL (B)	1-33519-069-0	01	1	0107-	●	●
357	RING; GUIDE,AIR CYL	1-33519-032-0	01	1	0105-0106	●
357	RING; GUIDE,AIR CYL	1-33519-032-0	01	1	0107-	●	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	0105-0106	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	0107-	●	●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	0105-0106	●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	0107-	●	●
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	0105-0106	●
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	0107-	●	●
359	GASKET; AIR CYL (A)	1-09623-606-0	01	1	0105-0106	●
359	GASKET; AIR CYL (A)	1-09623-606-0	01	1	0107-	●	●
359	GASKET; AIR CYL (B)	1-33519-034-0	02	1	0105-0106	●
359	GASKET; AIR CYL (B)	1-33519-034-0	02	1	0107-	●	●
359	GASKET; AIR CYL (D)	1-33519-072-0	01	1	0105-0106	●
359	GASKET; AIR CYL (D)	1-33519-072-0	01	1	0107-	●	●
359	GASKET; AIR CYL (C)	1-33519-121-0	01	1	0105-0106	●
359	GASKET; AIR CYL (C)	1-33519-121-0	01	1	0107-	●	●
361	CYLINDER; AIR,SHIFT (B)	1-33519-117-0	01	1	0105-	●
361	CYLINDER; AIR,SHIFT (A)	1-33519-140-0	01	1	0105-0106	●
361	CYLINDER; AIR,SHIFT (A)	1-33519-140-0	01	1	0107-	●	●
361	CYLINDER; AIR,SHIFT (B)	1-33519-126-0	01	1	0107-		●
362	WASHER; AIR CYL (A)	1-09469-010-0	04	1	0105-0106	●
362	WASHER; AIR CYL (A)	1-09469-010-0	04	1	0107-	●	●
362	WASHER; AIR CYL (B)	1-33519-076-0	02	1	0105-0106	●
362	WASHER; AIR CYL (B)	1-33519-076-0	02	1	0107-	●	●
363	BOLT; AIR CYL (A)	1-33519-064-0	04	1	0105-0106	●
363	BOLT; AIR CYL (A)	1-33519-064-0	04	1	0107-	●	●
363	BOLT; AIR CYL (B)	1-33519-128-0	02	1	0105-0106	●
363	BOLT; AIR CYL (B)	1-33519-128-0	02	1	0107-	●	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	04	1	0105-0106	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	04	1	0107-	●	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-097-0	01	1	0107-		●
393	PIN; SW (A)	1-33519-029-0	02	1	0105-0106	●
393	PIN; SW (A)	1-33519-029-0	02	1	0107-	●	●
393	PIN; SW (B)	1-33519-077-0	01	1	0105-0106	●
393	PIN; SW (B)	1-33519-077-0	01	1	0107-	●	●
393	PIN; SW (C)	1-33549-335-0	01	1	0105-0106	●
393	PIN; SW (C)	1-33549-335-0	01	1	0107-	●	●
393	PIN; SW (D)	1-33519-098-0	01	1	0107-		●
394	SWITCH; RANGE CHANGE (A)	1-82440-080-1	01	1	0105-0106	●
394	SWITCH; RANGE CHANGE (A)	1-82440-080-1	01	1	0107-	●	●
394	SWITCH; RANGE CHANGE (B)	1-82440-095-0	01	1	0105-	●
394	SWITCH; RANGE CHANGE (B)	1-82440-095-0	02	1	0107-		●
395	GASKET; PLUNGER	1-33549-167-0	02	1	0105-	●
395	GASKET; PLUNGER	1-33549-167-0	01	1	0107-		●
396	PLUNGER; SHIFT ROD (C)	1-33519-073-0	01	1	0105-	●
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	0105-0106	●
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	0107-	●	●
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	0105-0106	●
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	0107-	●	●
476	PIN; SHIFT ROD	1-33519-040-0	01	1	0105-0106	●
476	PIN; SHIFT ROD	1-33519-040-0	01	1	0107-	●	●
510	GASKET; ADAPTER (A) T=2.0	1-82449-010-0	01	1	0105-0106	●
510	GASKET; ADAPTER (A) T=2.0	1-82449-010-0	01	1	0107-	●	●
510	GASKET; ADAPTER (B) T=2.20	1-33529-074-0	01	1	0107-		●
528	ADAPTER; SWITCH (A)	1-33119-278-0	01	1	0105-0106	●
528	ADAPTER; SWITCH (A)	1-33119-278-0	01	1	0107-	●	●
528	ADAPTER; SWITCH (B)	1-33519-099-0	01	1	0107-		●

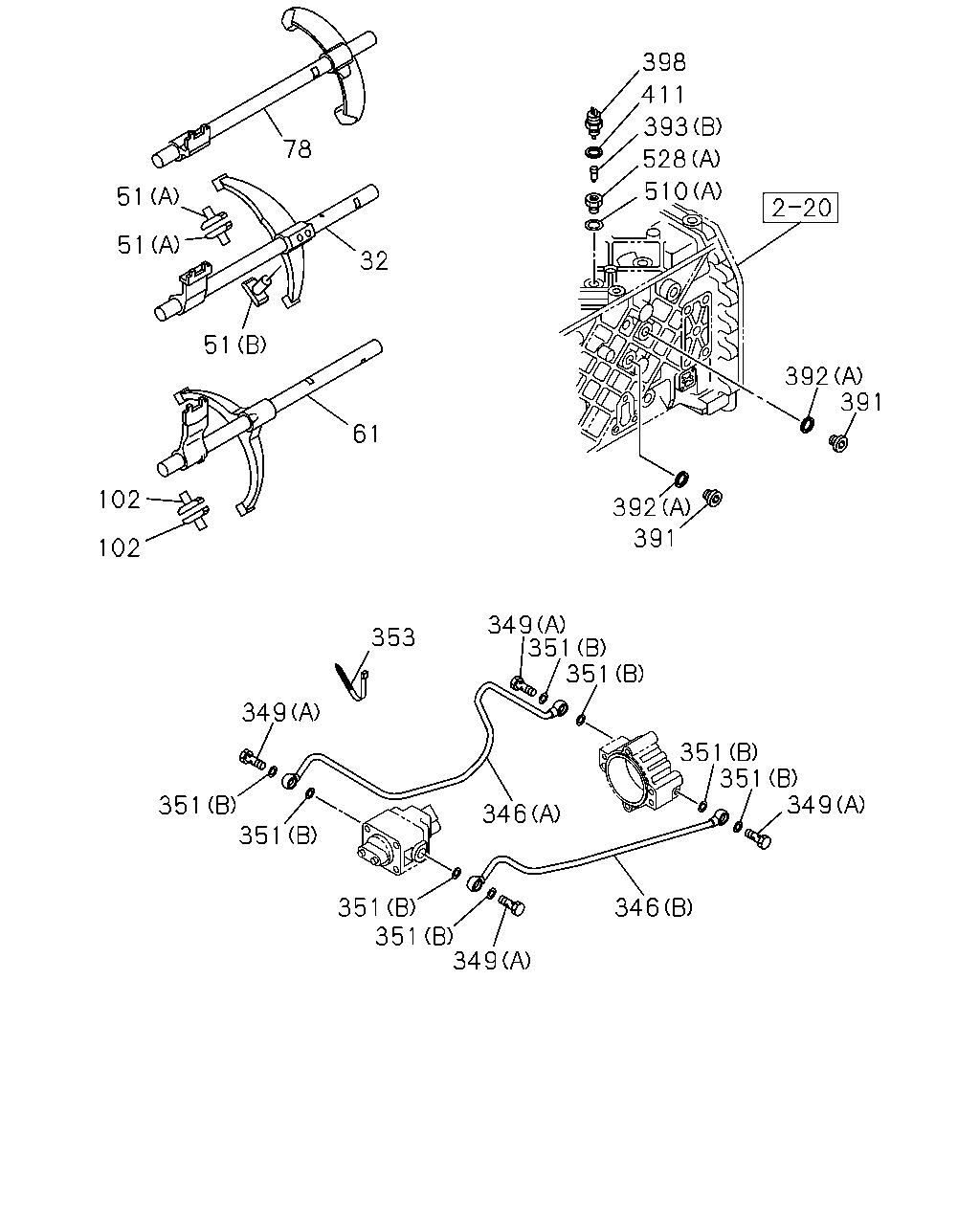

32 78 61 51 102 102 51 51 391 392 391 392 349 351 351 346 346 349 351 351 351 351 349 353 351 351 349 510 528 393 411 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	ARM; SHIFT,1ST & 2ND	1-33511-565-0	01	1	0105-	●
32	ARM; SHIFT,1ST & 2ND	1-33519-127-0	01	1	0107-		●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33519-053-0	02	1	0105-0106	●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33519-053-0	02	1	0107-	●	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33519-116-0	01	1	0105-0106	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33519-116-0	01	1	0107-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-522-0	01	1	0105-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-510-0	01	1	0107-		●
78	ARM; SHIFT,REV	1-33511-523-0	01	1	0105-	●
78	ARM; SHIFT,REV	1-33511-511-0	01	1	0107-		●
102	BLOCK; SHIFT,3RD & 4TH	1-33519-053-0	02	1	0105-0106	●
102	BLOCK; SHIFT,3RD & 4TH	1-33519-053-0	02	1	0107-	●	●
346	HOSE; AIR (A)	1-33549-336-0	01	1	0105-	●
346	HOSE; AIR (B)	1-33549-337-0	01	1	0105-	●
346	HOSE; AIR (A)	1-33549-182-0	01	1	0107-		●
346	HOSE; AIR (B)	1-33549-183-0	01	1	0107-		●
349	BOLT; EYE,AIR HOSE (B)	1-33549-144-0	01	1	0105-0106	●
349	BOLT; EYE,AIR HOSE (B)	1-33549-144-0	01	1	0107-	●	●
349	BOLT; EYE,AIR HOSE (A)	1-33549-155-0	04	1	0105-0106	●
349	BOLT; EYE,AIR HOSE (A)	1-33549-155-0	04	1	0107-	●	●
351	GASKET; CONNECTOR (B)	1-33549-184-0	08	1	0105-0106	●
351	GASKET; CONNECTOR (B)	1-33549-184-0	08	1	0107-	●	●
351	GASKET; CONNECTOR (A)	1-33549-307-0	04	1	0105-0106	●
351	GASKET; CONNECTOR (A)	1-33549-307-0	04	1	0107-	●	●
353	CLIP; AIR HOSE	1-33549-142-0	01	1	0105-0106	●
353	CLIP; AIR HOSE	1-33549-142-0	01	1	0107-	●	●
391	PLUG; SW HOLE	1-33119-171-0	02	1	0105-0106	●
391	PLUG; SW HOLE	1-33119-171-0	02	1	0107-	●	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	04	1	0105-0106	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	04	1	0107-	●	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-097-0	01	1	0107-		●
393	PIN; SW (A)	1-33519-029-0	02	1	0105-0106	●
393	PIN; SW (A)	1-33519-029-0	02	1	0107-	●	●
393	PIN; SW (B)	1-33519-077-0	01	1	0105-0106	●
393	PIN; SW (B)	1-33519-077-0	01	1	0107-	●	●
393	PIN; SW (C)	1-33549-335-0	01	1	0105-0106	●
393	PIN; SW (C)	1-33549-335-0	01	1	0107-	●	●
393	PIN; SW (D)	1-33519-098-0	01	1	0107-		●
398	SWITCH; REV LAMP	1-82440-095-0	01	1	0105-0106	●
398	SWITCH; REV LAMP	1-82440-095-0	01	1	0107-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). T=2.0	1-82449-010-0	01	1	0105-0106	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). T=2.0	1-82449-010-0	01	1	0107-	●	●
510	GASKET; ADAPTER (A) T=2.0	1-82449-010-0	01	1	0105-0106	●
510	GASKET; ADAPTER (A) T=2.0	1-82449-010-0	01	1	0107-	●	●
510	GASKET; ADAPTER (B) T=2.20	1-33529-074-0	01	1	0107-		●
528	ADAPTER; SWITCH (A)	1-33119-278-0	01	1	0105-0106	●
528	ADAPTER; SWITCH (A)	1-33119-278-0	01	1	0107-	●	●
528	ADAPTER; SWITCH (B)	1-33519-099-0	01	1	0107-		●

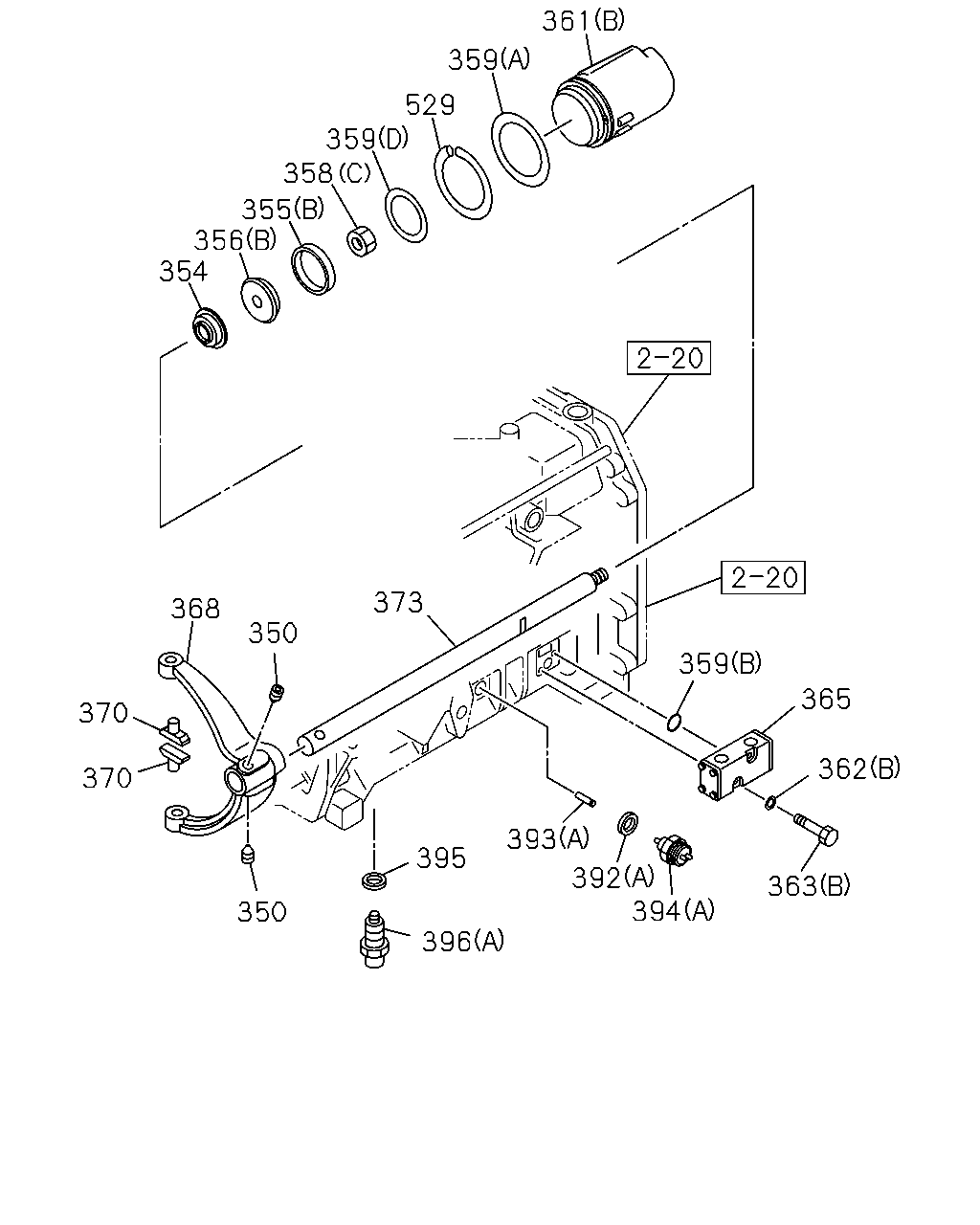

365 362 363 394 392 393 395 396 350 370 370 368 350 373 359 361 359 529 359 358 355 356 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
350	SCREW; SHIFT ARM	1-33519-065-0	02	1	0105-0106	●
350	SCREW; SHIFT ARM	1-33519-065-0	02	1	0107-	●	●
354	SEAL; AIR CYL	1-33519-068-0	02	1	0105-0106	●
354	SEAL; AIR CYL	1-33519-068-0	02	1	0107-	●	●
355	CUP; PISTON,AIR CYL (B)	1-33519-070-0	01	1	0105-0106	●
355	CUP; PISTON,AIR CYL (B)	1-33519-070-0	01	1	0107-	●	●
355	CUP; PISTON,AIR CYL (A)	1-33519-119-0	02	1	0105-0106	●
355	CUP; PISTON,AIR CYL (A)	1-33519-119-0	02	1	0107-	●	●
356	PISTON; AIR CYL (A)	1-33519-060-0	01	1	0105-0106	●
356	PISTON; AIR CYL (A)	1-33519-060-0	01	1	0107-	●	●
356	PISTON; AIR CYL (B)	1-33519-069-0	01	1	0105-0106	●
356	PISTON; AIR CYL (B)	1-33519-069-0	01	1	0107-	●	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	0105-0106	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	0107-	●	●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	0105-0106	●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	0107-	●	●
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	0105-0106	●
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	0107-	●	●
359	GASKET; AIR CYL (A)	1-09623-606-0	01	1	0105-0106	●
359	GASKET; AIR CYL (A)	1-09623-606-0	01	1	0107-	●	●
359	GASKET; AIR CYL (B)	1-33519-034-0	02	1	0105-0106	●
359	GASKET; AIR CYL (B)	1-33519-034-0	02	1	0107-	●	●
359	GASKET; AIR CYL (D)	1-33519-072-0	01	1	0105-0106	●
359	GASKET; AIR CYL (D)	1-33519-072-0	01	1	0107-	●	●
359	GASKET; AIR CYL (C)	1-33519-121-0	01	1	0105-0106	●
359	GASKET; AIR CYL (C)	1-33519-121-0	01	1	0107-	●	●
361	CYLINDER; AIR,SHIFT (B)	1-33519-117-0	01	1	0105-	●
361	CYLINDER; AIR,SHIFT (A)	1-33519-140-0	01	1	0105-0106	●
361	CYLINDER; AIR,SHIFT (A)	1-33519-140-0	01	1	0107-	●	●
361	CYLINDER; AIR,SHIFT (B)	1-33519-126-0	01	1	0107-		●
362	WASHER; AIR CYL (A)	1-09469-010-0	04	1	0105-0106	●
362	WASHER; AIR CYL (A)	1-09469-010-0	04	1	0107-	●	●
362	WASHER; AIR CYL (B)	1-33519-076-0	02	1	0105-0106	●
362	WASHER; AIR CYL (B)	1-33519-076-0	02	1	0107-	●	●
363	BOLT; AIR CYL (A)	1-33519-064-0	04	1	0105-0106	●
363	BOLT; AIR CYL (A)	1-33519-064-0	04	1	0107-	●	●
363	BOLT; AIR CYL (B)	1-33519-128-0	02	1	0105-0106	●
363	BOLT; AIR CYL (B)	1-33519-128-0	02	1	0107-	●	●
365	VALVE; AIR CYL	1-33519-074-0	01	1	0105-0106	●
365	VALVE; AIR CYL	1-33519-074-0	01	1	0107-0109	●	●
365	VALVE; AIR CYL	1-33519-136-0	01	1	0110-	●	●
368	ARM; SHIFT,SPLITTER GEAR	1-33511-508-0	01	1	0105-0106	●
368	ARM; SHIFT,SPLITTER GEAR	1-33511-508-0	01	1	0107-	●	●
370	BLOCK; SHIFT,SPLITTER GEAR	1-33519-053-0	02	1	0105-0106	●
370	BLOCK; SHIFT,SPLITTER GEAR	1-33519-053-0	02	1	0107-	●	●
373	ROD; SHIFT,SPLITTER GEAR	1-33531-450-0	01	1	0105-	●
373	ROD; SHIFT,SPLITTER GEAR	1-33519-129-0	01	1	0107-		●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	04	1	0105-0106	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	04	1	0107-	●	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-097-0	01	1	0107-		●
393	PIN; SW (A)	1-33519-029-0	02	1	0105-0106	●
393	PIN; SW (A)	1-33519-029-0	02	1	0107-	●	●
393	PIN; SW (B)	1-33519-077-0	01	1	0105-0106	●
393	PIN; SW (B)	1-33519-077-0	01	1	0107-	●	●
393	PIN; SW (C)	1-33549-335-0	01	1	0105-0106	●
393	PIN; SW (C)	1-33549-335-0	01	1	0107-	●	●
393	PIN; SW (D)	1-33519-098-0	01	1	0107-		●
394	SWITCH; RANGE CHANGE (A)	1-82440-080-1	01	1	0105-0106	●
394	SWITCH; RANGE CHANGE (A)	1-82440-080-1	01	1	0107-	●	●
394	SWITCH; RANGE CHANGE (B)	1-82440-095-0	01	1	0105-	●
394	SWITCH; RANGE CHANGE (B)	1-82440-095-0	02	1	0107-		●
395	GASKET; PLUNGER	1-33549-167-0	02	1	0105-	●
395	GASKET; PLUNGER	1-33549-167-0	01	1	0107-		●
396	PLUNGER; SHIFT ROD (C)	1-33519-073-0	01	1	0105-	●
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	0105-0106	●
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	0107-	●	●
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	0105-0106	●
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	0107-	●	●
529	SPRING; AIR CYL	1-33519-078-0	01	1	0105-0106	●
529	SPRING; AIR CYL	1-33519-078-0	01	1	0107-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
