◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10882 - CXH RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25C - SPEEDOMETER DRIVEN GEAR ▶
2-25C — SPEEDOMETER DRIVEN GEAR (#27591) — 9 parça

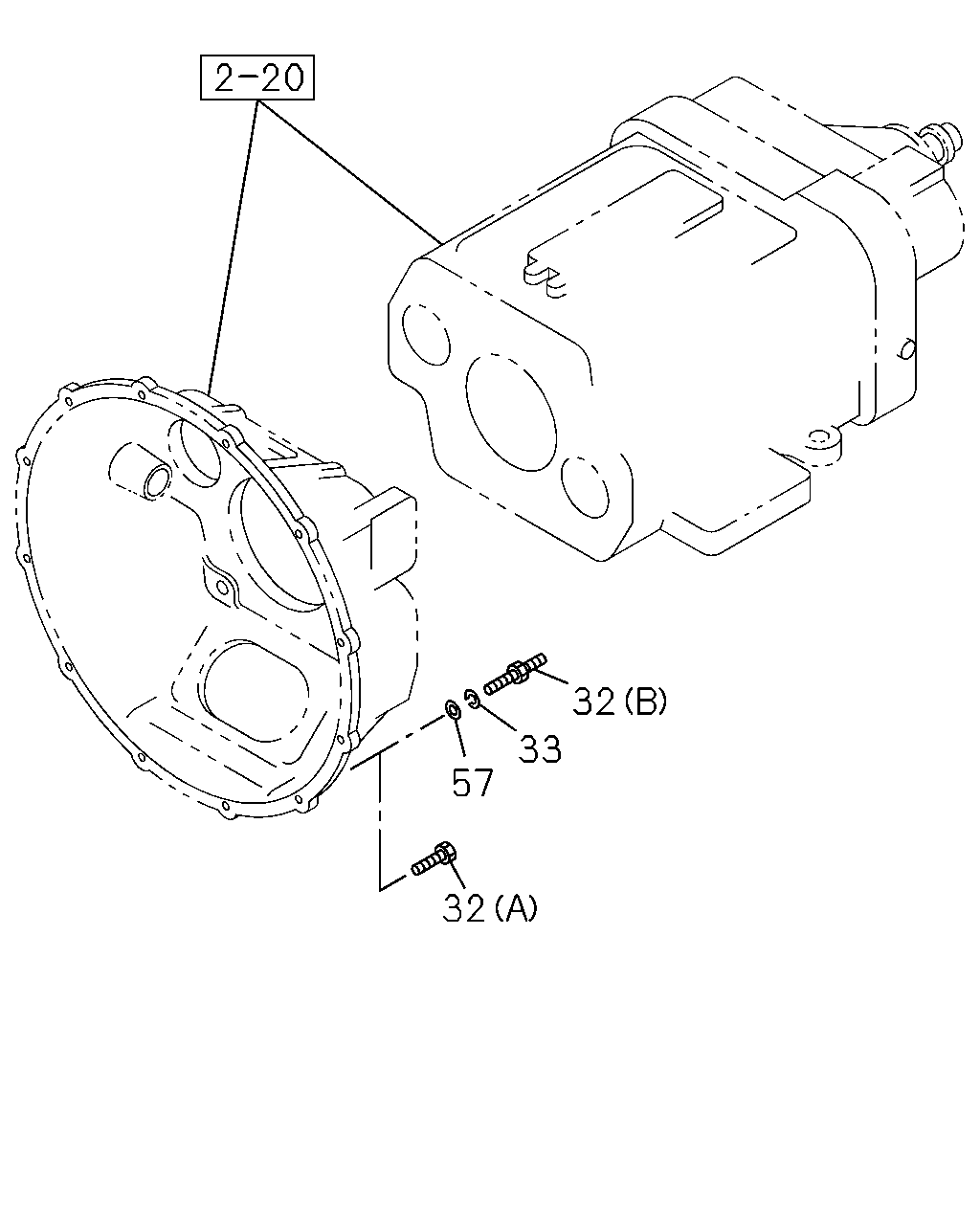

çizim 21928
32 33 57 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28781-235-0 08 1 0105-0106 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28781-235-0 08 1 0107-0311 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28781-235-0 08 1 0312-0512 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28751-235-0 08 1 0601- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X40 FLANGE 		0-28181-240-0 03 1 0105- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X35 L=59 		1-09029-031-1 01 1 0105- ● ● ● ●
33 WASHER; LK,CLU HSG
ID=12.2 		9-09150-612-0 01 1 0105-0603 ● ● ● ●
33 WASHER; LK,CLU HSG
ID=12.2 		0-91510-612-0 01 1 0604- ● ● ● ●
57 WASHER; PL,CLU HSG
ID=12.5 		9-09164-512-0 01 1 0105- ● ● ● ●
