0-38A — AIR COMPRESSOR PIPING; ENGINE SIDE (#2759) — 115 parça

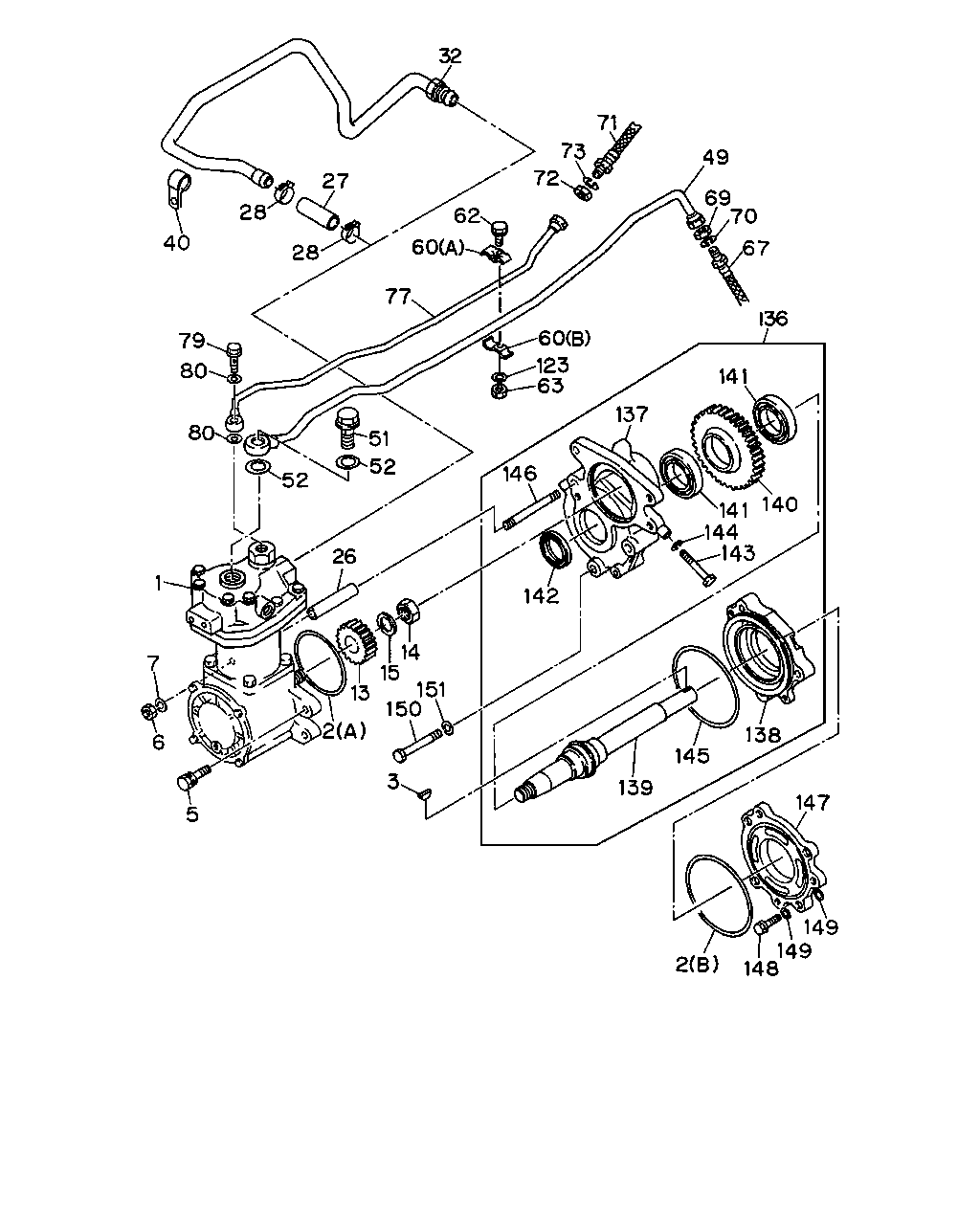

32 27 28 40 28 60 62 72 73 71 49 69 70 67 136 77 79 60 123 63 137 14 140 141 144 143 146 142 51 52 52 80 80 1 26 14 15 13 151 150 2 5 6 7 3 139 145 138 147 149 149 148 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-218-6	01	1	9002-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-232-5	01	1	9002-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=105.6	1-09623-247-0	01	1	9002-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=124.6	1-09623-468-0	02	1	9002-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=124.6	1-09623-468-0	01	1	9002-
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-516-0	01	1	9002-
3	KEY; COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	9002-
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M12X45	9-01991-245-0	03	1	9002-9005
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M12X45	0-50151-245-0	03	1	9006-
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X143	1-09044-025-2	04	1	9002-
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M12	9-99110-512-0	01	1	9002-
7	WASHER; LK,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=12.2	9-09150-512-0	01	1	9002-
13	GEAR; AIR CMPR DRIVE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19372-007-0	01	1	9002-
14	NUT; GEAR AIR COMPRESSOR HEAVY DUTY(E1Q) M20	9-99111-520-0	01	1	9002-
15	WASHER; GEAR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=21	9-09164-520-0	01	1	9002-
26	COLLAR; DIST,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19189-003-1	01	1	9002-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. TROPICAL ZONE KIT(WB6) L=65	9-09919-309-0	01	1	9002-
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),TROPICAL ZONE KIT(WB6)	9-09919-309-0	02	1	9002-
27	HOSE; AIR CMPR,SUCTION TROPICAL ZONE KIT(WB6)	1-09360-627-0	02	1	9002-
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=26	1-09707-091-0	02	1	9002-
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=26	1-09707-091-0	04	1	9002-
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-300-0	01	1	9002-
40	CLIP; AIR PIPE ID=19 L=28	9-09525-856-0	01	1	9002-
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-296-0	01	1	9002-9212
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-725-0	01	1	9301-
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19191-321-0	01	1	9002-
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19191-992-0	02	1	9002-9006
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19191-992-0	01	1	9007-9212
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19192-724-0	01	1	9301-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9002-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9002-9306
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	04	1	9307-
60	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9002-
60	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) (A) WO/NUT	1-09700-547-0	06	1	9002-
60	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) WO/NUT	1-09700-547-0	08	1	9002-
62	BOLT; CLIP M6X30	9-01910-630-0	01	1	9002-9005
62	BOLT; CLIP M6X30 W/LK WASHER	0-50040-630-0	01	1	9006-
63	NUT; CLIP M6	9-09110-406-0	03	1	9002-
67	HOSE; FLEX,AIR CHARGE L=560	0-07806-560-1	01	1	9002-
69	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9002-
70	WASHER; LK ID=20.2	9-09150-520-0	01	1	9002-
71	HOSE; FLEX,AIR GOV L=450	0-07120-450-0	01	1	9002-
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-298-0	01	1	9002-
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-993-0	01	1	9002-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9002-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-
123	WASHER; LK,CLIP ID=6.1	9-09150-506-0	01	1	9002-
136	BOX ASM; GEAR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19371-020-0	01	1	9002-
137	BODY; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19371-010-0	01	1	9002-
138	BODY; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19371-011-0	01	1	9002-
139	SHAFT; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19373-001-2	01	1	9002-
140	GEAR; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19372-008-0	01	1	9002-
141	BEARING; BALL,GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	9-00090-071-0	02	1	9002-
142	SEAL; OIL,GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-347-0	01	1	9002-
143	BOLT; BODY AIR COMPRESSOR HEAVY DUTY(E1Q) M8X60	9-01055-860-0	02	1	9002-9005
143	BOLT; BODY AIR COMPRESSOR HEAVY DUTY(E1Q) M8X60	0-10805-860-0	02	1	9006-
144	WASHER; LK,BODY AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.2	9-09150-508-0	02	1	9002-
145	GASKET; BODY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-472-0	01	1	9002-
146	STUD; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09302-097-1	01	1	9002-
147	SPACER; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19371-009-0	01	1	9002-
148	BOLT; SPACER AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94257-289-0	04	1	9002-
149	GASKET; SPACER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=11	1-09623-469-0	08	1	9002-
150	BOLT; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q) M12X85	9-01666-285-0	03	1	9002-
150	BOLT; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q) M12X35	9-02361-235-0	02	1	9002-
151	WASHER; PL,GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q) ID=12.2	1-09503-008-0	05	1	9002-

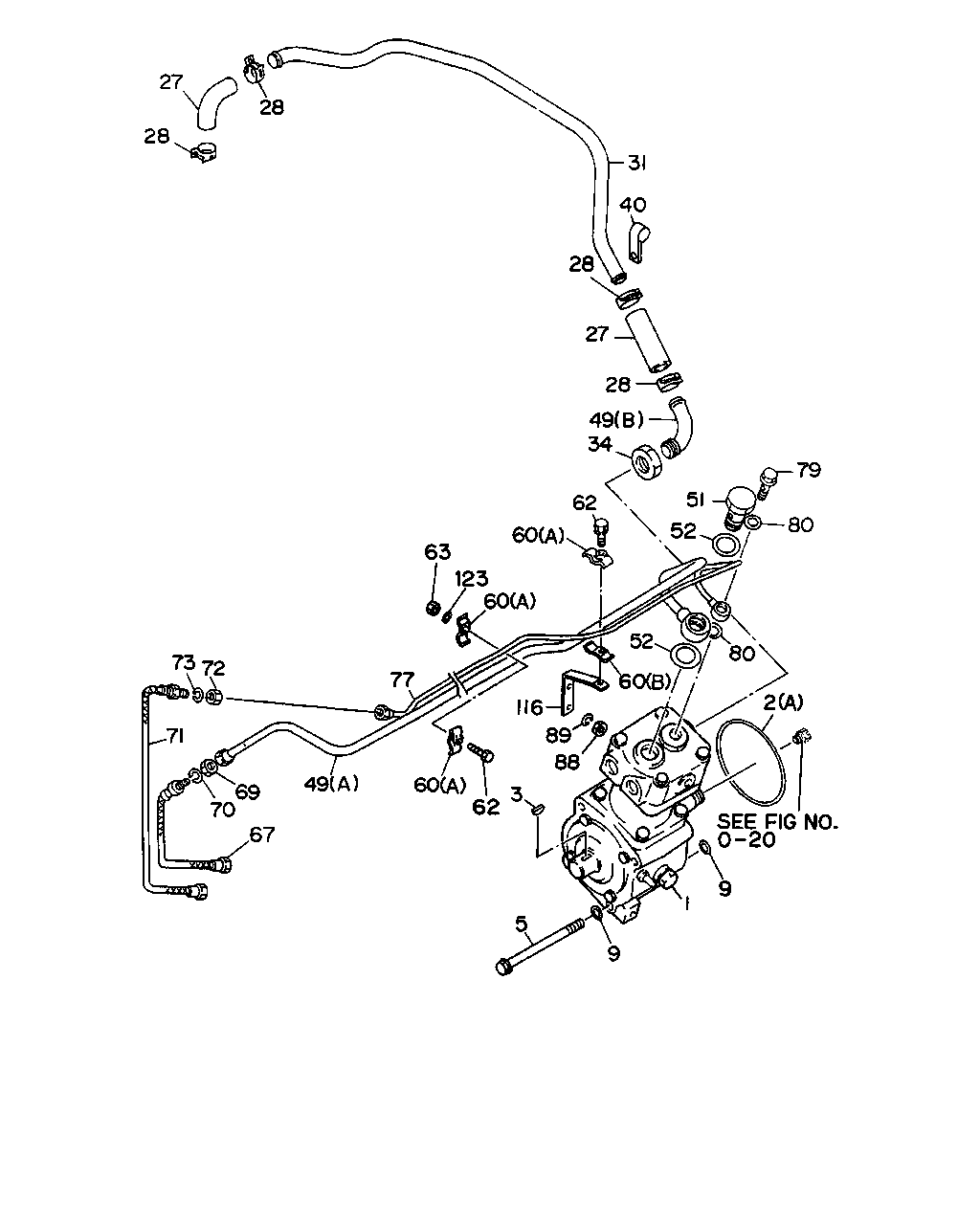

28 27 28 31 40 28 27 28 49 34 79 51 80 52 62 60 63 123 60 77 72 73 71 70 69 67 49 60 62 3 5 9 1 9 88 89 116 2 60 80 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-218-6	01	1	9002-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-232-5	01	1	9002-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=105.6	1-09623-247-0	01	1	9002-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=124.6	1-09623-468-0	02	1	9002-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=124.6	1-09623-468-0	01	1	9002-
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-516-0	01	1	9002-
3	KEY; COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	9002-
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M12X45	9-01991-245-0	03	1	9002-9005
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M12X45	0-50151-245-0	03	1	9006-
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X143	1-09044-025-2	04	1	9002-
9	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=11	1-09623-469-0	08	1	9002-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. TROPICAL ZONE KIT(WB6) L=65	9-09919-309-0	01	1	9002-
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),TROPICAL ZONE KIT(WB6)	9-09919-309-0	02	1	9002-
27	HOSE; AIR CMPR,SUCTION TROPICAL ZONE KIT(WB6)	1-09360-627-0	02	1	9002-
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=26	1-09707-091-0	02	1	9002-
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=26	1-09707-091-0	04	1	9002-
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-765-0	01	1	9002-
34	NUT; LK SUCTION PIPE	9-09840-254-0	01	1	9002-
40	CLIP; AIR PIPE ID=19 L=28	9-09525-856-0	01	1	9002-
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-296-0	01	1	9002-9212
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-725-0	01	1	9301-
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19191-321-0	01	1	9002-
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19191-992-0	02	1	9002-9006
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19191-992-0	01	1	9007-9212
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19192-724-0	01	1	9301-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9002-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9002-9306
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	04	1	9307-
60	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9002-
60	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) (A) WO/NUT	1-09700-547-0	06	1	9002-
60	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) WO/NUT	1-09700-547-0	08	1	9002-
62	BOLT; CLIP M6X30	9-01910-630-0	01	1	9002-9005
62	BOLT; CLIP M6X30 W/LK WASHER	0-50040-630-0	01	1	9006-
63	NUT; CLIP M6	9-09110-406-0	03	1	9002-
67	HOSE; FLEX,AIR CHARGE L=560	0-07806-560-1	01	1	9002-
69	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9002-
70	WASHER; LK ID=20.2	9-09150-520-0	01	1	9002-
71	HOSE; FLEX,AIR GOV L=450	0-07120-450-0	01	1	9002-
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-298-0	01	1	9002-
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-993-0	01	1	9002-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9002-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-
88	NUT; BRKT FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10	9-09110-410-0	02	1	9002-
89	WASHER; LK,BRKT FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-510-0	02	1	9002-
116	BRACKET; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19199-112-0	01	1	9002-
123	WASHER; LK,CLIP ID=6.1	9-09150-506-0	01	1	9002-
